Shimge 50WQ(D)0.75-4P(F) Submersible Sewage Pump with floating switch
TECHNICAL DATA
115 Volts /60Hz
Model; 50WQD0.75-4P(F)
Power: 0.75Kw – 1.0Hp
Current: 11 Amps
Max. Flow: 136 gallon per minute / 31 m3/hr
Max. Head: 34 feet / 10.5 meter
Discharge: NPT2″
Power Cable: 3×1-26′ (26 feet long cable)
Dimensions: 12×8.5×22 inches (LxWxH)
Weight: 70 Lb

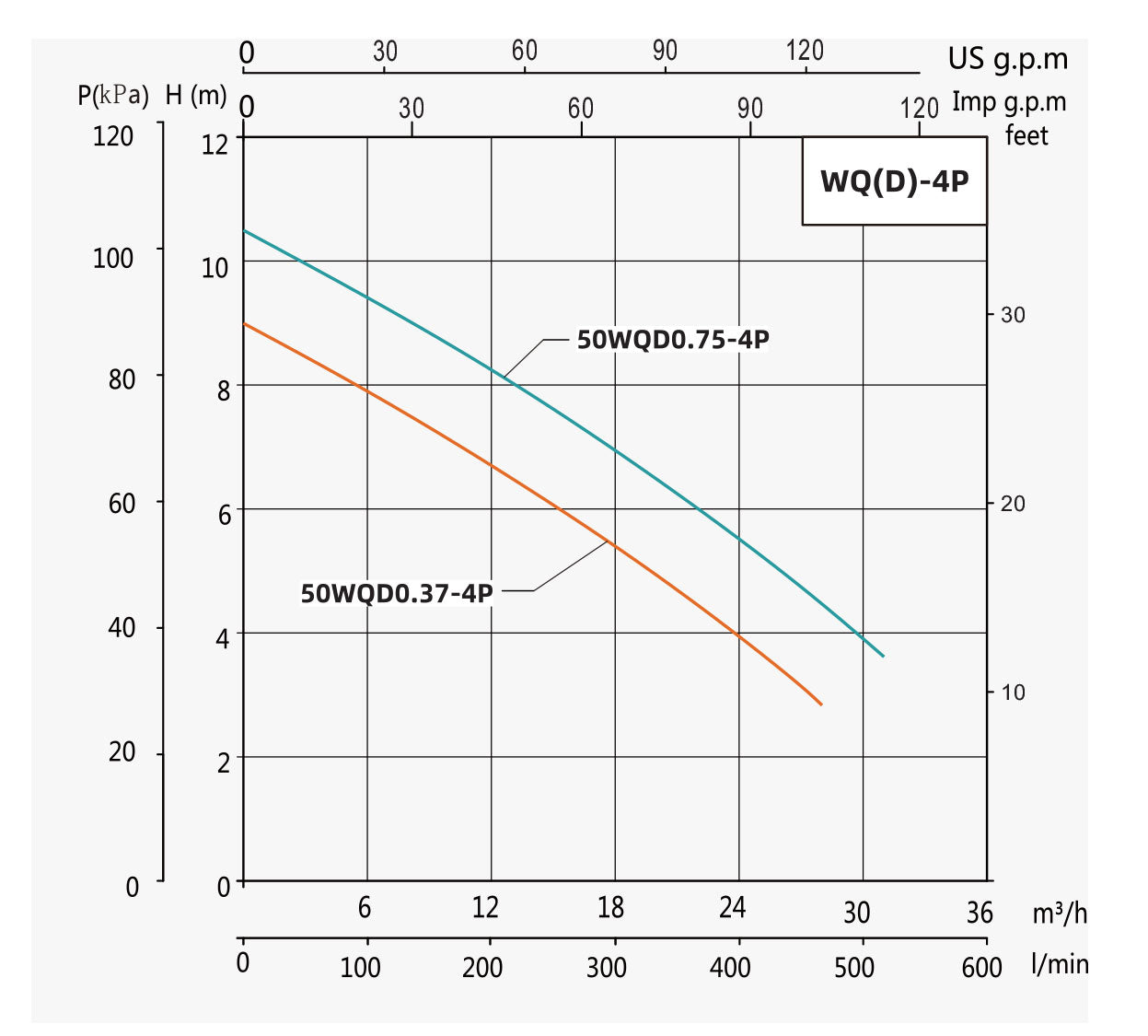

To determine the volume of fluid a pump can transfer at different pressure levels (head), consult the performance curve for the appropriate pump model.
APPLICATION LIMITS
The temperature of the medium shall not exceed +105°F
The PH value of the medium shall be 4-10
The maximum density of the medium shall be 1.2 x 1000Kg/m3
The submersion depth shall be no less than 1.6 feet and no more than 16.4 feet
Can not be used where explosion proof is required or to treat any explosive or flammable liquids like oil, gasoline, kerosene or ethyl alcohol
APPLICATIONS
Widely applied to the industry, hotels, hospitals, construction, municipal services, environmental protections and other sectors
50WQD can be used to process sewage, waste water and flood containing debris smaller than 1.5 inches
Can be used to pump liquids containing solid particles such as fiber, scrapped paper, soft solid objects, like muddy water, dirty water, domestic wastewater, sewage and slurry. Can be used on site construction to drain sewage and flood
-
Heavy-duty submersible sewage pump, designed for the most demanding applications. Capable of moving up to 136 gallons per minute and lifting water up to 34 feet. Can be used to handle wastewater and floods containing debris up to 1.5 inches.
To determine the volume of fluid a pump can transfer at different pressure levels (head), consult the performance curve for the appropriate pump model.
- Easy to use with no complicated installation required. Equipped with 2” NPT discharge, it efficiently moves liquids containing soft solid objects. Each pump includes a 26 foot long power cable and a sturdy handle for easy portability.
- Designed for continuous operation, thermally protected against over-loads. The rotor spindle of the electric motor is made of steel 45 and stainless steel 304, ensuring reliable mechanical strength and effectively improving resistance against abrasion and corrosion. Additionally, it facilitates the removal of the impeller for repair.
- Our 50WQD & 80WQD sump pumps are highly durable and reliable, supported by the trusted SHIMGE brand with over 40 years of industry experience and an excellent worldwide reputation. Shimge takes water pumps quality control one of the most crucial factors of the production process, Following the standards for water pumps, we’ve established a rigorous 25-step quality inspection process.
