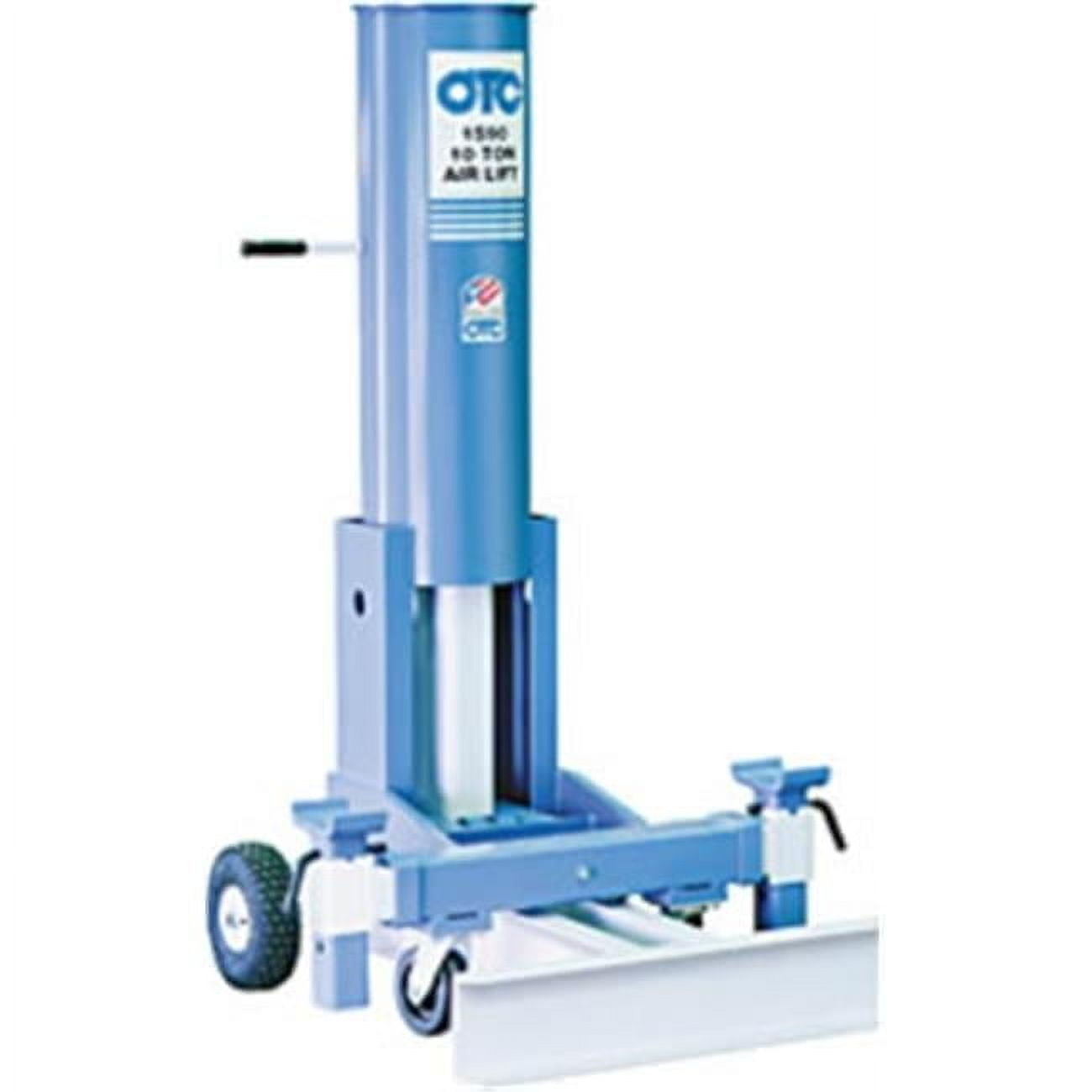

With a lifting capacity of 10 tons at 200 PSI air supply, the 10-Ton Air Lift for Trucks & Trailers is perfect for heavy-duty lifting needs. Its extra wide stance provides extra stability, and complete air operation ensures low maintenance and long life. The lift is easy to use – just roll it under the load, adjust the lifting saddles, connect an air line, and squeeze. An automatic mechanical safety catch engages in five height positions, and must be manually released to lower the load. The lift features two large swivel casters and pneumatic tires for easy mobility, even over loose gravel. The height and width between the lifting saddles are adjustable, and the heavy-duty piston features a wear ring and seal for long life.
Specifications
- Capacity: 10 tons (at 200 PSI air)
- Air pressure: 100-200 PSI
- Lifting range: 13″ – 52″
- Saddle width: 29″ – 41 3/4″
- Height: 67 1/2″
- Width: 41″
- Length: 36″
- Weight: 697 lbs.
Features
- Extra wide stance for stability
- Complete air operation for low maintenance and long life
- Automatic mechanical safety catch engages in five height positions
- Two large swivel casters and pneumatic tires for easy mobility
- Adjustable height and width between lifting saddles
- Heavy-duty piston with wear ring and seal for long life
– SKU: ZX9WTD555810-Ton Air Lift for Trucks & Trailers
