Specification
Color: White
Style: Vertical
Type: Water Storage
Shell Material: ABS
Inner Liner Material: 304 Stainless Steel
Heating Tube Material: 316 Stainless Steel
Water Inlet Mode: Top Water Inlet
Plug Voltage: U.S. Plug 110V
Rated Volume: 8L/ 2.5Gal
Rated Power: 1500W
Rated Water Pressure: 0.75Mpa
Applicable Water Pressure: 0.05-0.6MPa
Rated Current: 6.8A
Waterproof Level: IPX4
Energy Efficiency Level: 3
Heating Time: 8-15 minutes (According to the Different Water Temperature Around)
Maximum Temperature: 65℃

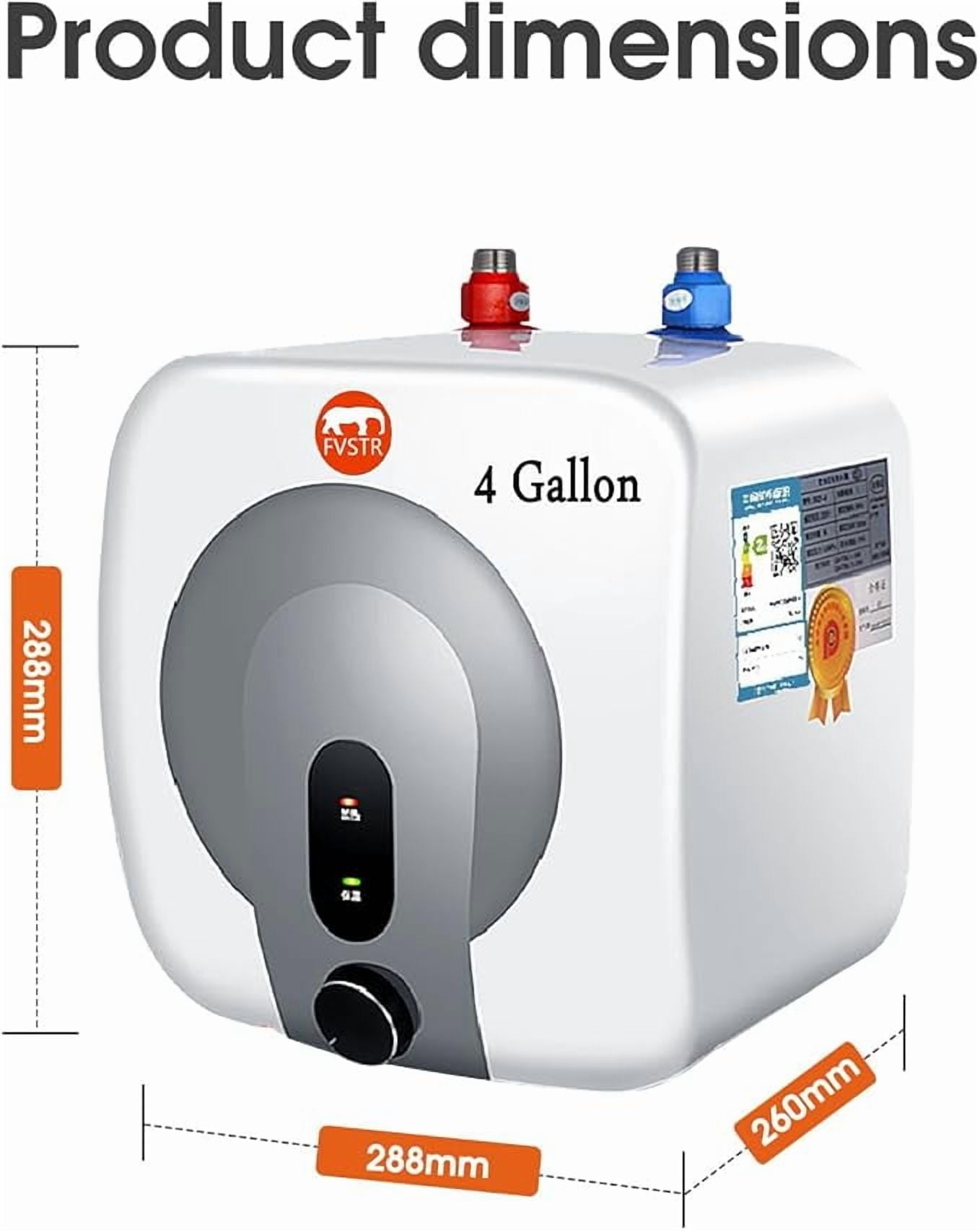

Product Size: 28*29*28cm/ 11.38*11.42*11.78in
Package Size: 41*35*42cm/ 16.14*13.78*16.54in
Net Weight: 4kg/ 13.23lbs
Gross Weight: 7kg/ 15.43lbs
Package Included
1* Water Heater
1* Pressure Relief Valve
1* Exhaust Pipe
1* Hanger
1* English Operation Manual
Other Accessories Needed
Notes

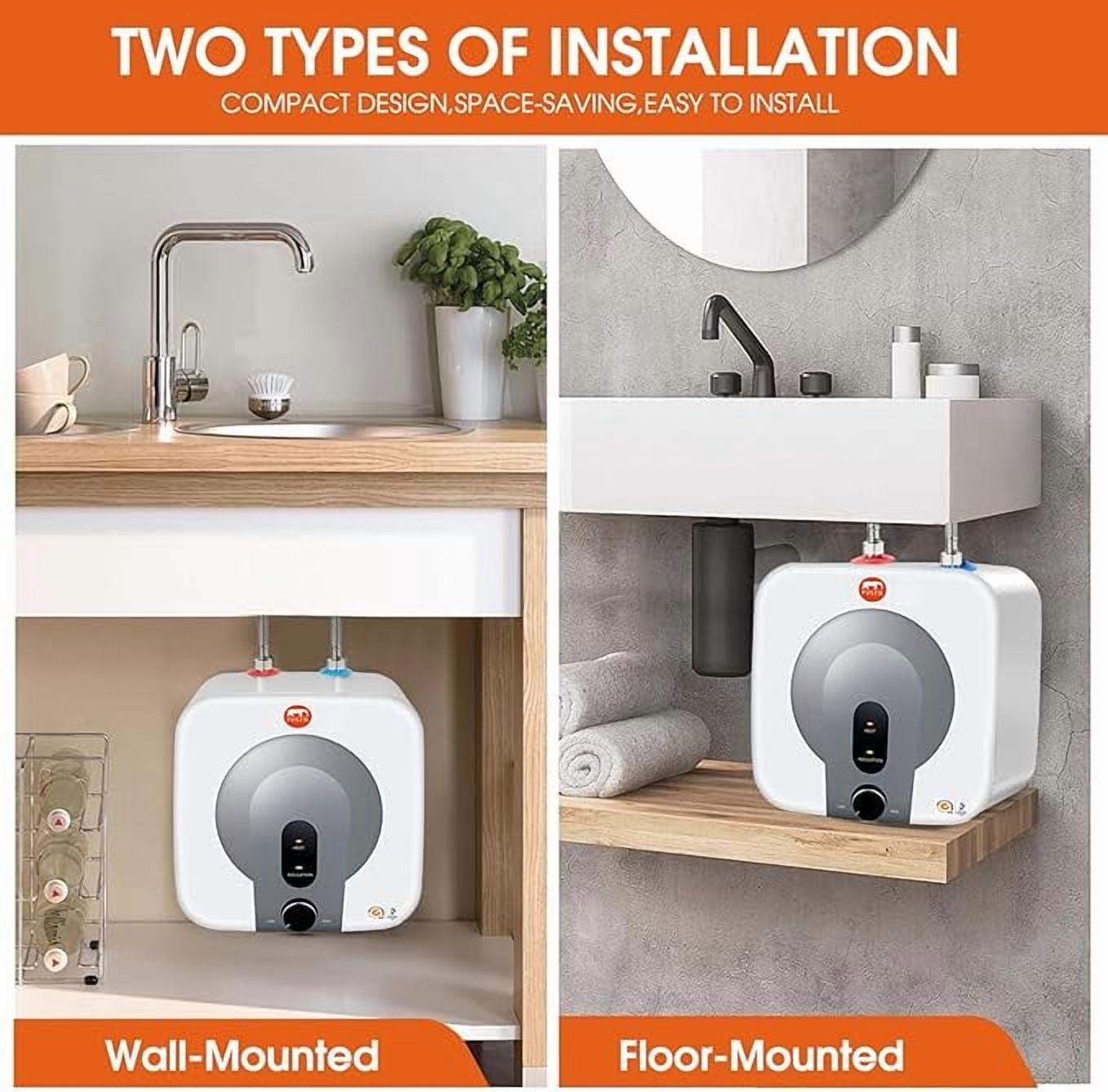

It is recommended to install it under the water basin.
Please make sure there is reliable power within the range where it is installed. And install the anti-electricity wall at the red hot water outlet and the pressure relief valve at the blue cold water inlet.
Please ensure that the tap water pressure in the installation place is 0.1Mpa, the faucet is a hot and cold type faucet, the power socket is a three-plug power socket, and the drop between the installation location of the water tower and the water tower should be more than 16ft.
Please do not install the machine upside down, sideways, or backward, because if the water is not enough to fill, the machine will lead to burnout.
When installing it for the first time, please fill it with water and then energize it to avoid burning the heating tube.
Please do not use it when the water is off.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
Large Volume: It has a capacity of up to 15L/3.96Gal, which can meet your water needs for washing dishes, vegetables, or face, giving you a warmer experience.
Adjustable Temperature: It has a maximum water temperature of 65 degrees, and you can adjust the water temperature by turning the front switch knob according to your needs.
Short Heating Time: With a power of 1500W, it can heat water in about 8-15 minutes, allowing you to use hot water quickly and save time.
Automatic Water Refill: It has the function of automatic water refill so that you can have a constant supply of hot water for your convenience.

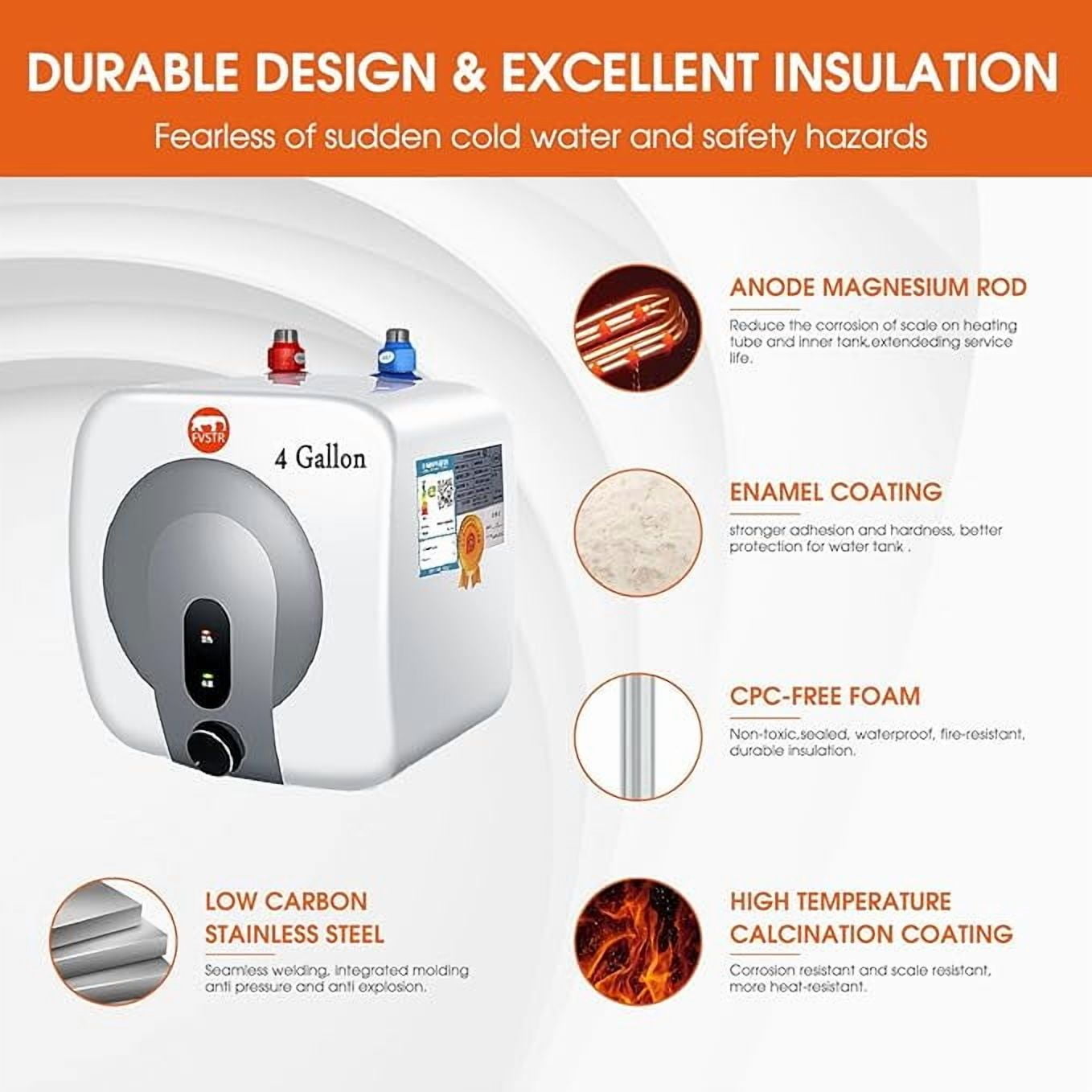

Good Insulation Effect: It adopts 360° overall high-density pressurized foam technology, which can provide lasting insulation for the internal water and let you enjoy hot water at any time without frequent heating!
High Security: It has a three-stage power failure protection device, which can provide double-sided protection against high temperature and leakage, allowing you to use it more safely and securely.
Small Footprint: Its modest size(13.38*11.42*13.78in) allows you to place it directly under the sink without taking up too much space in your kitchen.
Customer-friendly: It distinguishes the inlet and outlet with different colors: red hot water outlet and blue cold water inlet to make your installation more convenient.
Great Durability: This water heater is made of ABS and stainless steel with good sealing and high strength, so it has good water resistance up to IPX4 rating, heat and corrosion resistance, so you can use it for a long time.
Customer Service: We aim to provide quality products and services. If you have any problems, please free to contact us. We will reply and solve the problem for you as soon as possible.

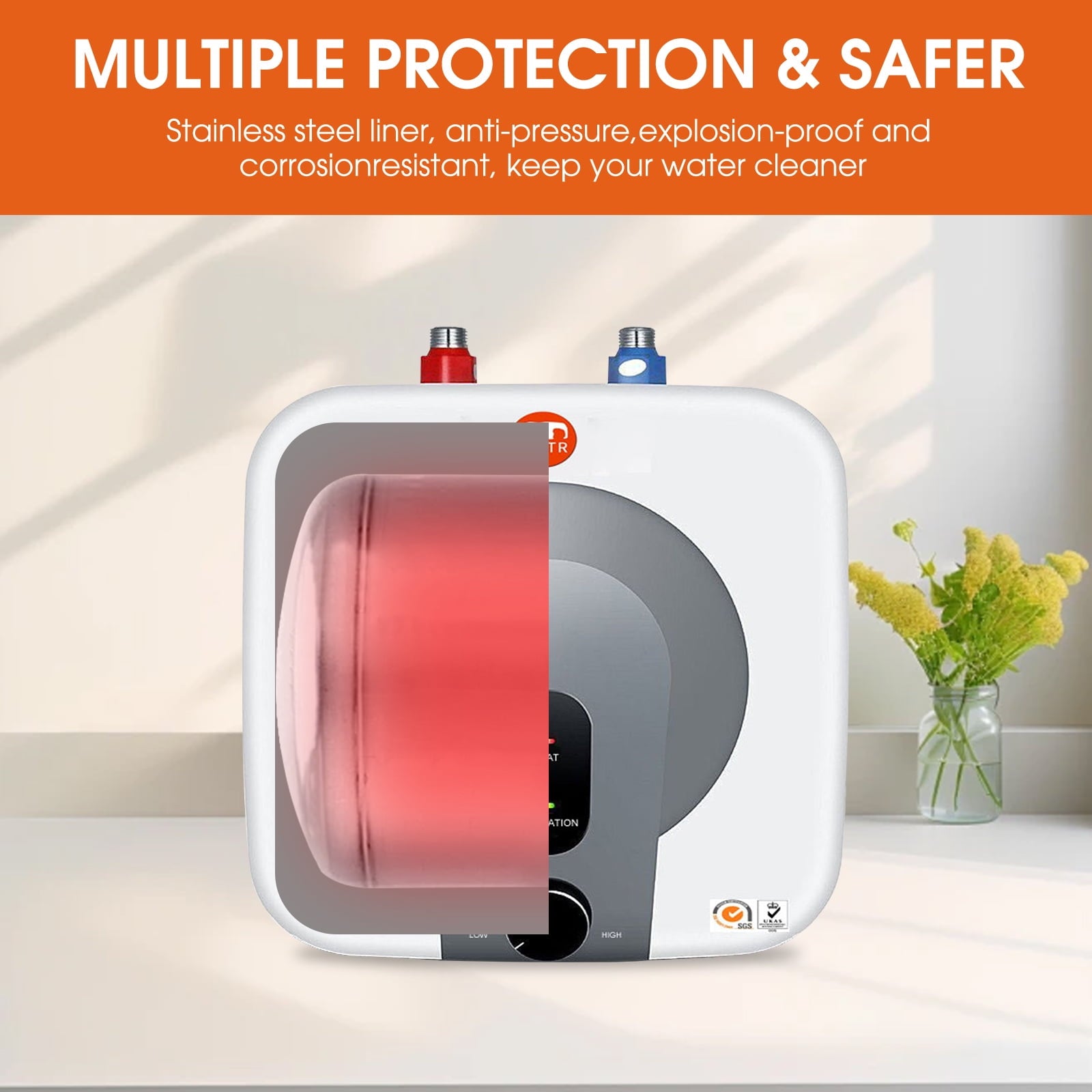

- SAFE AND DURABLE – 304 stainless steel liner, less seams, strong pressure bearing, durable, anti-pressure, explosion-proof, Leakproof, durable heat preservation.Anti-leakage plug, multiple safety protection functions protect you from the risk of burns, electric shocks and other injurie.
- SAFE AND DURABLE – 304 stainless steel liner, less seams, strong pressure bearing, durable, anti-pressure, explosion-proof, Leakproof, durable heat preservation.Anti-leakage plug, multiple safety protection functions protect you from the risk of burns, electric shocks and other injurie.
- Wattage1500Voltage120 VoltsMaximum Temperature55 Degrees CelsiusHeat Output1500 WattsStyleindoorMaximum Operating Pressure150 Pound per Square InchMaximum Pressure150 Pound per Square InchMounting TypeWallIs ElectricYesBrandFVSTRProduct Dimensions10.6″W x 11.4″HSpecial FeatureLightweight, Dry Combustion Protection, High Water Pressure Protection, Anti-Freezing Protection
- SENSING TEMPERATURE CONTROL -2.16 gallon 110V/120V mini water heater is installed in Kitchen Under Sink Counter Cupboard ,The LCD screen displays the working status, the machine operates and the heating water temperature reaches 167 ℉, automatic heat preservation and constant temperature, automatic control, automatic supplementary cold water heating.
