Descriptions:

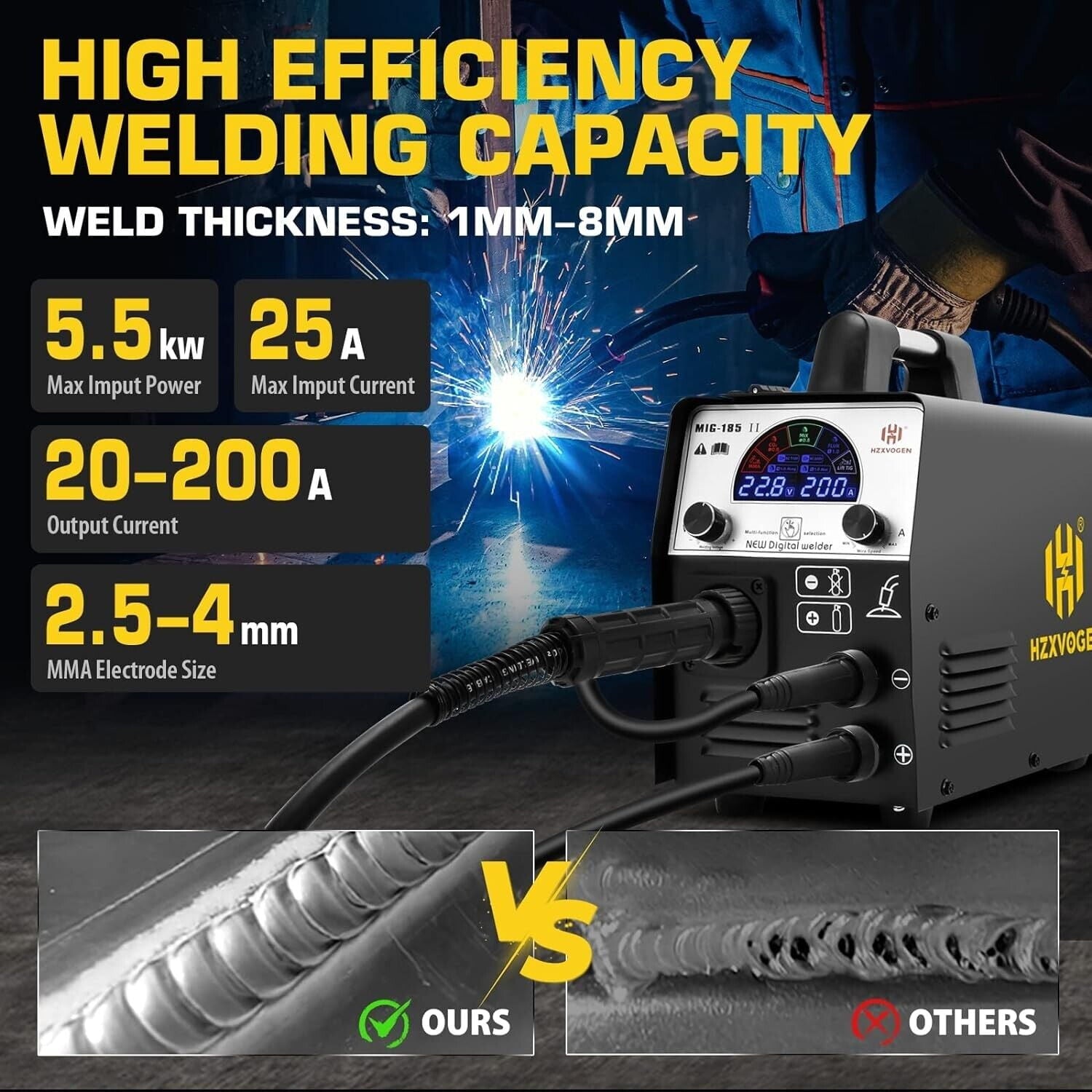

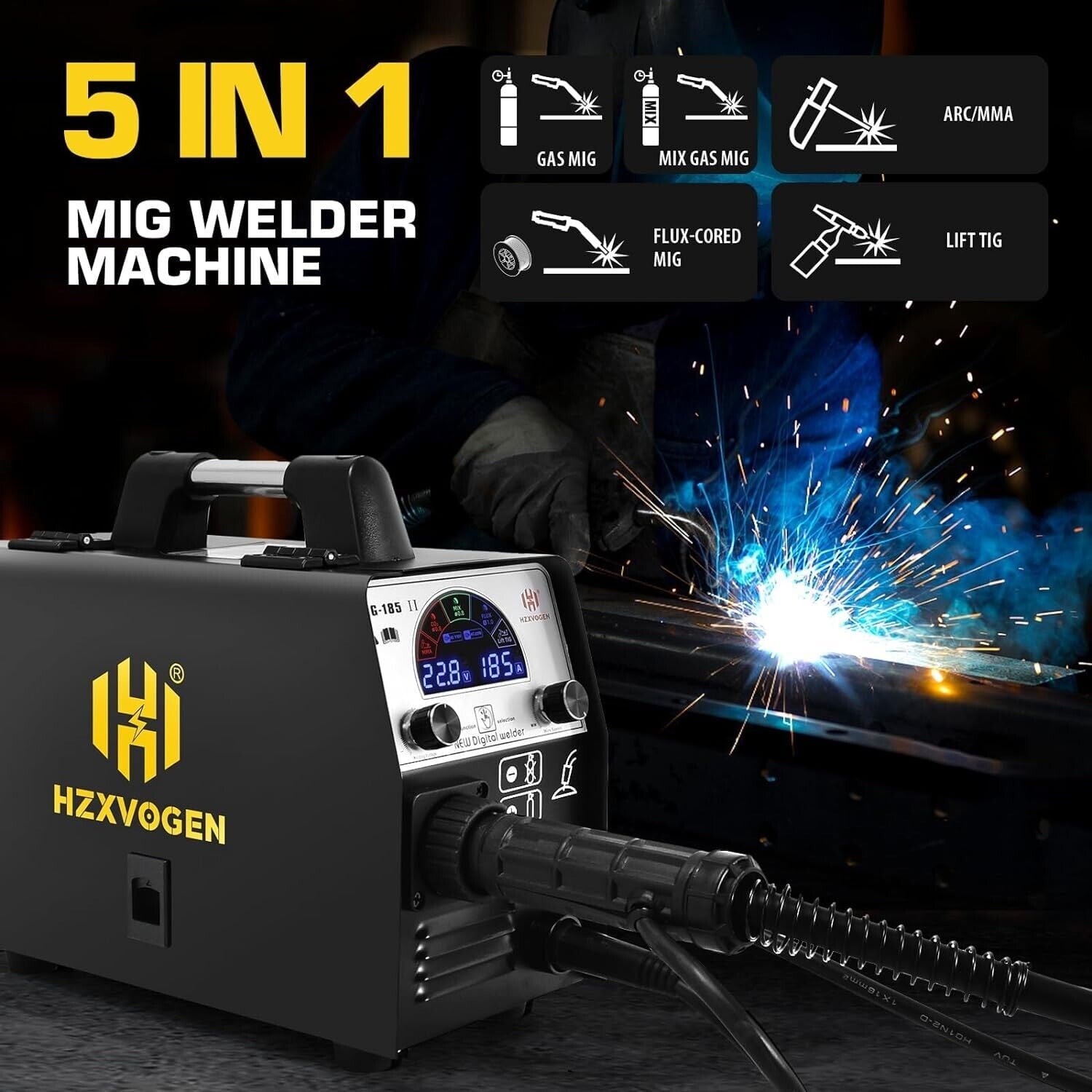

✔ 5 IN 1 MIG WELDER MACHINE – HZXVOGEN MIG-185II Dual voltage 110/220 Multiprocess welder machine integrates the most innovative design structure and technology and includes all functions of every welding machine: MIG, ARC/MMA, Mix gas and gasless MIG, Flux Core MIG and Lift-TIG. Suitable for all kinds of welding requirements: 023”/.030”/.035” solid wire, .023”/.030”/.035” flux core wire.

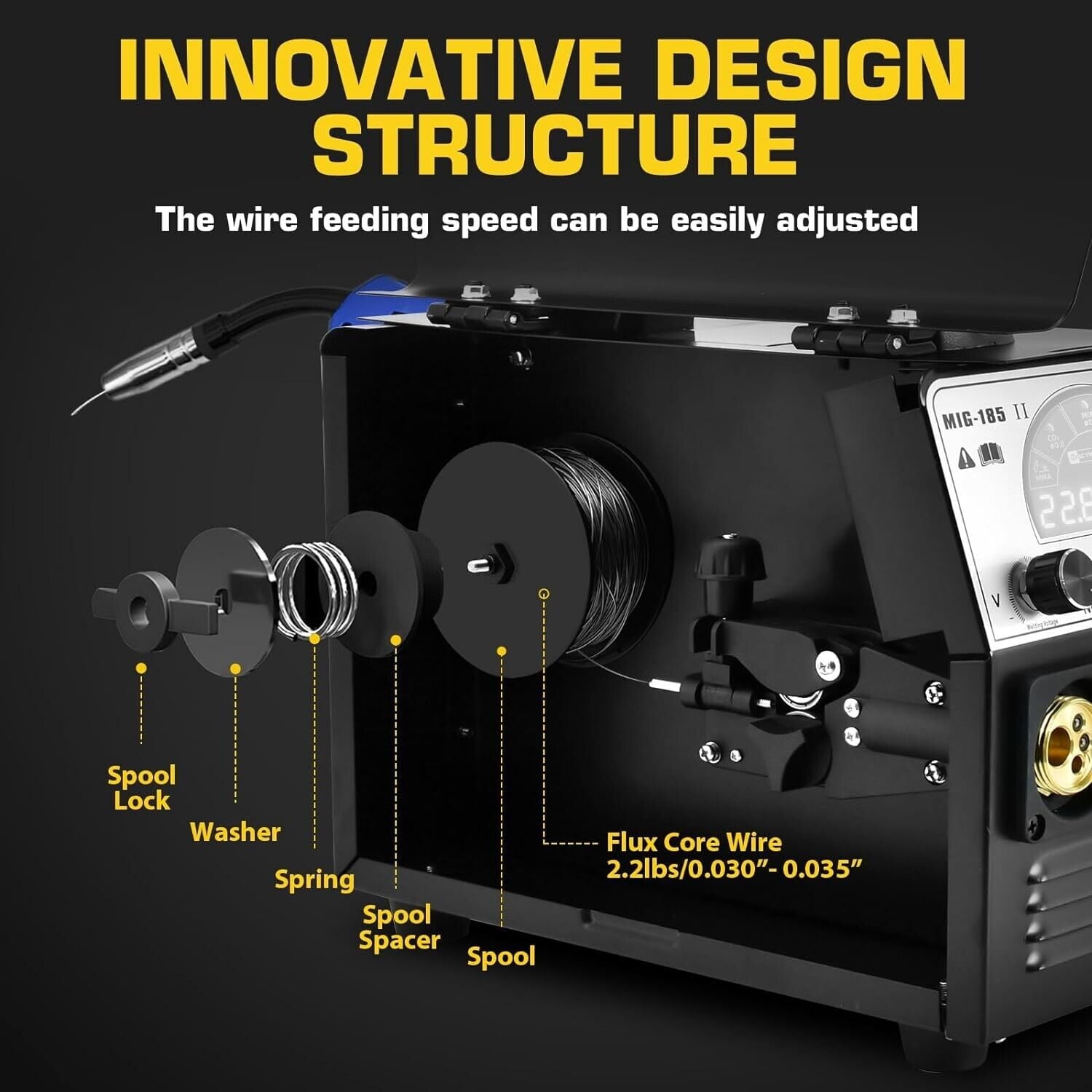

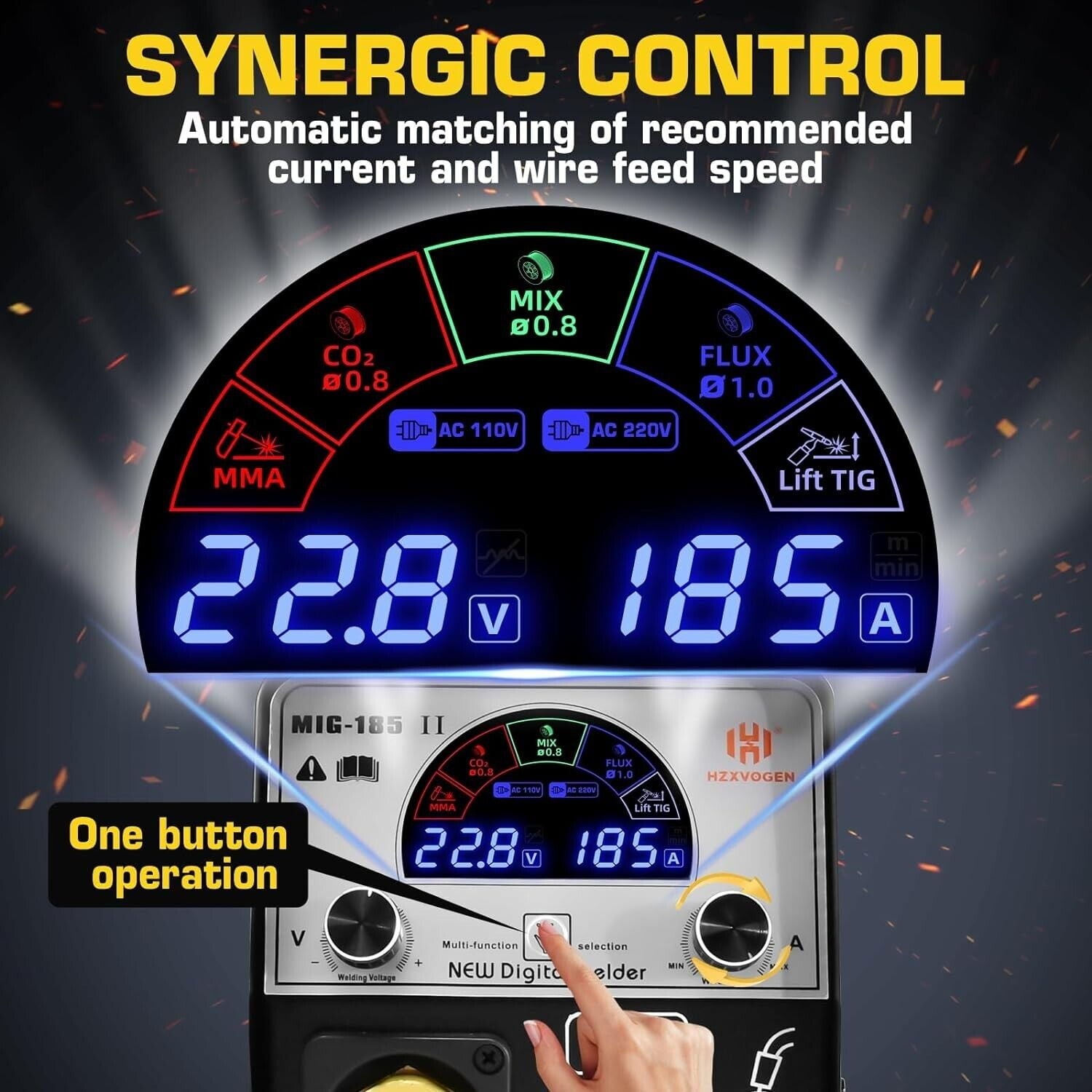

✔ SYNERGIC CONTROL – This welder can work with 0.8/1.0mm welding wire to weld 1mm-8mm thickness workpiece. The wire feeding speed can be easily adjusted and automatically match the current output, also you can adjust the welding current according to your welding habit(voltage regulation can be displayed). It is a reliable and effective tool for professional welders and an entry-level welder machine for beginners.

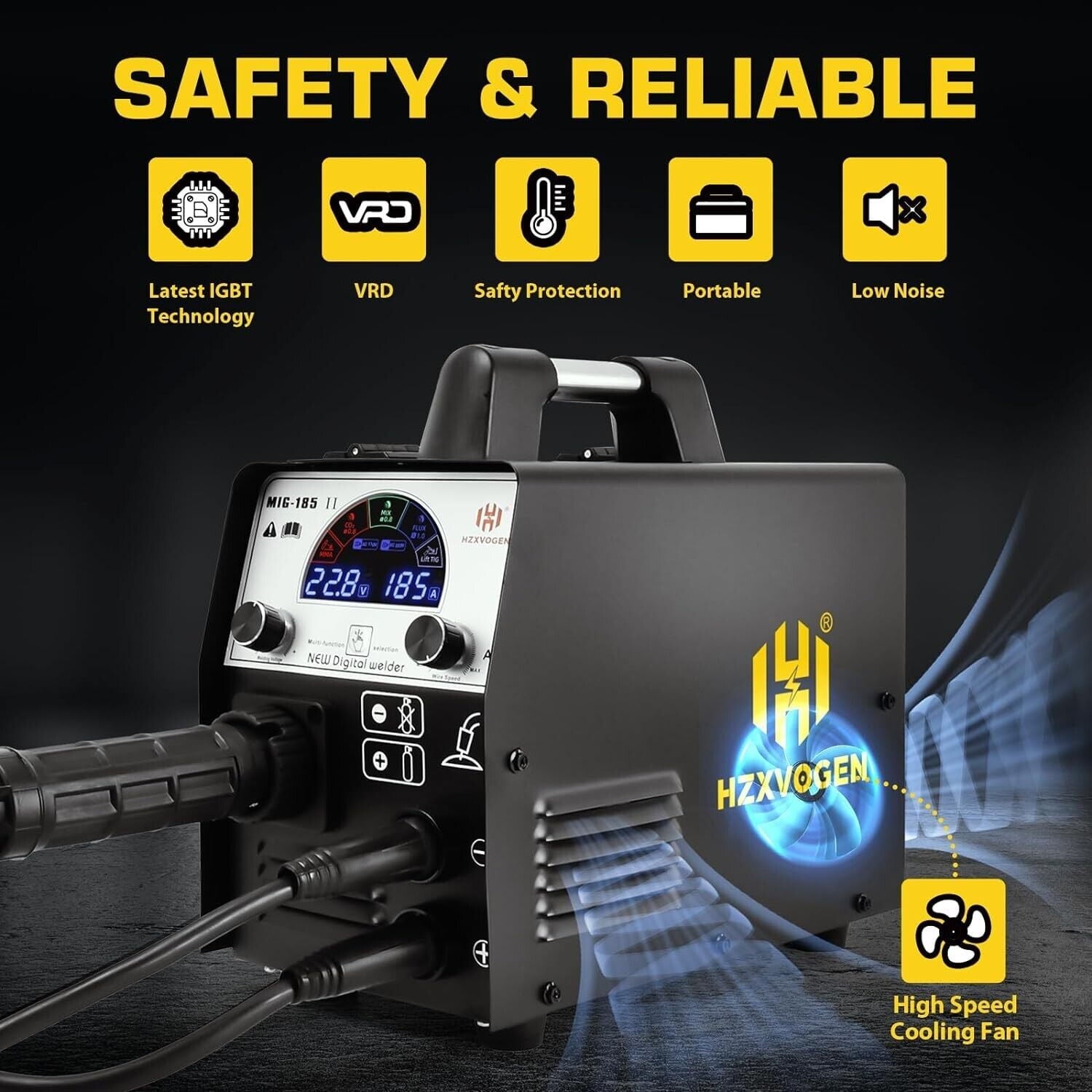

✔ USER-FRIENDLY INTERFACE – MIG185II welding machine is designed with the latest color LED display, provides you with accurate data display for increased control and reliability. The ergonomic design and lightweight model make the machine very easy to carry. And it is equipped with overload and overheating system, feel free to use. Perfect for outdoor maintenance, farm, road equipment, and home DIY.
✔ LIFT TIG/MMA WELDING CAPABILITIES – TIG: Suits 1.6mm and 2.4mm tungsten to weld 1- 6mm thickness. Widely welding stainless steel, alloy steel, carbon steel etc. MMA Stick welder: Current 22 ~ 185 amp. Can weld 2.5/ 3.2/4.0mm electrode. It can weld 2-12mm thickness. MIG-185II adopts the most advanced IGBT inverter technology and has an excellent arc stability, which produces perfect welding effects.
✔ PURCHASE WITH 100% CONFIDENCE – Each welder machine of HZXVOGEN has been professionally tested by industry standards before leaving the factory to ensure that it meets the high standards we set.
Specifications:
Power Supply: 110V/220V(±15%) 50/60 Hz
MIG Welding Current: 30-185A
MMA Welding Current: 30-185A
TIG Welding Current: 30-185A
Rated Duty Cycle: 60%
Efficiency(%) : ≥85%
Flux Core MIG Wire: 023”/.030”/.035”
Solid Wire: 023”/.030”/.035”
Applicable Electrode: Ø1.6-4.0 mm
Electrode Type: AWS E6013, E7018, E6011, E6010, etc
Protection Degree: IP21S
Insulation Grade: F
Machine Weight: 20LB
Machine Size: 20 x 12.5 x 9.6inch

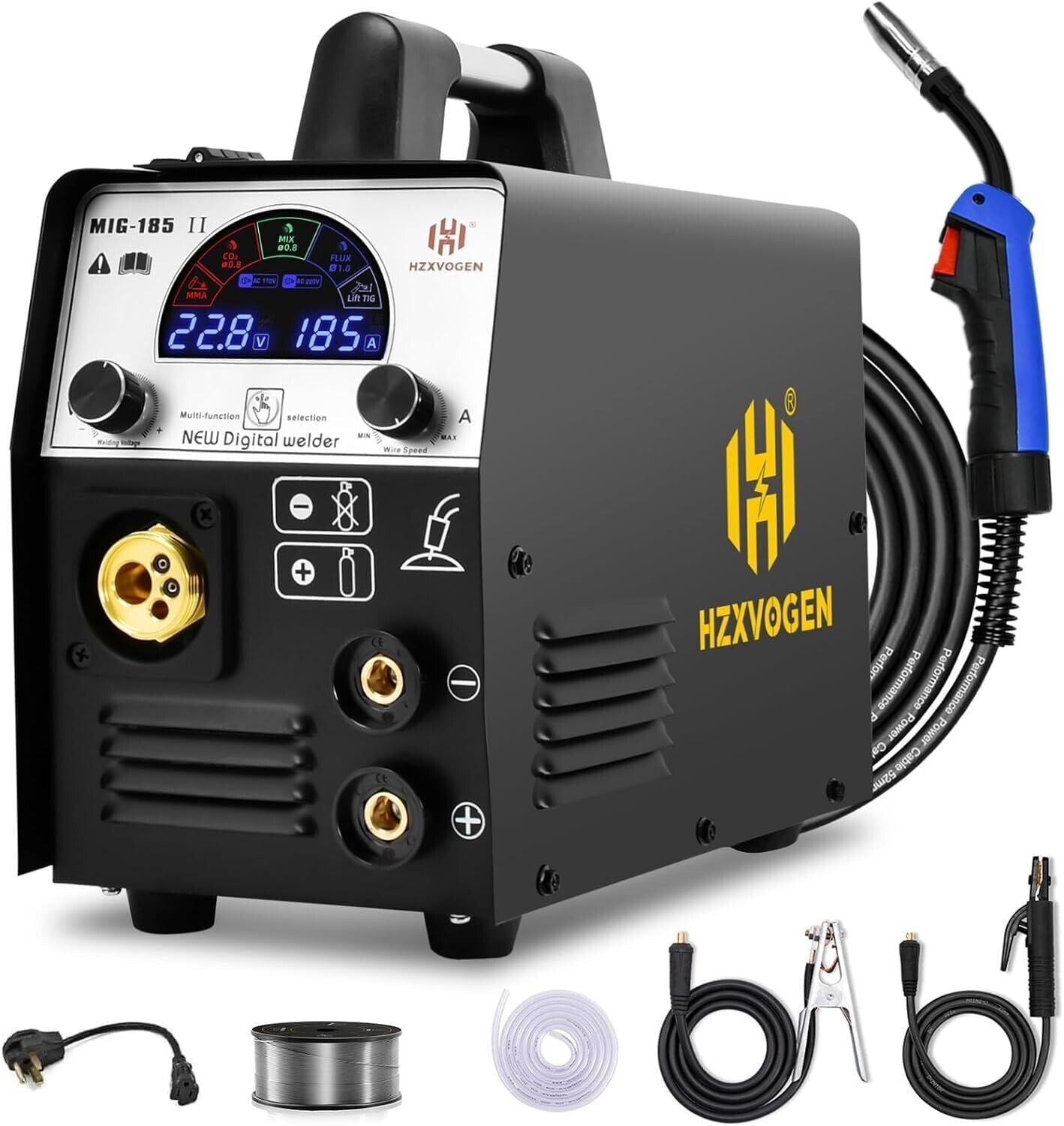

Package Included:
1 X MIG185II Welder
1 X 110V-220V 30Amp Adapter Cord
1 X Earth clamp
1 X Electrode Holder
1 X MB15 MIG torch
1 X Gas Tube
1 X 0.5kg 0.8mm Flux Cored Wire
Note: This link does not include the TIG torch.
Brand name: HZXVOGEN
Parameter: MIG185
Inverter technology: IGBT
Input voltage: AV220±15%V
Frequency: 50/60HZ
Rated output current: 30-180A
Power factor: 0.73
Insulation grade: F
Housing protection grade: IP21
Usage: Stainless steel/ Iron welding
Net weight: 5.5kg
Wire diameter: 0.8/1.0mm
Wire feed speed: 2-13m/min
Postflow time: 0.5-1.5S
Packing dimension: 344*159*267mm
