Description

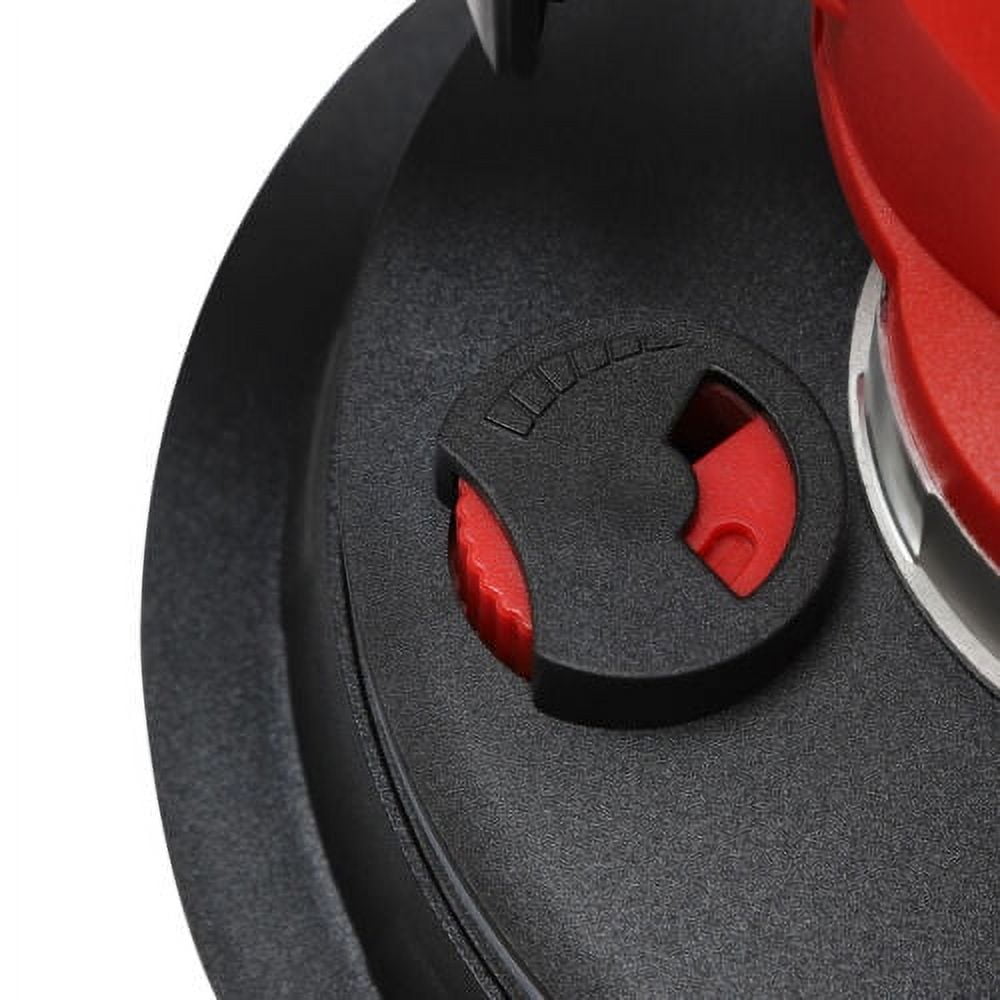

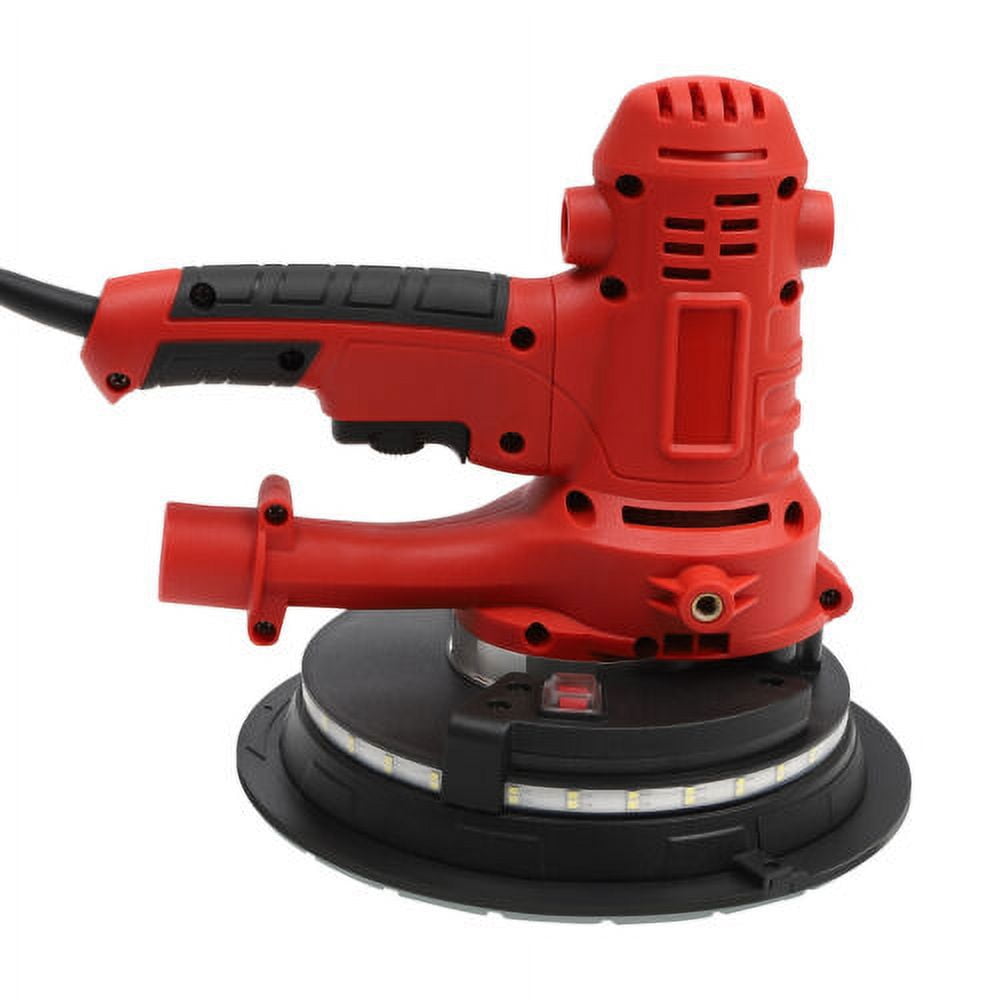

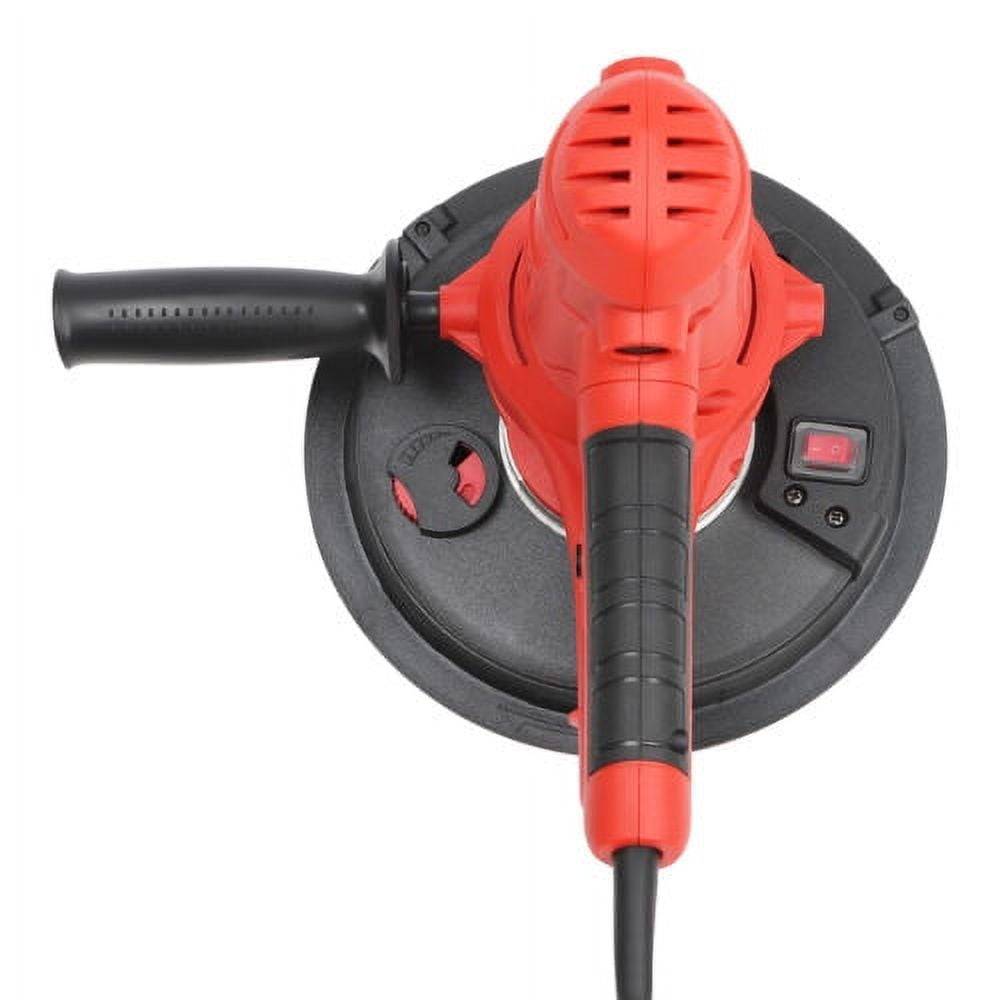

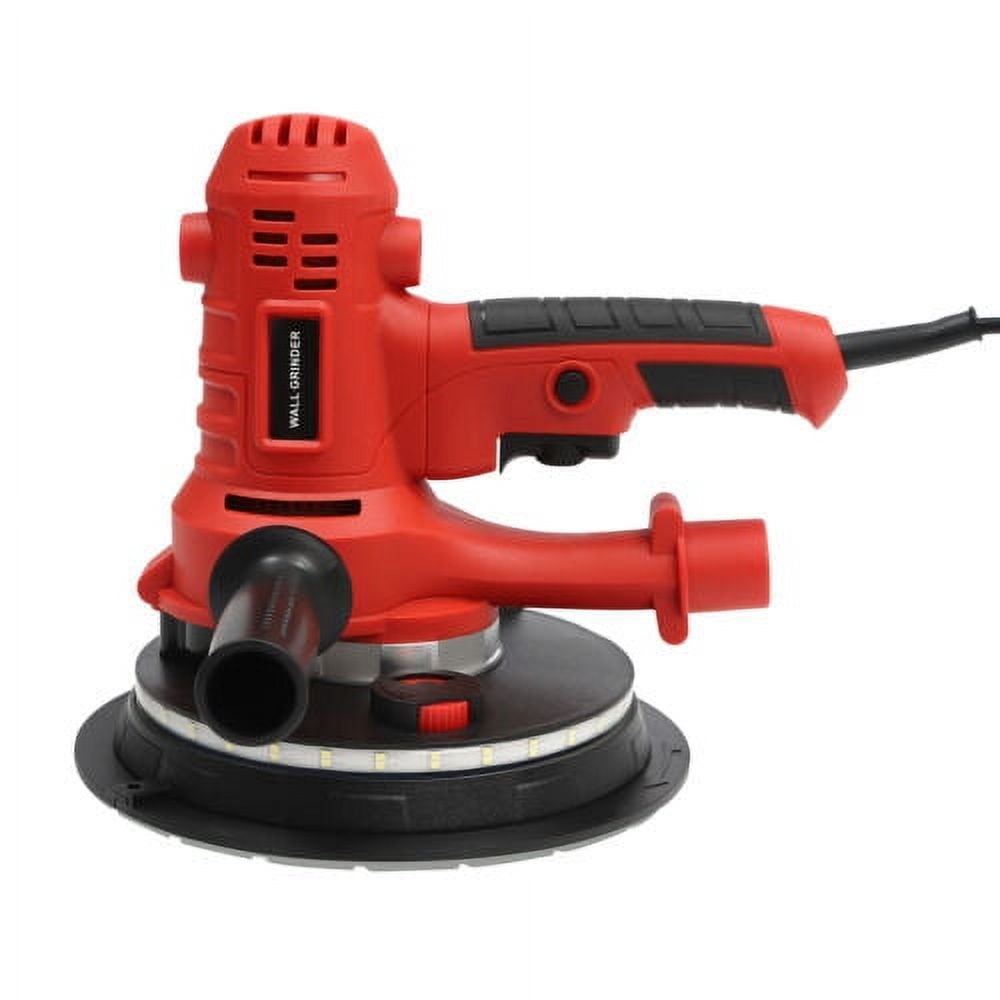

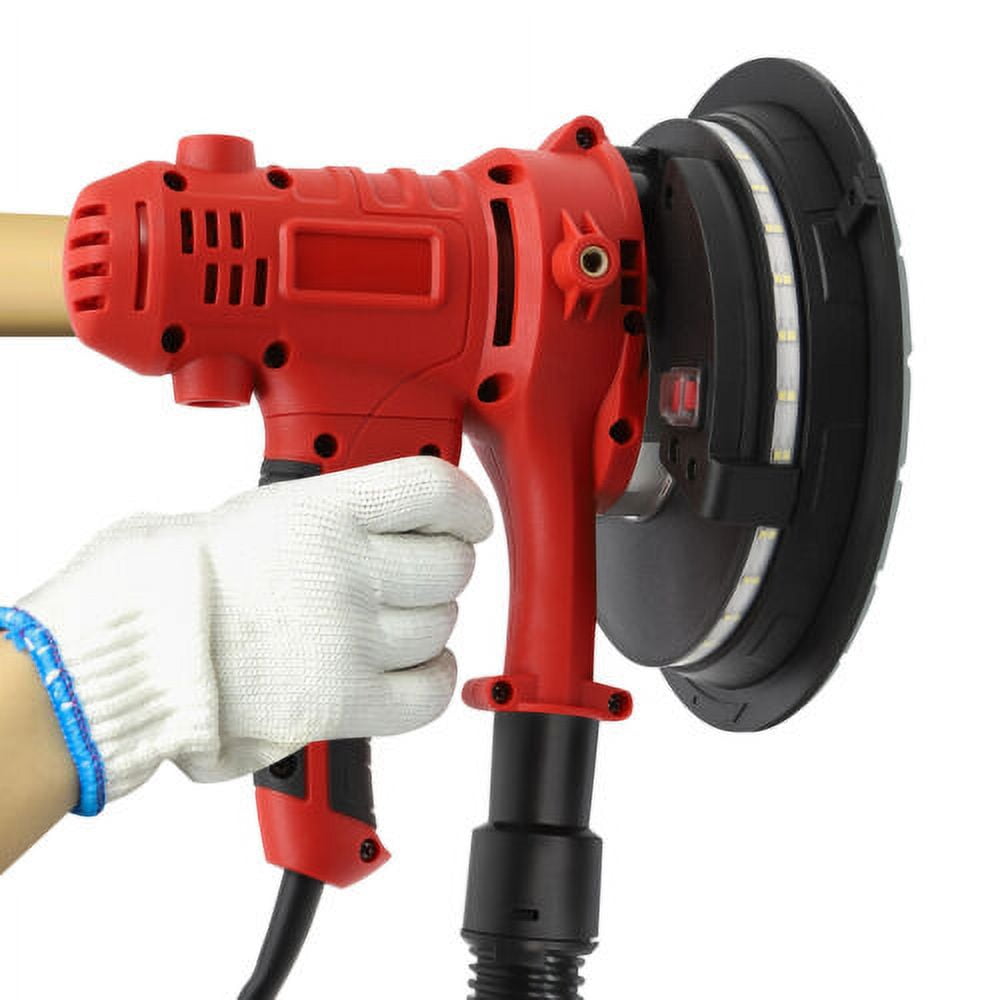

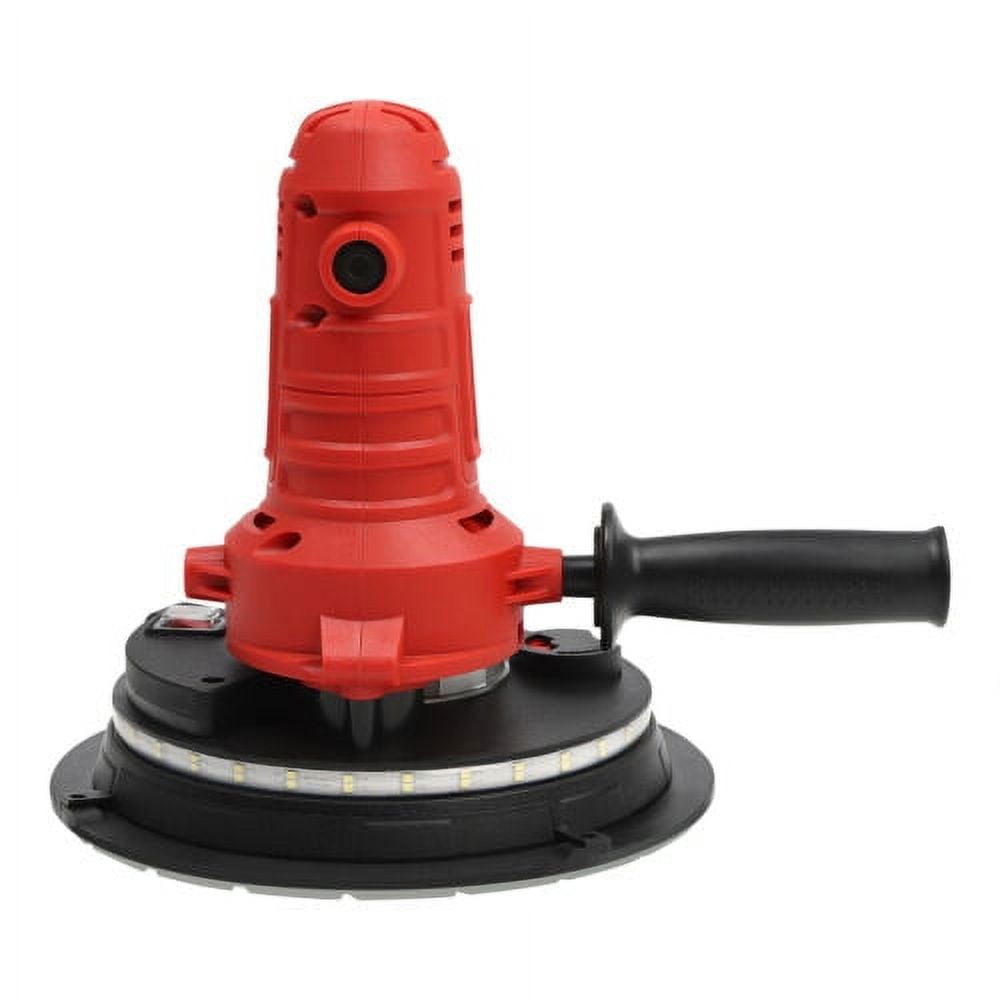

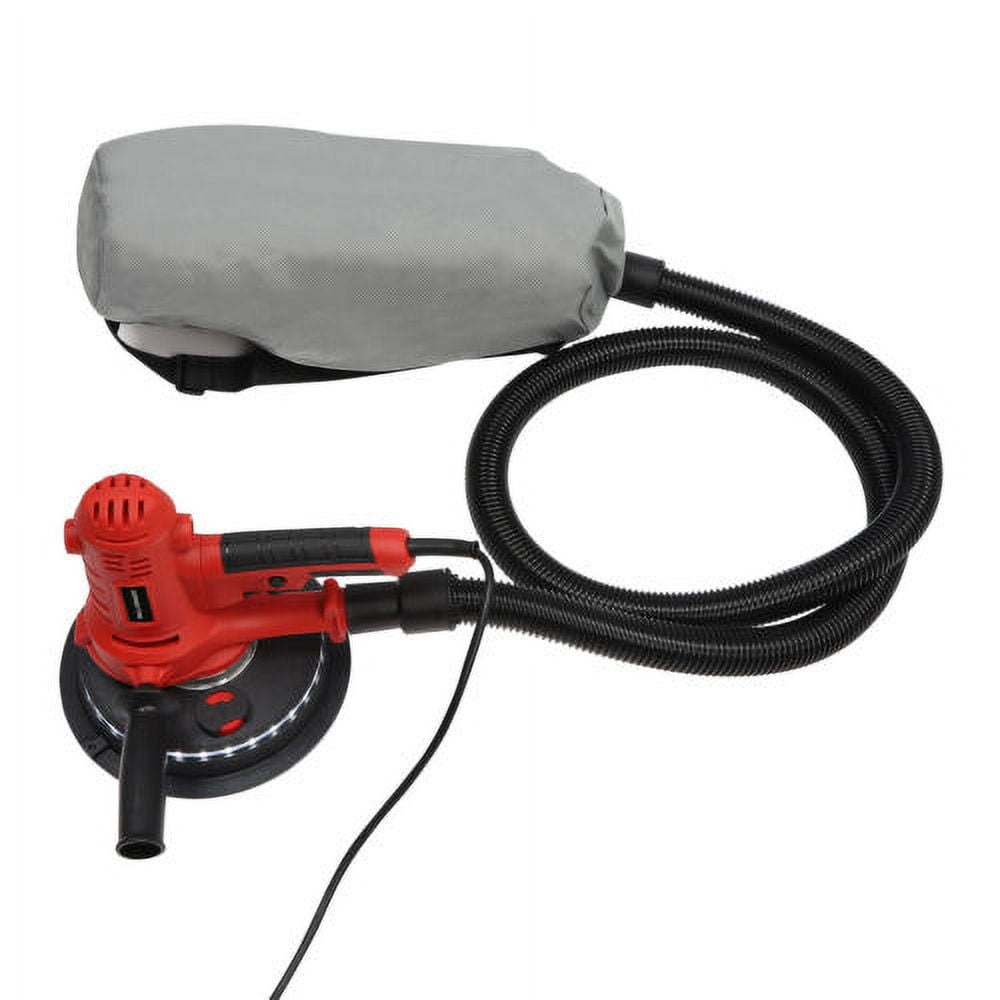

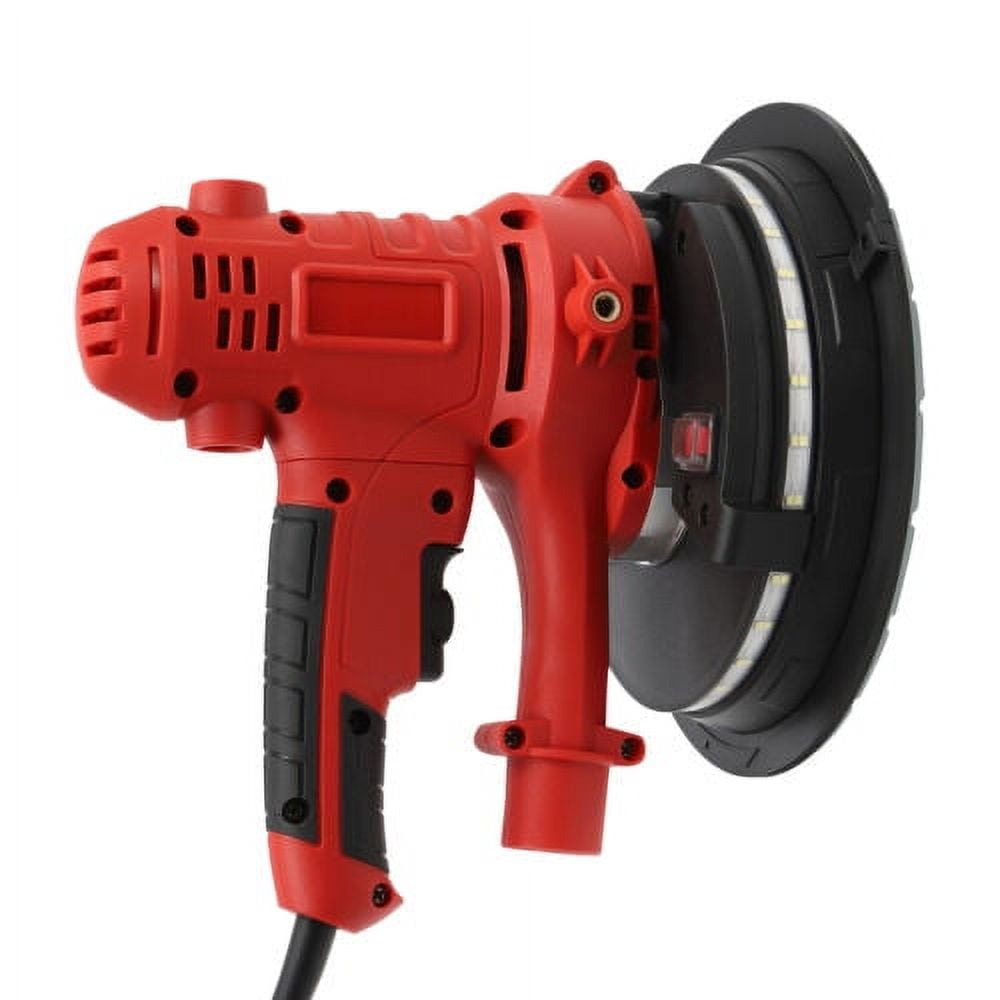

This sanding machine is capable of sanding drywall and plaster ceilings. It provides you with added ease and versatility for your sanding projects. The tool has a removable rotatable sanding disc that allows the edge of the sanding paper to come right up to the wall edge. An additional great new feature is the LED halo lighting system which provides an optimal vision of the work surface and adds visibility in a low-light work environment.
Specifications
Voltage: 110V
Frequency: 60Hz
Rated Power: 1200W
No-Load Speed: 1200-2500r/min
Dia. of Grinding Disc: 180mm/7in
Sandpaper: 180mm/7in
Number of Sandpapers: 6

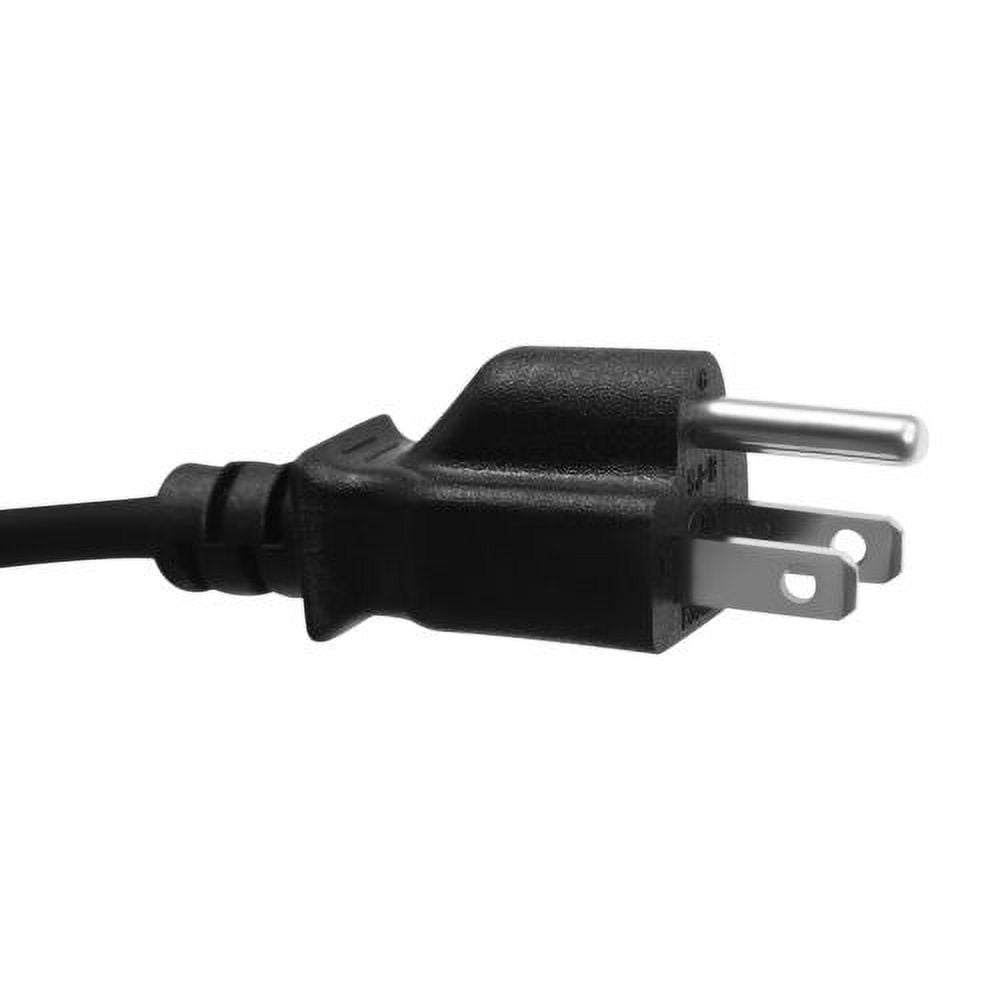

Plug: US Standard
Material: Engineering Plastic
Power Source: Corded Electric
Color: Red and Black
Light: LED Strip
Power Type: Plug-in Power Supply
Type: Portable Polishing Machine
Working Principle: Disc Polisher
Power Cord Length: 2.5m/98.4in
Dust Collection Tube Length: 2m/78.7in
Auxiliary Handle Length: 12cm/4.72in
Gross Weight: 5.4kg/11.9 lbs
Net Weight: 5kg/11 lbs

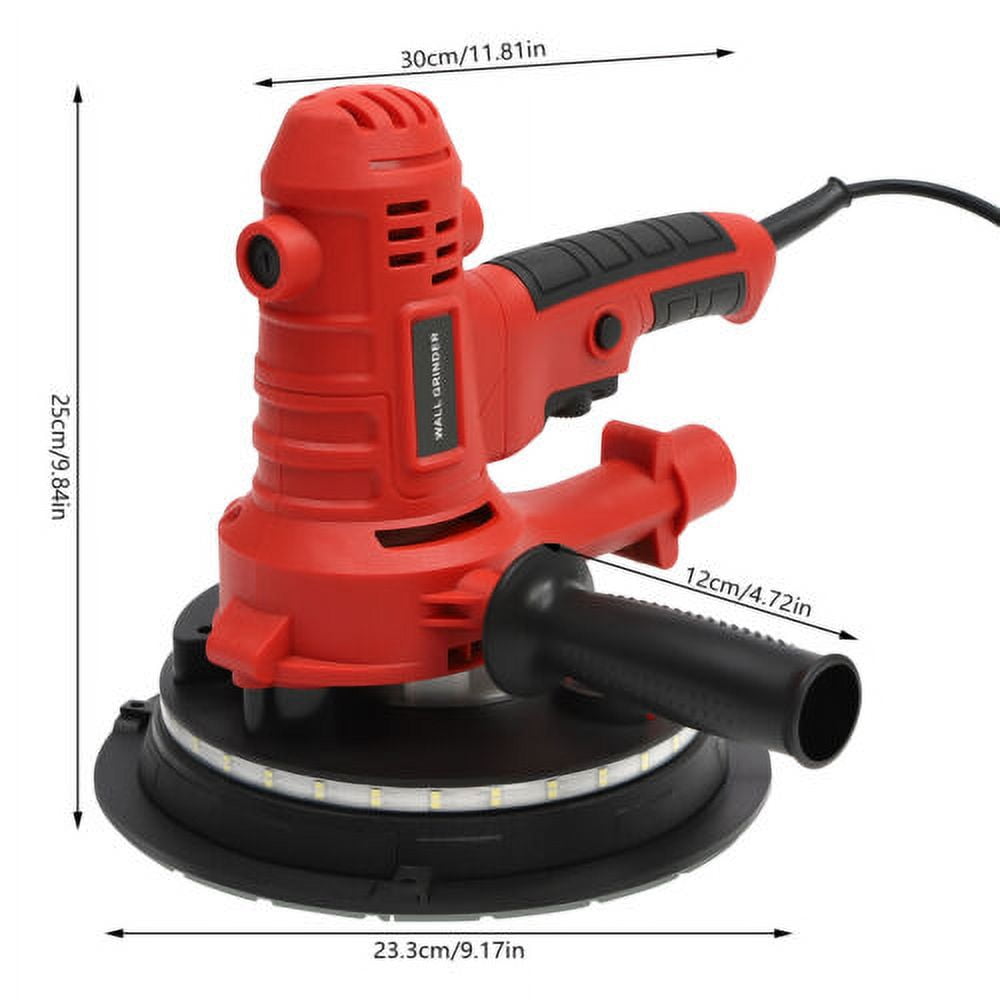

Product Size: 23.3*25*30cm/9.17*9.84*11.81in
Package Size: 36*28*28cm/14.1*11*11in

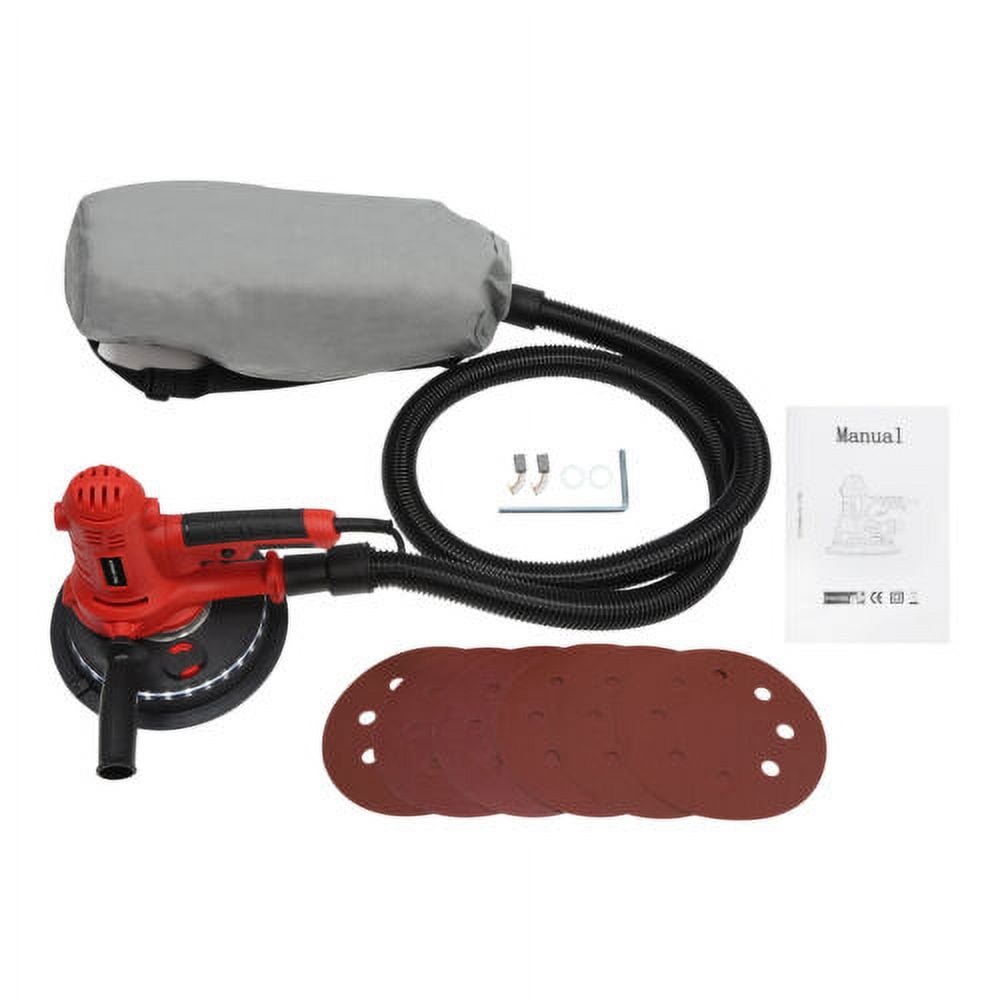

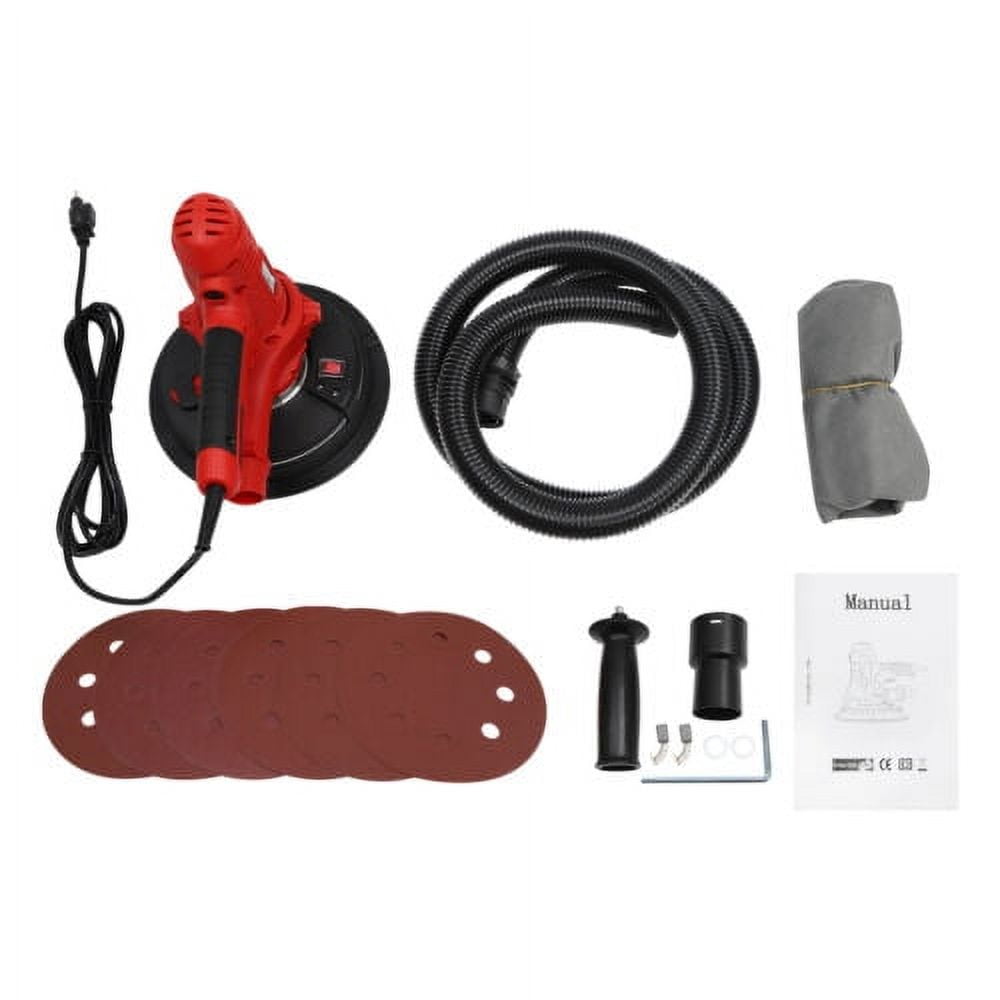

Package Included
1*Sanding Machine
2*Carbon Brushes
1*Dust Collection Tube
1*Dust Collection Bag

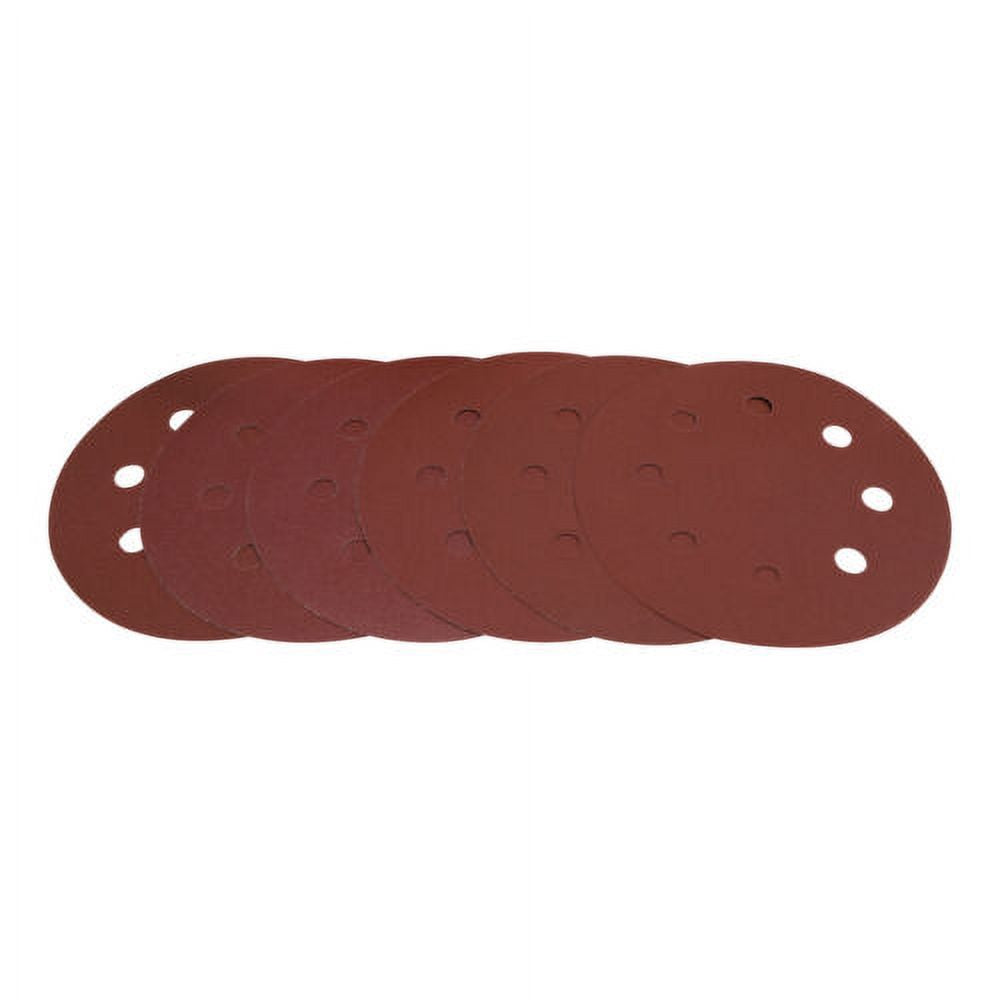

6*Sandpapers
1*Allen Wrench
1*Auxiliary Handle

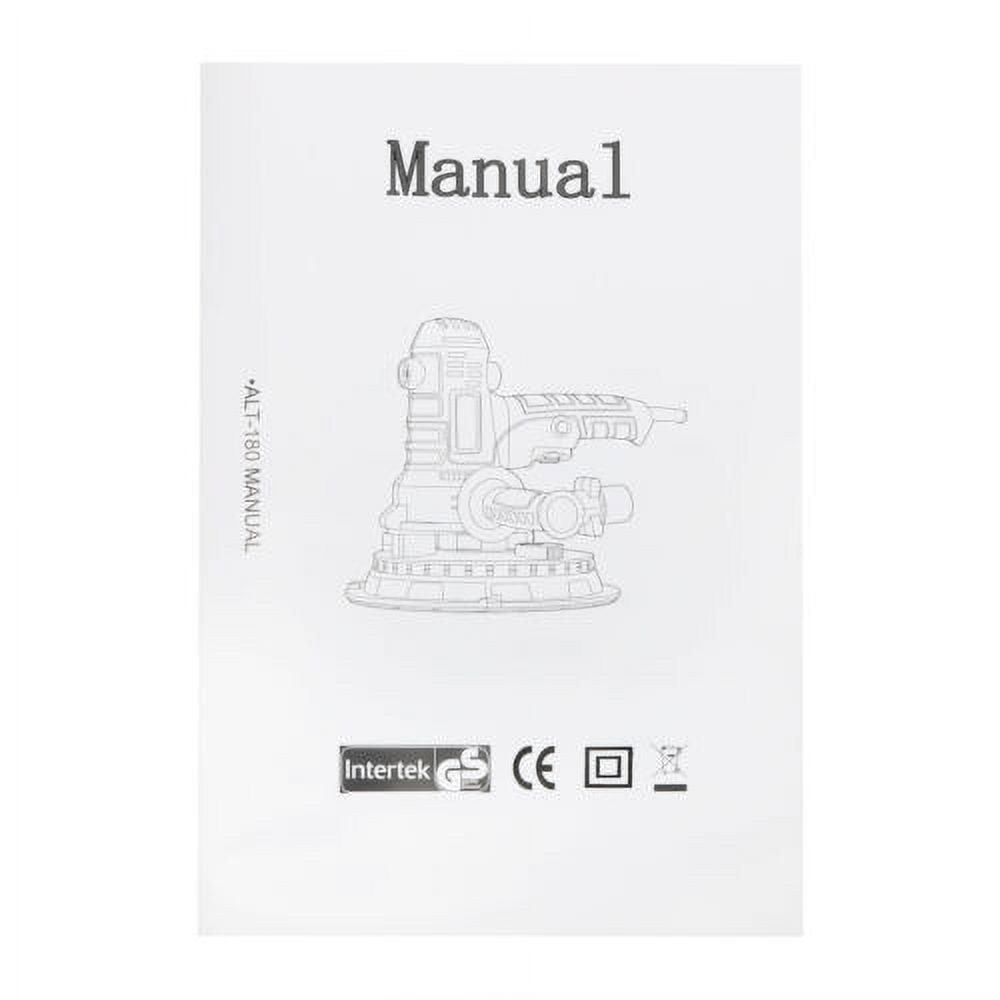

1*English Manual
Other Accessories for Assembly

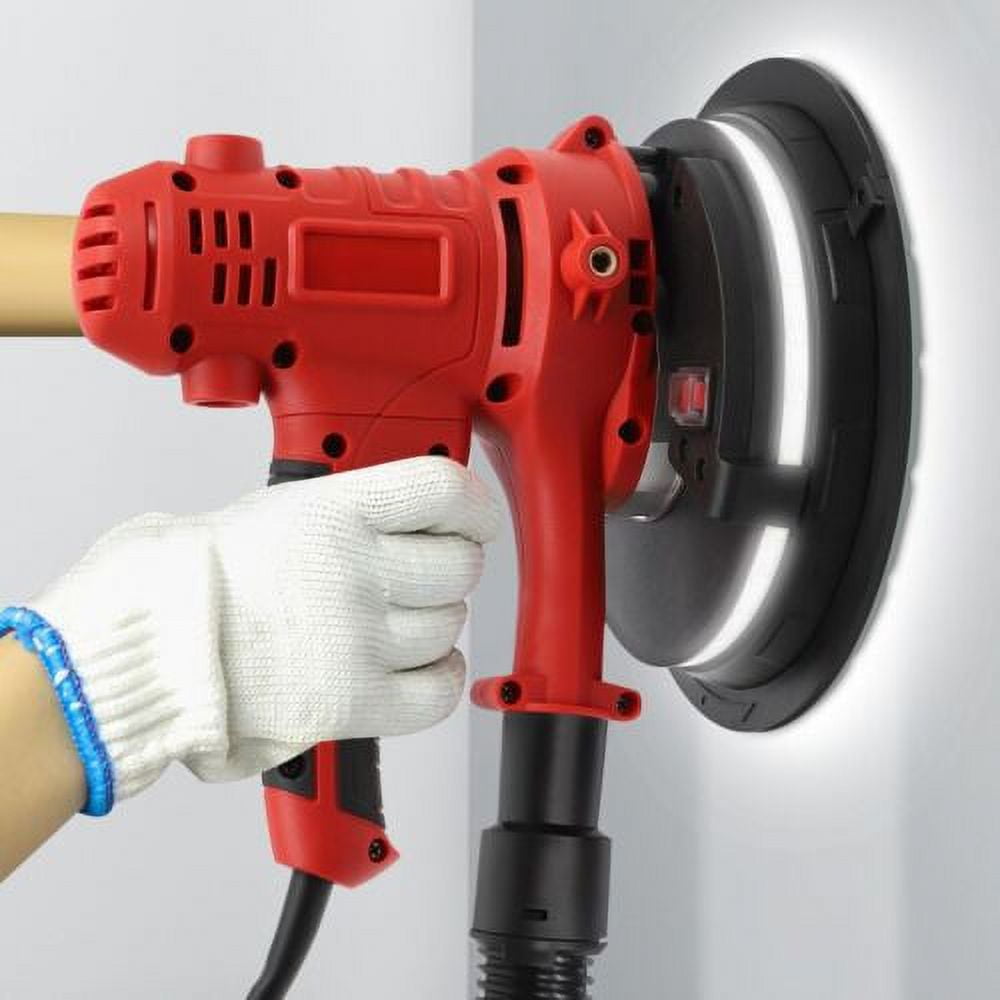

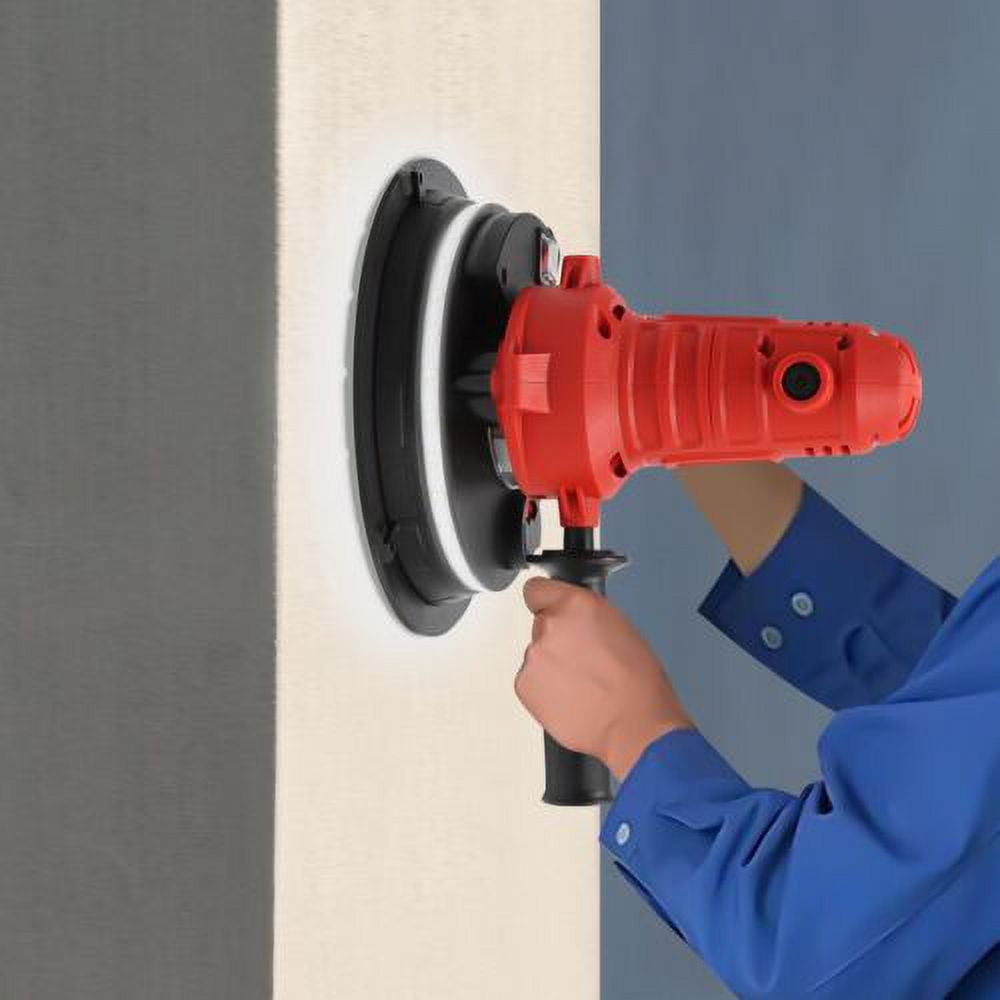

Sanding Operation:
Sanding personnel are required to put the grinding disc to the wall first, and then work on the machine.
When sanding the upper part of the wall, operate the machine with up and down W-shaped movement. When using the W-shape working method, pay attention to maintaining an even speed when moving up and down, and not to pause when turning, which will cause sand marks on the wall.
When sanding the lower part of the wall, operate the machine to move up and down sideways.
Sand the top of the wall choosing the shoulder type. In the process of sanding the top, pay attention to keeping the balance of the grinding disc when moving under the feet.
Sanding should be done in order to avoid missing.
When sanding, you should always pay attention to the working condition of the machine and find problems to solve in time.
Clean up the vacuum cleaner once every time you sand 323ft² and pour off the accumulated dust.
Master the sanding skills, encounter very uneven walls, repeatedly sand several times, special vulgar places need manual processing, so as to avoid machine sanding appearing through the bottom phenomenon.
Sanding Yang corner grinding disc can not exceed the wall 3-5CM, to avoid exceeding too much to lead to grinding disc tilt, break the corner.
While sanding, please do not force against the grinding disk on the wall for a long time work.
Clean up the sanding machine and organize other supporting facilities at the end of the day.
Notes
Beware of electrical safety hazards, please use such tools in accordance with product instructions and take the necessary personal protective measures, and place them out of the reach of children on a daily basis.

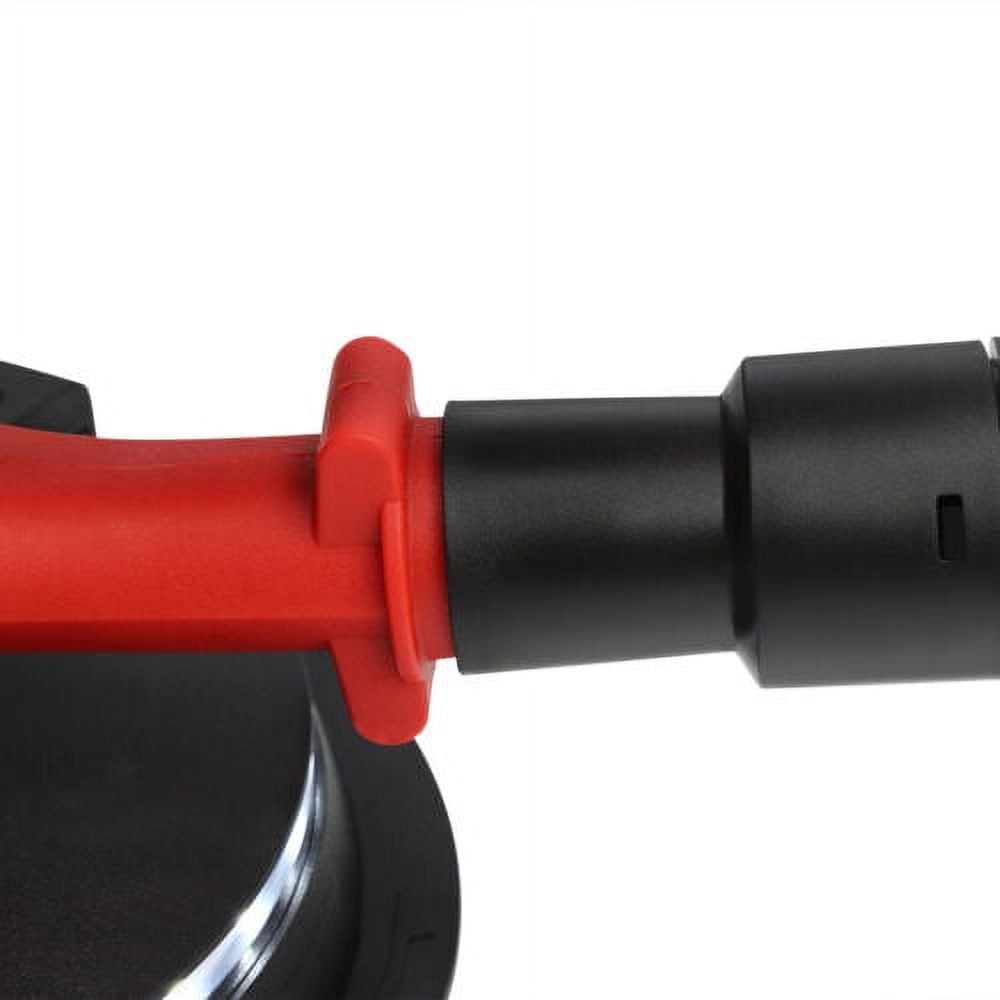

When sanding high walls, if an accidental drop causes the dust tube to disconnect from the black connecting clasp, simply insert the black connecting clasp into the telescopic tube first, then tighten the dust tube clockwise to the inside of the connecting clasp until it cannot be tightened.
Please note that this product does not support the additional installation of extension handles or folding handles.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
-

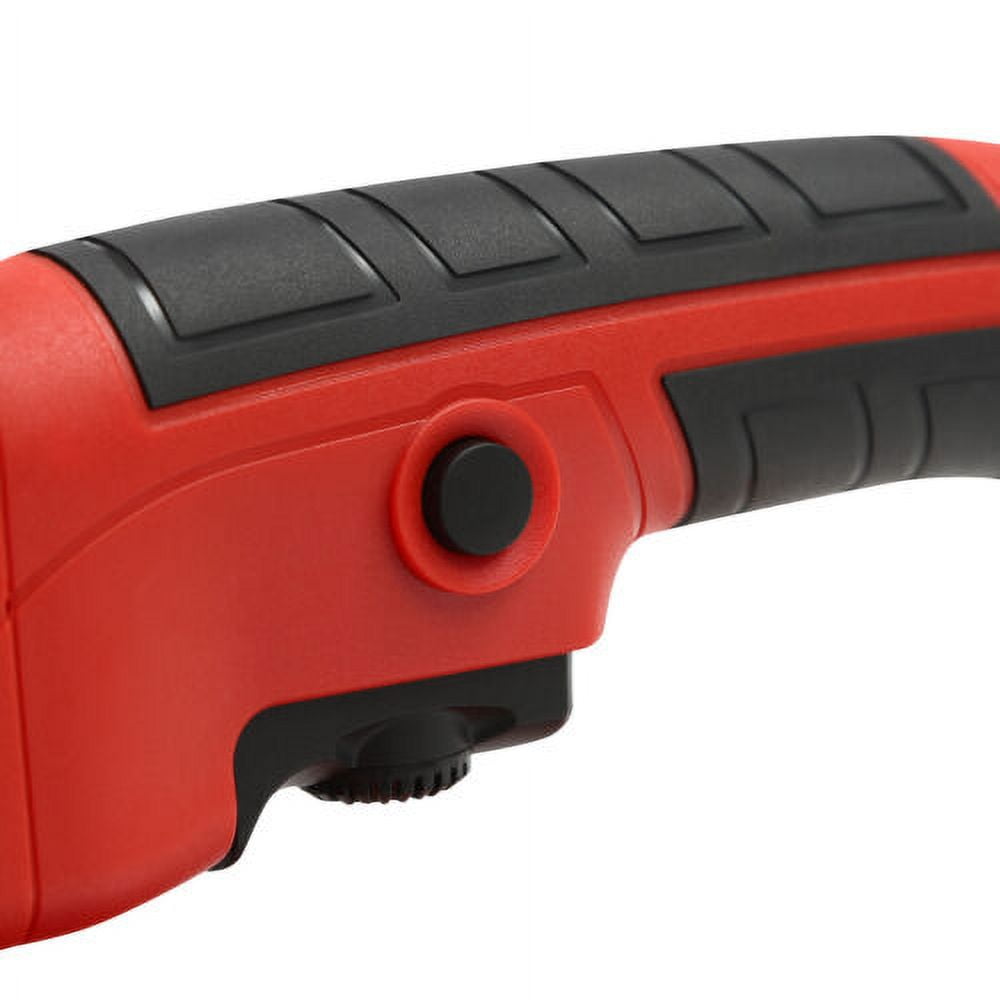

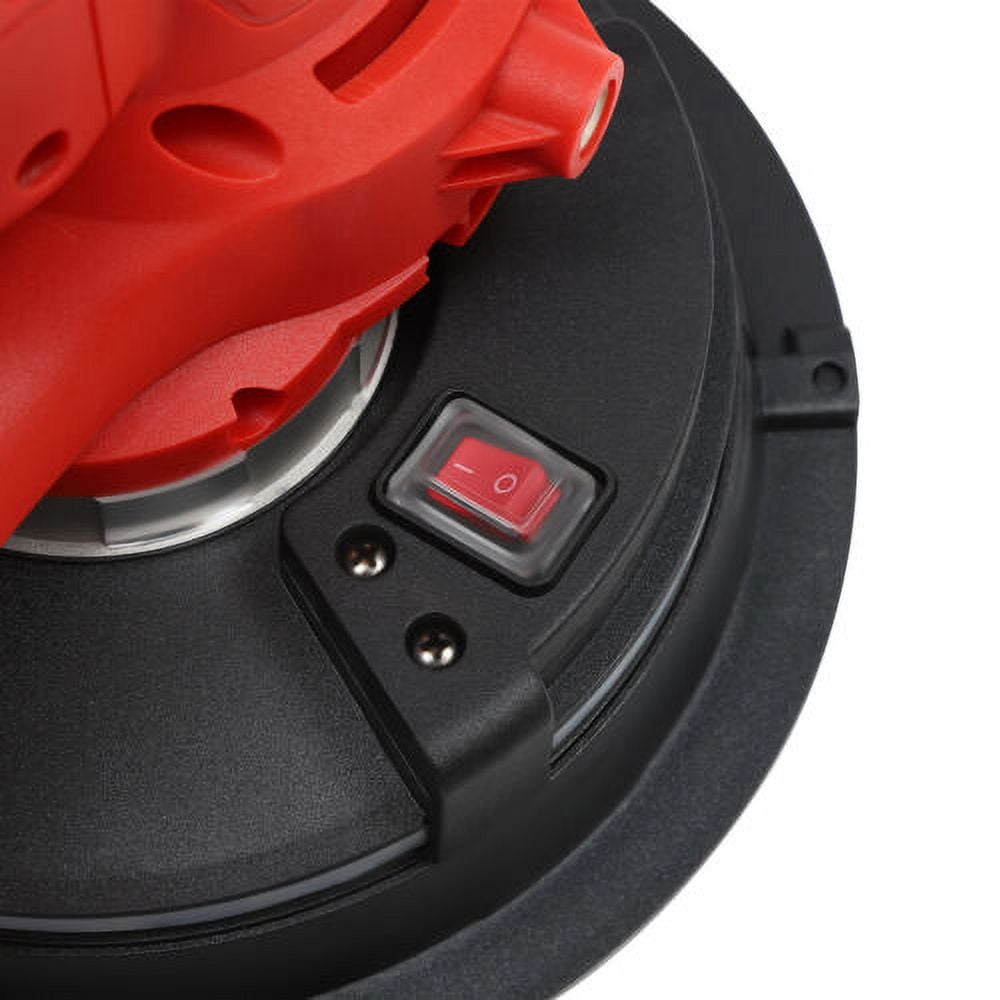

Good Material: The body is made of engineering plastic, which is sturdy, lightweight, and has good insulation. The main handle is made of non-slip soft rubber, making it comfortable to grip and not tiring to work for a long time. Multi-hole Pad System: The multi-hole pad system allows flexibility so the tool can be used with a variety of abrasive discs. Automatic Dust Removal: The built-in vacuum system, dust collection bag, and dust collection pipe can collect most of the dust during the sanding process, which reduces dust and cleaning trouble. LED Lighting: LED light strips make this sanding machine ideal for working in dark workplaces and for checking sanding results. The light is soft and non-binding, so it won’t hurt your eyes even after long hours of work. Variable Speed: Variable speed with a locking switch allows this drywall vacuum sander to be adjusted between 1200-2500 rpm for fast material removal or fine finishing. Adjustable Suction Power: The side of the case is equipped with a suction power adjustment knob, through which you can easily adjust the suction power to the size you need to adapt to your different work needs. Powerful Motor: It is equipped with a 1200W powerful copper core variable speed motor to provide efficient power for sanding plasterboard walls, ceilings, and hallways. Multipurpose: This lightweight drywall sander is ideal for sanding drywall, ceilings, interior and exterior walls, paint coatings, adhesives, and loose plaster. Suspension Sanding: The chassis can be movably suspended by 0.12in. when encountering uneven walls, it can automatically retract to avoid showing the bottom. Quick Sandpaper Change: When you need different sandpaper for different projects, simply tear off the sandpaper from the sanding disc and replace it with new sandpaper. This method of operation saves both time and effort.
-

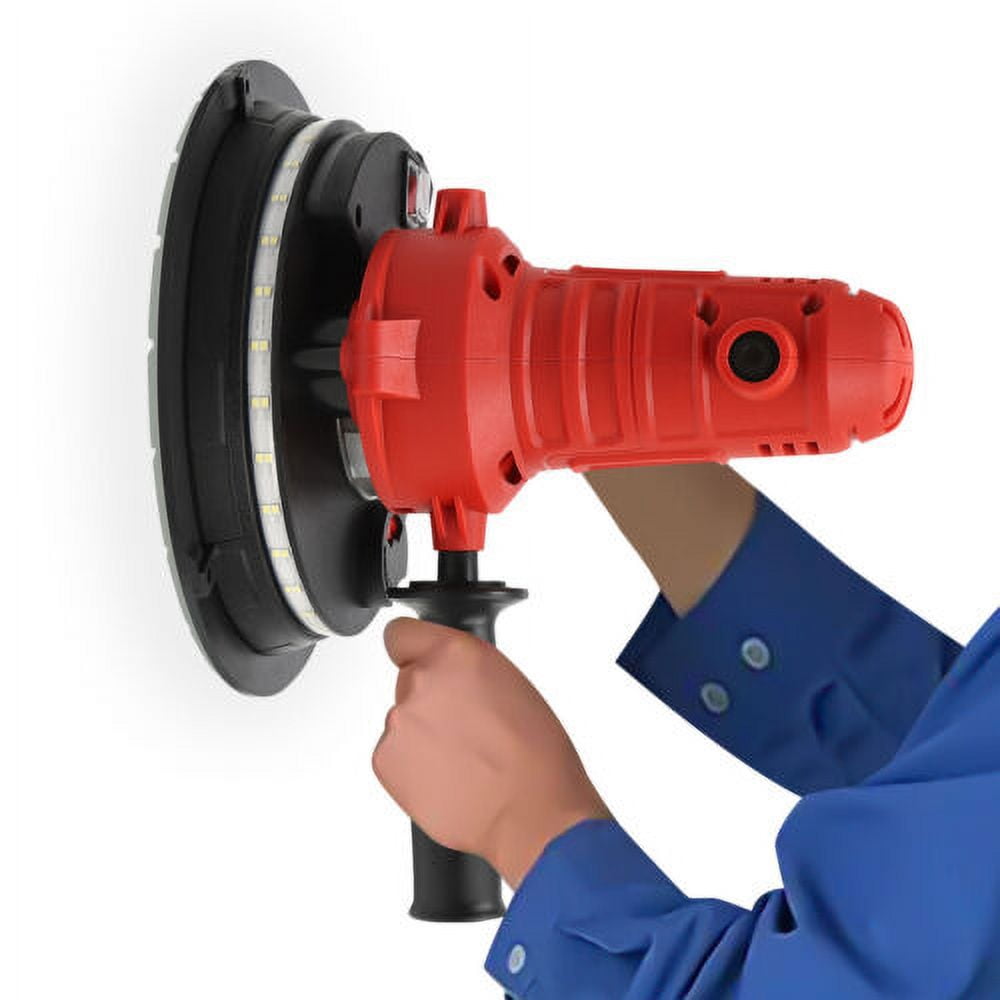

DetailsExtra Long Hose: The 78.7in hose length provides a longer range, reducing the need for extension cords and providing greater versatility in the workplace.Adjustable Handle:The auxiliary non-slip handle can be mounted on either side, which also makes work easier. It is suitable for the left and right hand.External Carbon Brush: It is convenient for you to replace the carbon brush when it runs out and makes the entire process more convenient and efficient.
-
ApplicationIt is suitable for renovators or people with high DIY ability to use it to easily sand plaster walls, putty walls, white cement walls, etc.
-
How to UseCommissioning Machine:Link the machine according to the manual, plug in the power supply, and commission the machine
Determine the hardness and softness of the wall putty, decide which type of sandpaper to use, and choose the speed of the machine.
