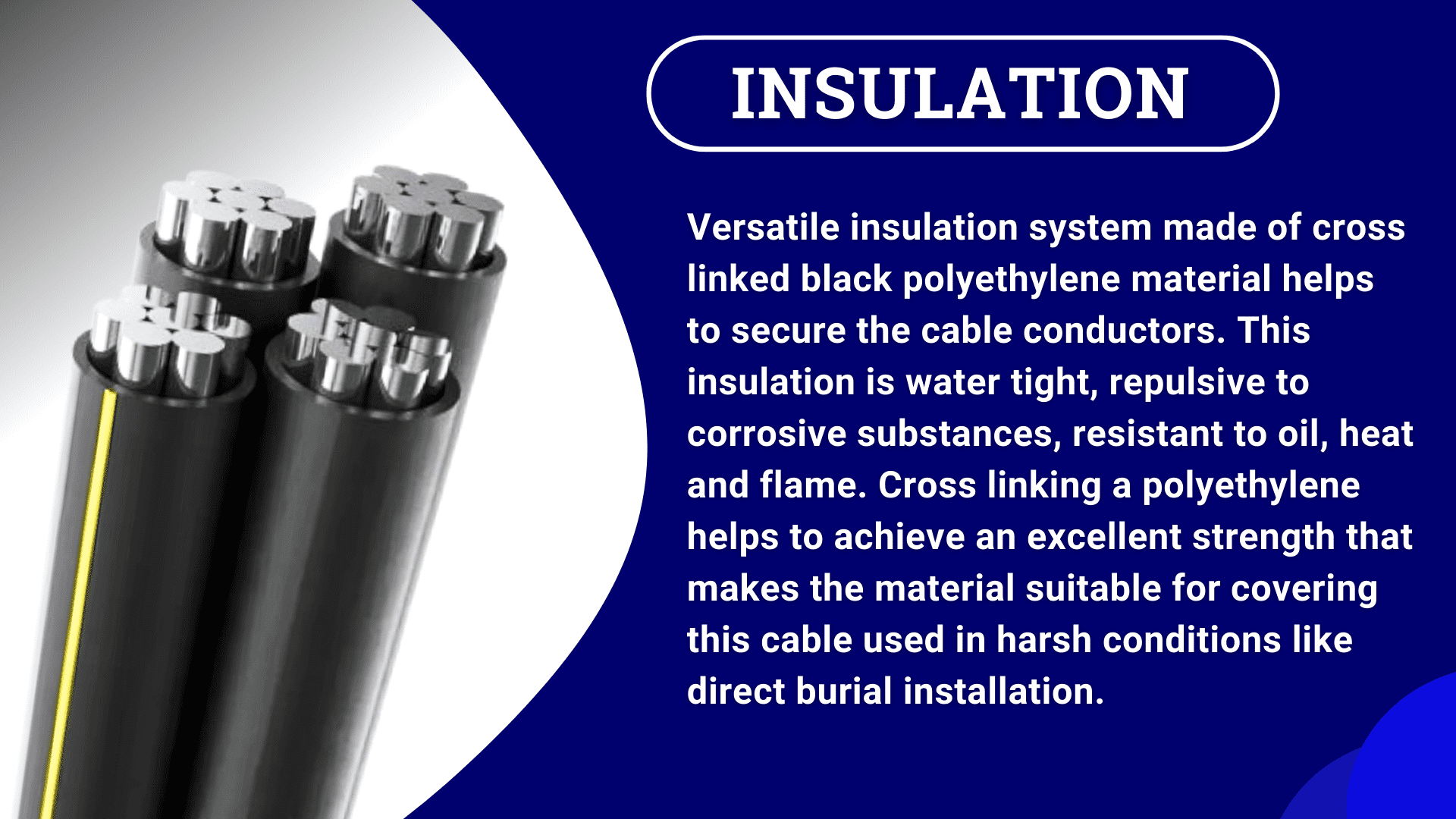

The Aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in duct or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the cable has a maximum operating temperature of 90°C. The electrical cable is also designed to provide an option of pre-pulling into ducts.
- Phase Conductor Size AWG: 4
- No. of Strands: 7
- Neutral Conductor Size AWG: 4
- Insulation Thickness (inches): 0.060
- Outside Diameter (inches): 0.840
- Ampacity (Direct Burial): 120 Amps

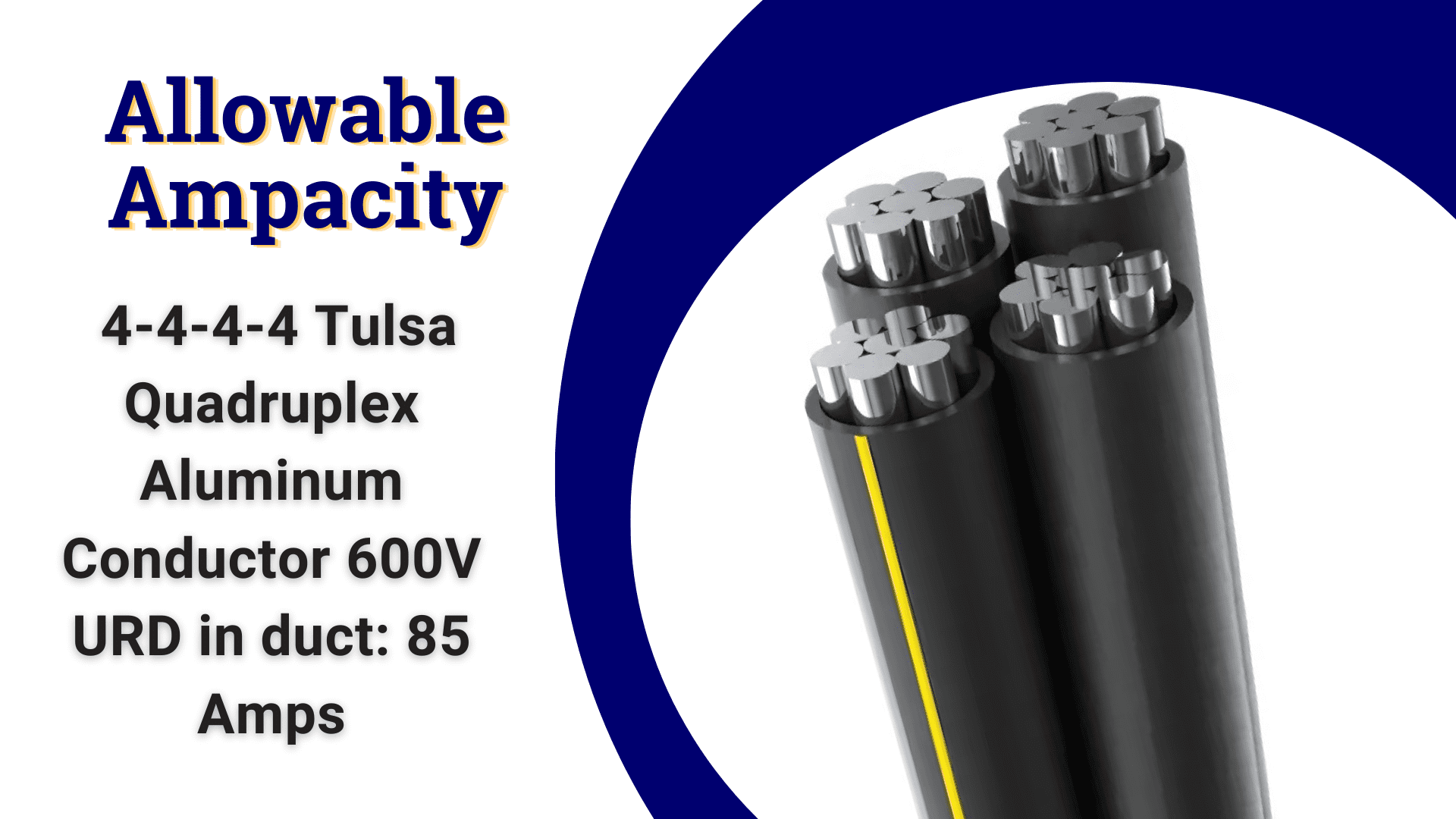

- Ampacity (In Duct): 85 Amps
- Weight (Lbs/1000ft): 275

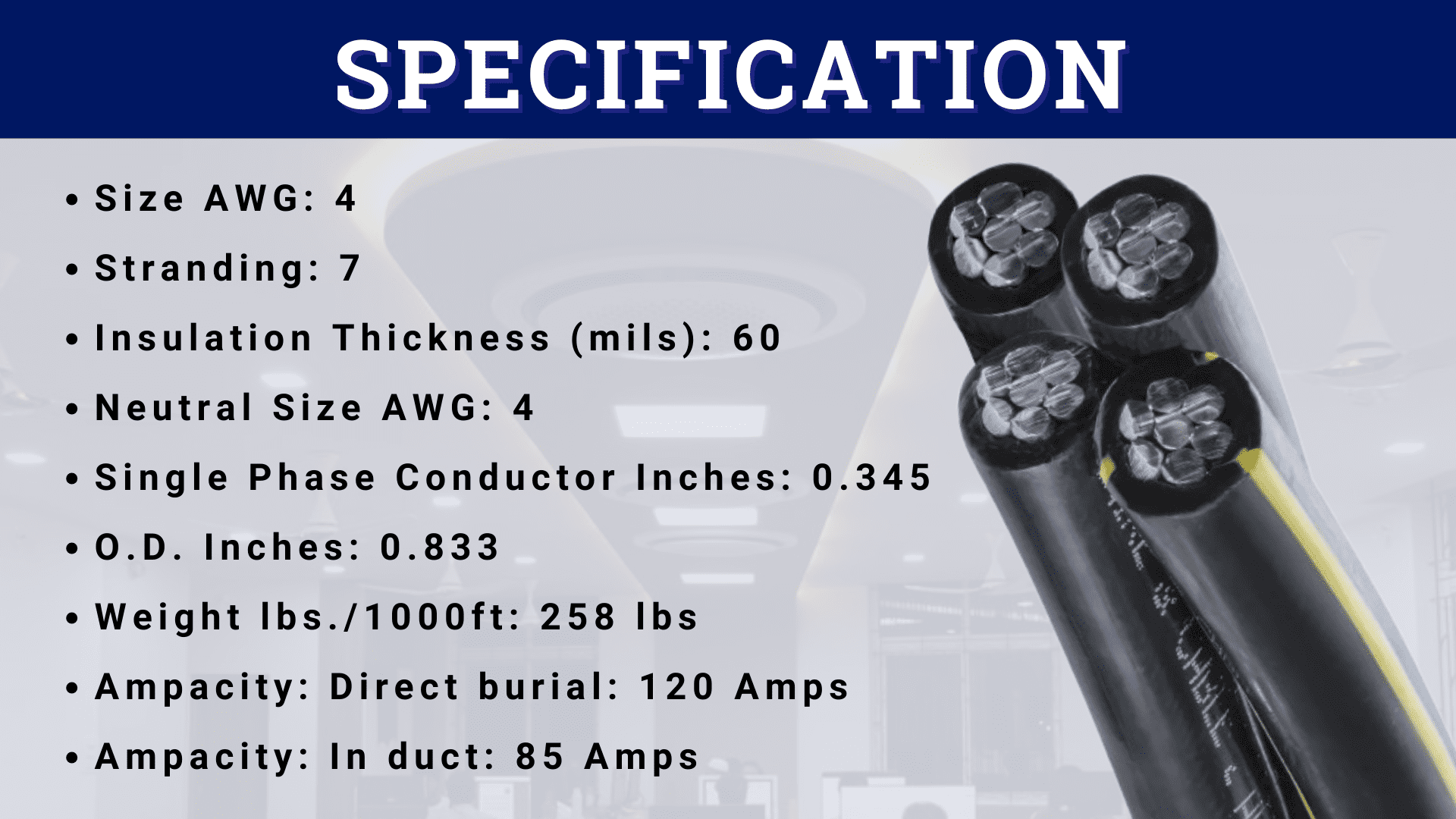

- Size AWG: 4
- Stranding: 7
- Insulation Thickness (mils): 60
- Neutral Size AWG: 4
- Single Phase Conductor Inches: 0.345
- O.D. Inches: 0.833
- Weight lbs./1000ft: 258 lbs
- Ampacity: 120 Amps (Direct burial), 85 Amps (In duct)
- Cable Length: 125 ft
- Conductor Material: Aluminum
