Specifications:
Displacement: 125cc
Type: Horizontal, single-cylinder, 4-stroke, air-cooled
Compression ratio: 9.0: 1
Front sprocket 420 – 17mm – 14T
Transmission: 4-speed 3 forward 1 reverse gear
Bore x Stroke: 2.06″ x 2.19”(52.4mm x 55.5mm)

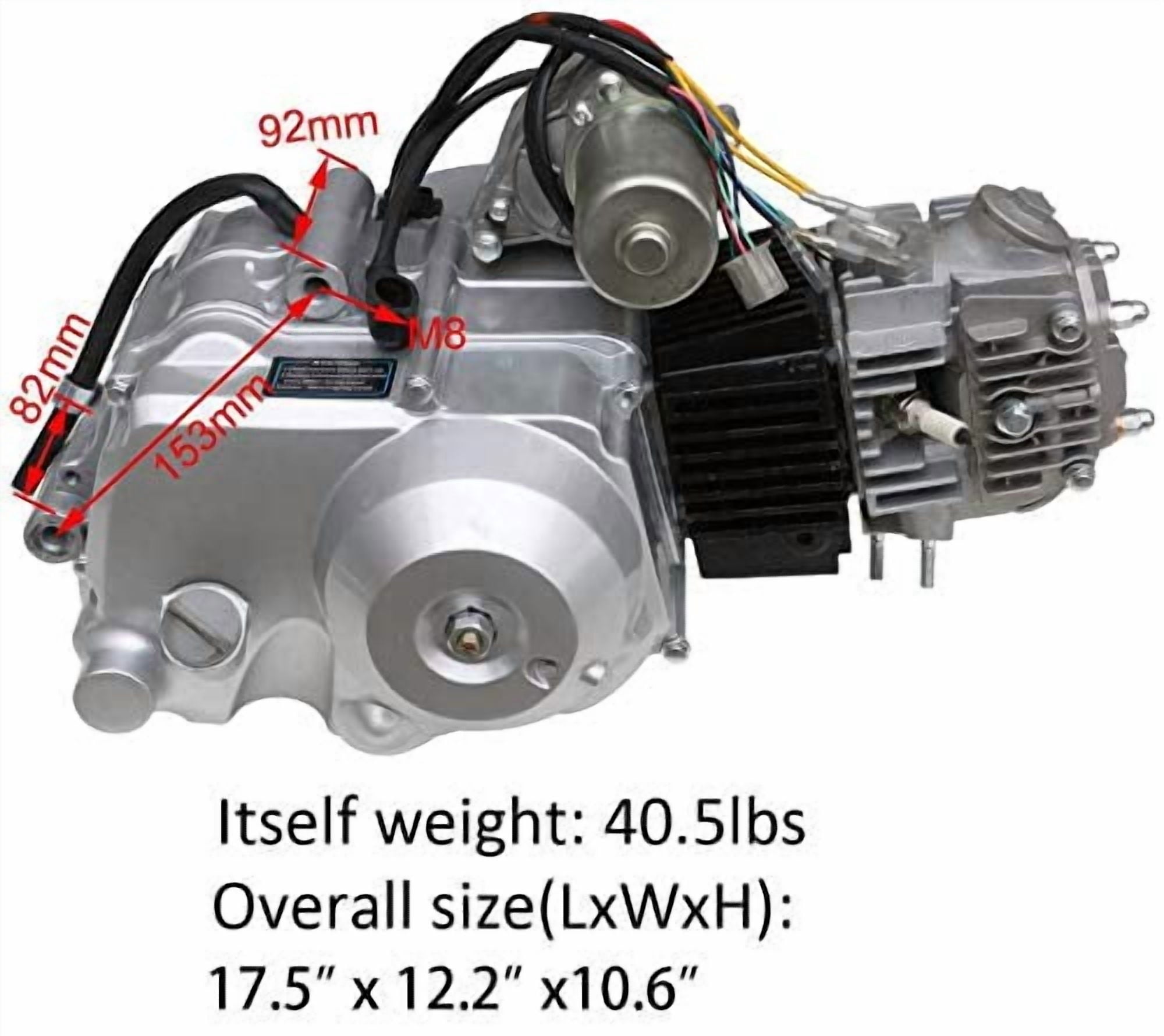

Top Engine Mount : 92mm
Bottom Engine Mount: 82mm
Bolt to Bolt :152mm (6″)
Rated Power & Rotating Speed: 5.8 kw/7500r/min±375 r/min
Max. Torque & Rotating Speed: 8.5 N.m/5000r/min±250 r/min
Idle speed 1500 r/min±100r/min
Ignition: CDI
-
- 125cc semi auto engine motor which has reverse gear, great for ATV Quad Buggy 4 Wheelers Go Kart Tricycle Drift Trike Cart etc Suits many models likes Taotao Kazuma Coolster Sunl Peace ATC70 , TRX90, FourTrax 70, FourTrax 125 etc
-

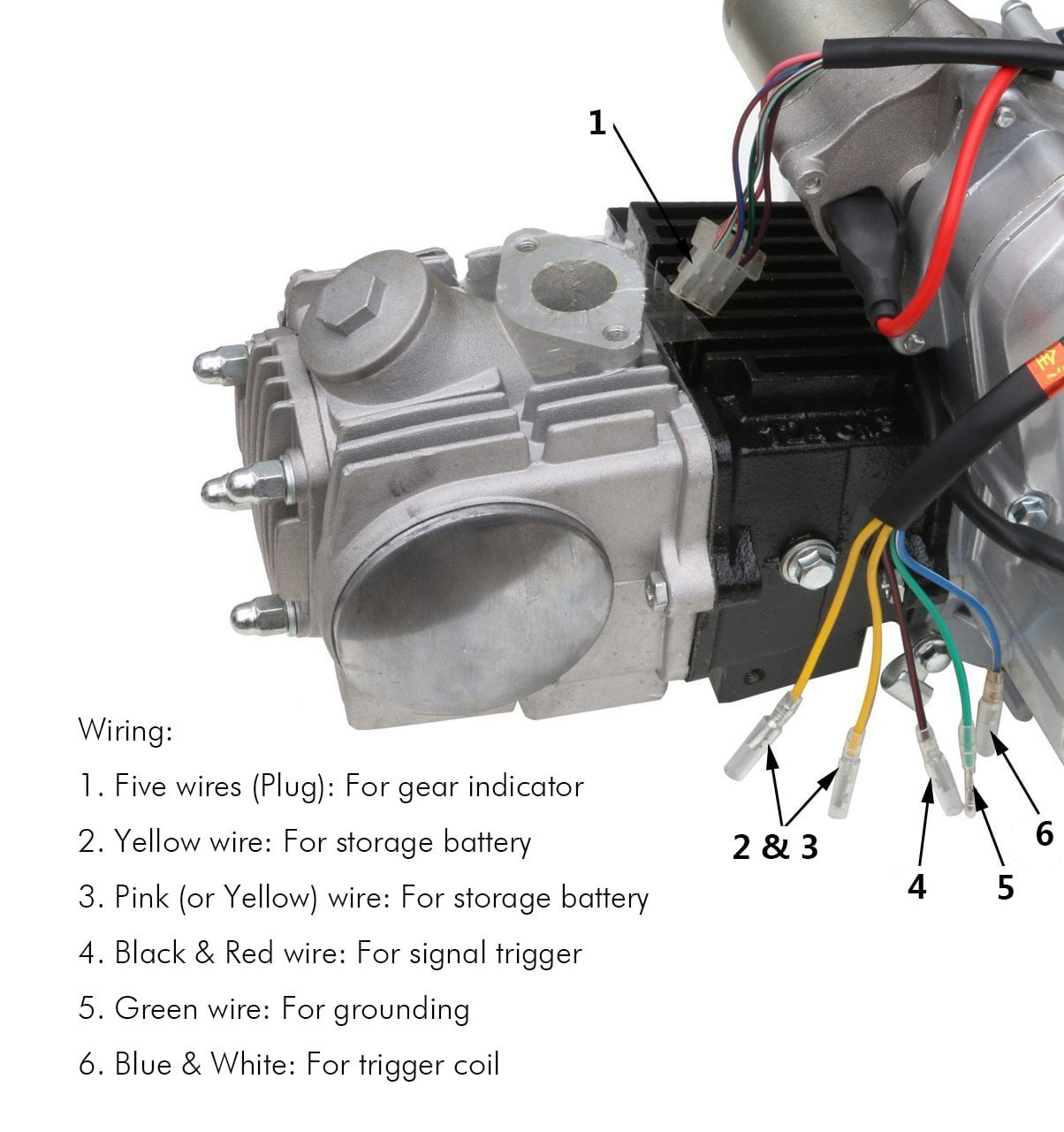

- Wiring: 1. Five wires (Plug): For gear indicator 2. Yellow wire: For storage battery 3. Pink (or Yellow) wire: For charging 4. Black & Red wire: For signal trigger 5. Green wire: For grounding 6. Blue & White: For trigger coil
-
- Upgrade your stock 50cc to this 125cc monster, you can feel the power difference immediately
- Electric Start, 3 forward 1 reverse, gear: 3-2-1-N-R
-

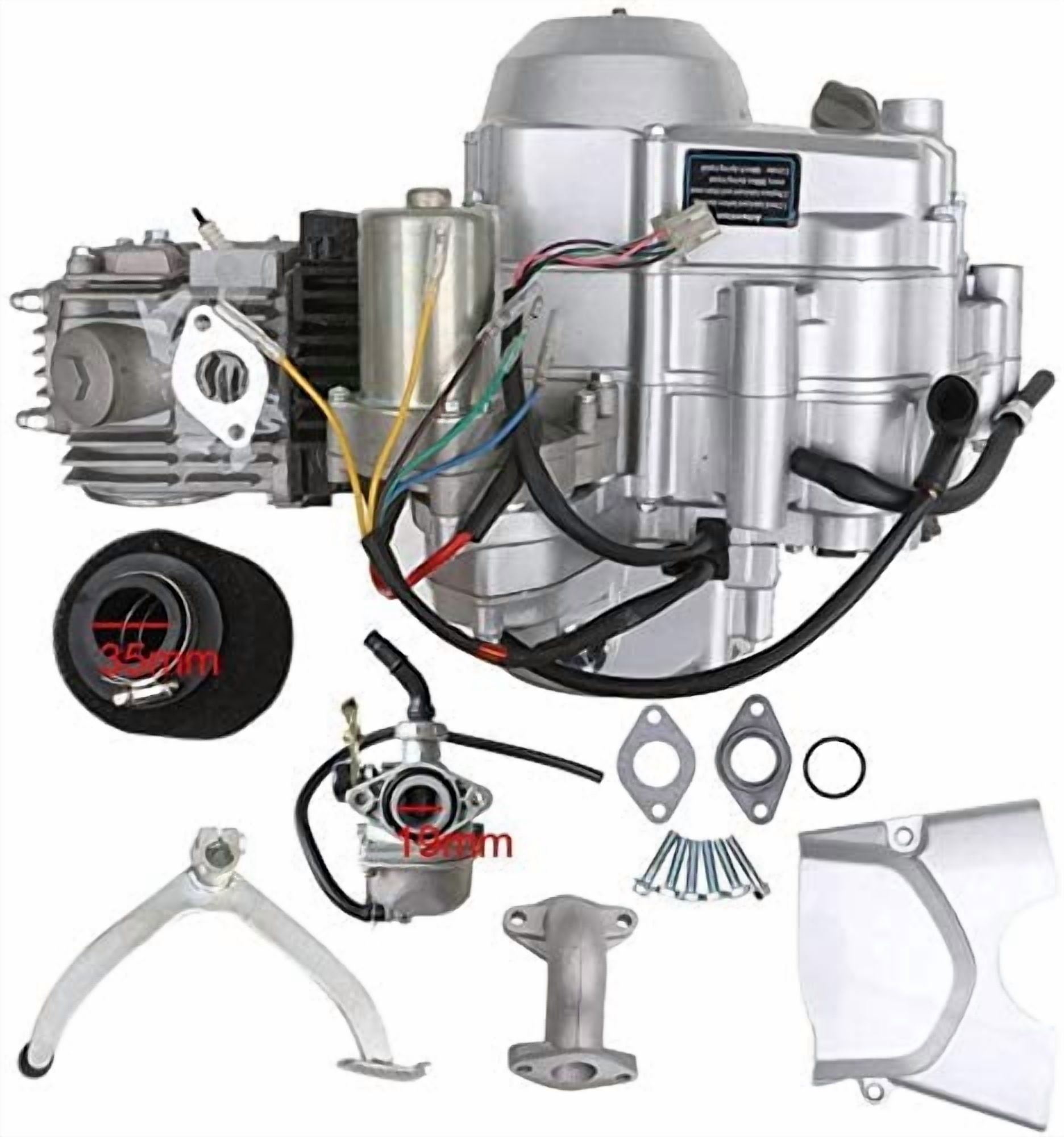

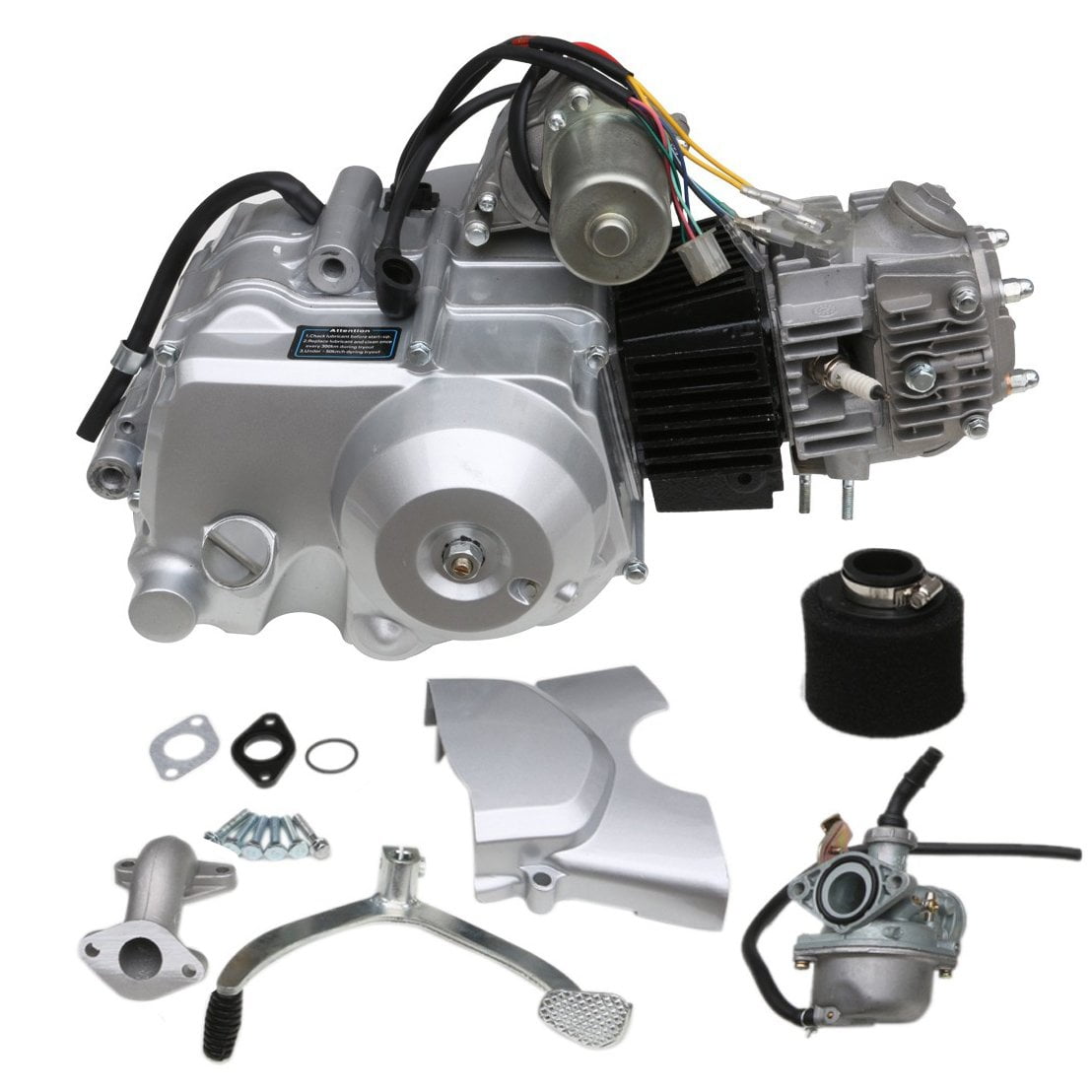

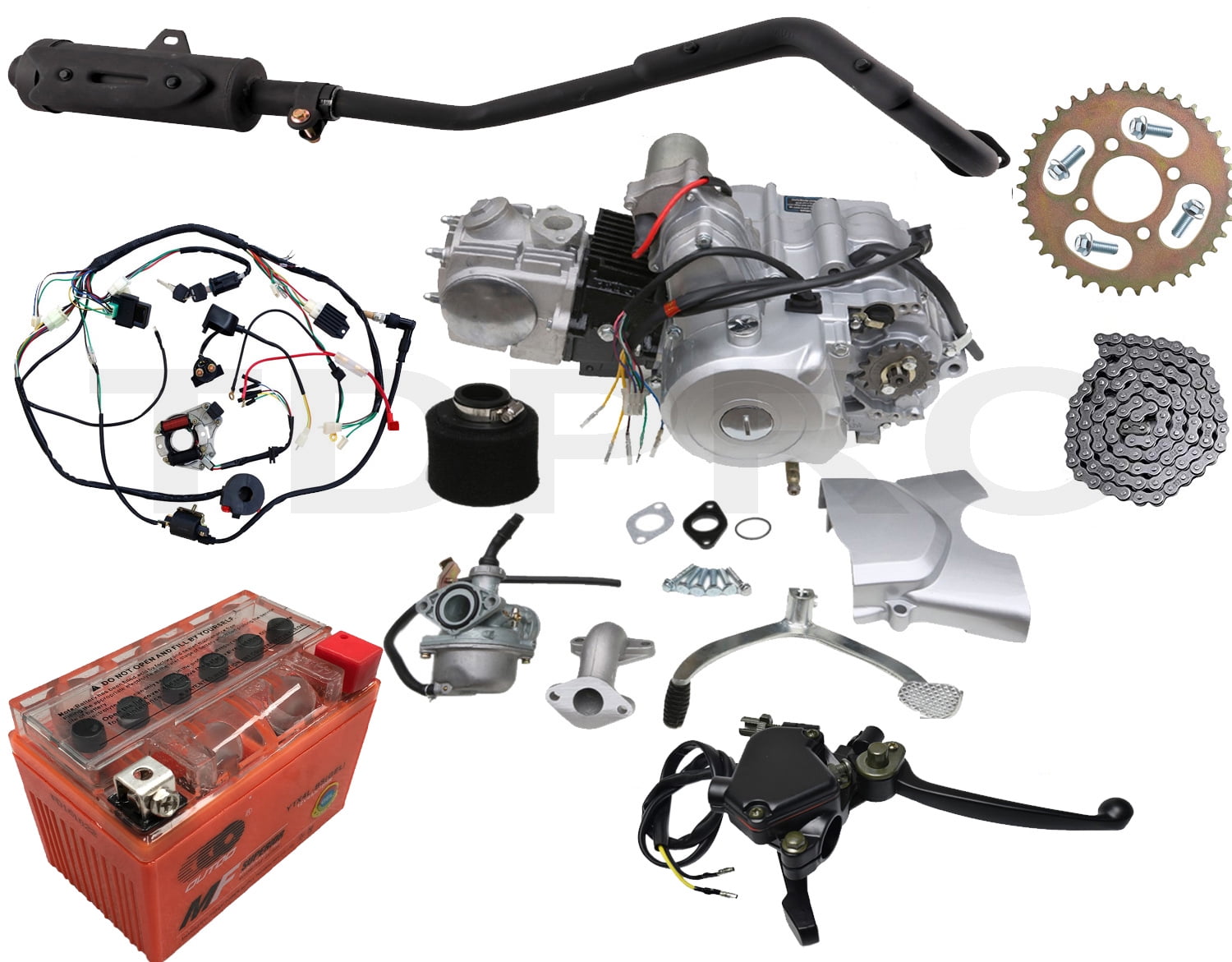

- Package includes 1x motor, 1x carburetor, 1x air filter, 1x manifold intake ,1x gear shifter, 1x wiring harness,1x UTX4L-BS Gel battery, 1x exhaust pipe, 1x 420 106 links chain, 1x 420 37T sprocket,1x thumb throttl
