Rated Voltage: 12.8V
Charge voltage: 14.2V~14.6V
Max Load: 2560W

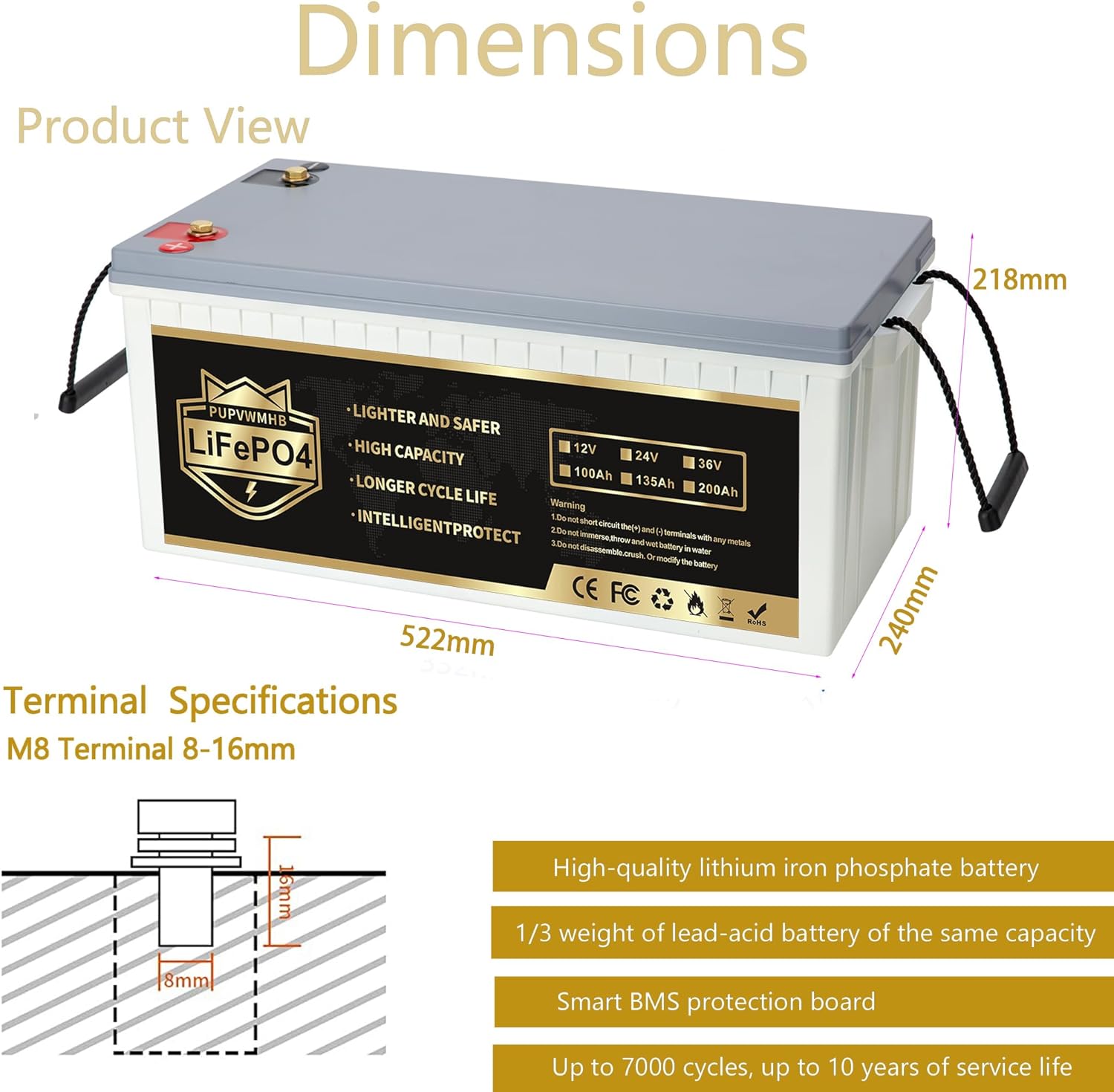

Terminal Type: M8
Dimensions &Weight : 20.55*9.44*8.58 inch / 45lb
Max Depth of Discharge (DoD): 100%
Maximum Continuous Discharging Current: 200A.
Standard charge current: 20A
Charge Operating temperatures: 0°C~50°C(32°F~122°F)
Discharge Operating temperatures: -20°C~60°C(-4°F~140°F)
Storage Operating temperatures: -10°C~50°C(14°F~122°F)
- 【Automotive Grade Lithium Battery】 PUPVWMHB 12V 200Ah lithium battery have exceptional quality since they are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the cell inside the battery. This makes lithium batteries perfect for solar home, RV, campers, motor homes, off grid office and off grid bunk house.

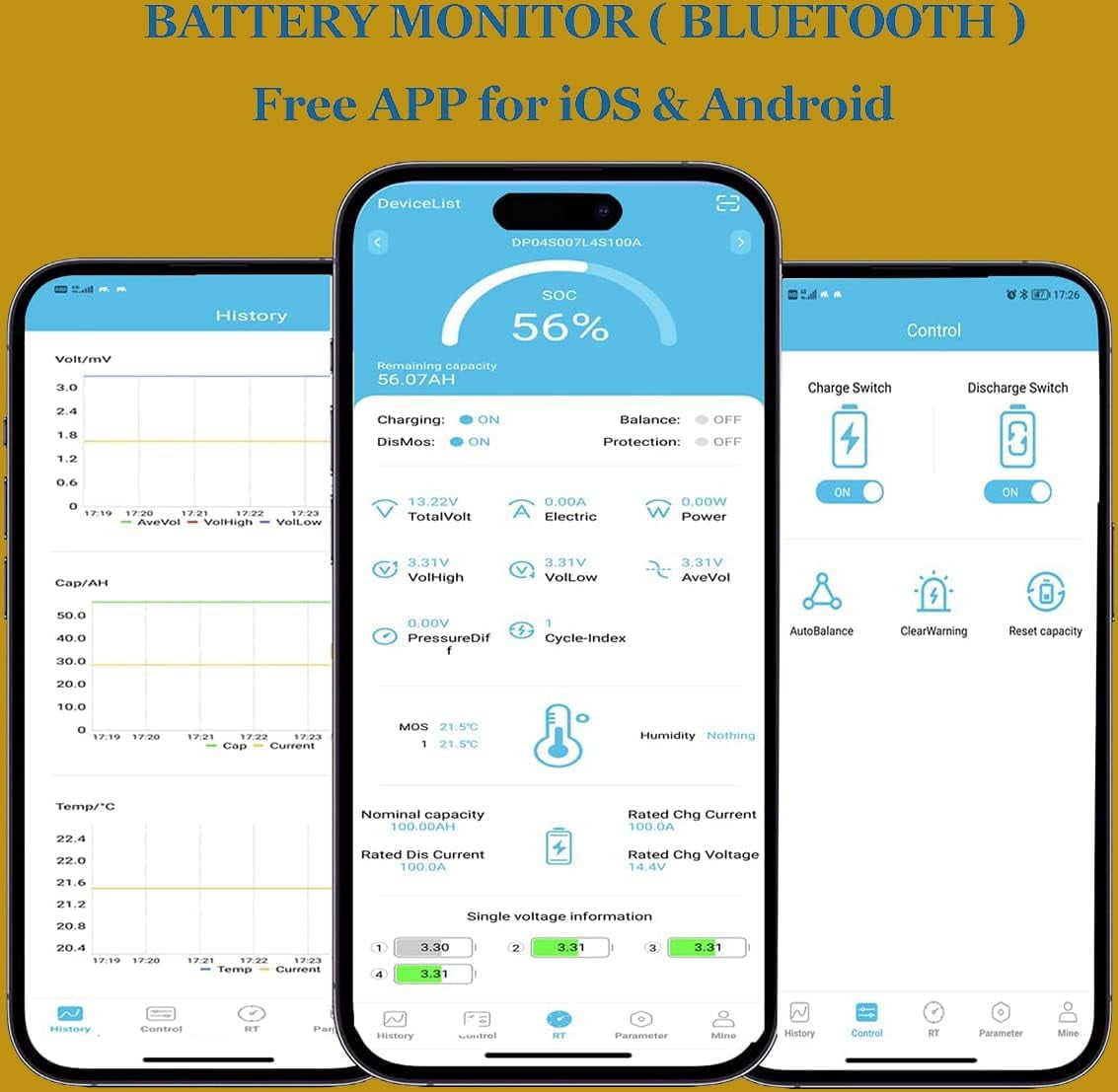

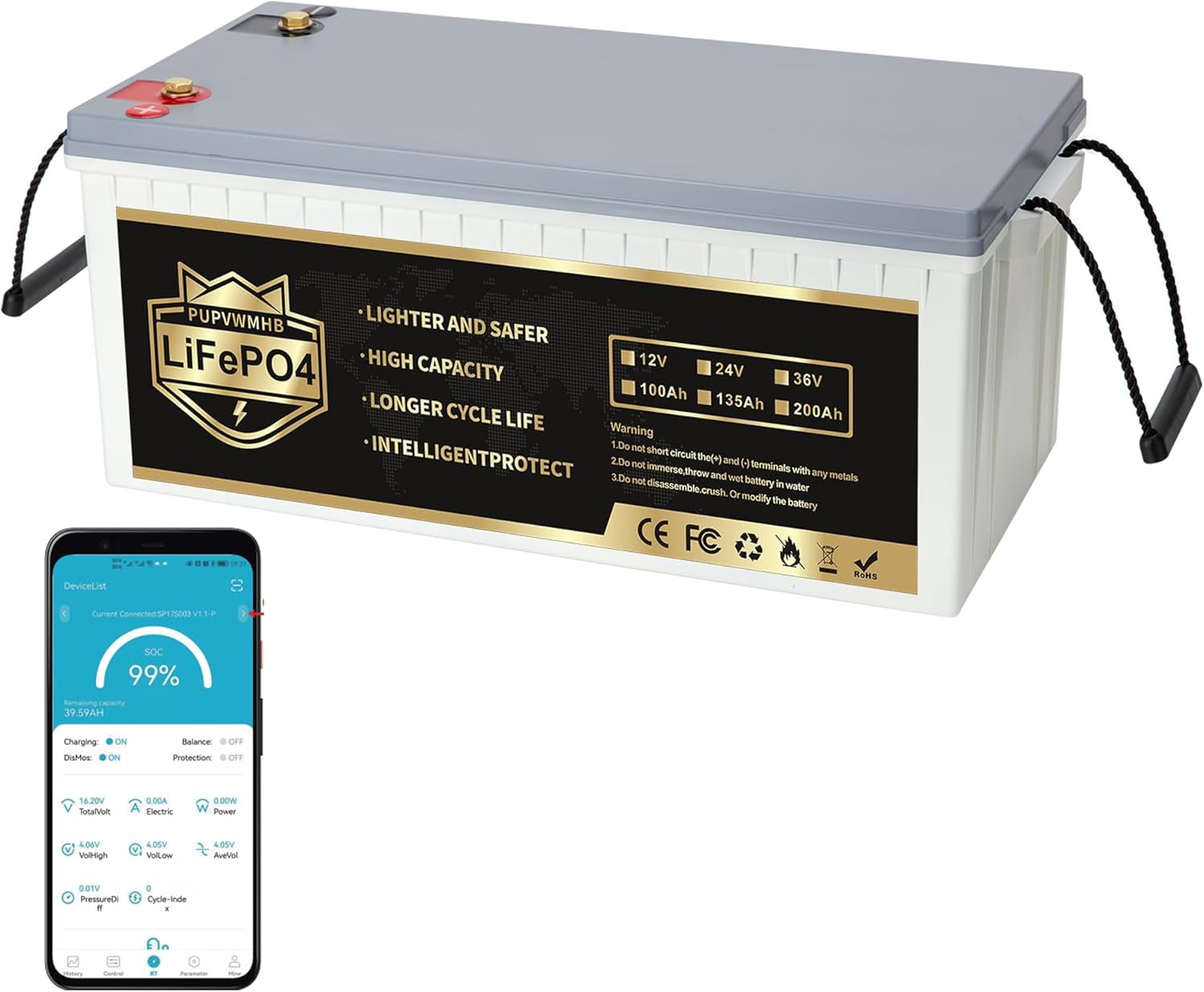

- 【Real-time monitor to read battery data】: Our smart PUPVWMHB 12V200AH lifepo4 battery can let customers connect to the battery through the mobile phone APP, and read the battery voltage, current, battery capacity and other important information at any time. Wireless connection range: within 5-10 meters from the battery.
- 【10 Years Lifetime】PUPVWMHB 12V200Ah LiFePO4 battery provides 4000~15000 cycles ( 4000 Time Cycles at 100% DOD, 6000 Time Cycles at 80% DOD, 15000 Time Cycles at 60% DOD ), which is more than 10 times to Lead Acid with 200~500 cycles. FEENCE LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid’s 3-year lifetime.
- 【95%* Efficiency】 PUPVWMHB 12V200Ah LiFePO4 battery’s flat discharge curve holds above 12.8V for up to 95%* of its capacity usage, providing astronomical boosts in run-time compared with only 50% in Lead Acid. This product is your best choice for outdoor camping power and indoor easy installation.PUPVWMHB 12V200Ah LiFePO4 Battery weighs only 48 lbs for one module, only 1/3* the weight of lead acid batteries.

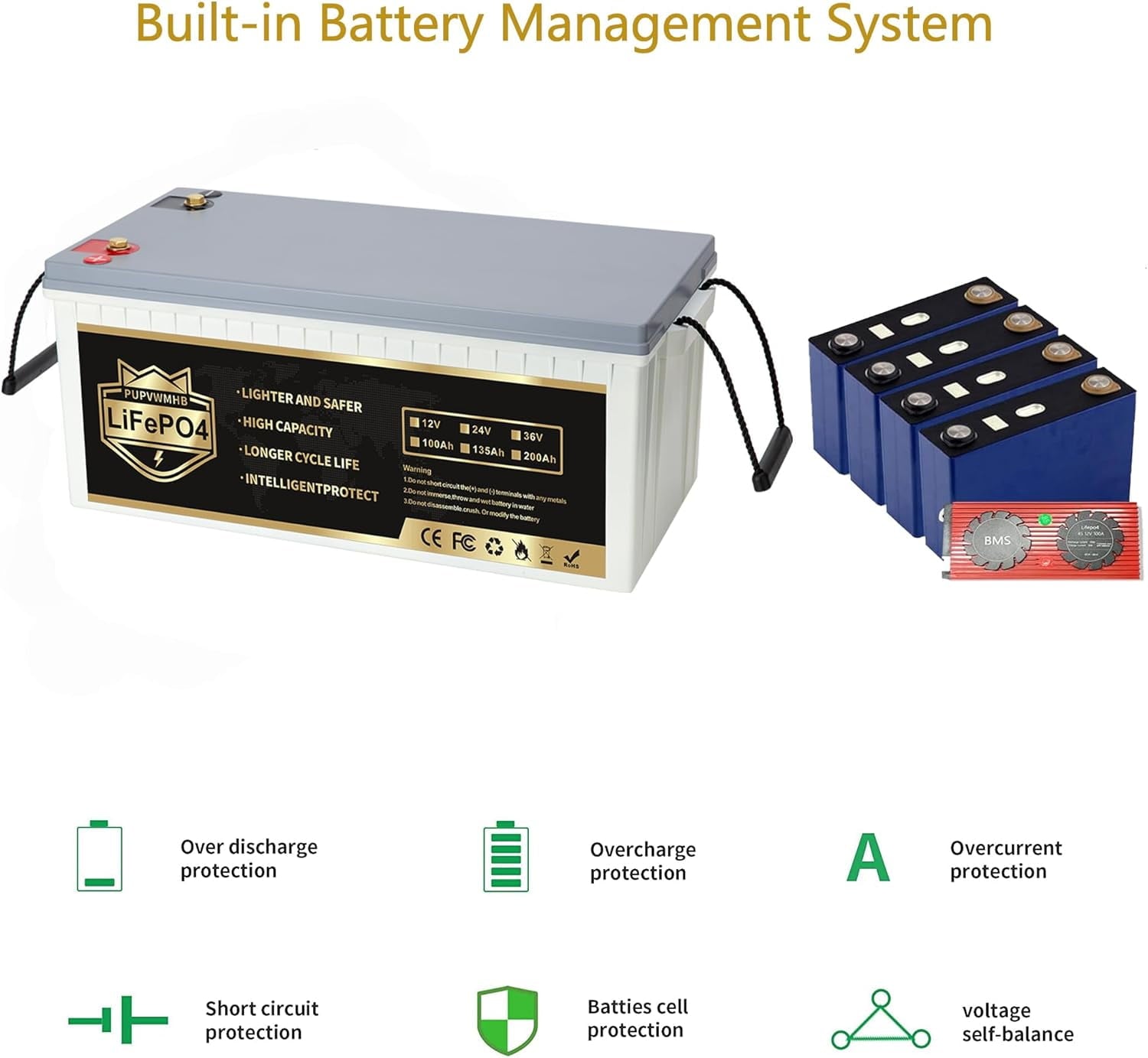

- 【100% Protection】 PUPVWMHB 12V200Ah LiFePO4 battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high-temp cut off prevents charging over 167 °F (75 °C). Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.
