>>>1500sqft Rolls (4ft x 250ft and 4ft x 125ft)
>>>Perforated

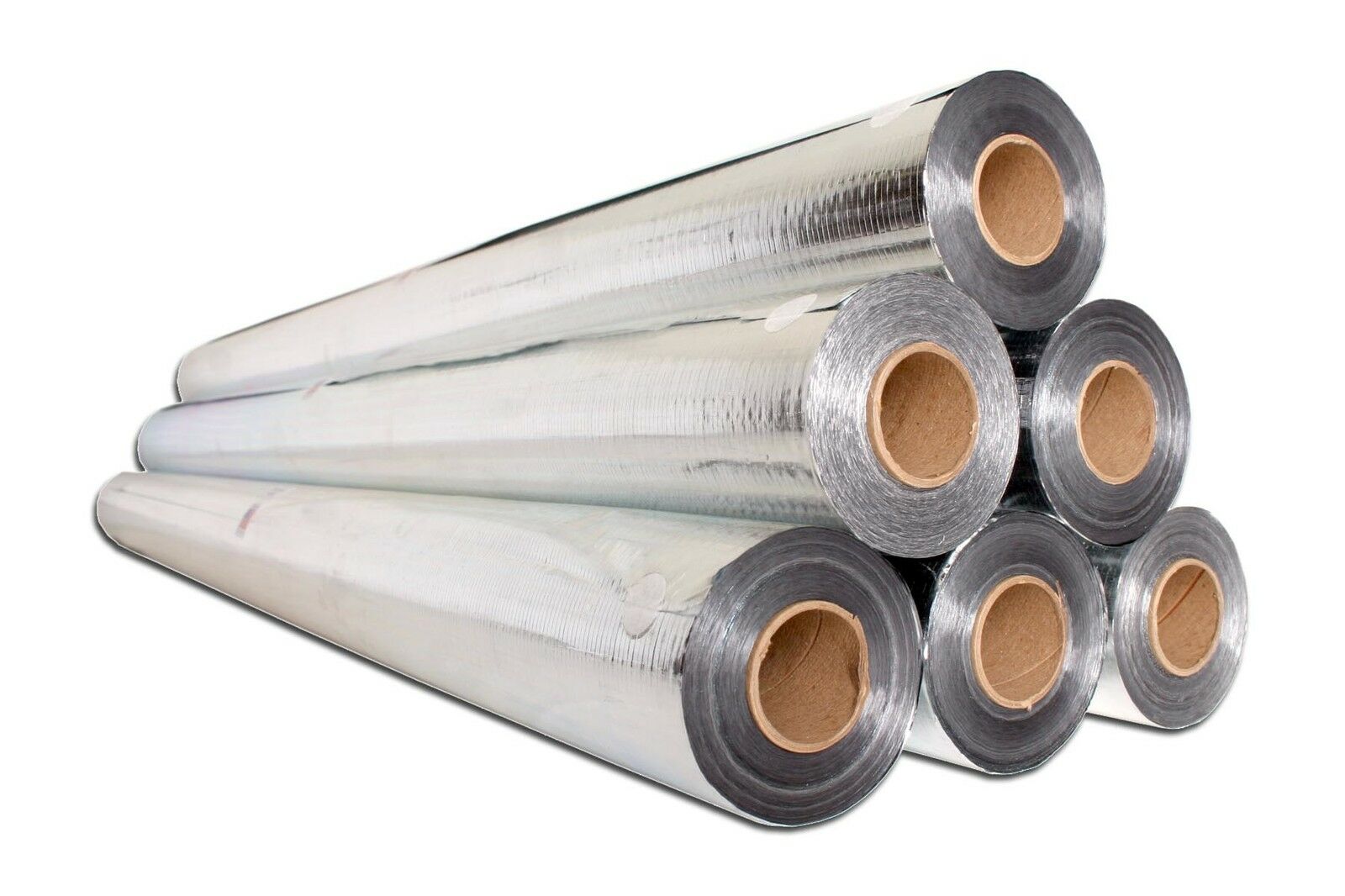

For residential retrofit, particularly in the attic laying over existing insulation, and some OEM applications. Available in 500 and 1,000 sq. ft. rolls or custom lengths.
Only available in perforated 4′ widths.

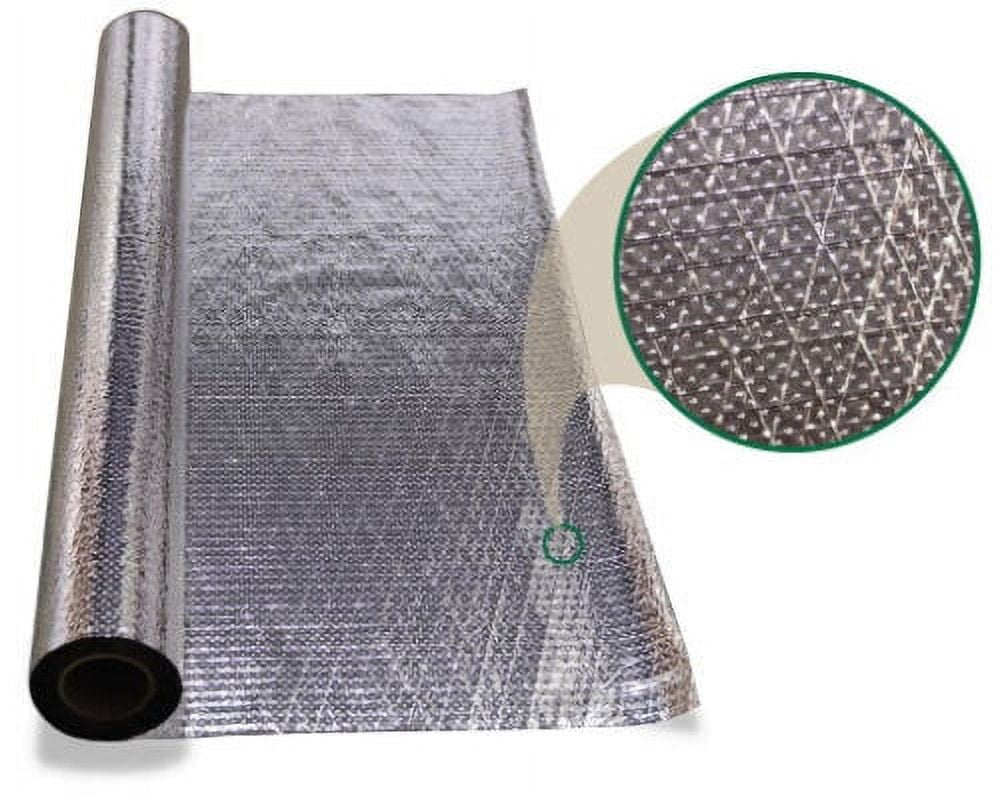

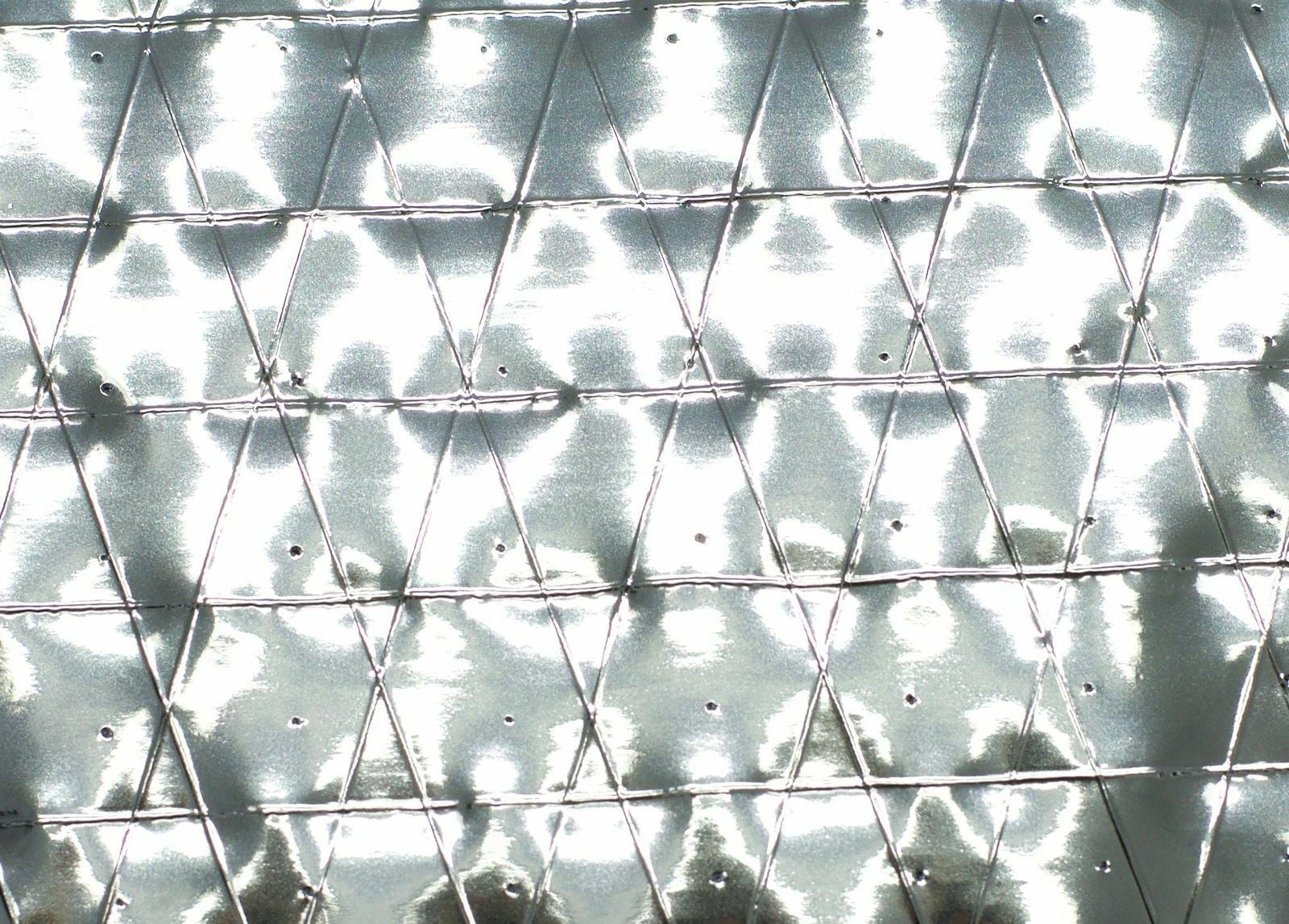

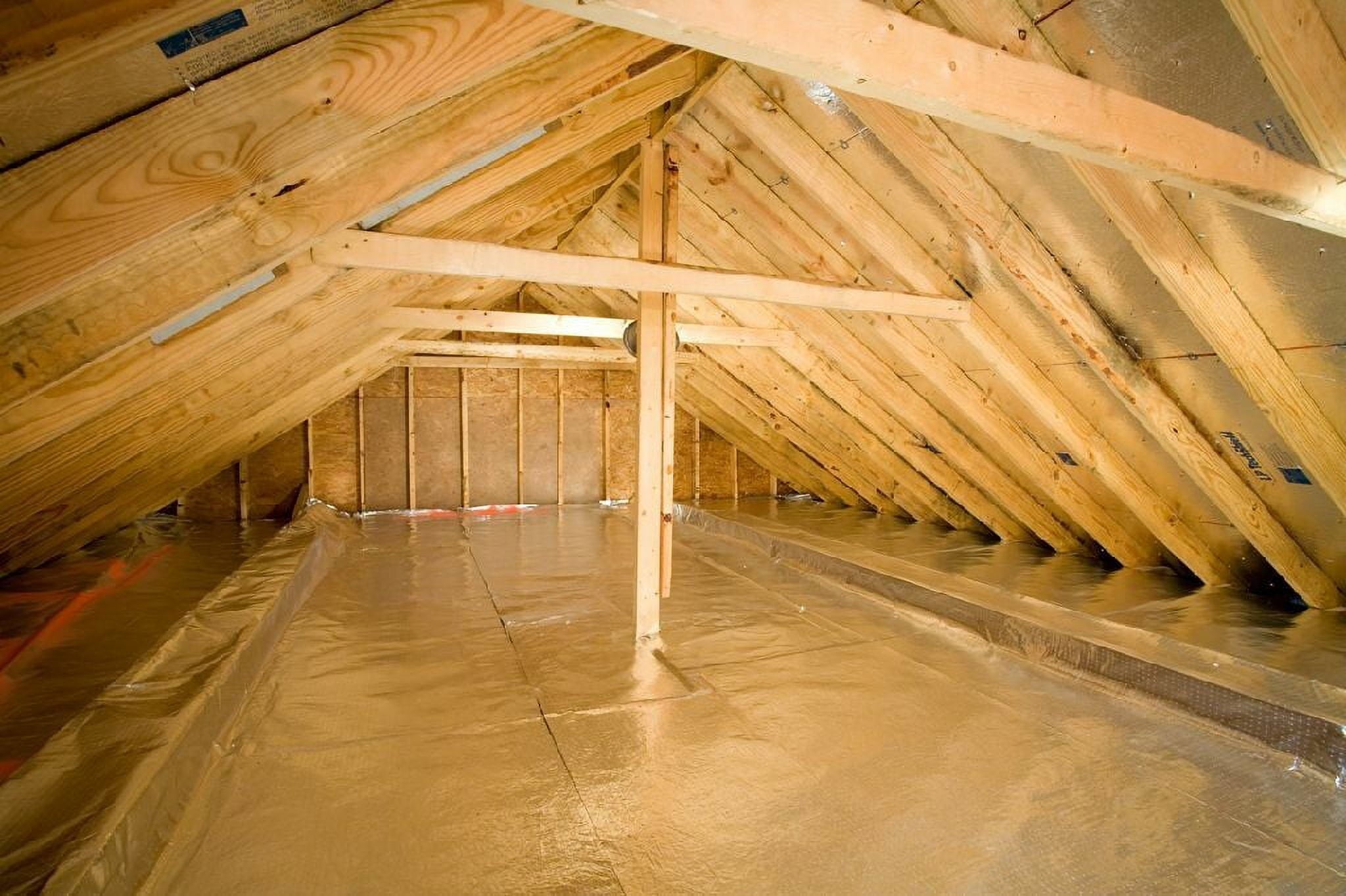

Super R Diamond® brand radiant barrier was the first product developed by Innovative Insulation. Super R Diamond® is two-sided reflective aluminized polyester film with reinforced scrim inside, designed to reflect radiant heat no matter what the season. Choose Super R Diamond® to retrofit an existing structure. It can be stapled to the underside of the roof rafters in an attic
Key Benefits
Meets new ASTM E84 and E2599 fire code
Clean, Lightweight, Easy To Install
Saves Energy and Money
For Residential Retrofit
Product Specifications
Meets ASTM C1313 Standard Specifications for Sheet Radiant Barriers for Building Construction Applications
Product Description Two-sided reflecting metalized film with polyester scrim reinforcement
Weight 16.35 lbs per 1000 sq ft roll
Tensile/Tear Strength Length: 2.32 pounds force
Width: 1.50 pounds force
ASTM D2261-07a
Pliability 70°F±5°F & 50±5% Relative Humidity –
No Cracking or Delamination
ASTM C1313-05
Adhesive Performance 180°F±5°F & 50% Relative Humidity –
No Bleeding or Delamination
ASTM C1313-05
Flame Spread & Smoke Class A/ Class 1
0 Flame Spread, 10 Smoke Development
ASTM Method E84-10
Resistance to Fungi PASS – No Growth
ASTM C1338-08
Permiability 9.6 Perms
ASTM E96-05
Thermal Properties EMISSIVITY: 0.05
REFLECTIVITY: 95%
ASTM C1371-04a1500 sqft Diamond Radiant Barrier Solar Attic Foil Reflective Insulation 4×375
