Description

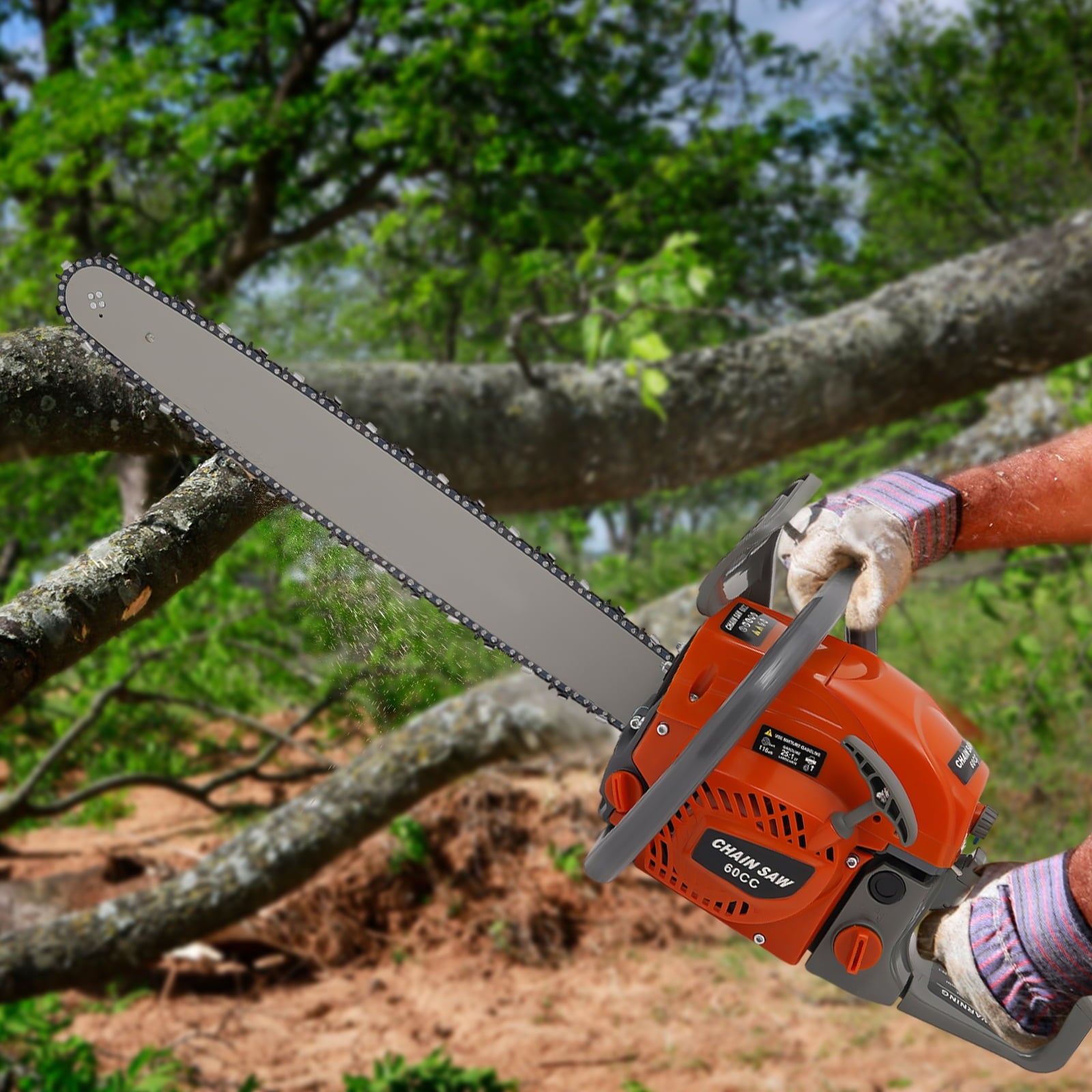

Selected materials, excellent performance and powerful engine make this gas chainsaw an efficient professional cutting tool, which saves you time and labor. With silent and vibration-dampening design, an ergonomic handle, a braking baffle, and a pull-start ignition method, it is safe and comfortable to use.
Details
Tool Bag: It can help you organize your accessories in an orderly manner, making it easy for you to carry around and effectively preventing accessory loss.
Fuel Tanks: The 18.6Oz translucent fuel tank and 4.73Oz chain fuel tank allow for large capacity, a convenient mixture of fuels, and long-term use without frequent filling.
Double Nuts and Piston Rings: The guide plate is fixed with double bolts to ensure the stability of the product and make the chain not easy to loosen. The rings make the product sealing performance better, which can increase the machine’s power.
Guide Bar Cover: It allows for convenient storage and better protection of the guide bar when not in use.
Application
It is suitable for garden pruning, forest logging, chopping wood, bamboo harvesting, timber making, ice cutting, tree pruning, clearing land, preparing firewood or cleaning up, outdoor wood cutting, for home, garden, ranch, and farm use.
How to Assemble the Chainsaw
1. Install the jam teeth in the right direction.
2. Install the guide bar.
3. Install the chain.
4. Cover the side cover.
5. Adjust the chain tightness.
6. Tighten the screw
How to Start the Chainsaw
1. Push the brake.
2. Move the On/Off switch to the On position.
3. Pull the choke knob fully out to position.
4. Pull the start handle(Max 6 times).
5. Push the choke knob back fully.
6. Pull the starter until the engine start.
Specification
Color: Orange
Style: Modern
Assembly Required: Yes
Material: Nylon, Mn Steel, Aluminum
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Ignition System: Self-reset Pull Start
Fuel Tank Capacity: 550ml/18.6Oz
Chain Fuel Tank Capacity: 140ml/4.73Oz
Bore: 45.2mm/1.78inch
Volume: 116dB
Power: 2.8kw
Speed: 10000rpm
Displacement: 60cc
Oil Mixture: 25:1(90# Gasoline: Oil)
Max. Cutting Diameter: 55cm/22in
Chain Length: 55cm/22inch
Product Size: 96*24*29cm/37.79*9.44*11.41in
Package Size: 60*27*33cm/23.6*10.6*13in
Gross Weight: 8kg/17.64lb
Package Included
1* Gas Chainsaw
1* Chain
1* Guide Plate
1* Tool Bag
1 Pair*Glooves
1 Pair*Goggles
1*Ear Protector
1* English Manual
Other Accessories for Assembly
Notes
1. Before starting the gasoline chainsaw, please ensure that it fits well with the guide bar, and use a wrench to adjust the chain. When installing the guide bar, please note that the screw column on the side cover must be aligned with the guide bar hole before installation(The function of the screw column is to adjust the chain tightness.).
2. Please use gasoline 90# with special 2-cycle engine oil and never use pure gasoline. Gasoline and oil mixture ratio: 25:1. The oil output can be controlled to turn larger to the left and smaller to the right.
-
Made to Last: It is made of high-quality nylon housing, aluminum handle, and Mn steel guide bar&chain, which is insulating, strong, durable, wear-resistant, and not easy to deform.
-
Excellent Performance: The 2-stoke engine with 60cc displacement, 10000rpm high speed, and 2.8KW high power, the high-magnetic flywheel with thickened blade design, the filter, the pressure-reducing valve, and the 22″ guide chain can achieve fast cutting, thus providing excellent performance(about 22″ cutting diameter).
-
Cost Saving: The combination of this quality carburetor and automatic lubricating oil system enables the product to provide a stable and economical supply of chains and bars, quickly and easily adjust chain tension, and reduce friction and oil consumption by 20%, thereby improving cutting performance and extending service life.
-
High Safety: The double protection switches that must be pressed at the same time to work can prevent the machine from accidentally starting. The heat-sink holes on the machine also ensure good heat dissipation. Moreover, the guide plate has an inertia-activated chain brake to reduce the possibility of injury due to recoil, and the practical gloves and the widened brake baffle that makes emergency braking can protect your hands from hurting, avoid sawdust splashing, and improve safety.
-
Convenient and Comfortable: With a hand-pull spring-loaded starter handle, premium spark plug, safety switch, and throttle switch, it’s convenient to use. Its cordless design and non-slip shock-absorbing ergonomic handle allow you to operate more easily and freely. Moreover, the silencing and damping designs can effectively reduce noise and vibration, providing you with a multi-angle cutting by changing the direction of the machine, which is convenient for you to use.
-
Easy to Install: The simple structure, complete accessories, and English manual allow you to install this product in minutes, saving you time and labor.
-
Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam to protect your products to the maximum extent possible.
-
Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
