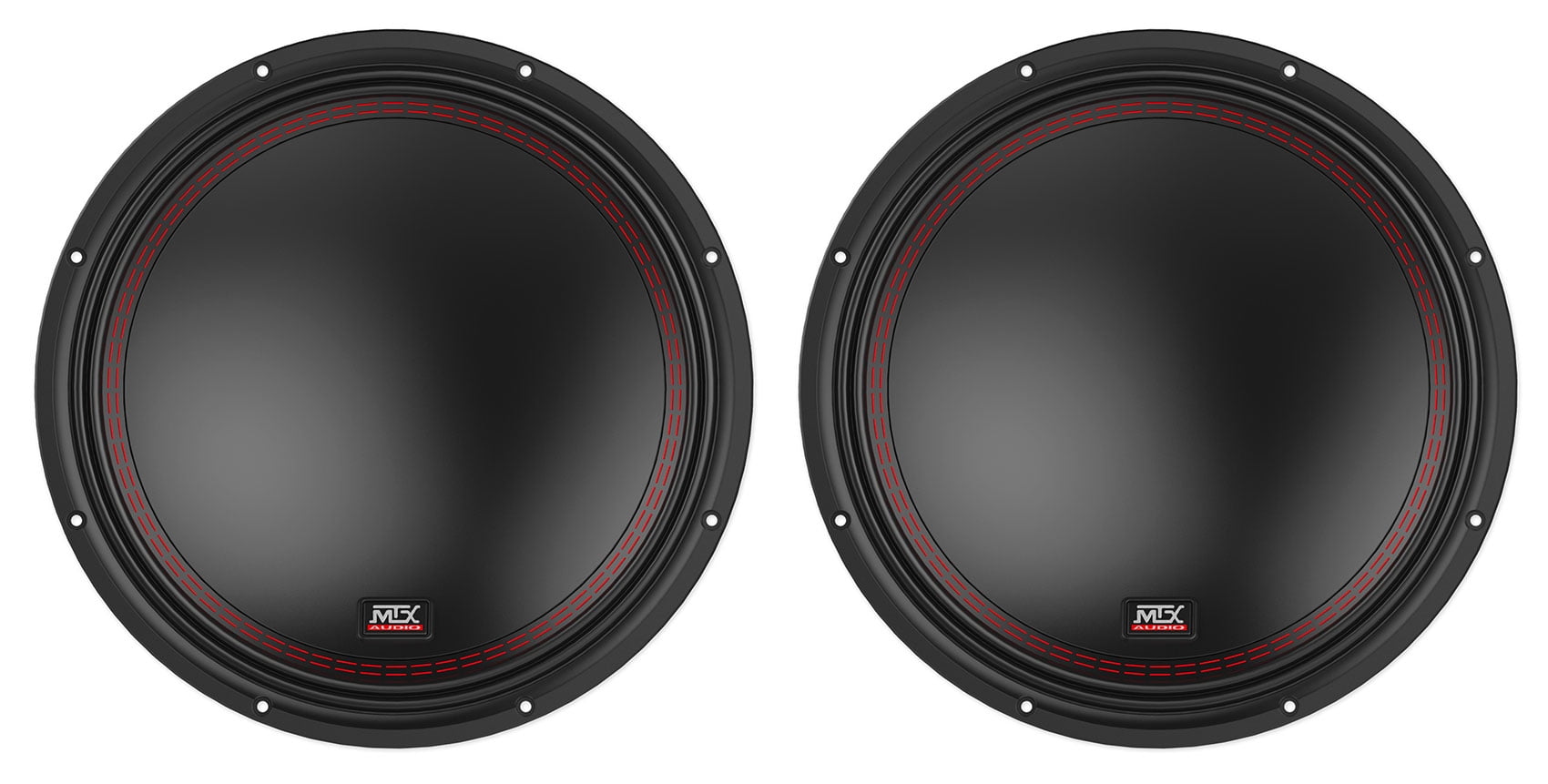

Price is for (2) MTX 5512-44 12" DVC 4-ohm Car Audio Subwoofer Subs Totaling
1600 Watt Peak/800 Watt RMS
Description:
High SPL Subwoofers
55 Series Subwoofers are high SPL subwoofers that deliver the most bass for your
buck. Implementing many of the same features found on our 75 & 95 Series
SuperWoofers, the 55 Series can rock hard and loud for extended periods of time,
while maintaining accurate and clean bass throughout the party. You will be
impressed.

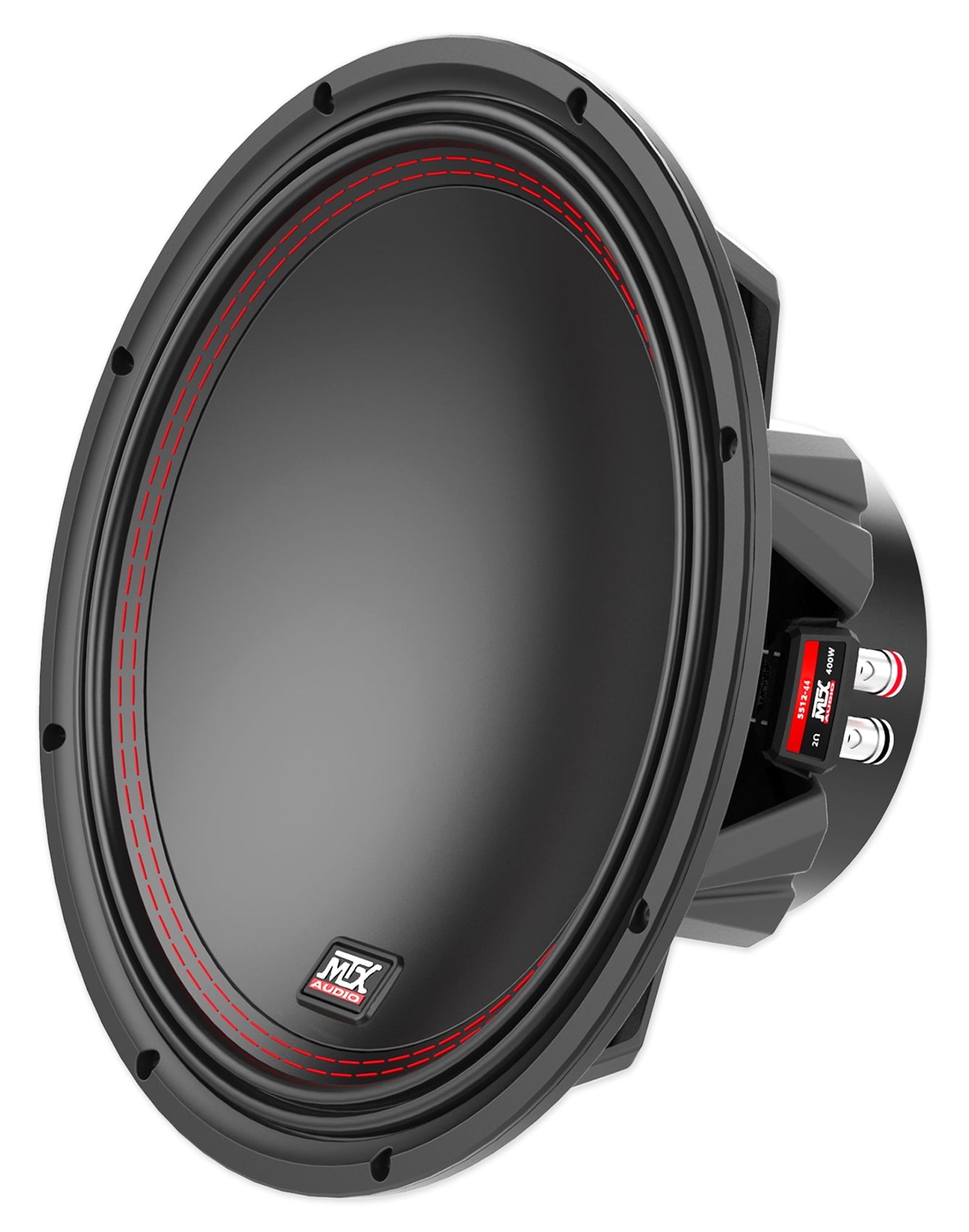

The 5512-44
The 5512-44 is a 12″ dual voice coil, 400 watt, 4 ohm subwoofer built on the MTX
tradition of getting more than expected. The 55 Series subs are often used in
applications where bass levels are the most important factor. These subwoofers
are designed to move air and go boom! They are true monsters of bass and are a
great choice for anyone that really wants to be heard.
55 Series Spider Plateau Venting
This subwoofer also incorporates Spider Plateau Venting which is a mechanical
cooling process that targets cool air at the voice coil and a radial ribbed
t-yoke that acts as a heat sink effectively managing the subwoofer temperature
for long term rocking performance.

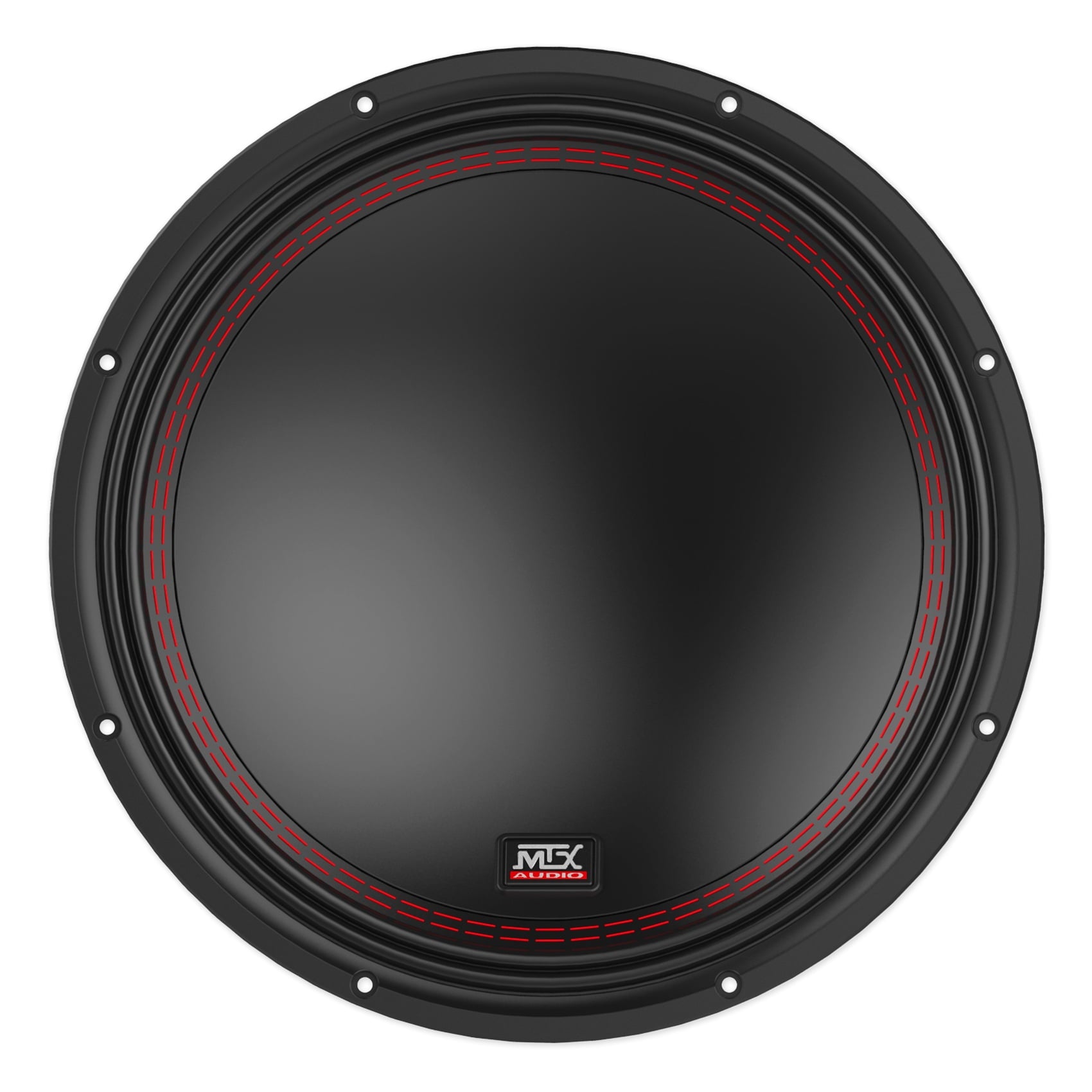

The MTX Inverted Apex Surround
This subwoofer features the MTX Inverted Apex Surround. This is a departure from
a traditional half roll surround. The Inverted Apex is narrower thereby
increasing the surface diameter of the subwoofer cone enabling it to displace
more air and generate higher SPL. The 55’s are designed with a progressive
suspension that lowers distortion resulting in improved sound quality even at
high volume.
Features:
MTX 5512-44 12" 800 Watt Peak/400 Watt RMS 4-Ohm Car Subwoofer
RMS Power Handling: 400 Watts
Peak Power Handling: 800 Watts
Recommended Amp Power: 200-400 Watts RMS
Impedance: Dual 4 Ohms
Frequency Response: 26Hz – 130Hz
Sensitivity: 85.7 dB
Voice Coil: 2" inches (Dual)
Magnet Weight: 56 oz.

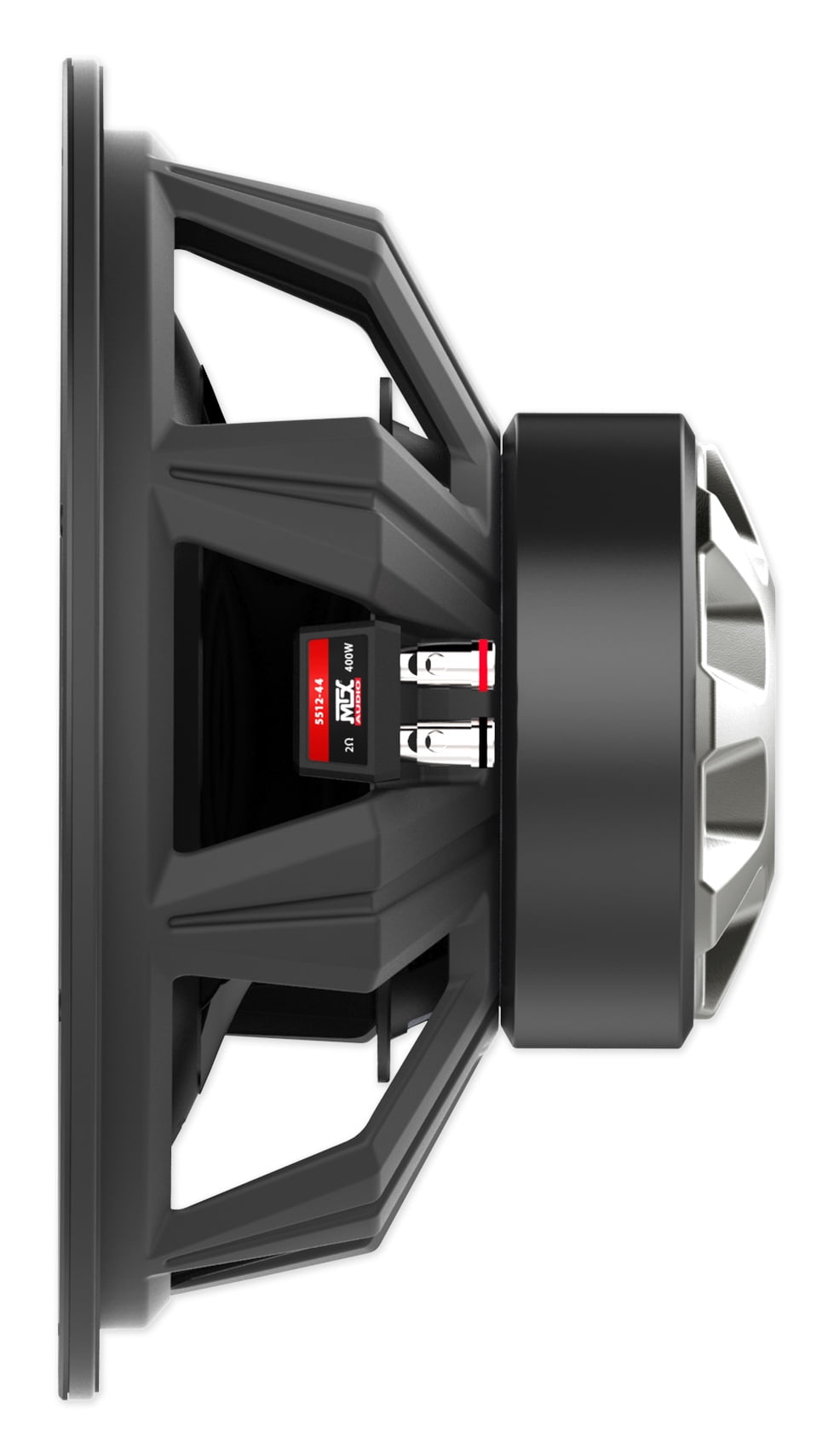

Mounting Depth: 6.188" inches
Cut Out Diameter: 11.125"
Volume Displacement: 52.46 cu in
Sealed Enclosure Net Volume: 1.0 cu ft.
Vented Enclosure Net Volume: 2.32 cu ft.
Inverted Apex Surround: Increases Surface Area Resulting in Increased Volume
Displacement and SPL
Spider Plateau Venting: Targets Cool Air at Voice Coil for Improved Thermal
Performance
Progressive Suspension: Controls Excursion at High Power Reducing Distortion
Resulting in Better Sound Quality

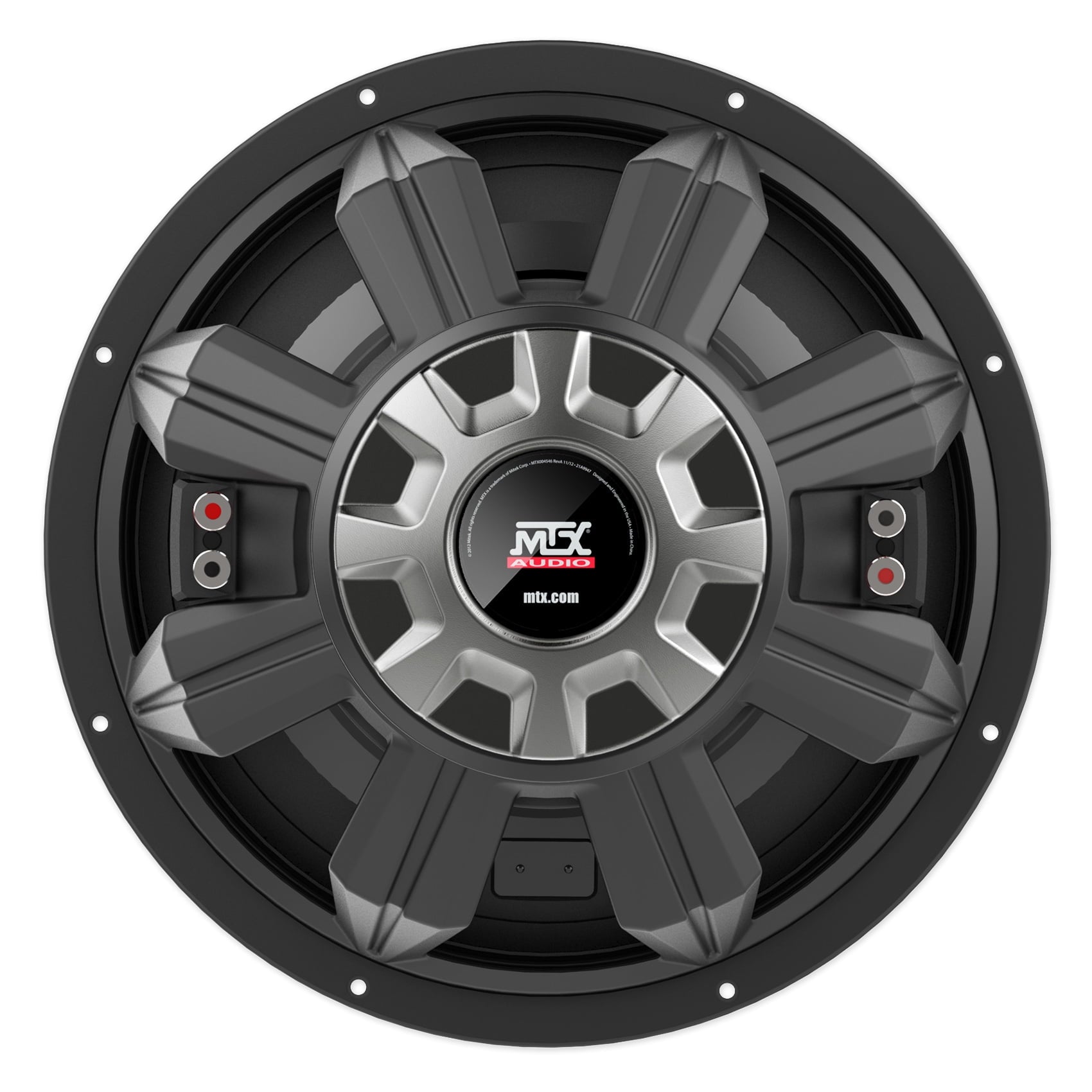

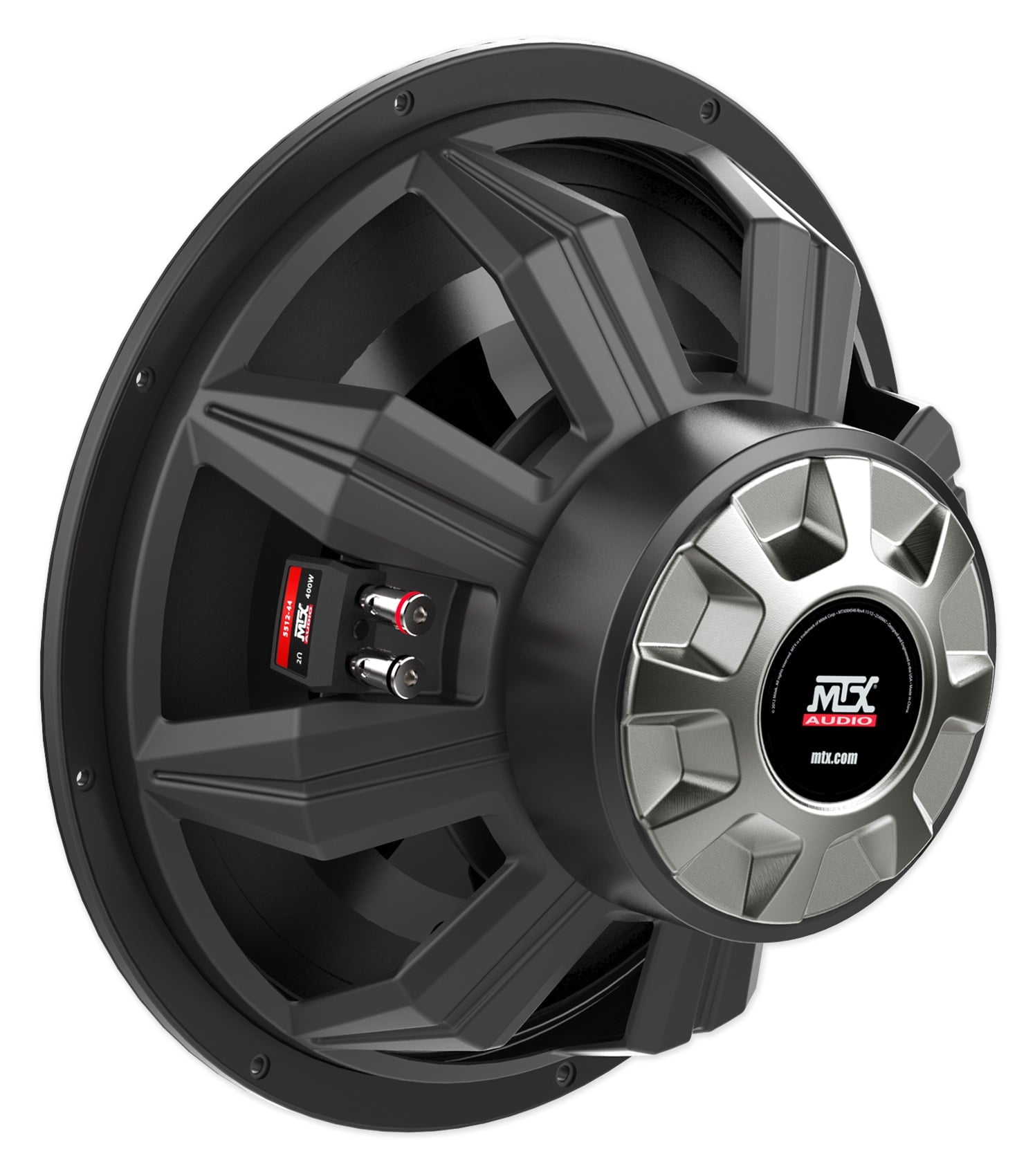

Radial Ribbed T-Yoke: Helps Dissipates Heat and Decreases Distortion Improving
Sound Quality
