140Amp MIG Welder 110V 2 in 1 Gasless Flux Core ARC/MMA IGBT Welding Machine
HITBOX Portable 140AMP 110V MIG Welder Flux Core Welder Automatic Wire Feed Welder MIG ARC 2 in 1 Compact MIG Welding Machine Inverter IGBT Gasless Welding Machine with 2M Split Mig Torch（HBM200)
Features:
✔️ HITBOX HBM200 Arc welder have protection equipment are set internally to prevent over heat, over current to make sure safely operation. Simder welder has light weight (only weighs 11.5 lbs)and compact size with energy saving feature.
✔️ Multi-Process：Gasless MIG/Stick 2 -in-1 Welder.ARC mode fits rods: E7018, E6013, E6011
✔️ Up to 140Amp output allows you to weld mild steel up to 5/32” in the plate. Suitable for 0.30” & .035” flux core wire.
✔️ Automatic change of the voltage & wire feeding speed by adjusting the amperage
✔️ Advanced IGBT&Inverter & 60% High duty cycle ensures long time operation.Closed loop feedback control, constant voltage output, workable under mains voltage fluctuation within ±10%

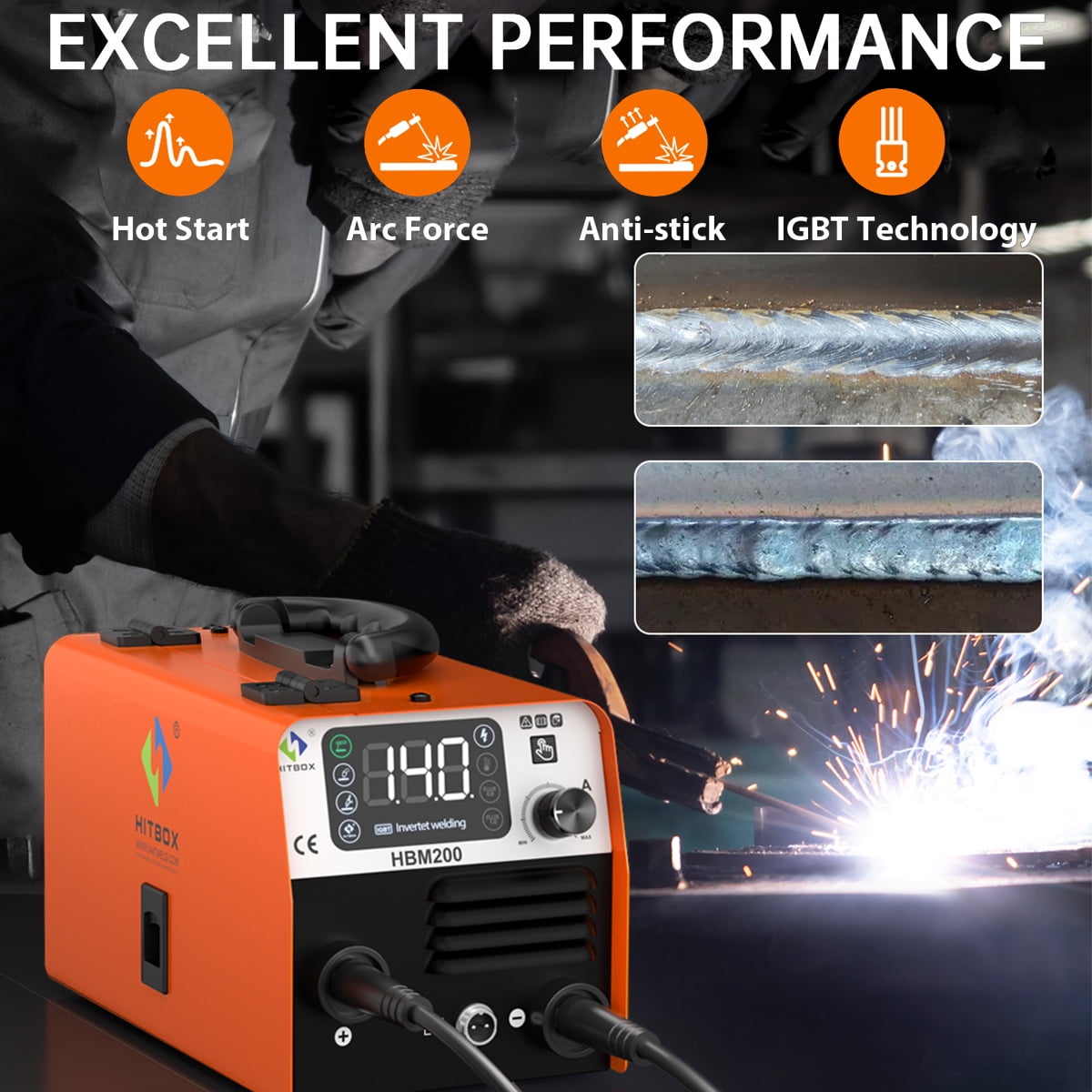

✔️ Adjustable welding voltage and current, excellent welding performance. Adopting unique welding dynamic characteristic control circuit in Gasless, stable arc, little spatter, beautiful weld bead, high efficiency
✔️ Automatic compensation for voltage fluctuation, over current protection, over load protection.
✔️ This ARC Welding machine comes with LCD display and is easy to operate for ARC welding practicing, small welding operations by beginners or professionals.
✔️ 2 years warranty & 60 days return period & Fast shipping
Parameters:
ModelHVM200
Rated Input Voltage (V)AC110V 50 / 60HZ
MRated Input Power ( KVA )MMA : 9KVA / MIG : 13 . 4KVA
Rated Input Current ( A )MMA : 41A / MIG : 35 . 1A
Rated Output Current Voltage(V)MMA : 200A / 28V / MIG : 200A / 24V
Output Current ( A )MMA : 20-200A / MIG : 30-200A
No-load Voltage (V)MMA : 54V / MIG : 55V
Rated Duty Cyck ( %)60%
Efficiency ( %)85%
Power Factor ( coso)0.73
Wire diameter0.6mm/0.8mm /1.0mm
Welding thickness1-6mm
Electrode Diameter(mm)Ø2.5, Ø3.2, Ø4.0
Welding materialsIron, stainless steel, galvanized sheet, carbon steel and other metals
Warranty period2 Years

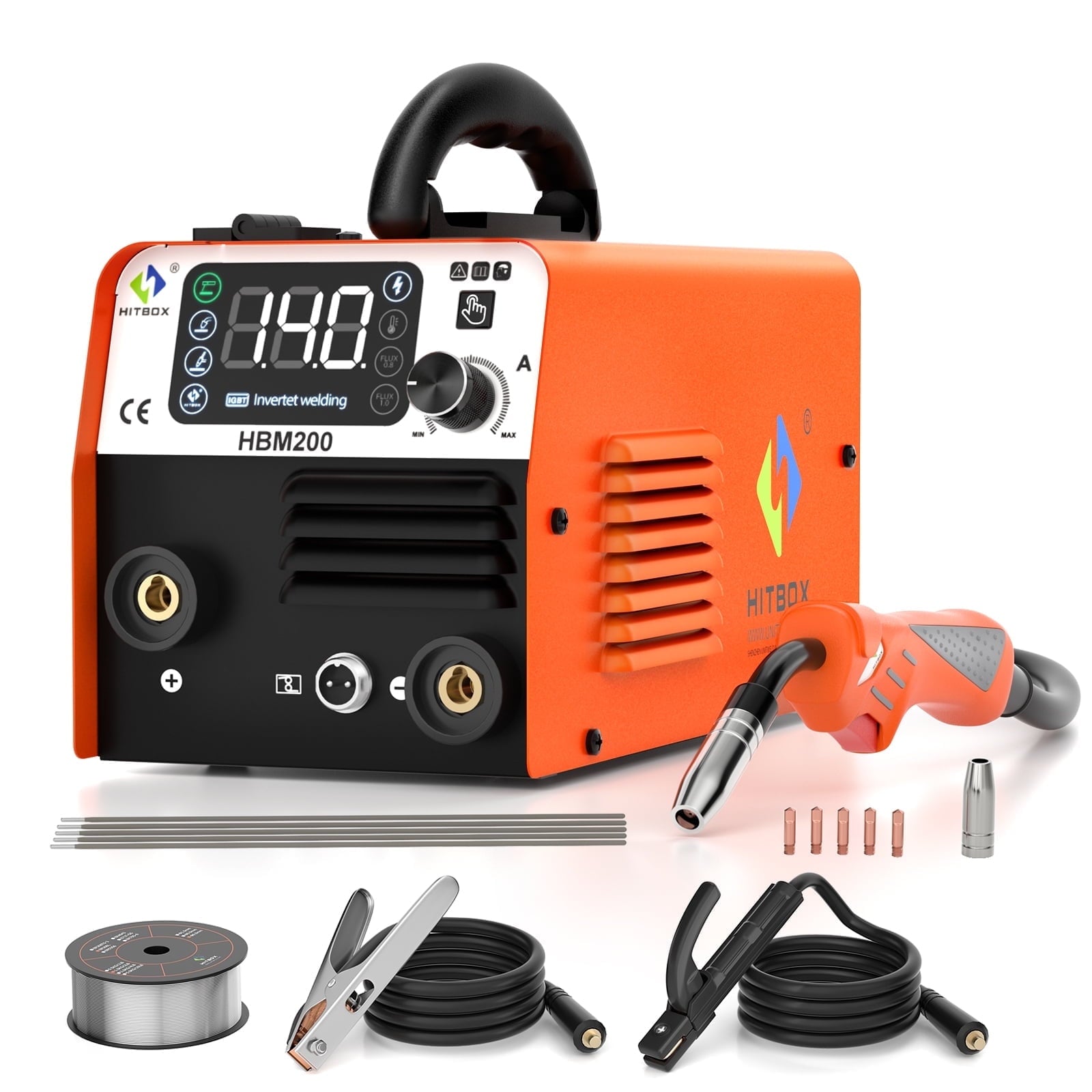

Package contains：
1X HVM200 MIG Welder
1X Mig Torch
1X Earth clamp
1X Electrode holder
1X Wire brush/hammer
1X User manual

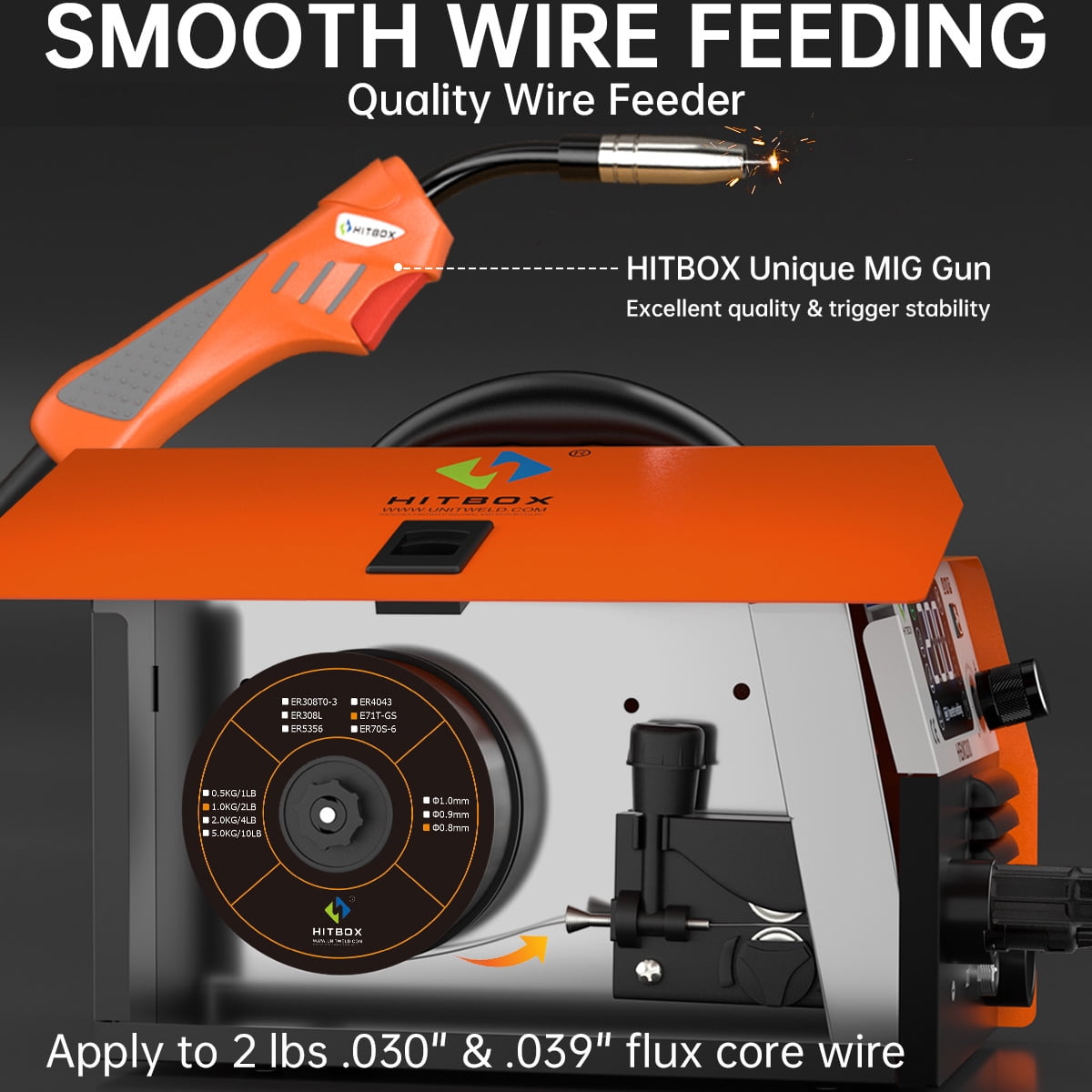

- Multiprocess Welder: Our MIG welding machine 3 in 1 is designed for gasless MIG, lift TIG, and MMA welding, making it ideal for a variety of daily welding tasks(WP17V TIG Torch is not included). It accommodates a range of electrodes and welding wires, including 1.6φ～3.2φ(MMA), 1.6φ(lift TIG), and 2lbs .030/.039 flux core wires

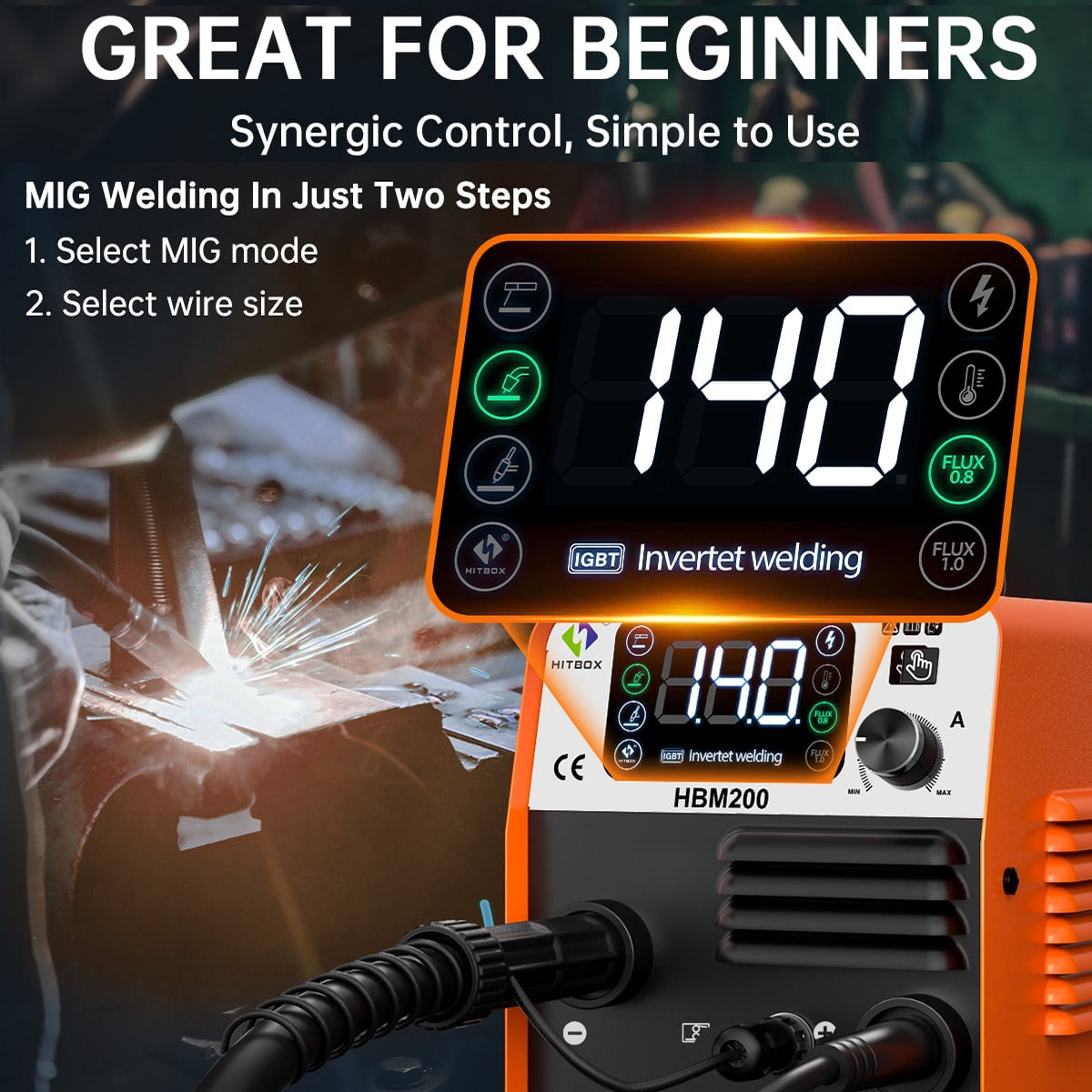

- Synergic Control: Simplify your welding experience with our MIG welder 110v’s advanced synergic control system. After selecting the welding wire diameter, the recommended current and wire feeding speed are automatically matched, making it incredibly user-friendly for beginners and DIY enthusiasts

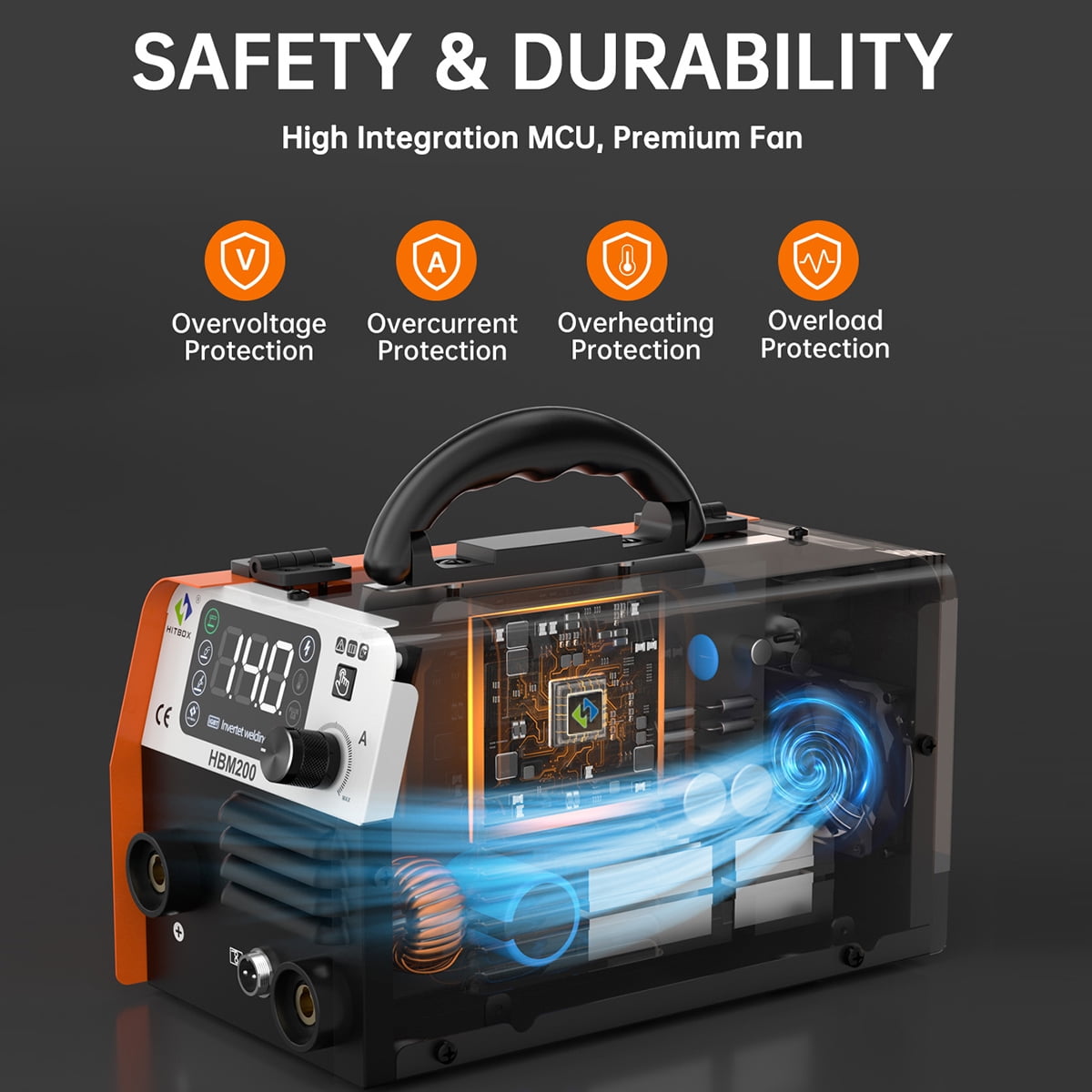

- Safety Protection: Safety is paramount with our wire welder, equipped with built-in protection against over-current, over-voltage, over-heating, and over-load. The working fan cooling system prolongs the machine’s lifespan, providing a reliable welding experience
- Ultra-Portable Welder: Engineered for portability, this MIG flux welder is compact and lightweight, similar in size to an arc welding machine. Weighing in at only 7.85lbs, it’s the ideal choice for those who need a welder that’s easy to carry and maneuver on the job site
- Reliable Quality & Service: Invest in the confidence that comes with a MIG welder 120v backed by a 2-year quality support. Choose HITBOX machines for a welding solution that delivers on quality and service, giving you peace of mind for all your welding projects
