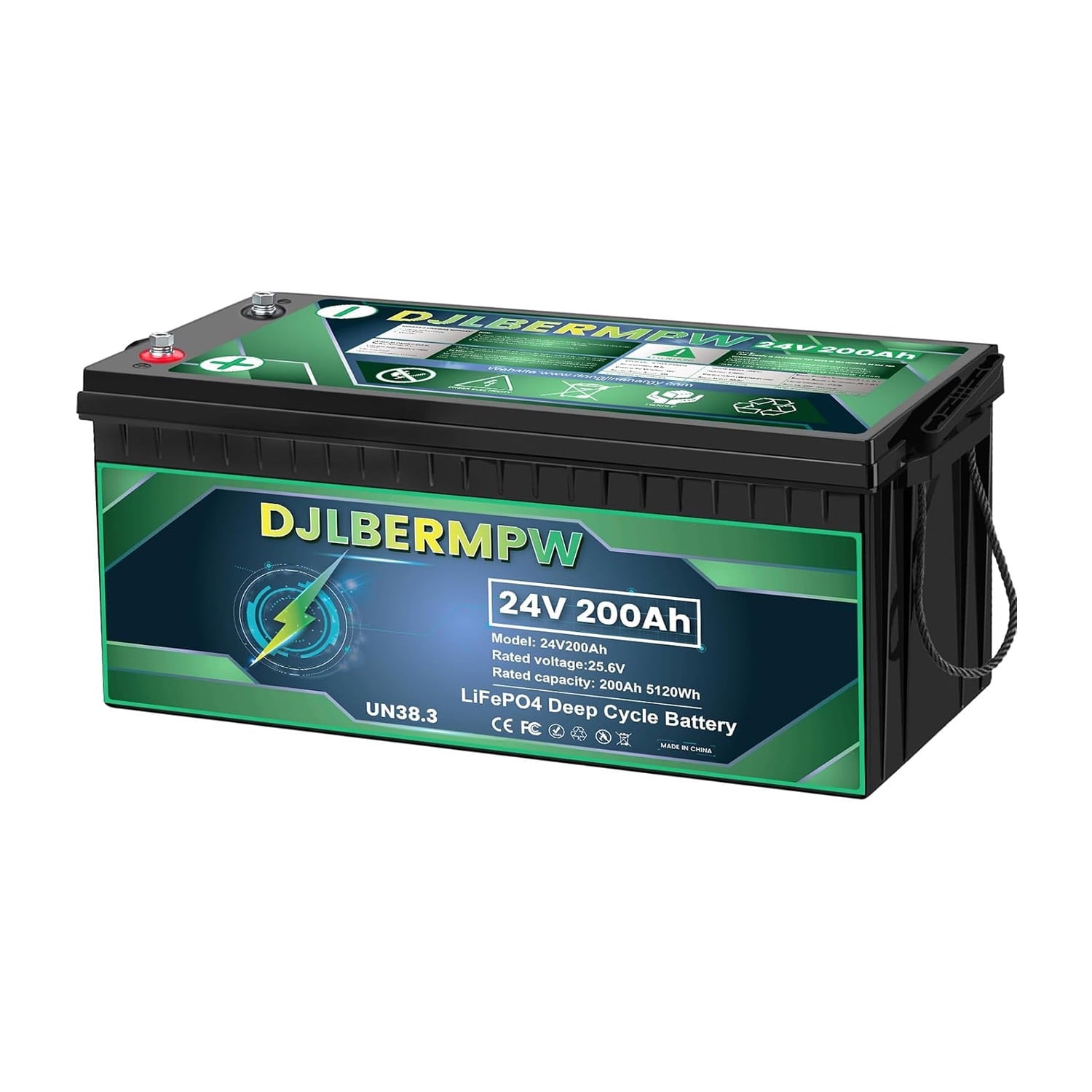

DJLBERMWP 24V 200Ah lithium battery has more stable performance, greater power, and is equipped with 200A BMS. Lightweight 24V 200Ah LiFePO4 battery can be cycled 15000 times and has a service life of 10 years. Higher energy density, more stable performance and greater power, suitable for solar systems, RVs, campers, golf carts, backup power supply, home energy storage,off grid , etc. Each battery is strictly tested to ensure safety and performance.
-
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 200Ah
Energy: 5120Wh
BMS Boad: 200A
Recommend Charge Current: 40A
Max. Continuous Discharge Current: 200A
Peak Discharge Current: 600A(about 2-3 seconds)
Charge/Discharge Temperature Range: 0-45°C/-20-60°C
Recommend Charge Voltage: 29.2V
Discharge Cut-Off Voltage: 21.6V
Cycle Life: 4000-15000 Cycles
Protection level: IP65
Battery Size: L20.55*W9.45*H8.58 inch
Battery Weight: 84lbs - Grade A Cells: Our 24v 200ah lithium battery consists of 8 Grade A cells with higher energy density, stable performance makes this lithium battery last up to 10 years lifetime with more than 4000 deep cycles. -20℃-60℃ working temperature, adapt to a variety of harsh environments.
- Lightweight & Portable: This 24 volt 200ah lifepo4 lithium battery measures 20.55*9.45*8.58 inch and weighs 84.04lbs, which is lighter than lead-acid batteries. The battery has a carrying handle, portable and easy to install. Three charging options (25.6V liFePO4 battery charger, 600w solar panel, 20A DC generator) are more convenient.

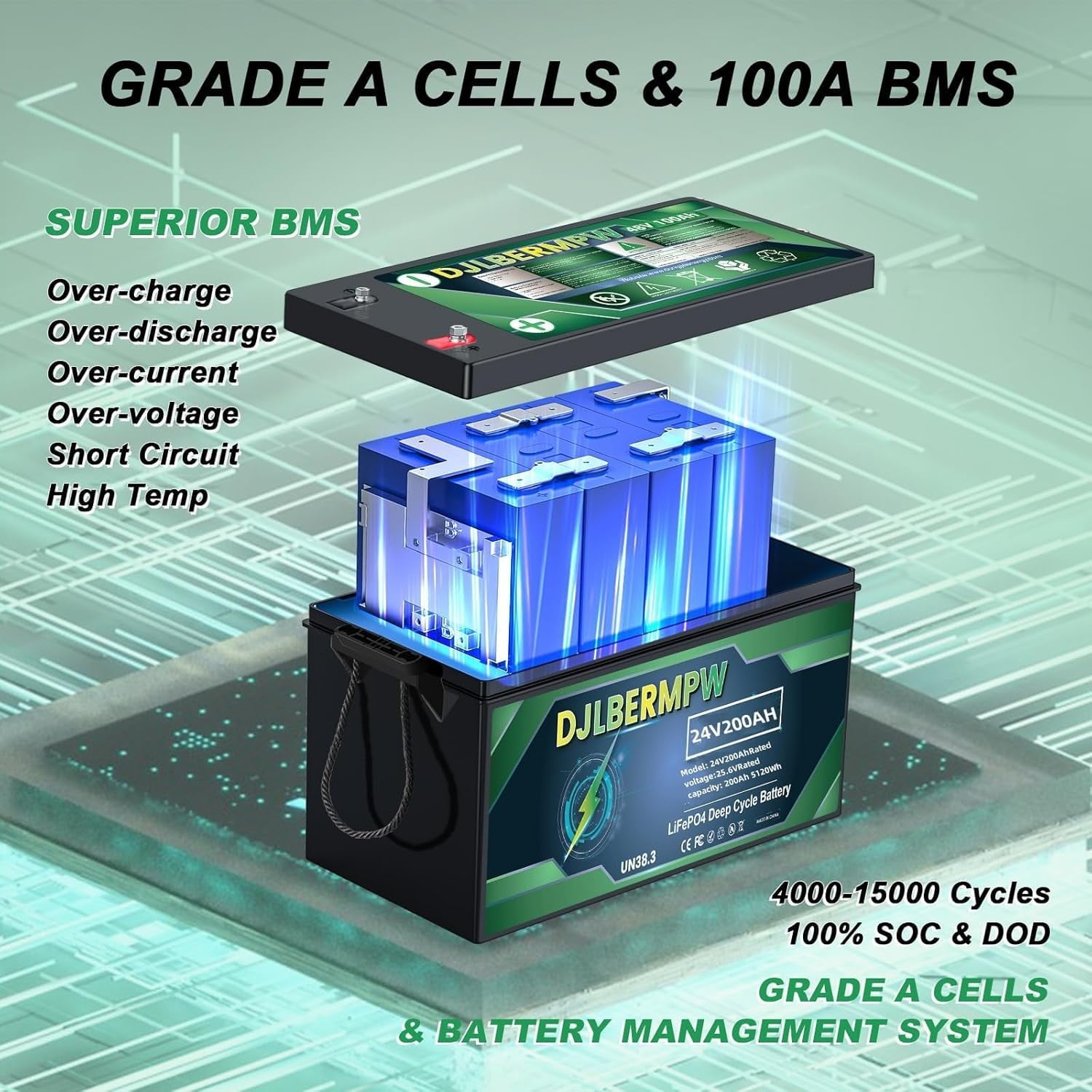

- 200A BMS System: The rated capacity of this 200ah lifepo4 battery is 5120Wh, which is double the energy compared to 24V 100AH battery. Built-in 200A BMS system with over-charging protection, over-discharging protection, over-current protection, short-circuit protection, and over-heating protection provides stable power supply when outdoor off-grid.

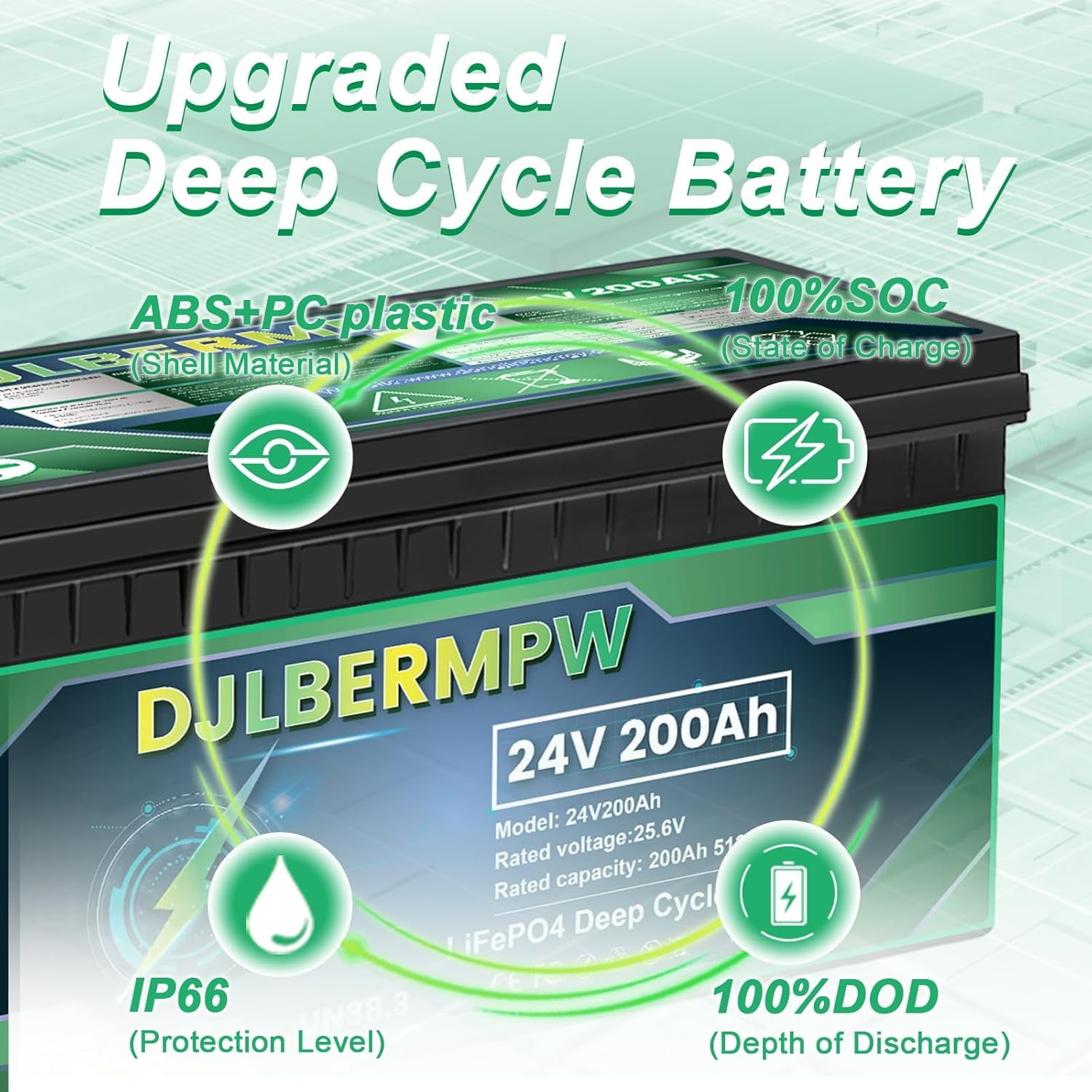

- Multiple Applications: DJLBERMPW 24 volt lithium battery is IP66 rated, making it easy to cope with outdoor environments. Used in home energy storage systems, UPS backup power, lighting, air pumps, fish finders, trolling machines, RVs, campers, travel trailers, etc. (Note: Our batteries should never be used in automotive ignition.)
- Expansion Support: 24V 200Ah lifepo4 battery support series and parallel connection, up to 4 batteries in series or 4 battery packs in parallel, expandable to 2S4P 51.2V 800Ah battery system with approximately 41kWh of energy, ideal for applications requiring higher power or longer battery runtime. When used in parallel or series, the batteries must be of the same voltage and capacity and purchased recently (within 6 months).
- Warranty Service：5-year warranty, please allow us to check the battery condition first, confirm the problem, and provide free return and exchange battery due to product quality reasons. Please contact us for any questions and we will provide solutions after communication.
