Electrical properties
1. Rated working current: 32A three-phase
2. Working voltage: 415V
3. Insulation resistance: 1000Mohm (DC500V)
4. Terminal temperature rise: Less than 50K
5. Withstand voltage: 2000V
6. Contact resistance: 0.5mohm Max
Mechanical behavior
1. Mechanical life: no-load plugging and unplugging 10000 times
ambient temperature
1. Working environment temperature: -30Celsius~+50Celsius
Colour:Photo Color
Material:plastic
Package Contents:

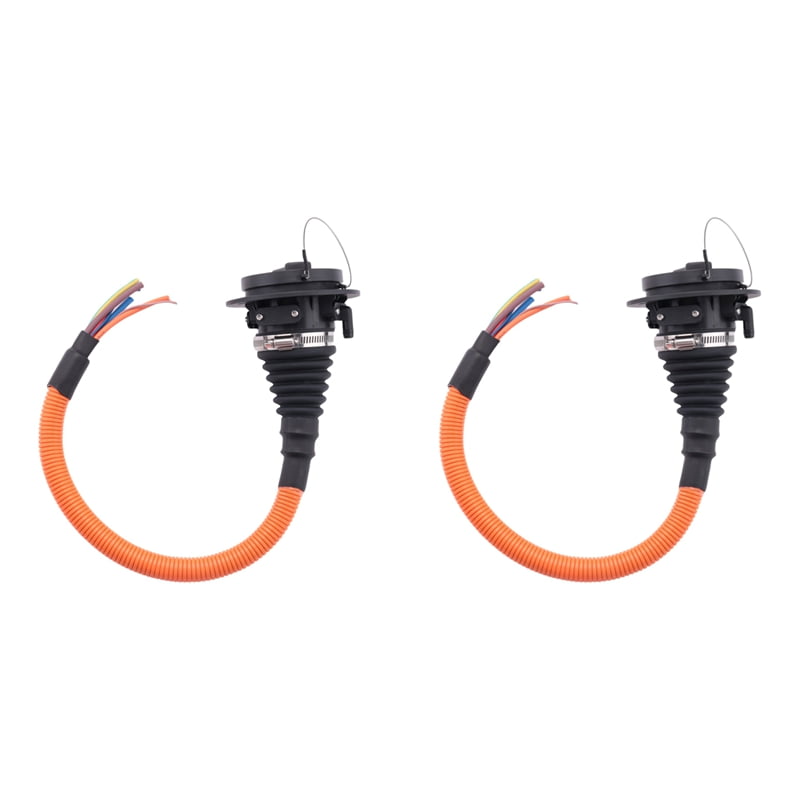

2x 32A three-phase CCS2 62196-2 EV Adapter Connector
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- 1. Comply with 62196-2 IEC 2010 SHEET 2-IIE standard

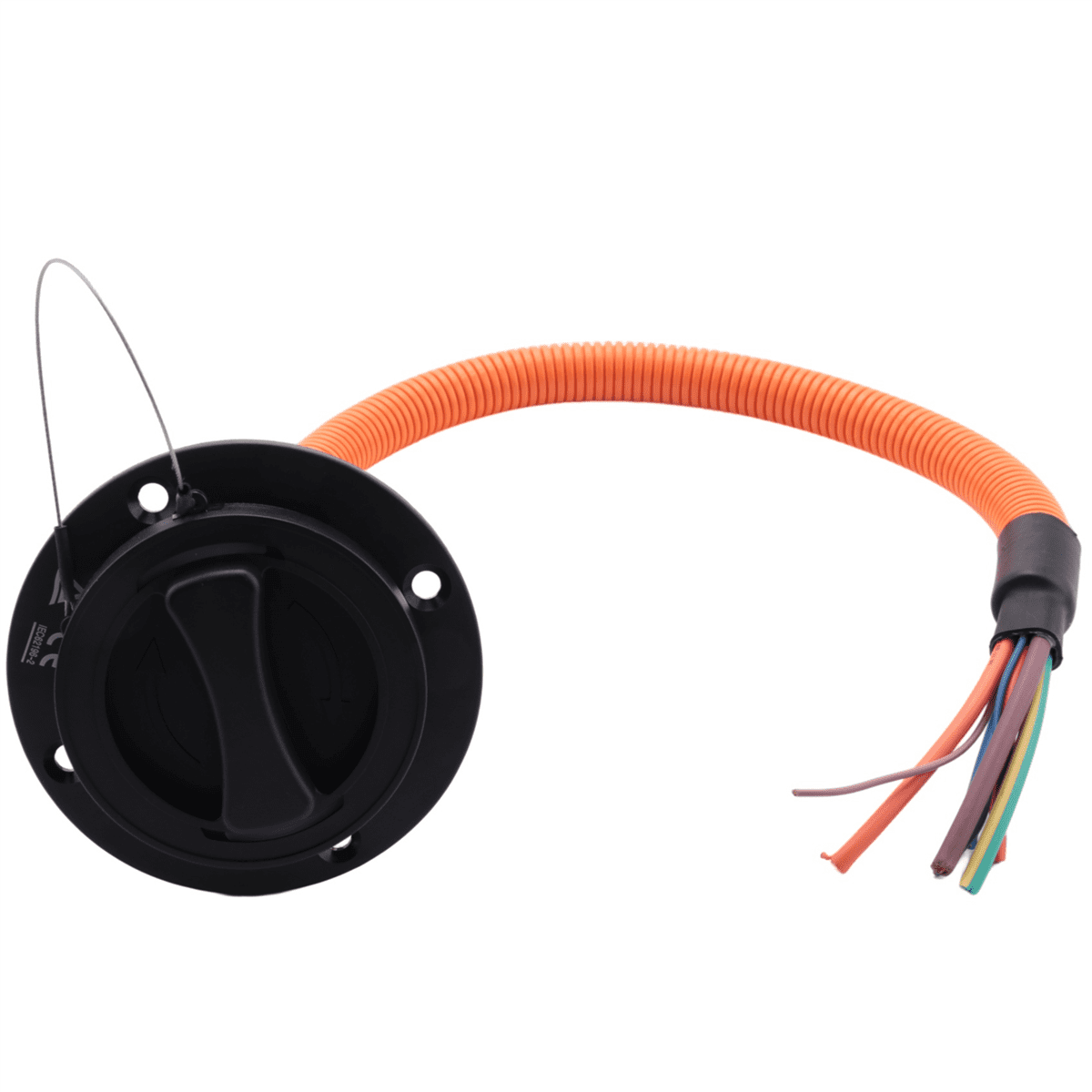

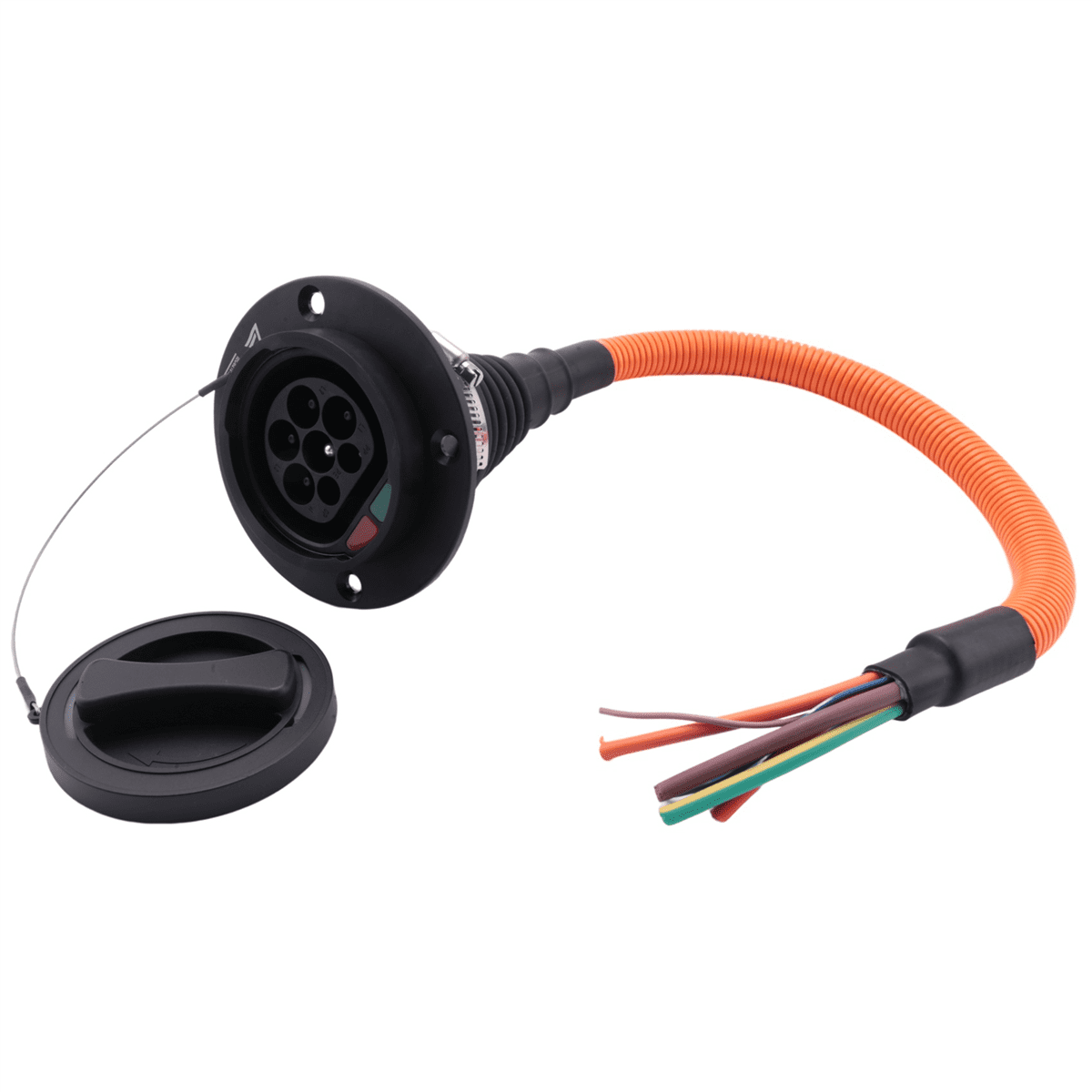

- 2. Beautiful appearance, with protective cover, support front installation
- 3. The pin head is designed with safety insulation to prevent accidental direct contact with human hands
- 4. Excellent protection performance, the protection level reaches IP44

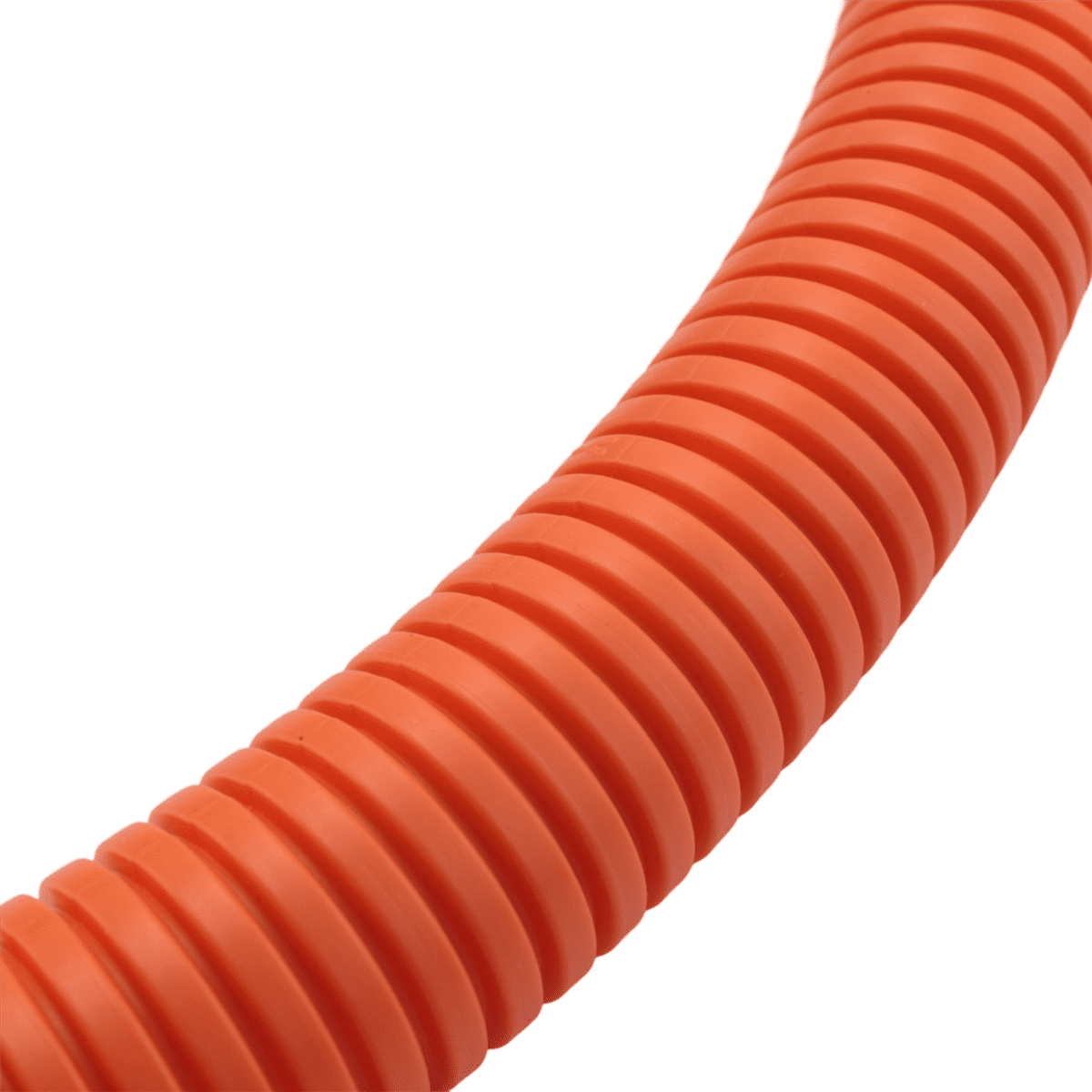

- 5.With 0.5m spiral line tube
