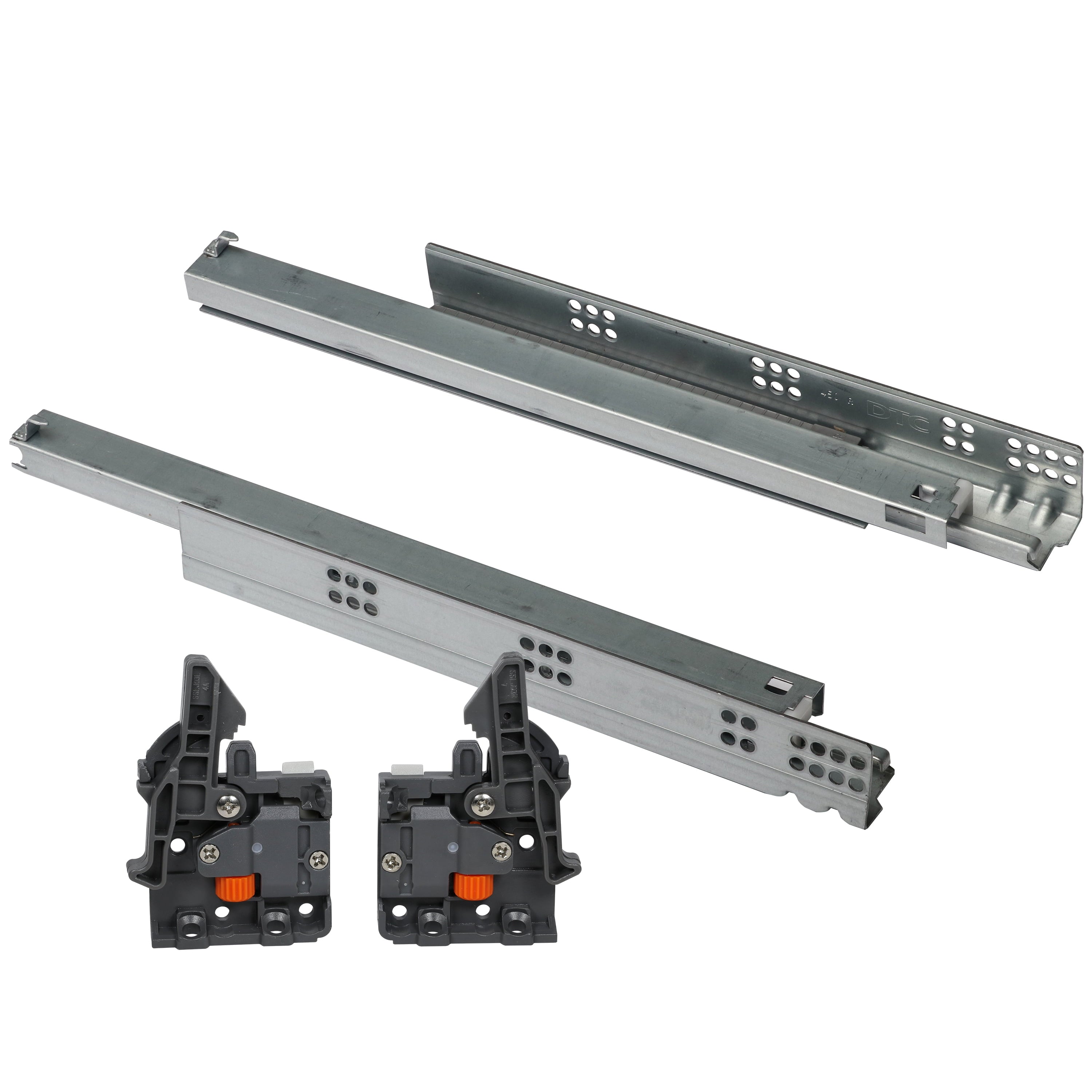

Discover the convenience and style of our DTC D-Motion Full Extension Frameless bottom mount slides. It features a nominal length of 19-11-16″ (500mm) and double stroke stretch form range of 250mm to 500mm.
The galvanized steel with zinc plating and three-section rail system provides strength and stability, Tested for 50000 opening cycles these sliders ensure long-lasting use.
The concealed spring mechanism, rebound damping buffer and drawer track guide rail slide offer a luxurious touch and guarantee a quiet and easy close. Upgrade your drawers today with our premium full extension drawer slides bottom mount hardware.
- Manufacturer: DTC
- Collection: SS10 Series
- Cabinet Application: Frameless
- Load Capacity: 77 lbs (35 kgs)
- Nominal Length：19-11/16″ (500mm)
- Maximum Drawer Slide Thickness: 16mm
- Adjustment: 0~+3mm Up and Down
- Stretch Form: Double Stroke
- Durability: up to 50000 Opening cycle
- Material: Galvanized Steel
- Finish: Zinc Plated
- Rail System: Three-section
- Closing Mechanism: Soft Close concealed spring rebound damping buffer
- Mounting: Bottom Mounted
- Screws: Included
