Product Description
Specs:
Please check the size specs before purchase

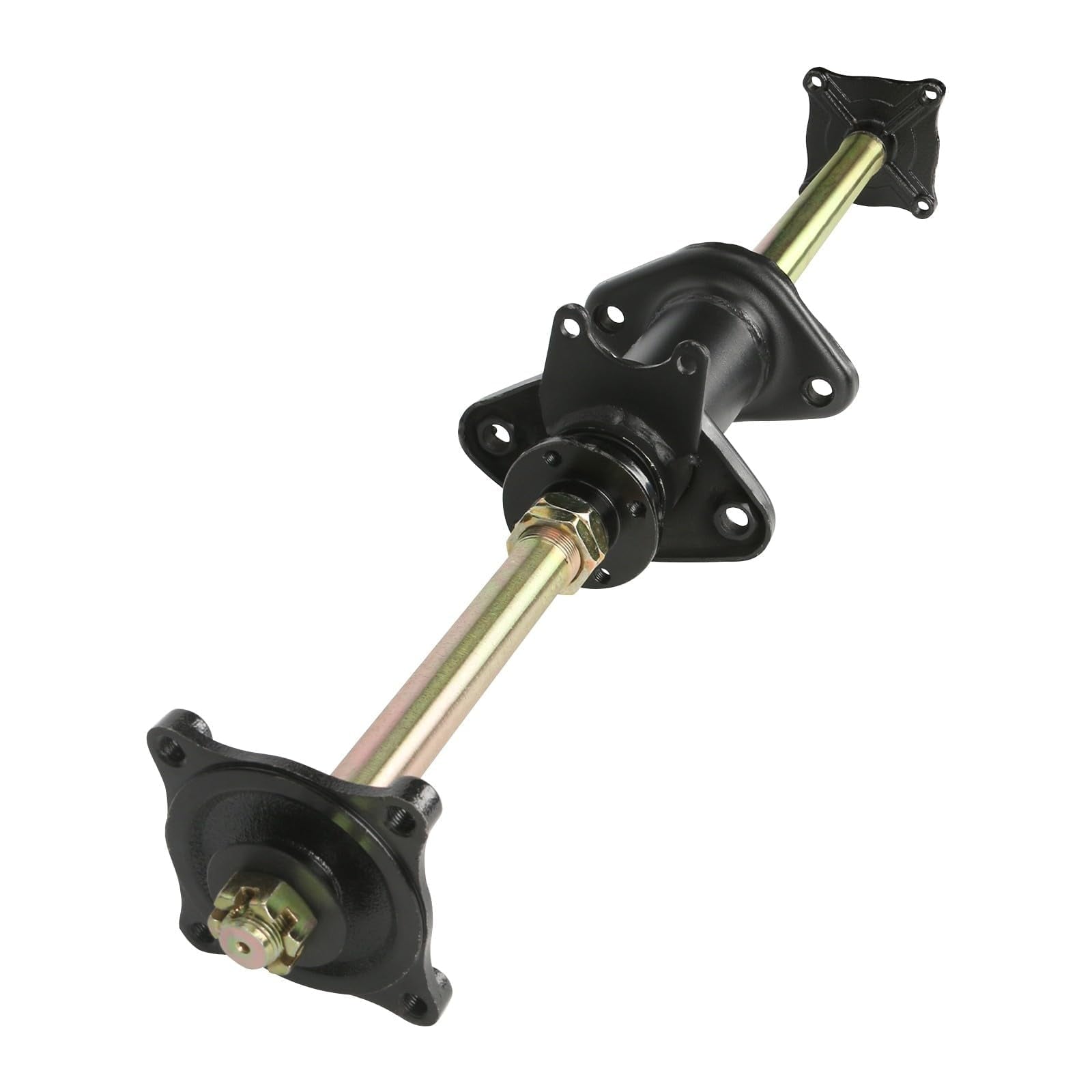

This is a rear Axle kit for DIY rebuild ATV, Quad Bikes, which can work with 7″-10″ 4 bolt wheels ( please select the wheel size from the dropdown menu)

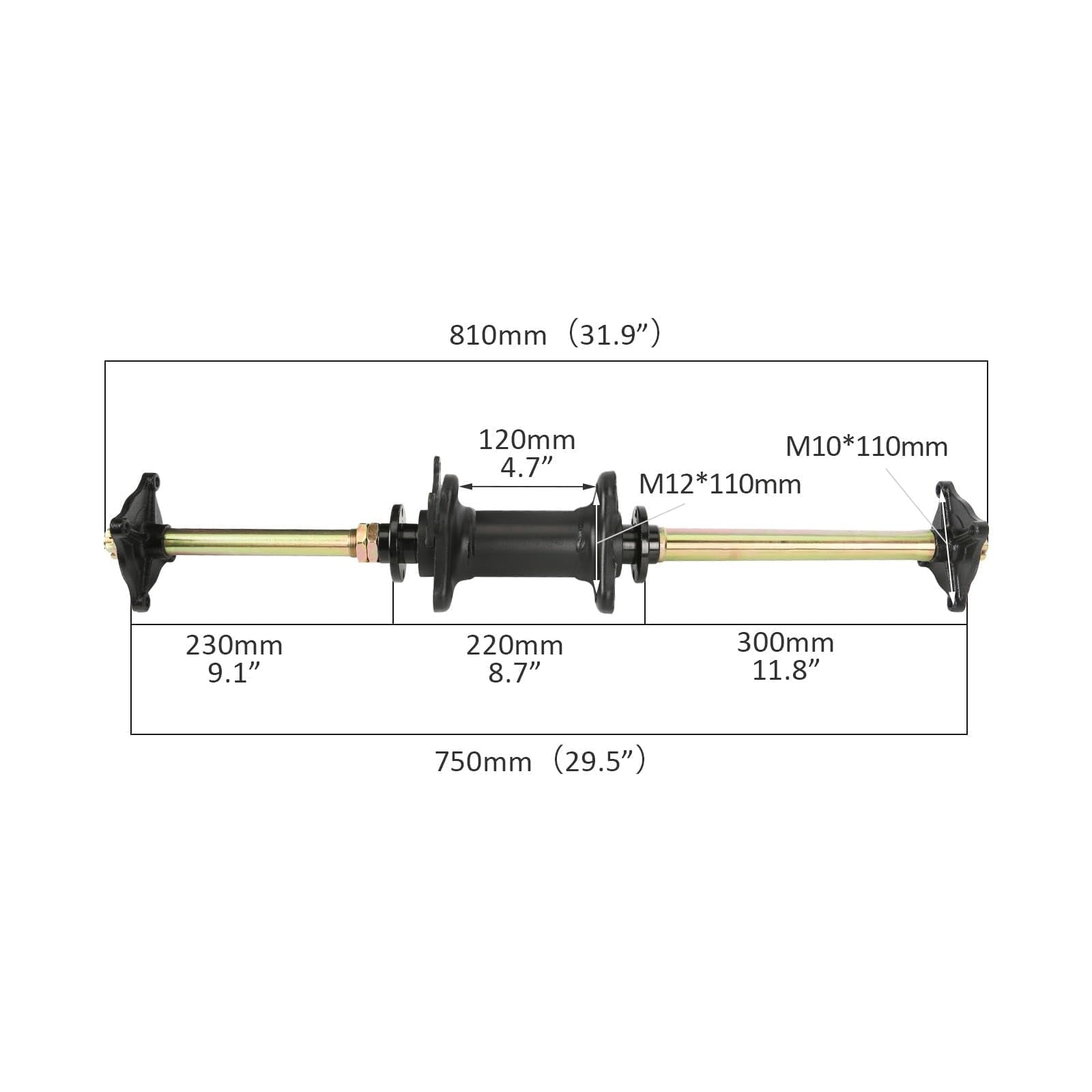

Axle Overall length (from end to end): 810mm (32″)
Wheel spacing: 750mm (29.5″)

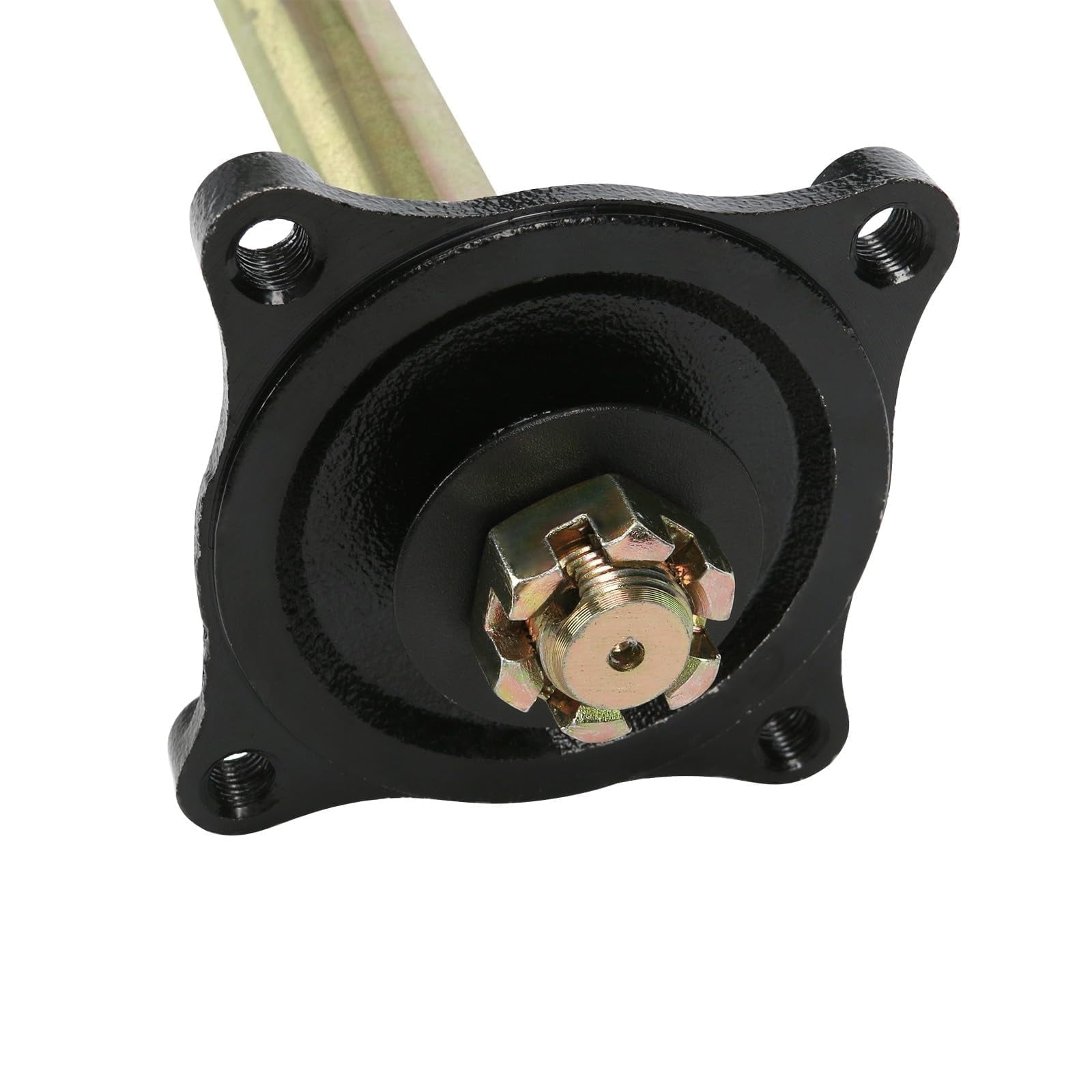

4 Stud wheel hubs: 4.33″ diagonal bolt distance (110mm), see second picture

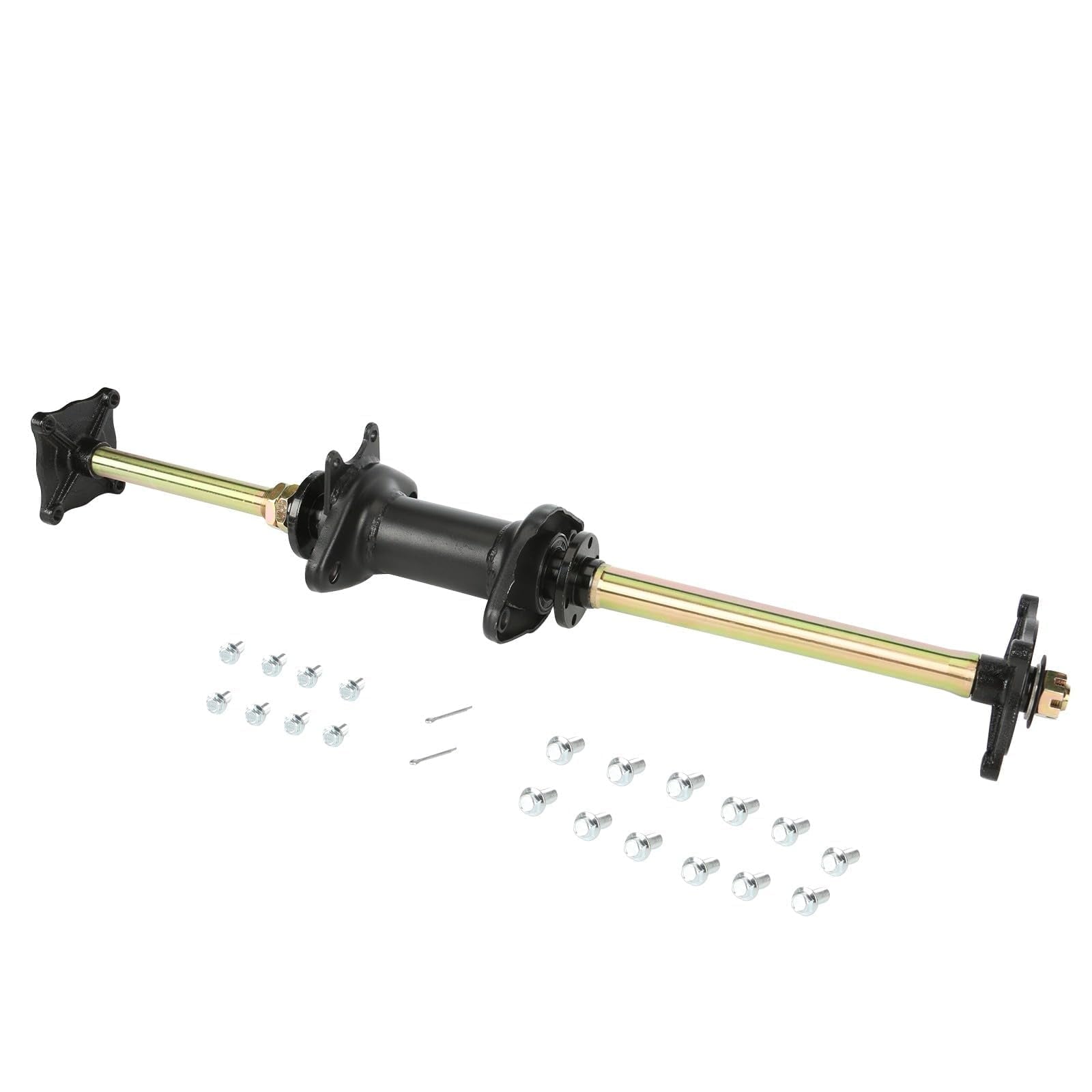

Comes with hardware
Matching Sprocket size: 530 32T

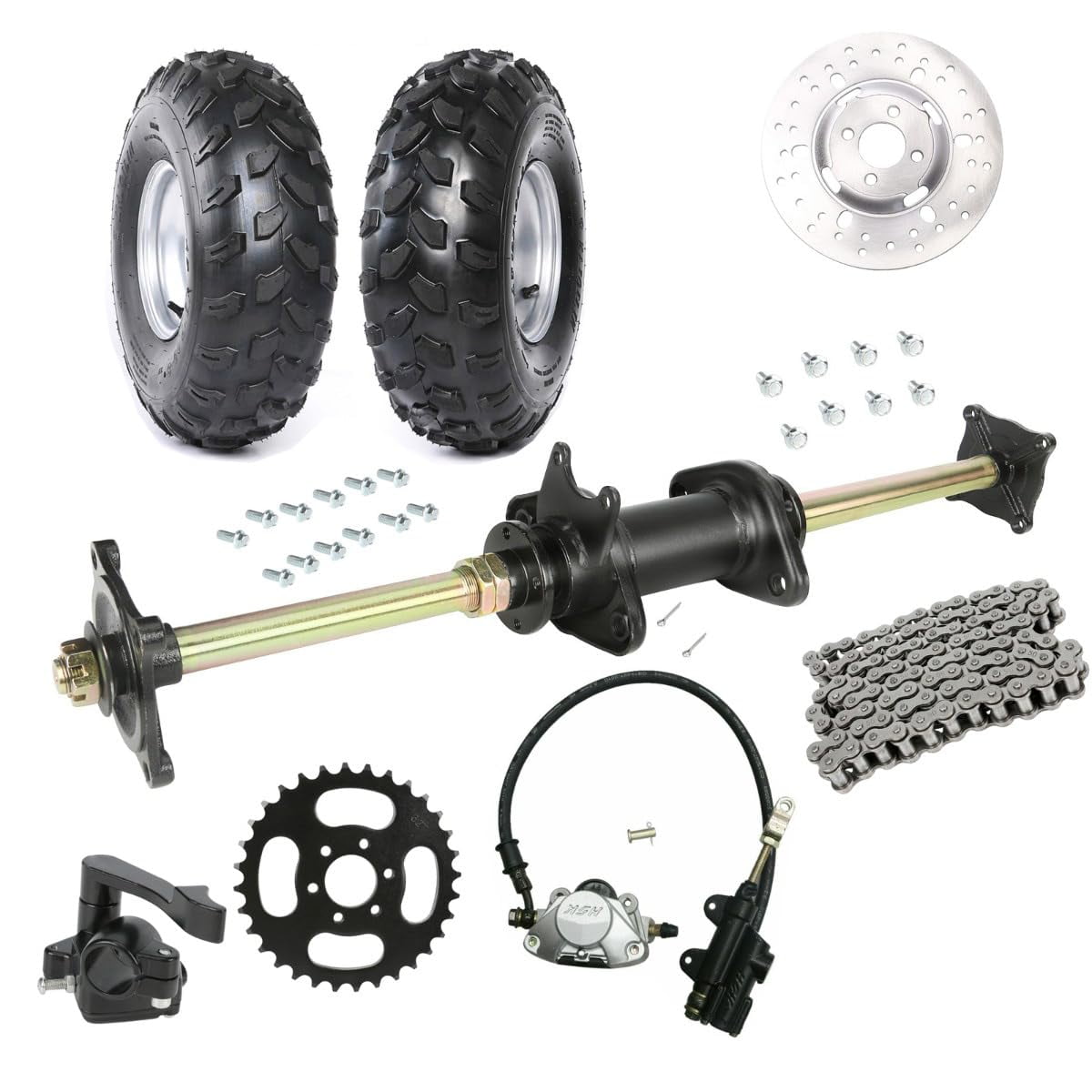

Package includes : 1x Rear Axle Kit ( as picture showns), 1x 530 120 links chain, 1x 530 32T sprocket, 1x brake disc+ 1x brake caliper assembly +1x throttle lever control+ 2x rear wheels
-
- Axle overall length: 810mm / 32inch; wheel spacing: 750mm/29.5inch
-
- 4 Stud wheel hubs: 4.33″ diagonal bolt distance (110mm)
-
- As a part of the rear drive shaft of the vehicle’s power transmission, this kit can provide you with smoother riding and also protect your safety.
- High-quality iron, rubber, and painting process make this product durable, so this rear axle complete kit can better keep practical and beautiful without frequent replacement.
-
- Application: For 110/125/150/200cc ATV Quad Bike Go Kart 4 Wheeler
-
- Package includes : 1x Rear Axle Kit ( as picture showns), 1x 530 120 links chain, 1x 530 32T sprocket, 1x brake disc+ 1x brake caliper assembly +1x throttle lever control+ 2x rear wheels
