Product Description
Rear Differential Axle Kit for Electric Vehicles, Go Kart, Golf Cart, 4 Wheelers, ATV, Quad, Buggy, Tricycle, Trikes etc.
Brand New

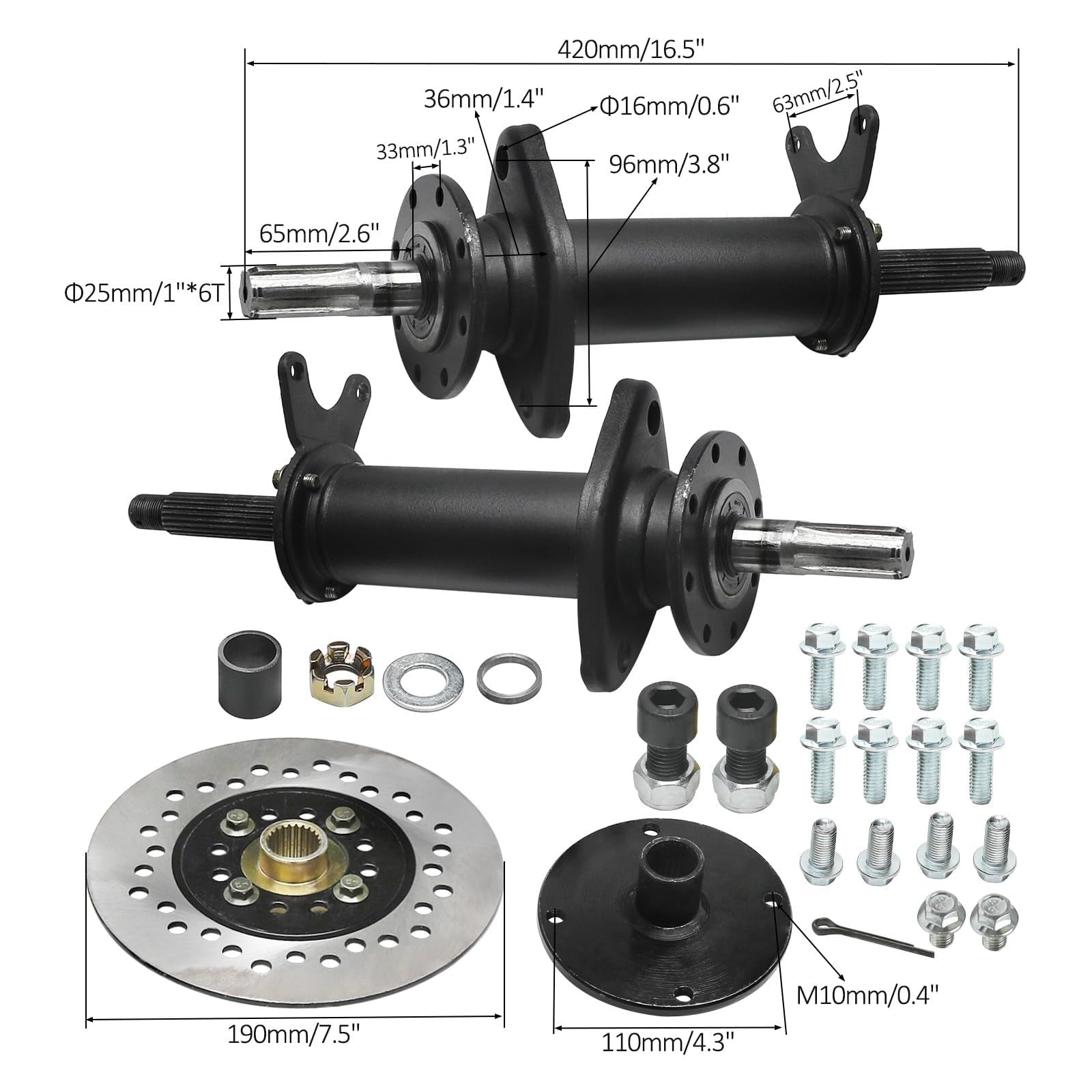

6 tooth Drive axle
Diameter : 25mm
OD of the disc rotor: 190mm
Bolt Spacing of the 4 Stud wheel hubs :110mm

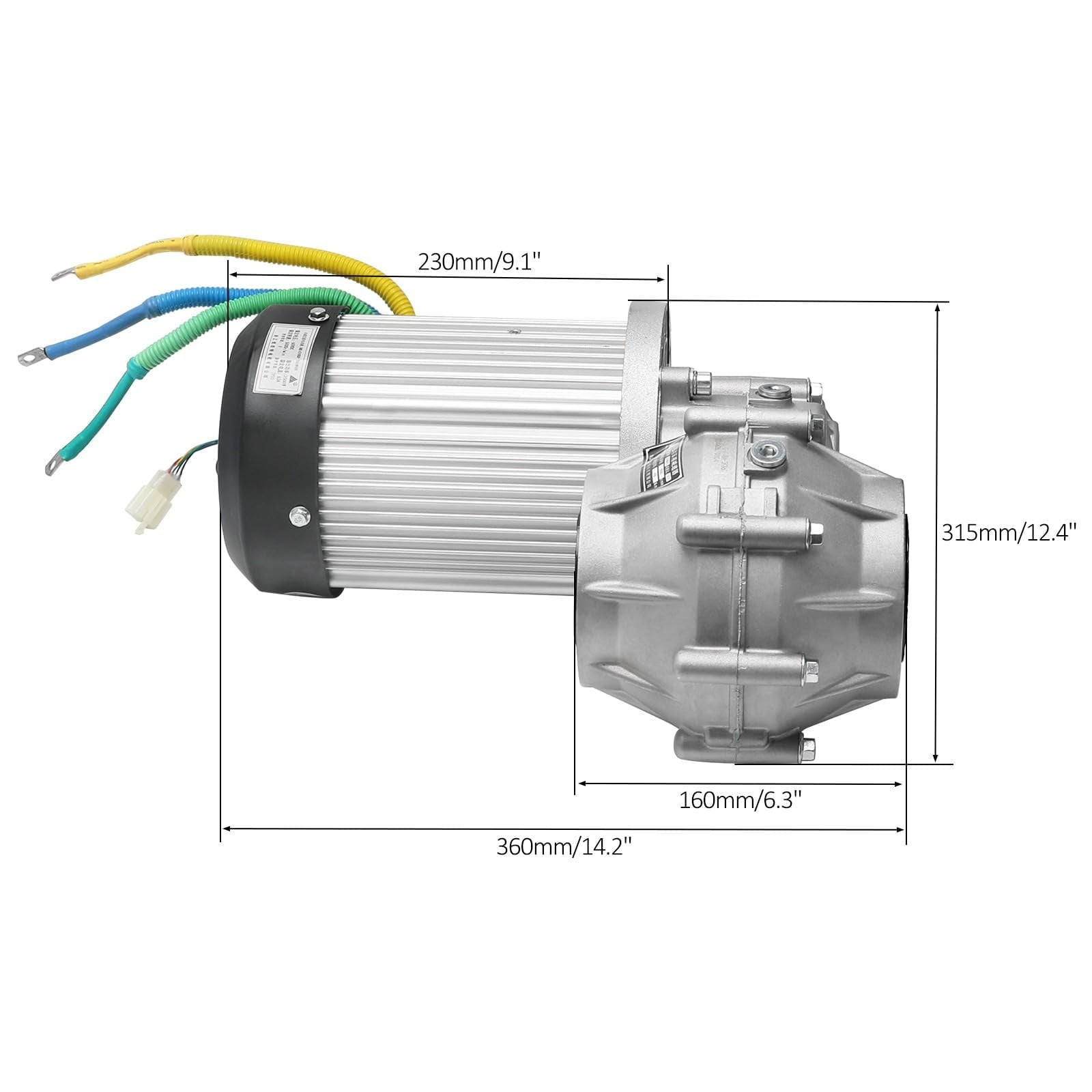

The Powerful 60v 2500w Unite motor brushless motor with differential gear box for Electric Golf Cart, ATV, Buggy, Quad, Car, Vehicles, Go Kart etc.
Rated Speed: 5000RPM
Max Speed: 6000RPM
Rated Voltage: 60V
Rated Power: 2500W
Rated Current: 63A
Gear Ratio: 12:1
Max Torque: 400N.m
Shaft Spline: 6 Teeth
Max Load: 1500lbs
Protection grade: IP33
Insulation grade: F
Weight of the motor: 36.8lbs

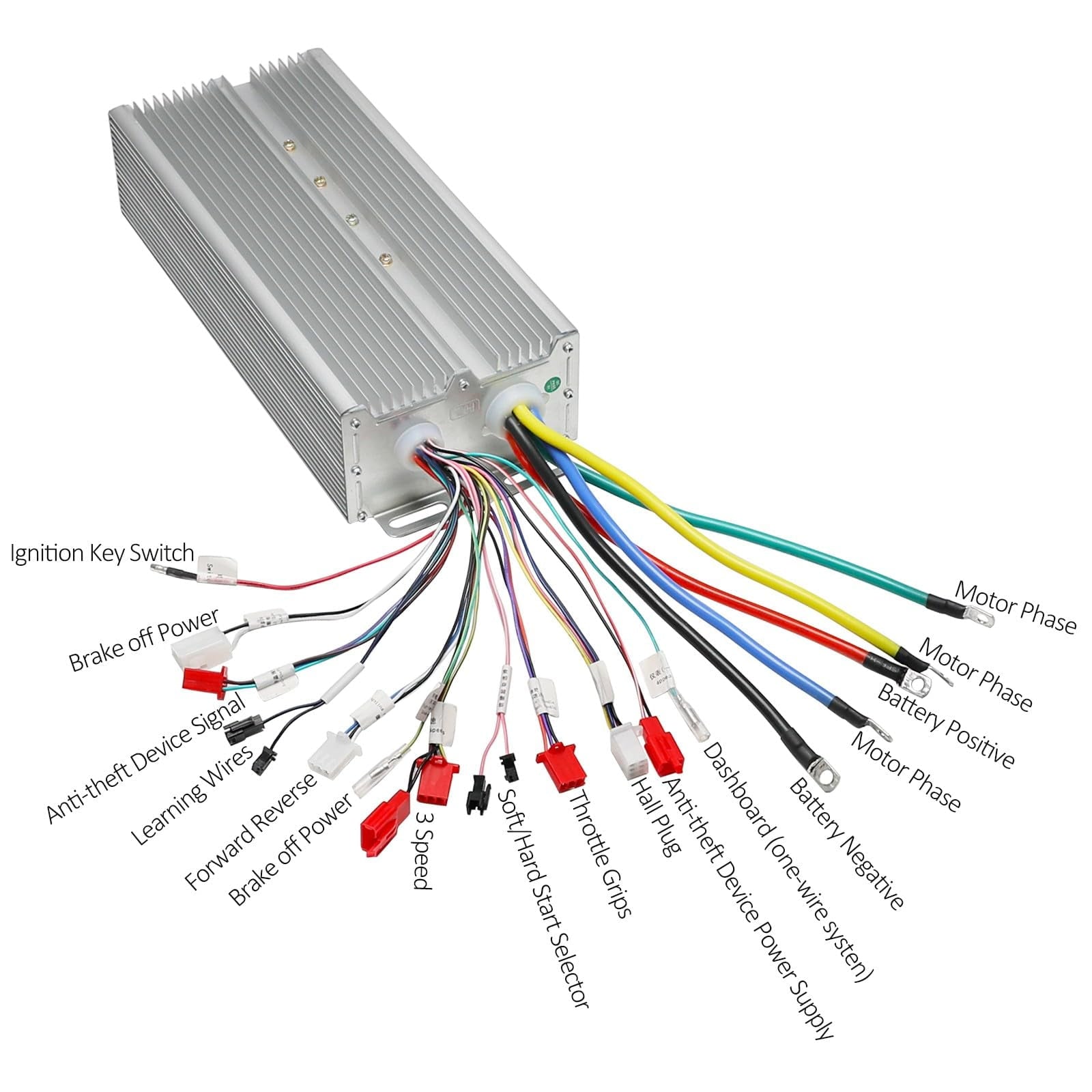

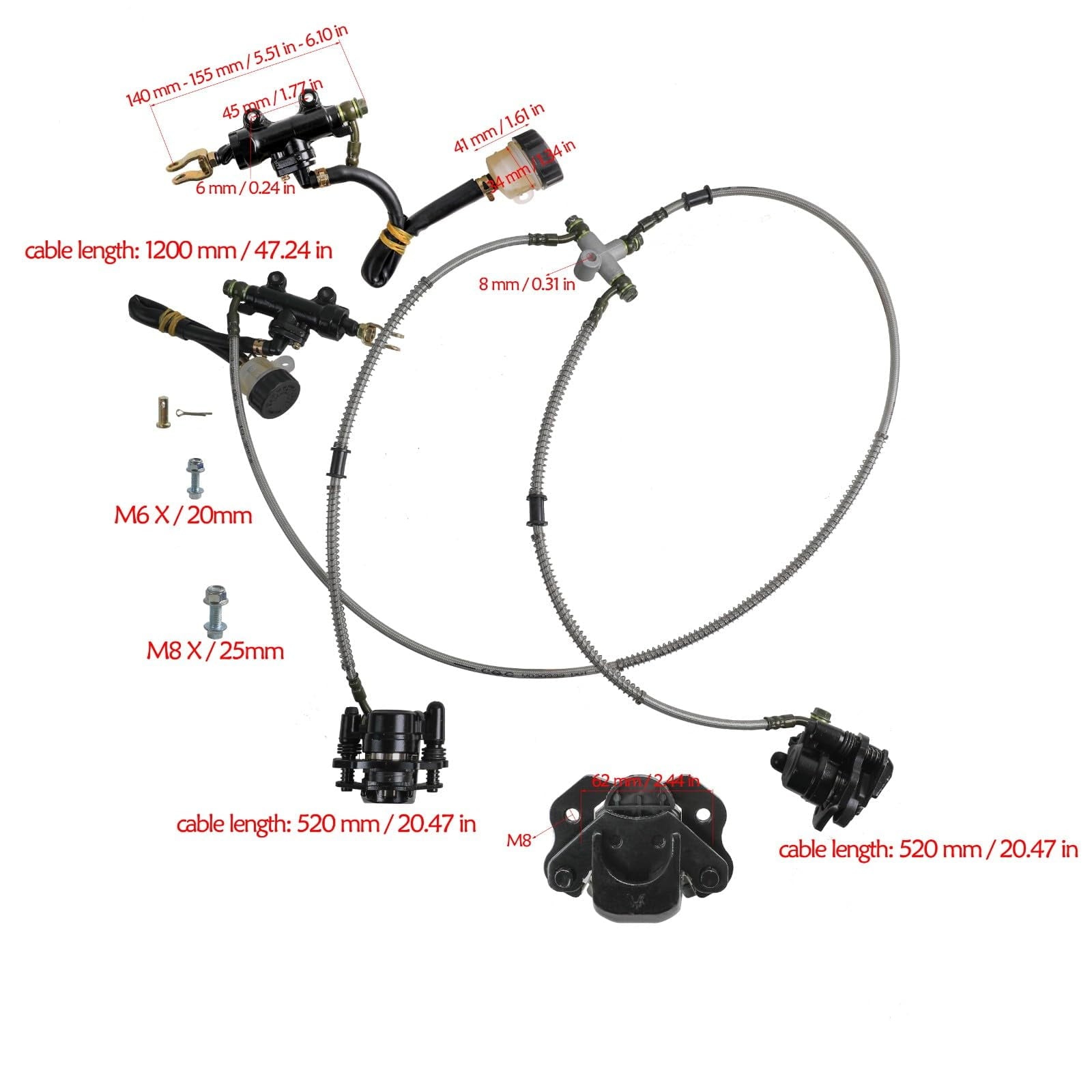

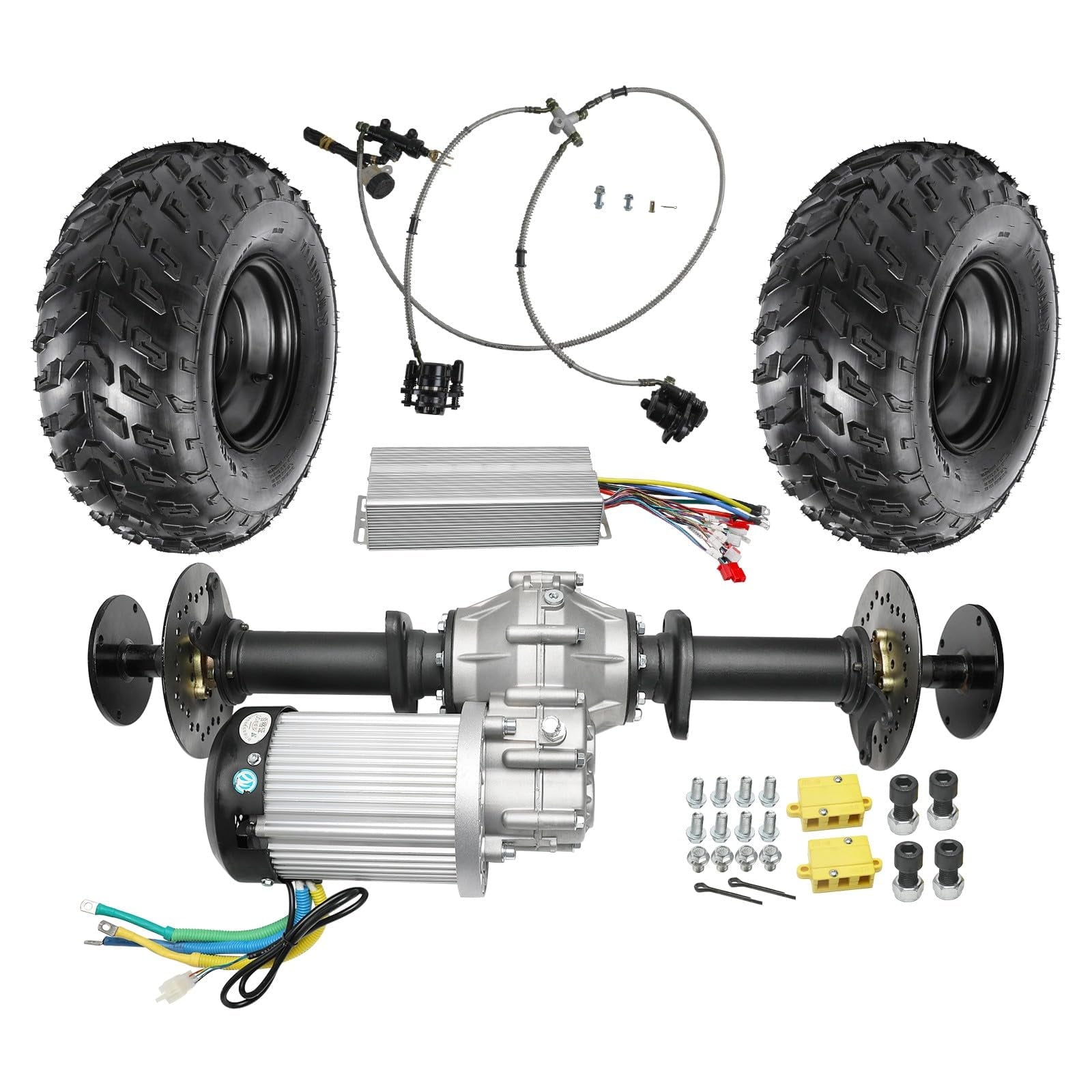

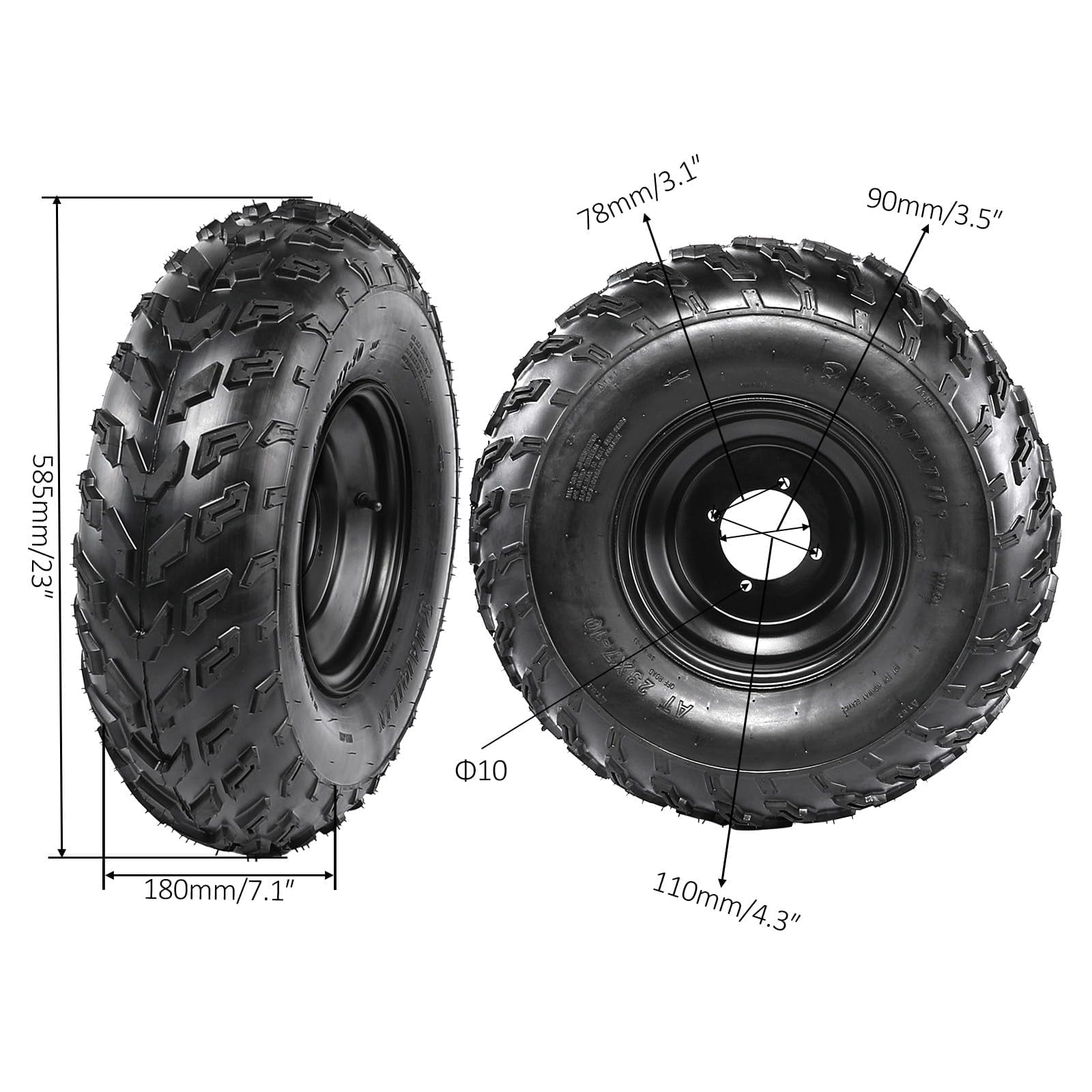

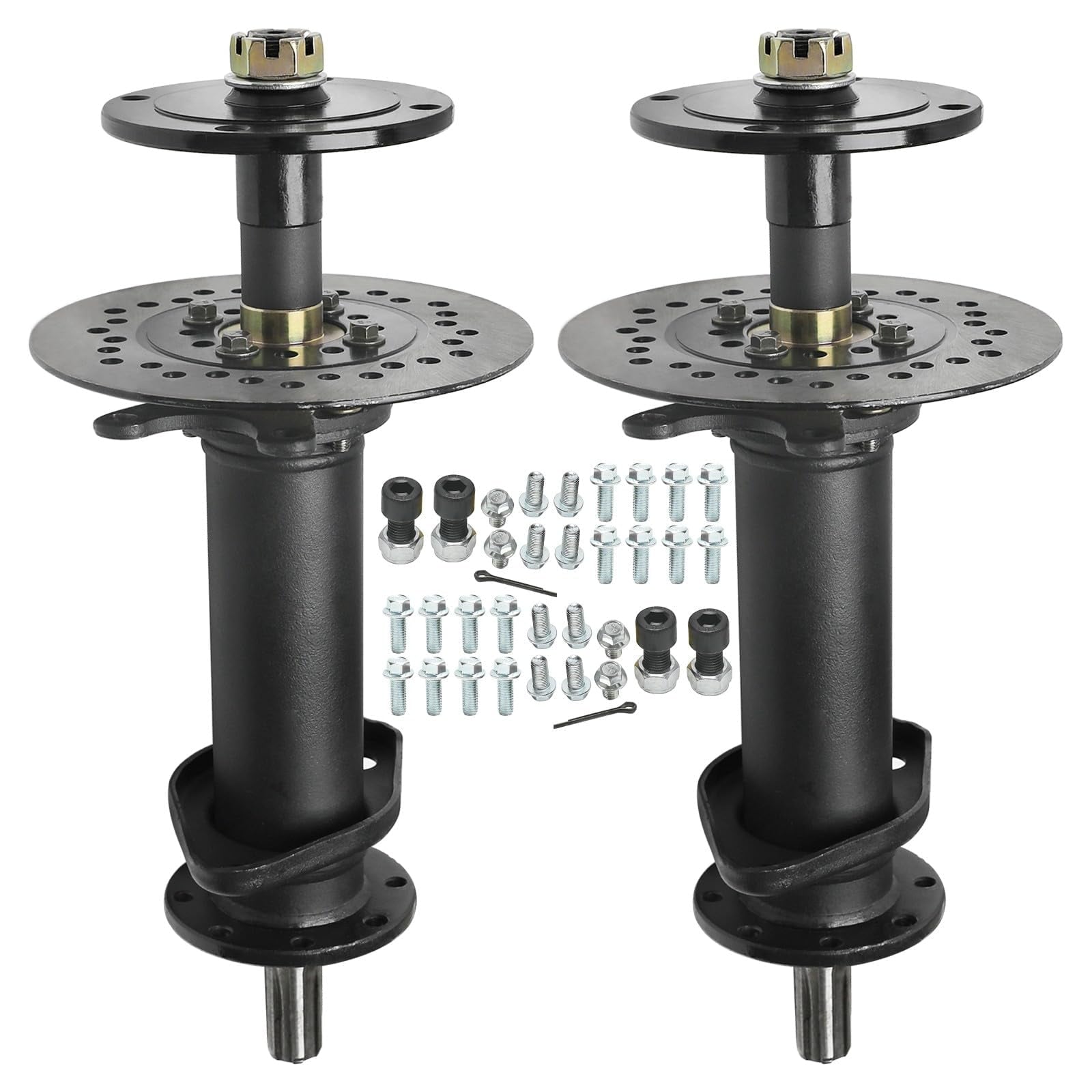

Package includes 2x short axles, 2x brake discs, 2x 4 stud wheel hubs , 1x foot brake caliper assembly,1x 60v 2500w brushless motor with differential gearbox 1x 60v 2500w controller , 2x 4 stud wheels
-
- Rear Differential Axle Kit and Electric Brushless Motor Kit for Electric Vehicles, Go Kart, Golf Cart, 4 Wheelers, ATV, Quad, Buggy, Tricycle, Trikes etc.
-
- 60V 2500W Brushless DC Motor: Rated Speed: 5000RPM, Max Speed: 6000RPM, Max Torque: 400N.m,Shaft Spline: 6 Teeth, Max Load: 1500lbs, Rated Current: 63A
-

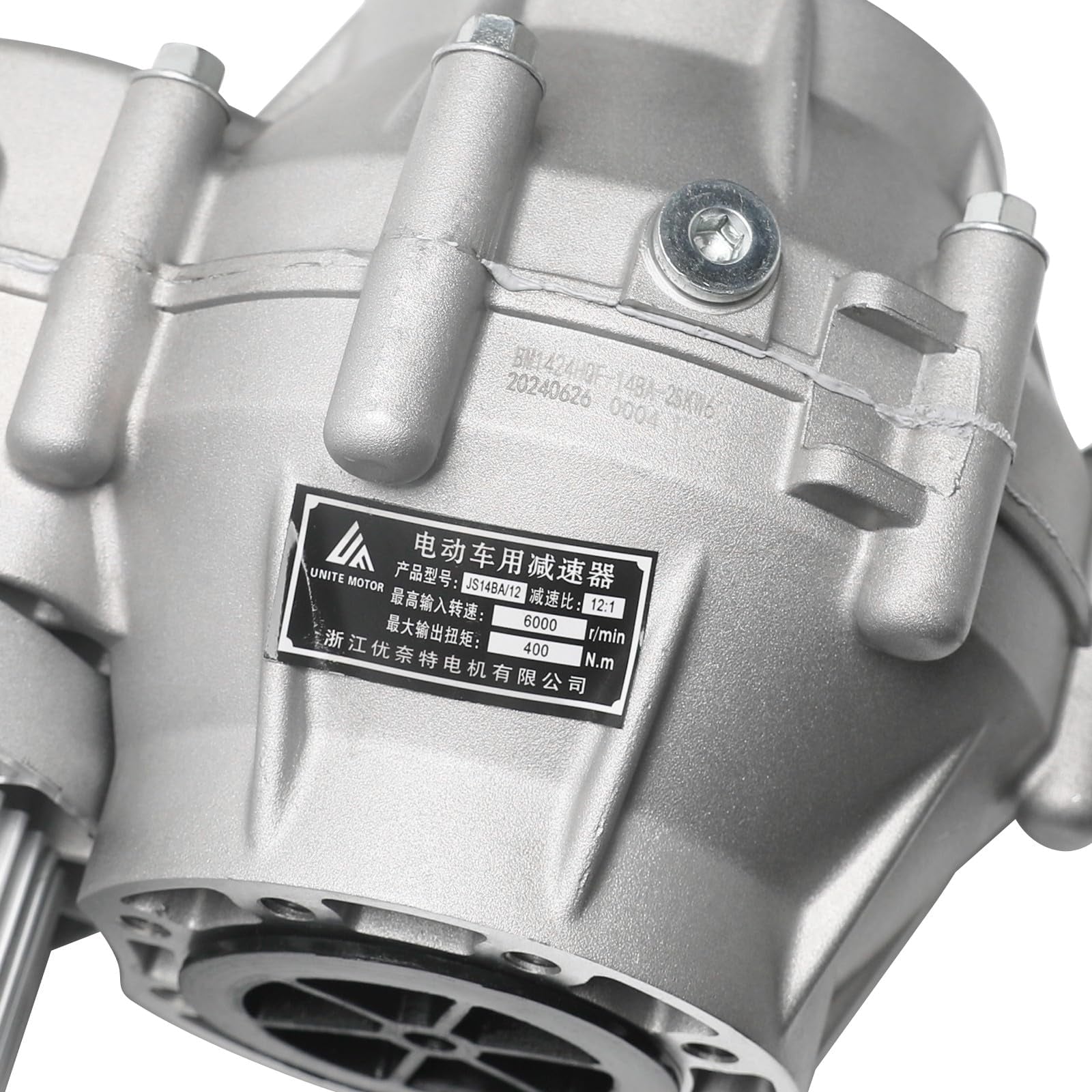

- Differential Gearbox: Gear Ratio: 12:1
-

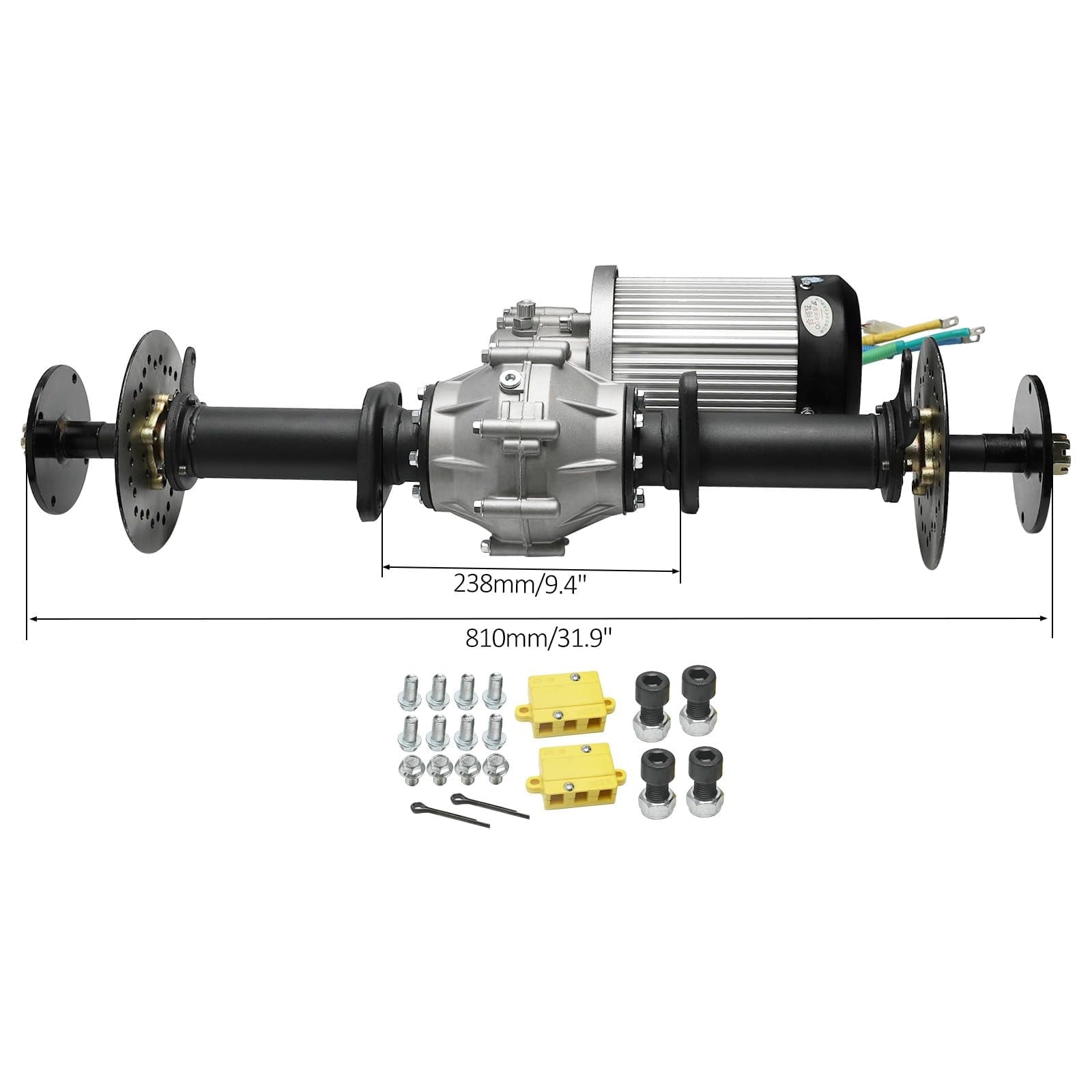

- Axle: Wheel Hub distance: 32″ /810mm, Diameter : 25mm, 6 tooth Spline Drive axle, OD of the disc rotor: 190mm, Bolt Spacing of the 4 Stud wheel hubs :110mm
-
- Package includes : 2x short axles, 2x brake discs, 2x 4 stud wheel hubs , 1x foot brake caliper assembly,1x 60v 2500w brushless motor with differential gearbox 1x 60v 2500w controller , 2x 4 stud wheels
