Product Description
1. The axle made by high strength chrome, bend proof, can support more than 500lbs
2. The axle comes with 428 41T Sprocket as default, but we still have 420 37T Sprocket as well, if you need 420, please just let us know.
3. The axle is symmetric, so the position of brake disc and sprocket can be exchanged.
4. Axle perfect for vertical or horizontal engines with any displacement and electric motors.
5. Fits 6″-10″ wheels with 3″ mounting bolts spacing.
6. It has almost all the rear-end parts you need.
Package Comes with:
(1) Axle

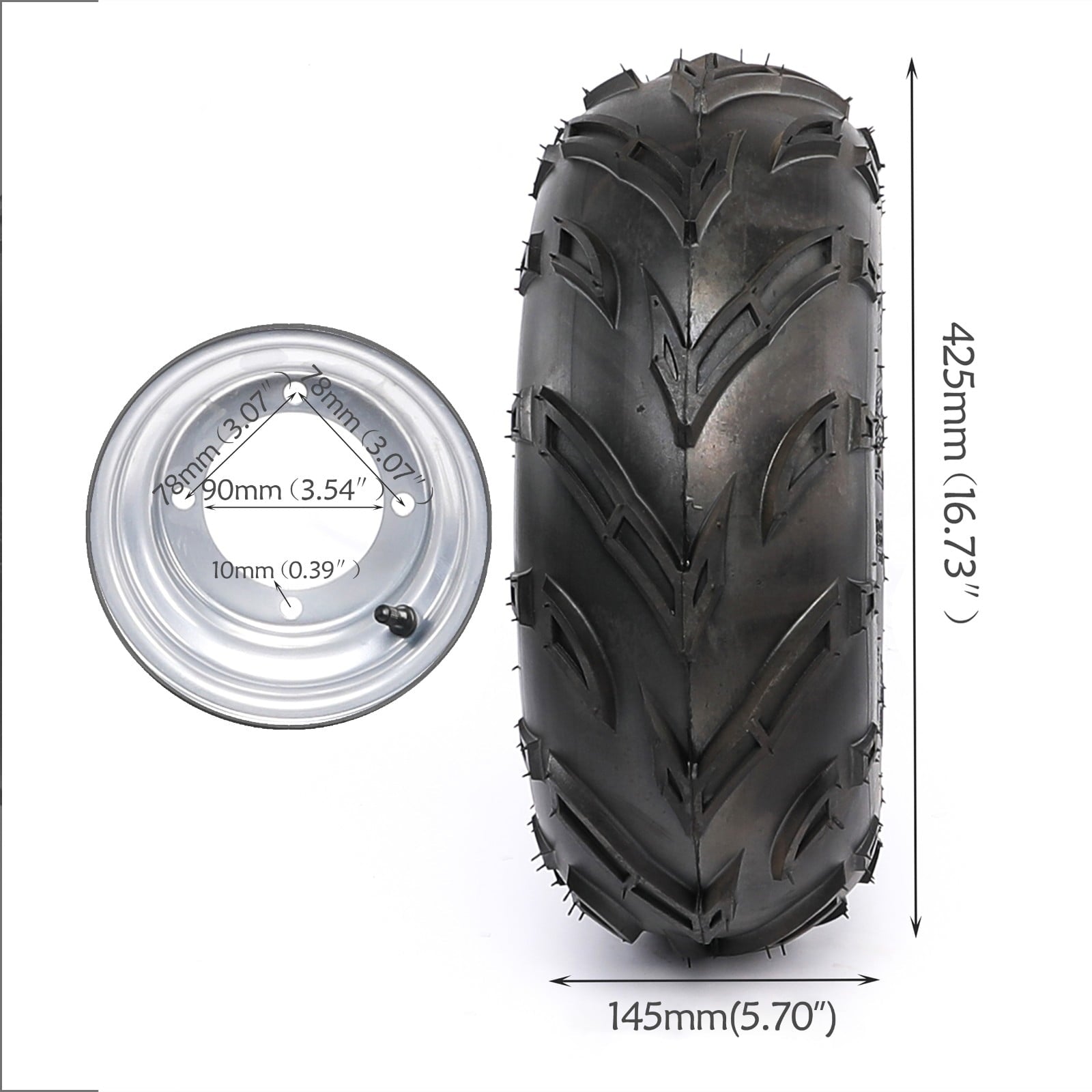

(2) 16×8-7 Tubeless wheels with rim
(1) Brake disc
(1) 428 chain
(1) 428 chain sprocket

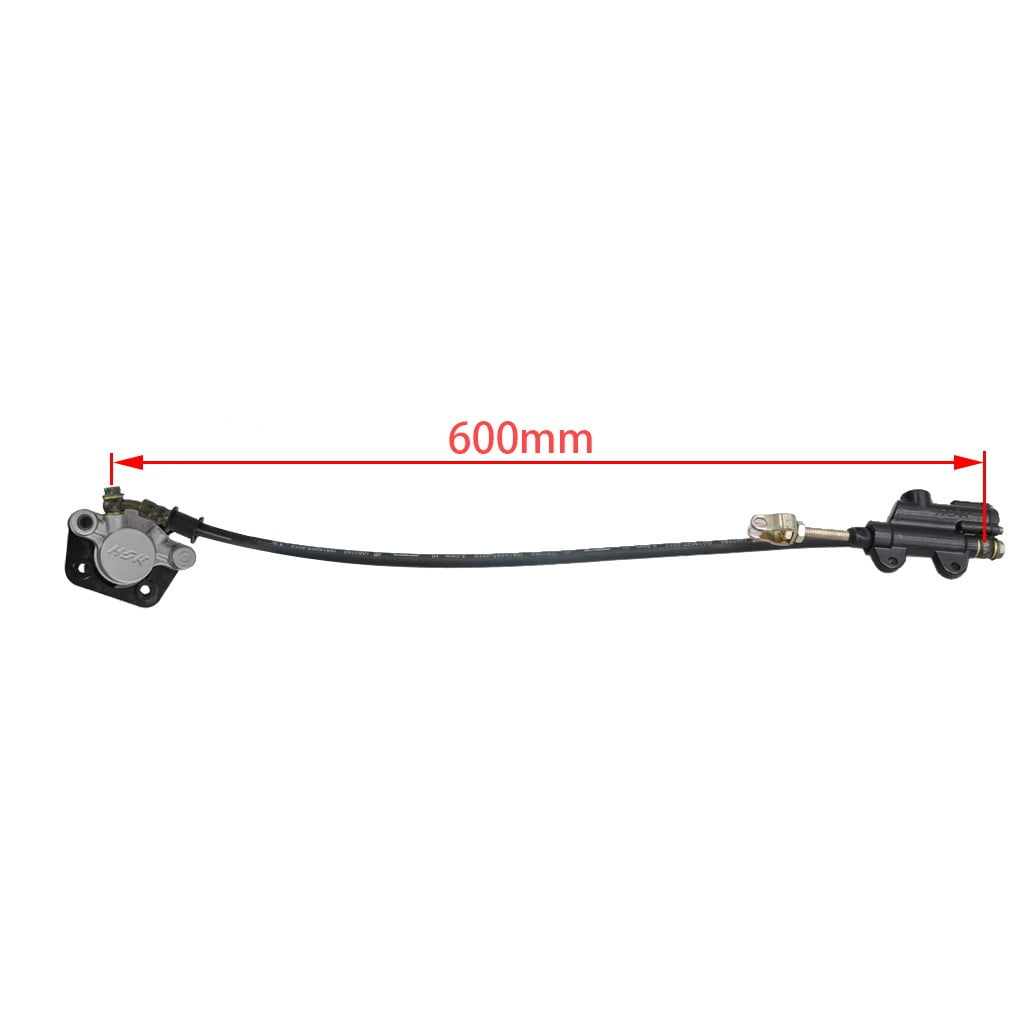

(1) Brake Master Cylinder

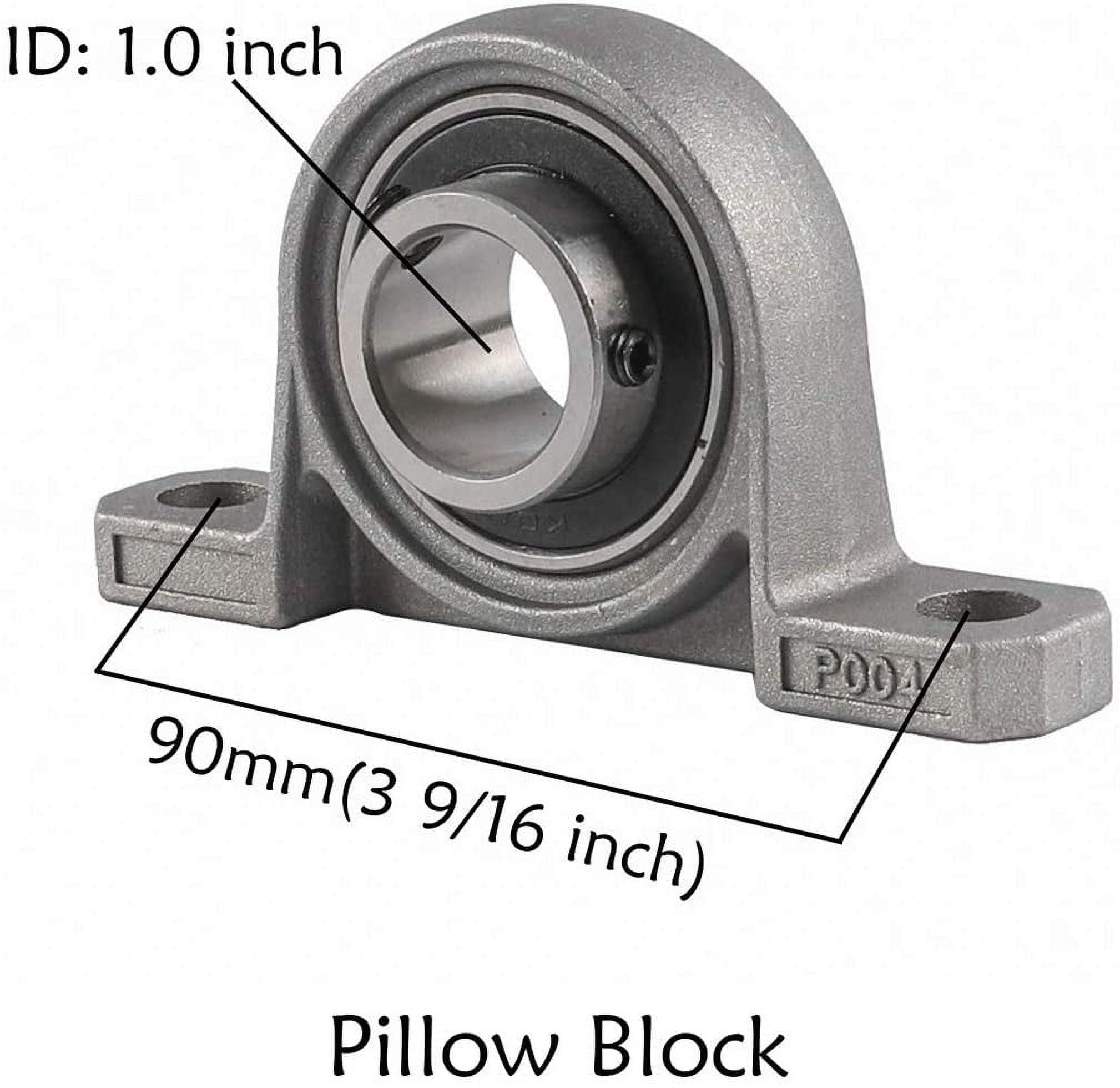

(1) 1″ Pillow block bearings
(1) 4 bolt pattern wheel hub
-

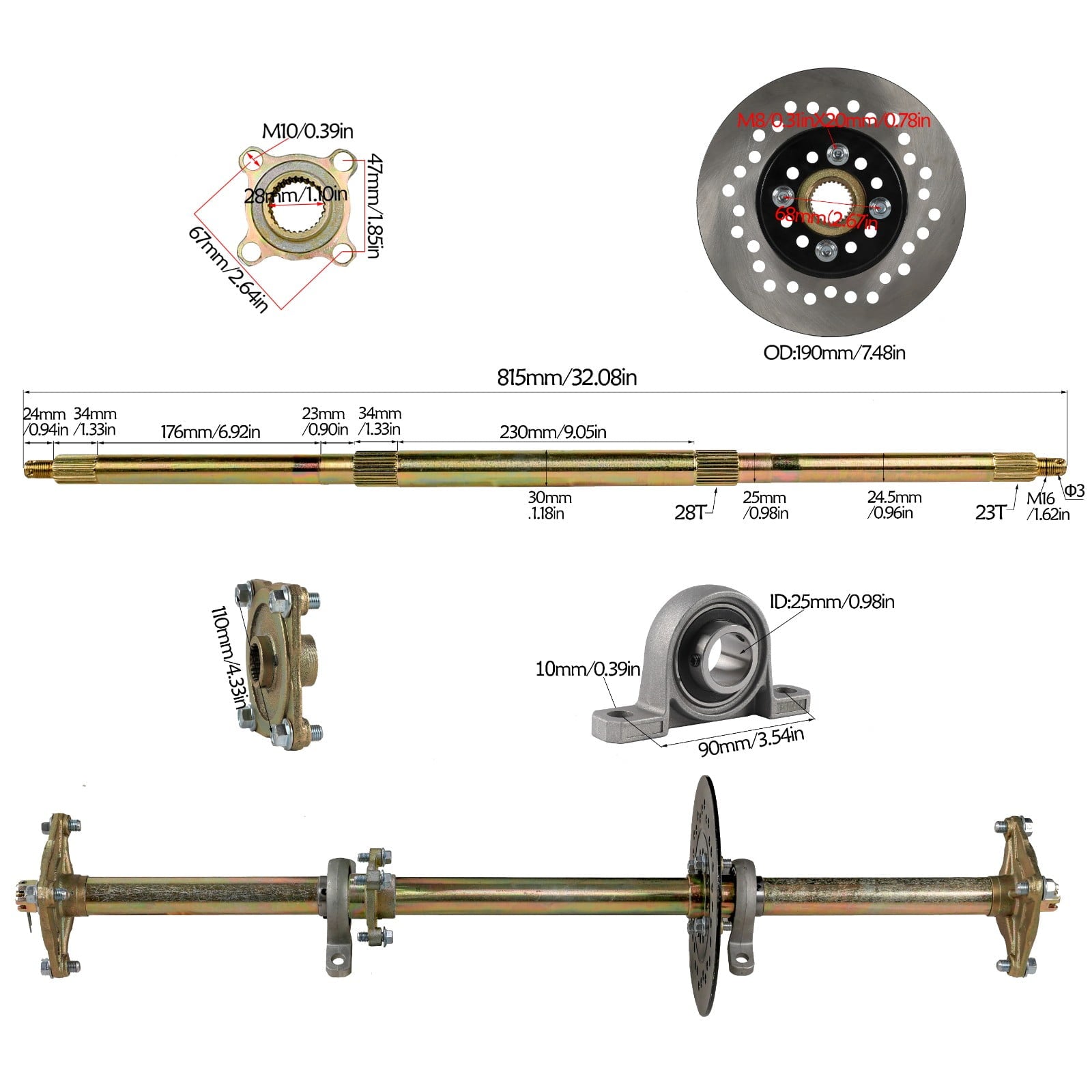

- Axle overall length 32 inch (810mm), 1″ in diameter and the thickest part of the axle is 1 3/16″ (30mm)
-
- This is a versatile and solid keyed live rear axle for DIY rebuild go kart, ATV, Quad, Trikes, Golf Carts
-
- Made by high strength chrome, can support more than 500lbs
-

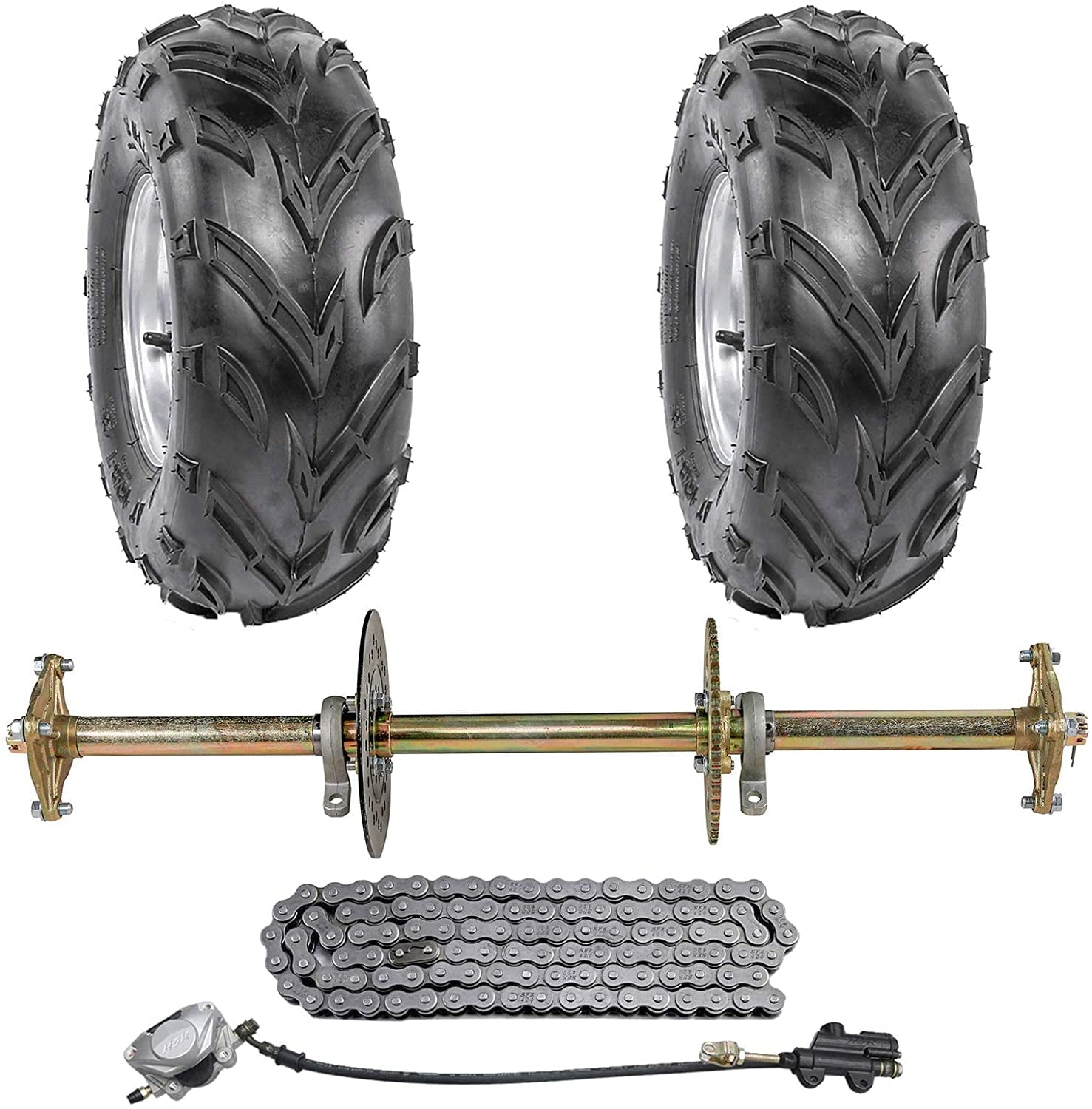

- Package includes : Rear Axle Kit + Pair of pillow blocks+ Brake assembly+ +428 41T sprocket + 428 106L chain + 2x 16×8-7″ Wheels + 4 bolt wheel hubs
