Product Description
Product Features and Specifications:

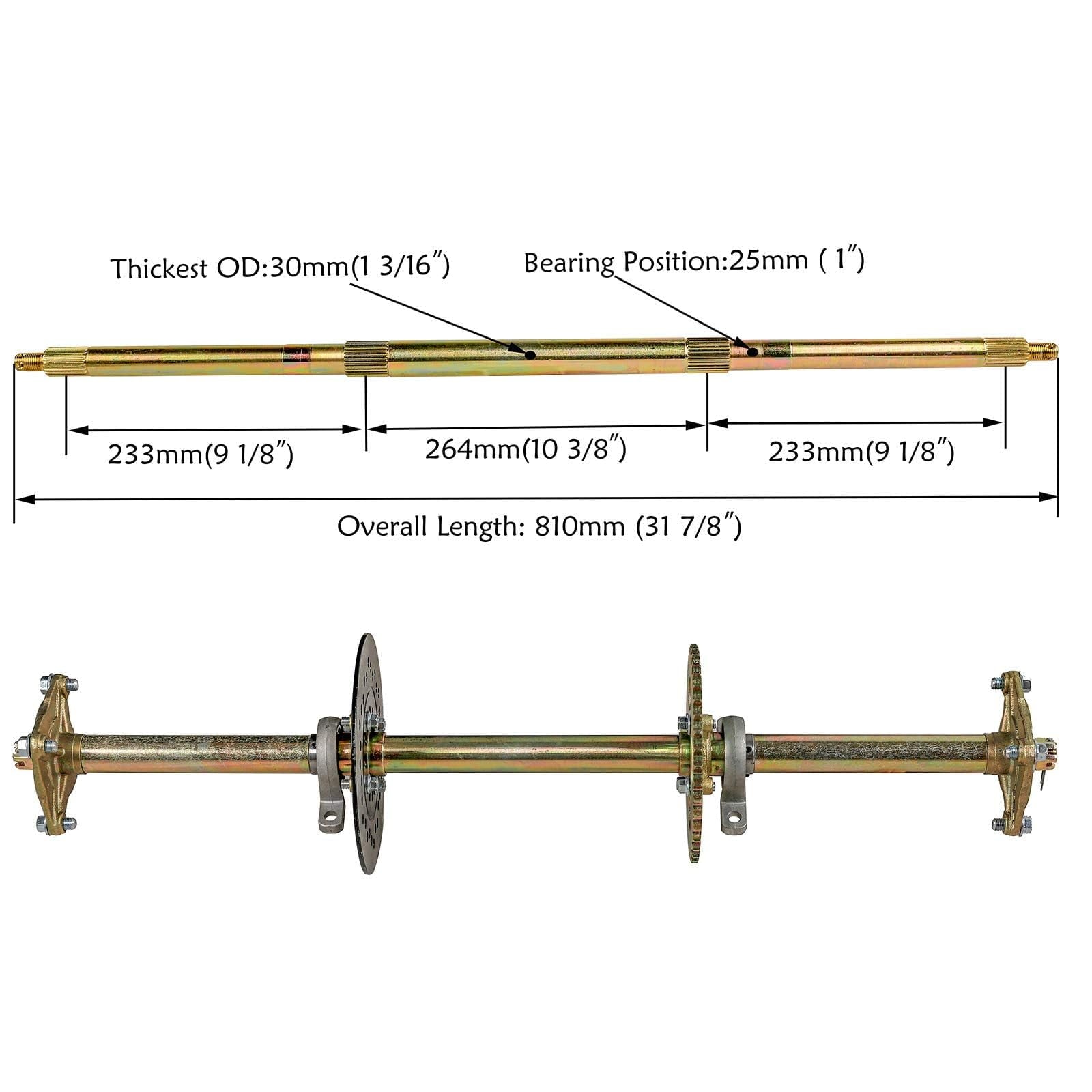

Axle Dimensions: The axle has an overall length of 32 inches (810mm), with a diameter of 1 inch. The thickest part of the axle measures 1 3/16 inches (30mm), ensuring durability and strength.
Sprocket Compatibility: It comes with a 428 41-tooth sprocket. We also offer a 420 sprocket variant upon request.
Design: The axle features a splined design, rather than a key way, allowing for versatile use with various engine types and electric motors.
Material: Crafted from high-strength chrome, the axle is bend-proof and capable of supporting over 500lbs, making it suitable for heavy-duty applications.

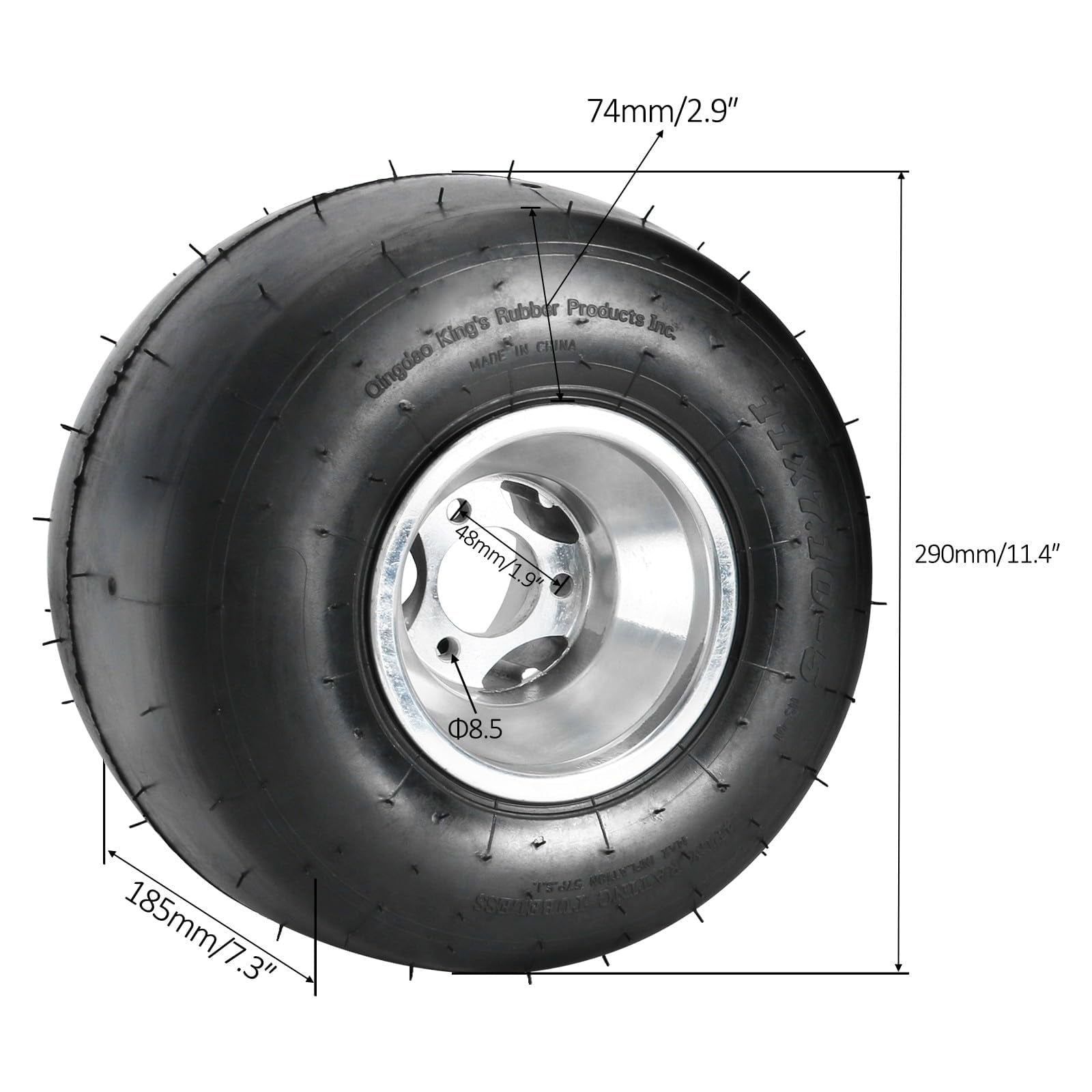

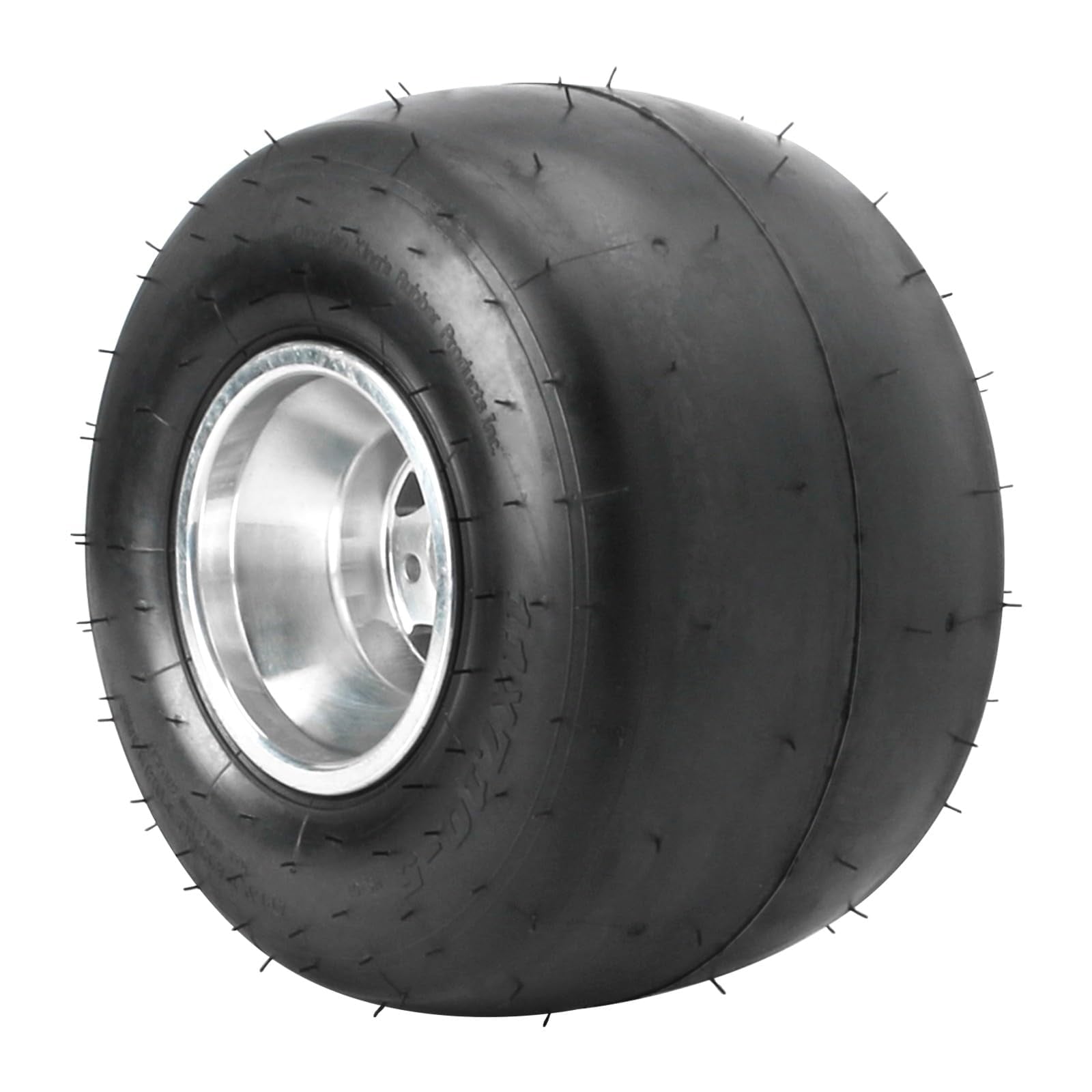

Wheel and Tire Specifications: The kit includes two 5-inch, 3-stud tubeless wheels. The tires are sized at 11×7.10-5, ideal for racing go karts and similar vehicles.
Interchangeable Setup: The positions of the sprocket and brake disc can be easily swapped, providing flexibility in assembly and use.
Application: Perfect for vertical or horizontal engines of any displacement, as well as electric motors.
Key Features:
Durable and strong for heavy-duty use
Versatile for various DIY vehicle projects
High-quality chrome material for longevity
Easy interchangeability of sprocket and brake disc positions
Suitable for a wide range of engine types and electric motors
Compatibility:
Designed to fit a broad range of DIY vehicles including go karts, ATVs, quads, trikes, and golf carts.
Compatible with 5-inch racing go kart wheels.
Package Includes:
1 x 32-inch Live Rear Axle
2 x 5-inch Tubeless Wheels

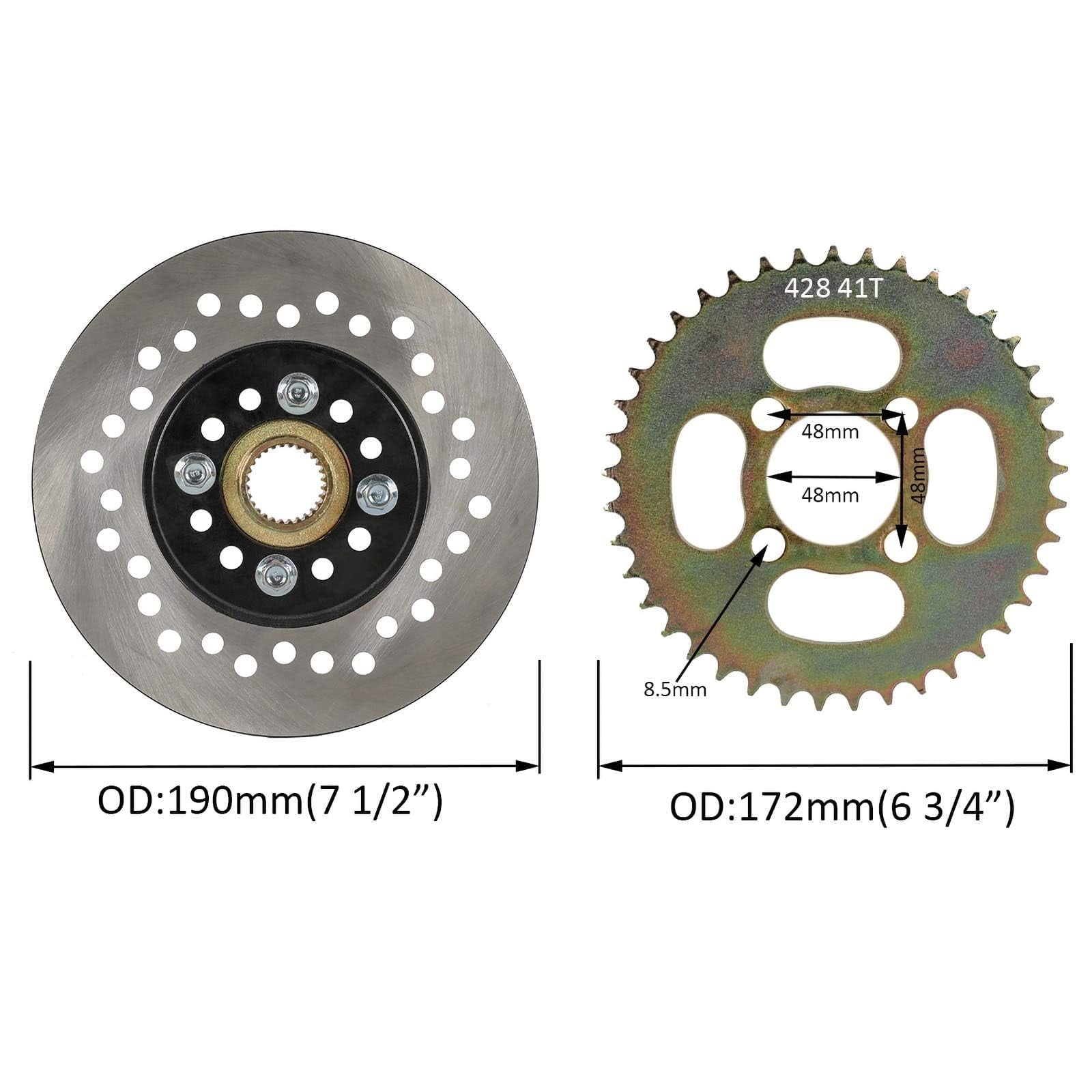

1 x 428 41T Chain Sprocket (420 option available)

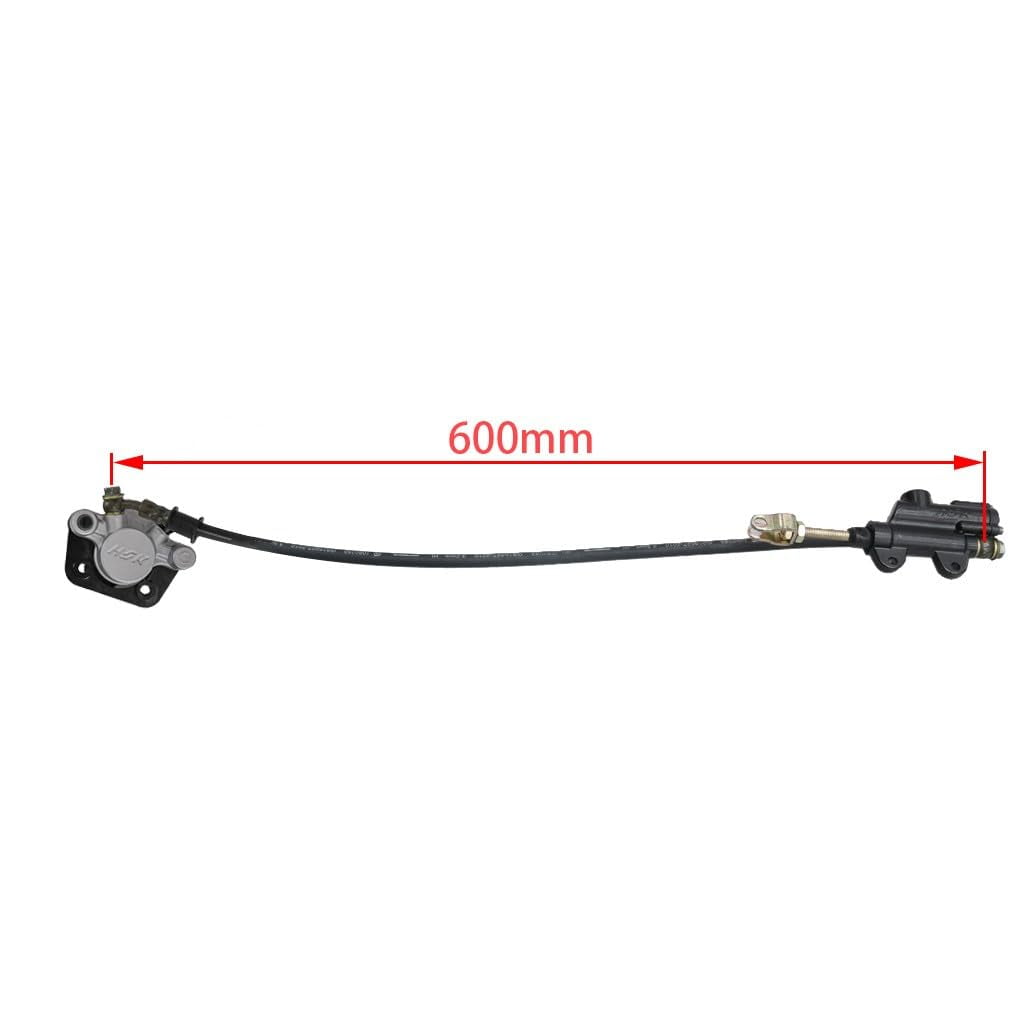

1 x Brake Master Cylinder
1 x Brake Disc
2 x 1-inch Pillow Block Bearings

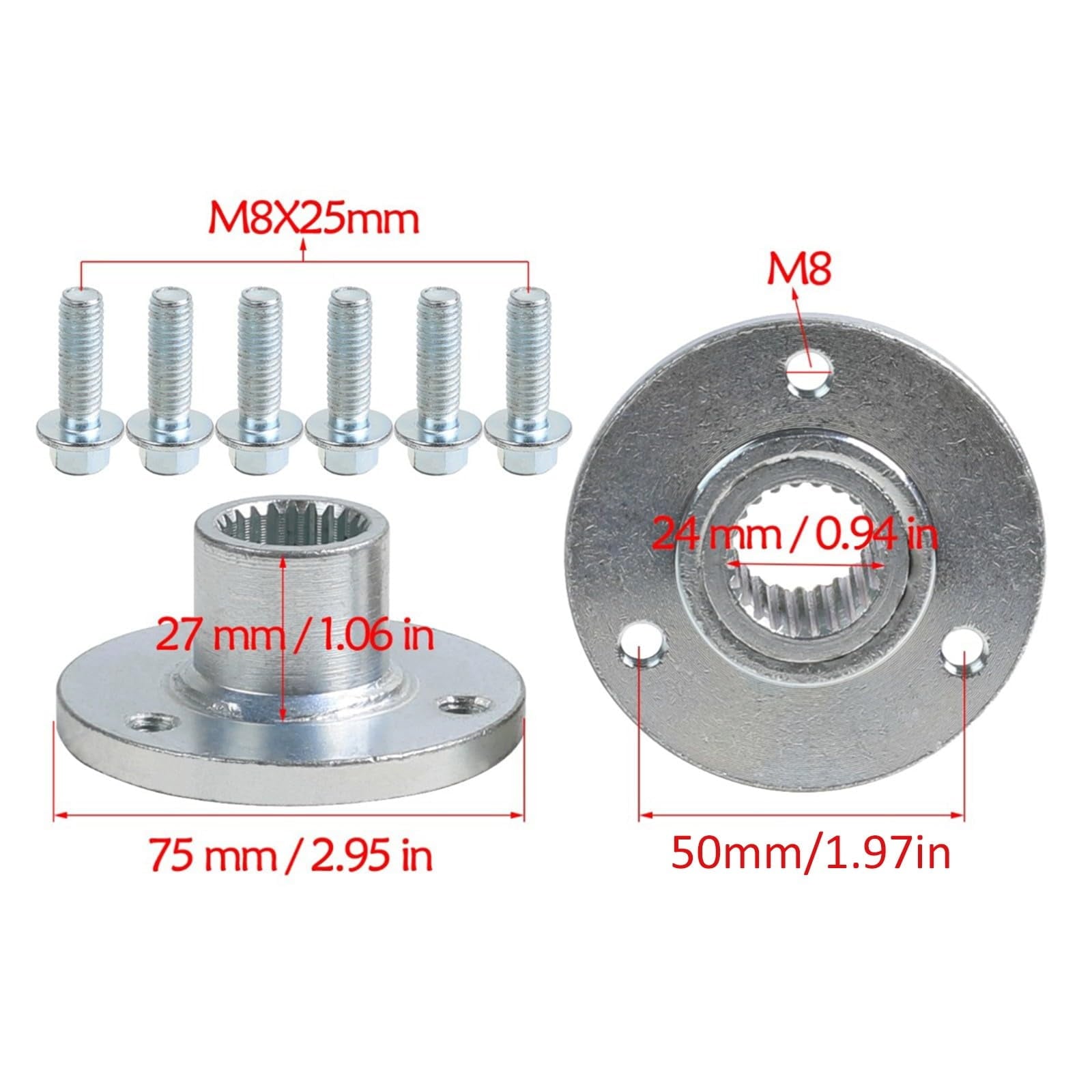

3-Bolt Pattern Wheel Hubs
1x Go kart seat
-
- Axle overall length 32 inch (810mm), 1″ in diameter and the thickest part of the axle is 1 3/16″ (30mm)
-
- This is a versatile and solid keyed live rear axle for DIY rebuild go kart, ATV, Quad, Trikes, Golf Carts
-
- Made by high strength chrome, can support more than 500lbs
-

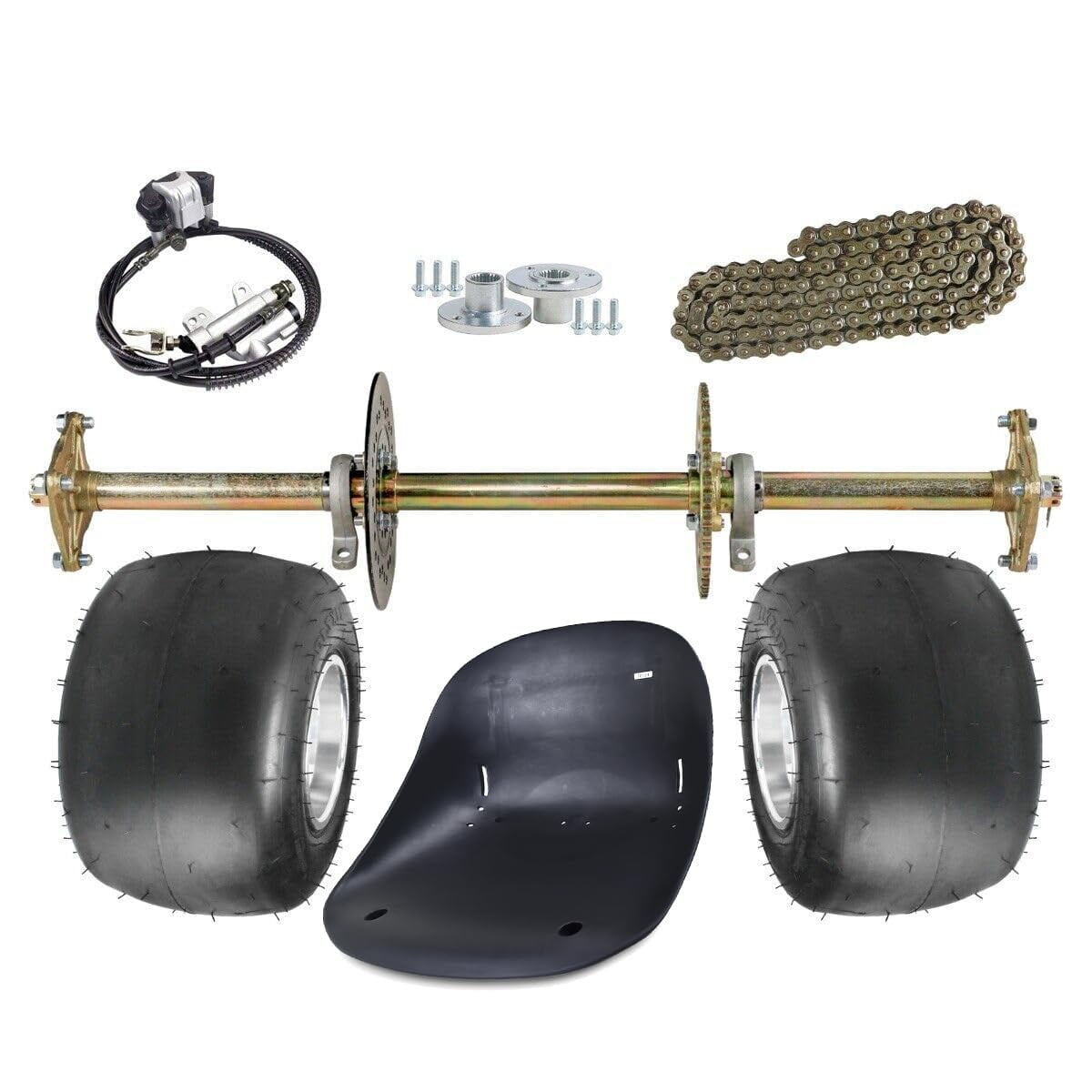

- Axle Kit come with: Axle + (2) 5″ Tubeless wheels + 428 Chain+ Sprocket + Brake Master Cylinder + Brake Disc + 1″ Pillow block bearings + 3 Stud wheel hub+ go kart seat
-
- Versatile Tire and Wheel Size: Features 11×7.10-5 size tires on 5″ tubeless wheels, suitable for varied terrains and racing conditions.
- Easy Installation: Designed for straightforward assembly, perfect for DIY enthusiasts looking to upgrade or build their go-karts or ATVs.
