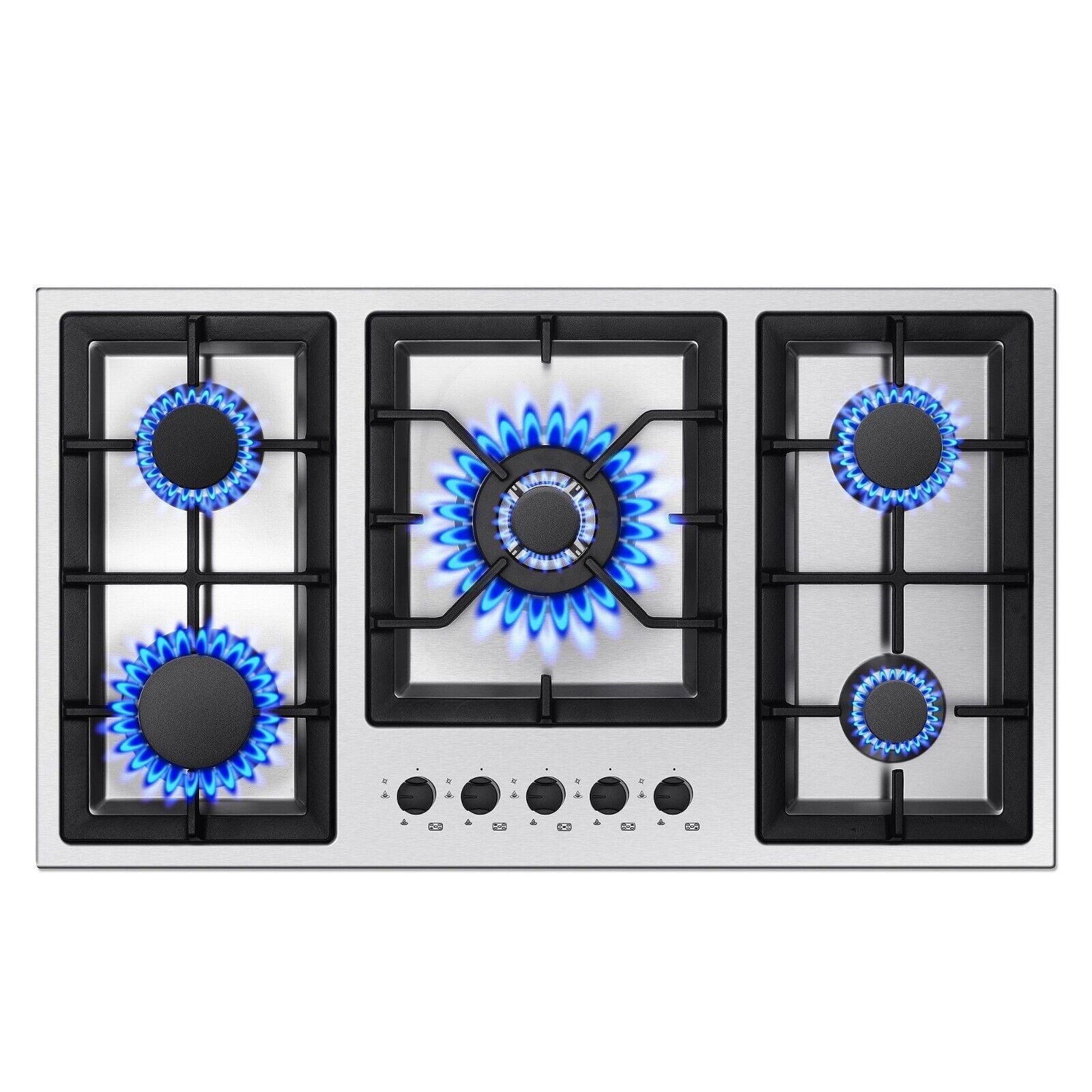

Amzgachfktch 36 inch Stainless Steel Gas Cooktop
5 Burners Power: 1x 10,500 BTU + 1x 8,189 BTU + 2x 6,414 BTU + 1x 3,071 BTU
Fuel Type: Natural Gas (NG) nozzles are preset and can be replaced with Liquefied Petroleum Gas (LPG) nozzles.
Please Note That:
1.Extra LPG Nozzles are included in the package, but the natural gas pressure regulator and the gas pipe are NOT included.
2.It is recommended that the gas stove top be installed and tested by professionals.
3.Please tear off the film on the surface before using to avoid fire.
-

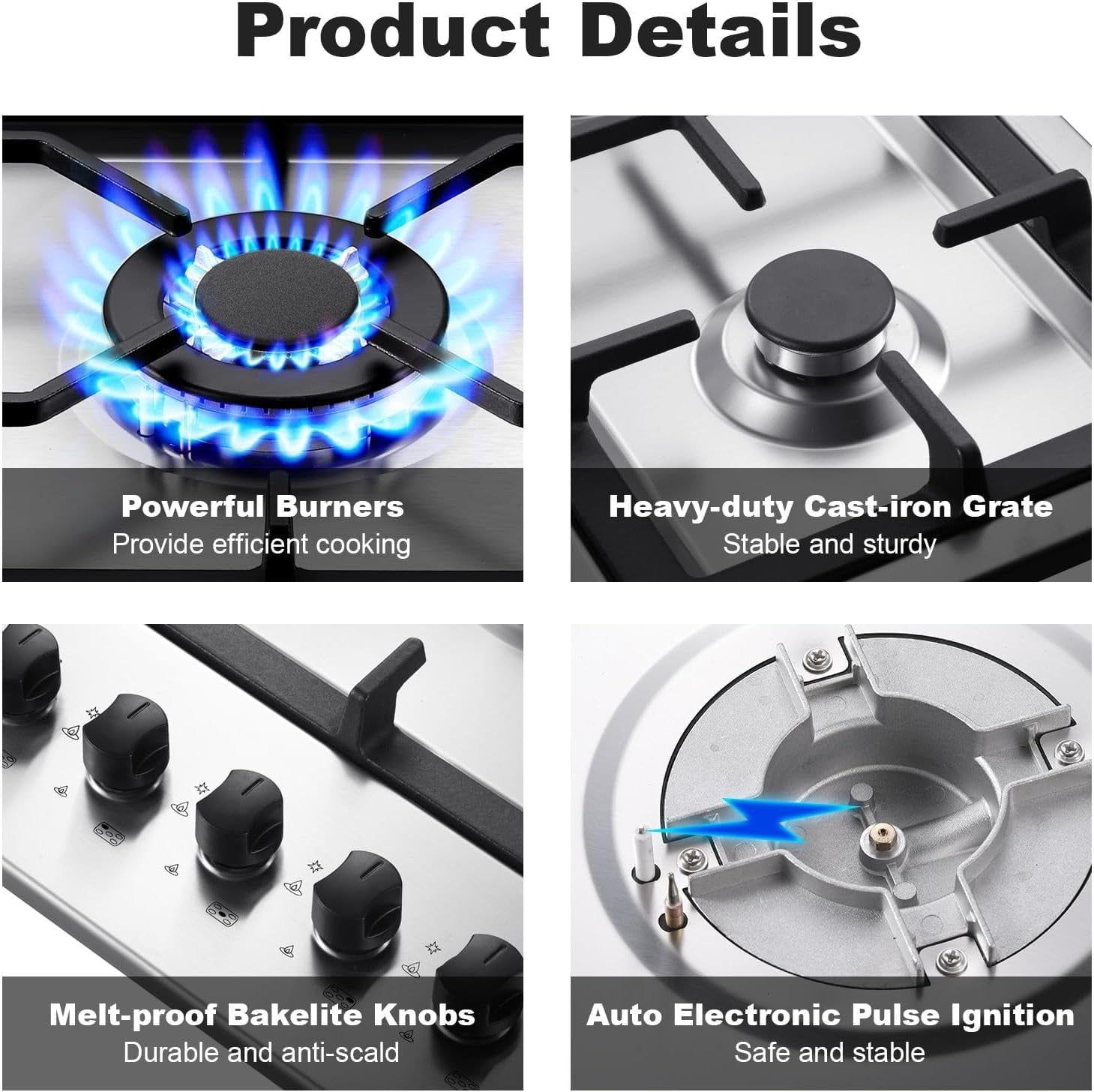

5 High Powerful Burners
Heavy-duty Cast-iron Grate
Thermocouple Protection
Melt-proof Bakelite Knobs
Auto Electronic Pulse Ignition
Easy to Clean
Stainless Steel Panel
NG/LPG Duel Fuel
-

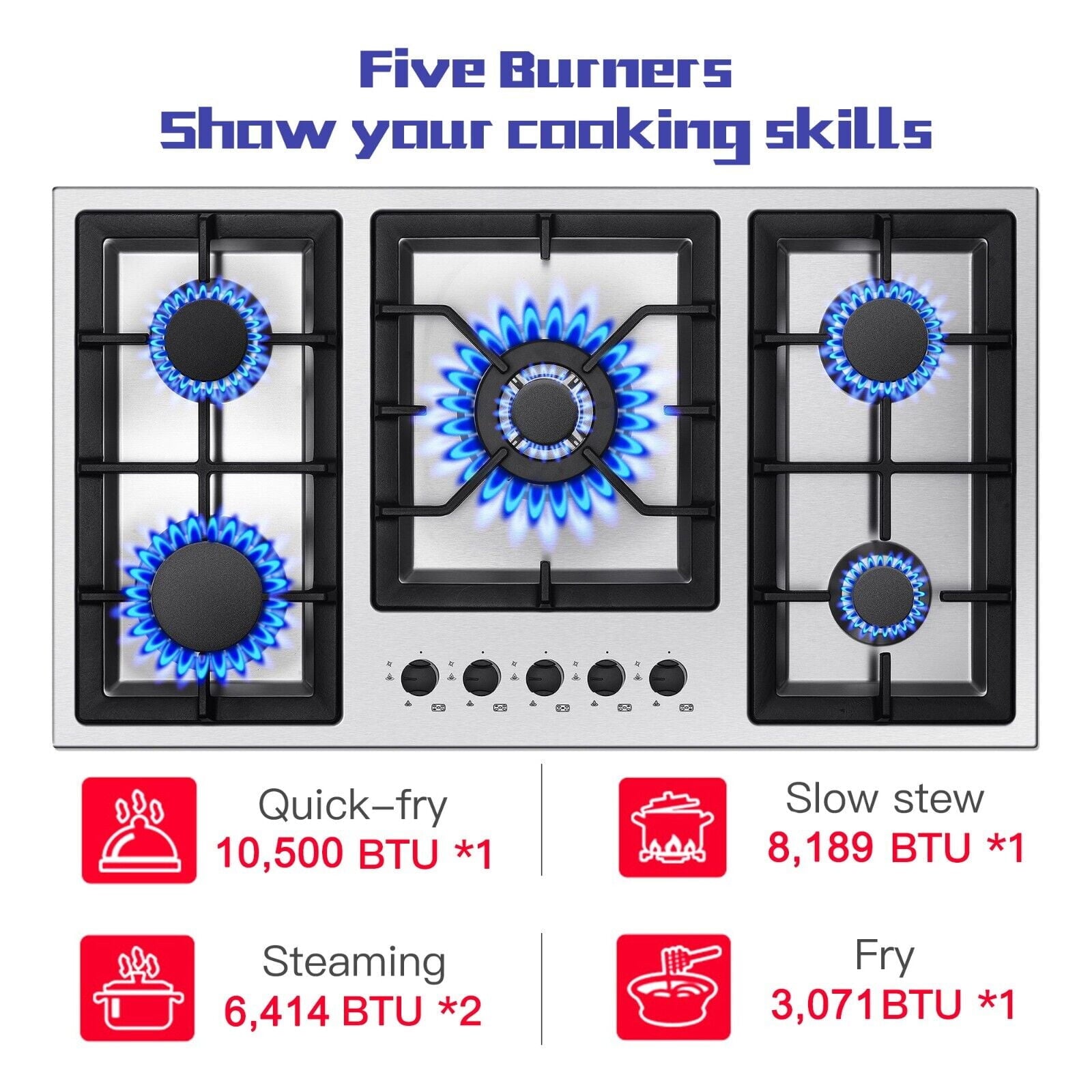

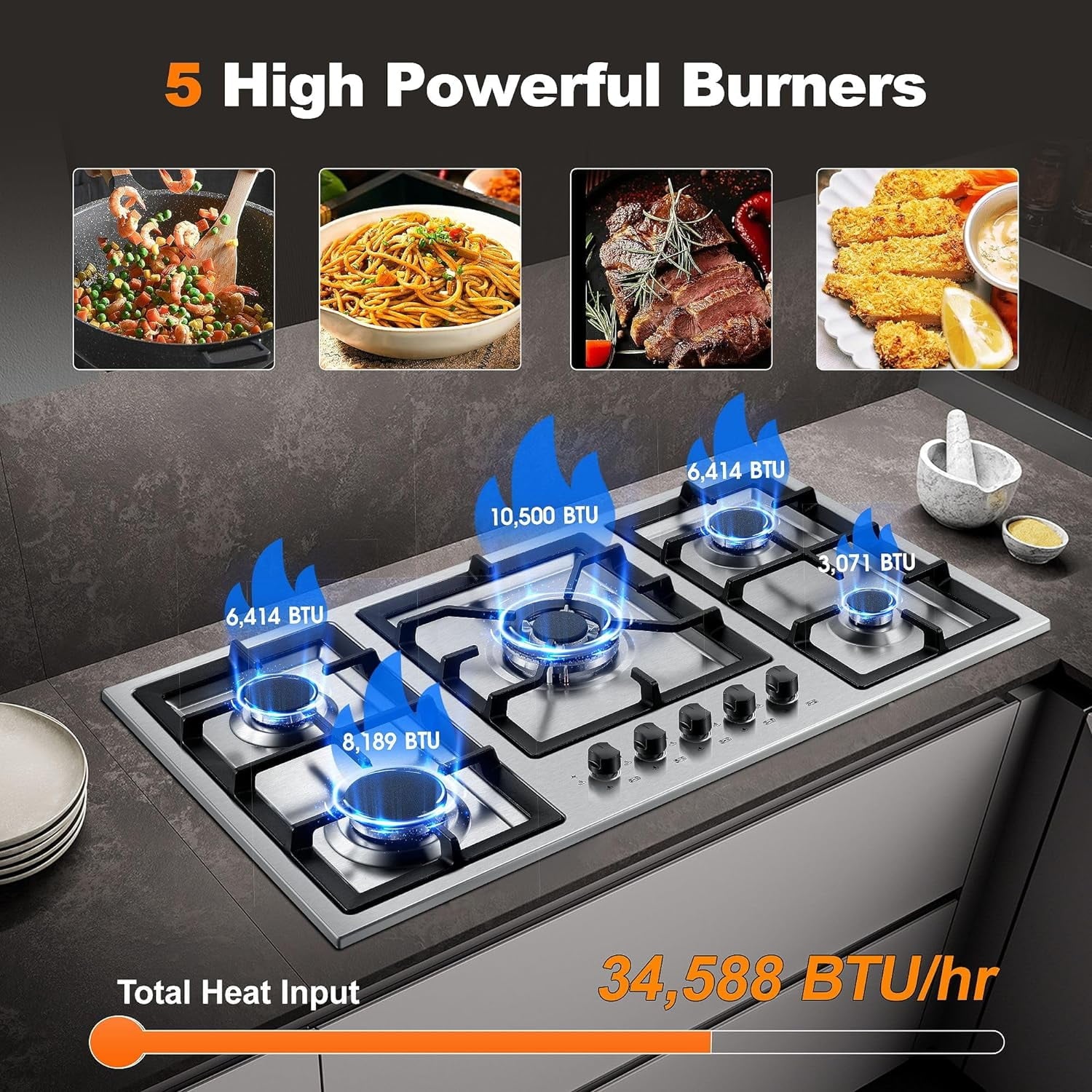

5 High Efficiency Burners
This 36 inch gas cooktop offers 5 high efficiency sealed burners: 1 x 10,500 BTU + 1 x 8,189 BTU + 2 x 6,414 BTU + 1 x 3,071 BTU. Each burner distribute even heat for simmering, boiling, stir-frying, steaming, melting or even caramelizing! It is very suitable for daily use at home and can meet the needs of different cooking styles.

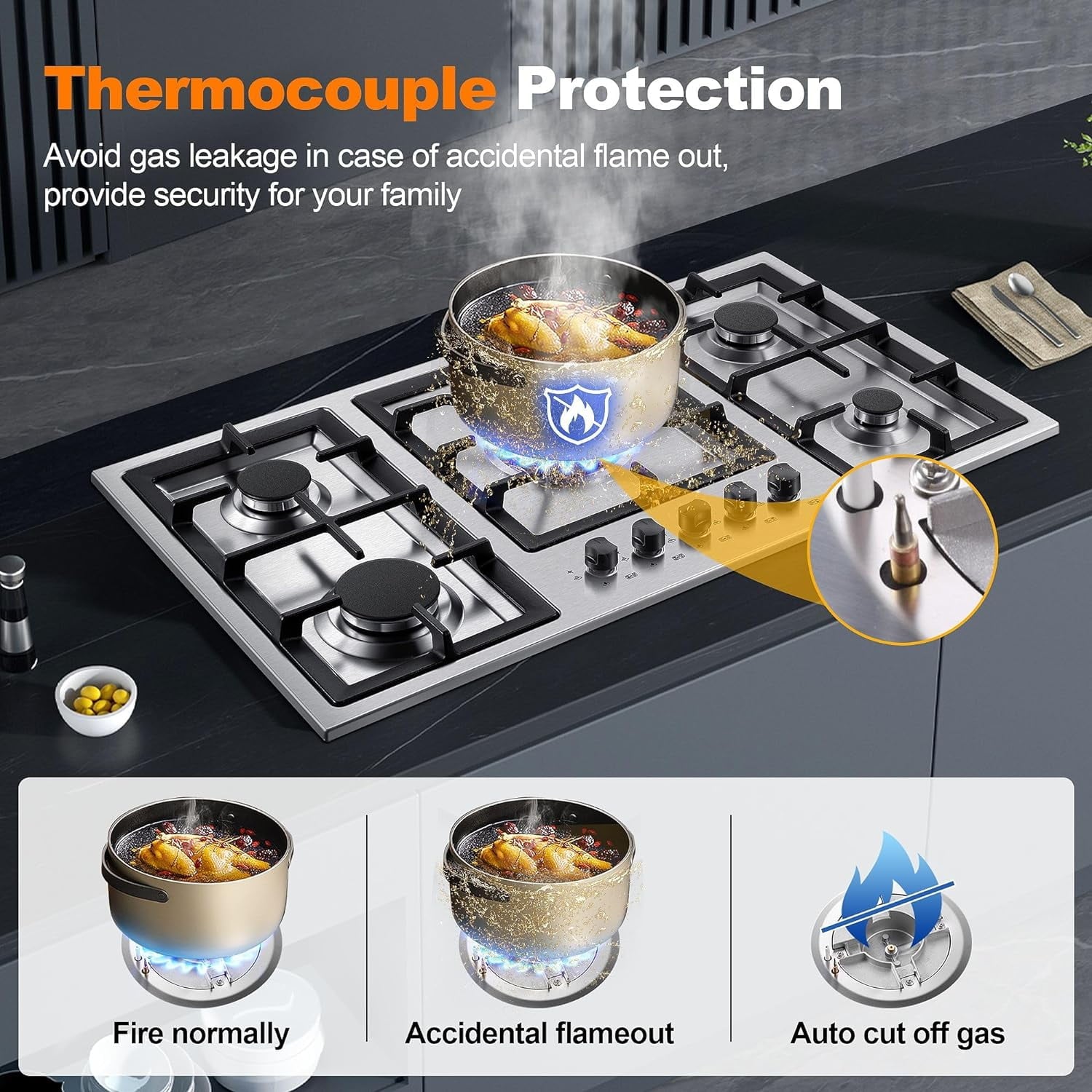

Safety Protection
The thermocouple flame-out failure device system(FFD) will shutoff the gas automatically after 60 seconds if a flame is not detected to ensure your safety in an emergency. Melt-proof bakelite knob with child lock need to press and rotate at the same time to ignite, preventing children from accidentally touching. Gas stovetop with double protection to keep your family safe.
Easy Maintenance
The gas stove top is made of brushed stainless steel, which is heat-resistant, corrosion-resistant and wear-resistant. 5 sealed burners prevent food from falling into them. You can simply remove the grate and wipe it clean with water or detergent. The heavy cast iron grates support all kinds of heavy pots steadily and can be cleaned in the dishwasher for hassle-free.
-
NG/LPG Convertible & Electric Ignition
The initial setting of the gas range stove is for natural gas, and there is a conversion kit for LPG, you can choose either gas supply as you like. The automatic electric pulse ignition uses a 110V AC power. Please note that natural gas pressure regulator and gas pipe are NOT included.
Melt-proof Knobs
Melt-proof and anti-scalding bakelite knob controls, with child protection lock, need to press and rotate at the same time to ignite, preventing children from accidentally touching.

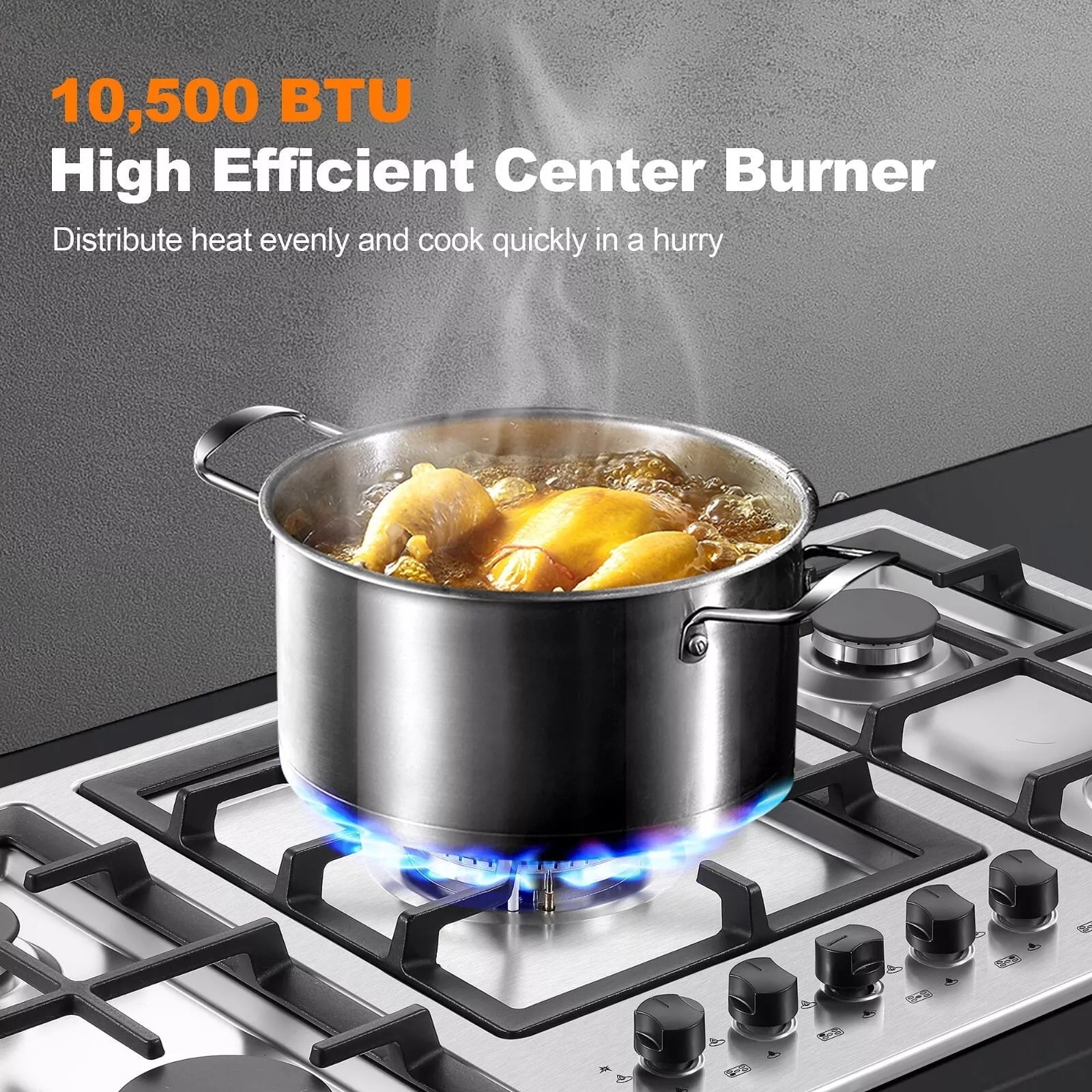

Powerful Burners
The 5 high quality burners always provide full combustion and stable flame,ensuring that every corner of the pan gets even heat and preventing energy loss. Each burner operates independently and can cook multiple dishes at the same time, helping you create delicious and nutritious meals.
Heavy-duty Cast Iron Grate
Grates are heavy-duty and continuous across the top of the cooktop, making it easy to move pots and pans around with no snags. And can support the pot firmly, avoid letting the pan drop off.
Specification:
Brand Name：Amzgachfktch
Weight：34.8 pounds
Product Dimensions：20 x 35.8 x 3.3 inches
Part Number：002-365S348WMGH
Special Features：Flame-Out Protection
Heating Elements：5
Voltage： 110V, 3-prong plug
Fuel type ：Gas
Material Type：Stainless Steel
Grate Material: Heavy-duty cast iron
Control Type: Bakelite knobs control
Ignition Type: Electronic pulse ignition
Cable Length: 4.5 Feet
Installation Type: Built-in
This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

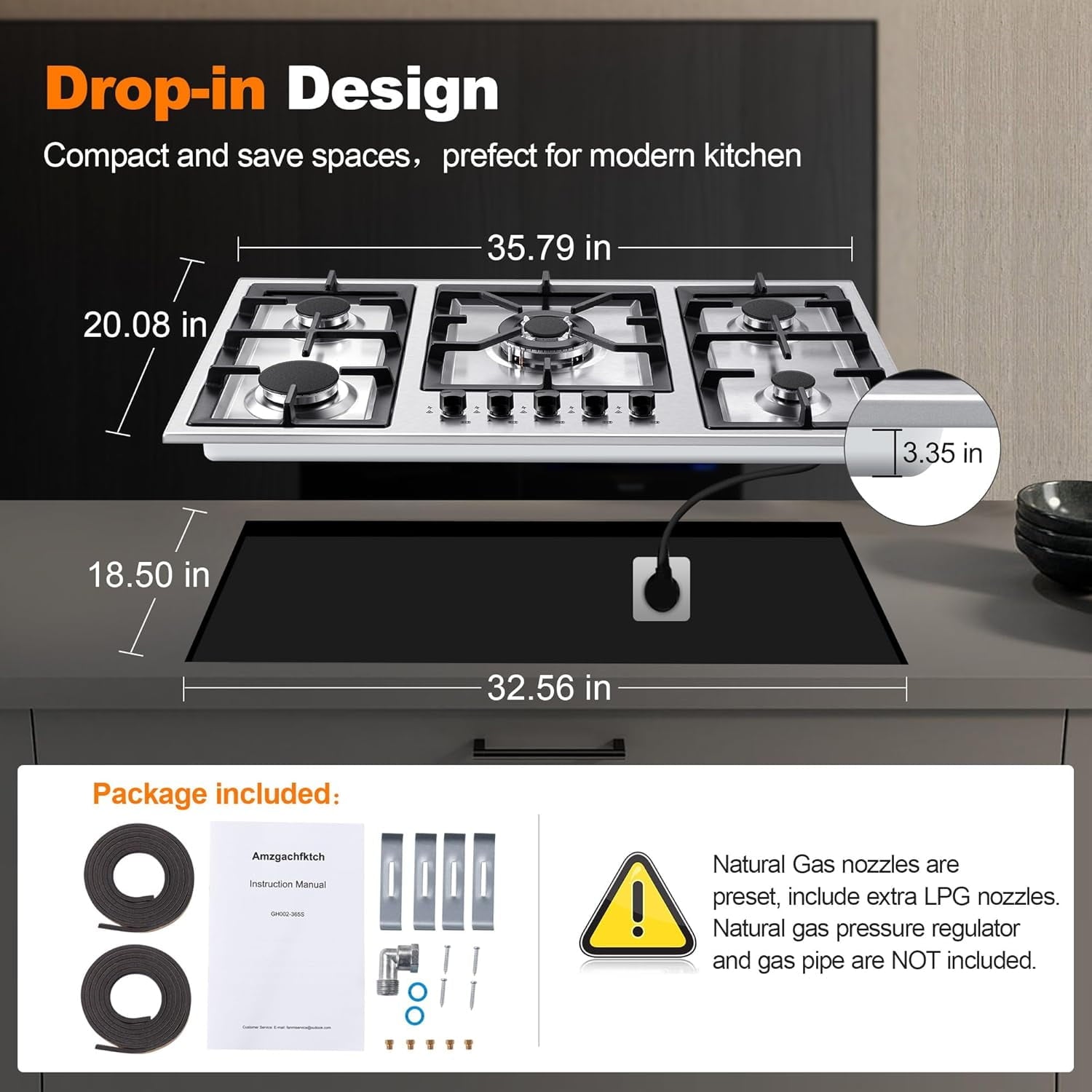

Product Dimensions: 35.79″ W x 20.08″ L x 3.35″H
Cut out Dimensions: 32.56″ Wx 18.5″ L
For a correct installation, the following precautions must be followed:
The gas stove should be connected to the gas-supply by a registered installer. During installation it is essential to fit an approved gas tap to isolate the supply from the stove for the convenience of any subsequent removal or servicing.
Once the stove was installed, make sure all the connections are properly sealed, use a soapy water to test, never use flame.
Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness.
In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.
When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips, in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.
DO NOT install the stove in a damp closed environment, because long-term moisture will cause rust in the stainless steel panel.

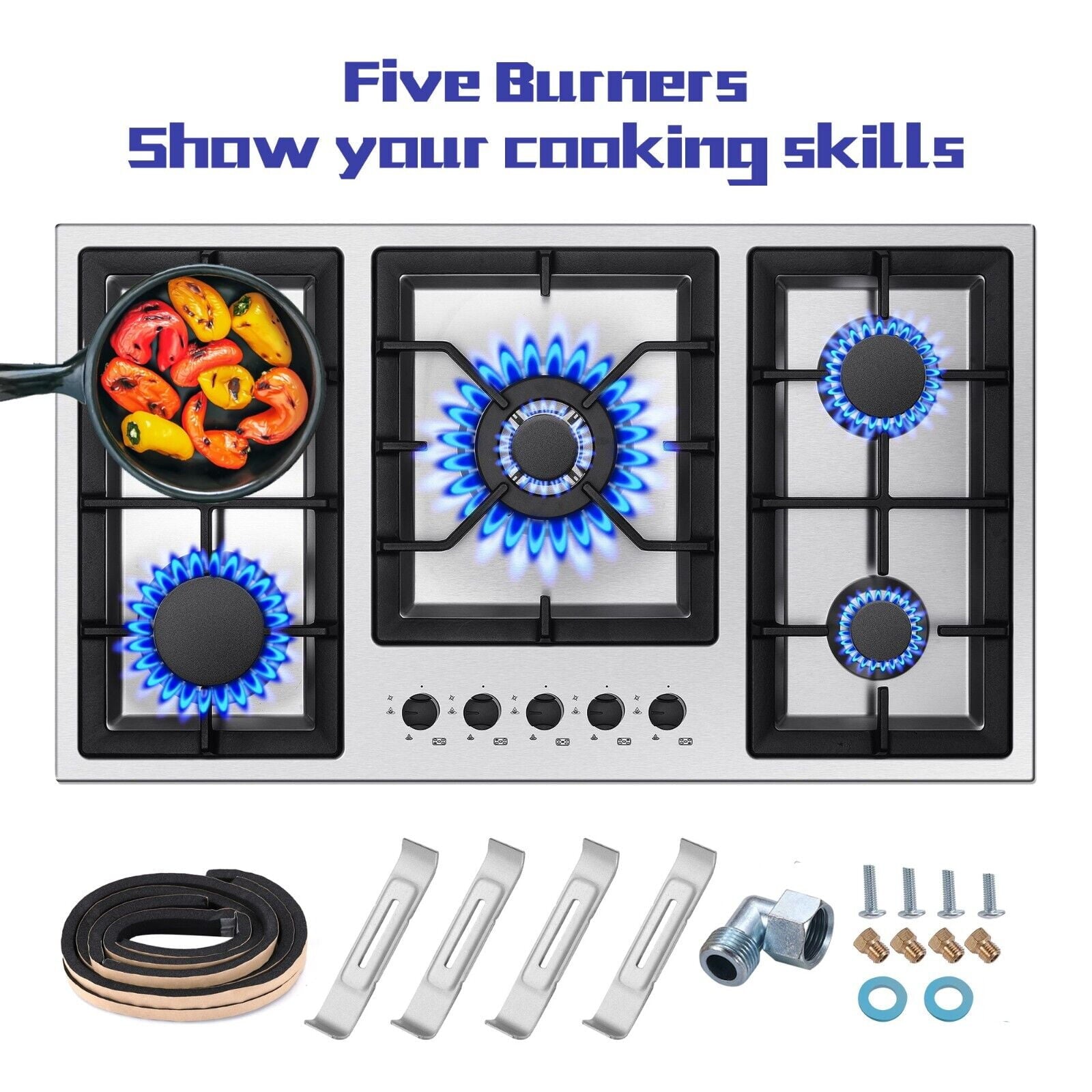

Package Included:
36 inch Gas Cooktop
Preset NG Nozzles(Extra 5 Propane Nozzles)
1/2NPT Elbow Connector with Sealing Rings
Mounting Brackets and Screws
Sealing Strip
Cut-out Template Board
User Manual
