3HP Replacement Air Compressor Pump for Campbell Hausfeld VT4923 Cast Iron

$92.37

Description

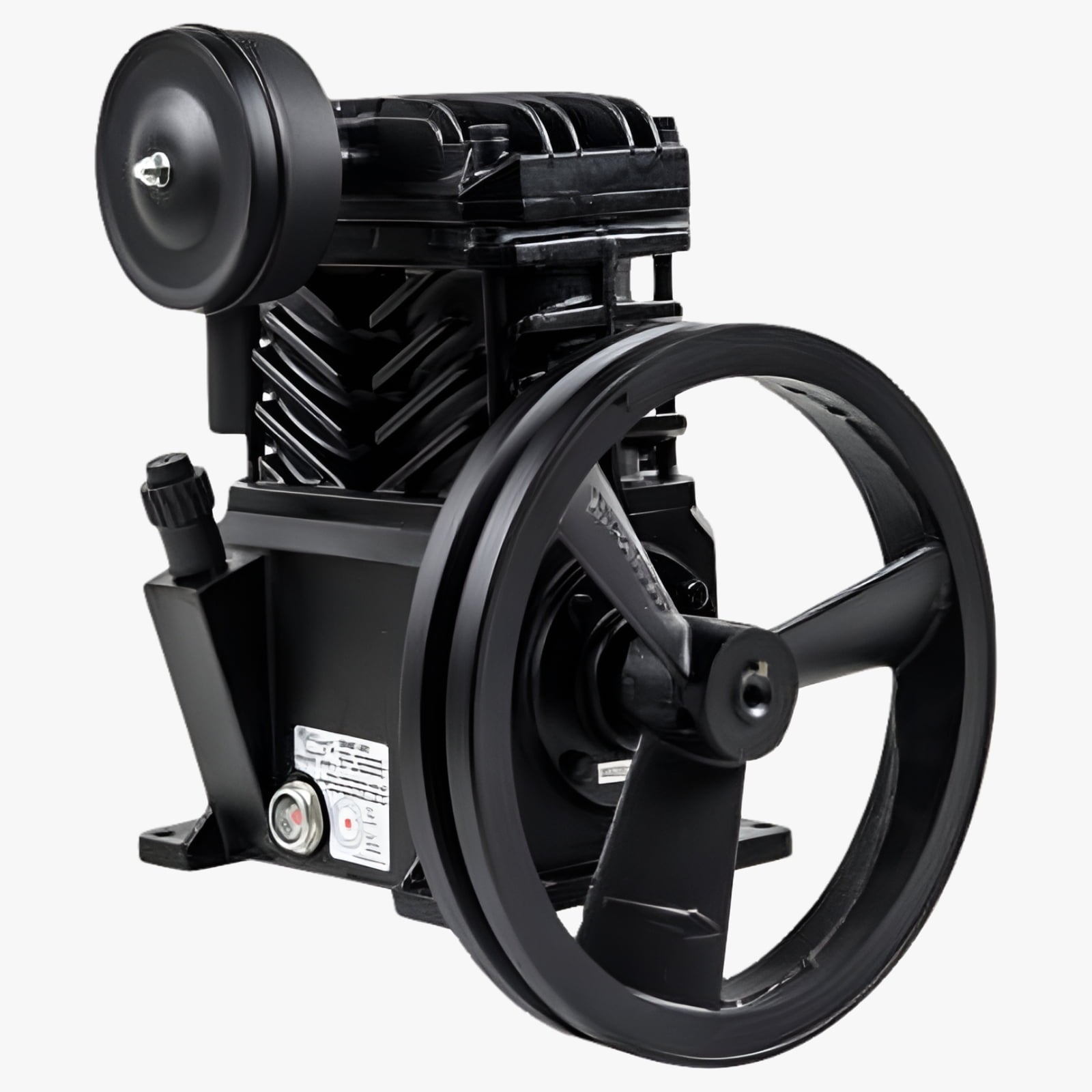

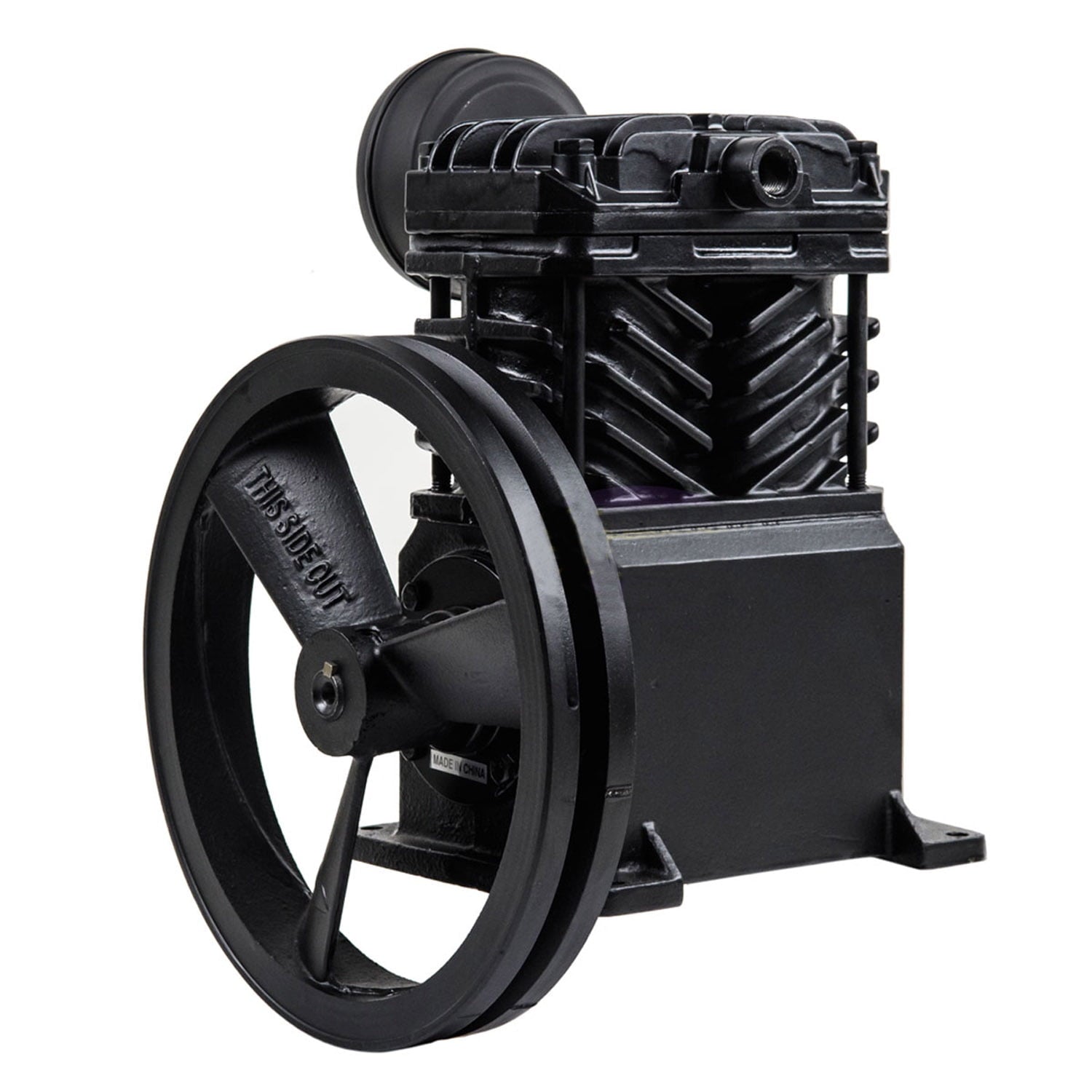

3 HP Replacement Air Compressor Pump for Campbell Hausfeld VT4923

Brand new two cylinder cast iron single stage air compressor pump. This is a 3 horsepower pump that will deliver up to 12 SCFM at 90 PSI. This pump is most commonly used on 60 gallon tanks. This pump needs minimum of a three horsepower motor, which is at least 15 amps at 220 volts. This pump comes complete as shown in the photos, including intake filter and pulley. See specifications below for more details.

Part numbers referenced below are examples of what this pump will fit. However, there are many more models that it will work for. Use specifications to verify fitment.

Mounting Hole Dimensions Center to Center • Front to Back: 6-1/2″ • Side to Side: 5-7/8″  Campbell Hausfeld Parts List: VT627000, VT622701, VT629100, VT470000AV, VT470200, VT203003, VT203001, VT200001, VT233301, VT23401, VT23350, VT4200, VT4300, VT4101, VT4150, VT510700, VT627504, VT619504, VT558804, VT633500, EX840500, VT619600AJ, VT618901, VT620800, VT627505, VT631403, VT631404AJ, VT635900, VT6359, VT619503AJ, VT627503AJ, VT558705, VT558801, VT559501, VT232605 FL-3305, FL3305, VT500601, VT-5006-01, VT558701, VT558701AJ, VT623803, VT623803AJ, VT6312, VS4001, VS400100AJ, VT619501, VT619501AJ, VT610101, VT610201, VT614804, VT614804AJ, VT490000AV, VT614601, VT614801 VT635500, VT639000, VT631504, VT559506,

RIDGID Parts: GP90135, GP90135A, GP90150A, Maxus Parts EX8003, EX800301, EX801300AJ, VT633000AJ, VT633001AJ EX801200, VT635300, EX558702, Husky Parts VT6314, VT6314HDRB,

Sears Craftsman: 106.174541, 106.154580, 106.153680, 106.153781, 106.170641, 106.171941, 106.153783, 106.153684, 106.153784, 106.153992,

Kobalt Parts: VT6362,

Speedaire Parts: 3Z408L, 3Z869J, 5F214A,

If you have any questions about fitment, please reach out to us before purchasing.

  • Two Cylinder Single Stage
  • 3 HP Pump
  • Cast Iron Pump with Aluminum Head

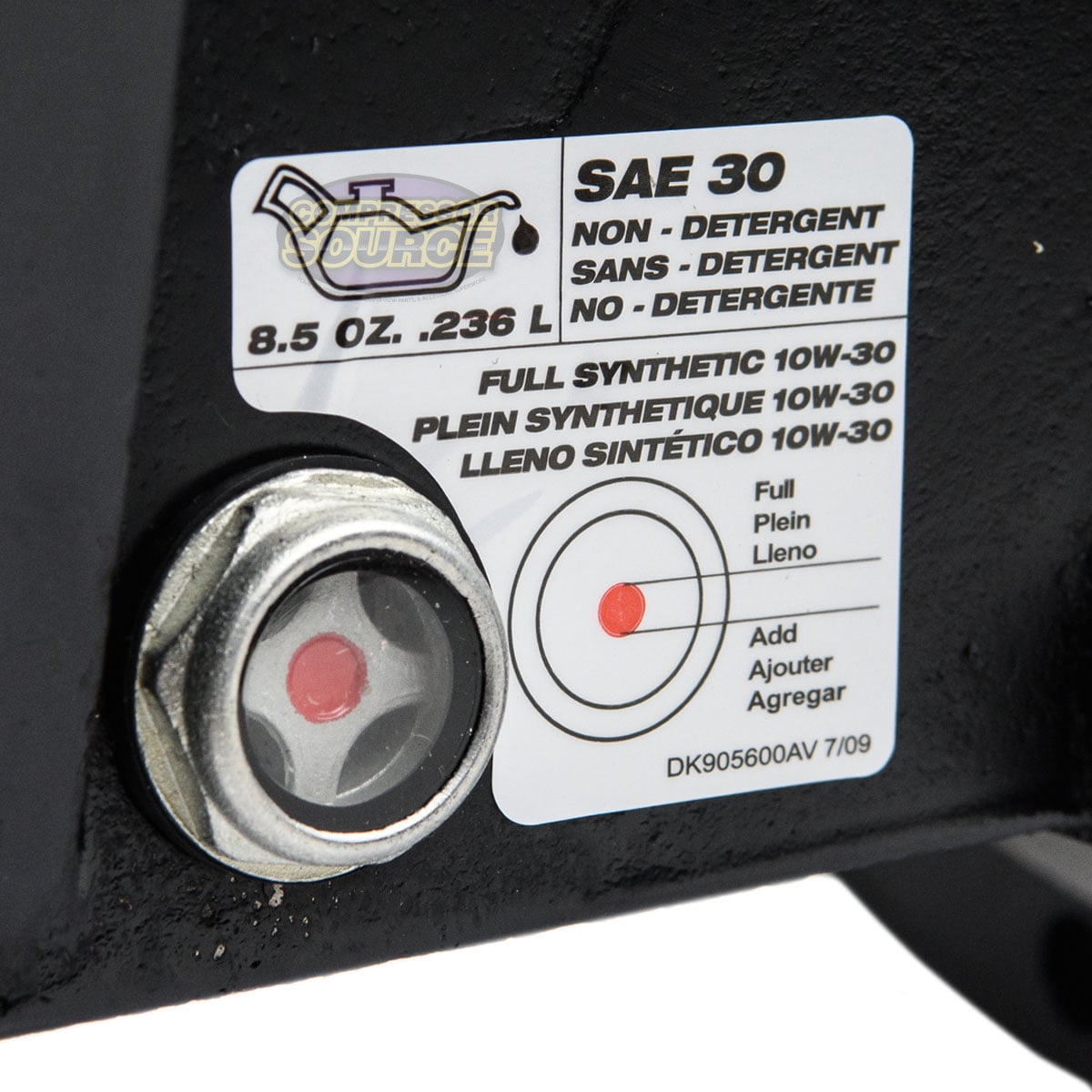

  • Equipped with Sight Glass for Easy Viewing of Oil Level
  • Intake Threads: 1/2″ FNPT
  • Exhaust Threads: 3/8″ FNPT

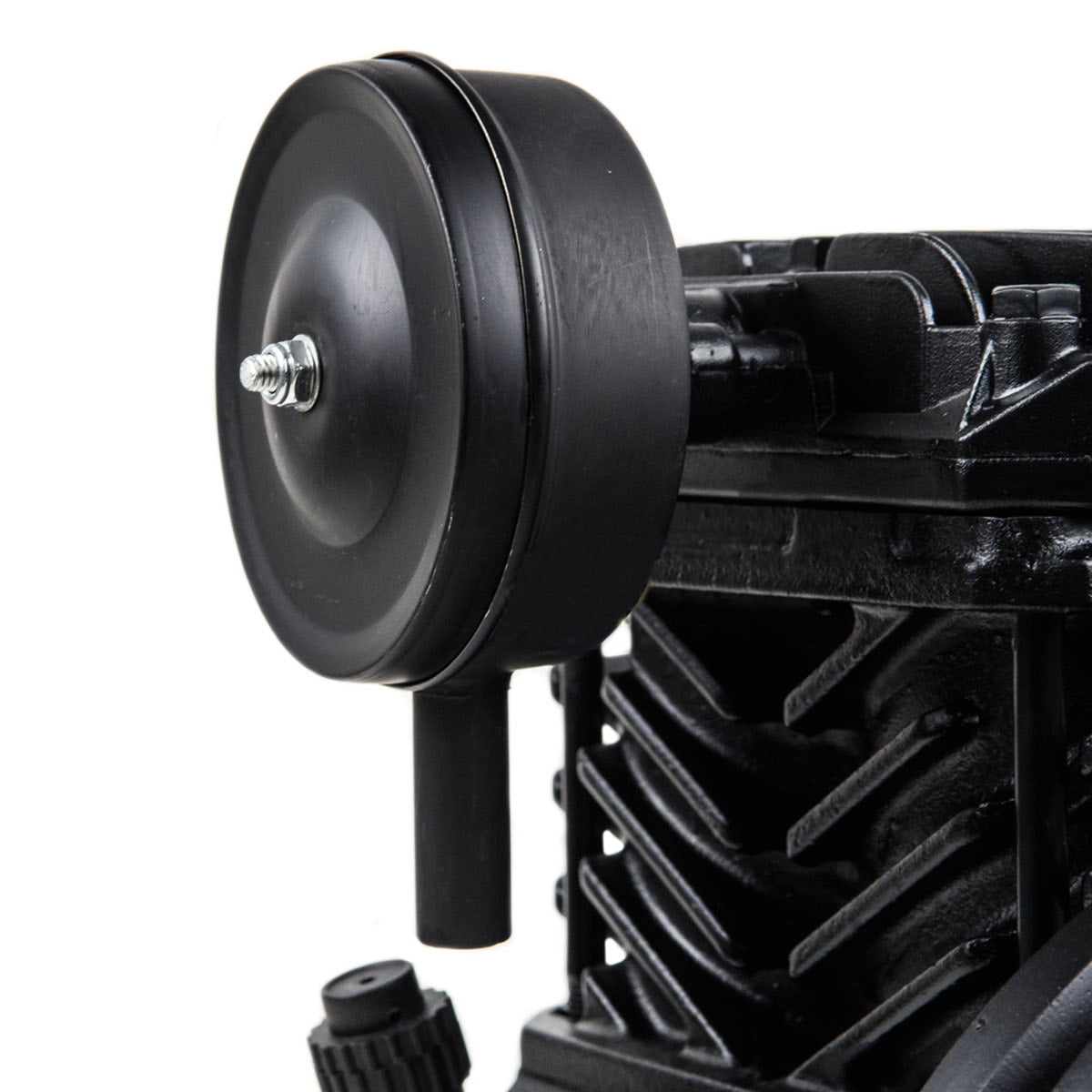

  • Comes with Intake Filter
  • Pulley Diameter: 10″
  • Pulley Features Dual Set Screws for Secure Fit
  • Oil Drain Hole Located Opposite of Shaft
  • Weight: 35 LBS
  • Up to 12 SCFM
  • Good for Tanks up to 60 Gallons
  • Designed to be a Replacement for Campbell Hausfeld Pumps and More
  • Also Works Great a
