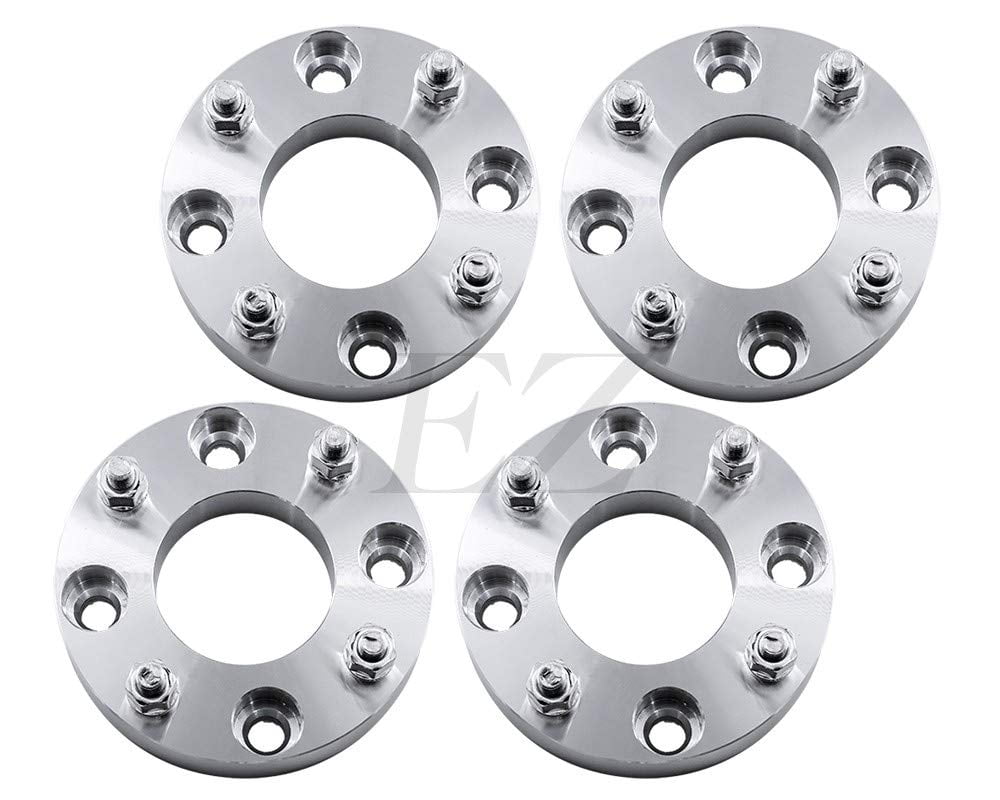

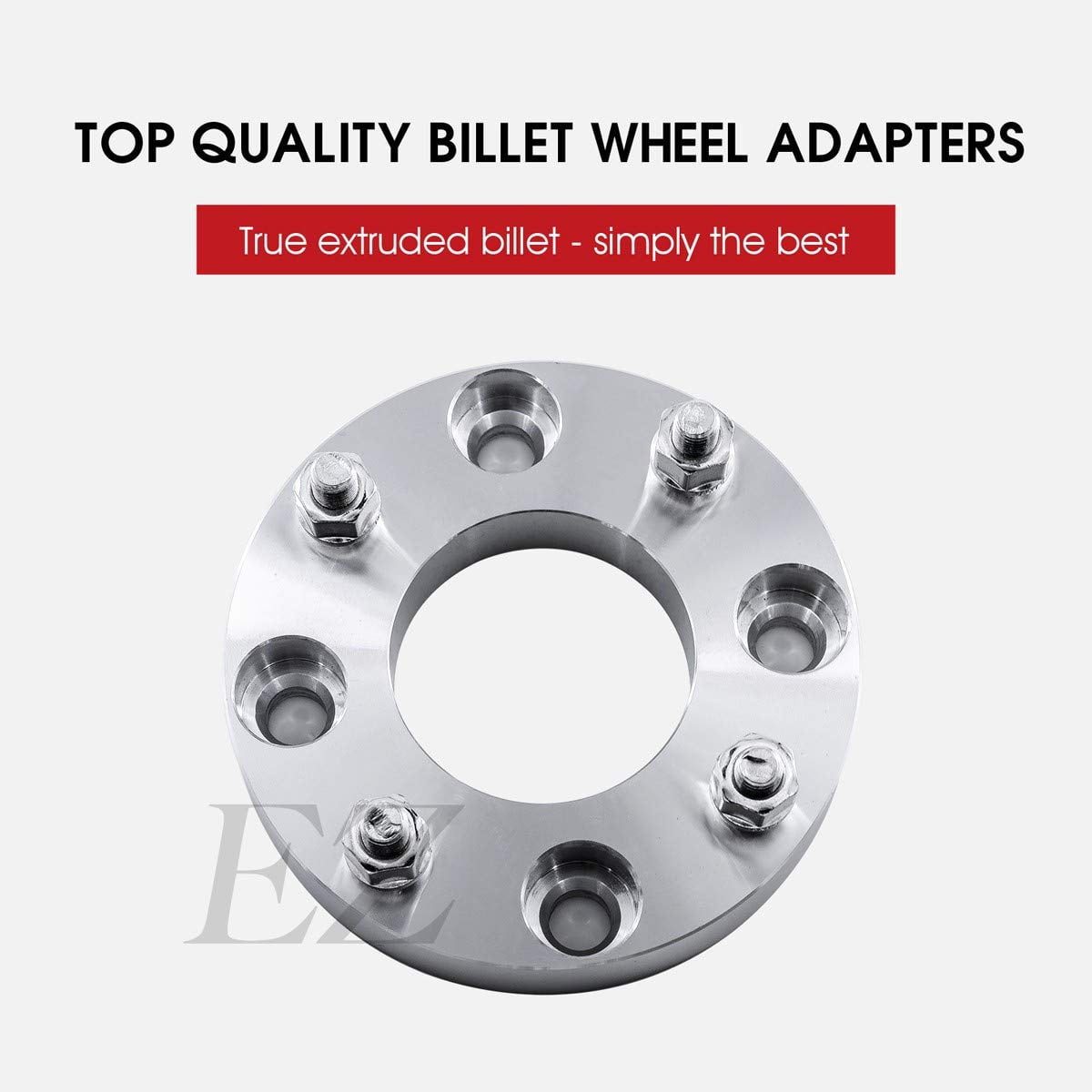

The wheel adapter set is used to convert 4 lug 110mm hub bolt pattern to fit 4 lug 4.5″ (114.3mm) bolt pattern wheels. They will also space out your wheels for 1-inch to help you get enough clearance for wider tires and rims. CNC machined with precision craftsmanship using 6061 T6 aerospace quality billet, featured in high load capacity and corrosion resistance. High quality studs are pre-installed and 12×1.5 thread size mounting open end lug nuts are included. Sold as a set for 4 wheels. Order 1 set for all 4 wheels. Fit on Following Vehicles: Mazda RX2 ,RX3 ,RX4 ,GLC ,RX7 1971-1982 Mazda 626, Pickup 1971-1982 Mazda RX-7 (except GSLE) 1984-1985 Adapter Specification: Vehicle Bolt Pattern: 4x110mm Wheel Bolt Pattern: 4×4.5″ (4×114.3mm) Studs Thread Size: 12×1.5 Hub Bore Size: 73mm Thickness: 1-inch (25mm) Torque: 80 ft-lbs Technical Notes: If hub studs protrude outside adapter and prevent wheels from sitting flush, it is required to shorten the factory studs.
- 【Fit Vehicle】Fit vehicles of 4x110mm bolt pattern. Your Garage filter is to confirm fitting of your vehicle only, not for the wheels.
- 【Convert Wheel】Convert to wheel must be 4×4.5″ or 4×114.3mm bolt pattern.

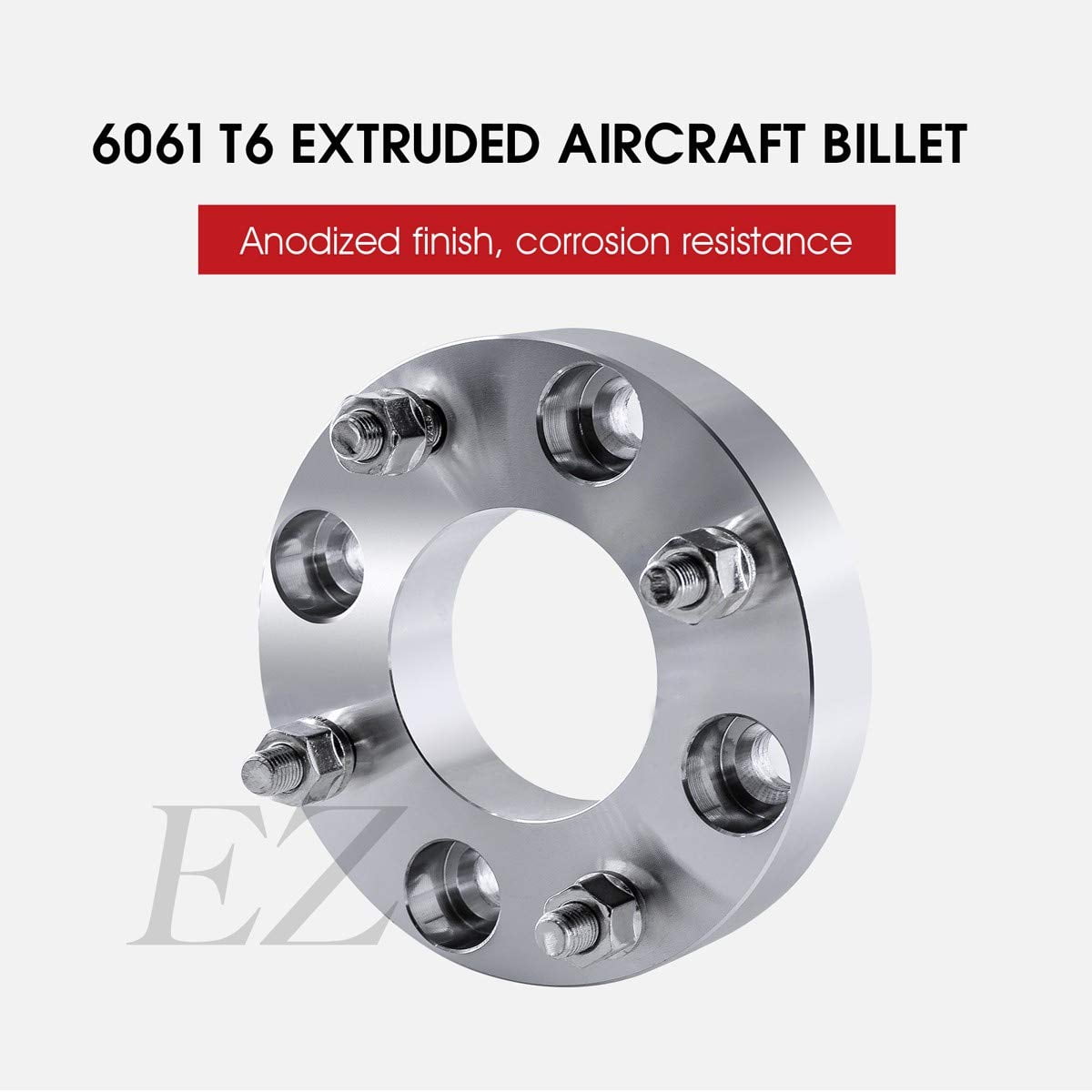

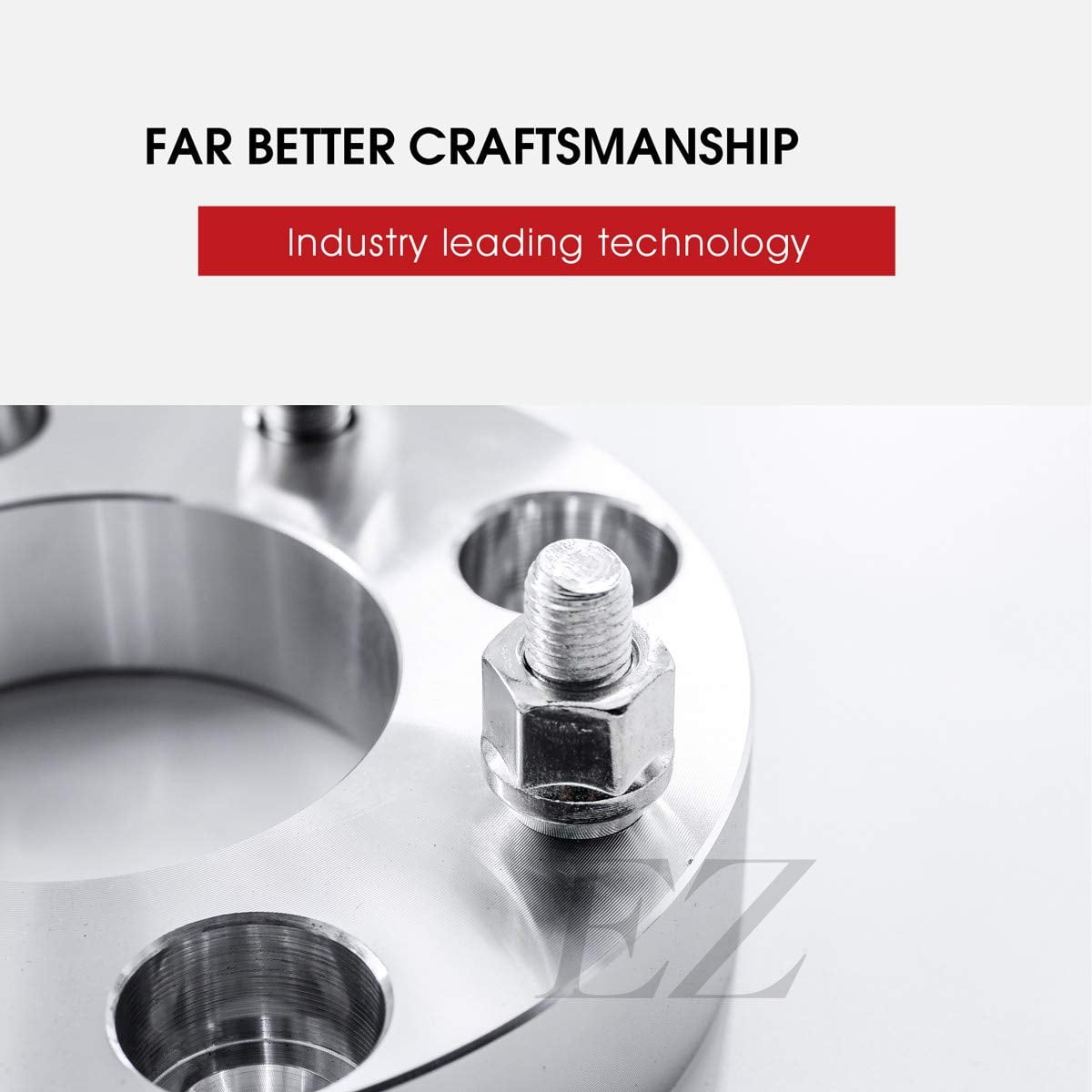

- 【Quality Assurance】Aircraft quality TRUE forged 6061 T6 lightweight billet. CNC machined with precision craftsmanship. Features in high load capacity and keep stock ride. Anodized for corrosion resistance. Heat-treated 10.9 grade steel studs with mounting lug nuts included.
- 【Adapter Specs】4 pieces total; 4x110mm bolt pattern for vehicle; 4×4.5″ or 4×114.3mm bolt pattern for wheel; 12×1.5 studs; | 1″ Thick | (25mm); 73.1mm center bore
- 【Attention】Adapters will give you widened stance as well as stability. If vehicle studs protrude outside the adapters, you may need to shave down vehicle studs.
