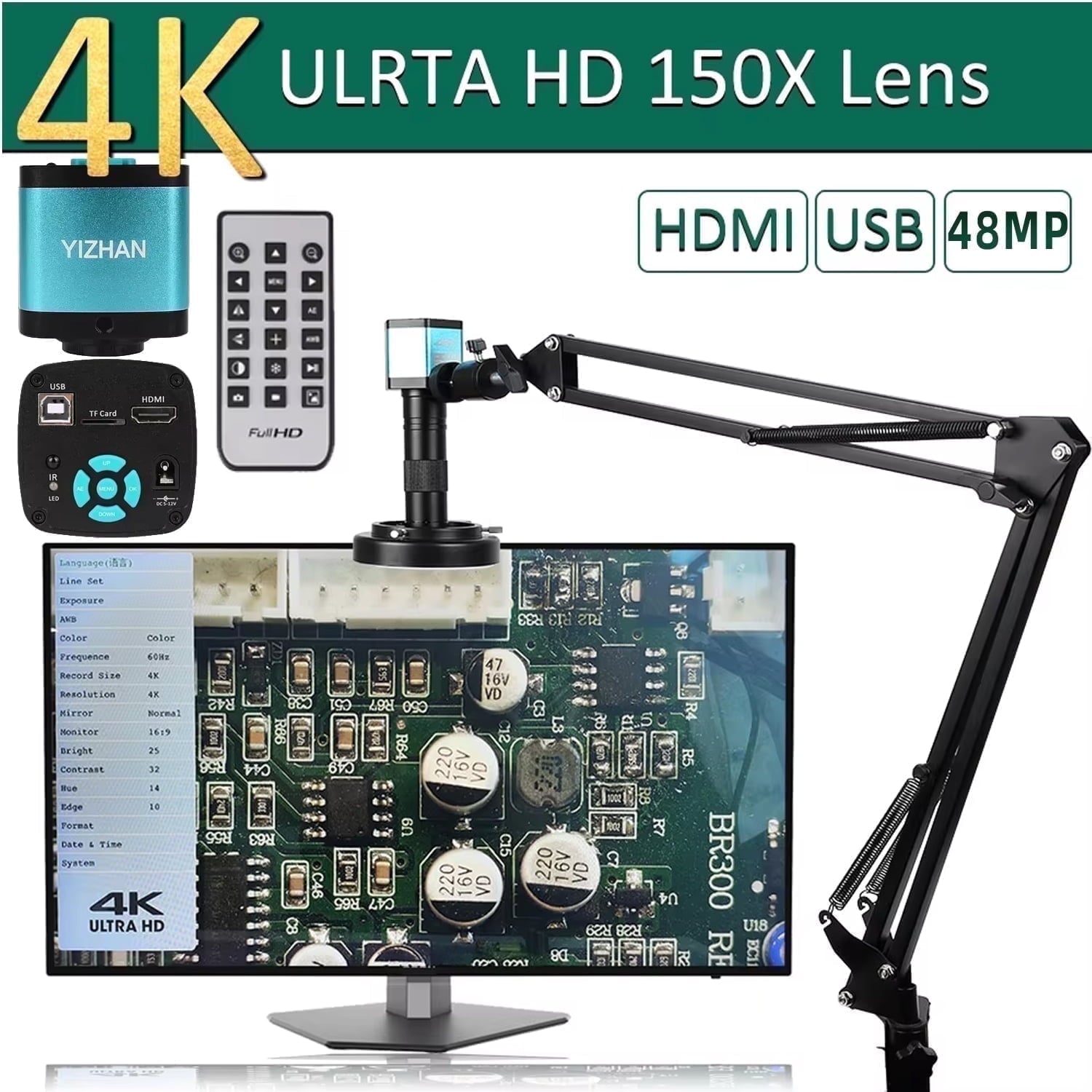

This versatile 48MP HDMI electron microscope offers a wide range of features to enhance your viewing and inspection needs. With a 1X-150X C-mount lens, 4K video recording, and a 56-LED ring light, it provides exceptional image quality and clarity. The adjustable bracket allows for flexible positioning, making it a valuable tool for quality control, education, industrial inspection, and more. Backed by a 6-month warranty, this microscope is a reliable and powerful addition to your workspace.
-
This professional microscope camera supports 4K resolu tion (30 frames per second) and 1080P 60 frames per second image output. It features a standard C/CS interface design and is equipped with a high-sensitivity CMOS sensor. It can achieve high-resolution imaging at 1920*1080. It comes with a remote control that supports remote menu operation, making shooting and viewing more convenient. It supports photo, video, and measurement functions, and can be connected to a computer monitor for synchronized output.

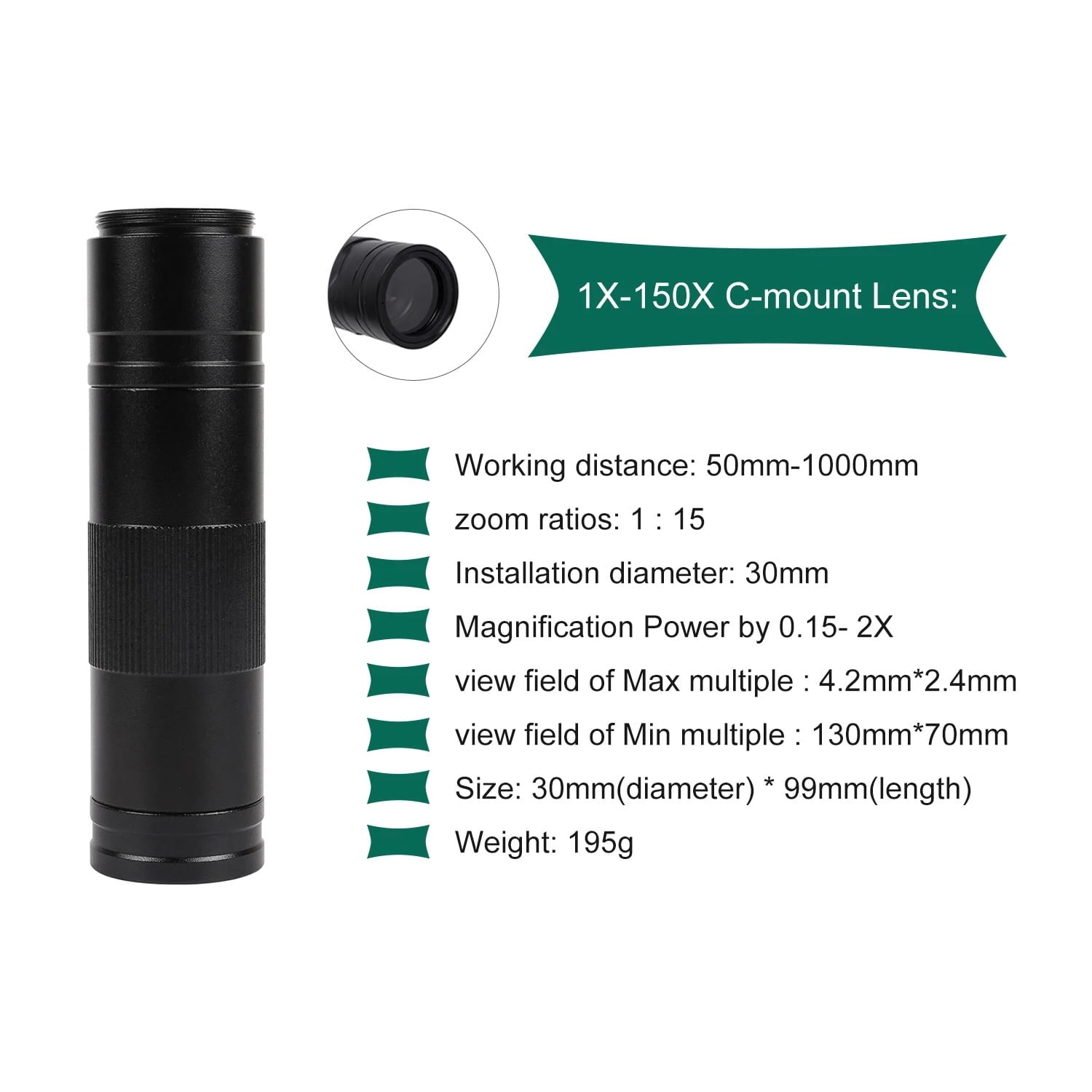

1X-150X C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 – 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm

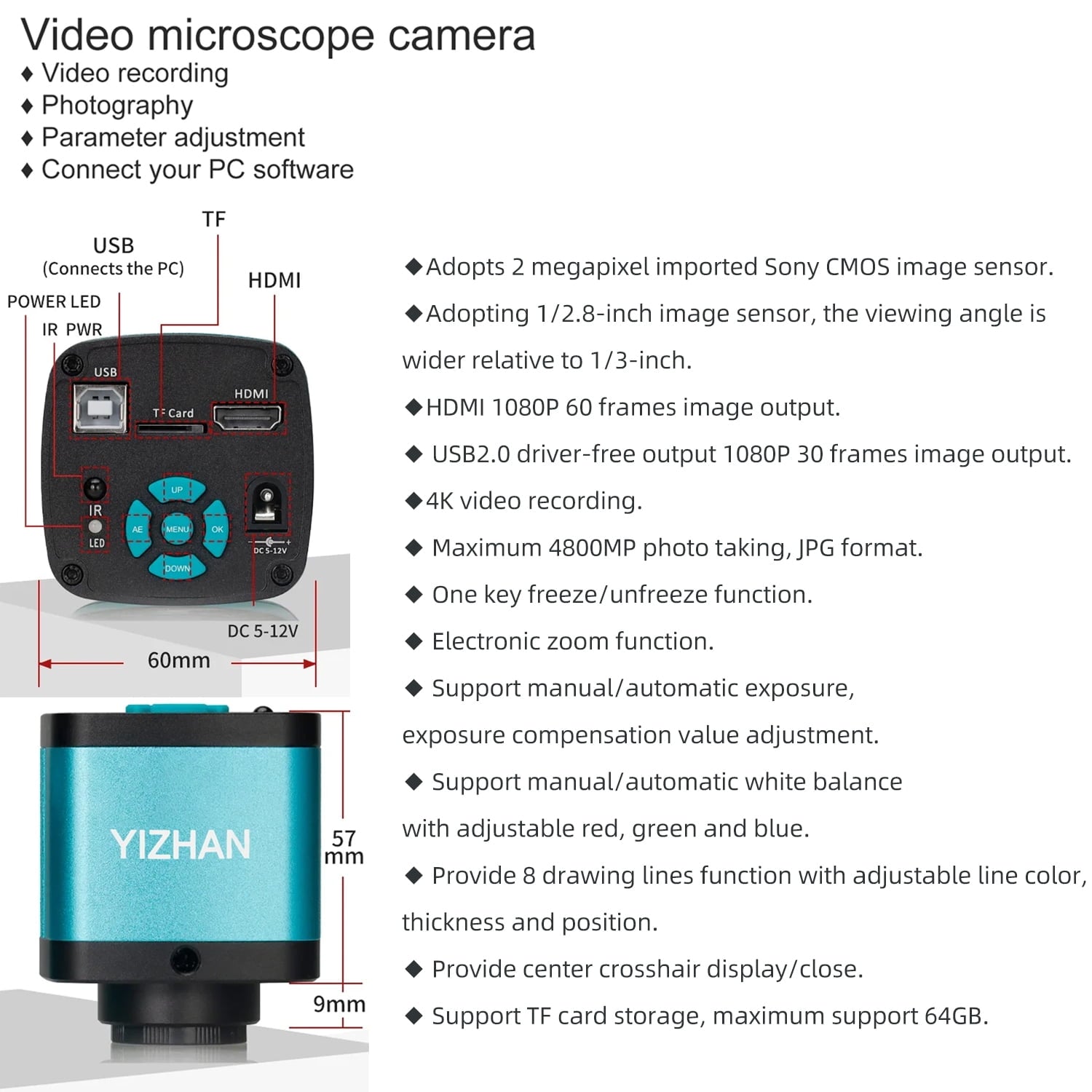

4K 48MP Microscope Camera (HDMI USB)：
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Digital magnification: 5 times digital zoom
White balance: Auto/manual
TF card interface: Max 32G
video format:MOV

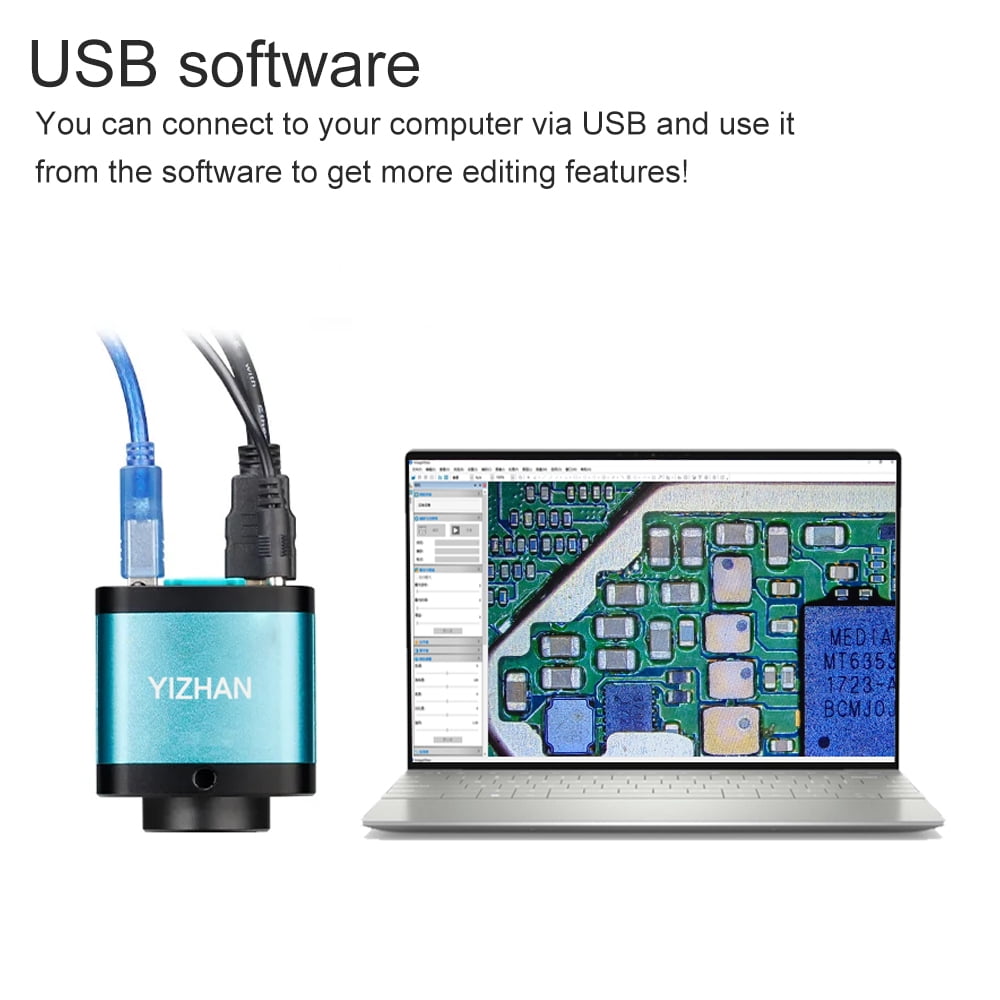

HDMI interface: HDMI/USB output
56 bright white LED bulbs：100,000 hours of life,Intense and focused shadow-free illumination,The brightness of 0-100%Adjustable,high brightness,Variable intensity control.
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

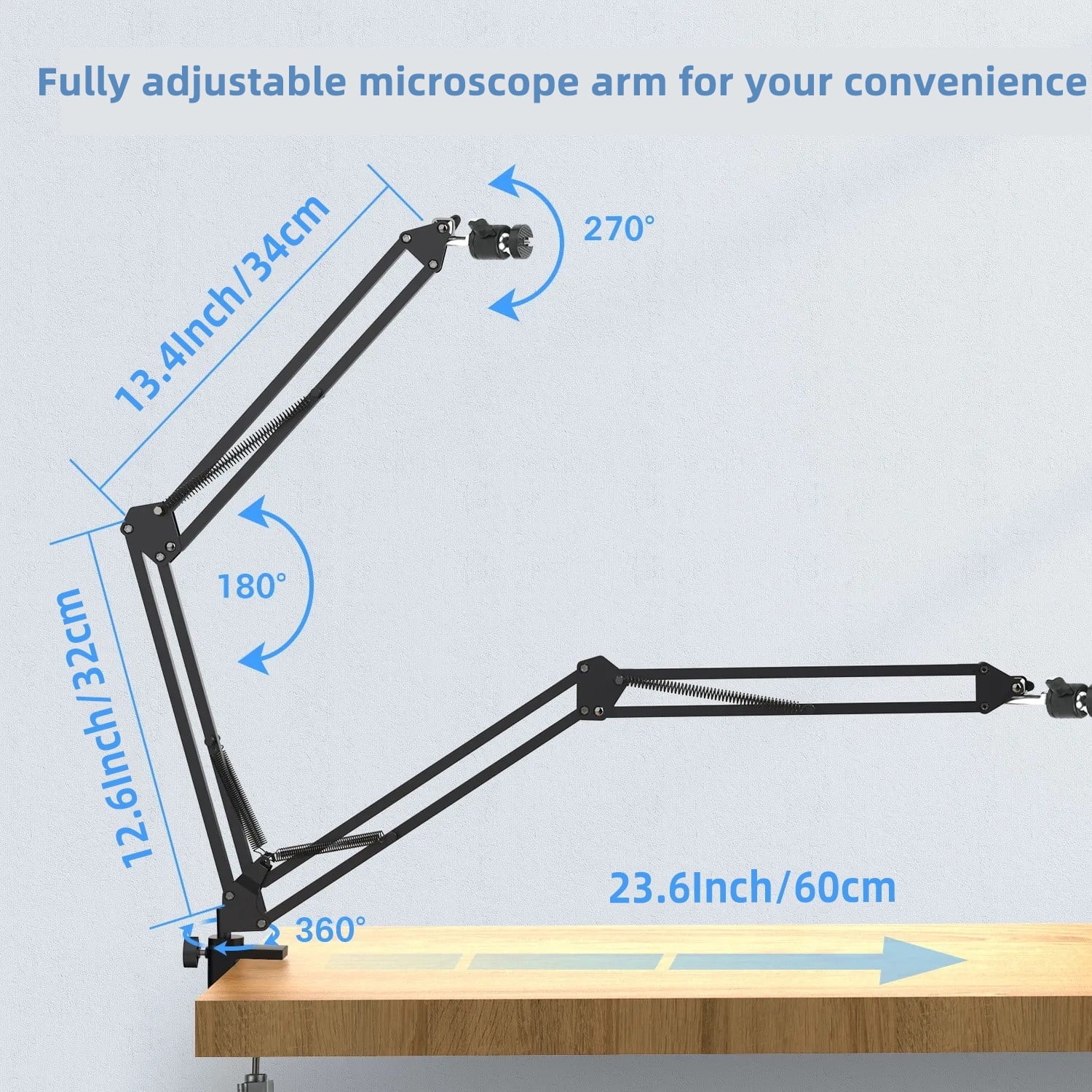

Adjustable bracket ：
size: 400mm+390mm
Maximum thickness of bracket installation: 50mm
the stand can be rotated and lifted to meet your needs, allows for any angle adjustment,making work more comfortable.
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

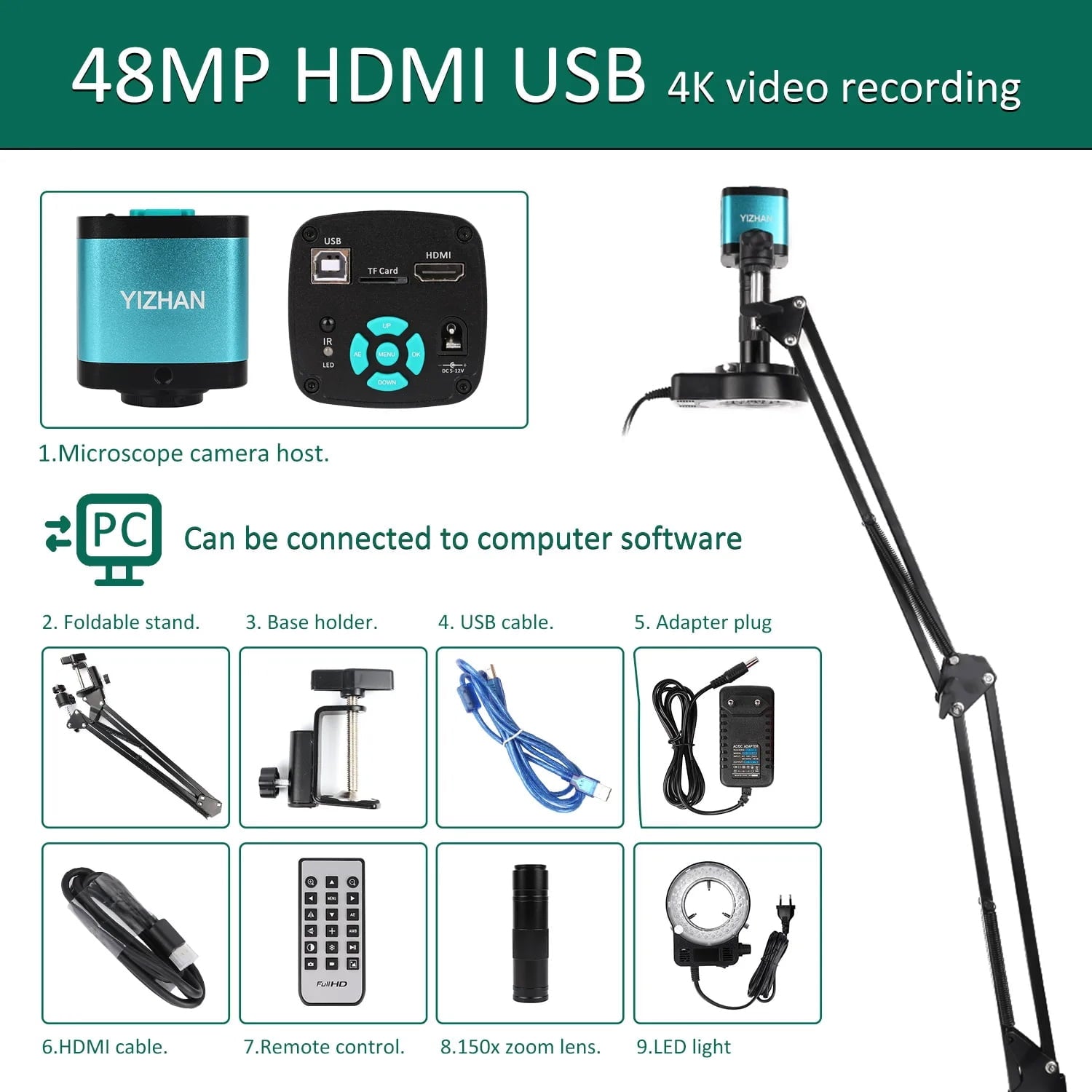

List of packing： 1 x Microscope Camera Set; 1 x 150X lens; 1 x 56 led ring light; 1 x Stand
Applicable Scenarios and People: Quality control testing, testing for educational purposes, industrial printing, industrial testing, PCB materials, jewelry and stamp identification, textile industry, biological testing. Can be used by students, adults

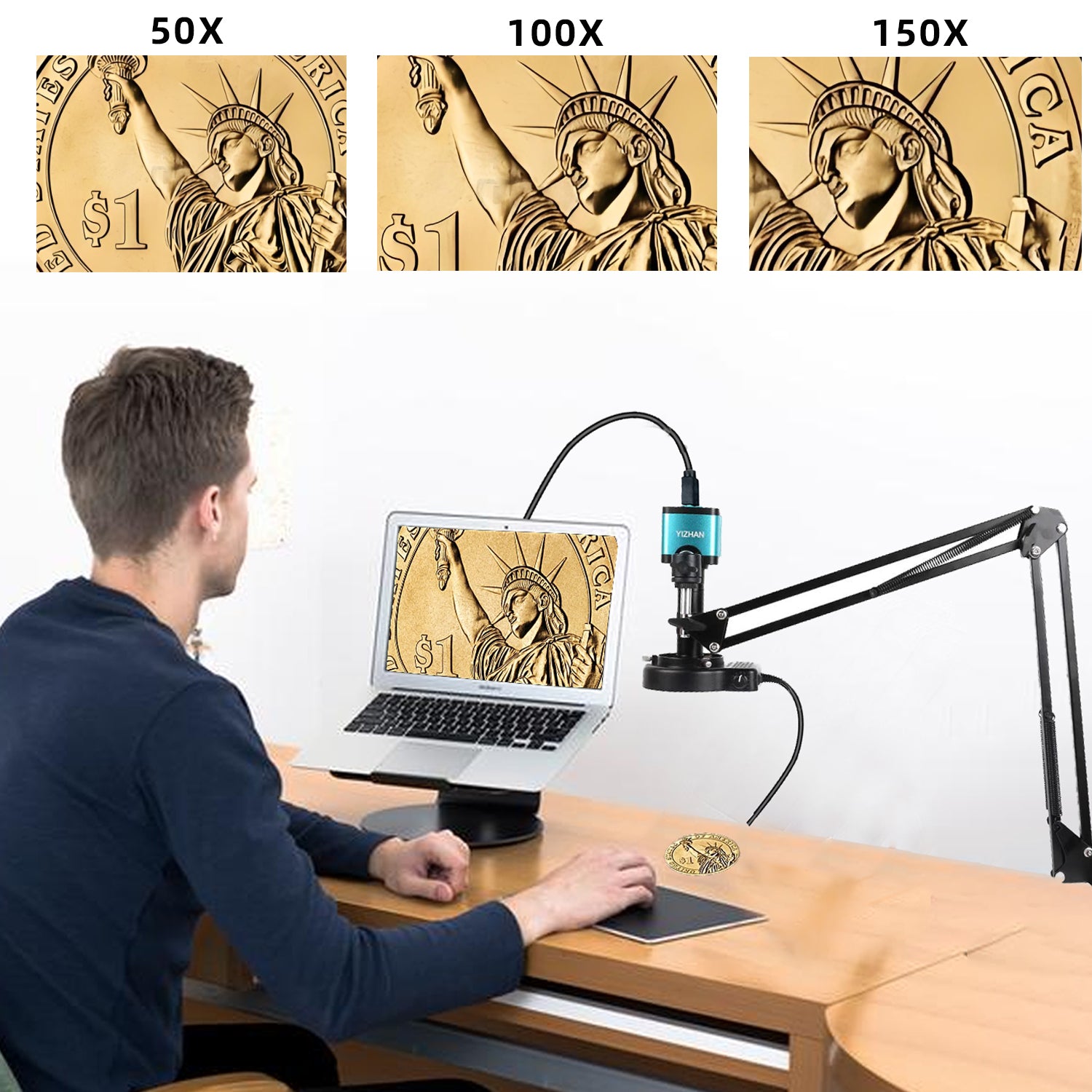

- 150X Zoom C-Mount Lens: The digital microscope adopts 150X Zoom C-mount Lens, the maximum working distance of the lens can reach 1000mm, and the magnification on the display is 1-150X. You can adjust the magnification by the knob on the lens. The industrial microscope is suitable for a variety of work scenarios, such as electronic repair, observation of coins, etc.

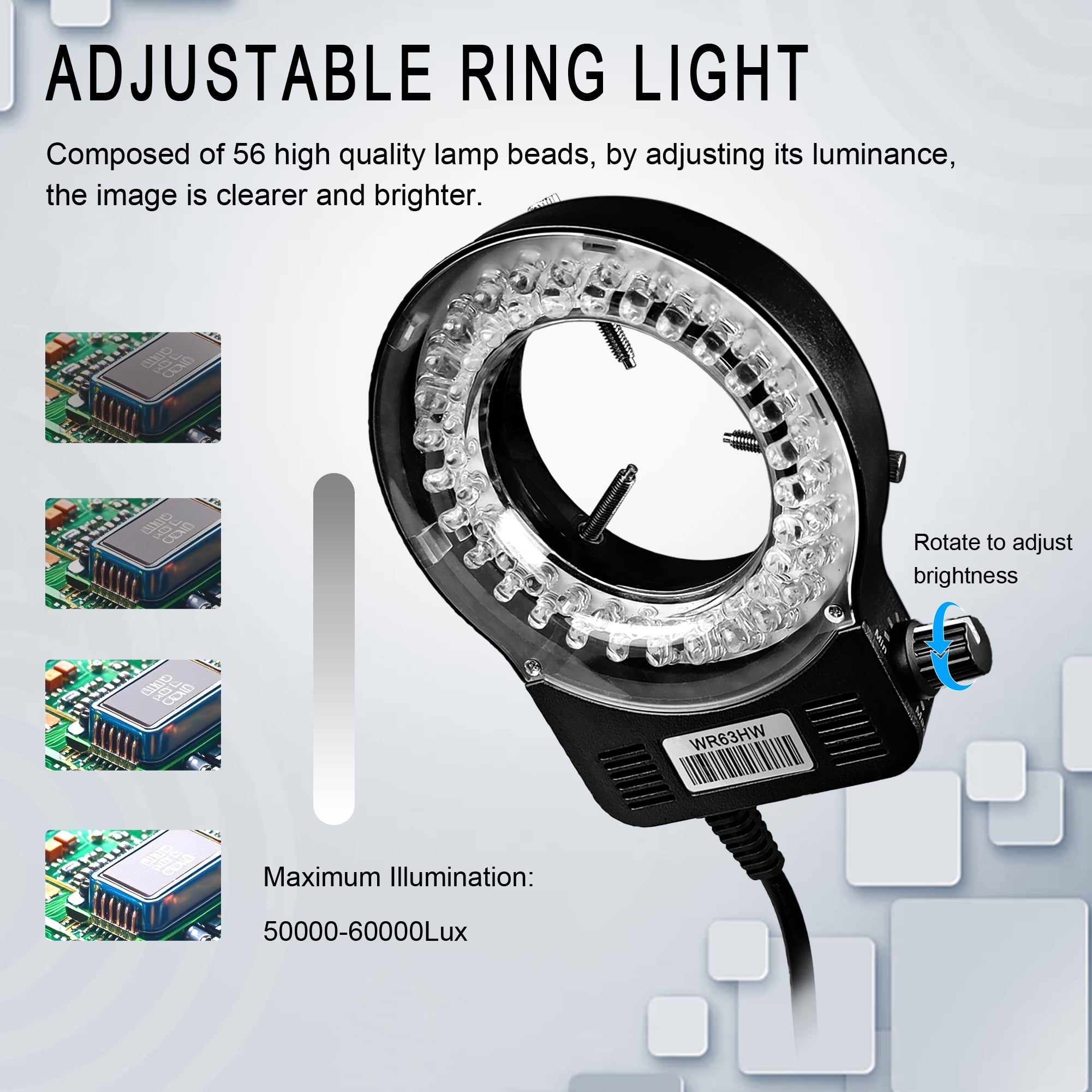

- Bright LED Light:The industrial microscope is equipped with a bright LED ring light, the ring light consists of 56 bright LED beads, the color temperature of the light is 6500K-7000K. The ring light can be adjusted to adjust the brightness, and its maximum illuminance is 60,000 Lux. The ring light enables the video microscope to get clearer pictures and videos when working.
- Flexible Stand, Remote Control:The digital microscope adopts the latest upgraded stand, this stand is very flexible and stanble, 4 parts of the stand can be adjusted at different angles. You can choose the most suitable position for you to observe the samples more clearly. The video microscope can be controlled by remote control, but this function is only available in HDMI output mode.
- Packing List,Terms of Service:The package of digital microscope includes microscope camera*1, lens*1, ring light*1, foldable stand*1, remote control*1, power plug*1, instruction manual*1. Please note that the package does not contain remote control battery. If you have any questions about our digital microscope, please contact us and we will reply within 24 hours.
