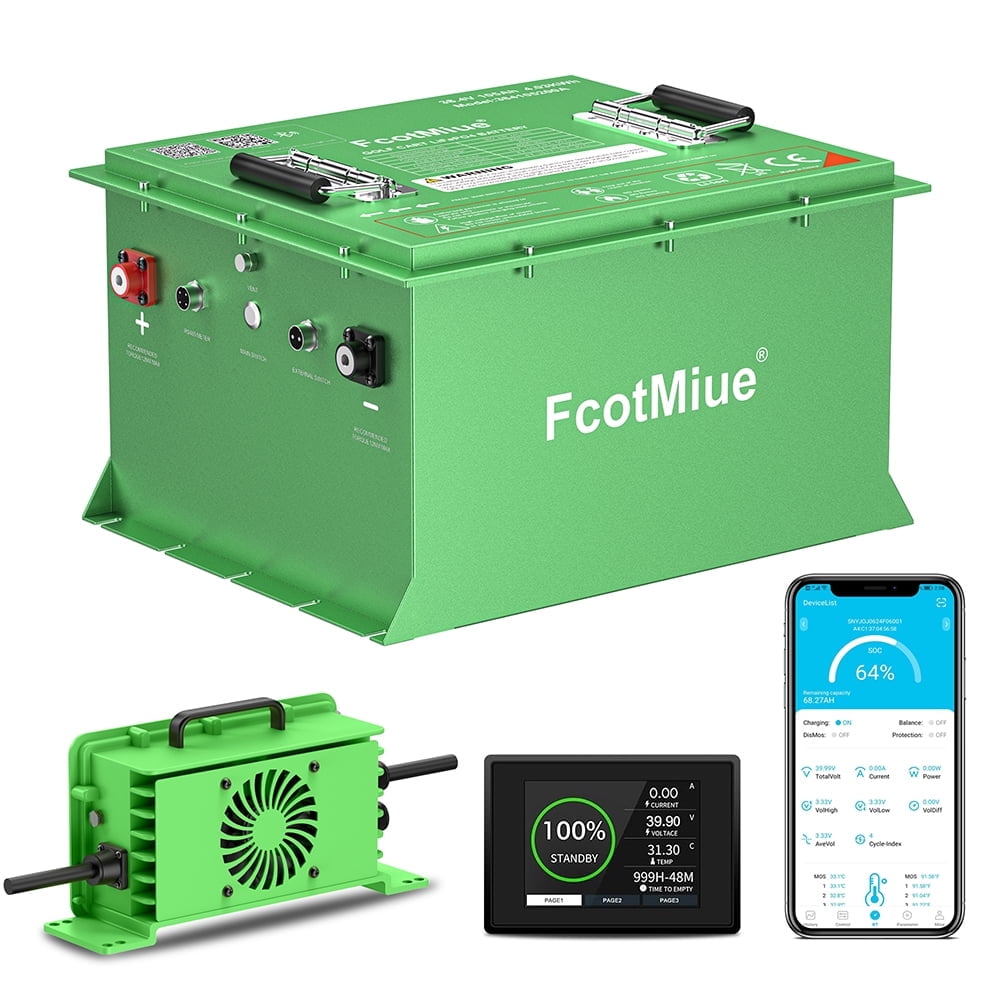

Model: 48V 105Ah golf cart battery kit
Cell Type: Lifepo4 lithium Battery(LFP)
Cell Configuration: 16S1P
Nominal Voltage / Capacity: 51.2V/105Ah
Electric Energy: 5.37 Kwh
Case Material: Powder Coated Steel
Charge Voltage: 58.4V (3.65V/Cell)
Operating Voltage Range:47.2 – 58.8V
Discharge Cut-off Voltage: 40V (2.5V/Cell)
Discharge Temperature : 14°F~140°F ( -10°C ~ 60°C)
Chargering Temperature : 23°F~41°F ( 0°C ±5°C)
Storage Temperature Range:-5°C (23°F) / 35°C (95°F) (Max 6 Months)

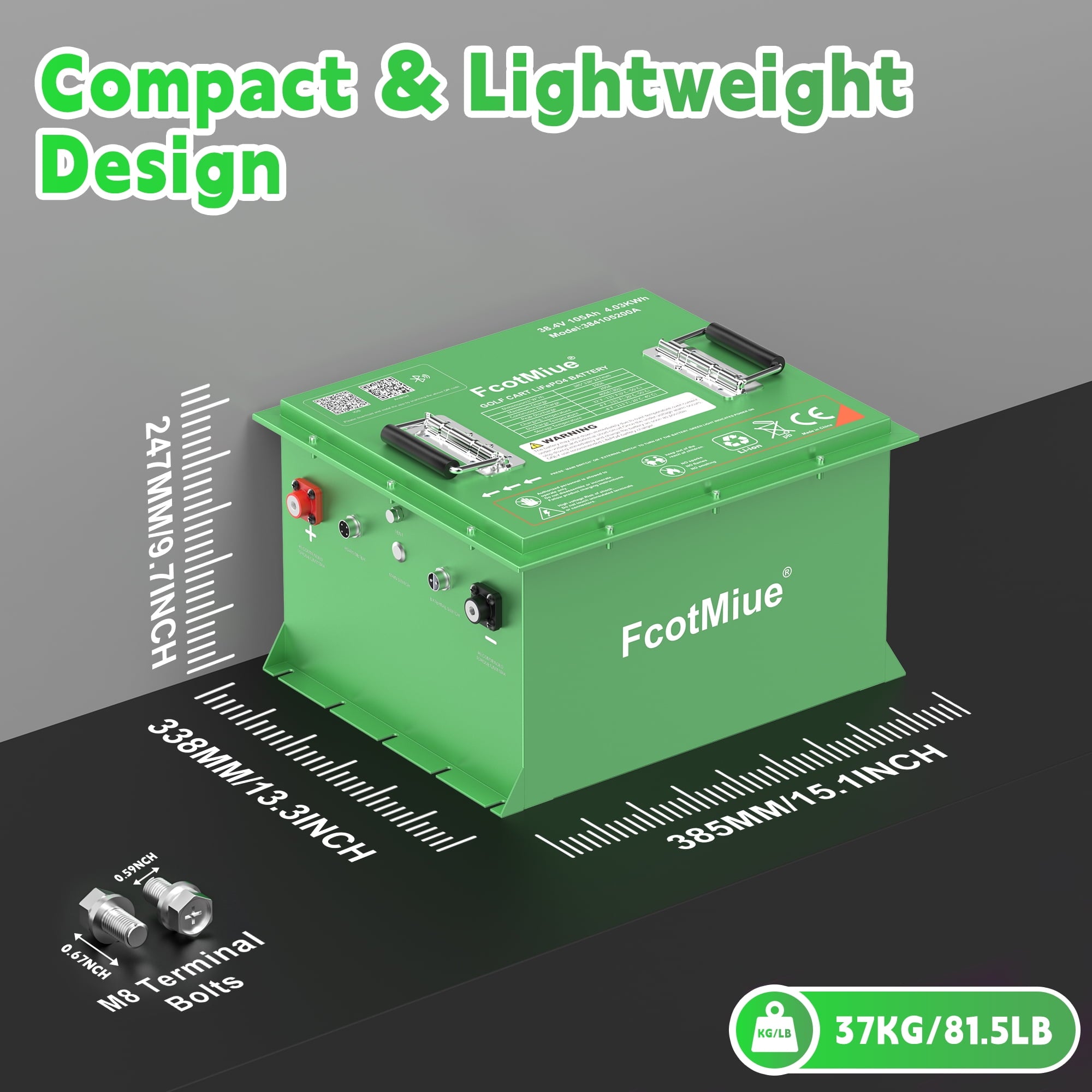

Dimensions (L x W x H): 18.11″ x 13.1″ x 9.72″/ 460* 338* 247mm
Weight: 47.0kg / 81.5 lbs
Terminal Type: M8*1.5*25mm
Continue/Max Charging current : 100A
Continue/Max continuous discharging current: 200A (Peak 400A 35s)
Waterproofing Standard : IP65
Cycle life: >6000(80% DOD, 1C/1C)
Certification : CE/UN38.3
Warranty:5 years
Application: BOATS, Golf Carts, Electric Forklifts, electric vehicles, Electric Wheelchairs, Solar Energy Storage Systems

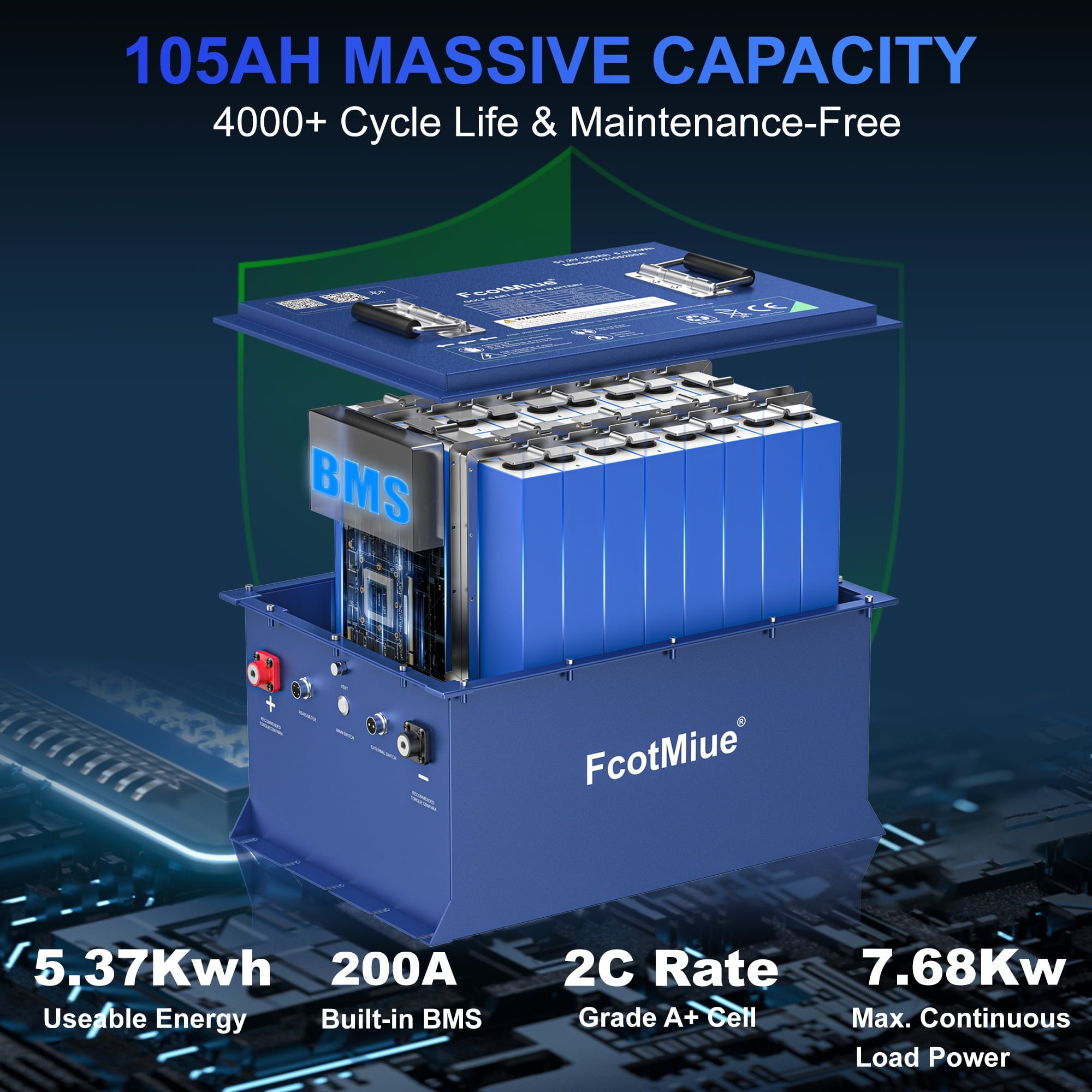

- 【Deep Cycle Lithium Golf Cart Batteries】This 48V 105Ah 5.37Kwh golf cart lithium batteries composed of 16 top quality 3.2V 105Ah prismatic lithium iron phosphate cells in series, it can be utilized for over 6000 cycles. Max. load power of 10.24kW, allowed max 200A continuous discharge. It has a full charge range of approximately 50 miles (4 seats, 4.1 HP/2000W motor, 25 C)

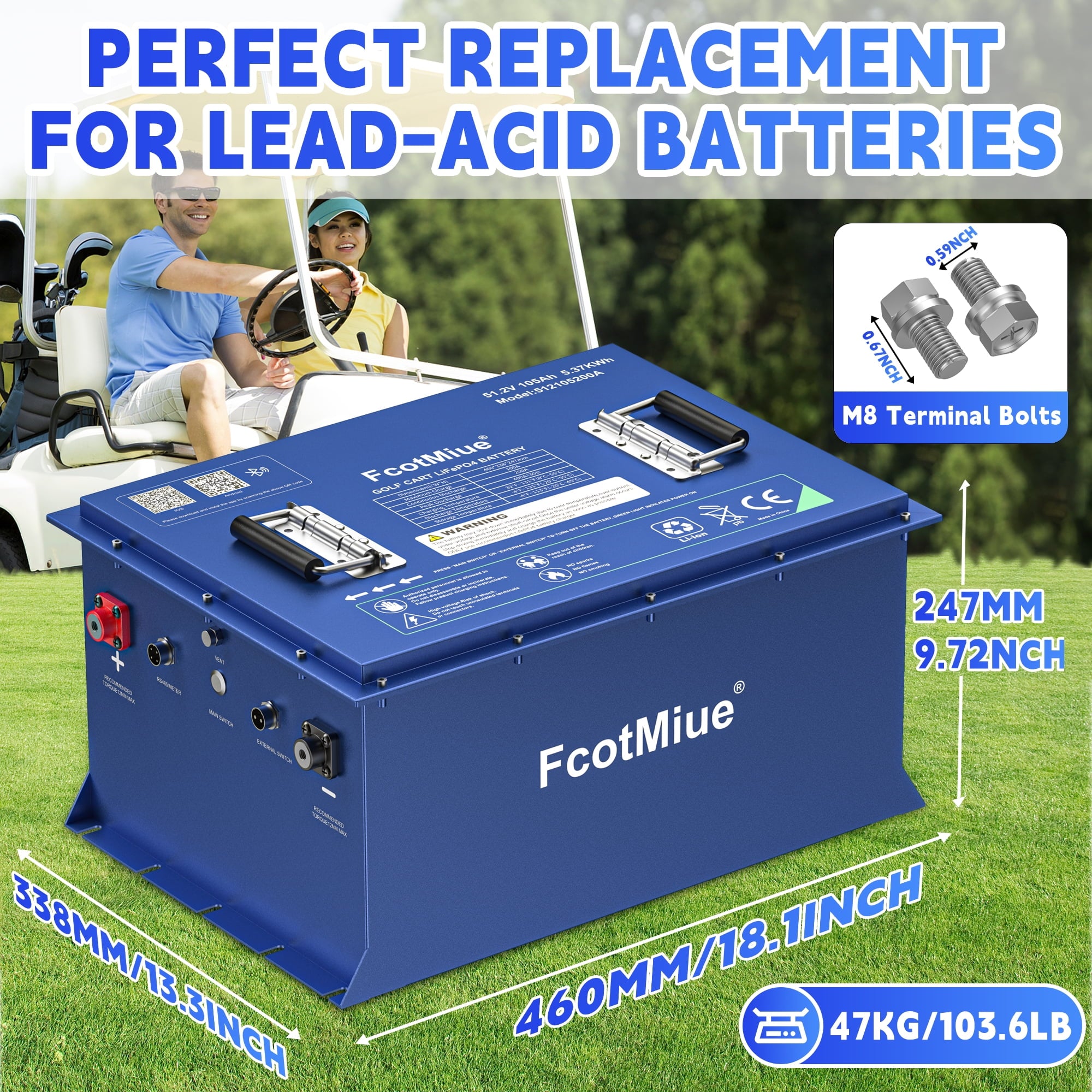

- 【Upgrade Your Golf Cart To Lithium】Our 48V 105Ah Lithium Iron Phosphate battery ( LiFePO4) is an ideal choice for Golf Cart, Zero Maintenance, NO memory effect, No complex wiring requirement, drop-in-ready, the install was insanely easy, just disconnect all positive/negative wires from your existing lead/acid battery and connect same to the posts of our lithium golf cart batteries and everything worked right away. All in all, this is a easy DIY upgrade if you’re a golf cart owner, great value for what you get
- 【High Strength Metal Housing & Fire Extinguisher System】The FcotMiue 48V lithium golf cart battery enclosed in high strength cold-rolled metal housing,with IP65 waterproof, fireproof, shockproof and corrosionproof, which providing a stable working environment for the lithium iron phosphate batteries. Built-in safety flame arrestor to safeguard your personal safety and assets in extreme situations

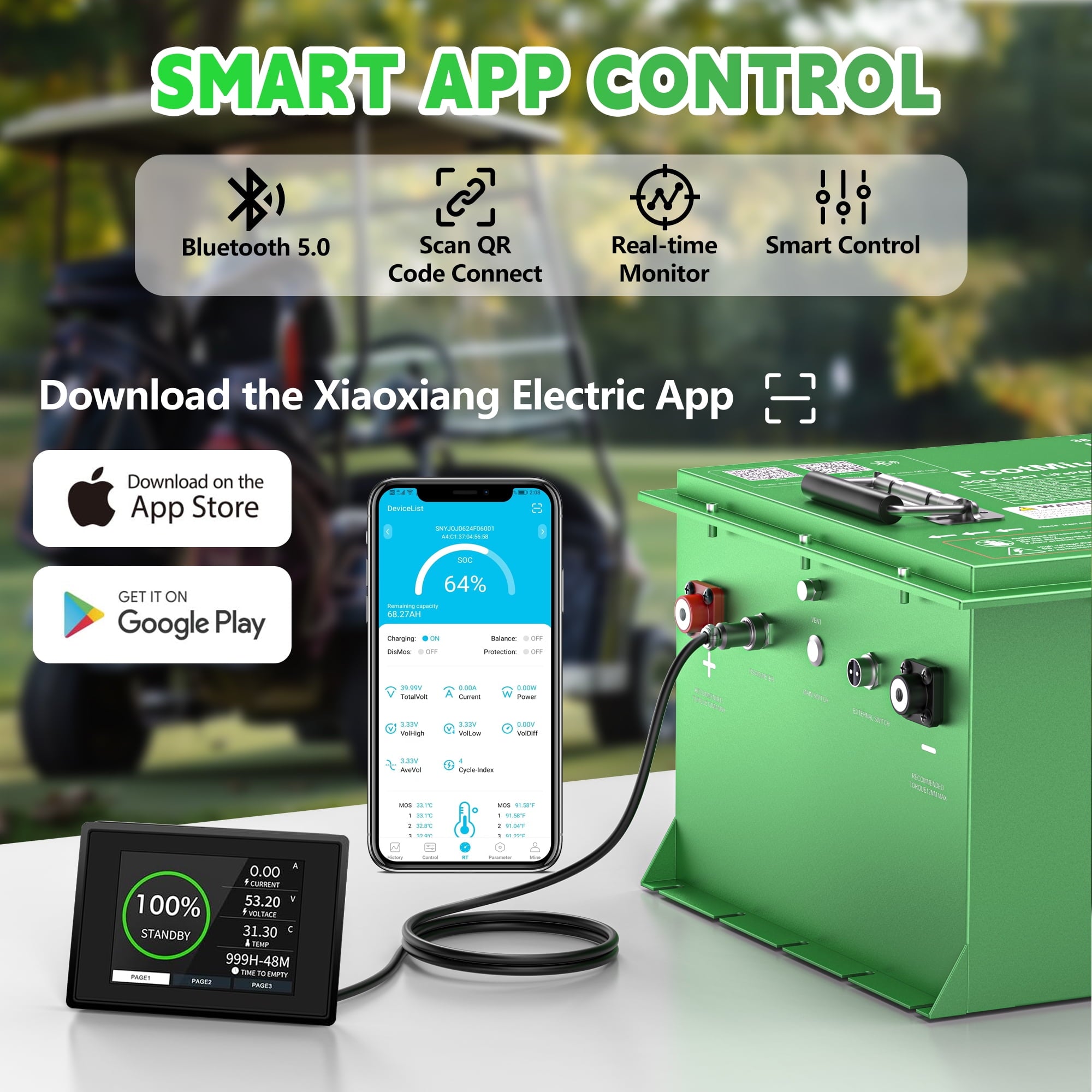

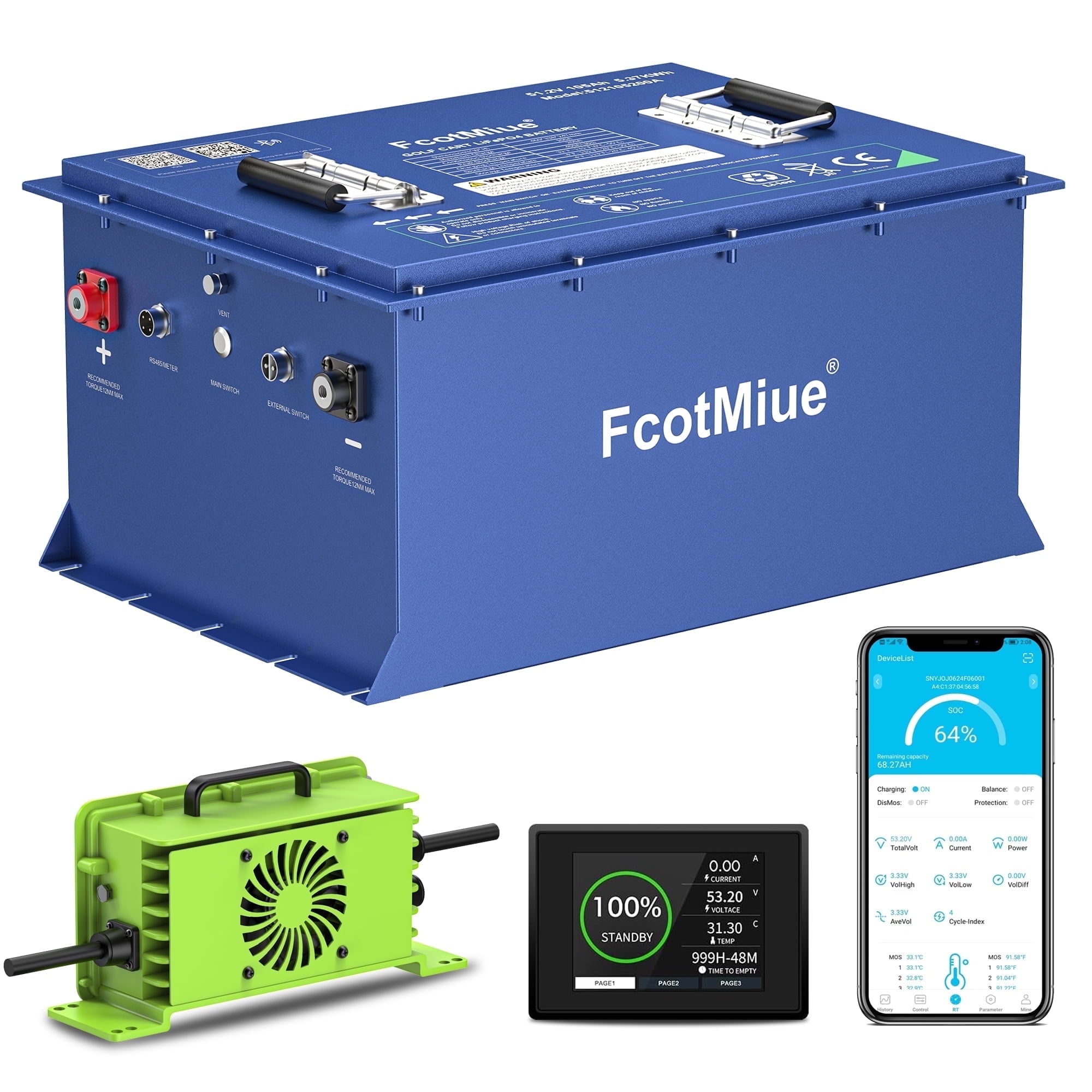

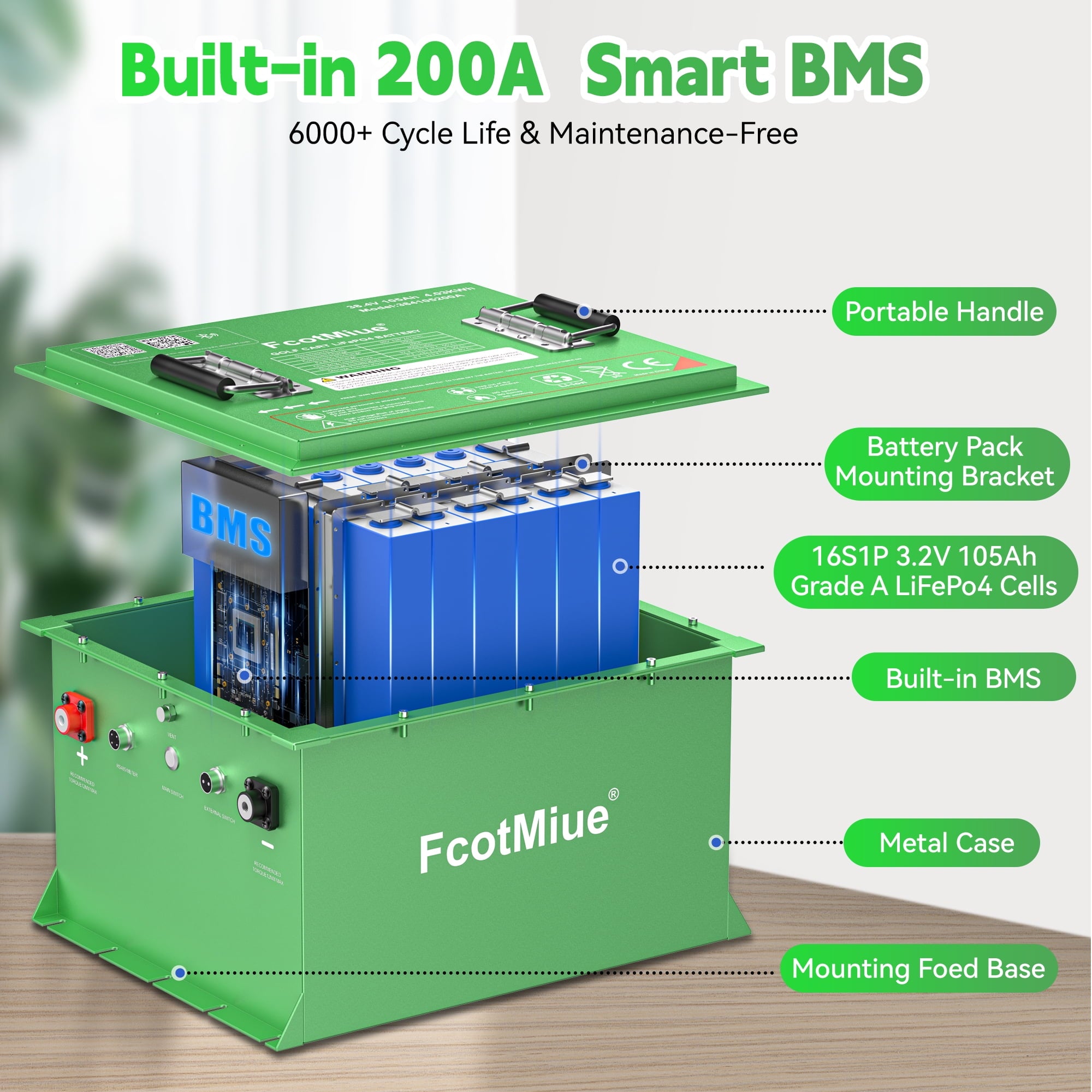

- 【200A BMS with Low-Temp Protection & Bluetooth】This 51.2V 105Ah Golf Cart LiFePO4 lithium battery built-in smart BMS can prevent the battery from over-charging, over-discharging, over-current, high temperature and short-circuit. With bluetooth allow you to monitor the battery information in real time through APP,such as the internal battery voltage,current, capacity and other important information. Meanwhile, the smart BMS upgraded low-temperature cut-off function ensures safe use in low temperature and any environment
- 【Various Applications】This LiFePO4 lithium batteries pack is great for a wide range of 48V devices, including all major brands of golf carts( Club Car, EZ GO, YAMAHA,ICON, AdvancedEv and more), lawnmowers, RVs, and more
