Specifications
- Warranty: 5 years
- Nominal Voltage: 12.8V
- Rated Capacity: 100Ah
- Battery Energy: 1280Wh
- BMS Boad: 100A
- Recommend Charge Current: 20A
- Max Charge Current: 50A
- Max. Continuous Discharge Current: 100A
- Peak Discharge Current: 300A(about 2-3 seconds)
- Charge/Discharge Temperature Range: 0-45°C/-20-60°C
- Recommend Charge Voltage: 14.4V
- Max Charge Voltage: 14.6V
- Discharge Cut-Off Voltage: 10.8V
- Cell Type: LiFePO4 Prismatic A grade
- Cycle Life: 4000-15000 Cycles
- Max expansion: 4P/4S/4P4S

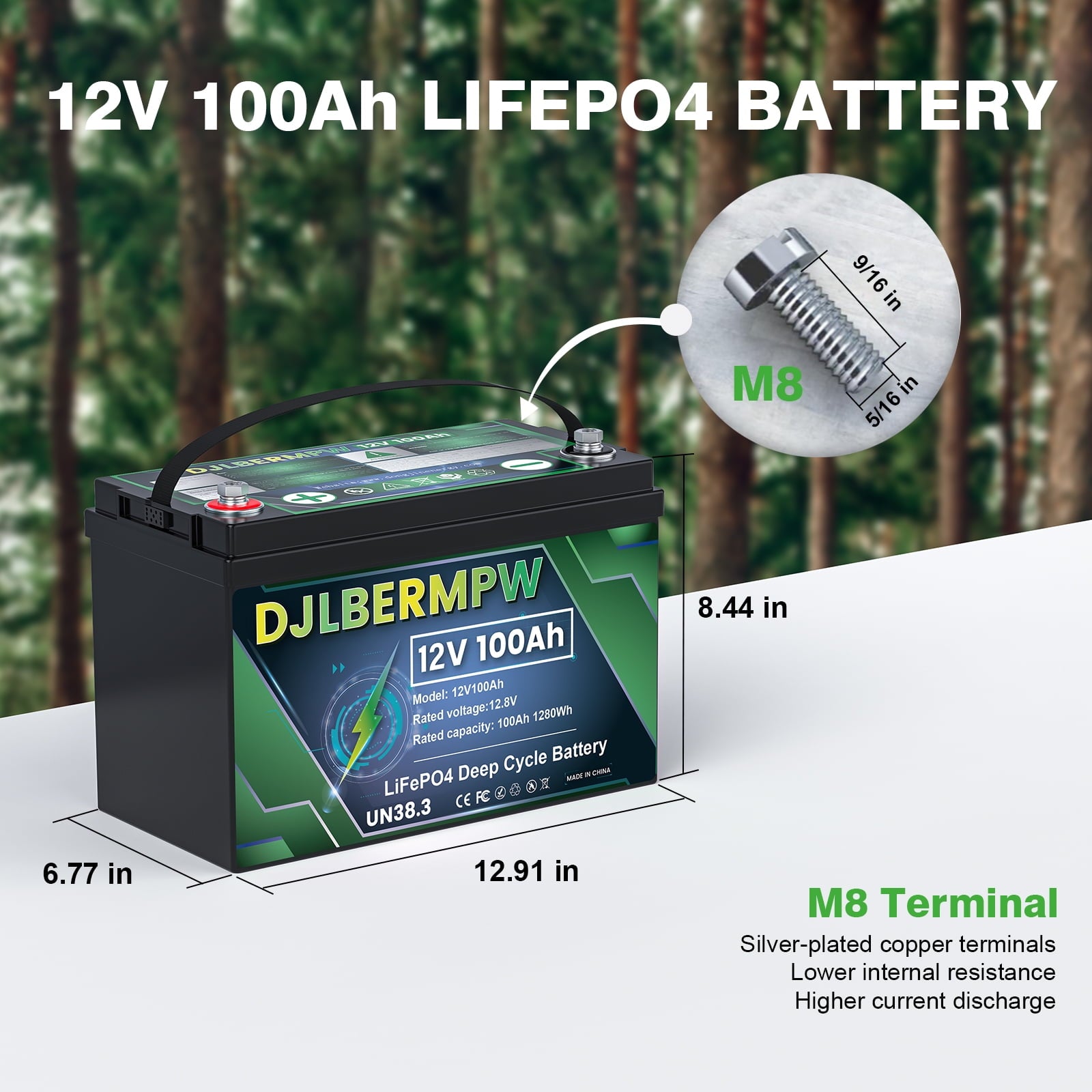

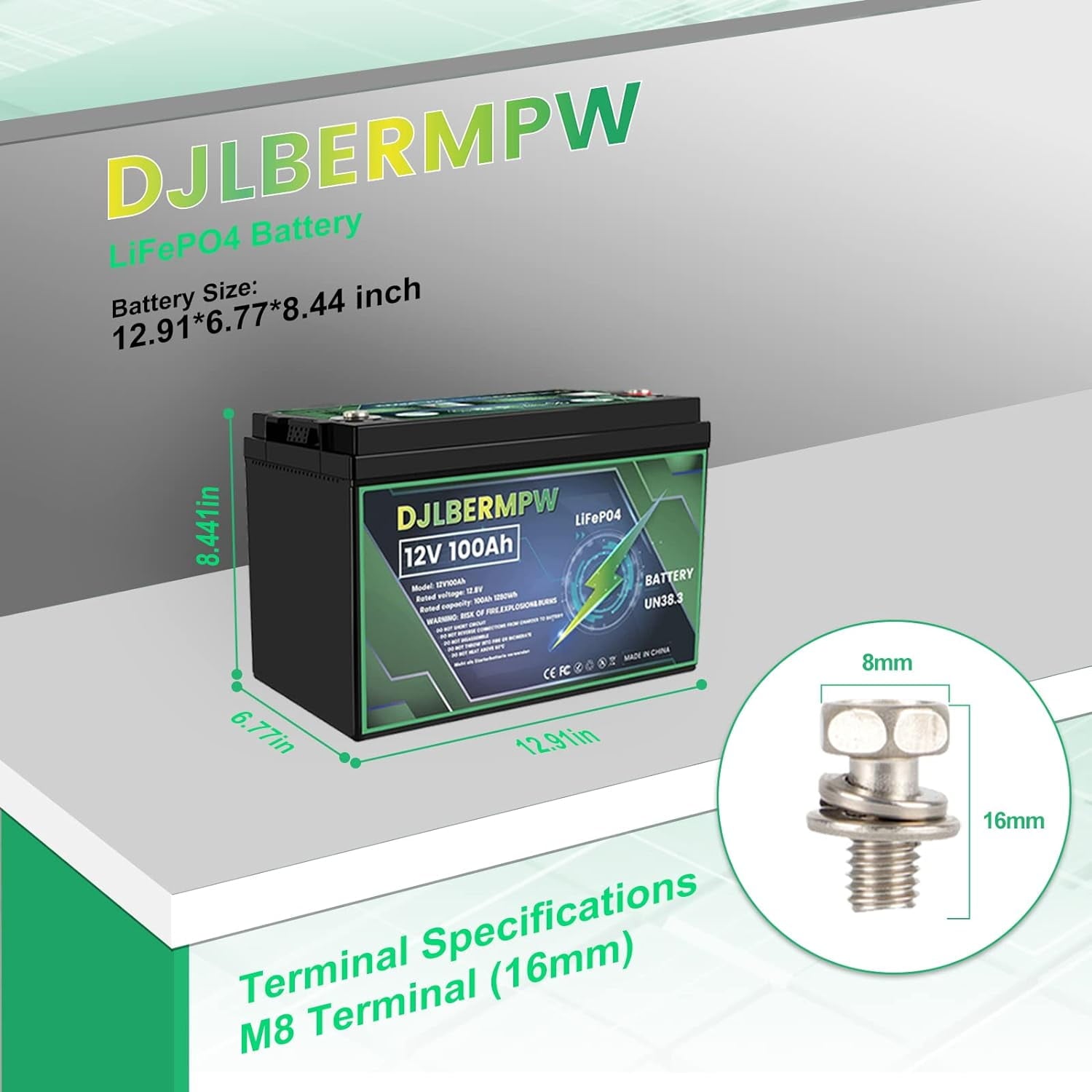

- Terminal: M8 bolts, 9/16L, 5/16D(inch)

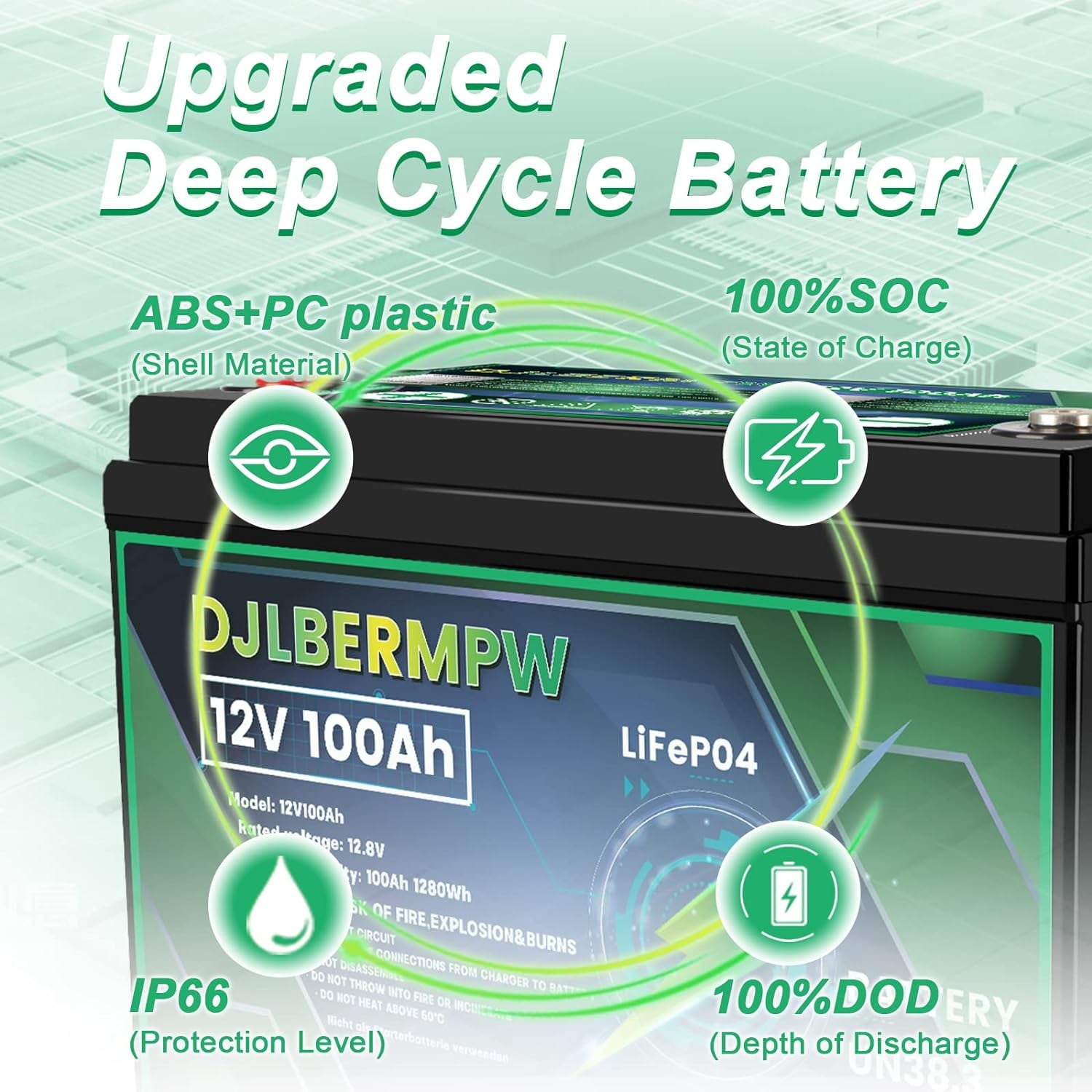

- Shell material: ABS+PC
- Protection level: IP65
- Battery Size: L12.91*W6.77*H8.44 inch
- Battery Weight: 24.2lbs/11kg

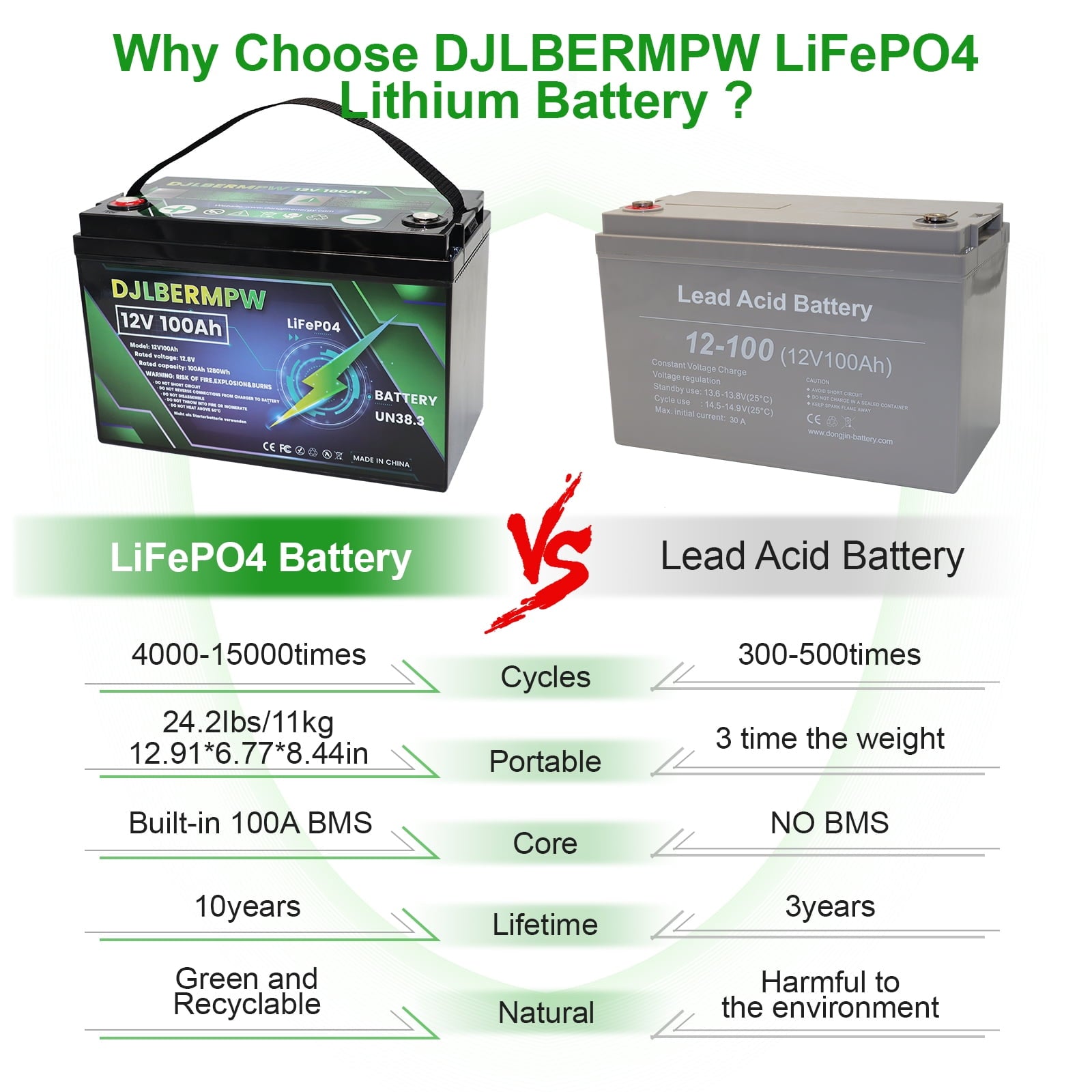

- 【10-Year Life & 4000+ Cycles】12V 100Ah LiFePO4 battery provides 4000~15000 cycles and 1280Wh energy. 4000 cycles at 100% DOD, 15000 cycles at 60% DOD, 10 years of life, while lead-acid batteries are 200~500 cycles and 3 years. This RV battery uses square LiFePO4 cells for better stability, higher energy density, lighter weight, higher power output, and lower self-discharge rate.

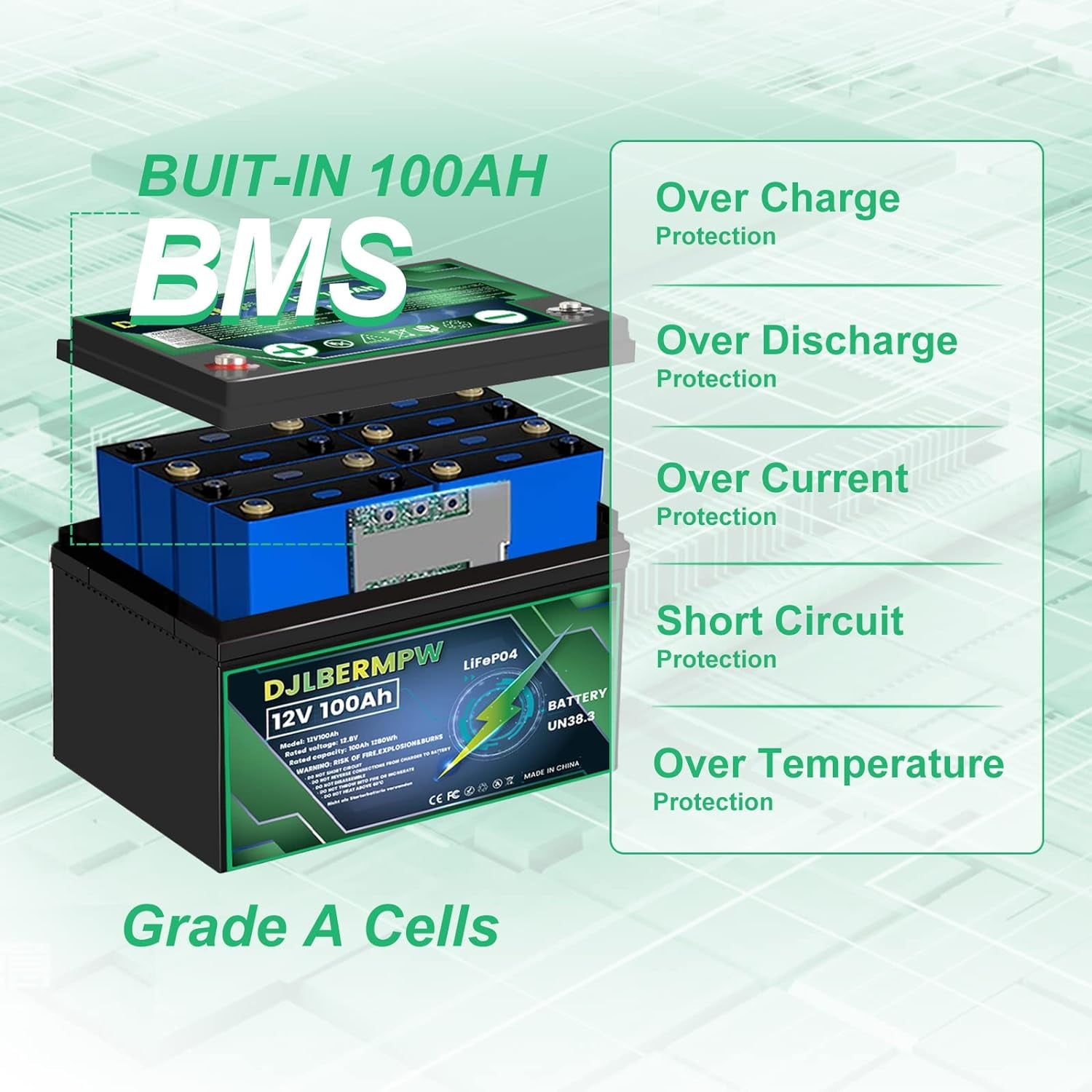

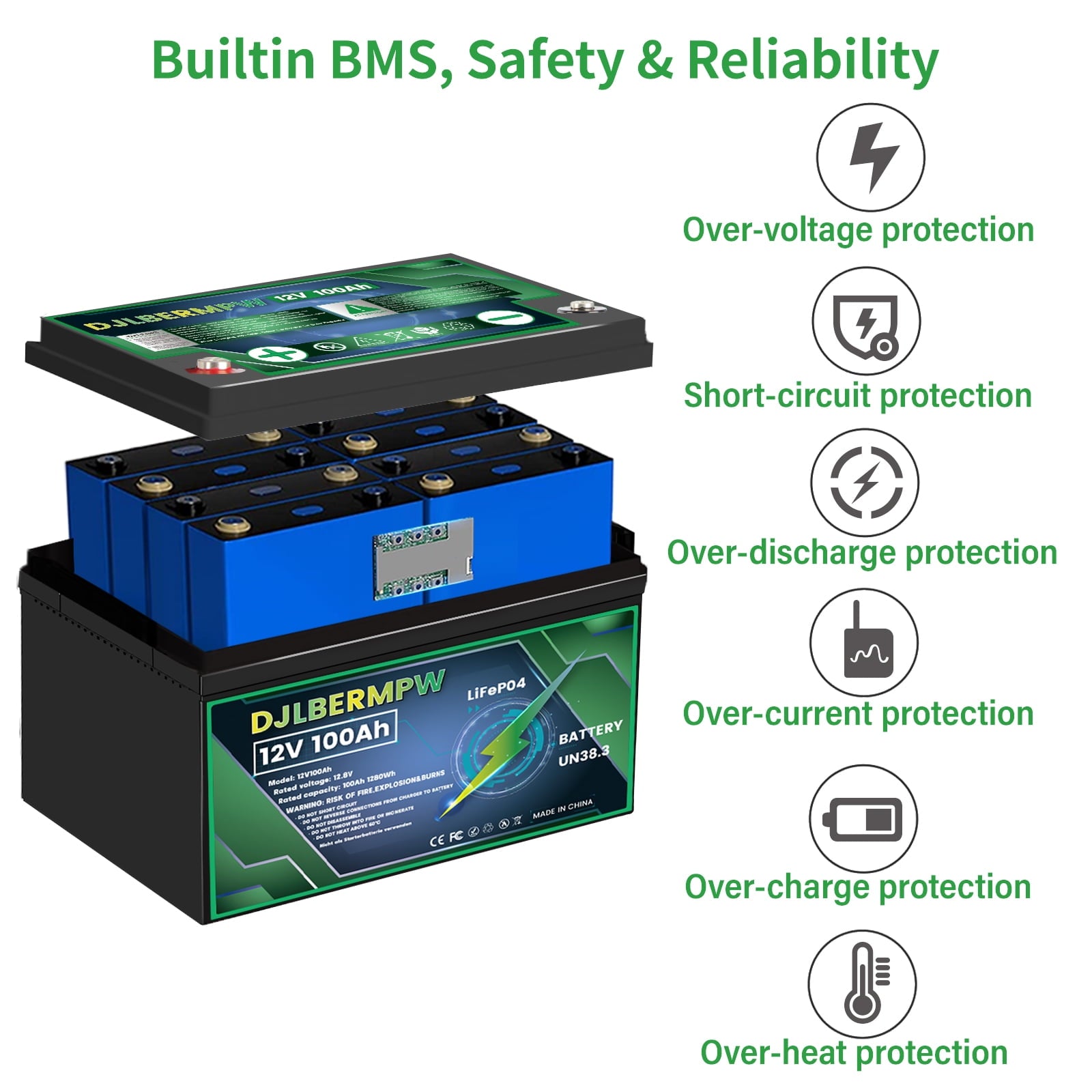

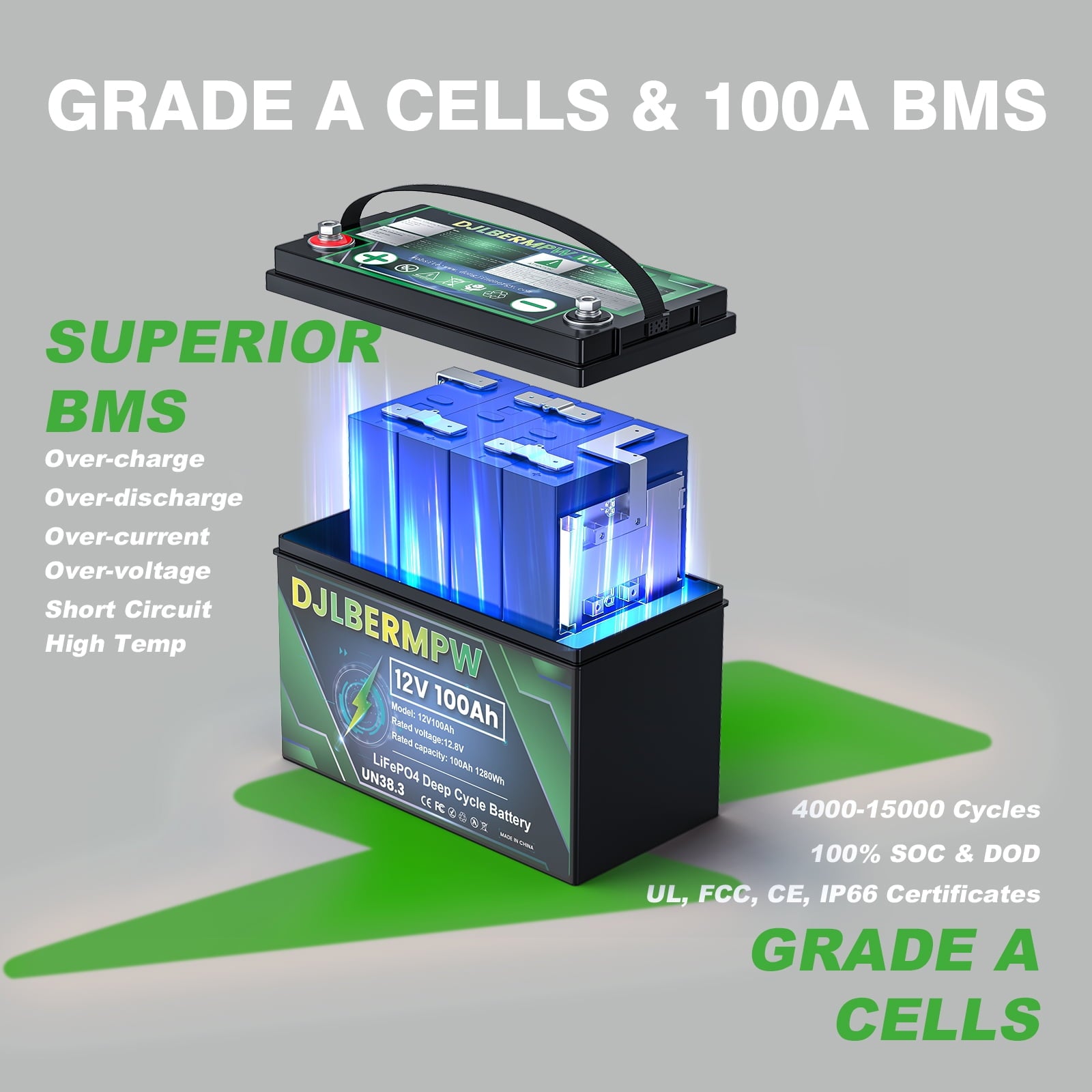

- 【100A BMS & Grade A Cells】Built-in BMS protects the trolling motor battery from overcharge, over-discharge, over-current, short circuit, and too low self-discharge rate, ensuring up to 1 year of maintenance-free storage. Highest level of safety according to UL test certificate for internal cells of lithium-ion battery. 12v lithium battery only takes 5 hours fast charging time when charging with 14.6V 20A LiFePO4 battery charger.
- 【Wide Application】Our 12V lithium battery is perfect for home energy storage system, solar/wind power, caravan/RV and camper, off-grid applications, marine, boat, UPS backup power, lighting, portable TV, electric robot, fish finder, golf cart, trolling motor, travel trailer, etc.

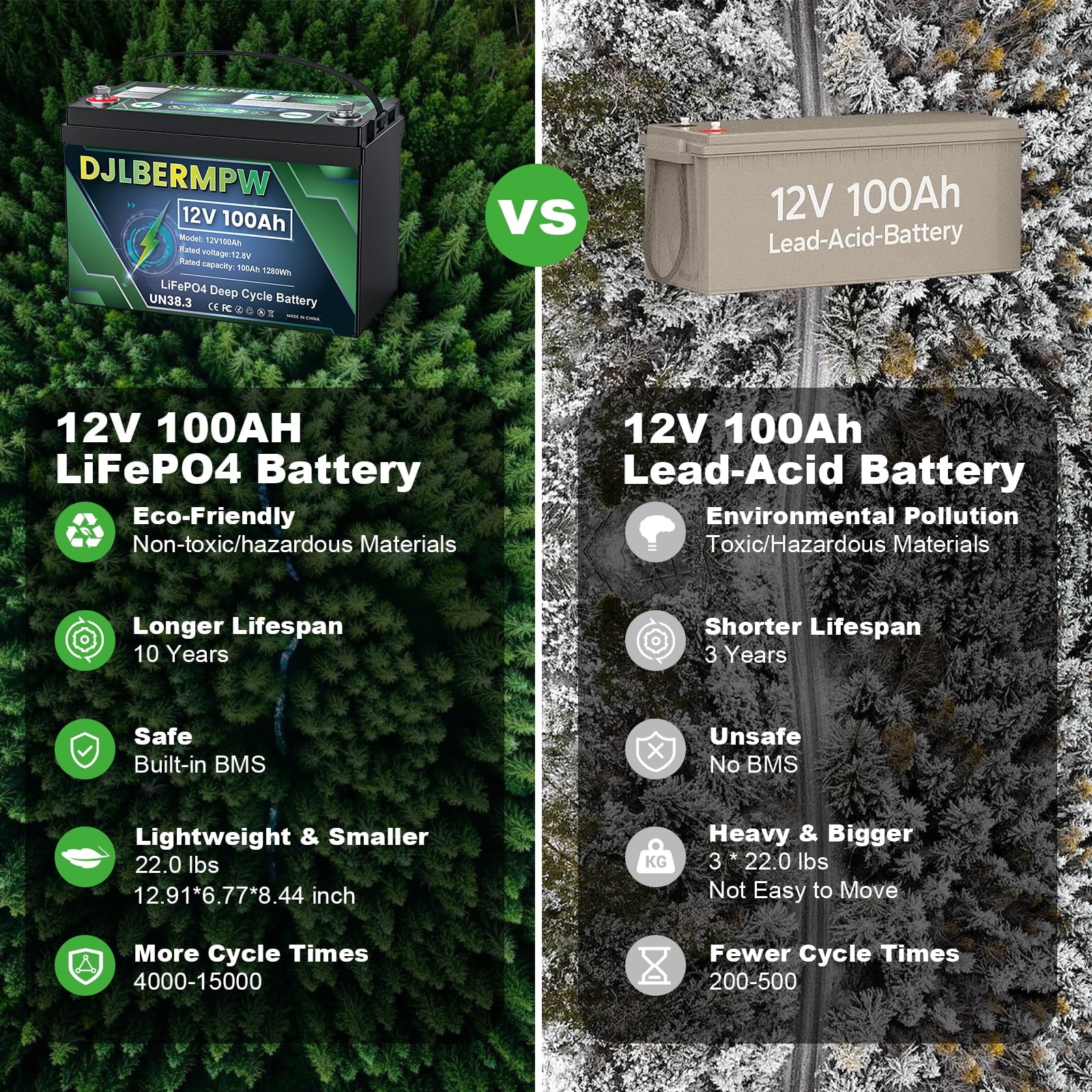

- 【Lighter Design, Safe Portable】LiFePO4 battery 100Ah weighs only 22 pounds, only 30% of the weight of lead-acid battery, and provides twice the capacity of lead-acid battery in the same size. When using solar battery, you can easily move and enjoy a self-reliant colorful RV trip and outdoor life.

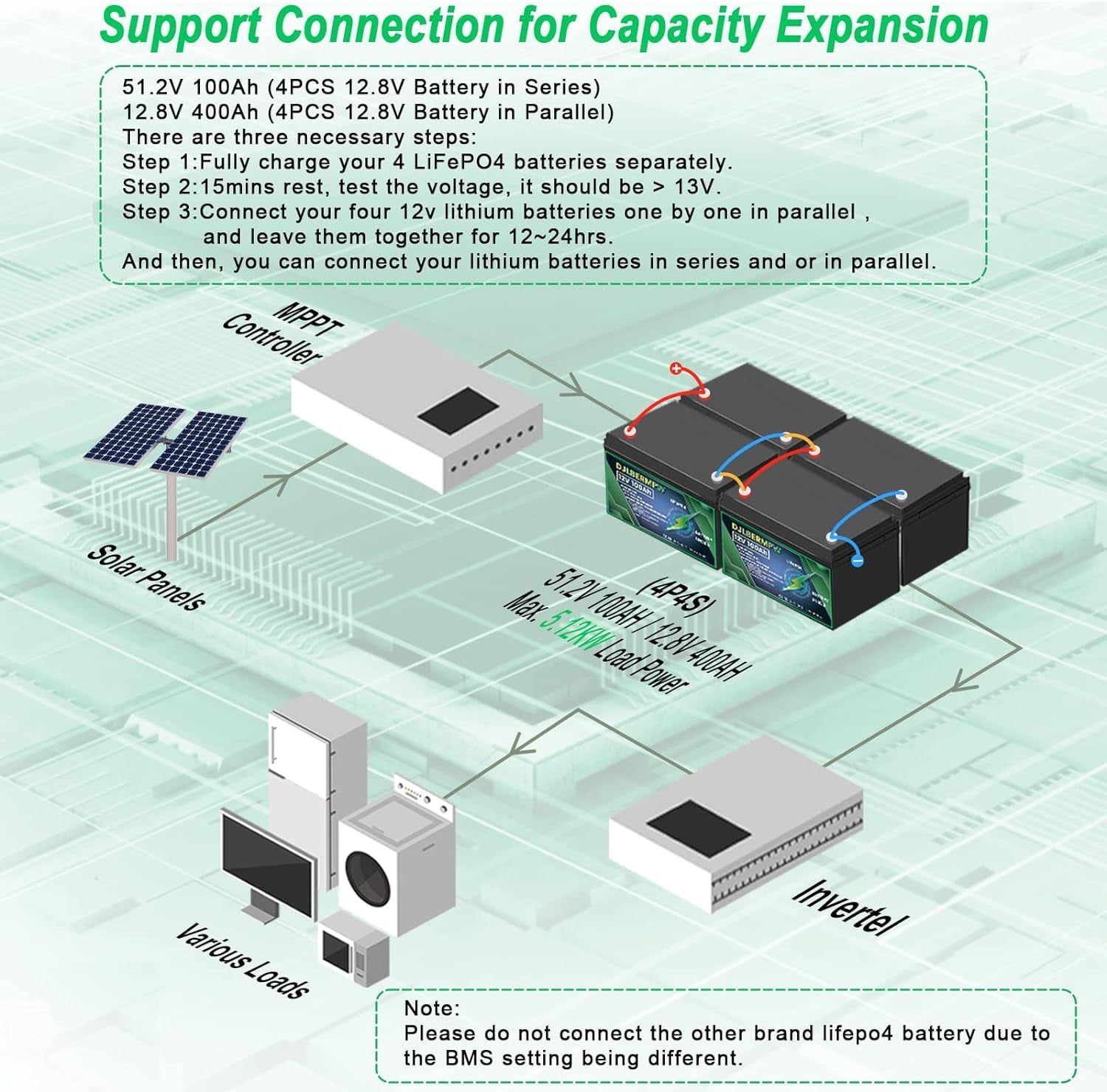

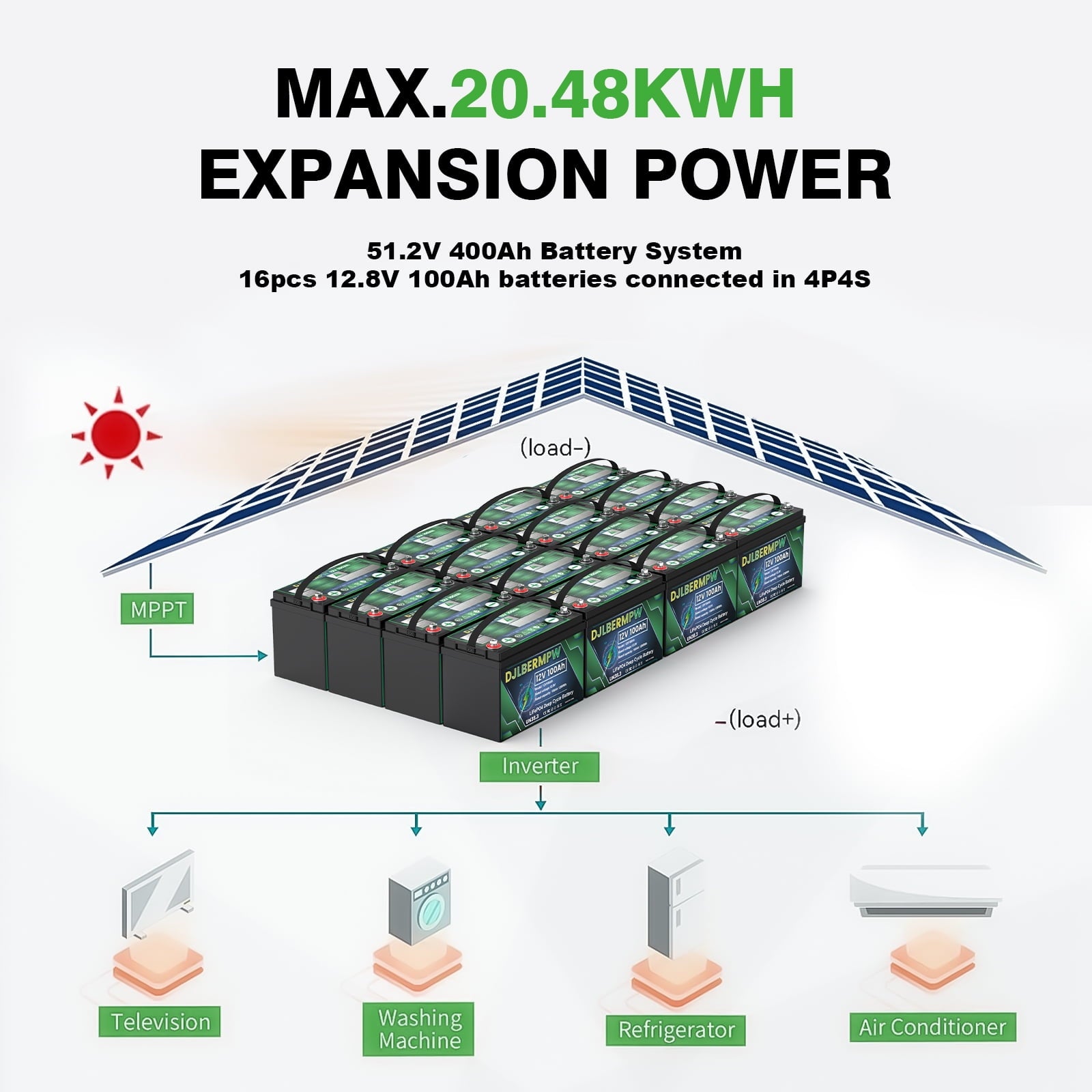

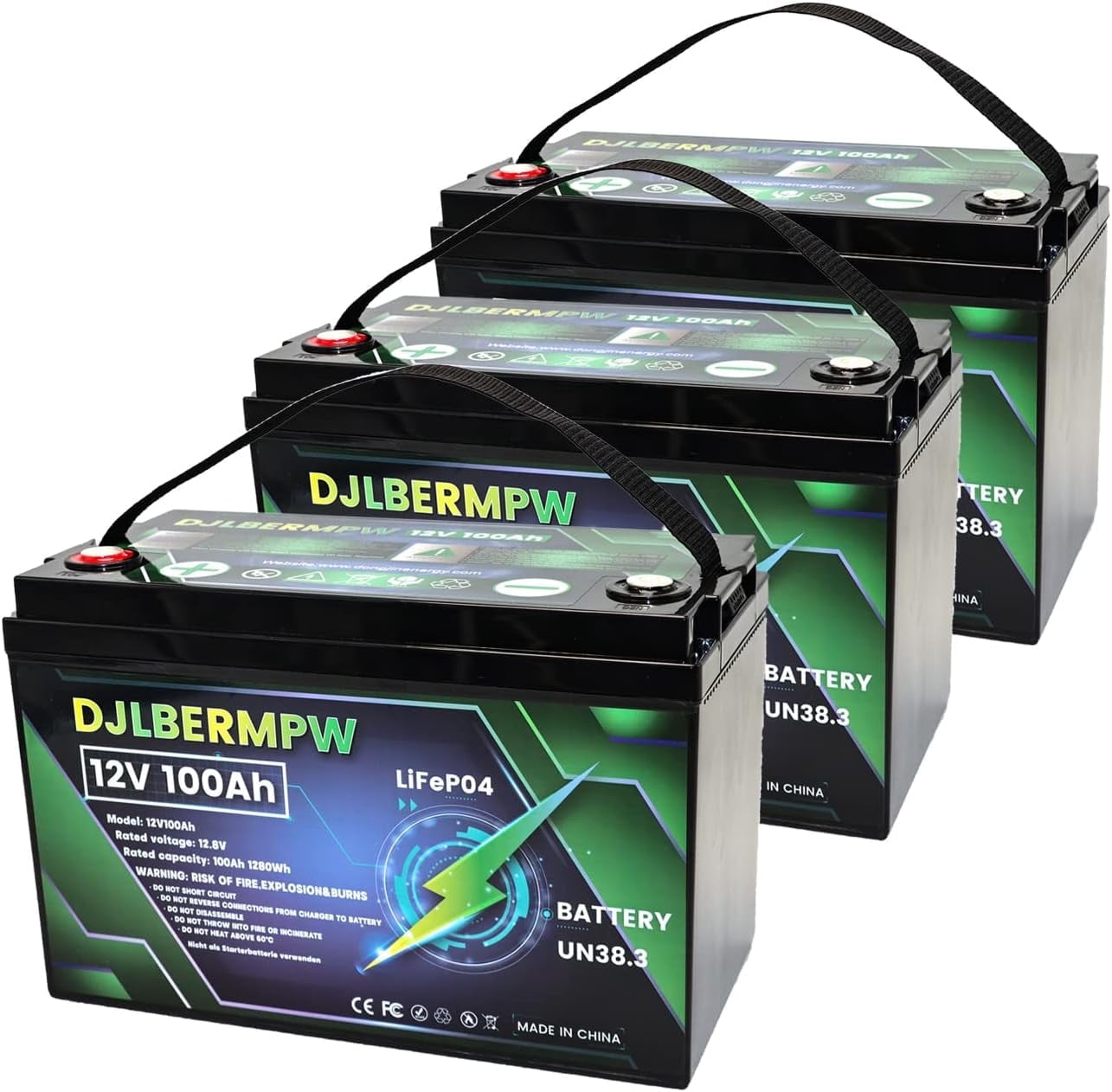

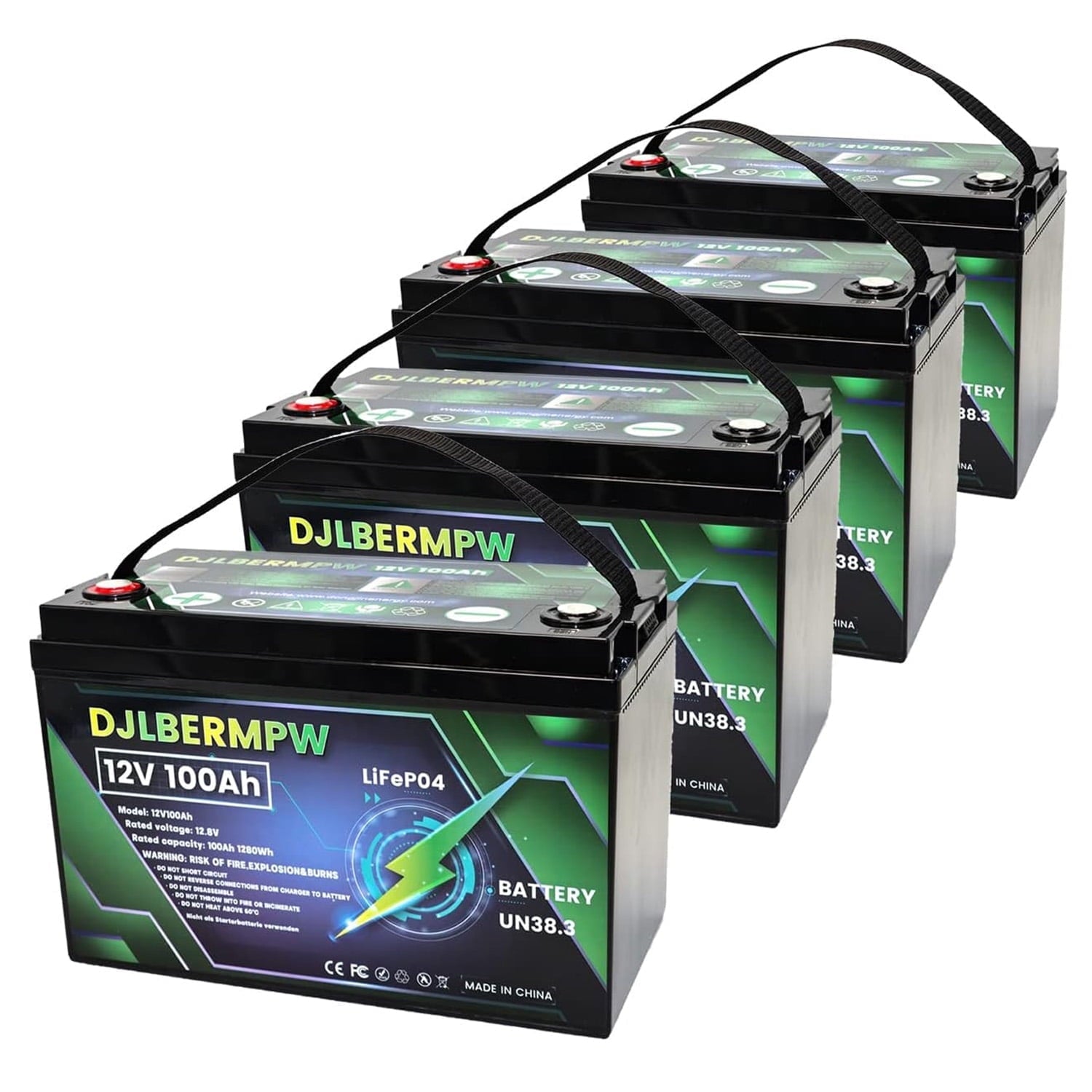

- 【Capacity Expansion】12V 100Ah LiFePO4 battery can be connected in parallel and series for greater capacity. Allows expansion to 4S or 4P for maximum 400Ah capacity or maximum 48V (51.2V) voltage. Connect up to 16 batteries to get a 51.2V 400Ah battery system with 20.48kWh of energy.
- 【Kind Tips】

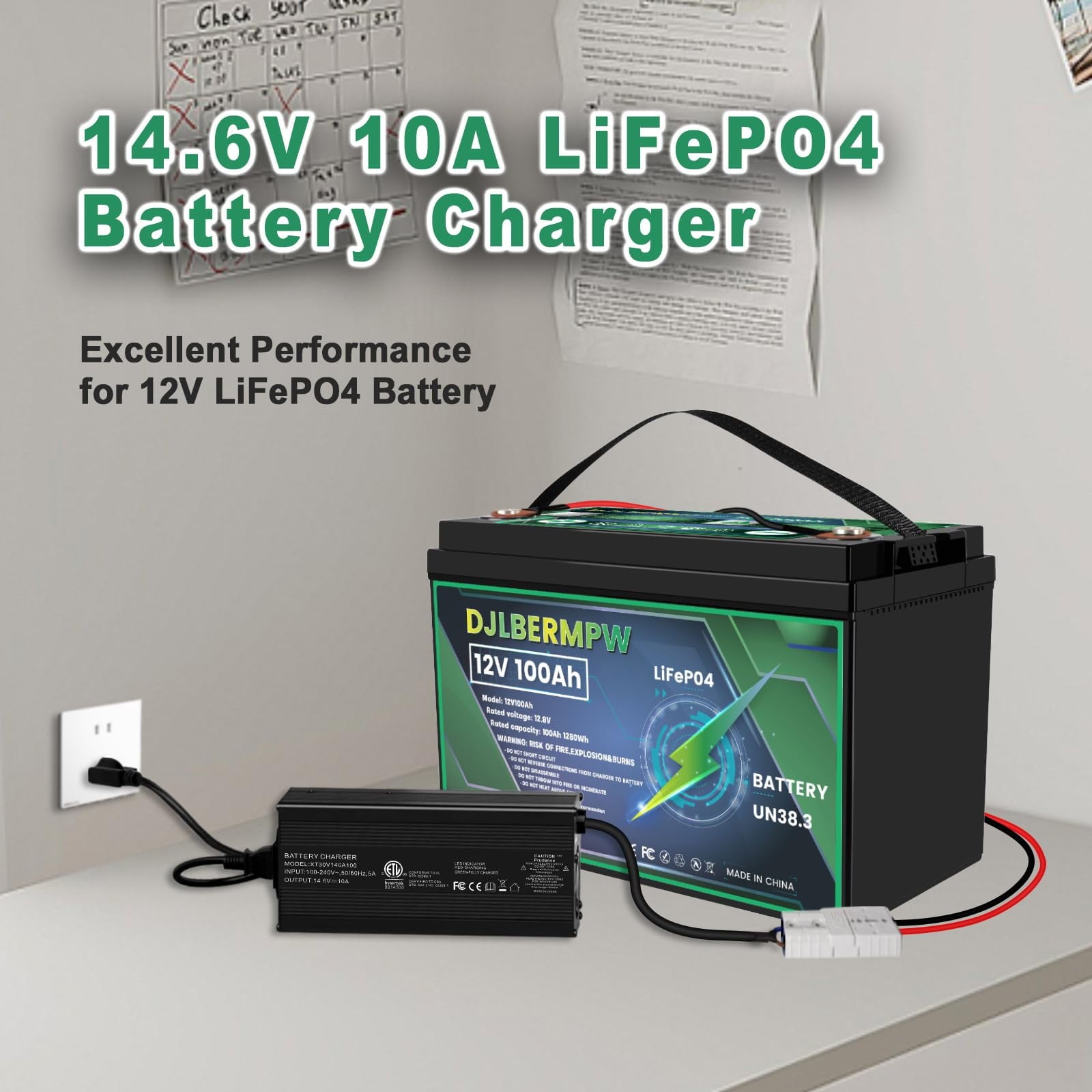

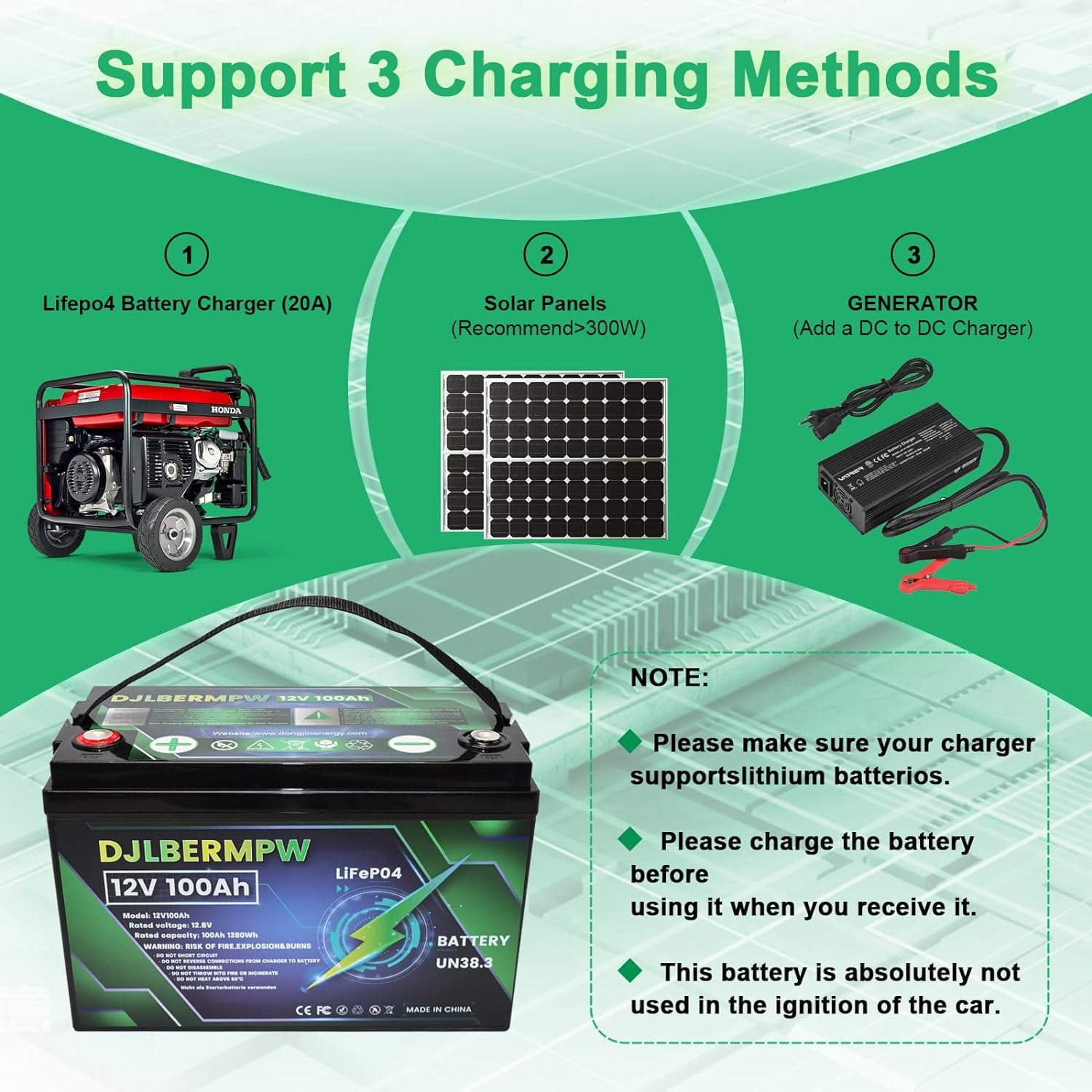

1. Please use a LiFePO4 charger to charge lithium battery, other types of chargers may not be compatible.
2. If charger does not have activation function, the lithium battery cannot be charged normally when it enters over-discharge protection, the battery needs to be manually activated.
3. A battery equalizer is recommended when the battery packs are connected in series. Suitable for golf cart motors with about 3HP power.
4. If you have any questions, please feel free to contact us.
