520 Watts RMS 1 Ohm 1 Ch Class D Monoblock Car Audio Amplifier Massive Audio
This listing includes:
- (1) Massive Audio GT Series Monoblock Amplifier
- (1) Bass Remote with Cable
- (1) Mounting Hardware Kit
- (1) User Manual

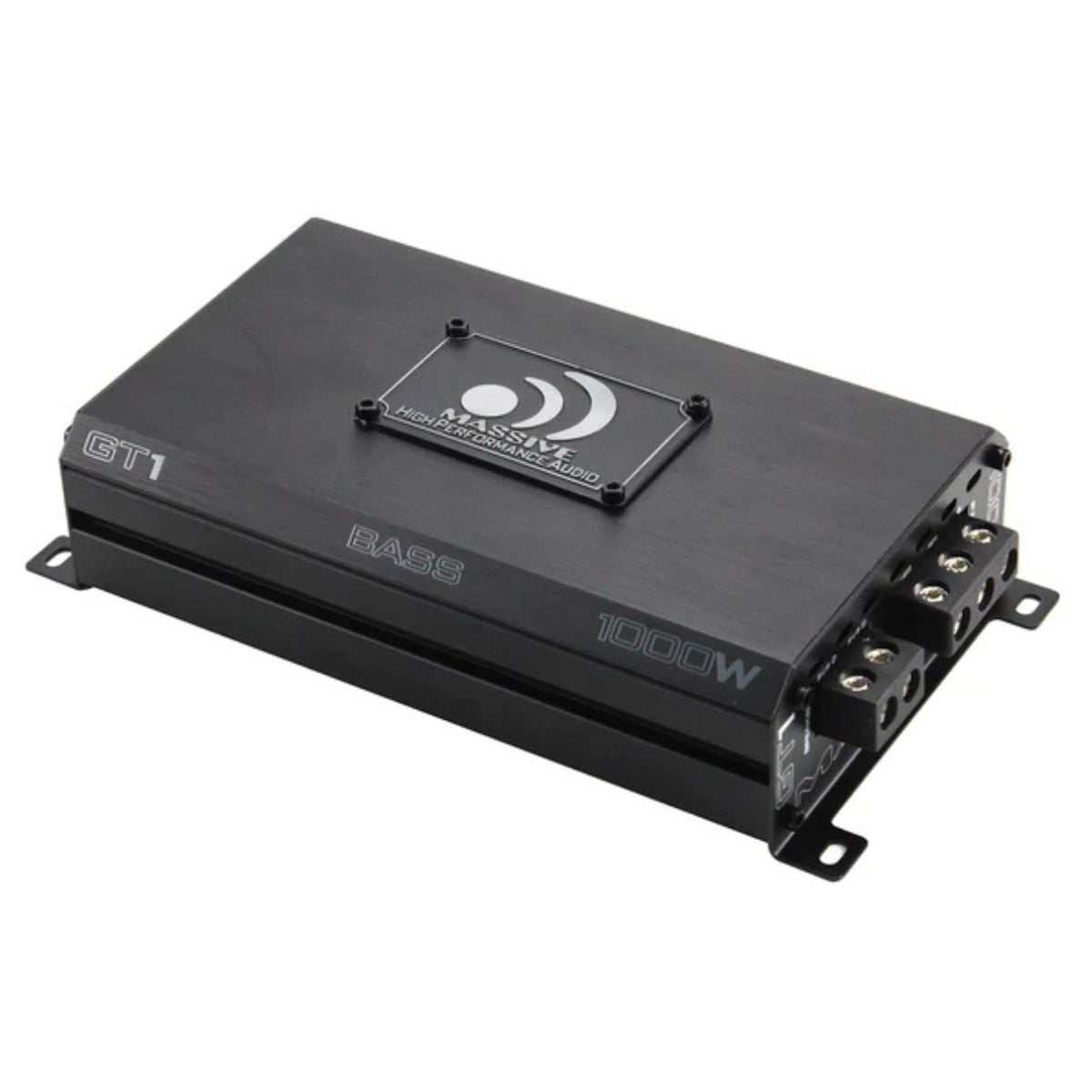

The GT Series High-Performance Amplifiers from Massive Audio are engineered to pair perfectly with GT Series Subwoofers, delivering clean, powerful sound in an ultra-compact chassis. This Class D monoblock amplifier is stable at 1 Ohm, capable of producing up to 520W RMS, making it ideal for high-output subwoofer systems with tight space requirements.
Key Features:
- 1 Ohm Stable Class D Design: Produces up to 520W RMS with high efficiency
- “Massive Core” Power Supply: Oversized toroids deliver clean current with minimal distortion
- Compact & Rugged: 7″ x 6.9″ footprint with aluminum housing and built-in heat management
- Full MOSFET Circuitry: High-speed switching for stable and clean signal output
- Auto Sensing Turn-On: Compatible with factory systems via RCA input
- Clip LED Indicator: Prevents overdriving and distortion

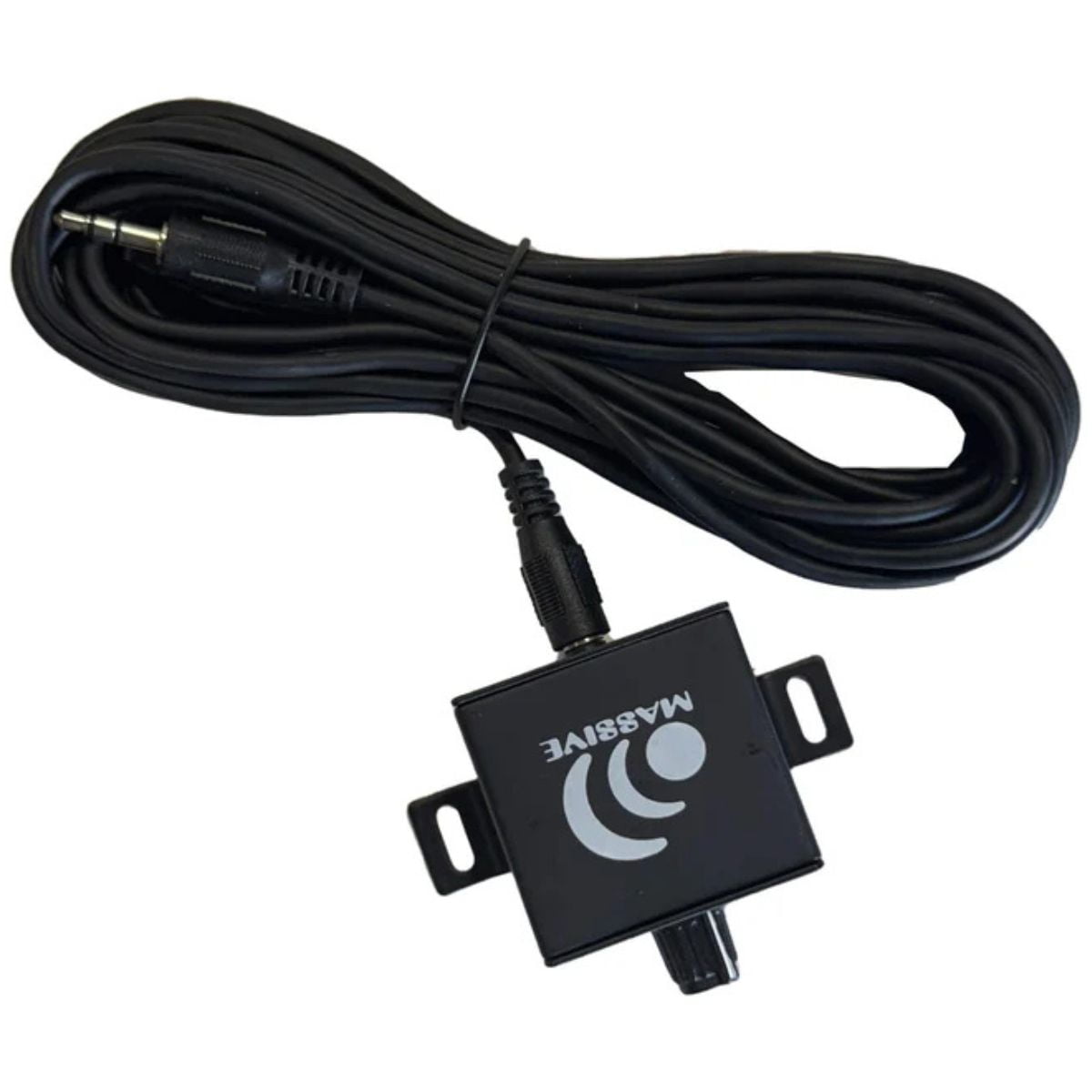

- Bass Remote Included: Control your bass levels on the fly
Specifications:
- RMS @ 1 Ohm: 520 Watts
- RMS @ 2 Ohm: 370 Watts
- Peak Power: 1040 Watts
- Minimum Impedance: 1 Ohm
- Frequency Response: 50Hz – 250Hz
- Low-Level Input Range: 300mV – 7V
- Max RCA Input Voltage: 8V – 17V
- Signal-to-Noise Ratio: 95dB
- THD @ 4 Ohm: 0.07%
- Variable Bass Boost: 0 – 12 dB
- Recommended Fuse: 80A
- Input Terminal Size: 4 AWG
- Bass Remote: Included
Amplifier Dimensions:
- Length: 7″
- Height: 1.65″
- Width: 6.9″
Package Dimensions:
- Package Length: 9.5″
- Package Width: 8.5″
- Package Height: 3.5″
- Package Weight: 4.5 lbs
Packed with next-generation tech, the GT Series amps feature Massive’s exclusive “Massive Core” power supply with oversized toroids and transformers for maximum current flow.
- 520W RMS @ 1 Ohm: Delivers clean, powerful output with high efficiency in a compact Class D design
- Massive Core Power Supply: Oversized toroids and transformers provide strong, stable current for demanding subs
- Bass Remote & Clip Indicator: Easily control bass levels and monitor signal clipping in real-time
- Rugged & Compact Build: Mil-Spec PCB, surface-mount components, and small footprint (7″ x 6.9″) for tight installs
- 5-Way Protection Circuitry: Advanced safeguards for thermal, overload, short, voltage, and speaker protection
