Description
If you find manual labor very hard from time to time, then you definitely need this gasoline engine! It is made of high-quality materials, sturdy and durable, and the high-power engine can run smoothly to meet your high efficiency work. With it, you can save a lot of energy. It also has a silencer, so you can have a quiet working environment.
Key Features

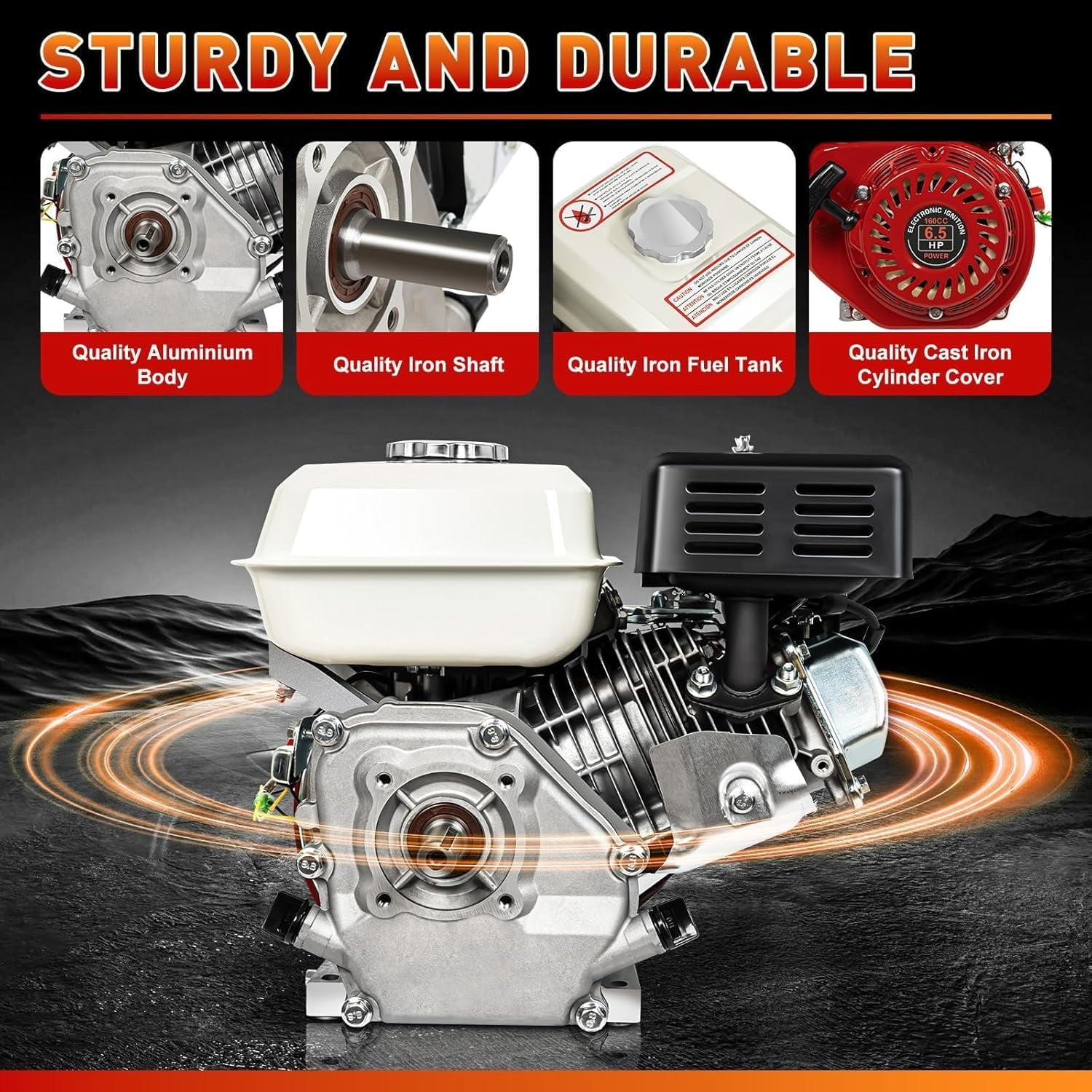

Build to Last: The engine is made of high-quality aluminium body, iron shaft, cast iron cylinder cover, and iron fuel tank, which is strong and durable. Metal materials and forged crankshafts provide it greater performance and longer life.
Strong Power: The engine has a power of up to 3kw and a high speed of up to 3600r/min, our engines produce a lot of power and help you get the job done quickly and well.

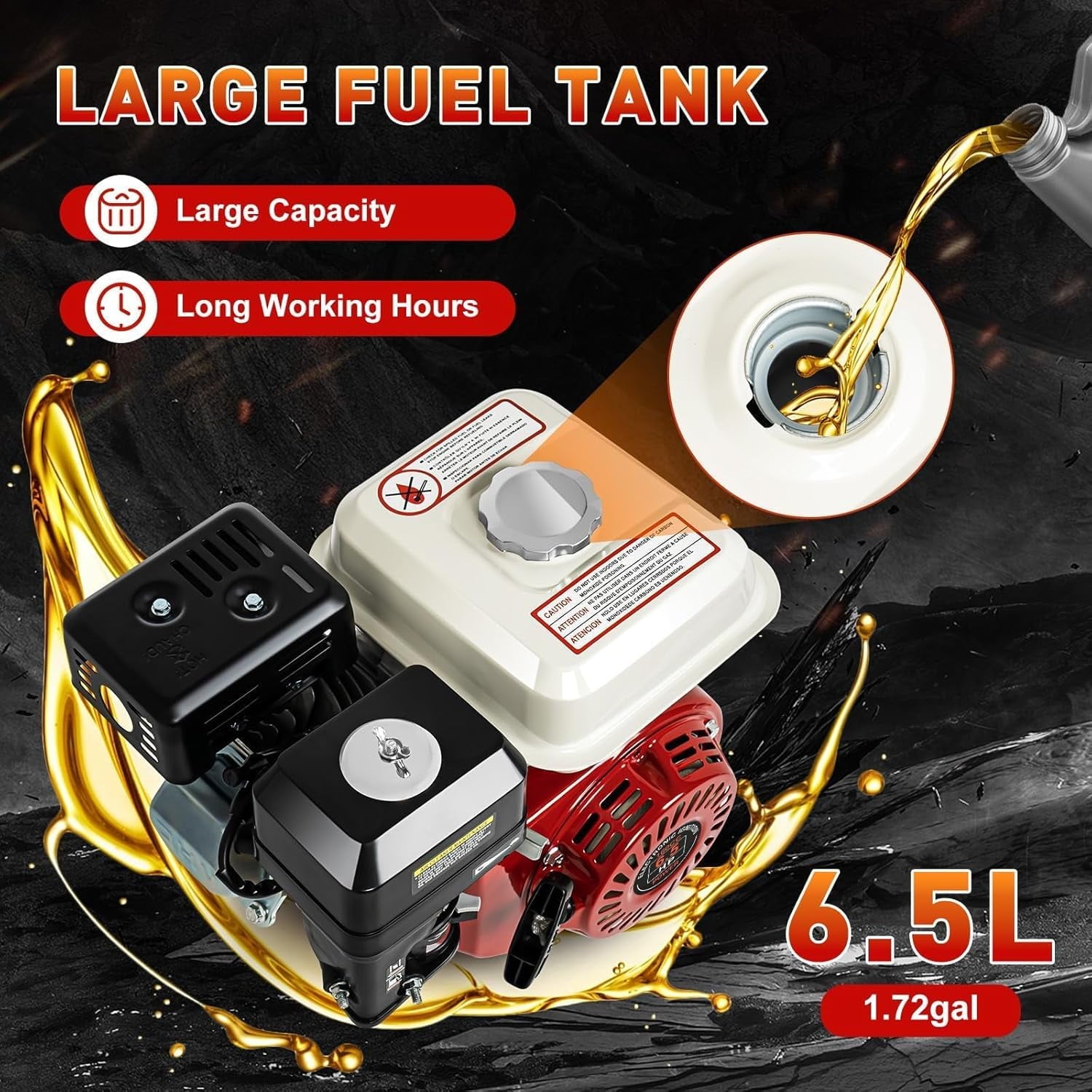

Large Fuel Tank: The engine has a large fuel tank capacity of 6.5L/1.72gal allowing it to work for a long time. You don’t need to fill the tank frequently, which is very convenient.

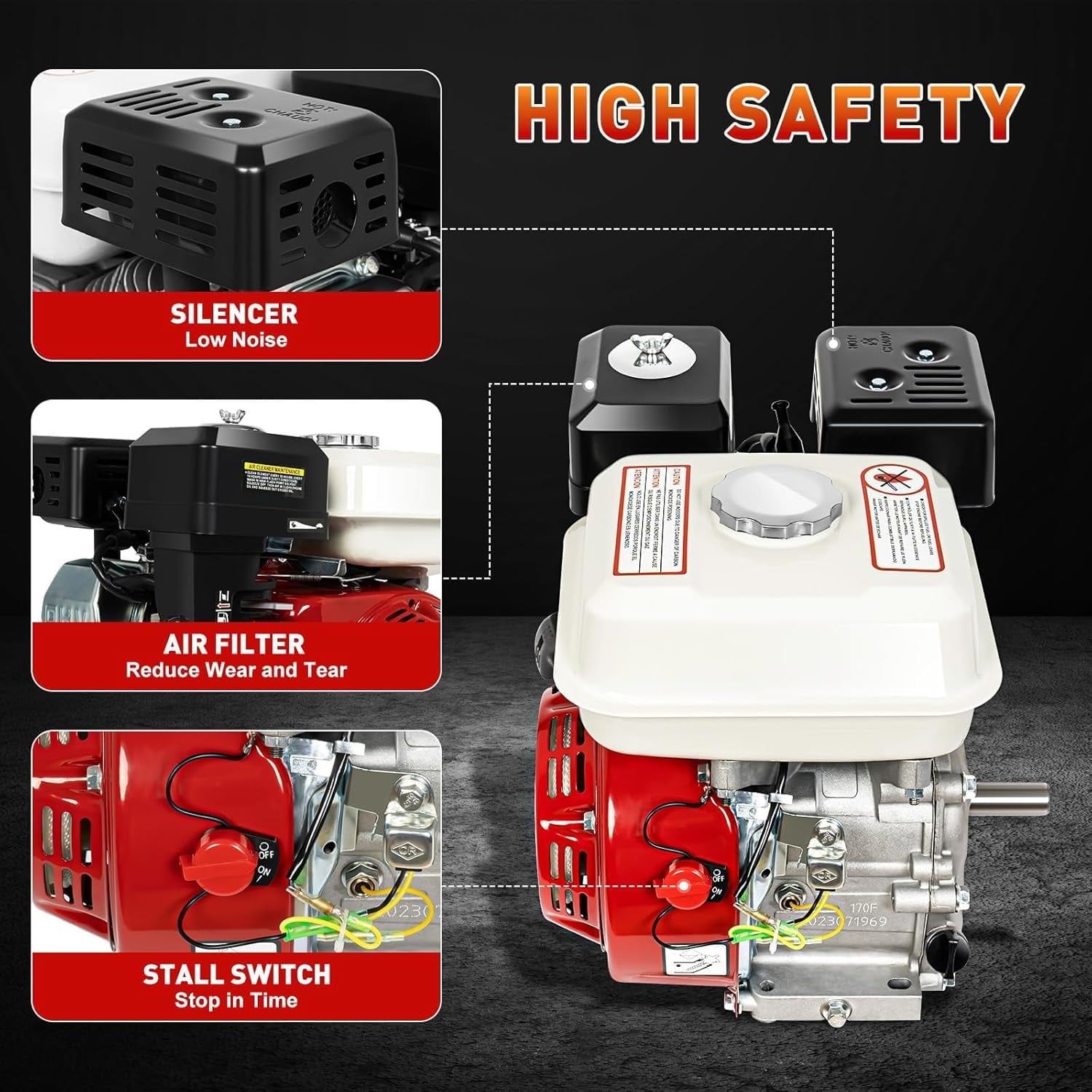

High Safety: The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Moreover, the cast iron cylinder liner make engine operation smoother and overall performance more stable, thus the machine will not be easily damaged and has a longer service life.
Details
Pulling Wire: The pulling wire is made of nylon and iron, which is more wear-resistant, durable and uneasy to pile up for easy starting.
Ergonomic Handle: The hand-pull starter features an ergonomic plastic handle that is non-slip and easy to use.
Air Filter: It can improve the air filtration performance of the machine, reduce wear and tear, and increase its service life.
Application

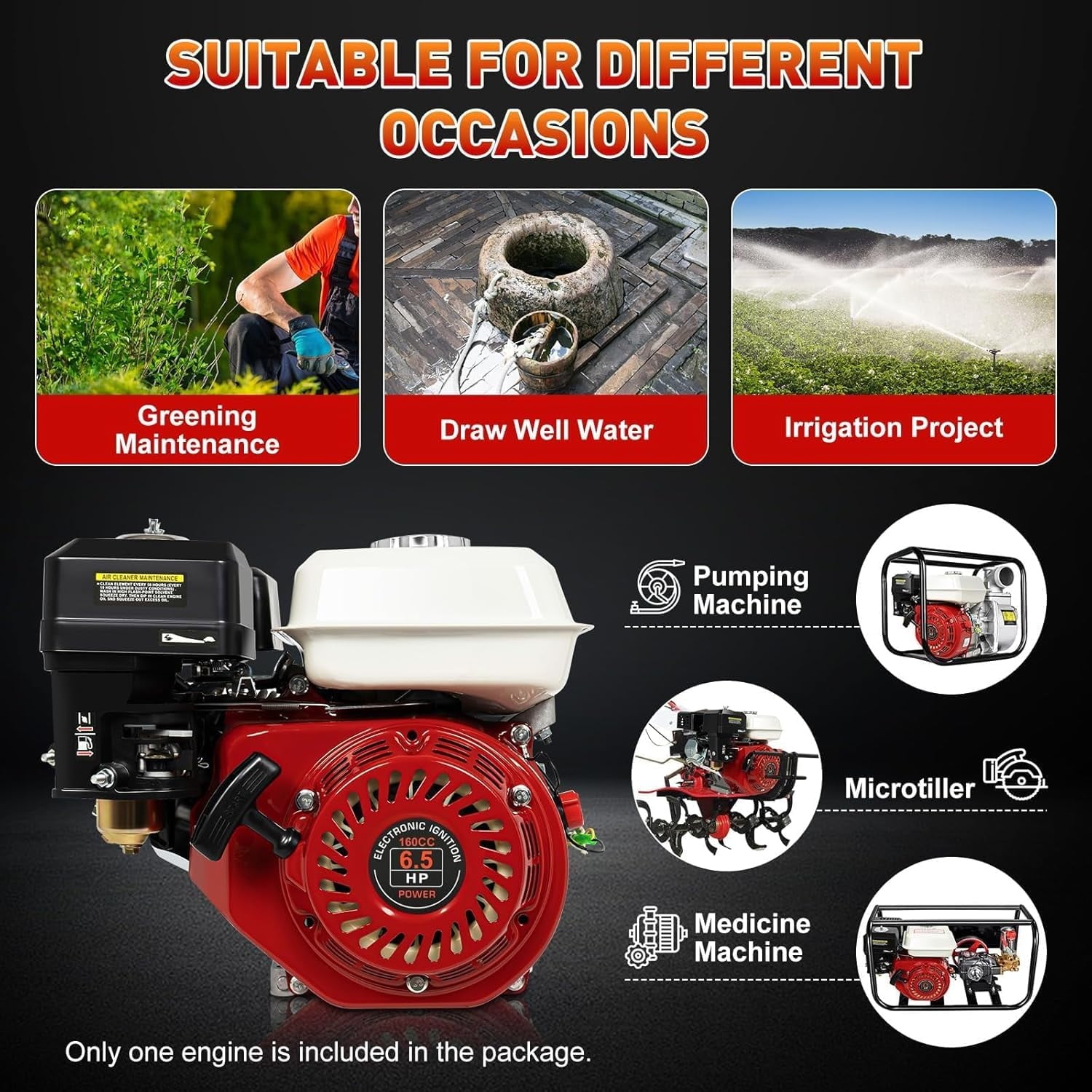

This product can be used widely with pumping machines, microtillers, cleaning machines, spraying machines, medicine machines, threshing machines, smoothing machines, etc.

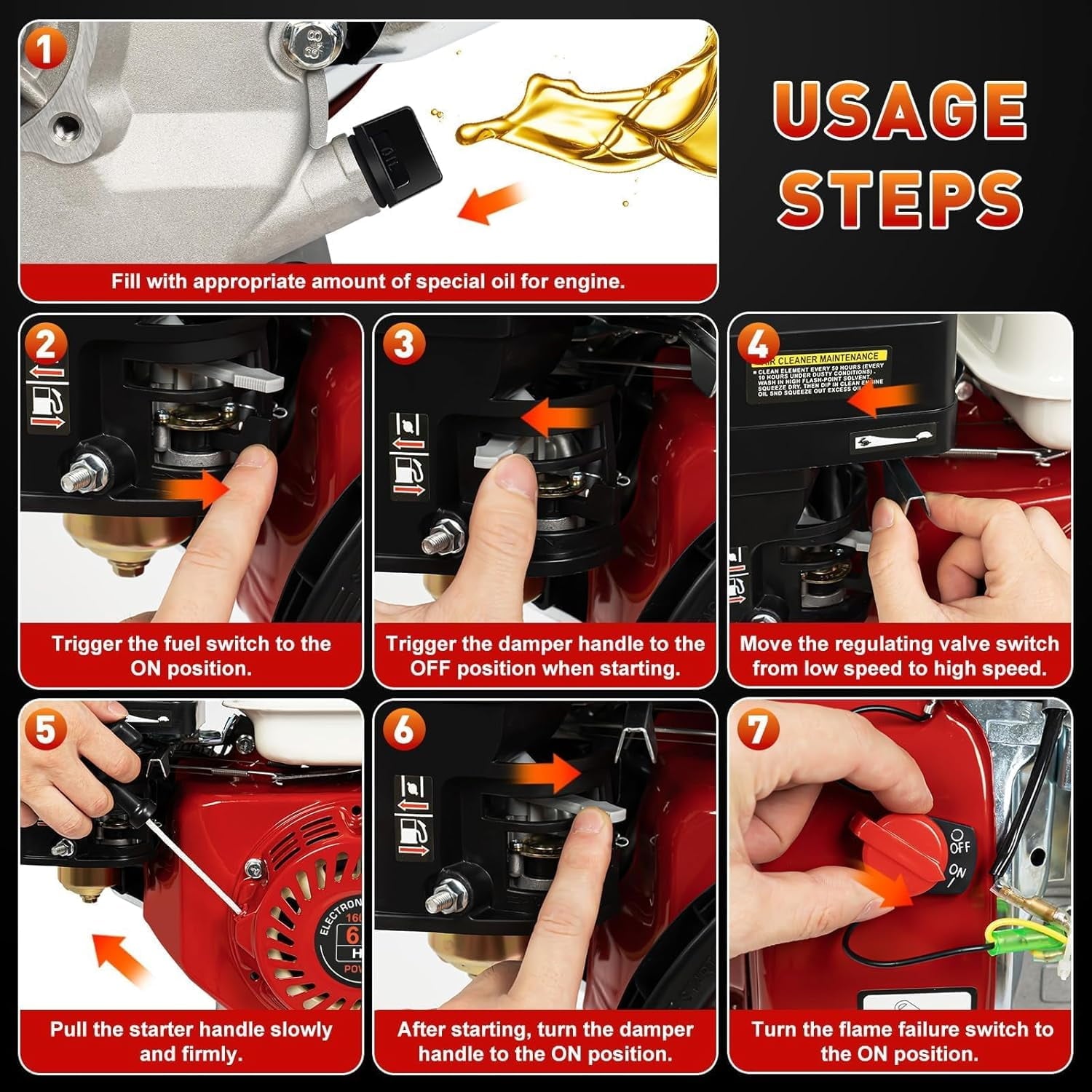

How to Use
1. Fill with appropriate amount of special oil for petrol engine.
2. Trigger the fuel switch to the ON position.
3. Trigger the damper handle to the OFF position when starting.
4. Move the regulating valve switch from low speed to high speed.
5. Pull the starter handle slowly and firmly.
6. After starting, turn the damper handle to the ON position.
7. Turn the flame failure switch to the ON position.
Specification
Material: Aluminum, Iron, Cast Iron, Plastic
Fuel Type: Gasoline
Lube Oil Capacity: 0.6L/0.16gal
Engine Oil Capacity: 3.6L/ 0.95gal
Max. Torque: 10.8N-m
Bore Stroke: 70*45mm/2.76*1.77inch
Displacement: 200cc
Engine Type: 4-strokes, Single Cylinder, Air-cooled
Horsepower: 6.5HP
Speed: 3600rpm
Fuel Consumption Rate: 360g/kw.h
Max Power: 3kw
Rated Power: 2.8kw
Shaft Diameter: 20mm/0.79inch
Rotation: Clockwise
Starting System: Pull Start
Packing Size: 48*38*37cm/18.9*14.96*14.57inch

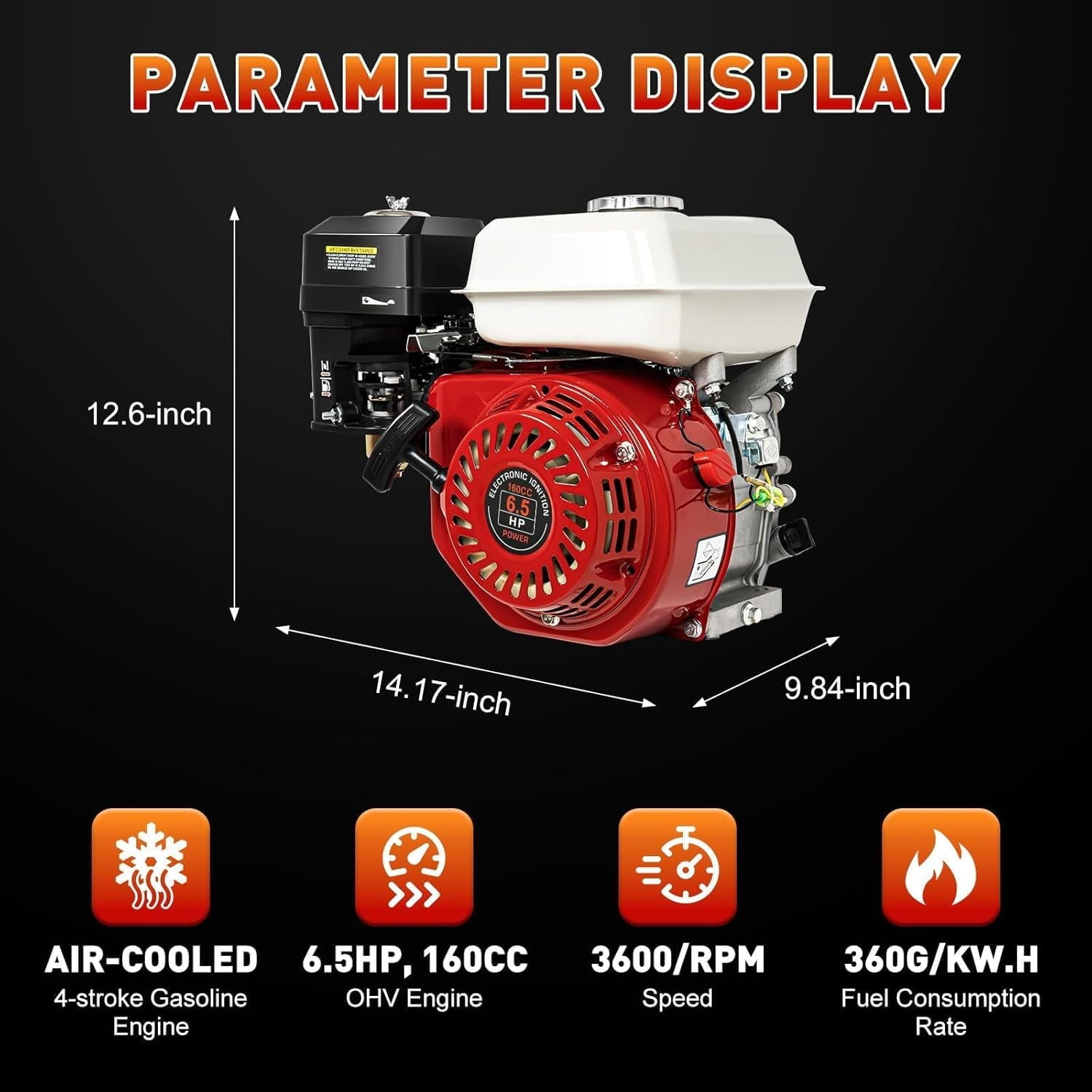

Product Size: 36*25*32cm/14.17*9.84*12.6inch
Gross Weight: 14.45kg/31.86lbs
Net Weight: 12.35kg/27.23lbs
Package Included
1 * Petrol Engine
1* English Manual
Other Accessories for Installation
Notes
1. Please read the instructions carefully before use.
2. Please note that do not use indoors due to danger of carbon monoxide poisoning.
3. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
-
Build to Last: The engine is made of high-quality aluminium body, iron shaft, cast iron cylinder cover, and iron fuel tank, which is strong and durable. Metal materials and forged crankshafts provide it greater performance and longer life.
-
Strong Power: The engine has a power of up to 3kw and a high speed of up to 3600r/min, our engines produce a lot of power and help you get the job done quickly and well.
-
Large Fuel Tank: The engine has a large fuel tank capacity of 6.5L/1.72gal allowing it to work for a long time. You don’t need to fill the tank frequently, which is very convenient.
-
Efficient Cooling System: The built-in air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.
-
High Safety: The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Moreover, the cast iron cylinder liner make engine operation smoother and overall performance more stable, thus the machine will not be easily damaged and has a longer service life.
