Products Details

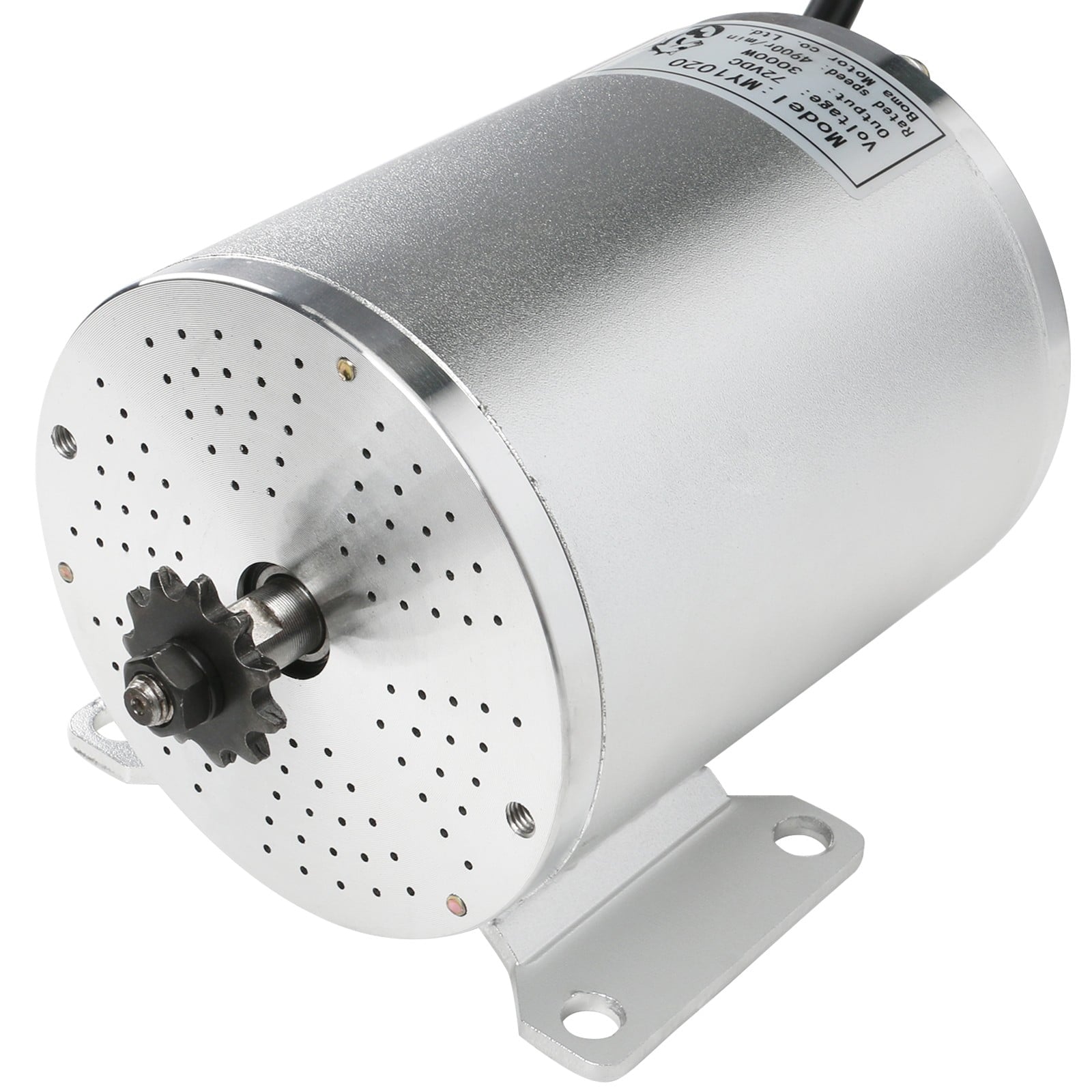

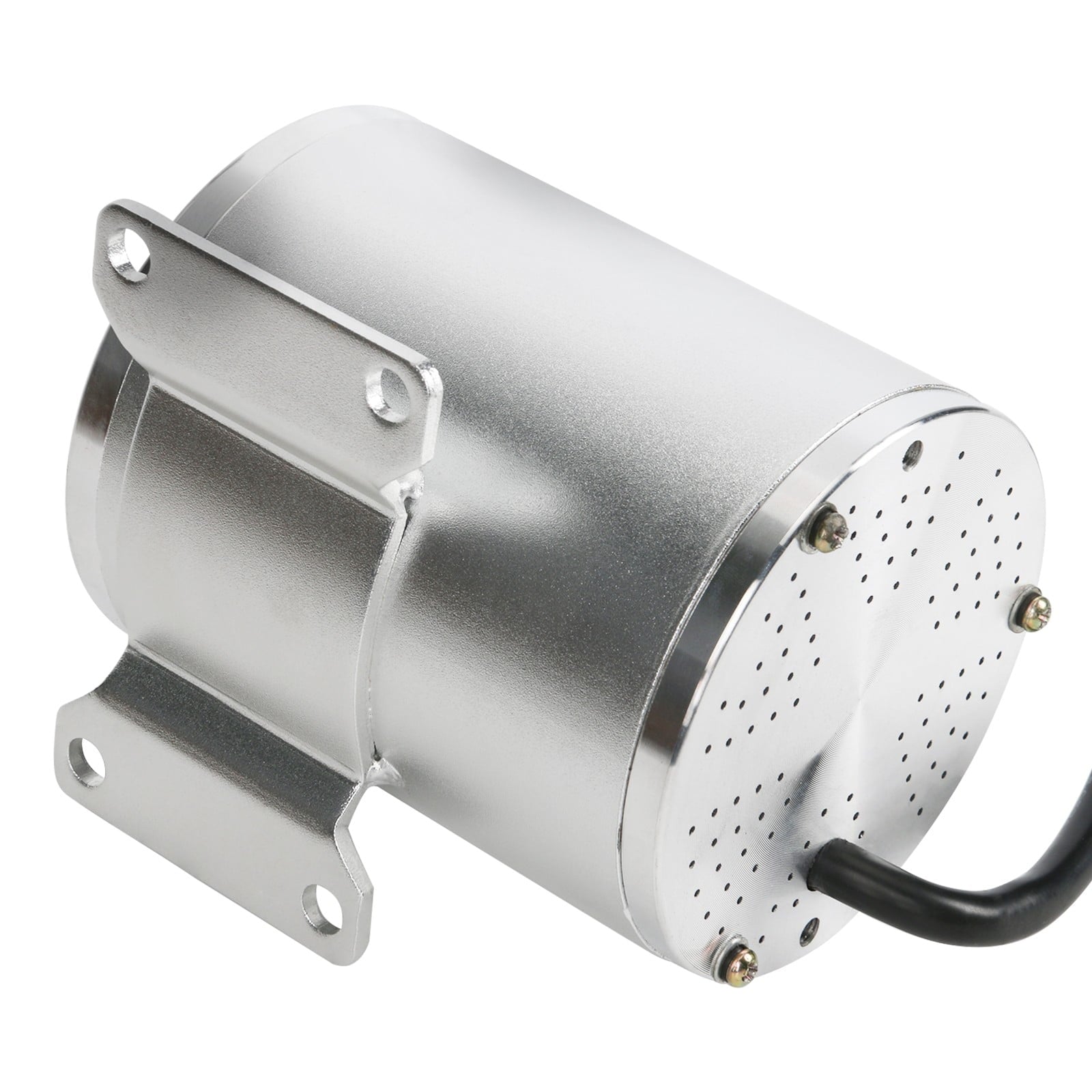

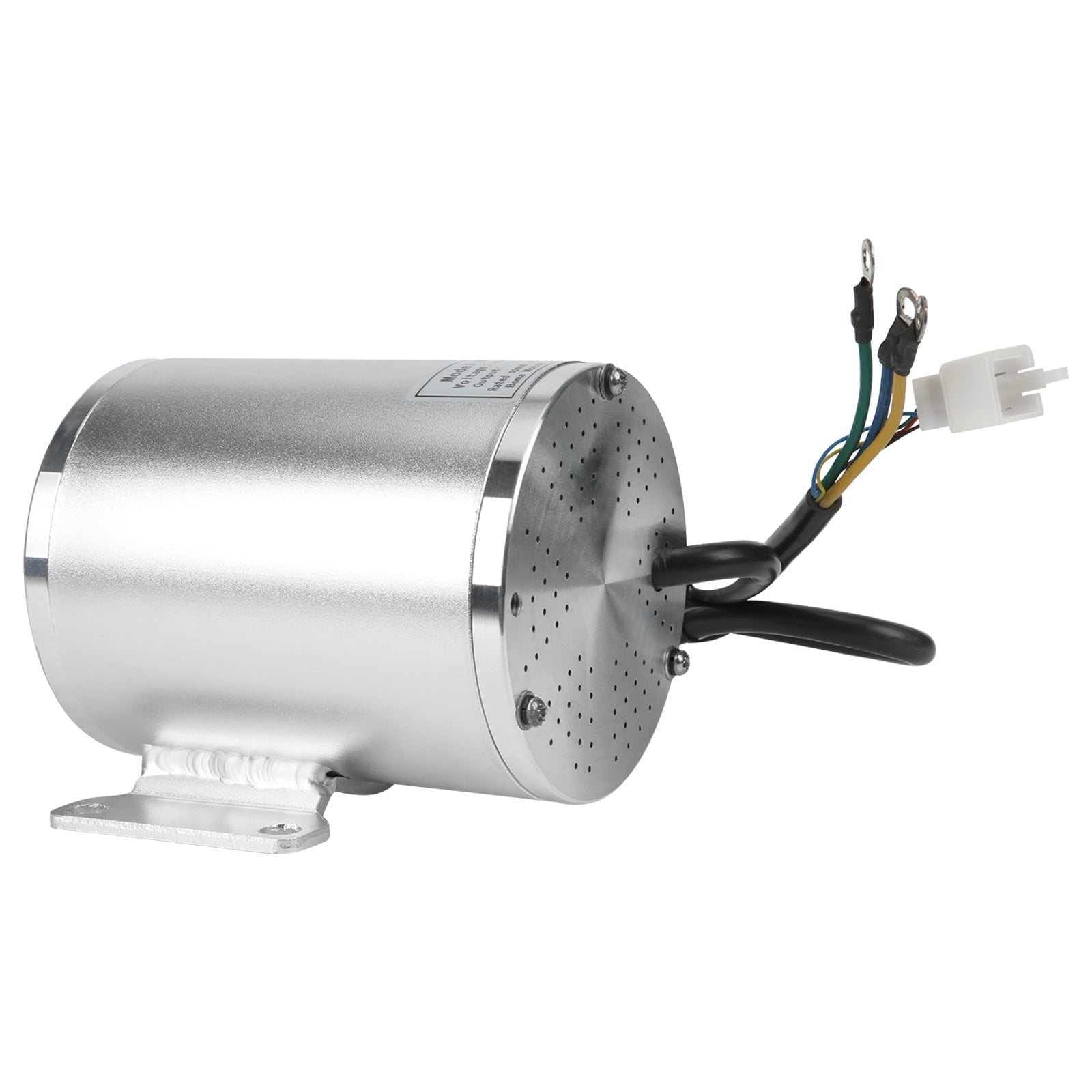

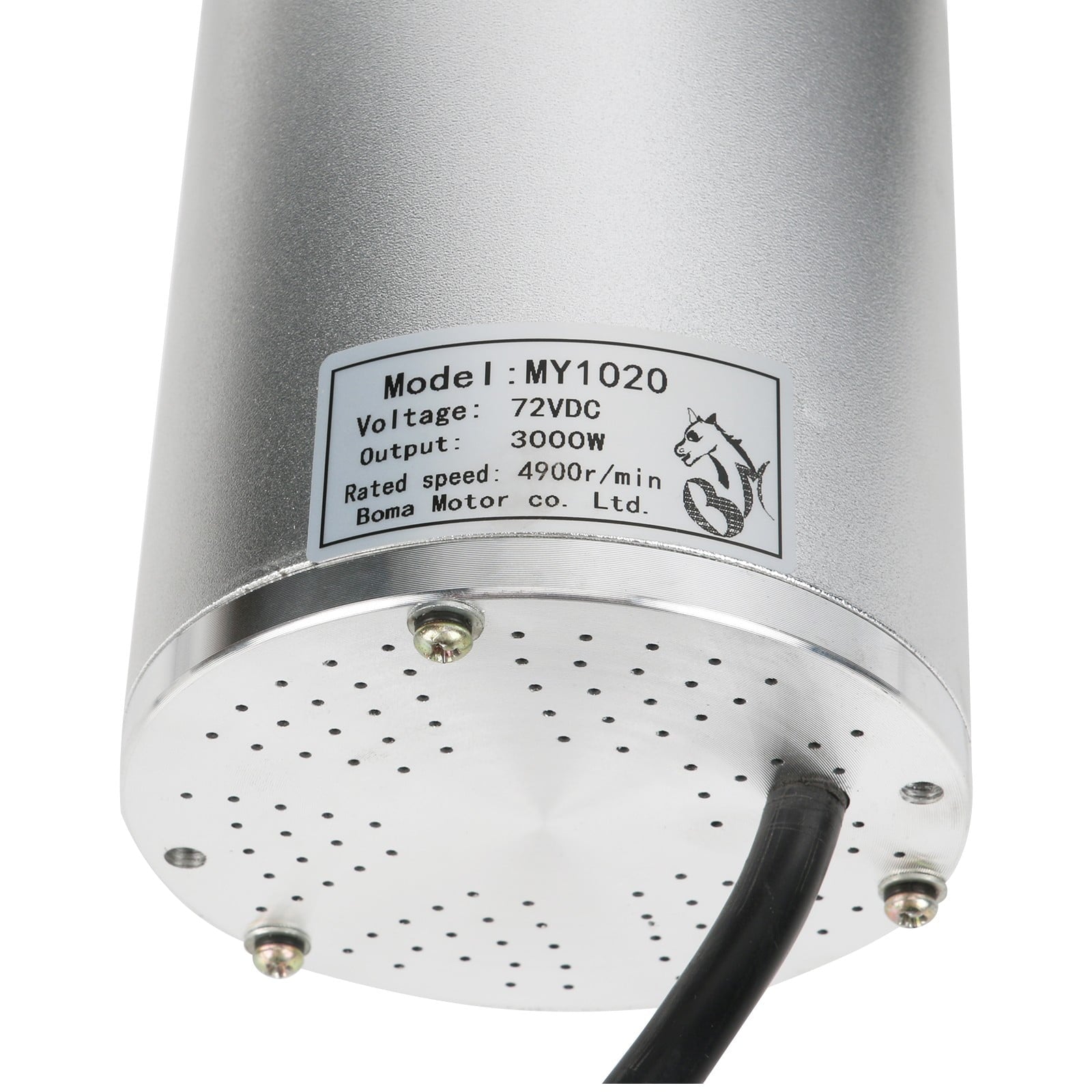

1.Model:Boma MOTOR MY1020
2.Motor Type:High-Speed brushless Motor
4.Output /W:3000W
5.Rated Speed:4900RPM, Torque: 5.8N.m
6.Weight: 4.8KG

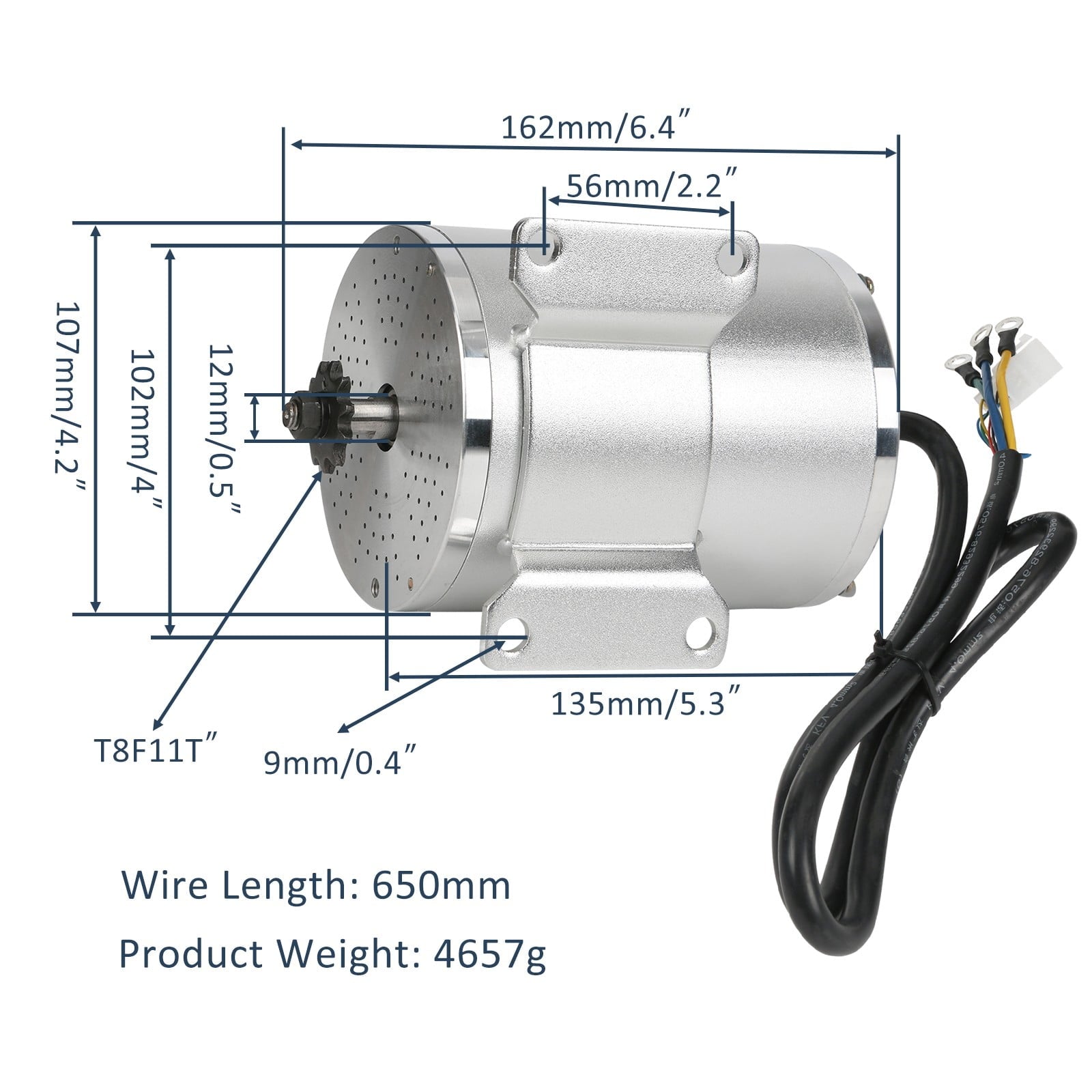

7.Shaft diameter: 12mm
8.Applicable Controller: 72V 3000W
9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,Mini Electric Car ,DIY Go Kart, ATV Quad, Buggy
10.Sprocket Model :T8F 11T
11.The Motor need work with controller,throttle,power lock,72 voltage battery

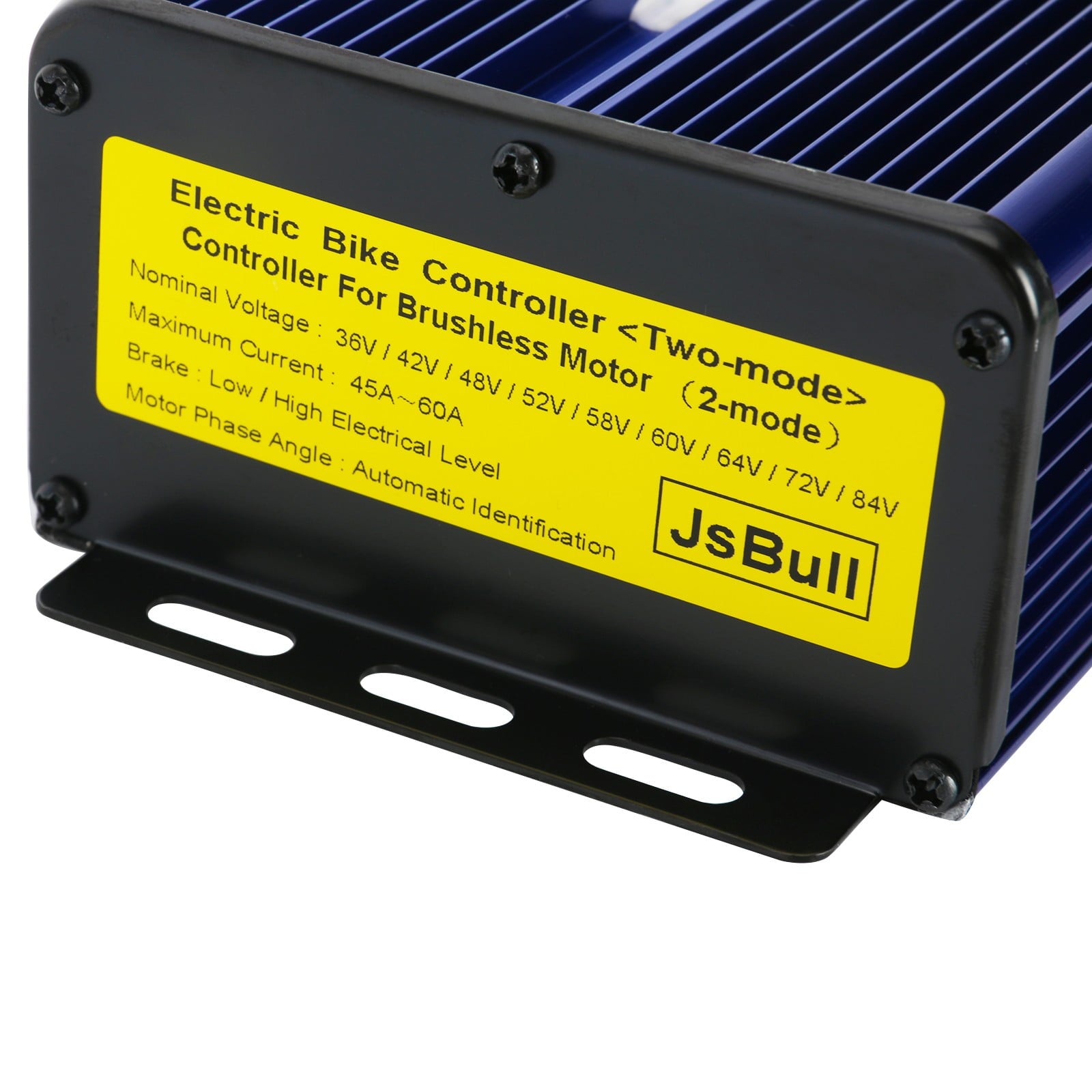

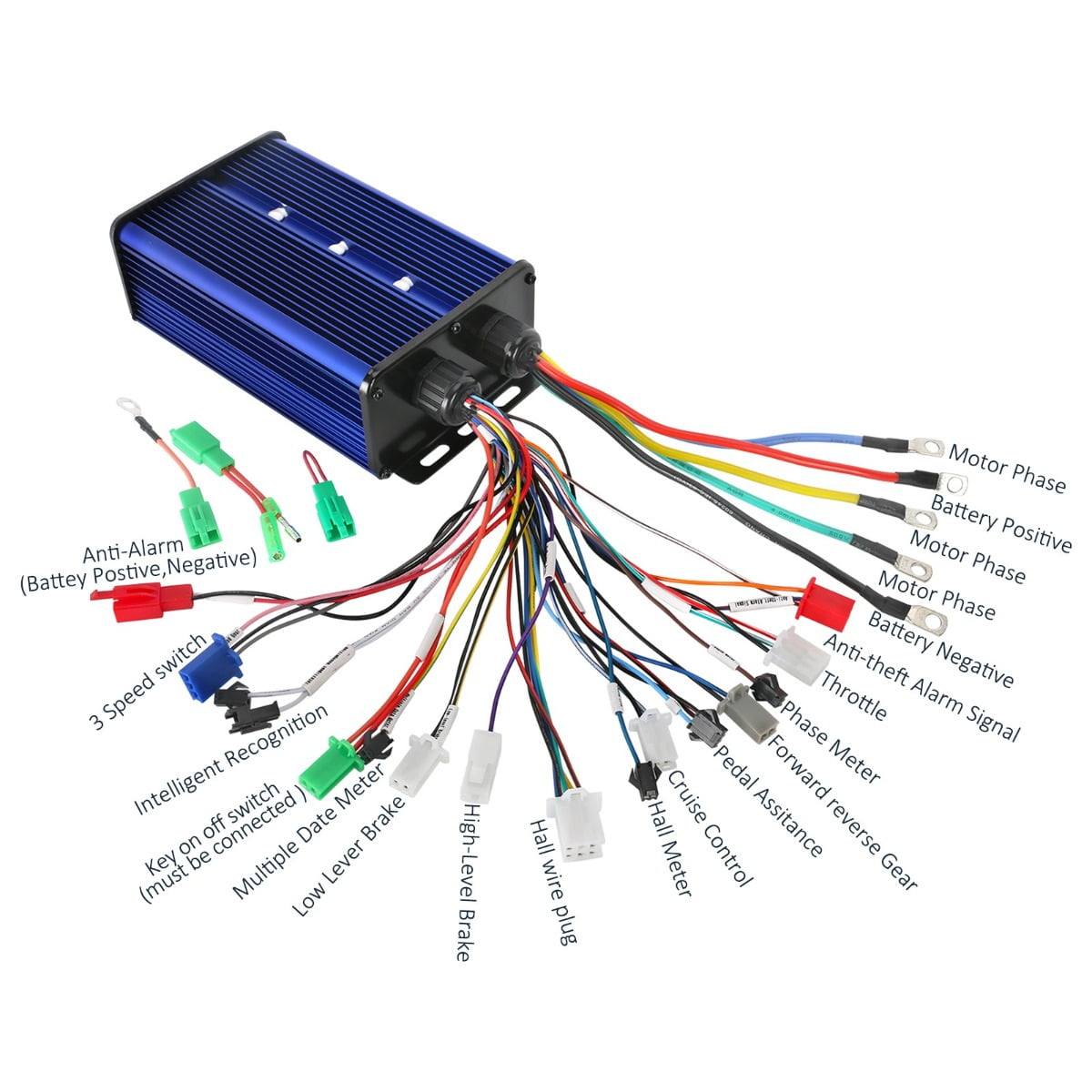

Controller:
Current: 45A-60A
Voltage: 36V/48V/52V/60V/64V/72V/84V
Phase: Automatic Identification (60°/120° both will fit)
MOS tube: 18mos (double row)
-
- It is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.
-
- Fundamental Parameters: This brushless electric motor is powerful and efficient. Model: MY1020D, Input Voltage: 72V DC, Output Power: 3000W, Rated Current: ≤ 43A, Rated Speed: 4900 RPM, Maximum Speed: 6500 RPM, Sprocket: T8F-11 Teeth, Horsepower: 4.07 HP, Rated Torque: 849.67 oz.in / 6 N.m, Maximum Current: 65A, No-load Current: ≤ 4.0A, Peak Efficiency:≥ 85%, Working Temperature: < 120 °C / 248 ℉.
-
- 【Three Speeds】The controller of this brushless motor kit has high, medium, and low three speeds, which can adapt to different speed requirements. The brushless motor does not have the electric sparks generated by the brush motor operation, so its operation is smoother and quieter.
-
- Application】This brushless motor kit is suitable for electric scooters, electric bikes, go-karts, electric bikes, electric tricycles, mid-engine kits, complete sets, DIY engine systems, bicycle accessories, etc.
-

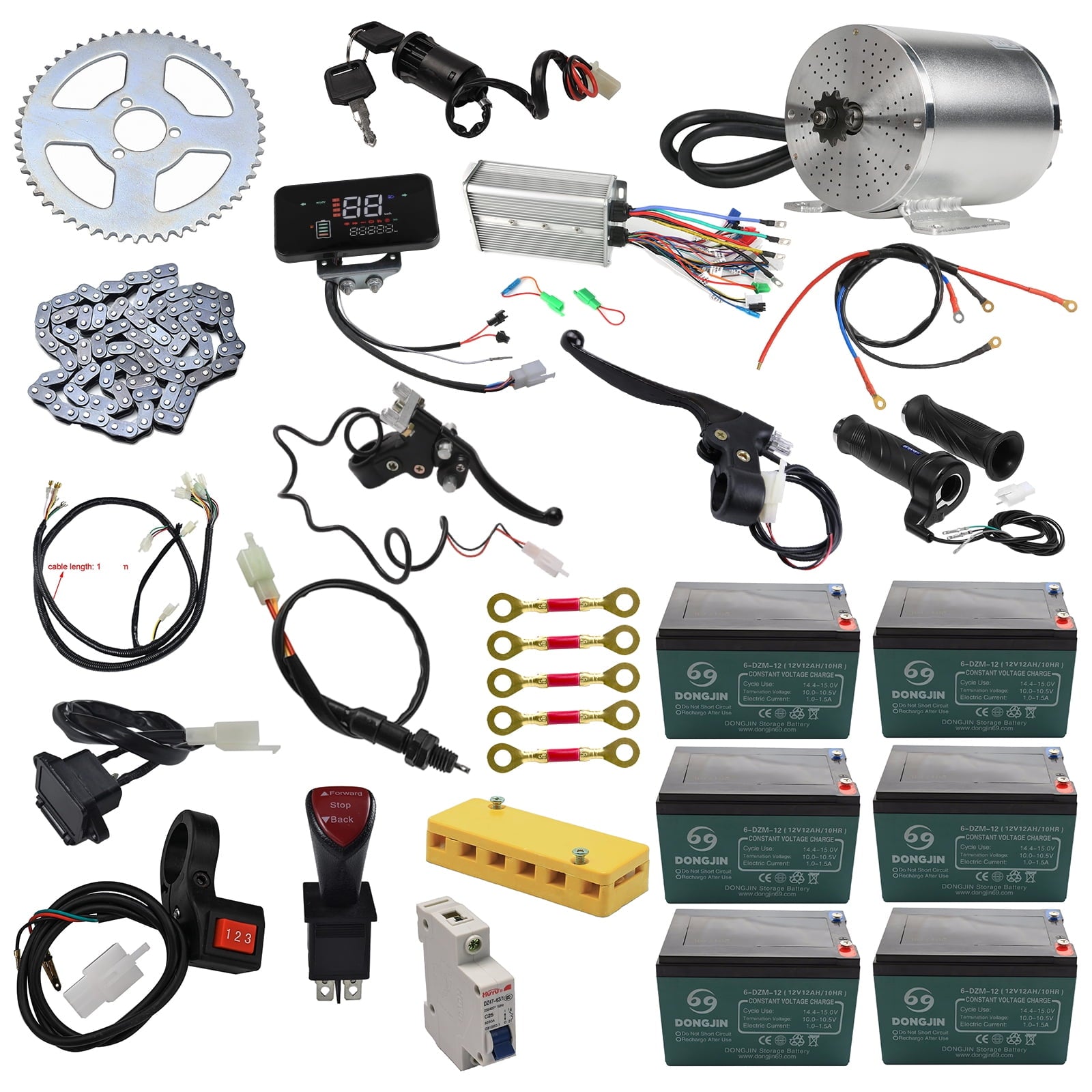

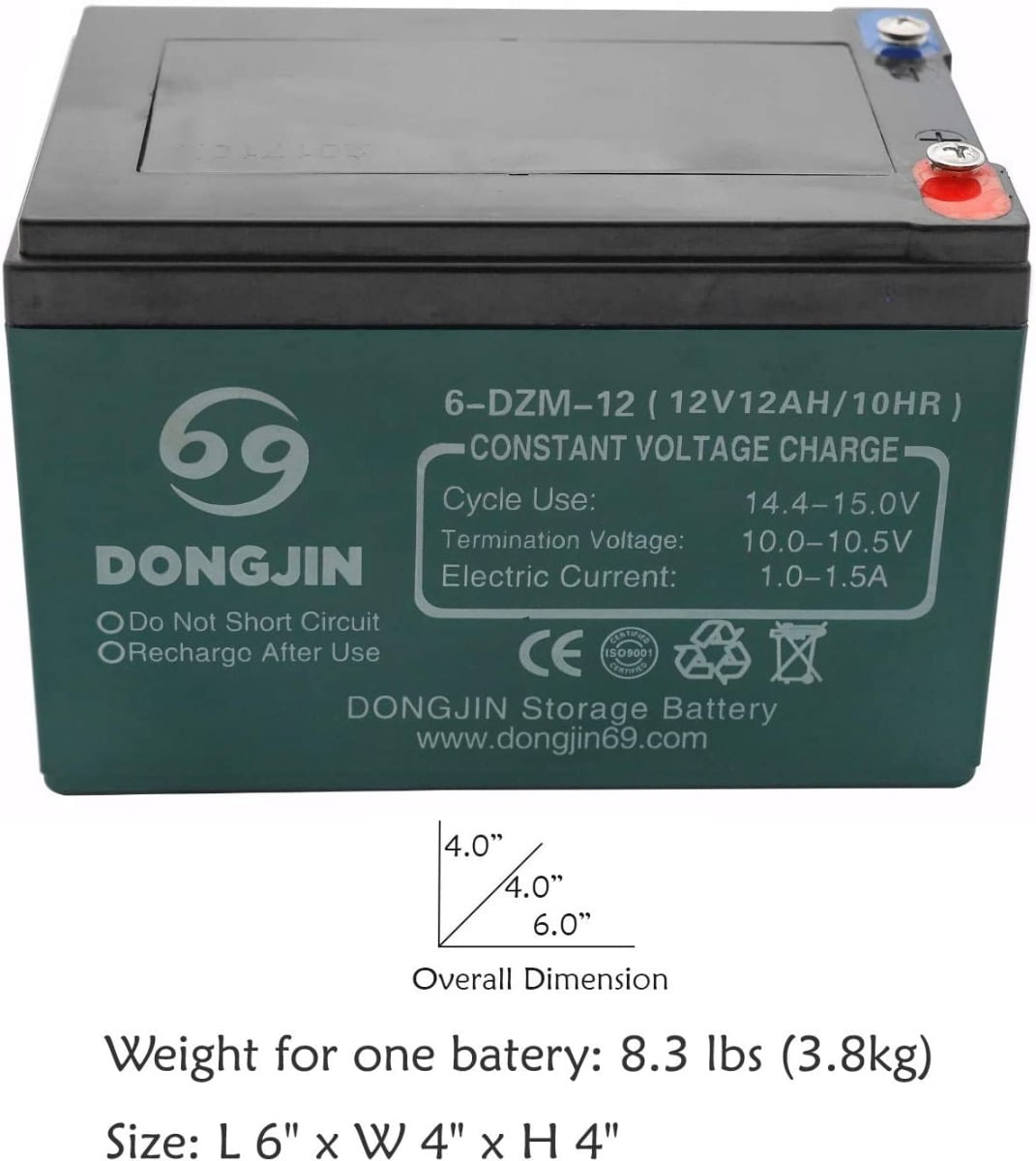

- Package includes 1x Electric Motor 1x Speed Controller 1x T8F 54T Sprocket 1x LCD Display 6x 12V 12Ah Batteries 1x 72V Battery Ch 5x Battery connecting cables 1x T8F 116 Links Chain 1x twist throttle 1x Charging Port 1x 3 speed switch 1x forward reverse switch 1x air switch 1x left and right brake levers 1x wiring harness 1x terminal block 1x key on off switch
