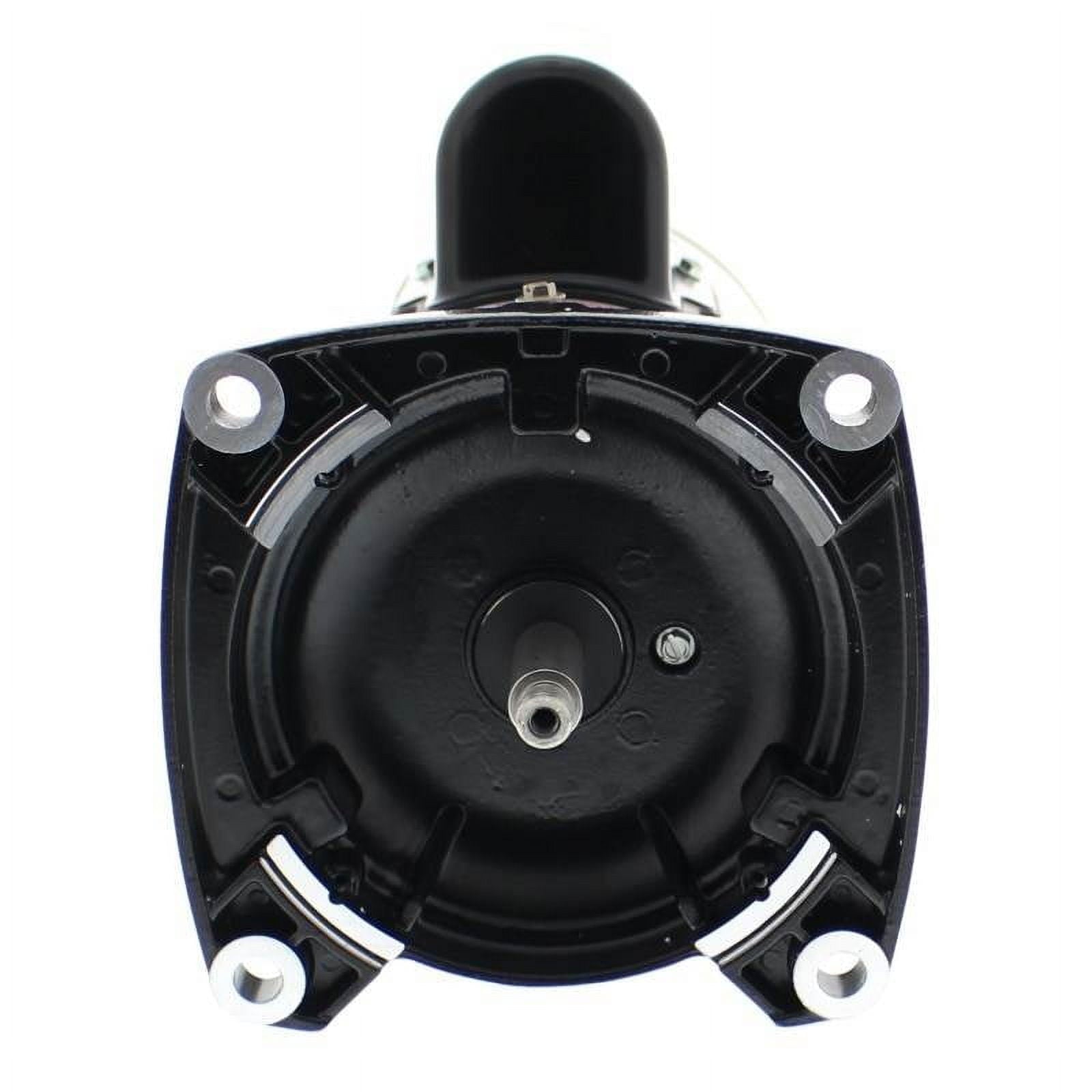

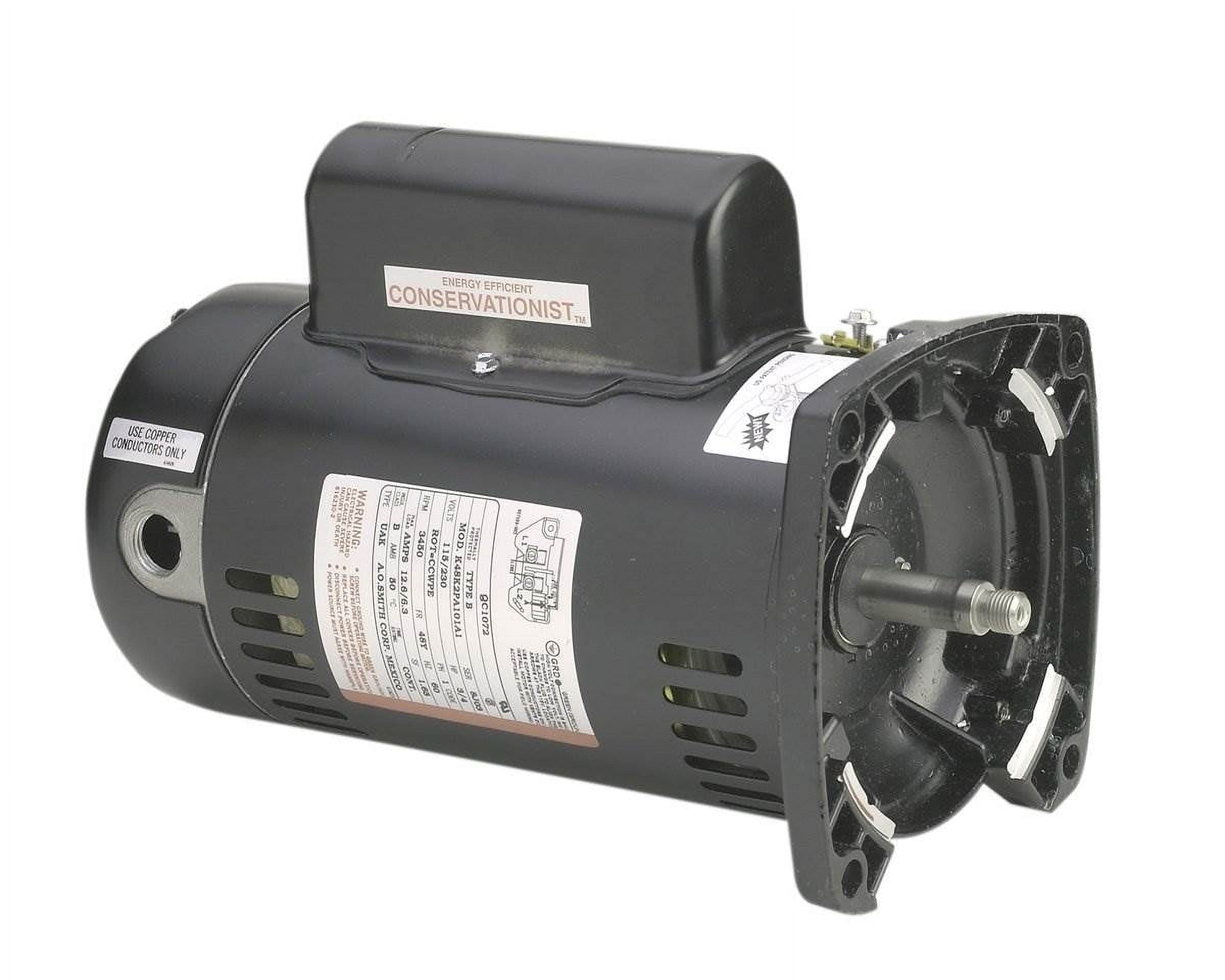

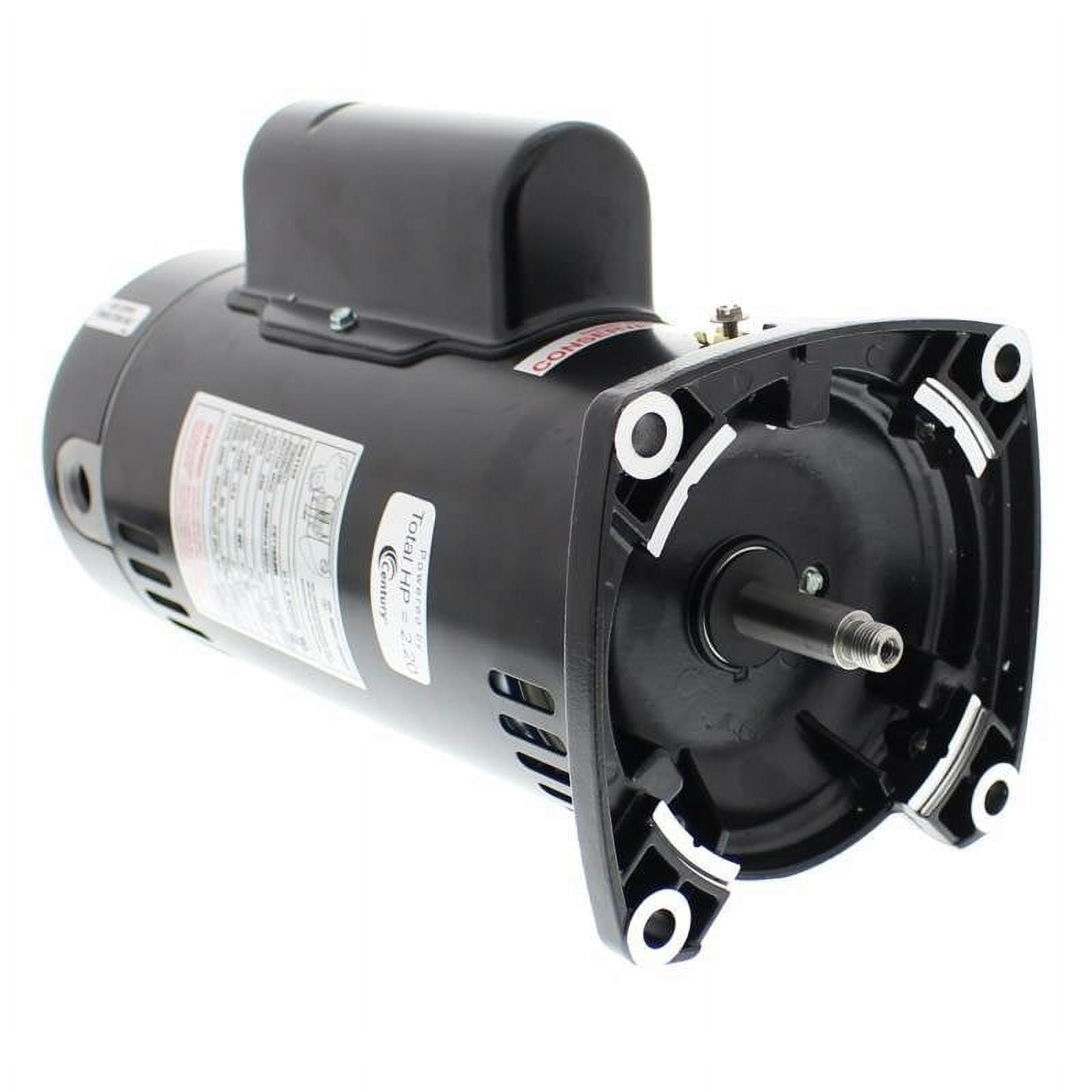

When your old pool pump motor calls it quits, have a replacement A.O. Smith 1.5-HP 3,450 RPM Single-Speed Pool Pump Motor ready to swap in so you can get back enjoying your relaxing day on the water.
This 1.5-horsepower full-rated replacement motor for above and in-ground swimming pool pumps has a threaded shaft and fits most pumps that require a 48Y frame square-flange motor. It operates on 208-230 volts and has a 3,450 RPM. The motor features a 1.47 service factor, an automatic surge protector, capacitor start, and an open drip-proof housing for cooler operation. The SQ1152 pool pump motor is compatible with pump series models like Sta-Rite Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II, Dyna-Glas, and Max-E-Pro, Hayward Max-Flow II, Pentair Whisper-Flo, Challenger, Ultra-Flow, Pinnacle, and Anthony AR2.
A.O. Smith Century offers the very best in US-manufactured electric motors. With a comprehensive line of electric motors for commercial, industrial, and residential pump and general-purpose applications, century is a highly recognized brand in the leisure water industry for its breadth of product offering, quality, and reliability.
- Full-rated 1.5-horsepower 3,450 RPM 48Y frame square-flange replacement pool pump motor
- For use with above and in-ground swimming pools
- Part Number: SQ1152
- 208-230-volt power; open drip-proof housing ensures cooler operation and extends the life of your motor
- Compatible pumps include: Sta-Rite Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II, Dyna-Glas, Max-E-Pro, Hayward Max-Flow II, Pentair Whisper-Flo, Challenger, Ultra-Flow, Pinnacle, and Anthony AR2 series
- Specifications:
- Product type: Pool pump motor
- Service factor: 1.47
- Voltage: 208-230 volts
- Horsepower: 1.5 HP
- RPM: 3,450
- Amperage: 10.4-9.8 amps
- Hertz: 60
- Surge protector: Automatic
- Start type: Capacitor
- Insulation: Class B
- Motor phase: Single-speed
- Rotation: CCW pump end
- Bearing type: Sealed ball bearings
- Max load: 208-230-volt: 10.4-9.8 amps
- Flange type: Square
- Shaft type: Threaded 303 stainless steel
- Motor frame size: 48Y
- Motor housing: Open drip-proof
- Pool type: Above-ground, in-ground
- Material: Stainless steel
- Color: Black
- Dimensions (L x W x H): 14 x 8.5 x 6.5 inches
- Weight: 30 pounds
- Manufacturer warranty: 1-year warranty
