Key Design Features
Super COP 2.69L/Kwh Through pipe drainage
Rare earth alloy Tube Evaporator · Quick Access for Service
Smallest Size
. HVAC Remote System
Additional Features
. Engineered for low temperature operation and the air flow issues that crawl spaces present
. Ducting options for divided spaces Remote Control equipped
INSTALLATION OF A Guardian SN90 WITH A SUPPLY KIT ONLY
1.Passive Return Vent
2.Remote Control(Mounts on opposite Wall in Finished Area, Energize the sensor on Remote Control)
3.Supply Grill
4.Supply/Discharge Duct Work
Place the Guardian SN90 in the unfinished area of the basement near drain access (condensate will be drained out via pump).
Connecting the Duct Tube on the Collar, supply dry air from the dehumidifier to a large and open area in the finished section of the basement.
Place a return grill/passive vent on the other side of the wall that separates the finished and unfinished areas. This will allow circular air flow to go through the basement.
• The passive grill will prevent the unfinished room from being placed under a negative reassure and also allow the dehumidifier to focus on keeping the unfinished area dry.

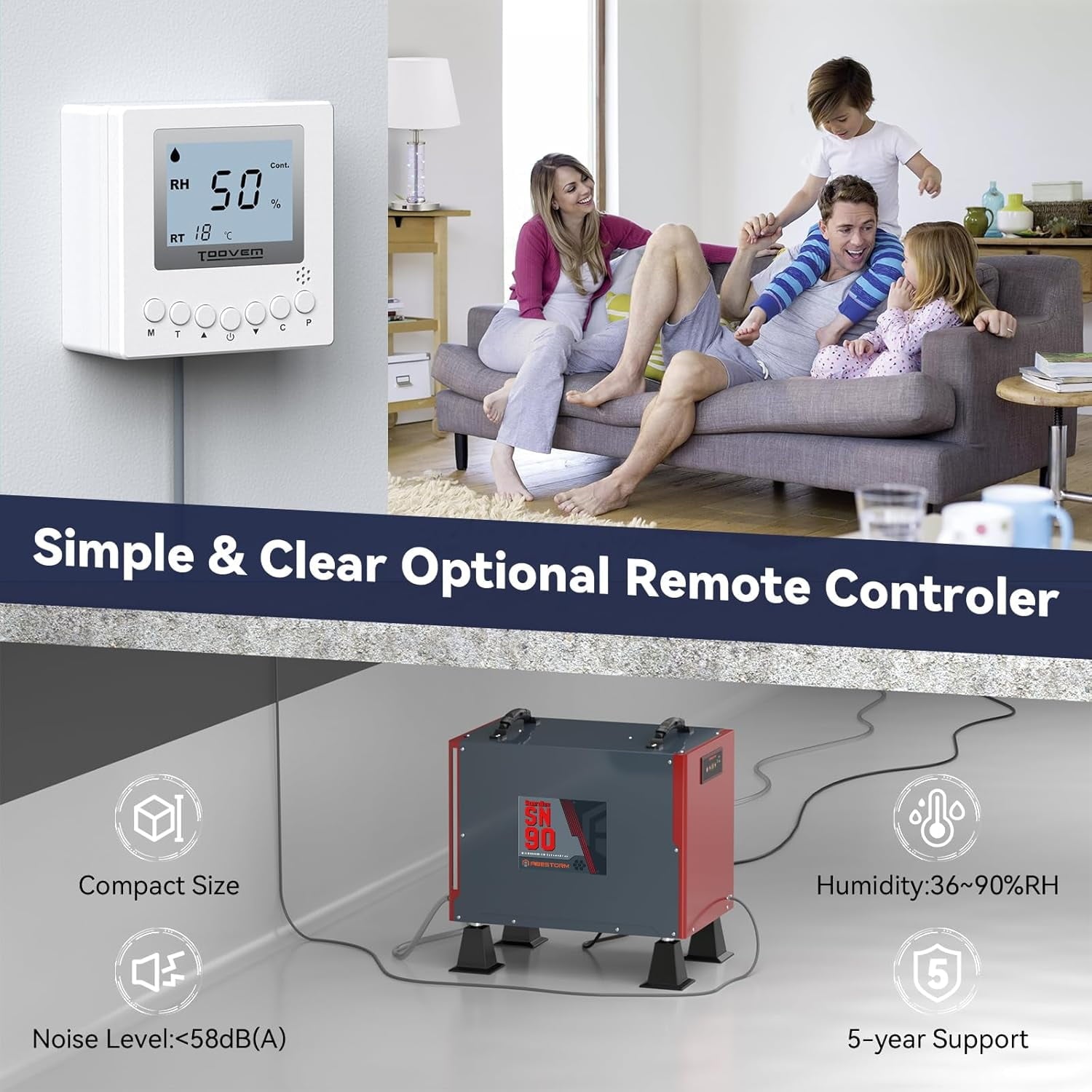

• The Remote Control can be used for the normal remote function, to insulate the noise of the unit and also can be used at the Senser Switch. You can choose the humidity sensor from the unit and Remote Control.
• Be sure to keep all doors open in the basement to help proper air circulation (bedrooms, bathrooms, etc.)
- Specification
- ①AHAM, (80°F, 60% RH)(Pints) :90 Pints
- ②Max. at saturation (90°F, 90% RH)(Pints) :198 Pints

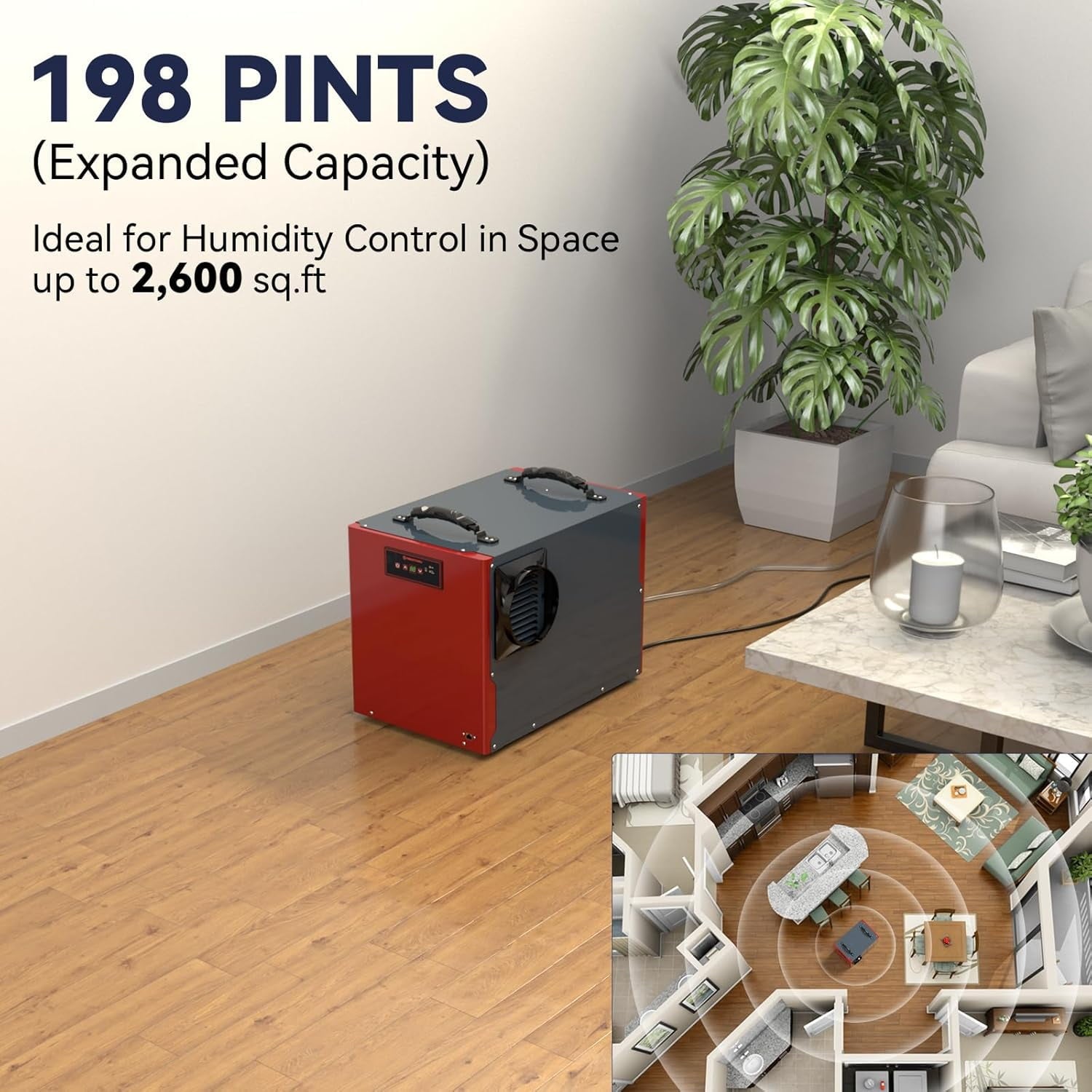

- ③Size for (Sq.Ft) :2,600 Sq.Ft
- ④Airflow :210 CFM/350 CMH
- ⑤COP :2.69 L/Kwh

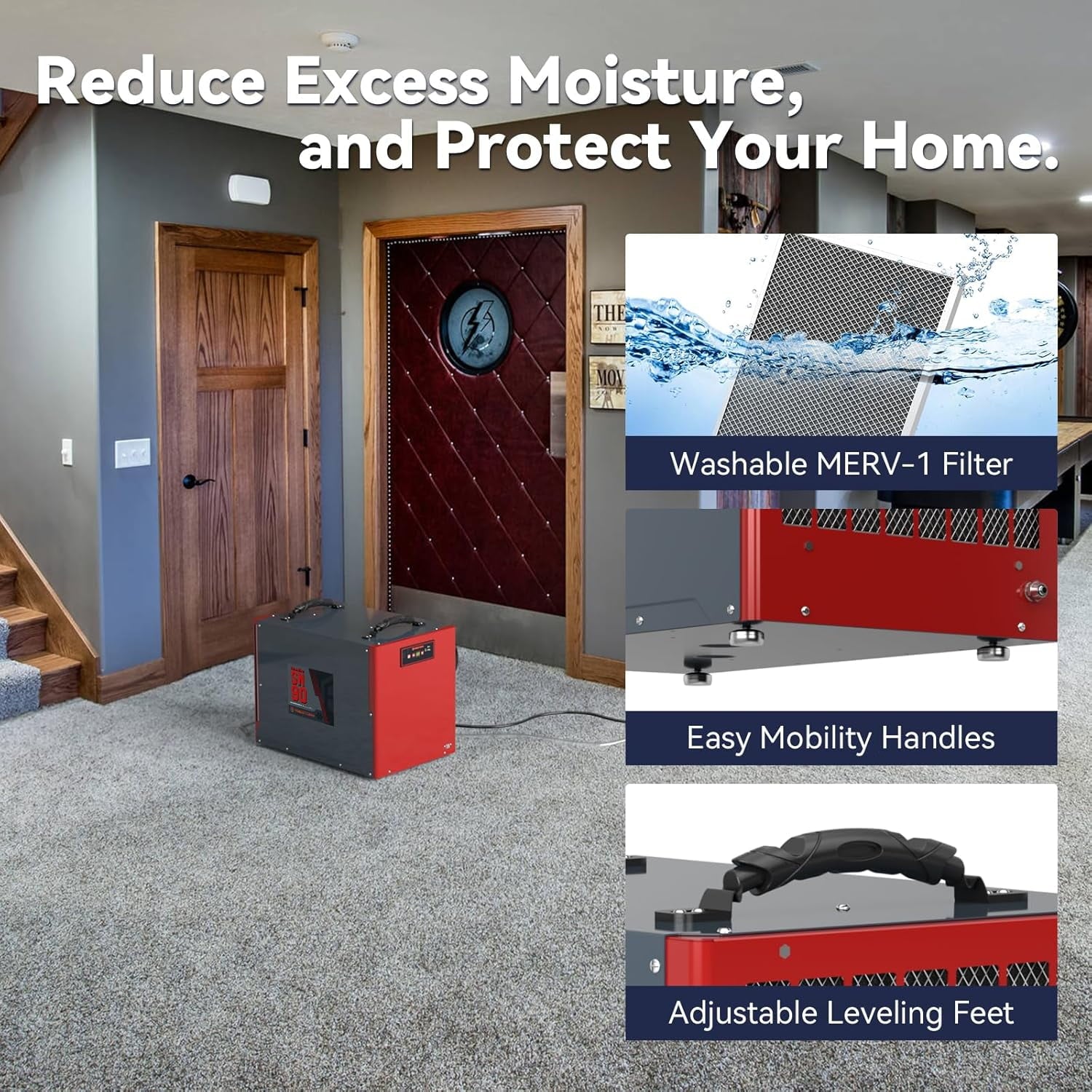

- ⑥Filter : MERV-1
- ⑦Voltage（V） :115V, 60Hz
- ⑧Power Cord(ft) :18 ft (5.5 M)
- ⑨Drain Pipe（ft） :1.3 ft (40 cm)
- ⑩Functioning Humidity Range(%) :36~90%
- ⑪Temperature Range（℉）:33.8~104 ℉
- ⑫Sound Pressure Level(dBa) :58 dBA
- This Dehumidifier offers humidity control ranging from 40% to 80%, allowing you to create the ideal indoor environment. With its energy-efficient design, it not only lowers your operating costs but also minimizes your carbon footprint. Make a conscious choice to reduce your energy bill while positively impacting the environment.

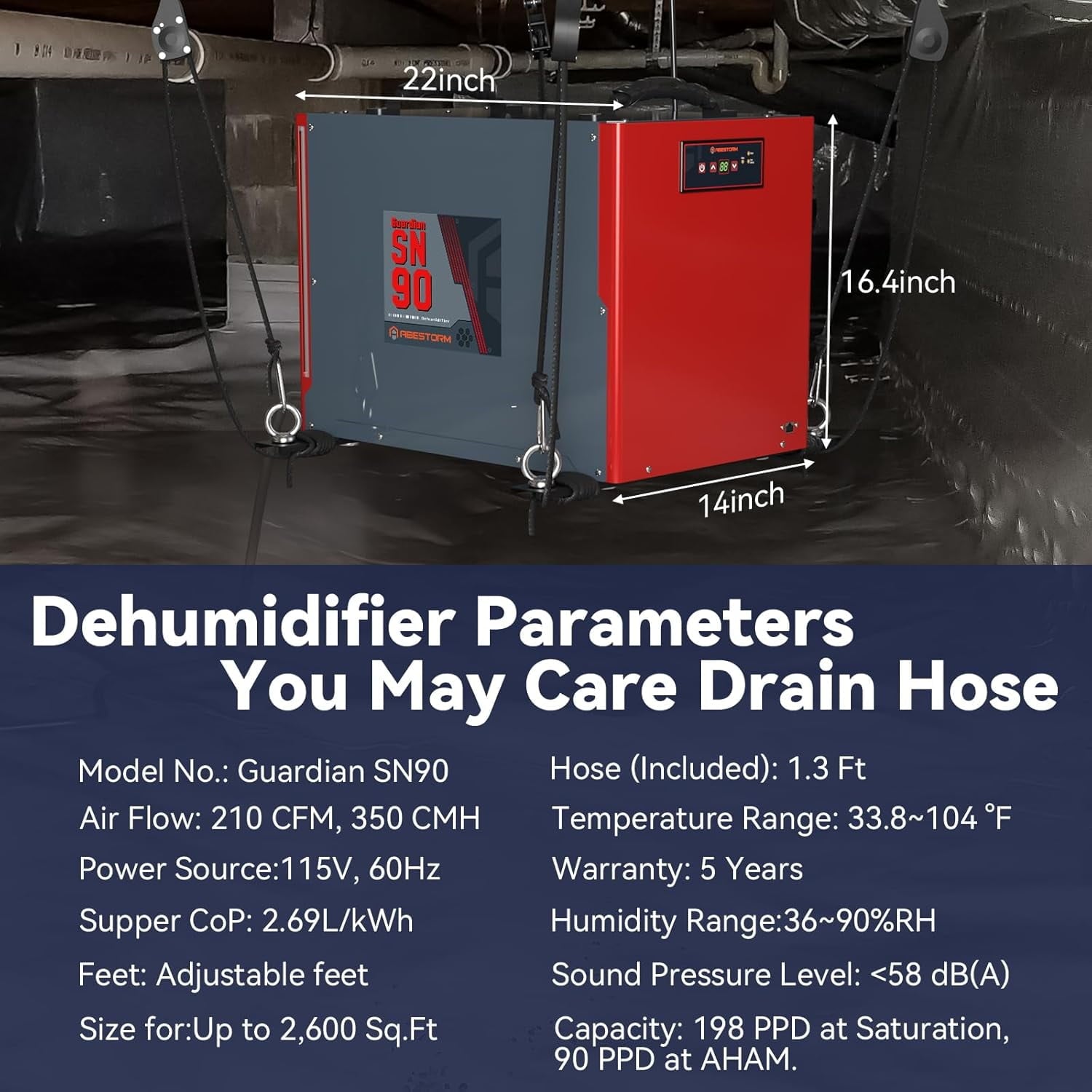

- This crawl spaces dehumidifier measures 22″x16.4″x14″ (LWH), making it a perfect fit for crawl spaces, basements, and spaces between floor joists. It also comes with an optional remote control, enabling you to operate and monitor the dehumidifier remotely without the need to go up and down stairs. Furthermore, for enhanced convenience, we’ve included a robust handle design that facilitates easy mobility.
- This heavy-duty dehumidifier features memory restart, auto operation, auto defrost, and optional remote control, ensuring efficient operation even at low temperatures (down to 36 degrees Fahrenheit) to prevent water freezing and potential damage to the machine. With a metal outer casing that is both anti-collision and anti-corrosion, this commercial/industrial dehumidifier ensures long-term use, easy maintenance, and reliable performance.
