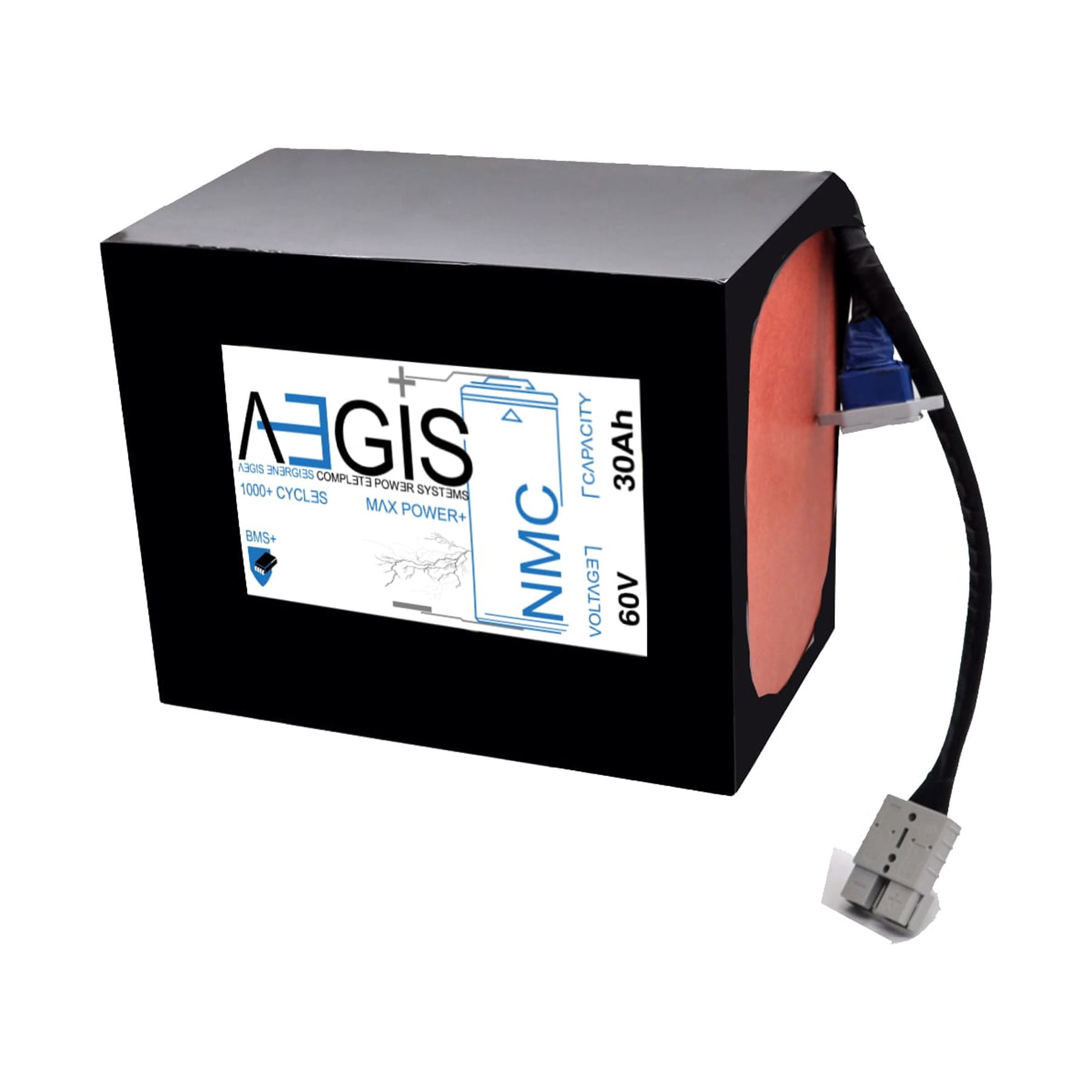

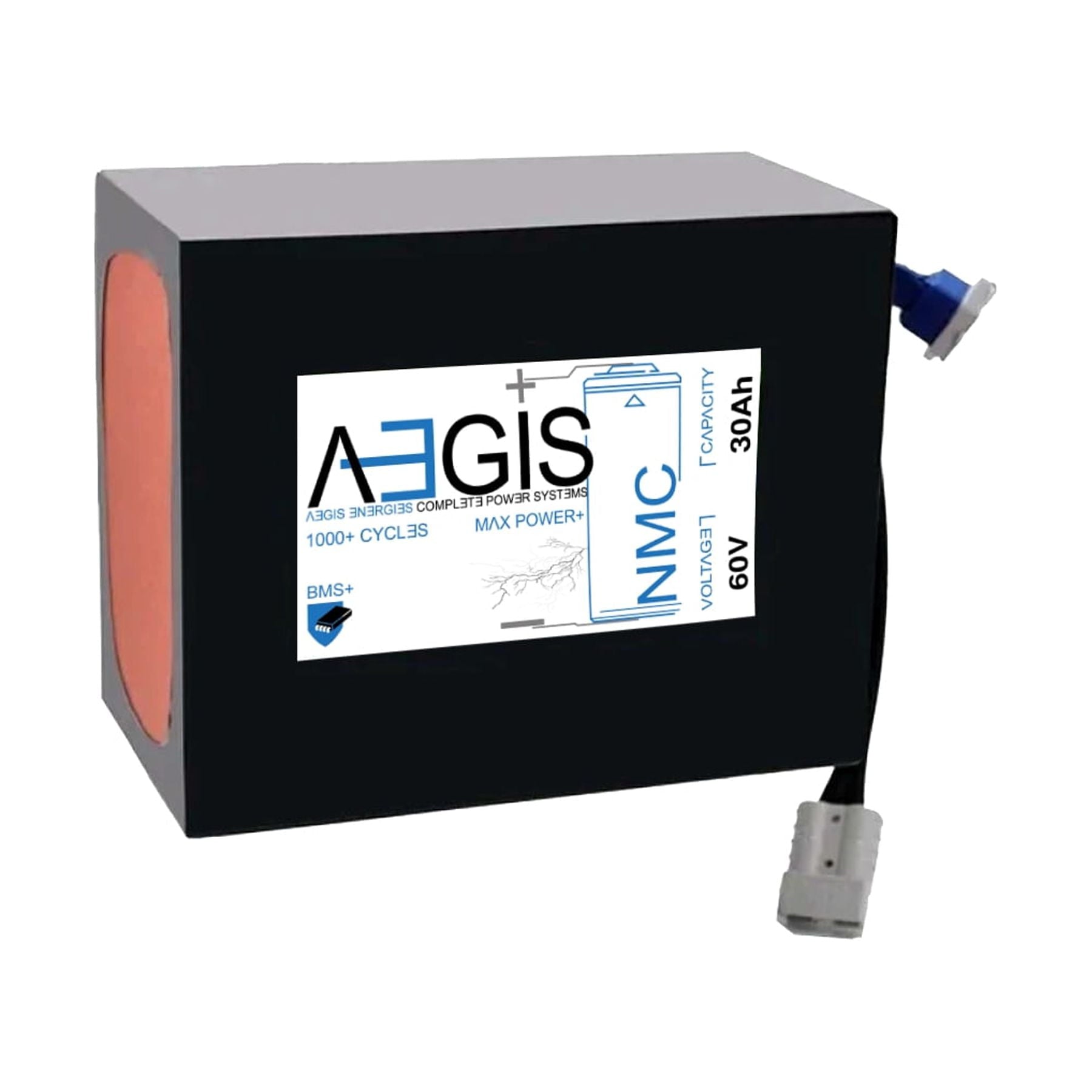

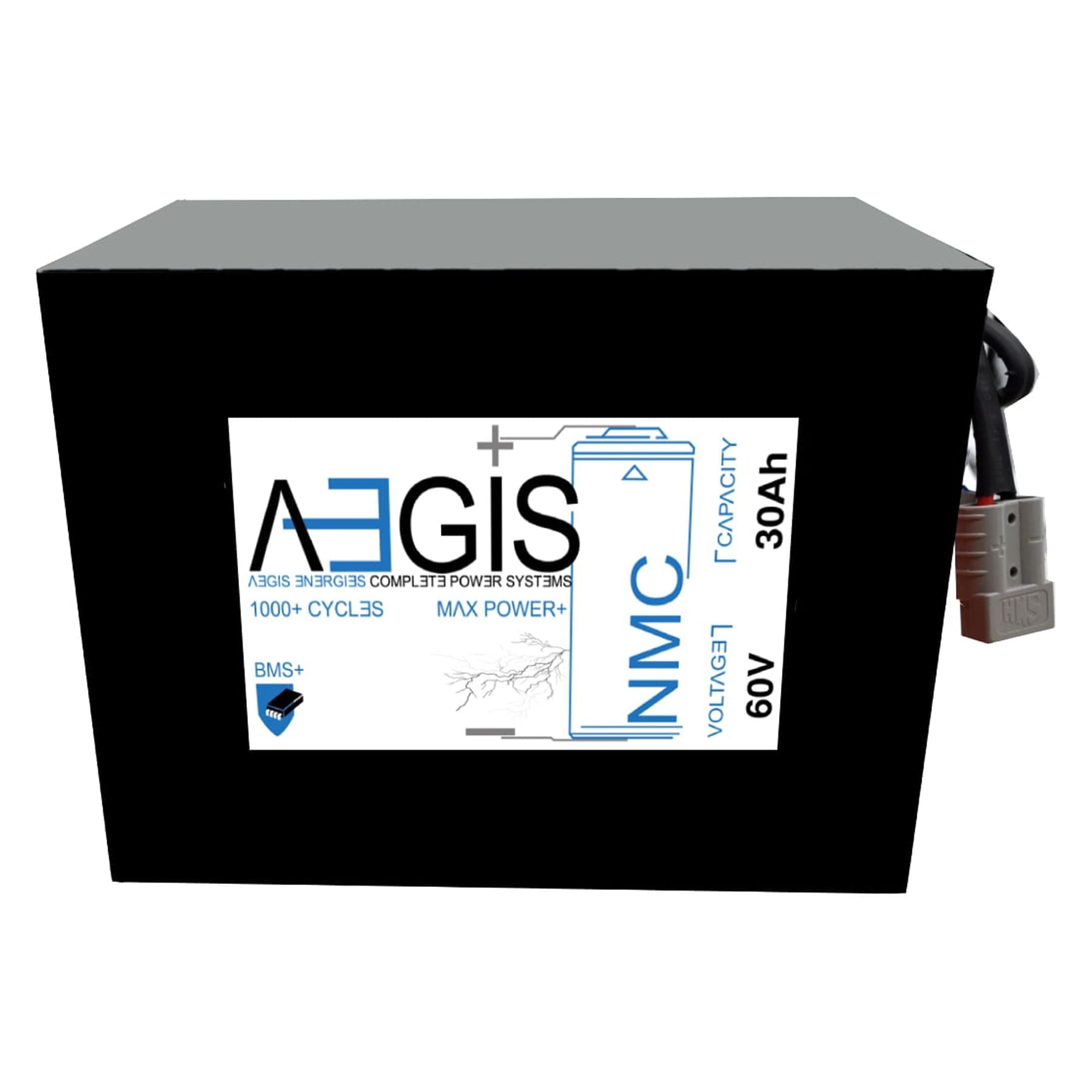

The Aegis 60V 30Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 60V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery.
The battery comes with an integrated Anderson Power Pole PP45 and SB50 connector making it a perfect drop in solution for your applications. It contains a built in battery management system (BMS) that keeps the cells running at peak performance and protects the them for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.
- Aegis Battery NMC Advantage:
- Advanced NMC (Nickel Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
- All-Aspect Solution with best overall balance of features with high specific energy (150-220Wh/kg)
- Ideally Suited for EV and High Energy Power Consumption Applications
- Excellent Lifespan (1000-2000 Cycles Average)
- US Warranty & US Support
- Specifications:
- Model: ABL-060030P
- Battery Case: PVC Pack
- Battery Chemistry: NMC (Nickel Manganese Cobalt) Lithium
- Cell Type/Assembly Method: 18650 Cylindrical cells / welded
- Voltage (V): 60V
- Capacity (Ah): 30Ah
- Energy Stored (Wh): 1800 Watt-Hours
- Weight: 23.3 lbs (10.6 kg)
- Dimension (L x W x H): 16.9in x 5.7in x 7.9in (+/-0.1in)

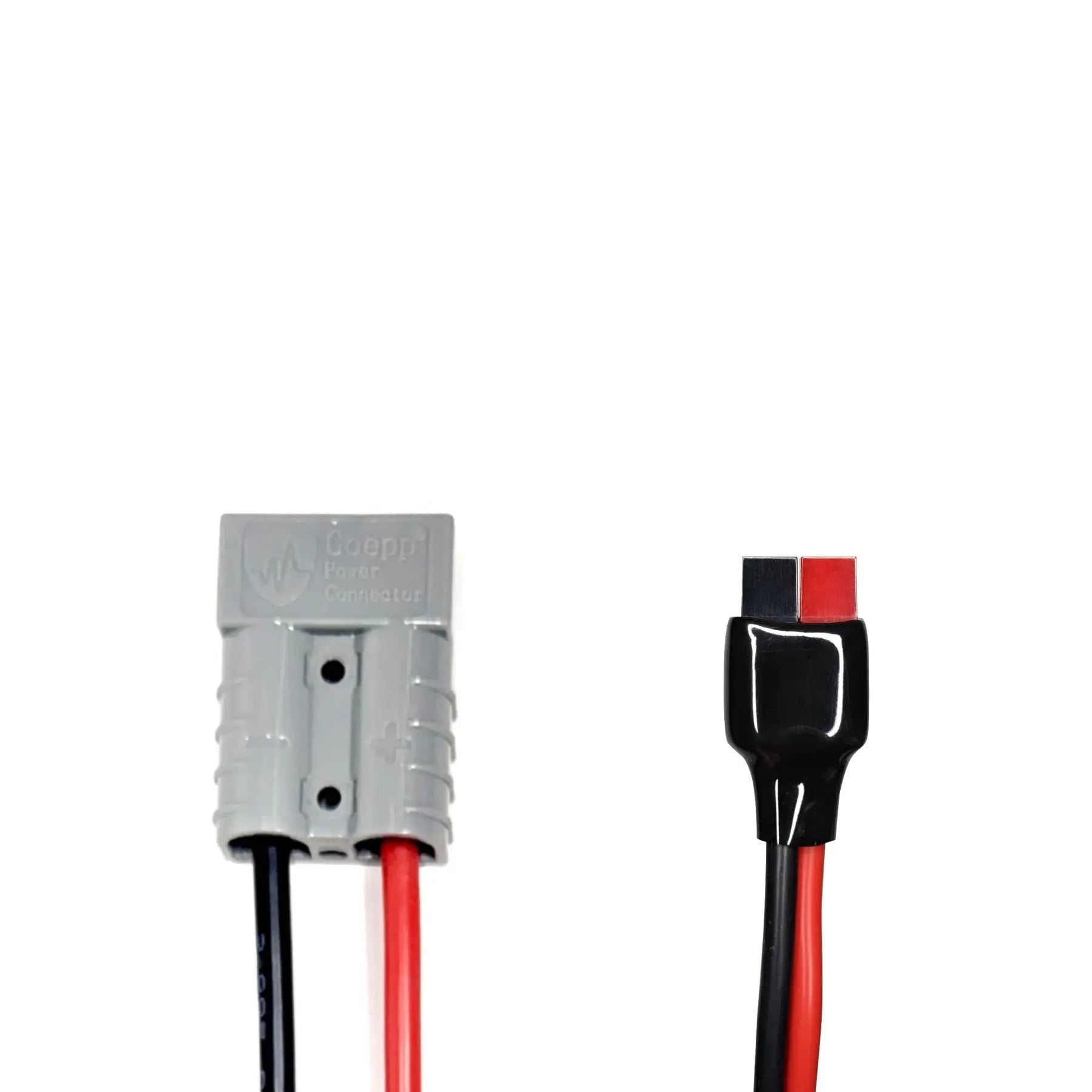

- Discharge Connector: SB50
- Charge Connector: Anderson PP45
- Cycle Life: 1000+ cycles
- Normal Charged Voltage: 71.4V
- Normal Charge Current: 5.0 Amps
- Nominal Continuous Discharge Current: 25.0 Amps
- Maximum Continuous Discharge Current: 30.0 Amps
- Maximum Peak Discharge Current: 60.0 Amps
- Charge Temperature: 0°C to 45°C
- Discharge Temperature: -20°C to 60°C
- Operating Humidity: 60±25%R.H
- Storage Humidity: 60±25%R.H
- Automatic Battery Protection Module/System: Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
- Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.
- Compatible AC-to-DC Charger Specifications:
- Input Voltage: AC110V-240V, 50/60HZ
- Output Voltage: 71.4VDC
- Current: 5A
- Compatible Charger Model Number: CRG-06005P
- Intelligent Technology:
- Advanced Lithium Battery Management System (BMS) Board
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against overcharge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life
- Comprehensive Improvement:
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity and lifespan of Lead Acid
