You need a forklift to unload this machine，if you don’t have a forklift, rent one or choose the place with the loading dock.
You can pick it up at the Freight near your place, and use a trailer to ship to your working place !
Fully assembled

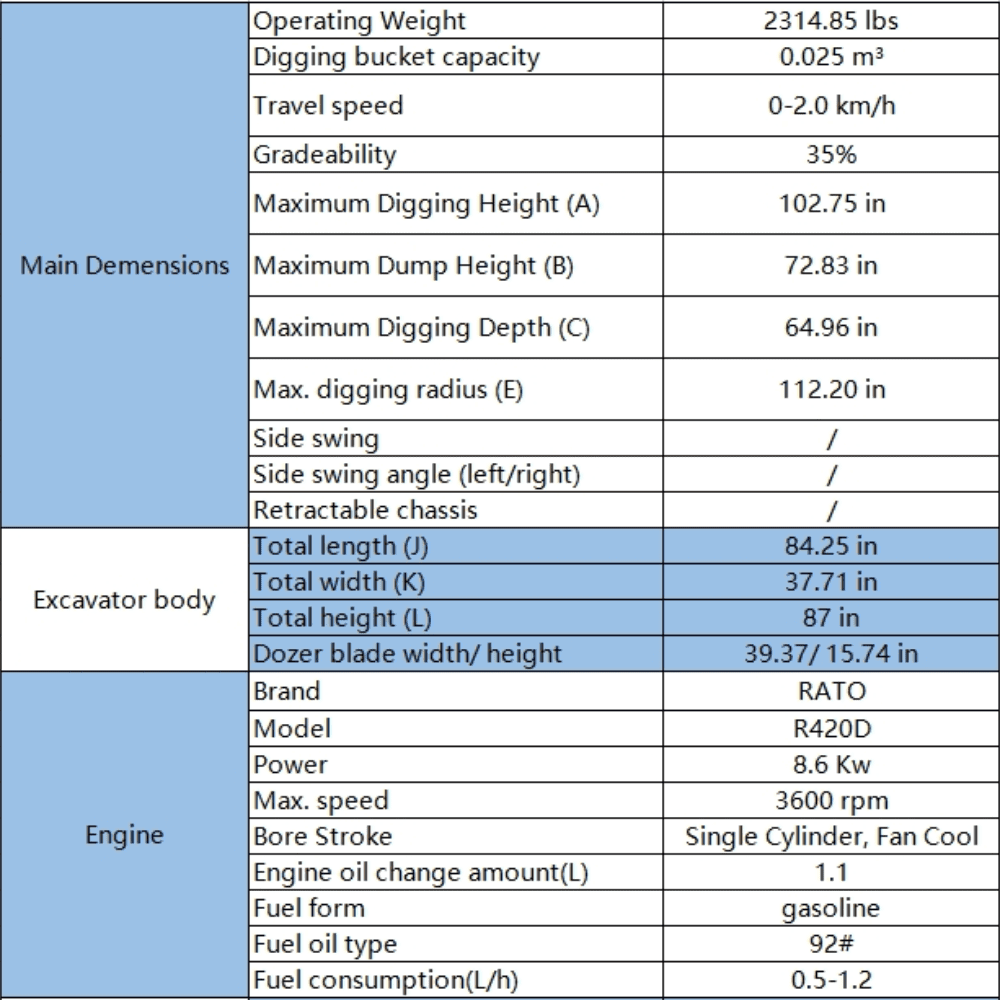

Technical Data:
Operation Weight: 1 Ton
Engine: RATO Gasoline
Horse Power: 13.5
Max Angle: 35 Degree
Specific Data:
Bucket Capacity: 0.88 cubic feet
Fuel Grade: 92#
Fuel Type: Gasoline
Engine Oil Change: 1.1 quarts
Fuel Consumption: 0.5-1.2 quarts/hour
Traveling Speed: 0-1.24 mph

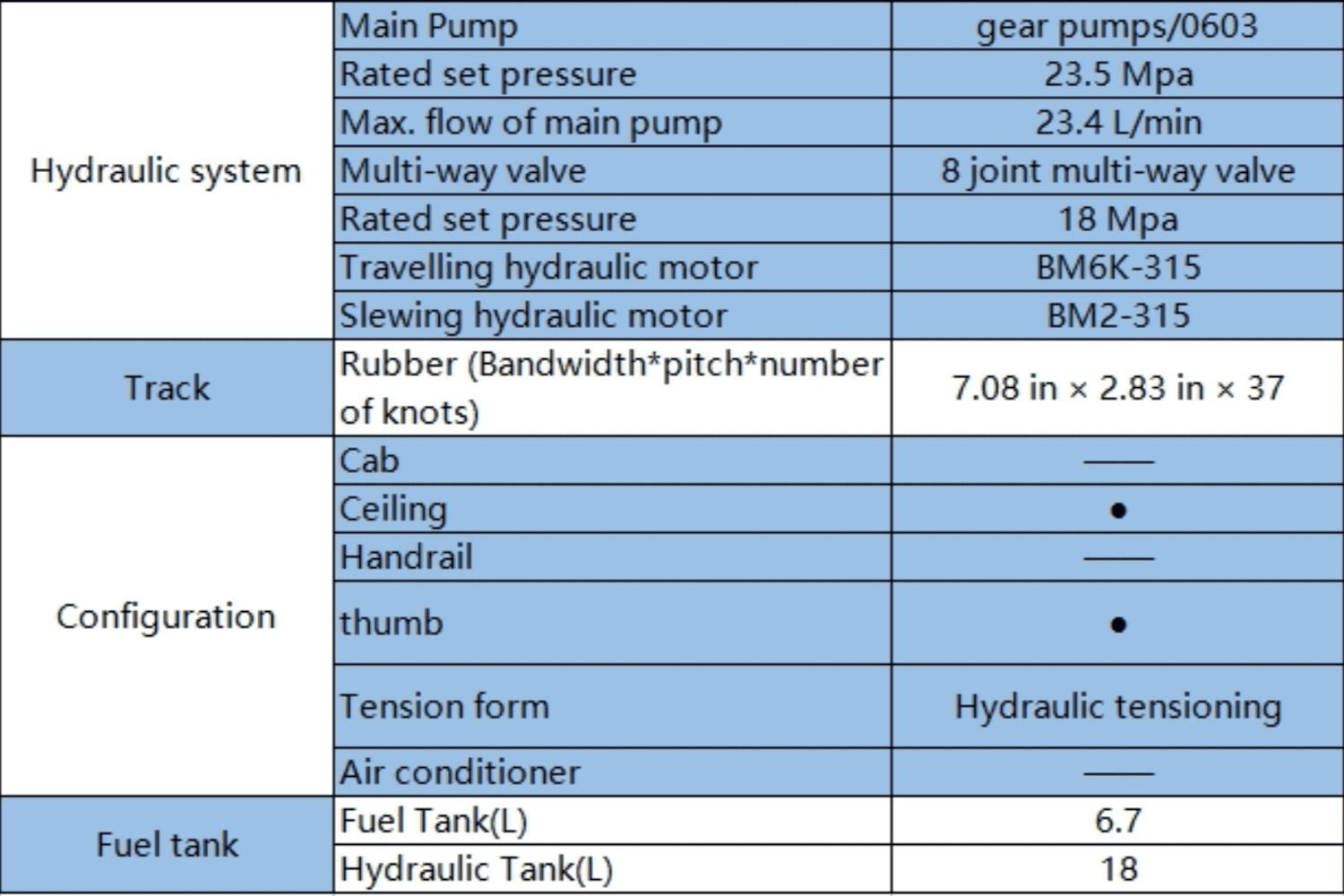

Hydraulic System:
Pressure (Travel/Slewing): 23.5/18 psi
Motor Types: BM6K-315 (Travel), BM2-315 (Slewing)
Tank Capacity: Fuel – 1.77 gallons, Hydraulic Oil – 4.76 gallons
Main Pump Flow Rate: 8-12 gallons/minute

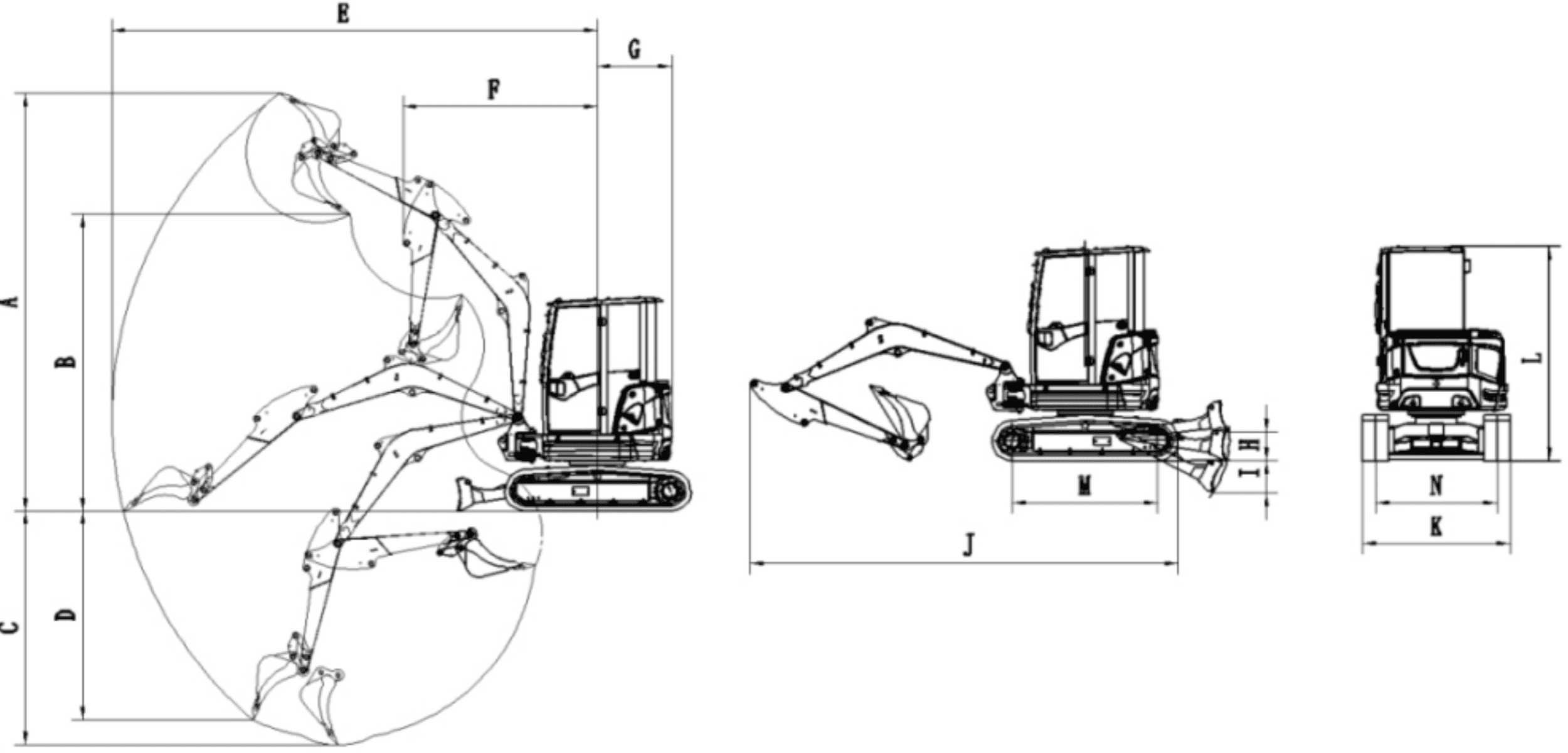

Operating Parameters:
Max Digging Height: 102.76 inches
Max Unloading Height: 72.83 inches
Max Digging Depth: 65 inches
Max Digging Radius: 112.2 inches
Overall Length: 84.25 inches
Overall Width: 39.37 inches

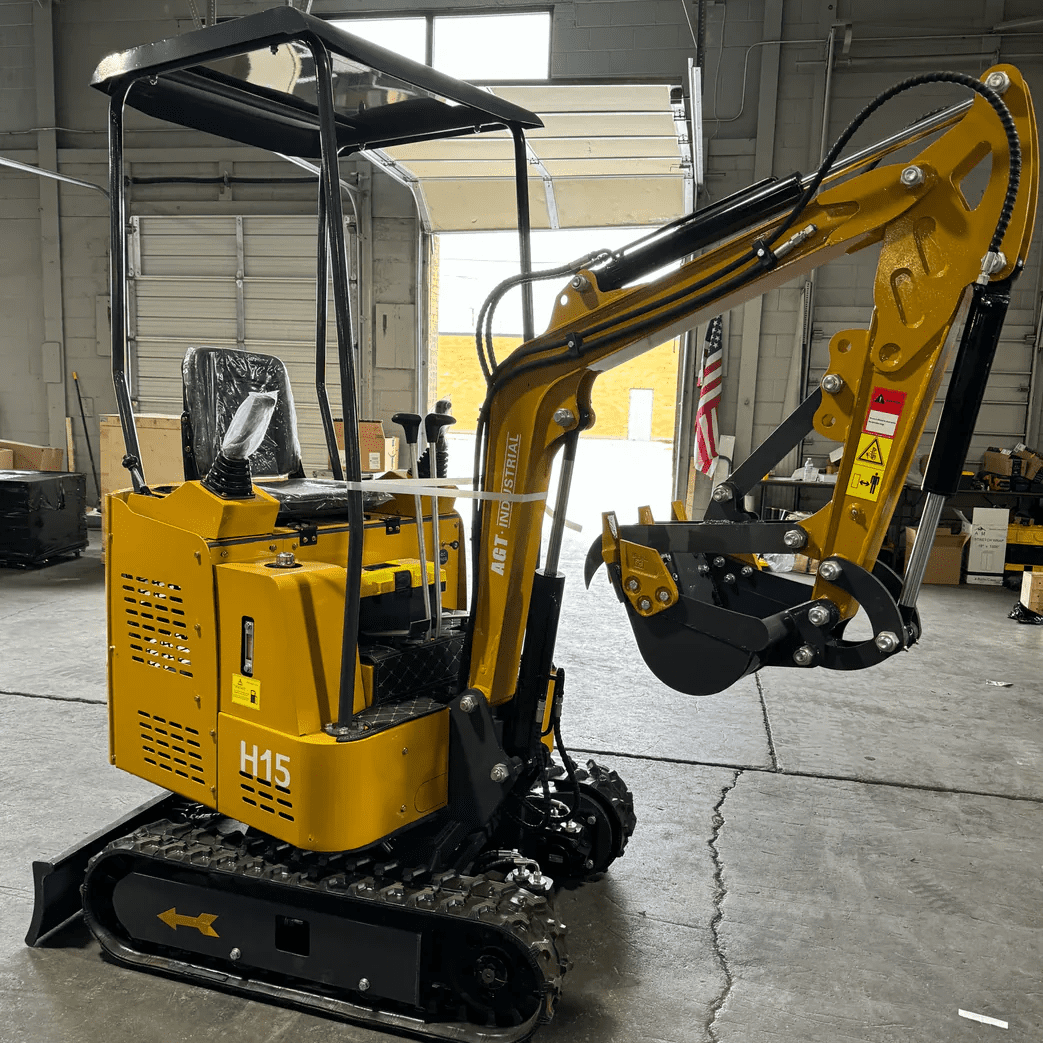

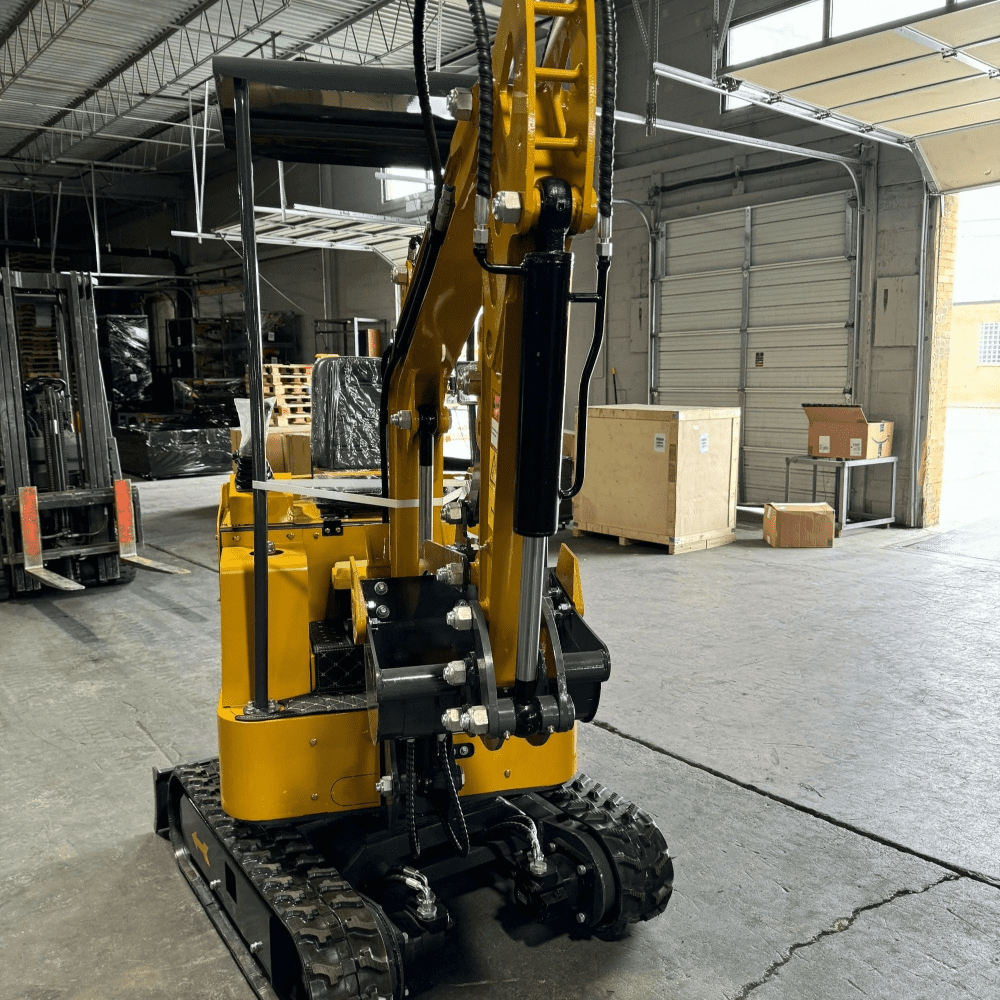

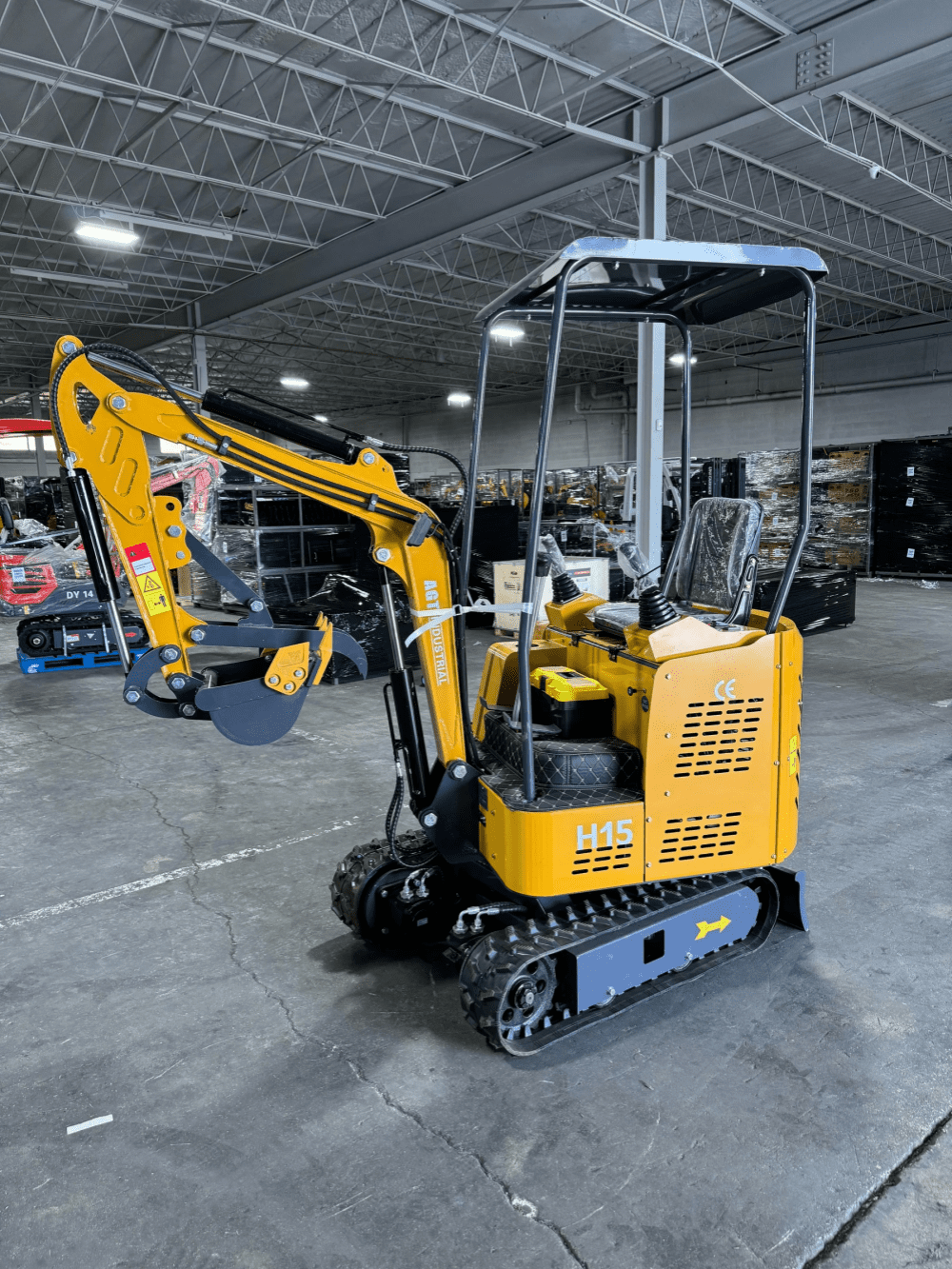

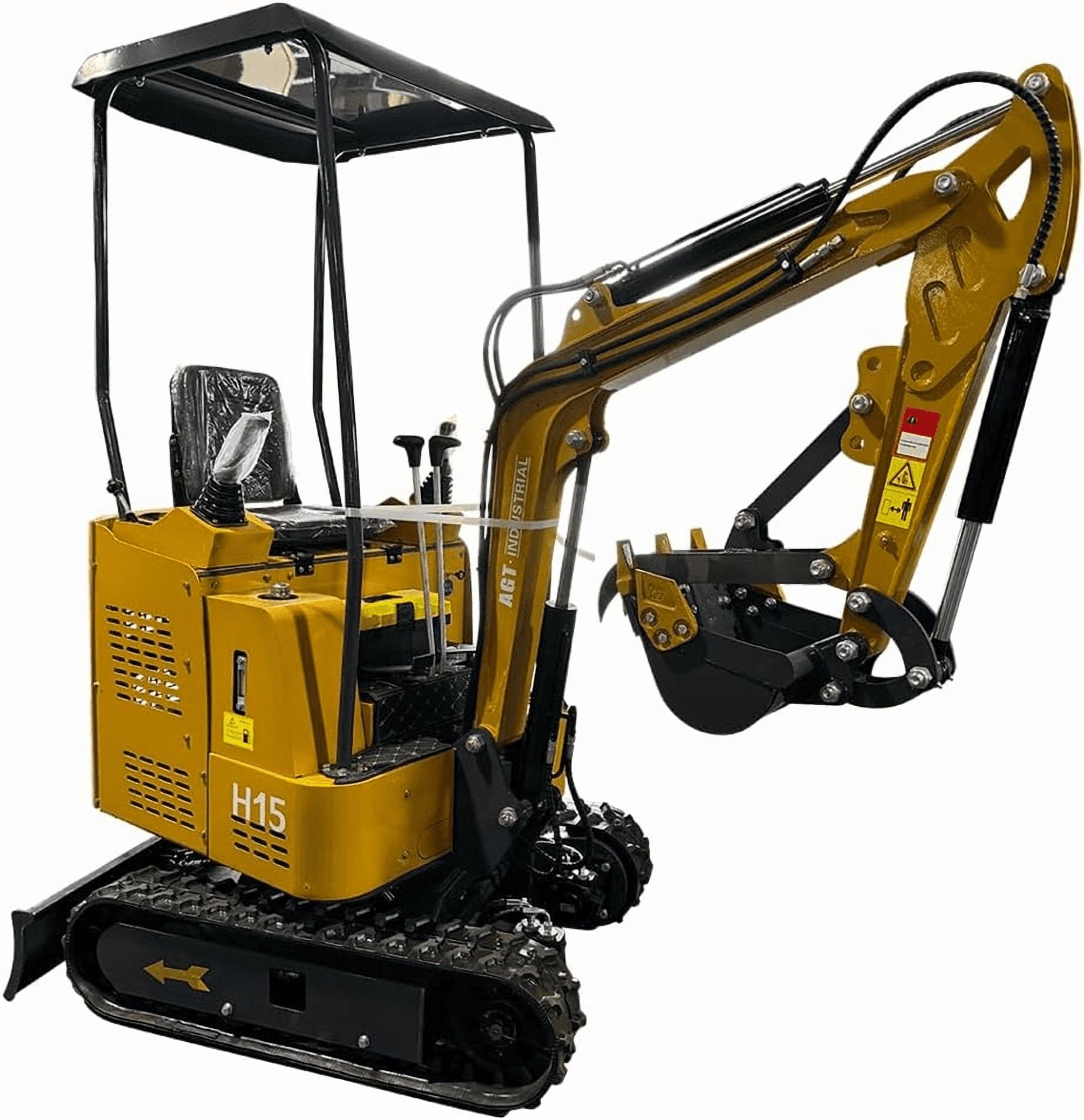

- The AGT-H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1-ton design and a maximum digging depth of 5.41 feet.
- Ideal for tight spaces like gardens, parks, and orchards, it combines maneuverability with enhanced safety features, including internal hydraulic hoses and rear-opening compartments for easy maintenance.
- Excavators are provided with excavating, crushing, ditch cleaning, drilling and bulldozing, with their attachments quick hitched and thus its utilization up greatly. In addition, they are easy to operate and transport and flexible to work at narrow site.
- Provide one-year warranty. After warranty, as the manufacturer, we can provide all parts with this machine.
