The AIMS Power 24 VDC to 12 VDC step down converter product line is non-isolated and should be used in negative ground systems (input and output have a common negative). These converters are extremely efficient, compact and include all safety features.
The step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 5-60 Amps depending on model. The AIMS power converters have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007 certifications.
-

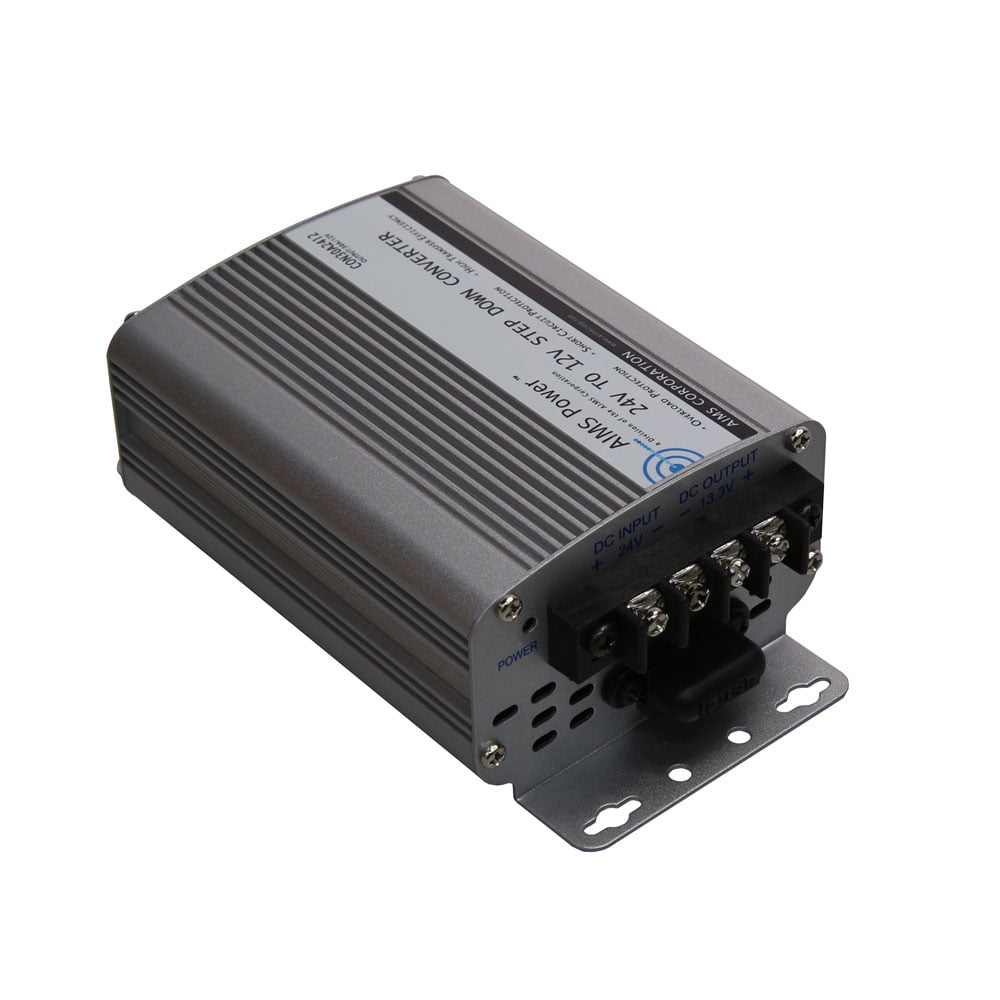

30A 24 TO 12VDC Converter, CE Listed:- 30A 24 to 12VDC
- Aluminum casing
- Converter
- CE listed step down converter
-
-
30A 24 TO 12VDC Converter, CE Listed:- 30A 24 to 12VDC
- Aluminum casing
- Converter
- CE listed step down converter
-
- 30 Amp 24 volt to 12 volt dc to dc converter
- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Aluminum case for optimal cooling
- Instruction manual
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
-
