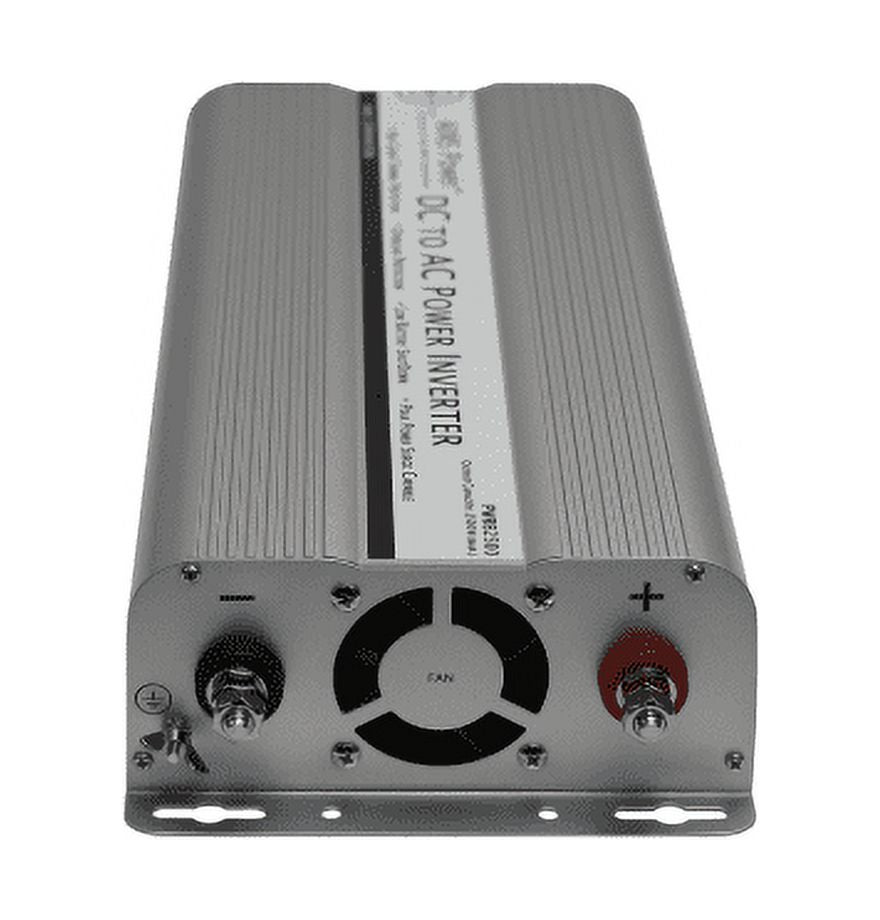

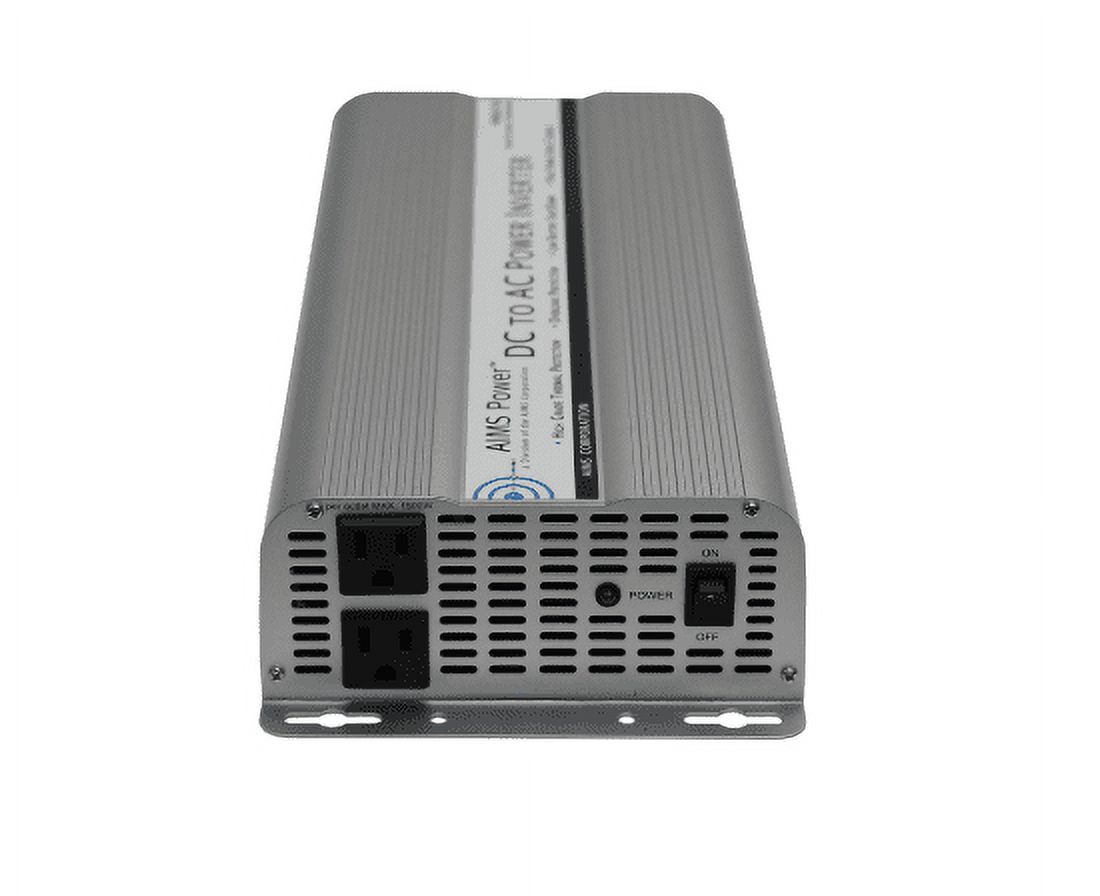

The AIMS Power 2500 watt modified sine power inverter is a great option for mobile and off grid power. With its sturdy design, this inverter does well with any device that has a hard start. By that, we mean the tool or appliance has a very sudden in rush current draw. Other DC to AC inverters might shut down during this in rush stage; not because of the lack of power, but because the in rush might mimic a short and shut the inverter down. This is not a problem with the AIMS 2500 watt inverter. With this inverter, you get a very strong and virtually bullet proof work horse. The inverter can handle power tools, small air compressors, and even some air conditioners (depending on the running load and in rush current). Although the inverter does not show battery condition or output wattage, most inverter users will not need these features due to inverter location as the visibility to the inverter could be limited. Also, the cooling fans will run continuously at a low speed; this will keep the inverter cool under all conditions. The 12 volt input from a DC source makes this inverter very versatile to work in virtually any application. From mobile work trucks and vans to mobile auto repair and detailing, the AIMS 2500 Watt power inverter is a great economical, easy to use choice for your mobile power needs.
-
-
Features:
- 2500 Watt max continuous power
- Modified sine wave
- Overtemperature protection
- Overload protection
- Dual AC receptacle that can be split with a separate splitter if extra outlets are needed
- On/off switch
- Convenient always on dual cooling fan operation
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Battery terminals are designed to conduct more current therefore, requiring only one set of cables.
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year warranty parts and labor
-
-
Specifications:
- Continuous output power: 2500 Watt
- Use 200 amp inline fuse
- Surge power capability (peak power): 5000 Watt
- DC input / operating voltage: 10 to 15 V
- Output voltage: 120 VAC +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 10.5 +/- 0.5 V
- Battery low voltage shutdown: 10.0 +/- 0.5 V
- AC amps: 21
- DC amps: 208
- No load current: 2.5 amps with switch in the on position (because fans are always on) See PWRINV2500 if you don’t want always on fans.
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: 5° F
- Full load maximum operating temperature: 130 +/- 10 ° F (automatic shutdown)
- AC output socket type: dual type 2 -3 prong
- High input voltage protection: 15V-17V
- Low input voltage shutdown: 10V
- Internal fuse protection
- UL maximum recommended per outlet 1500 watts
