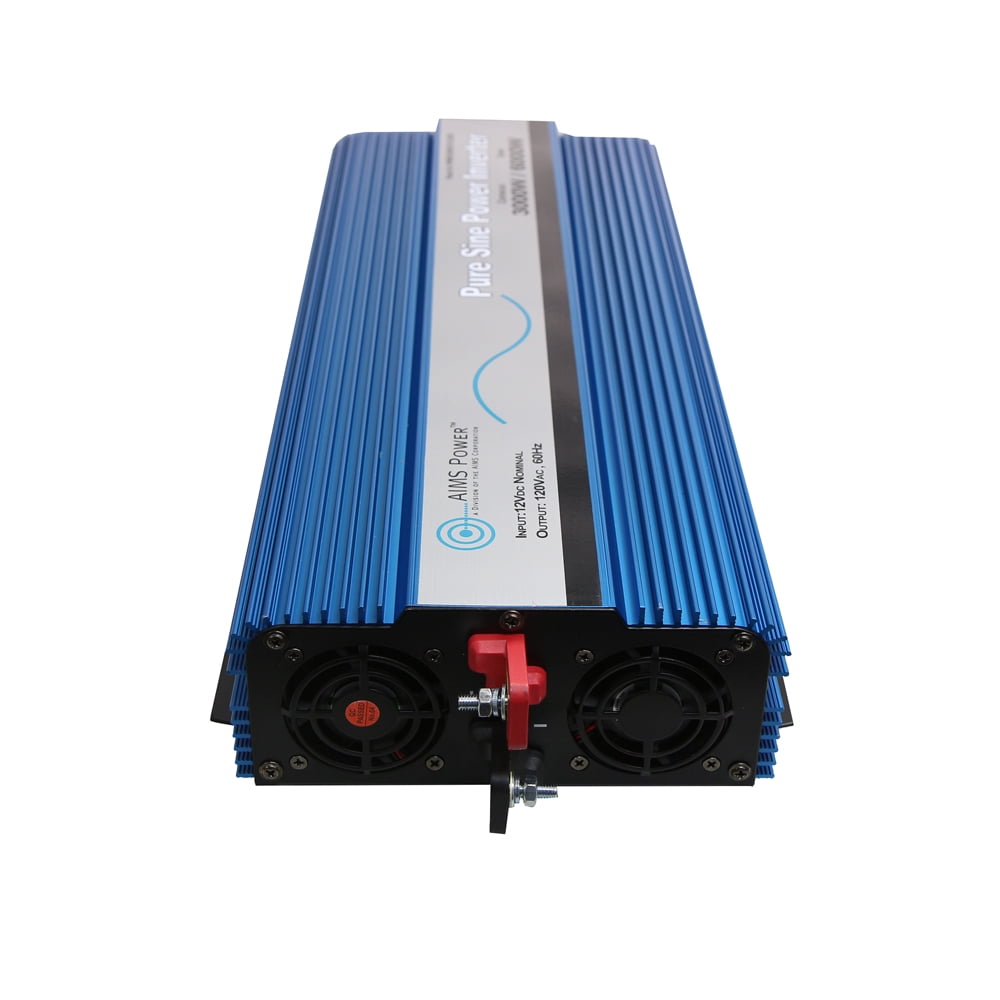

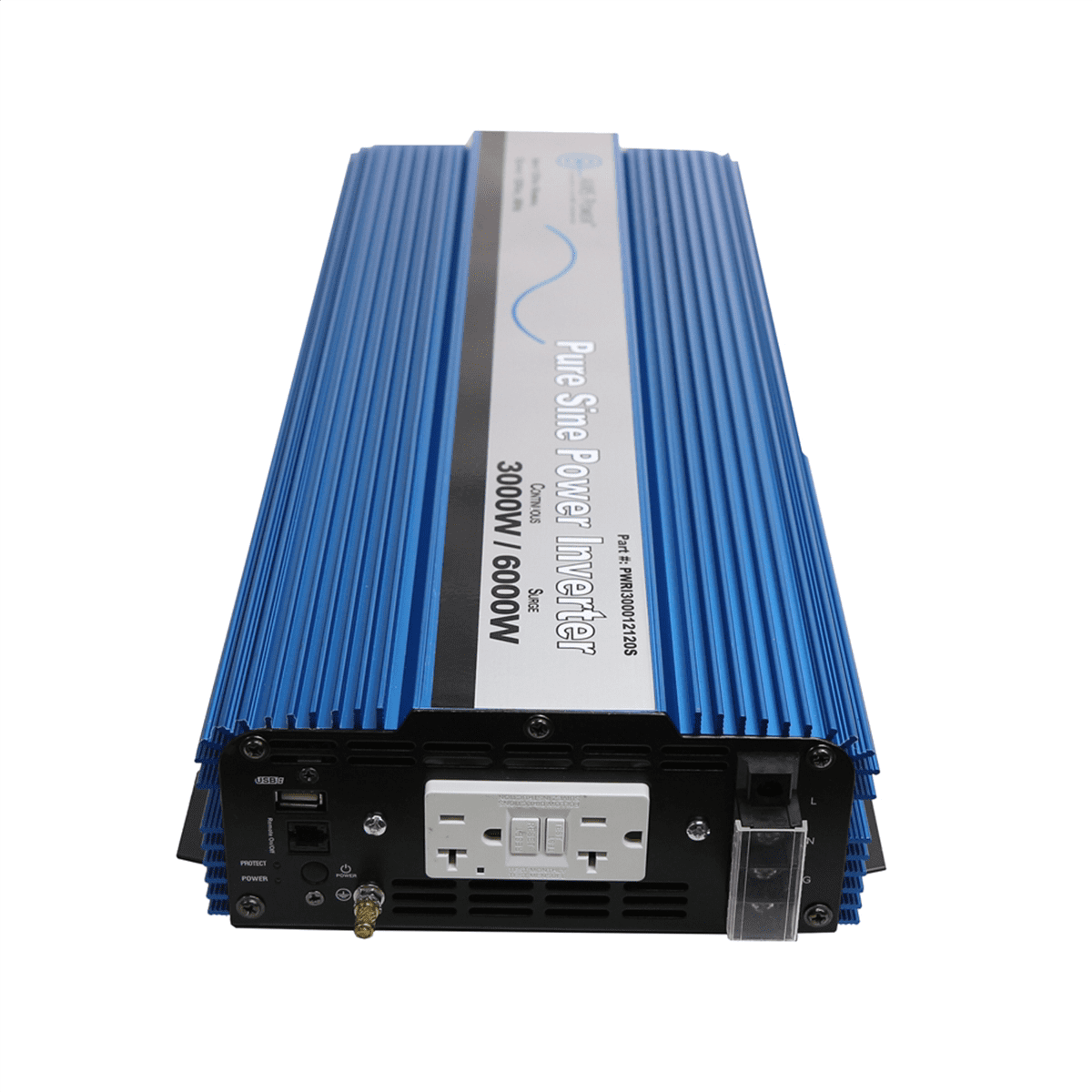

The AIMS Power pure sine inverter is capable of producing 3000 watts of clean power ideal for running your sensitive electronics. Great for use in vehicles, boats, camping and emergencies where back up power is needed. The inverter features dual outlets, along with a USB outlet and a direct connect terminal block for hard wiring the inverter’s full capacity. An optional wired remote is available for this unit, AIMS Power part number REMOTEHF.
Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
-Equipment runs more efficiently
-Motors run cooler
-Cleaner power
-Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment
To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can carry the combined wattage requirements of these devices. Please see our tech support section for start up averages for all devices. At AIMS, you’ll discover our inverters range from 75 watts up to 50,000 watts – more than enough to power nearly every application imaginable.
-
Features:
- 3000 Watt continuous power
- 6000 Watt surge
- 12 volt DC input
- Pure sine wave
- 2 outlets – need more outlets? simply add a outlet spliter or extension cord
- AC direct connect terminal block – hardwire
- USB outlet 2.1 amps
- Efficiency: 90%
- Short circuit, over load, over temp, low voltage and over voltage protections
- Optional on/off remote switch available
- Dual cooling fans thermally controlled
- Instruction manual
- 2 year tech support
- 2 year warranty parts and labor
-
Specifications:
- Continuous output power: 3000 Watt
- Surge power capability (peak power): 6000 Watt
- 25 ac amps
- DC input / operating voltage: 9.5-16 Volt
- Output voltage: 120 Volt AC
- Wave form: pure sine wave
- Output frequency: 60 Hz
- Battery low voltage alarm: 9.8 +/- 0.5 Volt
- Battery low voltage shutdown: 9.5 v +/- 0.5 Volt
- Full load efficiency: 90%
- No load minimum operating temperature: 32 degrees Fahrenheit
- Full load maximum operating temperature: 104 degrees Fahrenheit(automatic shutdown)
- Dual AC outlets AND direct connect hard wire terminal block
- High input voltage shutdown: 16 V
- Low input voltage shutdown: 9.5 V +/- 0.5V
- No load drain: <1 A with power switch on
- Certified to UL and CSA standards – 2 year warranty
