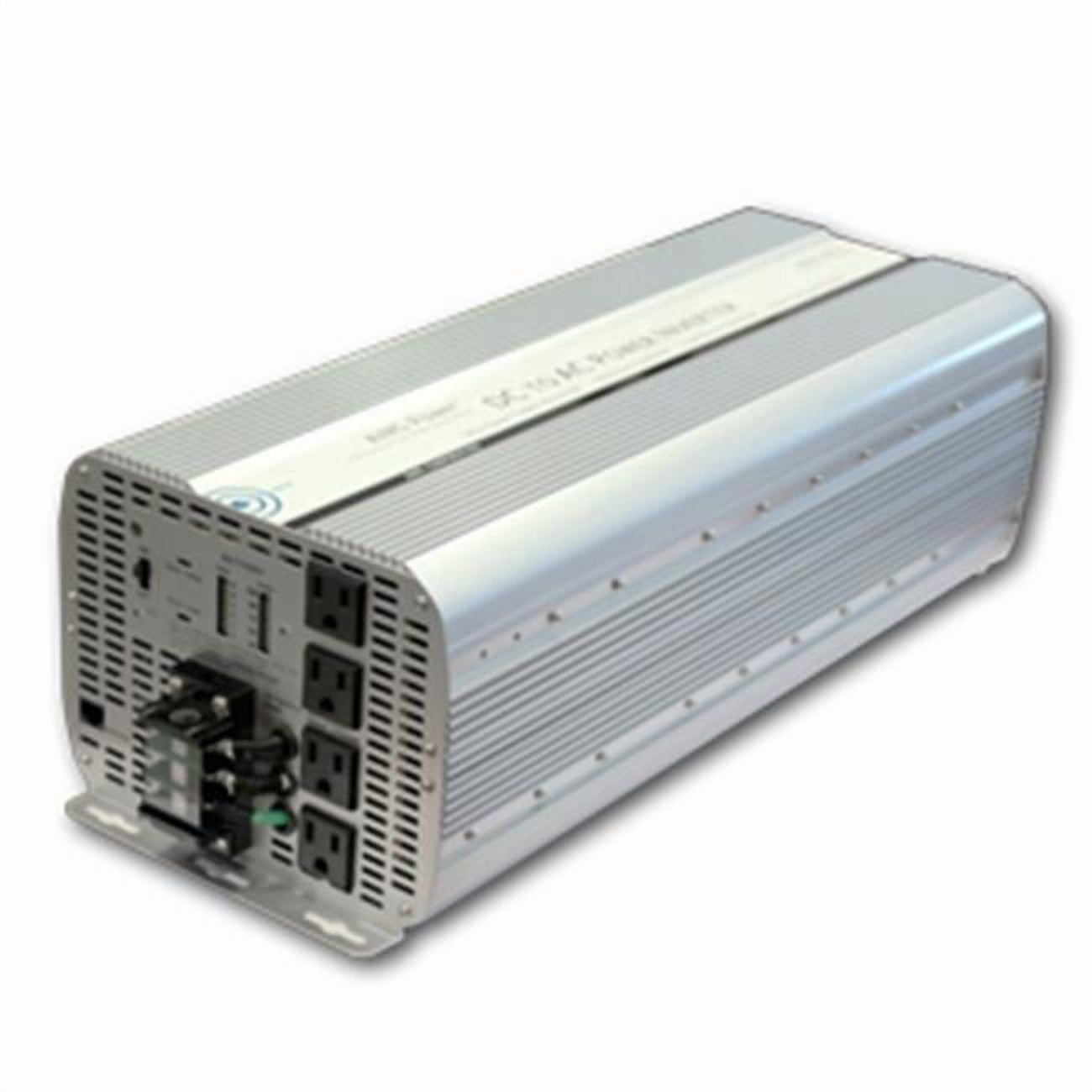

This 10000 watt 12 volt inverter is the best on the market in its class — guaranteed. This inverter can handle nearly any application with its 10000 watt continuous capacity and 20000 watt surge capabilities (40 milliseconds). This inverter is the first of its kind in terms of size and weight, making it far more flexible than any other inverter this size. Whether planning to use this inverter for off-grid cabin applications, mobile business or for a back-up power system in your home, this inverter will get the job done while also taking up the least amount of space possible. The biggest innovation regarding this inverter is its weight: a mere 21 pounds, which is unrivaled by any other inverter on the market with that wattage capacity. Its size is also remarkable, because it takes up less than half the space older models require. For jobs that require a lot of power, you’d usually have to lug out an inverter that’s more than 40 pounds, but those days are over thanks to AIMS Power’s game-changing technology featured in this special 10000 watt 12 volt modified sine inverter. Converting DC to AC for you entire home no longer requires an inverter that weighs as much as a boat anchor, and you can thank this product!
-
-
Features:
- 10000W max continuous power
- Modified sine wave with Pulse Width Modulation technology (soft start)
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- Over Temperature LED indicator
- Over Load LED indicator
- AC direct connect terminal block
- On/off switch
- Over Temperature protection
- Over Load protection
- Single cooling fan thermally controlled
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year warranty parts and labor
**THIS INVERTER REQUIRES TWO SETS OF 4/0 CABLE ( TOTAL OF 2 NEGATIVE AND 2 POSITIVE)**
-
-
Specifications:
Continuous output power:10000 Watt
Surge power capability (peak power):20000 Watt
DC input / operating voltage: 10 to 16 volts
Output voltage: 120 volts AC +/- 10%
Output wave form: modified sine wave with phase correction
Output frequency: 60 Hz +/- 1 Hz
Battery low voltage alarm: 10.5 +/- 0.5 volts
Battery low voltage shutdown: 10.0 +/- 0.5 volts
No load current: < 1.8 DC amps
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: 30º F
Full load maximum operating temperature: 140º F
AC output socket type: quadruple type 2 -3 prong
High input voltage protection: 15V-17V
Low input voltage shutdown: 10V Internal fuse protection
UL maximum recommended per outlet 1500 watts
This inverter requires 2 sets of 4/0 AWG cable if you are going to run at 10000 watts
