The AIMS Power 5000 watt 24 volt DC inverter is a staple in the off grid inverter market today. From the compact footprint to the updated features, this inverter is an excellent choice for a variety of applications. Our 5000 watt inverter has been the most popular selling inverter for nearly a decade; offering great features and reliability coupled with excellent pricing, the AIMS 5000 watt power inverter is the right inverter the first time.

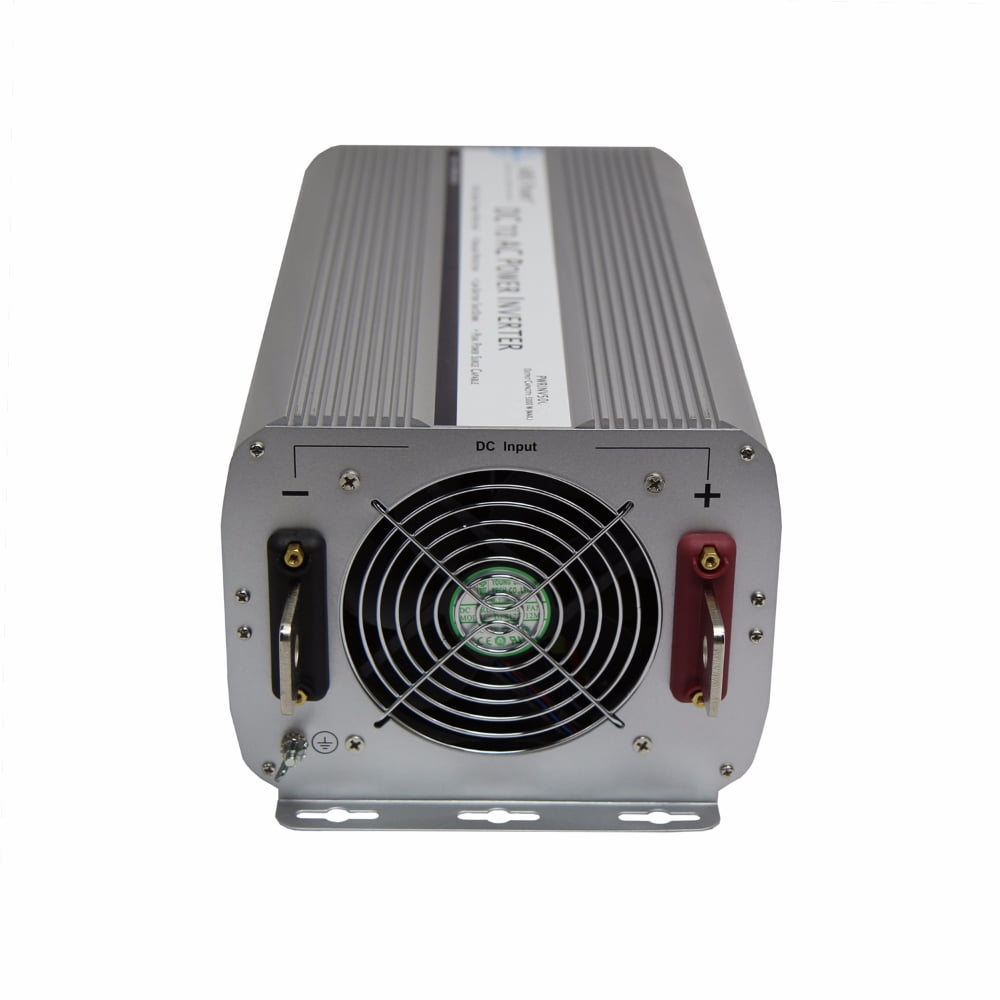

First, AIMS has made the DC input useful enough to adapt to almost any DC lugged cables. The connections are one red flat plate and one black flat plate. This offers the flexibility to run one set of cables or multiple sets, depending on your application.

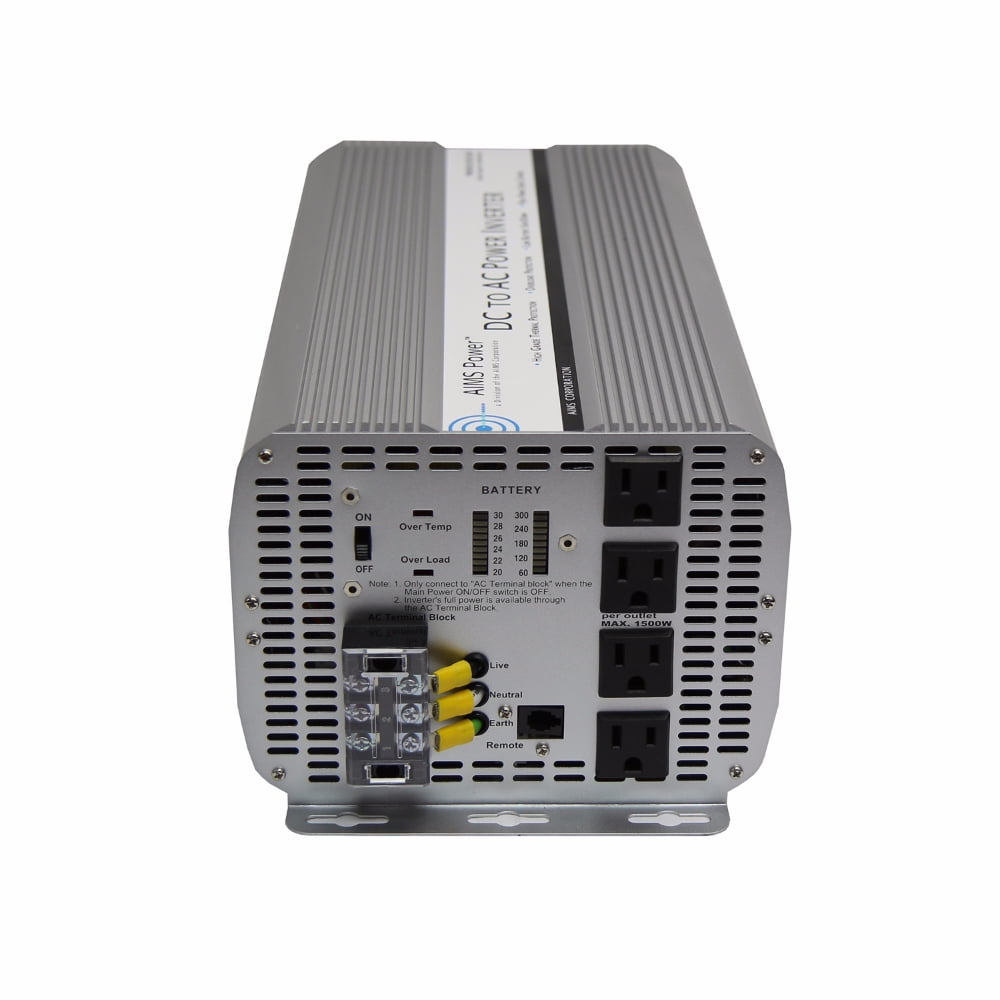

Second, the AC terminal block has been re-positioned to allow easier viewing of the digital display. The design on other units that are horizontal can cause AC wiring to block the meters; whereas, this terminal block is vertical.
Whether you need a strong modified sine wave inverter for your mobile business or off grid cabin, the AIMS Power 5000 watt inverter is a great choice. Industry leading features and footprint, as well as, reliability and durability that can only be found with an AIMS Power inverter helps our customers accomplish all their off grid needs.
-
Features
- 5000 Watt max continuous power
- 10000 Watt surge (not recommended for start up applications)
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED indicator
- Over Load LED indicator quadruple AC receptacle that can be used with any separate spliter to provide even more outlets
- On/off switch
- Over Temperature protection
- Over Load protection
- Single cooling fan operation thermally controlled
- Internally fuse protected
- ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year warranty parts and labor
-
Specifications: 5000 WATT MODIFIED SINE POWER INVERTER
- Continuous output power: 5000 Watt
- Surge power capability (peak power): 10,000 Watt
- dc input / operating voltage: 34 to 20 V
- Output voltage: 120 Volts ac +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 21.0 +/- 0.5 V
- Battery low voltage shutdown: 20.0 +/- 0.5 V
- No load current @ 24V: < 0.4 amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- Full load maximum operating temperature: 150ºF
- AC Output Socket Type: quadruple Type 2 -3 prong
- AC Output Socket Type: quadruple Type 2 -3 prong
- High input voltage protection: 34.5V
- Low input voltage shutdown: 20.0V
- Internal fuse protection
- UL maximum recommended per outlet 1500W
