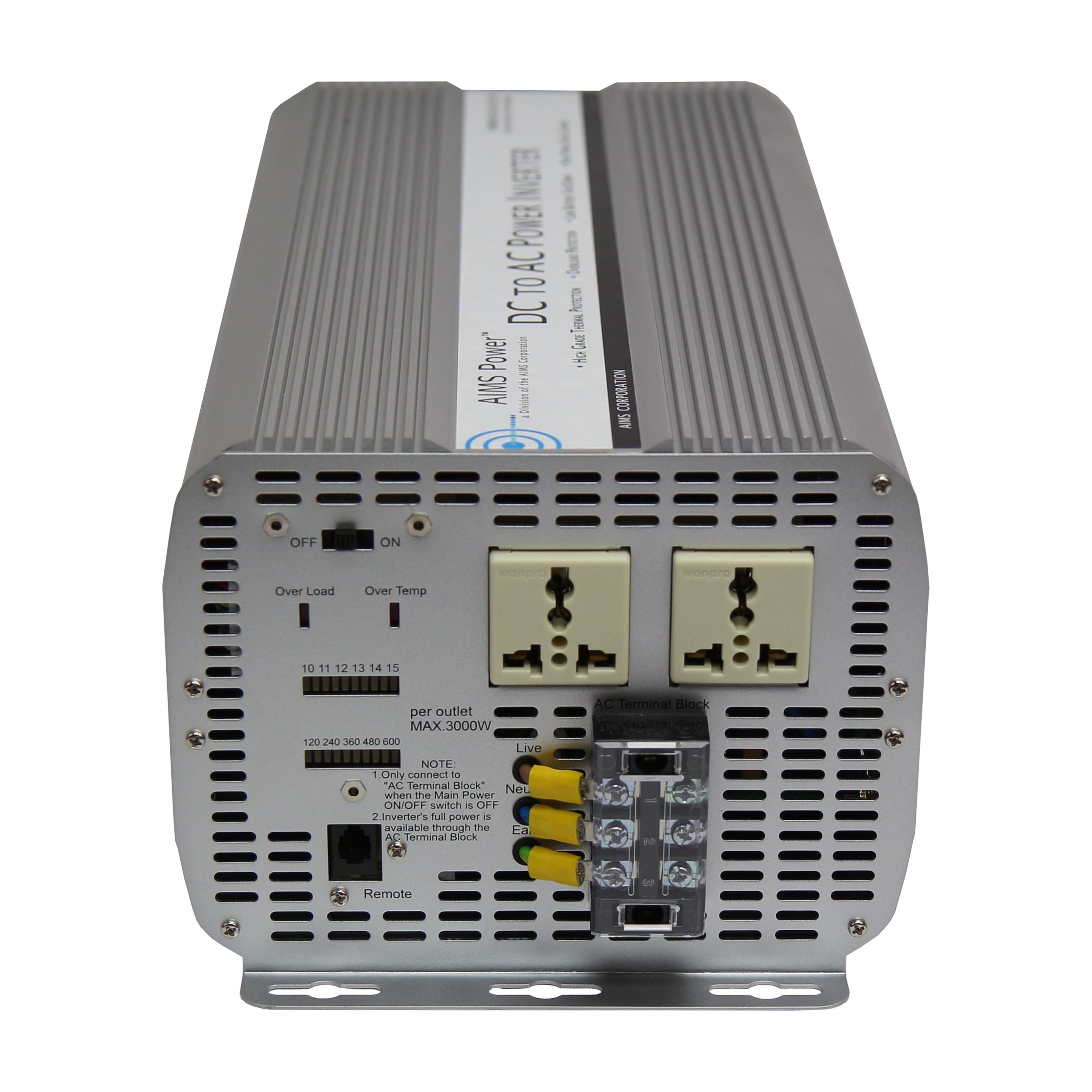

This Aims 5000 watt 240 VAC 60HZ power inverter is designed to handle a well pump or water pump in your off-grid cabin or ranch. It has two 240Vac outlets and an AC direct connect terminal block. The direct connect terminal block can provide the full 5000 watts of power out of a single connection.
Features
- 5000W max continuous power.
- Modified sine wave.
- Red LED indicates over heat.
- Red LED indicates over load.
- Dual ac receptacle universal.
- Volt and amp meter.
- On/off switch.
- Over Temperature protection.
- Over Load protection.
- Single cooling fan operation.
- Internally fuse protected.
- AC output short circuit protection.
- Aluminum case for optimal cooling.
- Pre-slotted mounting plate.
Specification
- Continuous output power: 5000 Watts.
- Surge power capability (peak power): 10,000 Watts.
- DC input / operating voltage: 10 to 15 Volts.
- Output voltage: 240 Volts ac.
- Output frequency: 60 Hz +/-.5 Hz.
- Battery low voltage alarm: 10.5 +/- 0.5 Volts.
- Battery low voltage shutdown: 10.0 +/- 0.5 Volts.
- No load minimum operating temperature: 30-150 degrees F.
- Full load maximum operating temperature: 150 +/- 5 degrees F (automatic shutdown).
- Low voltage and over voltage alarm and protection.
- AC output Socket Type: dual 240.
- Low input voltage shutdown: 10V.
- Dimension – 22.5 x 7 x 8.26 in.
- Item Weight – 20 lbs.
– SKU: AMPW017Only delivers 240 volt ac power. Does not put out 120 volt power.
- 5000 Watt max continuous power
- 10,000 Watt surge (not recommended for start up applications)
- Modified sine wave
- 240 Volt single phase AC output
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC direct connect terminal
- Overtemperature LED indicator
- Overload LED indicator
- Dual 240VAC Receptacles
- On/off switch
- Overtemperature protection
- Overload protection
- Single cooling fan operation thermally controlled
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year warranty parts and labor
