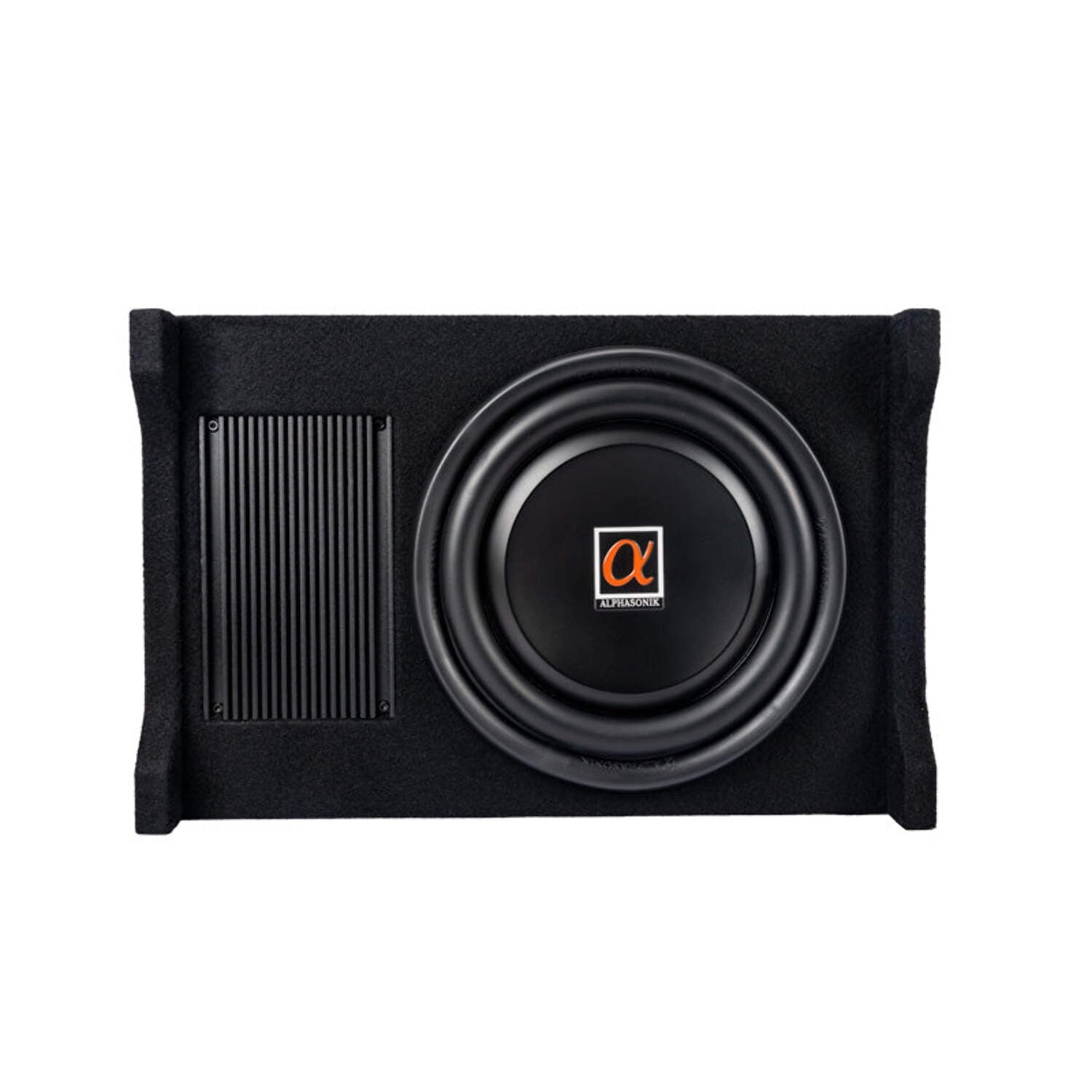

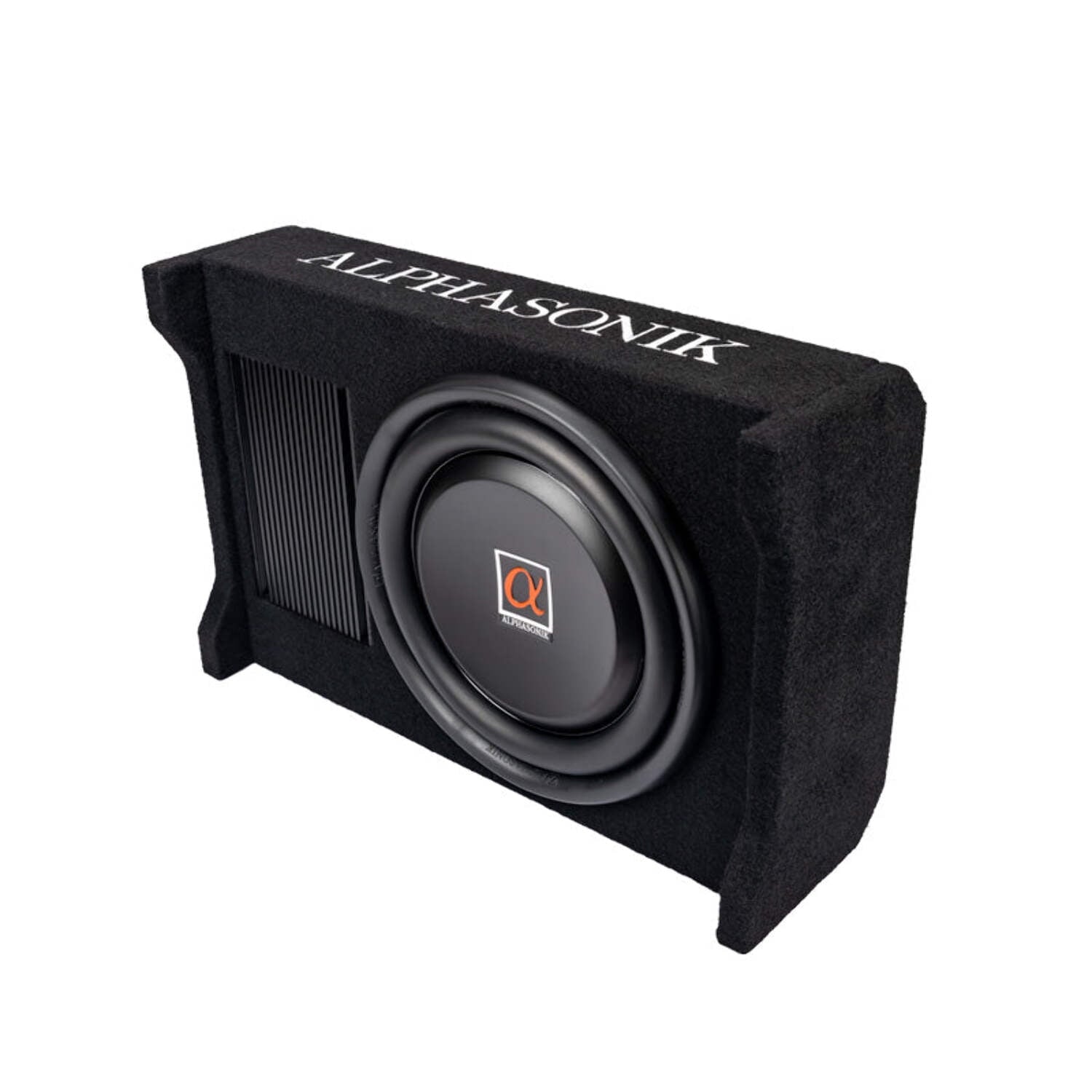

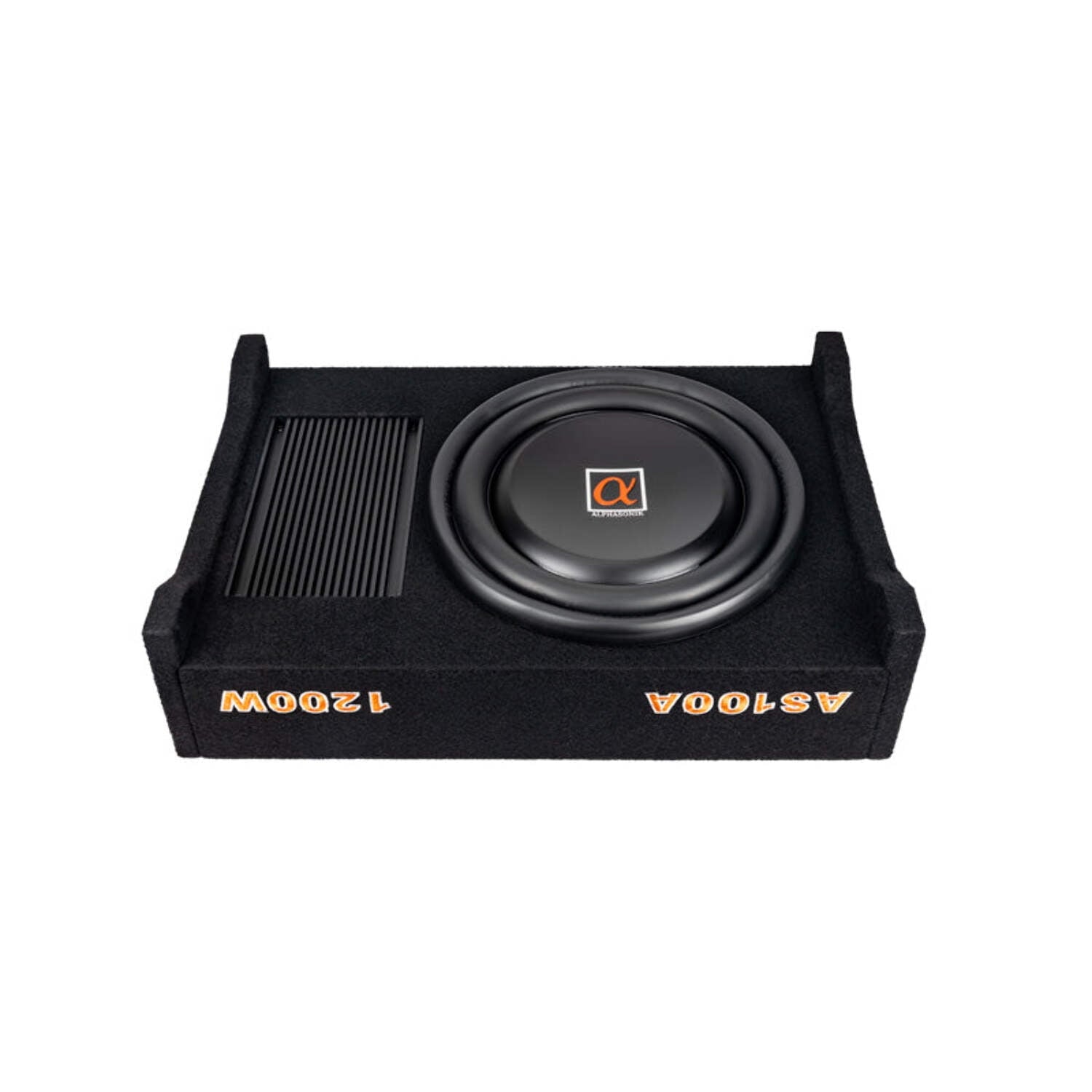

Alphasonik has added to the all successful AS Series downward facing enclosures. Introducing the all NEW AS100A Active down-firing enclosures with a built-in 400 Watt / 1200 Watt MAX amplifier. The amplifier features Hi and Low level inputs, crossover, 0-+12dB bass boost, solid nickel plated power terminal blocks and a remote bass knob. The enclosure allows for installation in most vehicles due to its versatile sizing and can be mounted vertically or horizontally. Constructed with Medium Density Fiberboard known as MDF helps reduce vibration and blended with a special bond sealer guarantees an air-sealed enclosure. A perfectly matched tuned loud speaker has been constructed to use with the enclosure and the end result gets the low frequencies at optimal levels and achieves the deep rich bass that your heart desires.
SPECIFICATIONS
– FINAL IMPEDANCE: 4 OHMS
– BASS BOOST: 0 – +12dB
– LOW PASS CROSSOVER: 50Hz – 200Hz
– HI AND LOW LEVEL INPUTS
– CONE MATERIAL: SPUN ALUMINUM CONE
– SURROUND MATERIAL: HI STRENGTH RUBBER EPDM ENHANCED SURROUND
– VOICE COIL: COPPER WOUND KAPTON VOICE COIL
– ENCLOSURE TYPE: AIR TIGHT SEALED ENCLOSURE
– SOLID NICKEL PLATED TERMINAL BLOCKS
– CARPET TYPE: BLACK AND GRAY INDUSTRIAL STRENGTH CARPET
– POWER RATING: 400 WATTS RMS / 1200 WATTS MAX
– SENSITIVITY: 92dB
– FREQUENCY RESPONSE: 30Hz – 500Hz
– ENCLOSURE VOLUME: 0.57 cu. ft.

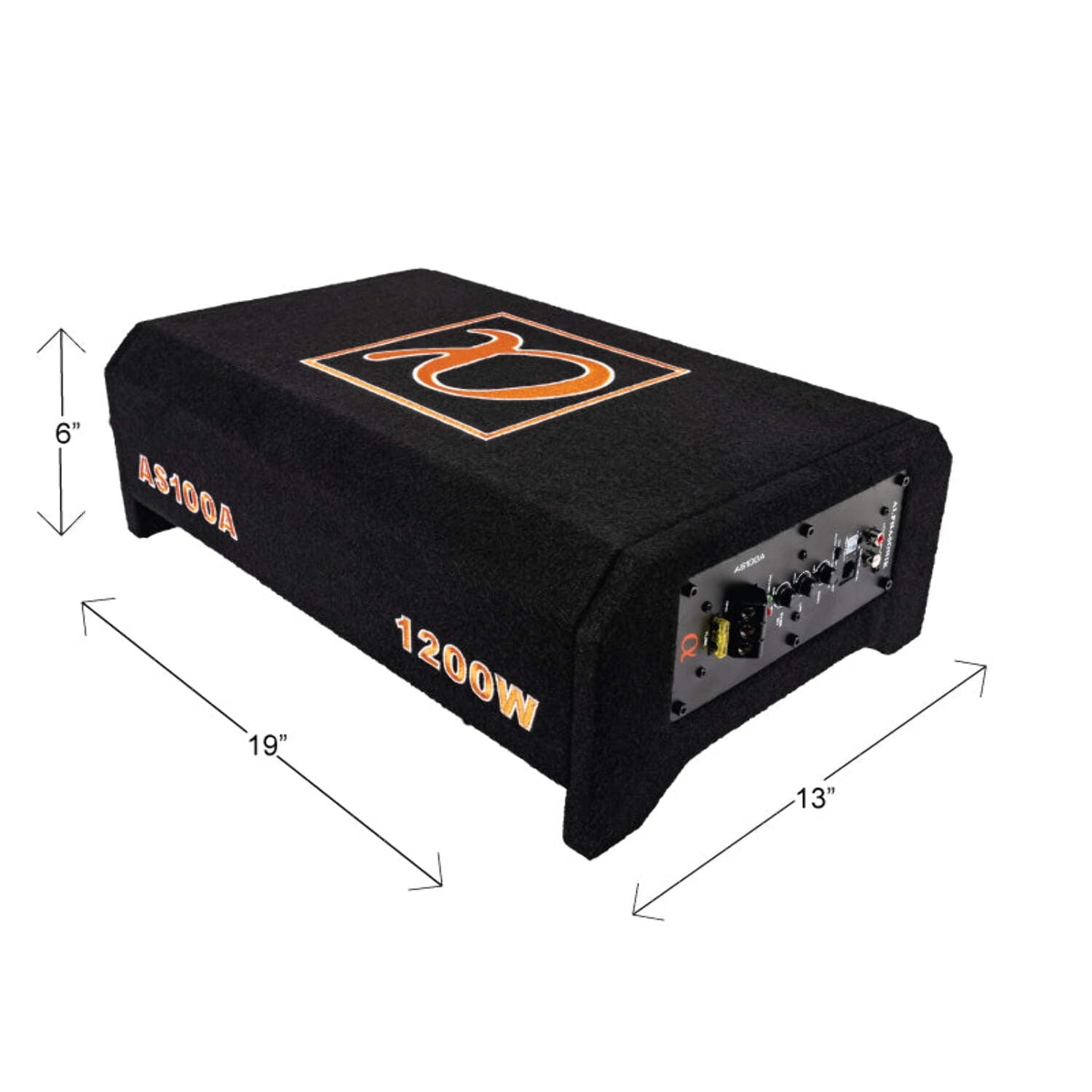

– DIMENSIONS: 19” x 6” x 13” / 483mm x 153mm x 310mm (WxHxD)
– REMOTE BASS KNOB AND MOUNTING BRACKETS INCLUDED
Alphasonik AS100A 10″ 1200 Watts MAX Built-in Amplifier Down Fire Shallow Mount Enclosed for Tight Spaces in Cars and Trucks, Slim Thin Loaded Subwoofer Air Tight Sealed Bass Enclosure
