Description:
The next generation of sound performance is here with the new R-Series Halo Preloaded Subwoofers featuring the new R-Series “R2” subwoofers for more accurate and authoritative bass.
Features:
- Unique ProLink™ Design
ProLink™ is unique to Alpine and allows you to link two R2-SB12V enclosures together using an optional KTX-H12 linking kit to create a dual subwoofer enclosure. - Stand Out in the Crowd

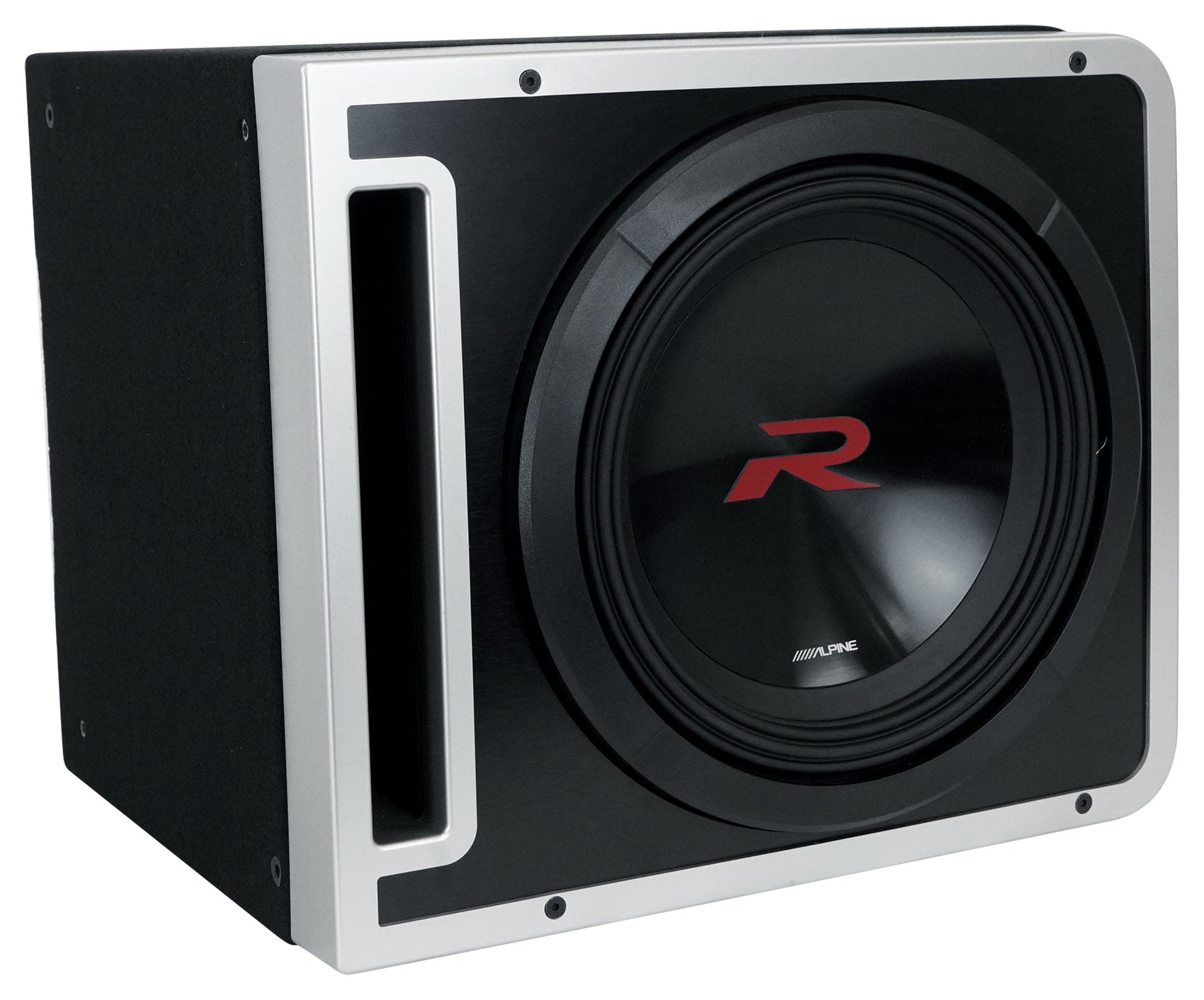

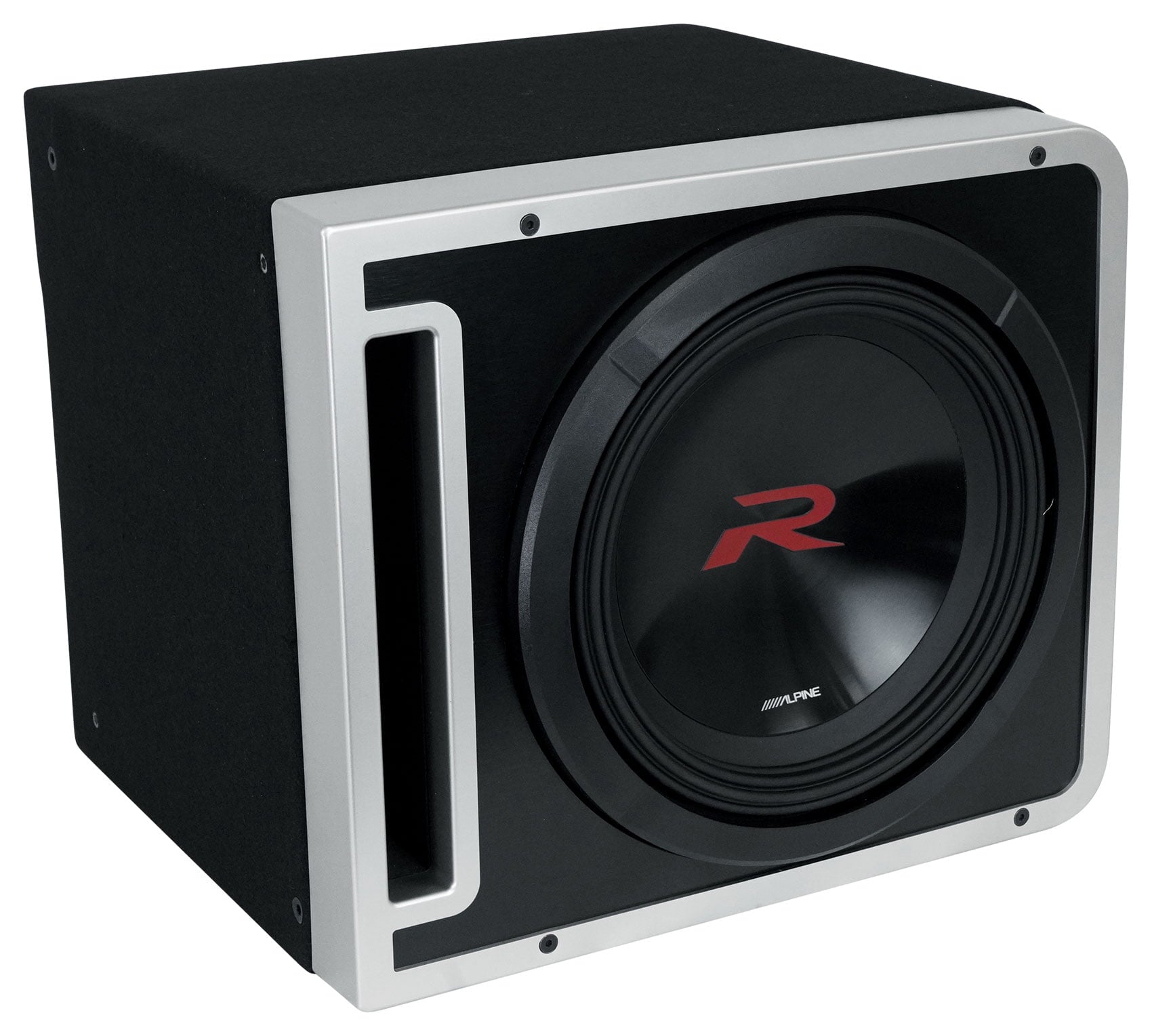

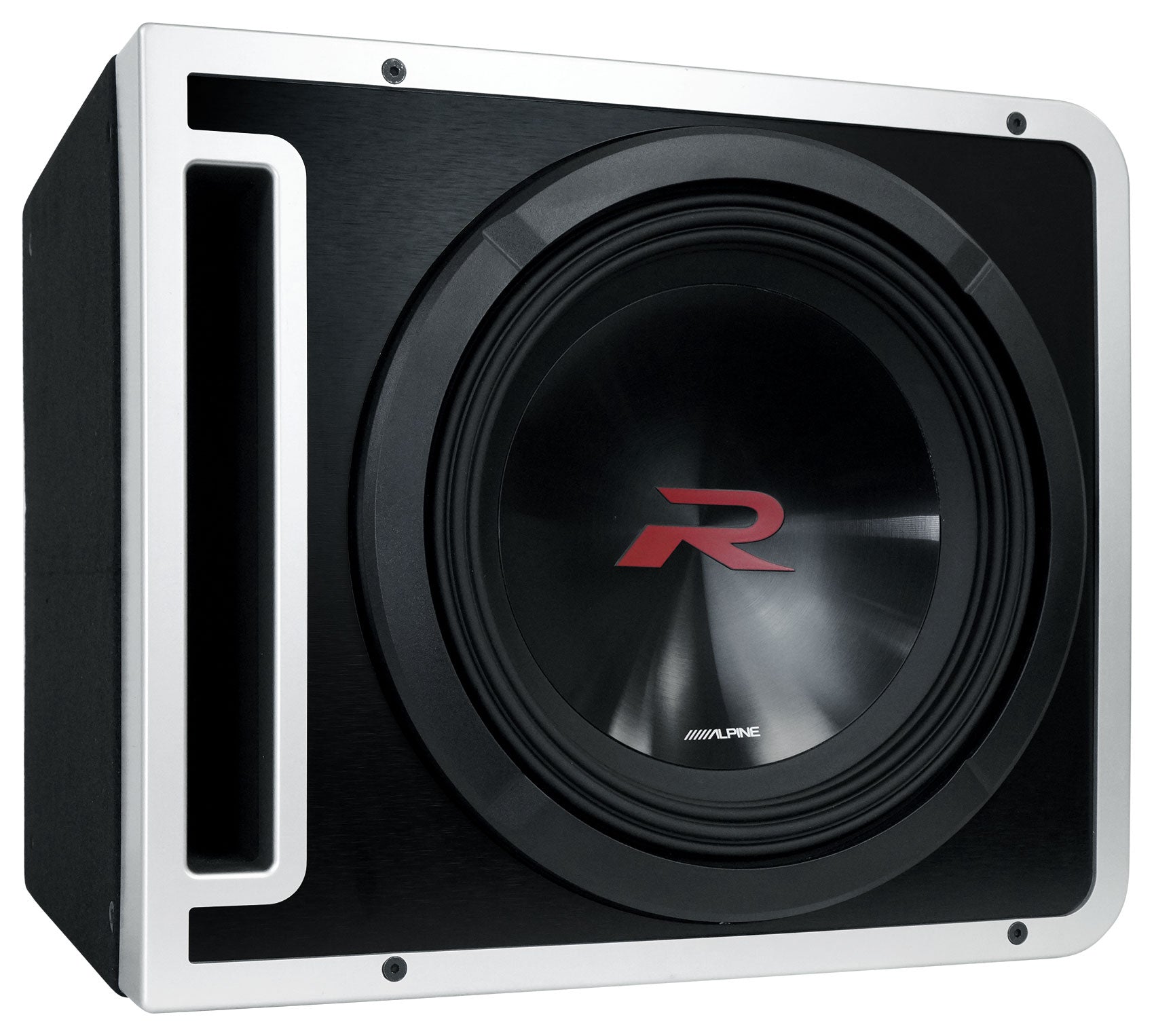

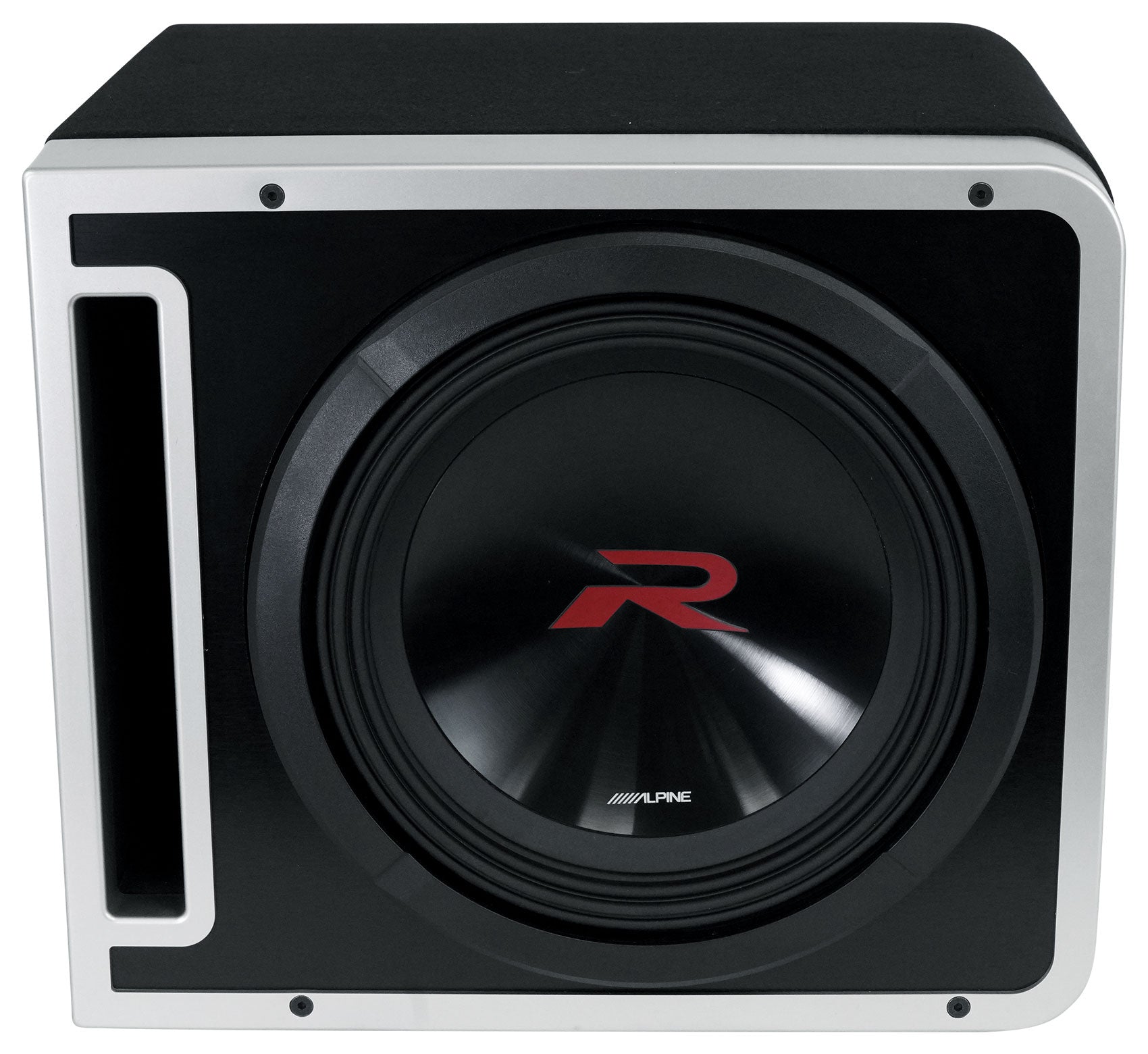

Drawing inspiration from the sleek, tapered lines and clean silver finish of the Alpine Halo display, the R2-SB12V shares the same unique, curved edges outlined by a silver trim and a metallic front baffle for a matching system aesthetic. - Improved Performance
The new R-Series subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control compared to the previous generation.
Specifications:
- Size: 12”
- Weight: 50 lbs
- Dimensions: 17” x 14.625” x 15”
- Frequency Response: 24Hz – 200Hz
- Power Range: 300W – 750W RMS
- Power Handling: 750W RMS / 2250W Peak
- Magnet Weight: 144 oz
- Voice Coil Diameter: 65.5 mm (2.6”)
- Linear Excursion (Xmax): 20 mm
THIELE-SMALL PARAMETERS
- Sensitivity (1W/1m): 85 dB
- DC Resistance (Re): 1.9∆ + 1.9∆
- Free Air Resonance (Fs): 29 Hz
- Equivalent Stiffness: 36.9 L
- Mechanical Q (Qms): 6.32
- Electrical Q (Qes): 0.44
- Total Q (Qts): 0.41
