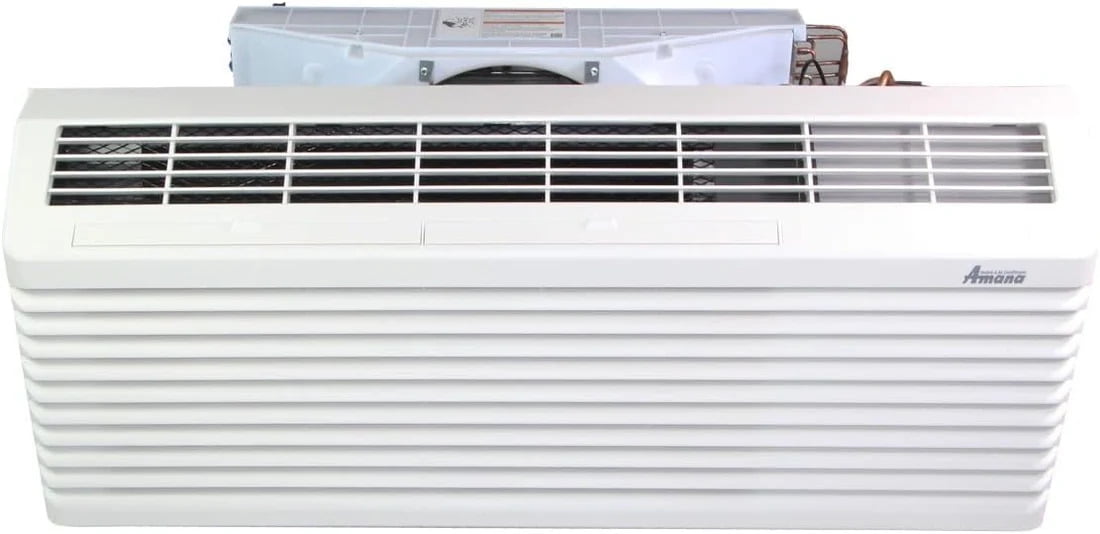

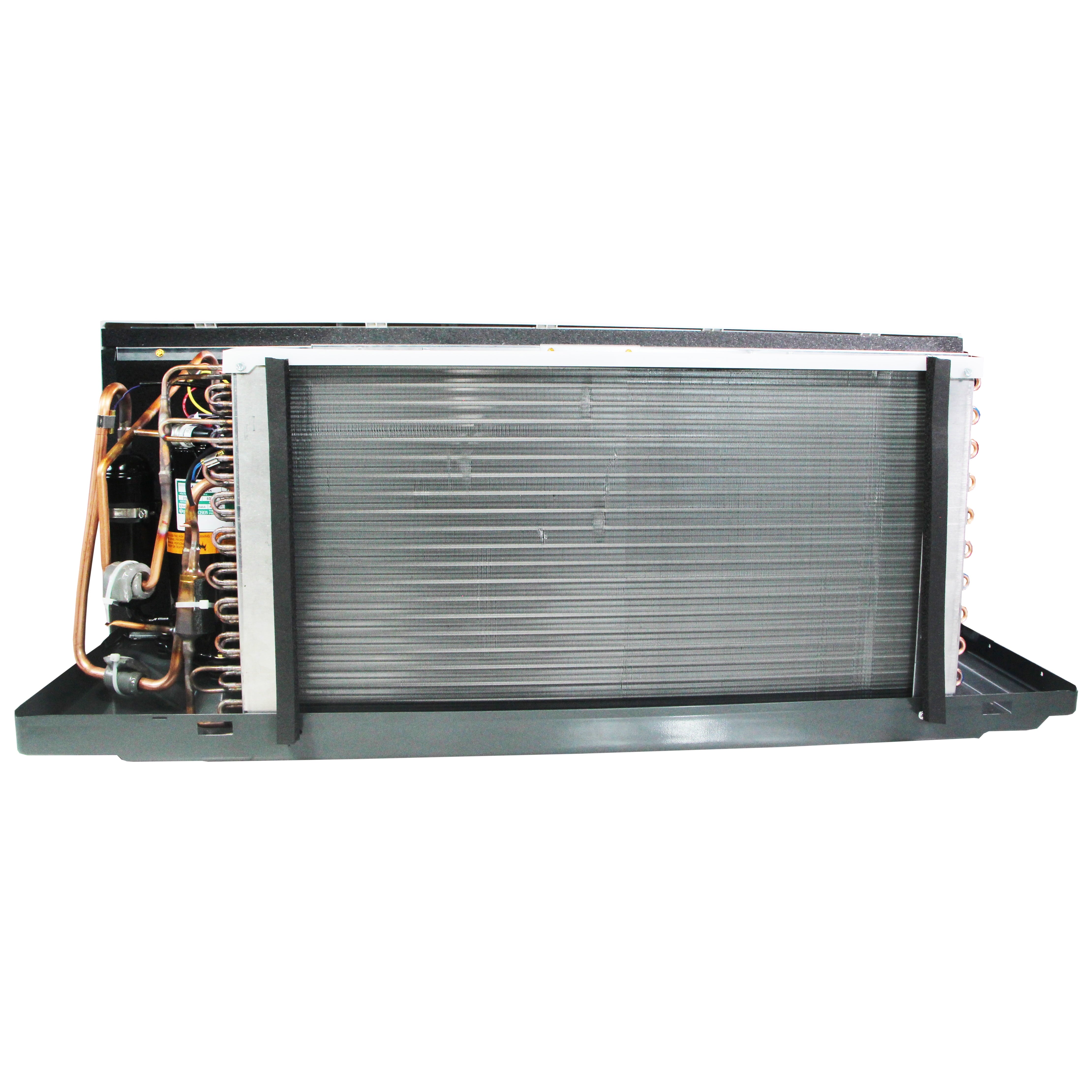

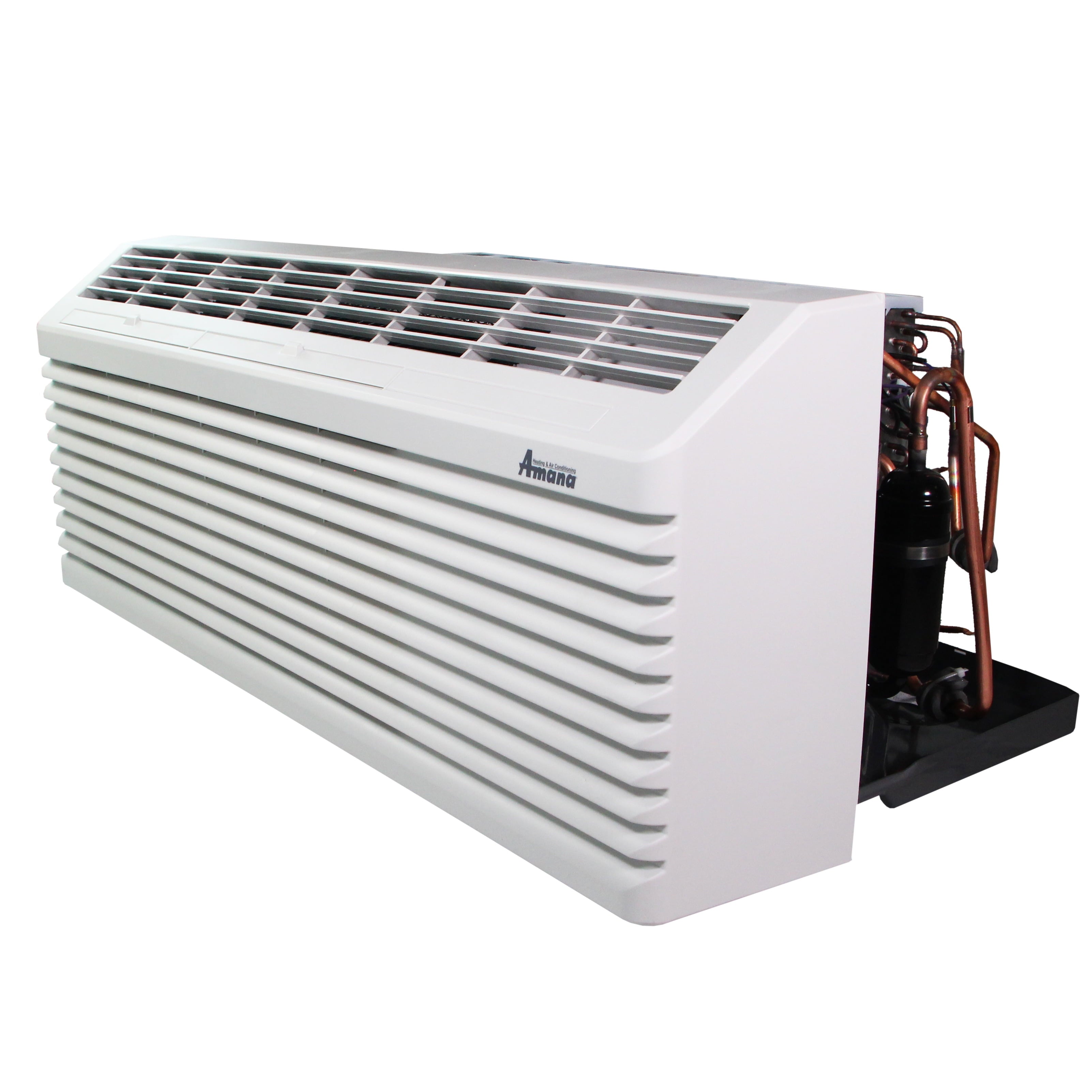

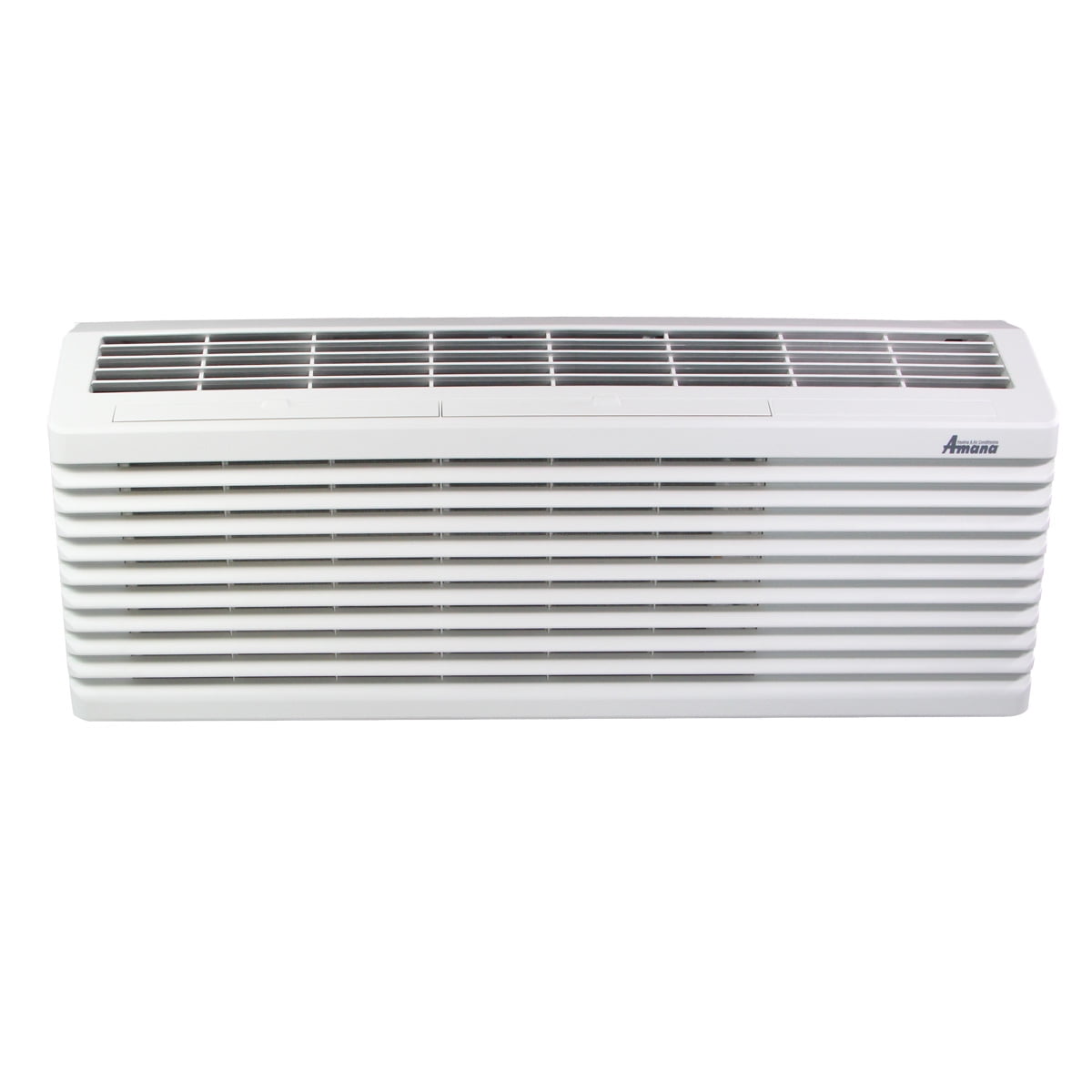

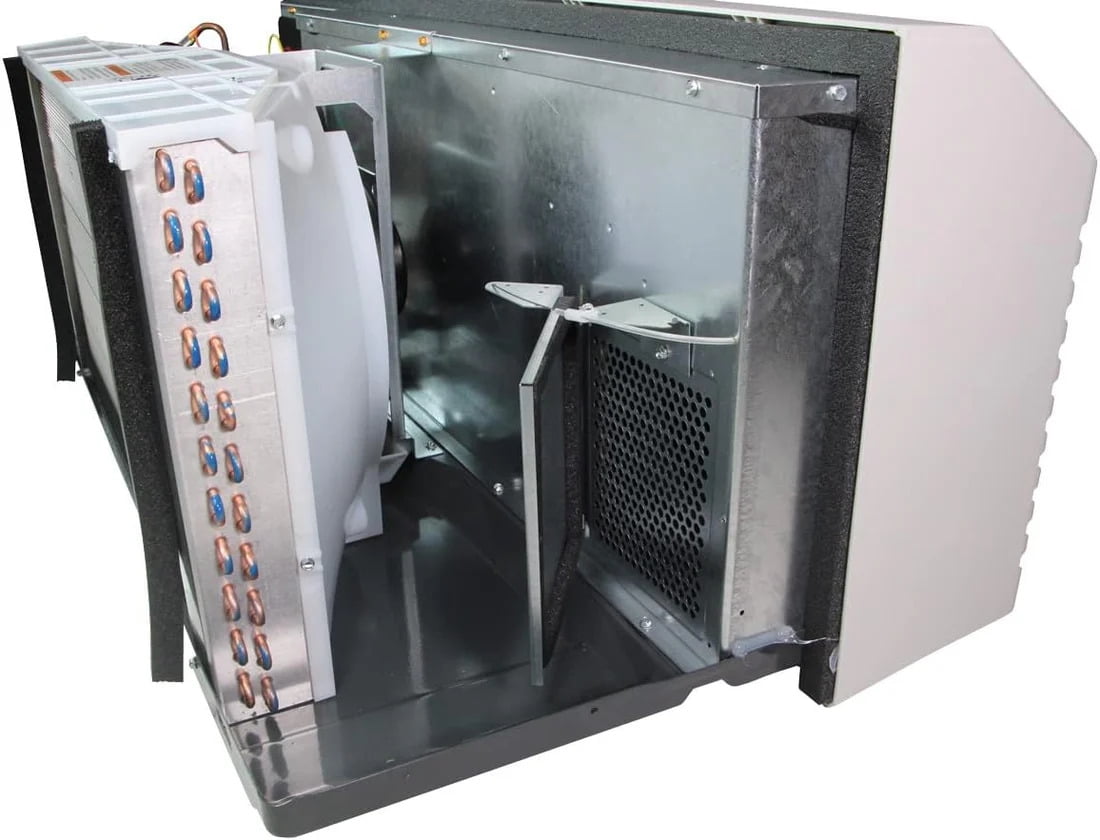

Designed for hotel and motel operations, residential additions, sunrooms, and small living spaces, this Amana J-Series Heat Pump PTAC offers 9,200 – 9,000 BTU/h of cooling power and a 3.5 kw(12,000 – 9,900 BTU/h) electric heater with a 20 amp power cord. With a 12.1 – 12.2 EER rating, this unit uses 230v / 208-volt electricity and is great for a room of about 300-360 square feet in residential and commercial applications.
This unit slides into a standard, pre-existing 16” x 42” wall sleeve. New installations require a WS900QW Amana wall sleeve, a SGK01B Amaan rear grille, and either a wireless or wired thermostat, each sold sseparately.

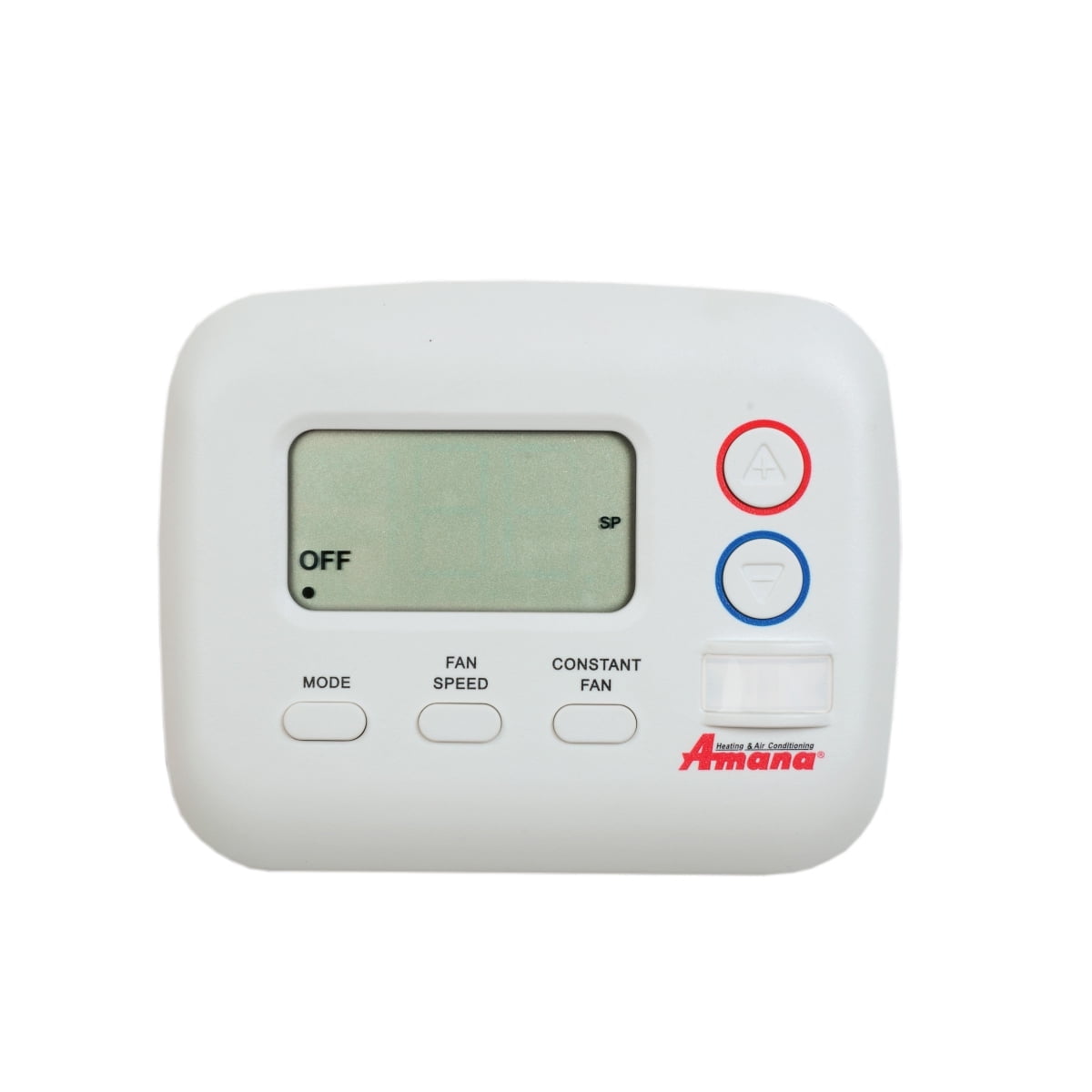

Compatible Thermostats include the Amana PHWT-A150H (Wired), PHWT-A200 (Wired programable), DSA02NO (wireless), DS01G ( Wireless Eden Compatible), or DS02G-H (Wireless Hilton Compatible).
Features include:
Strong three-speed fan to provide precise comfort control to your guests.
4-Minute Compressor Lock-In – After the compressor cycles off, it will not restart for four minutes to prevent harm to the compressor.
Automatic Freeze Protection – The fan motor and electric heat strip are turned on if the PTAC unit senses the temperature below 40 degrees.
Dual Fan Motors – Allows precise independent fan speed operation.
Easy Pull-Out Filters – Our filters are washable and easy to maintain.
Front Desk Control – Each unit comes equipped with the Eden control and energy management software. Using the Eden software and the PTAC’s integrated RF antenna, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics.

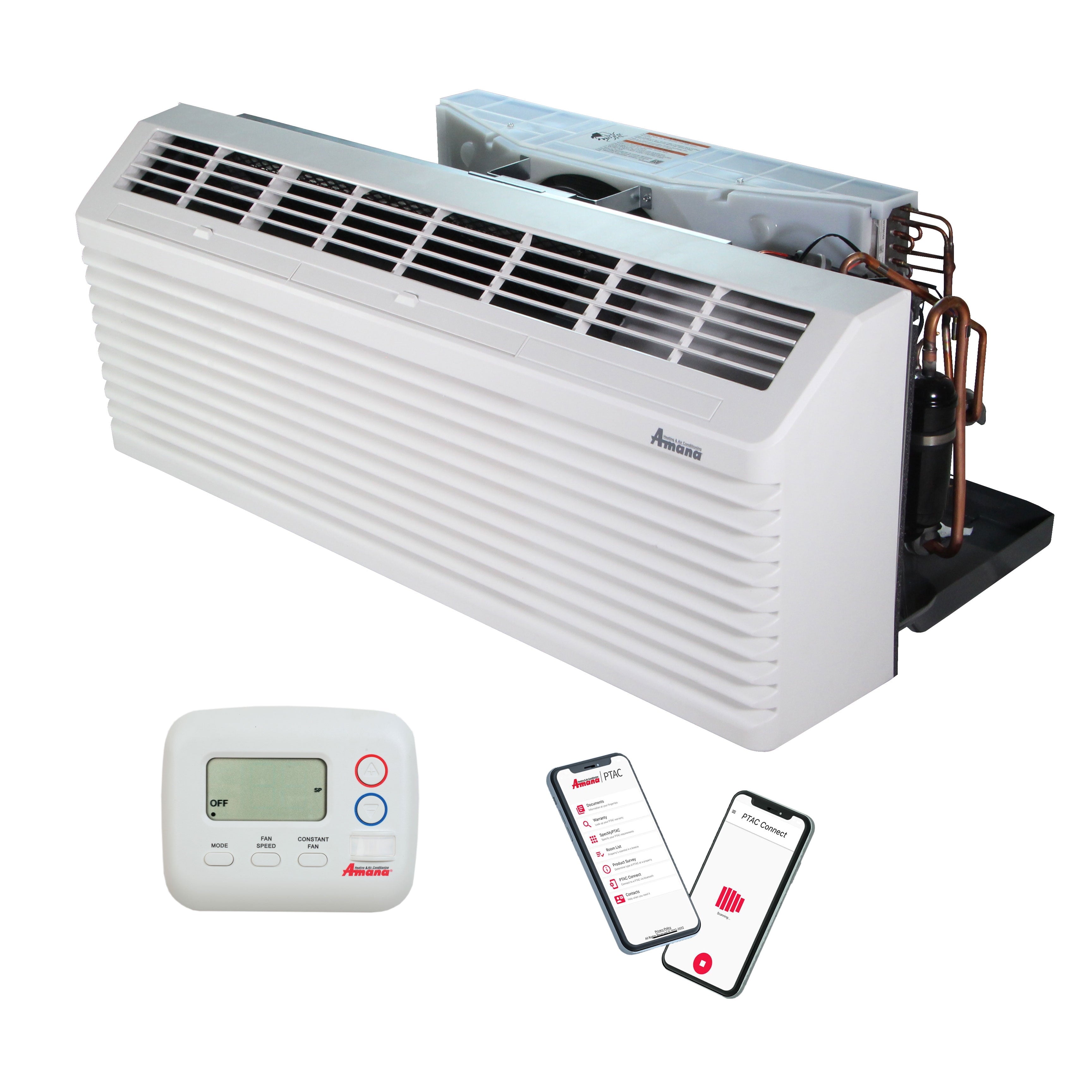

Integrated Bluetooth® Connectivity – Built-in connectivity with the Amana Brand Moblie app available in the IOS and Google Play Store, which allows for unmatched configuration flexibility.
Integrated RF Communications – Each Amana brand PTAC has an integrated RF antenna to allow out-of-the-box connectivity to the Eden wireless thermostat (DS01G, sold separately) and Eden Concierge energy management system.
Power Cord Included – No need to match power cord type to unit size.
Quiet Operation – With an STC Rating of 29, The J Series is Amana’s quietest PTAC.
R32 Refrigerant – With a GWP (Global Warming Potential) of 677, this unit is California-compliant and environmentally friendly.
Zero Floor Clearance – The unit can be installed flush to a finished floor if desired (please note that some accessories do not have zero clearance).
Warranty: Year One includes Parts and Labor. Years Two through Five include Functional Parts Only and Sealed Refrigeration Parts.
- 9,200 – 9,000 BTU/h Cooling Capacity and 12.1 – 12.2 EER rating

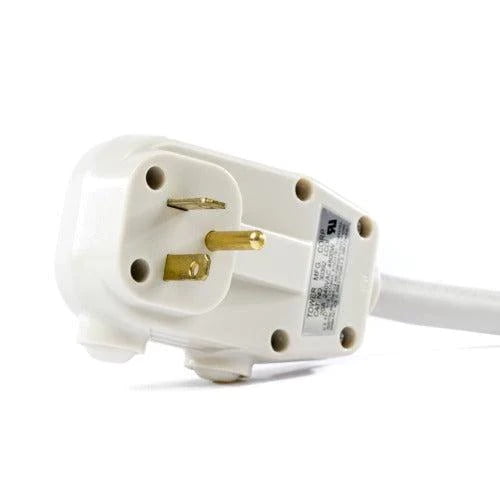

- Includes 58-inch 20 Amp Power Cord
- Amana App Compatible
