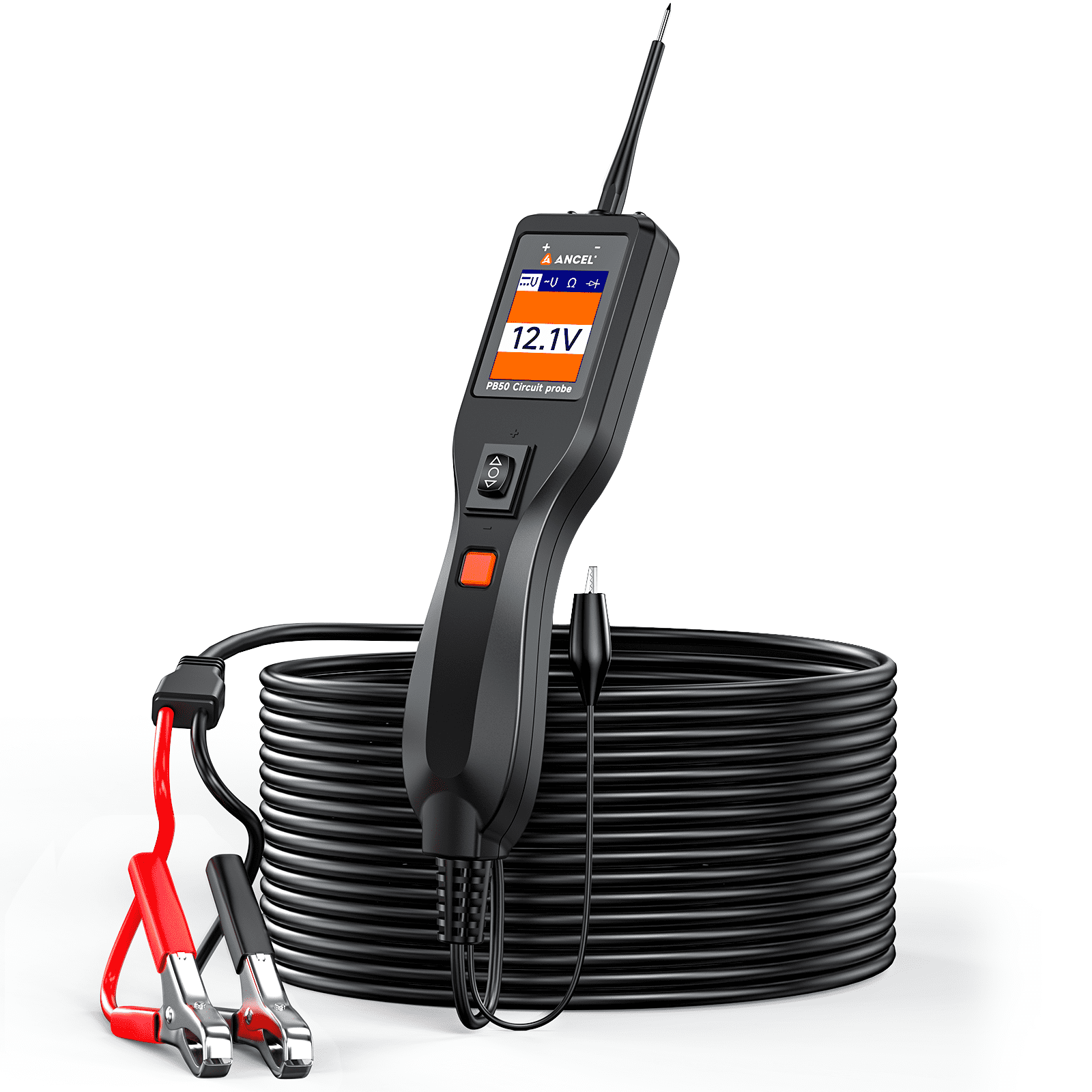

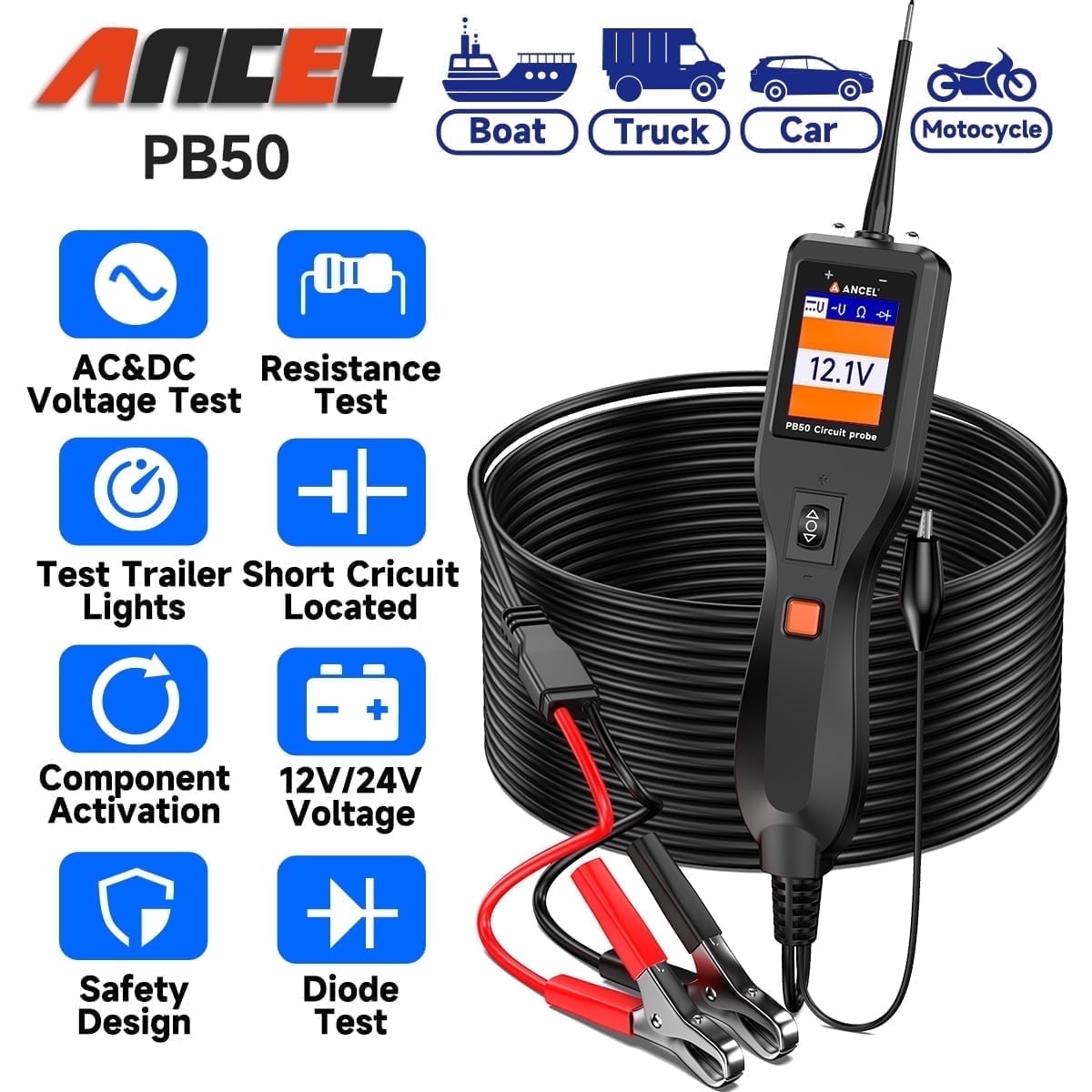

ANCEL PB50 Product Function:

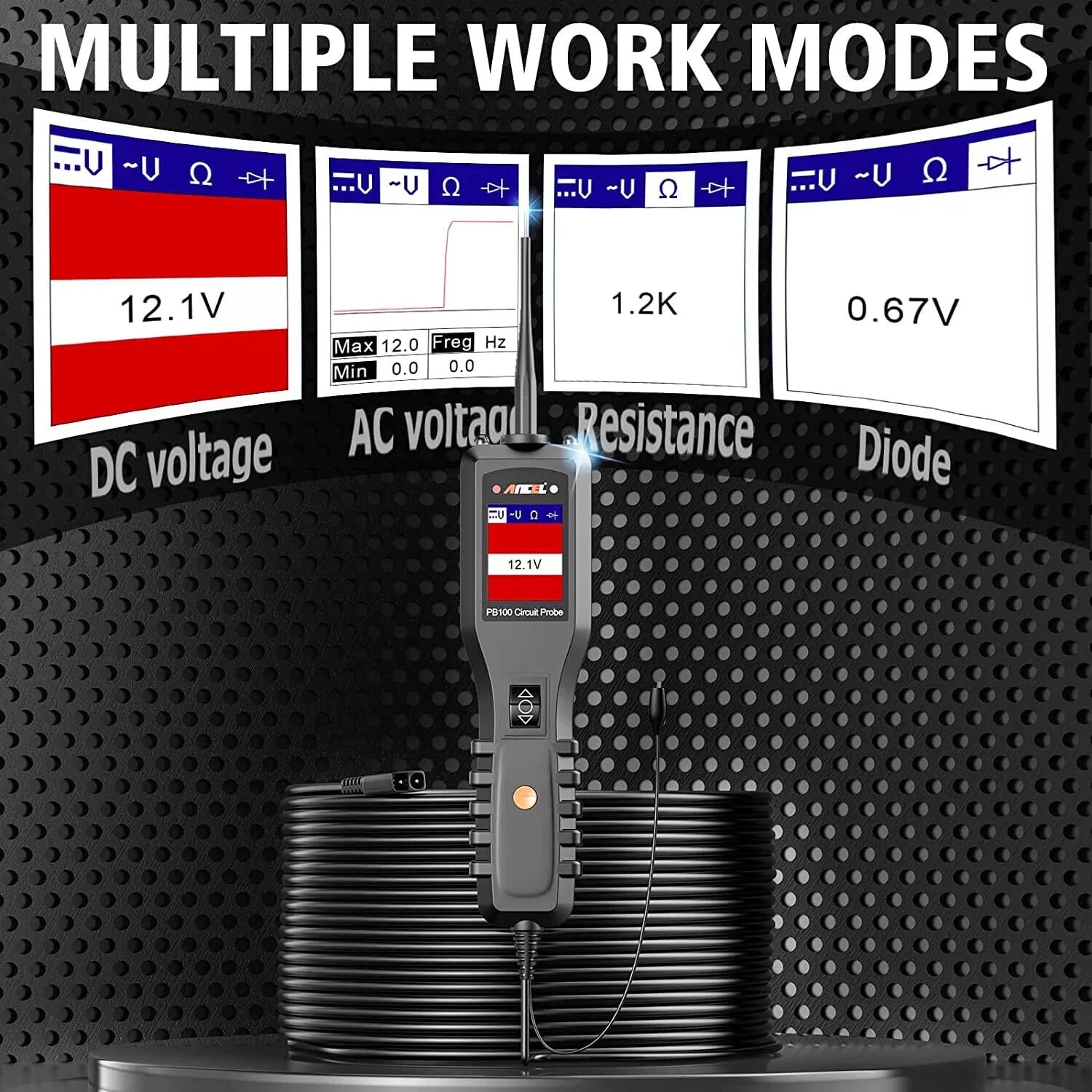

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.
✔️DC voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.
✔️AC voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. Voltage and frequency.
✔️Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
✔️Diode
In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reversebias.
ANCEL PB50 Electrical System Circuit Tester Functions:
🔸Power injection, measuring, ground testing, polarity checking, continuity testing and component activation.
🔸Read the AVO meter, voltage, current, and resistance.
🔸Energize the electrical components, such as the cooling fan, relay etc.
🔸Activate the components
🔸Determine the positive, negative and open circuit.
🔸Test the bad ground contacts, follow and locate short circuits without wasting the fuse.
🔸Test the continuity of the power switch, relay and diode.
🔸Protect the tool from overload.
🔸Allow you to work in the dark area by using the built-in head light.
🔸Test along the vehicle by the long cable.
- 👍【Ancel PB50 Car Circuit Tester Inspection Tool】: With the PB50 probe tester, you can check voltage and ground signals in a typical DC circuit. However, the kicker is that you can also use it to send voltage and ground signals. It works like a test light that can power circuits or provide a good known ground. This way, you can effectively test components and circuits without having to break out the old alligator clips and jumper wires. You can power or ground a circuit directly through the top of the device.

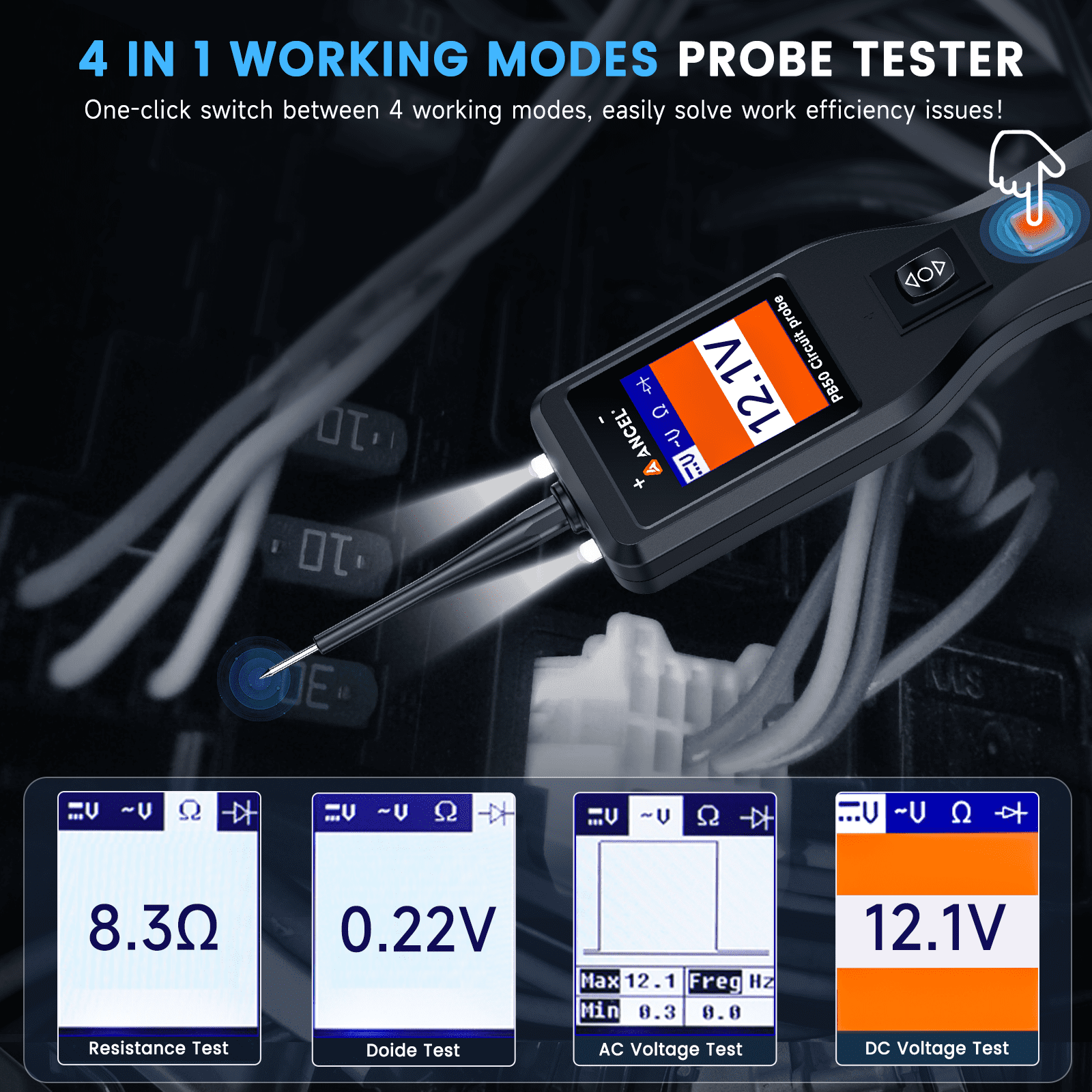

- 💫【4 IN1 Power Circuit Probe Tester】: The ANCEL PB50 probe tester offers four versatile working modes, easily accessed with a single press of the Mode Button: ✅DC Voltage Mode ✅AC Voltage Mode ✅Resistance Mode ✅Doide Mode. The PB50 is the ultimate circuit probe tester to meet all your car electrical system needs.

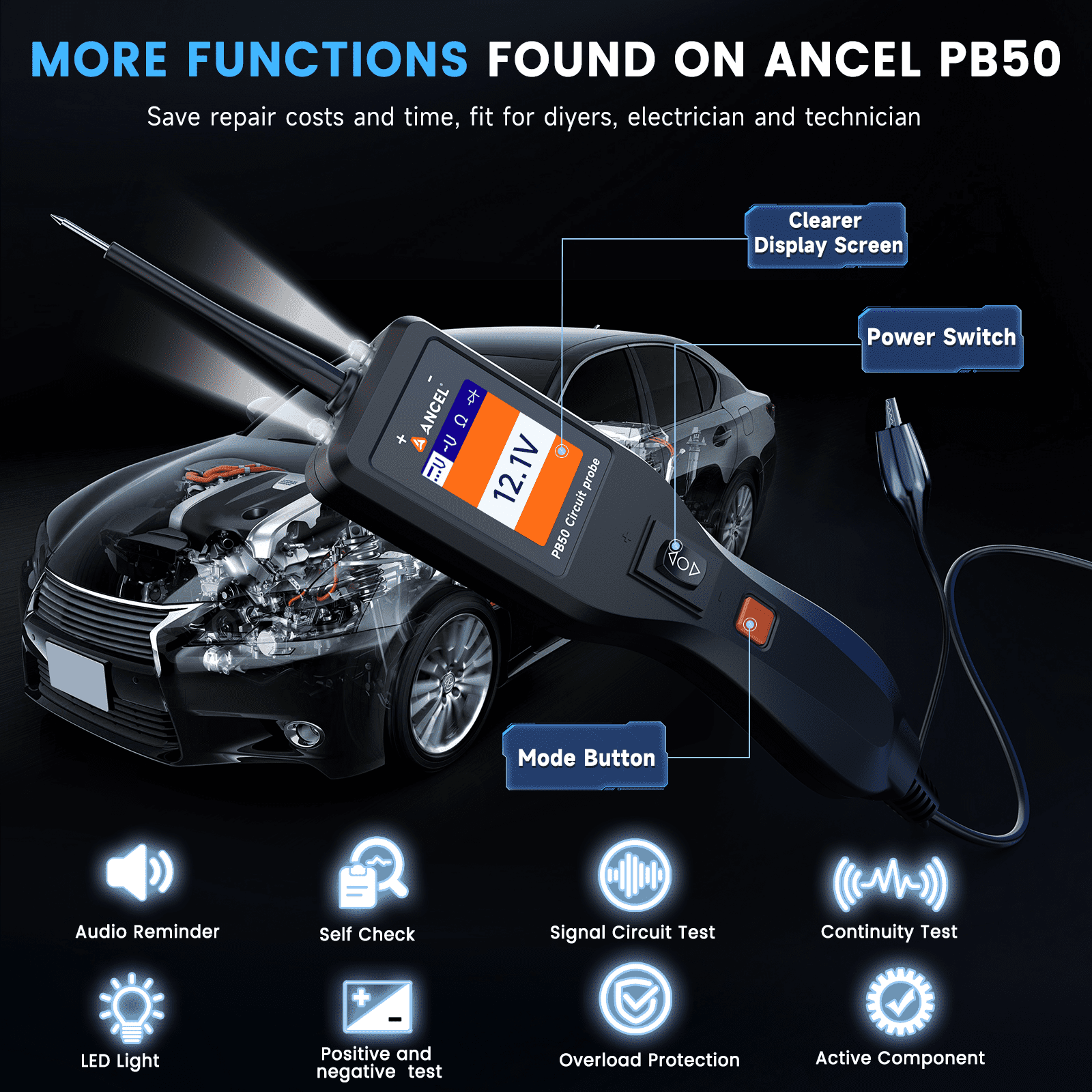

- 👑【Explore More Functions】: The PB50 is a multi-functional automotive circuit tester. It’s got a whole bunch of cool tricks up its sleeve: ✔️Short Finder ✔️Overload Protection✔️Polarity Test ✔️Continuity Test ✔️Ground Test ✔️Activate Components ✔️Signal Circuit Test ✔️Quick Self-Test. Whether you’re a DIY fanatic or a pro, this nifty tester is a must-have for your toolbox!
- 🔥【Activate Components】: The PB50 12V 24V probe tester is a real gem for car owners who like to get their hands dirty! It sends an activation signal to check if components are okay. You can activate all sorts of components on hand/vehicle/ground, like turning on car lights, getting motors spinning, making windshield wipers swipe, and radiator fans whirl. This is a high value power circuit probe tool that’ll save you time and money by letting you check system failures on your own.
- ❣️【Auto Circuit Protection】: Circuit breaker is a valuable tool for easily testing short circuits, while also serving as a crucial safety feature to protect the device from overload. Ancel PB50 power circuit testers kit has a built-in circuit breaker, which shuts down and restarts whenever it is overloaded, to prevent circuit overload and overheating.
