Description:

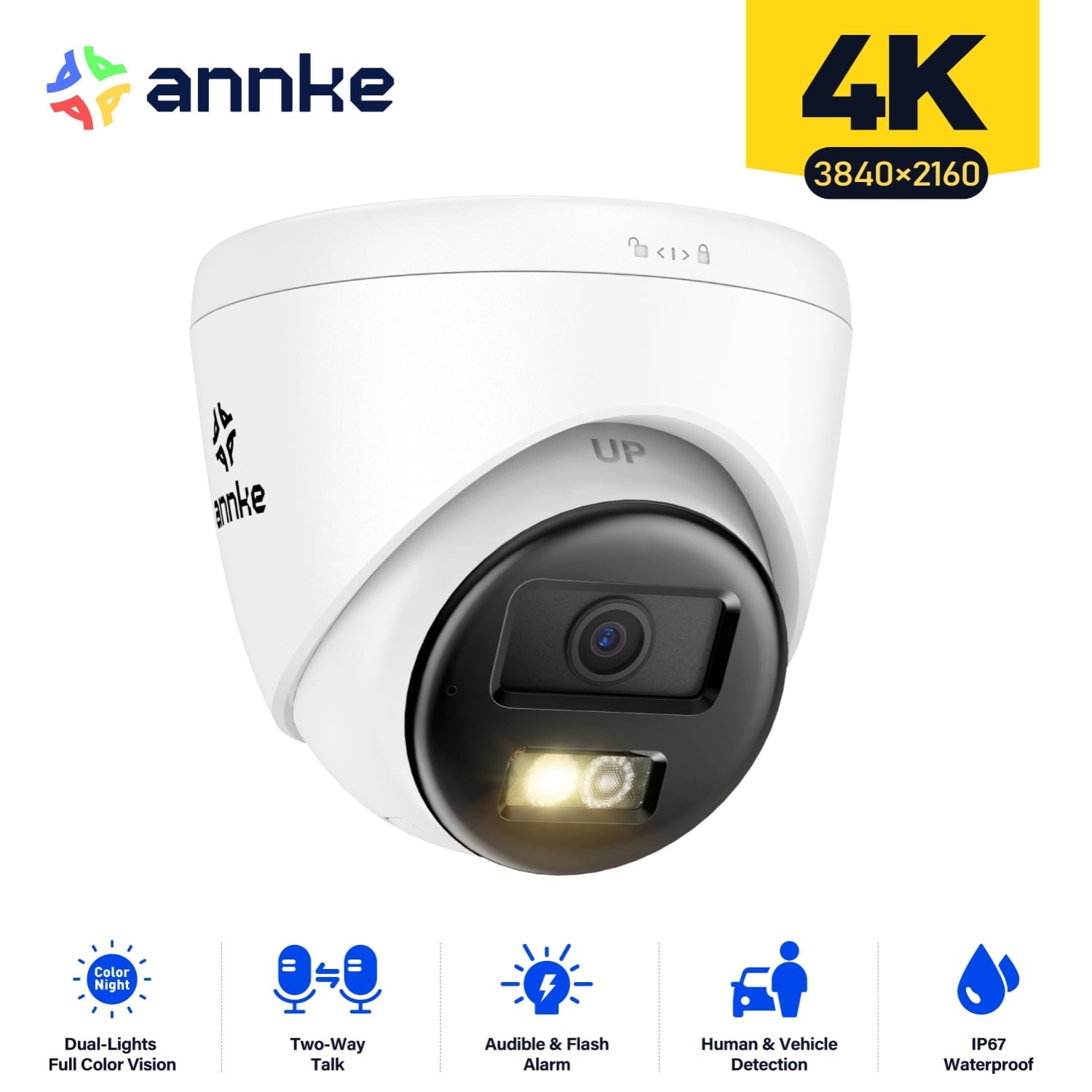

“”★ 4K turret network camera with 16:9 image scale
★ 4mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Provide real-time security via built-in two-way audio
★ Motion detection 2.0 with human & Vehicle Detection
★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Support flashing alarm & Audio alarm
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V “”

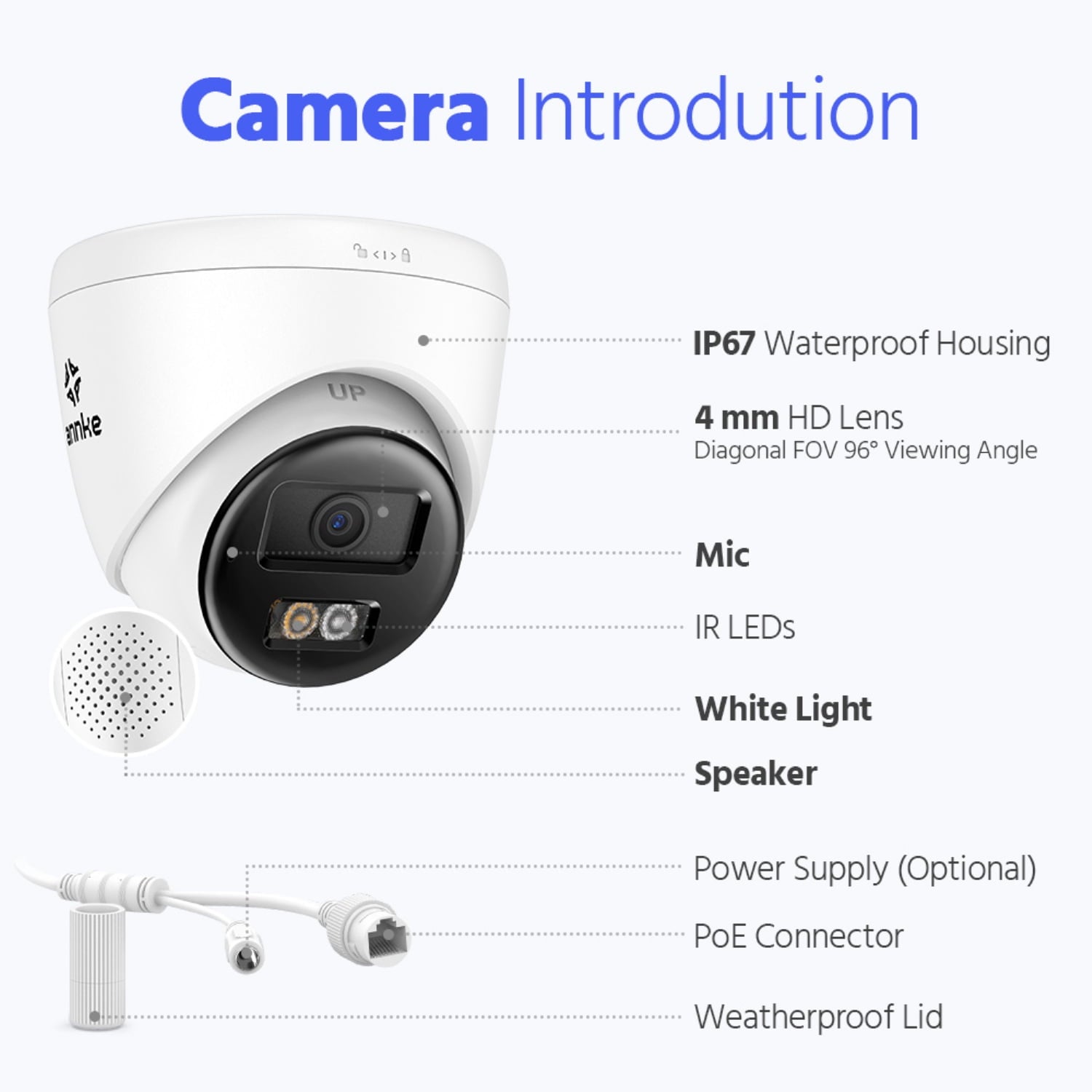

Camera:
Image Sensor: 1/2.4″” Progressive Scan CMOS
Max resolution: 3840*2160(8MP)
Main Stream: “”50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)””
Substream: “”50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)””
Video Compression: “”Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG””
Video Bitrate: 32 Kbps – 16 Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Input: Built-in Microphone, record with audio
Audio Output: Built-in Speaker, max. sound pressure level: 10 cm: 95 dB
Lens: 4 mm
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Flashing Light Alarm: High/Medium/Low Frequency
Audio Alarm: Warning/Prompt/Custom Audio
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

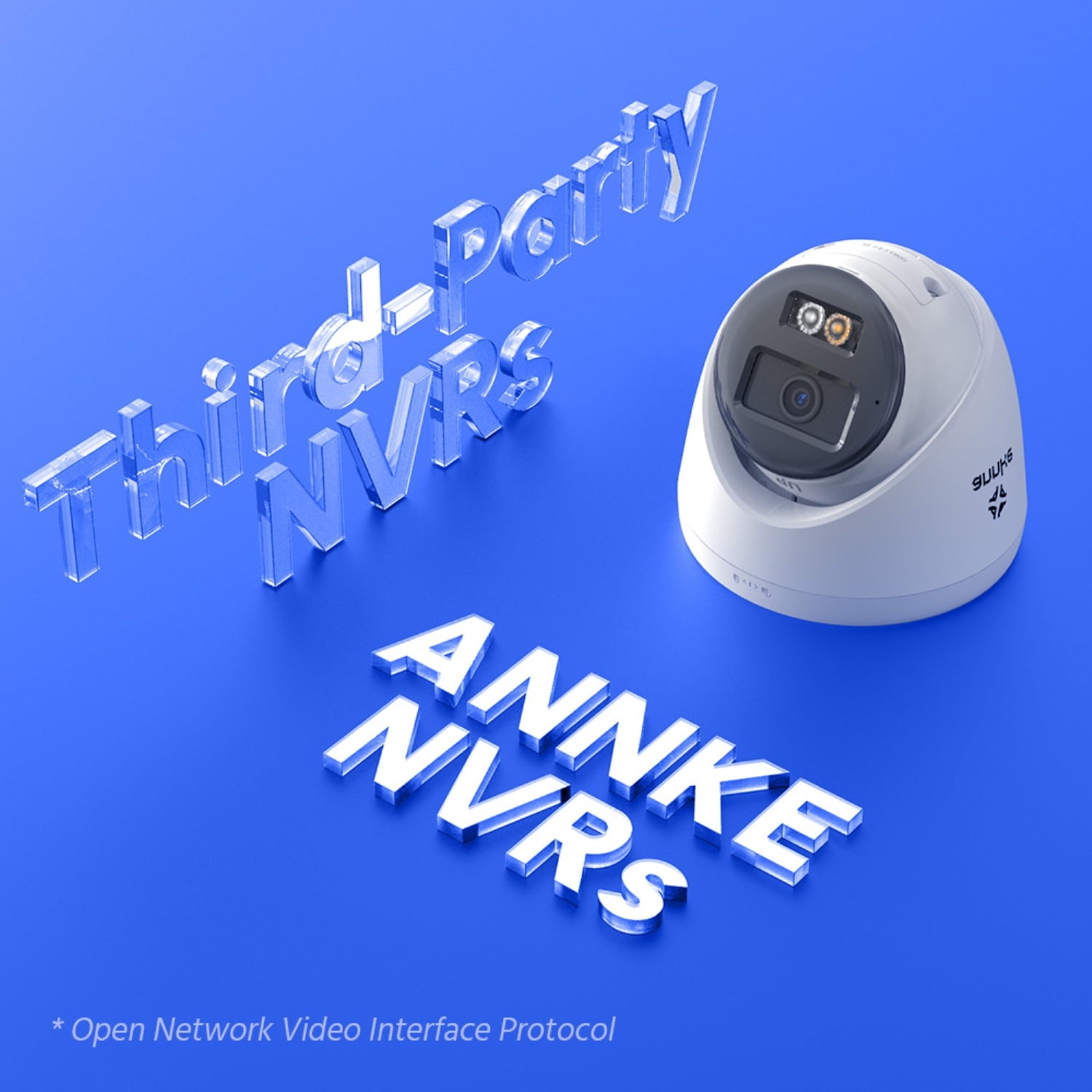

API: Open Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Rotate mode, mirror, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White

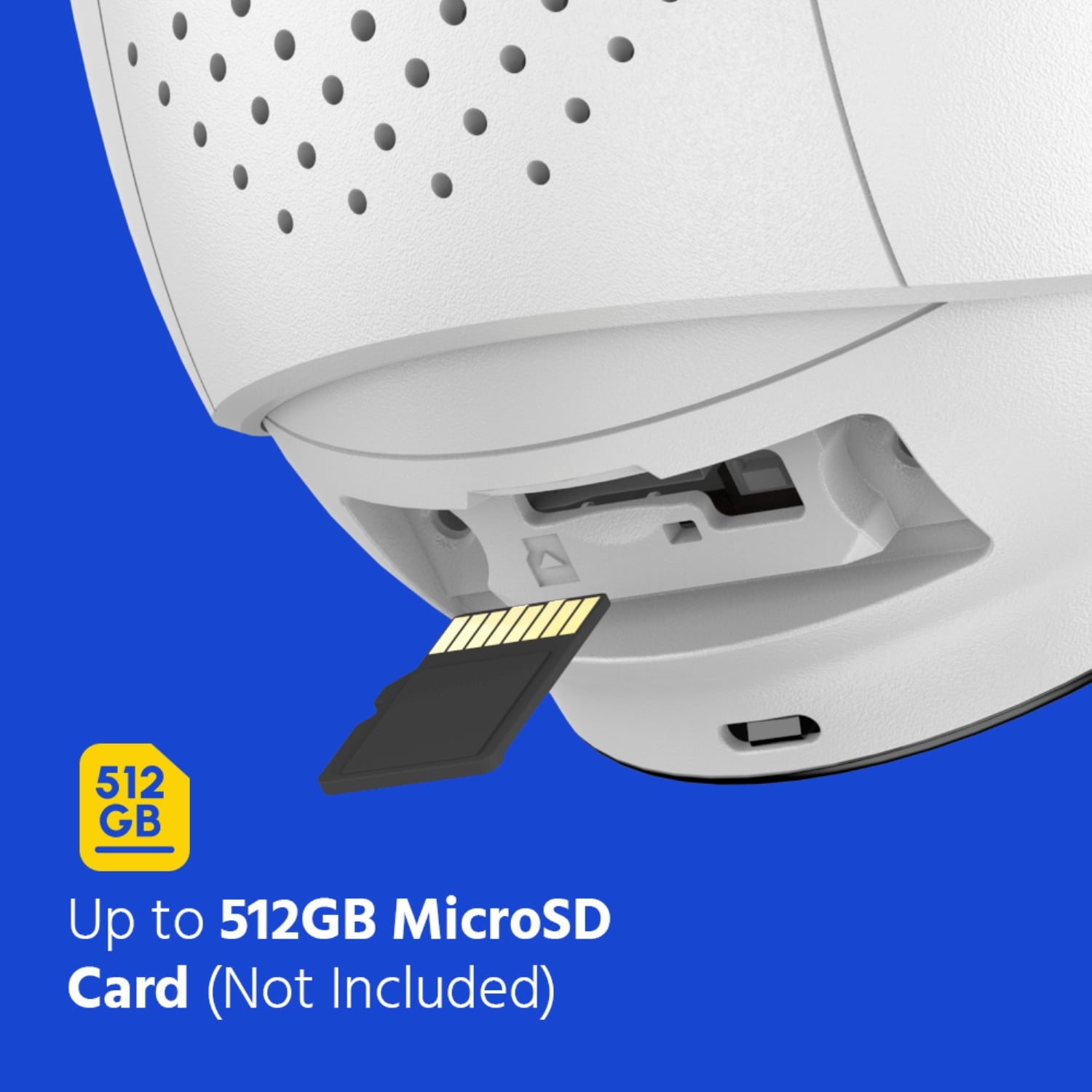

Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes

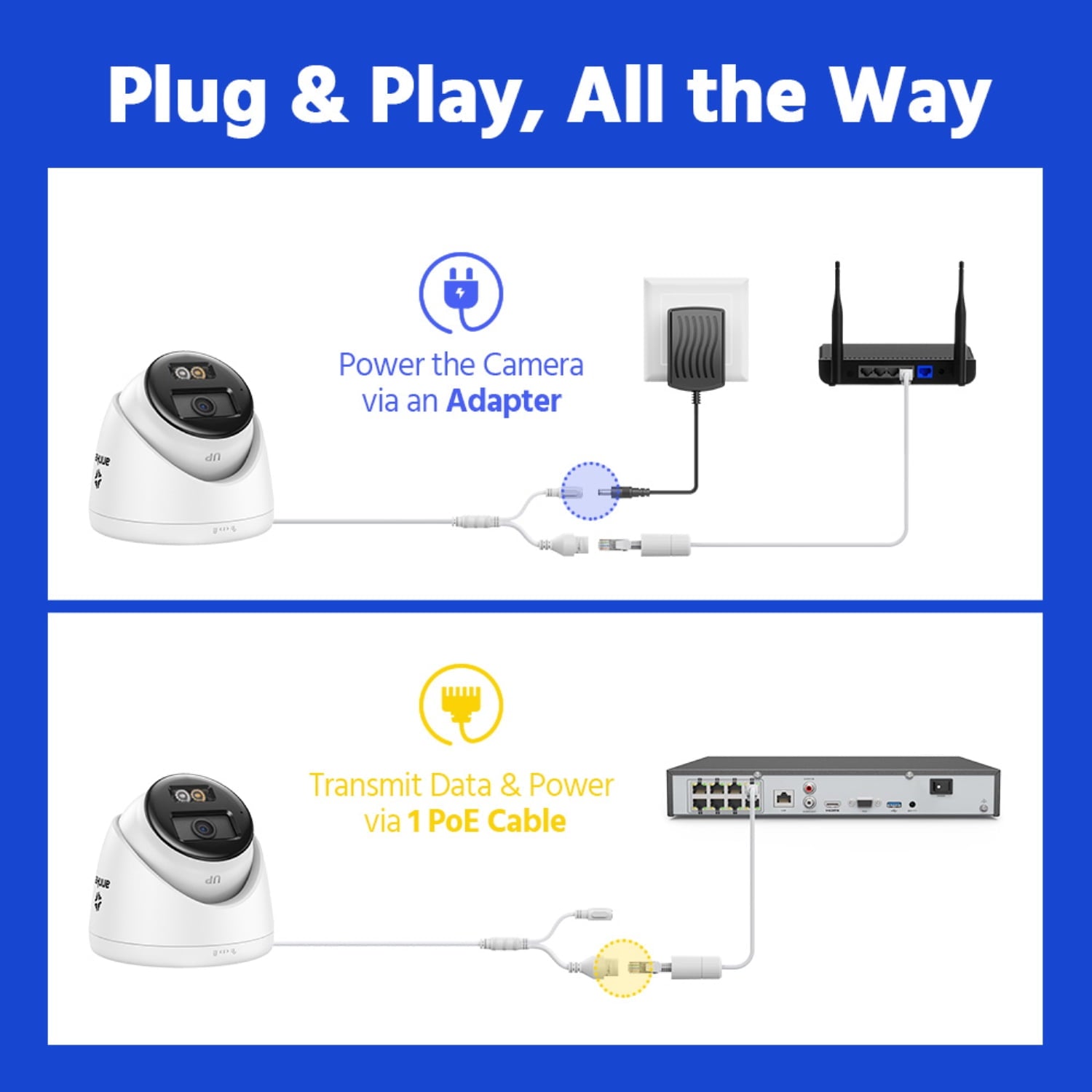

Operating Power: DC 12 V± 25%, max. 8 W; PoE (802.3af), max. 9.5 W
Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection: IP67
Dimension (L X W X H): Ø 110 mm × 102.7 mm (Ø 4.33″” × 4.04 “”)
Weight: Approx. 340 g (0.7 lb.)
“
- Best 4K Def. in 16:9 Image Scale: The 1/2.4″” progressive scan BSI CMOS image sensor delivers 4K resolution (3840*2160), not only bringing clarity image quality with finer details but a 16:9 image scale that is perfectly matched with the screen without distortion.Besides, the 4mm lens lets you experience clearer and closer visuals, never miss any details.
- Listen & Talk in Real Time: This camera not only delivers 4K clarity images, but also can help you to communicate with your friends or family members by using the ANNKE App. By the way, it’s good for you to warn suspicious strangers when they’re loitering around your home.

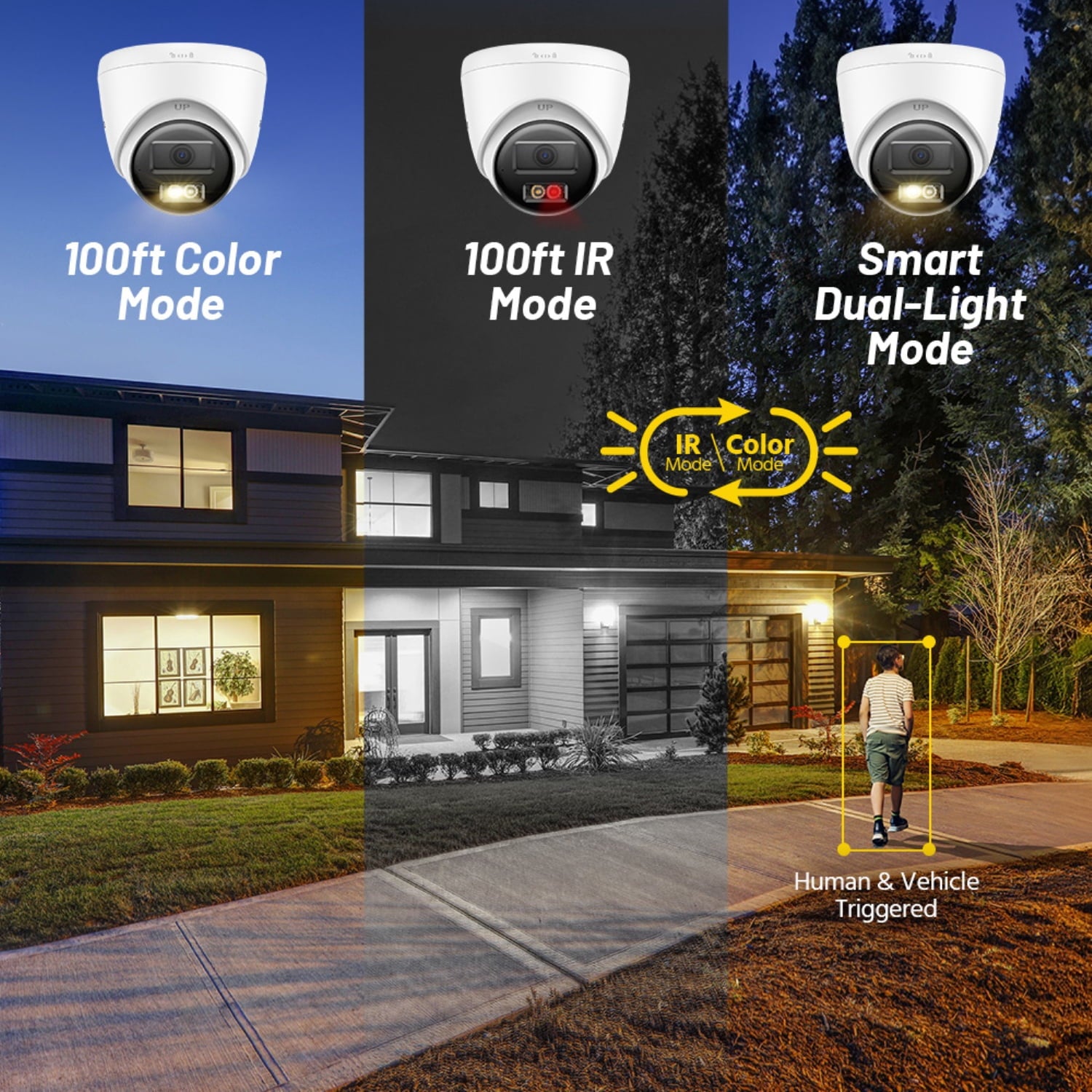

- From Black & White to Colored Night: With the default IR night vision, human&vehicle triggered and turned the vision into color. Remains color night vision even in dark environments, turns to B&W when less than 0.005Lux. Also supports IR night vision and color night vision mode switching. (100ft color night vision and 100ft IR night vision)
-
Accurate Human & Vehicle Detection: of false alarms.Motion Detection 2.0 recognizes and extracts key objects quickly like human beings and vehicles, reducing up to 99%
- Audible & Flash Alarm: Audible and light alarms can be linked to event triggers and real-time alerts to prevent in advance, reduce losses; Audible alarms max for up to 95dB, 12 kinds of alarm sounds for you to choose from and you can also customize alarms like recording your voice as alarm sound; 3 modes of light flashing can be selected and adjust the time duration according to needs.
