Description:
DVR
“”· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression

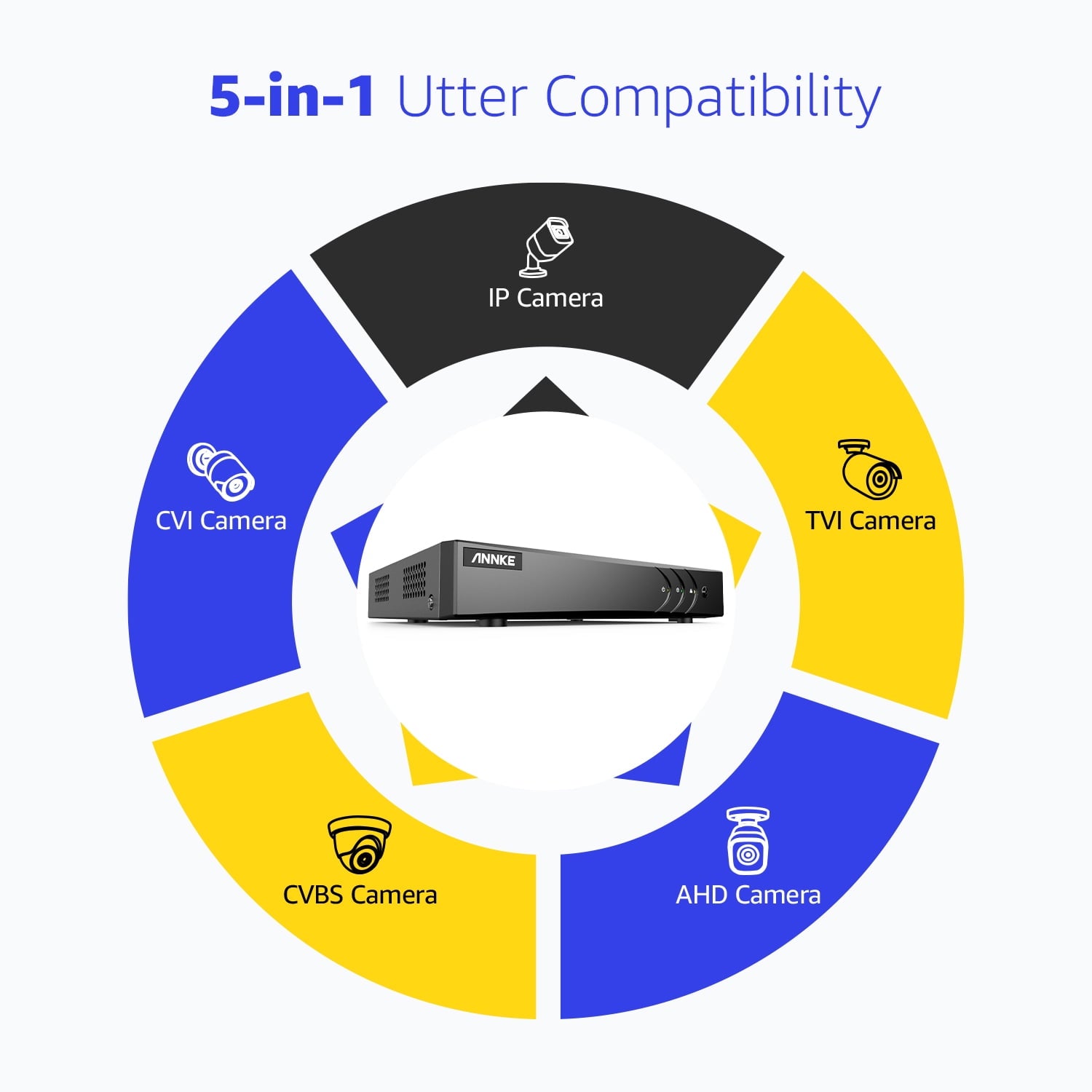

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable””
Video & Audio:
Video Compression: H.264+/H.264/H.265/H.265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: “”Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P””
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Network Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Total Bandwidth: 96Mbps
Remote Connection: 64
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface

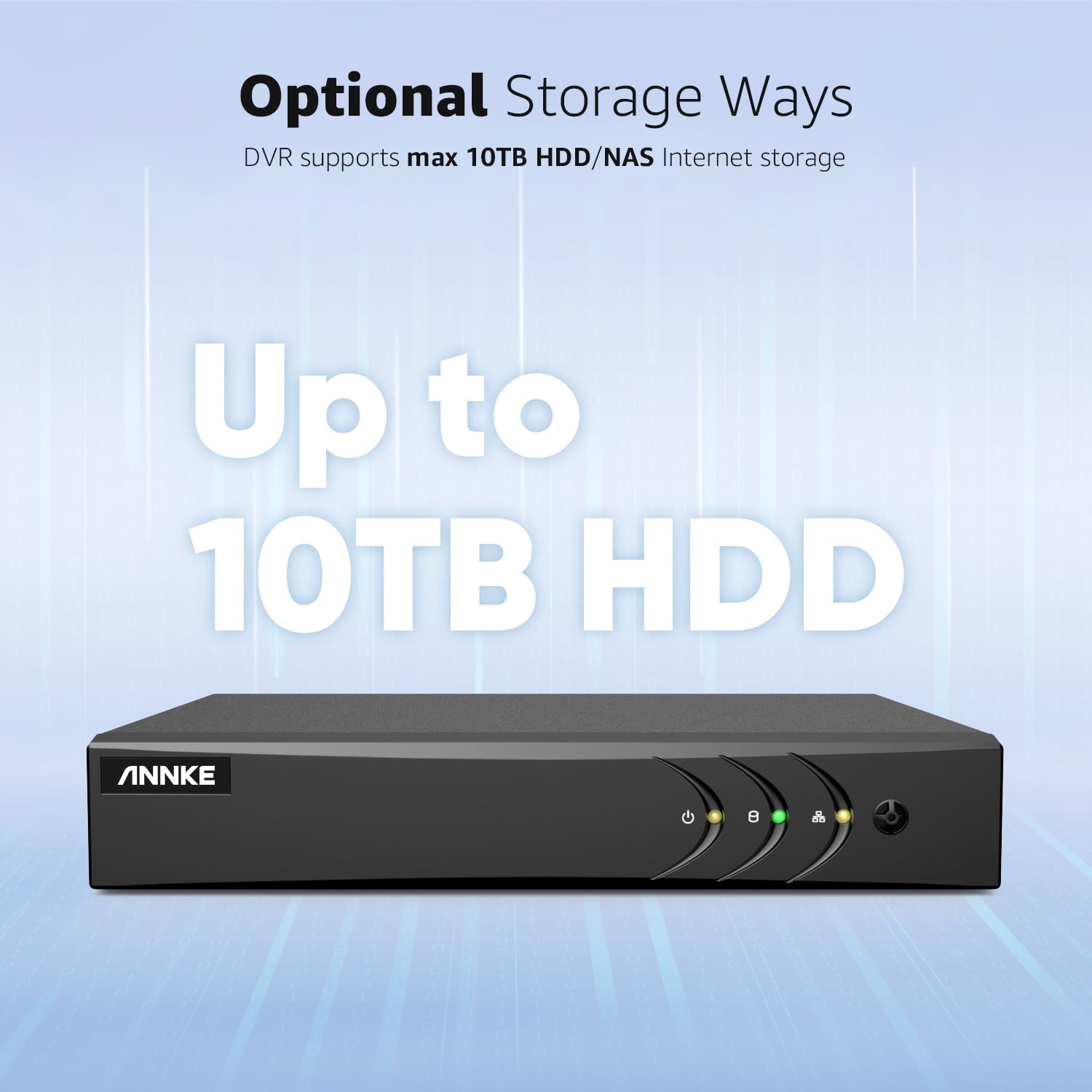

HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V,≤ 12W (without HDD)
Working Temperature: -14 °F – 131 °F /-10 °C – 55 °C
Dimensions(W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): ≤ 1 kg (2.2 lb)(without HDD)
HD Camera
★ 1080P HD TVI Bullet Security Camera

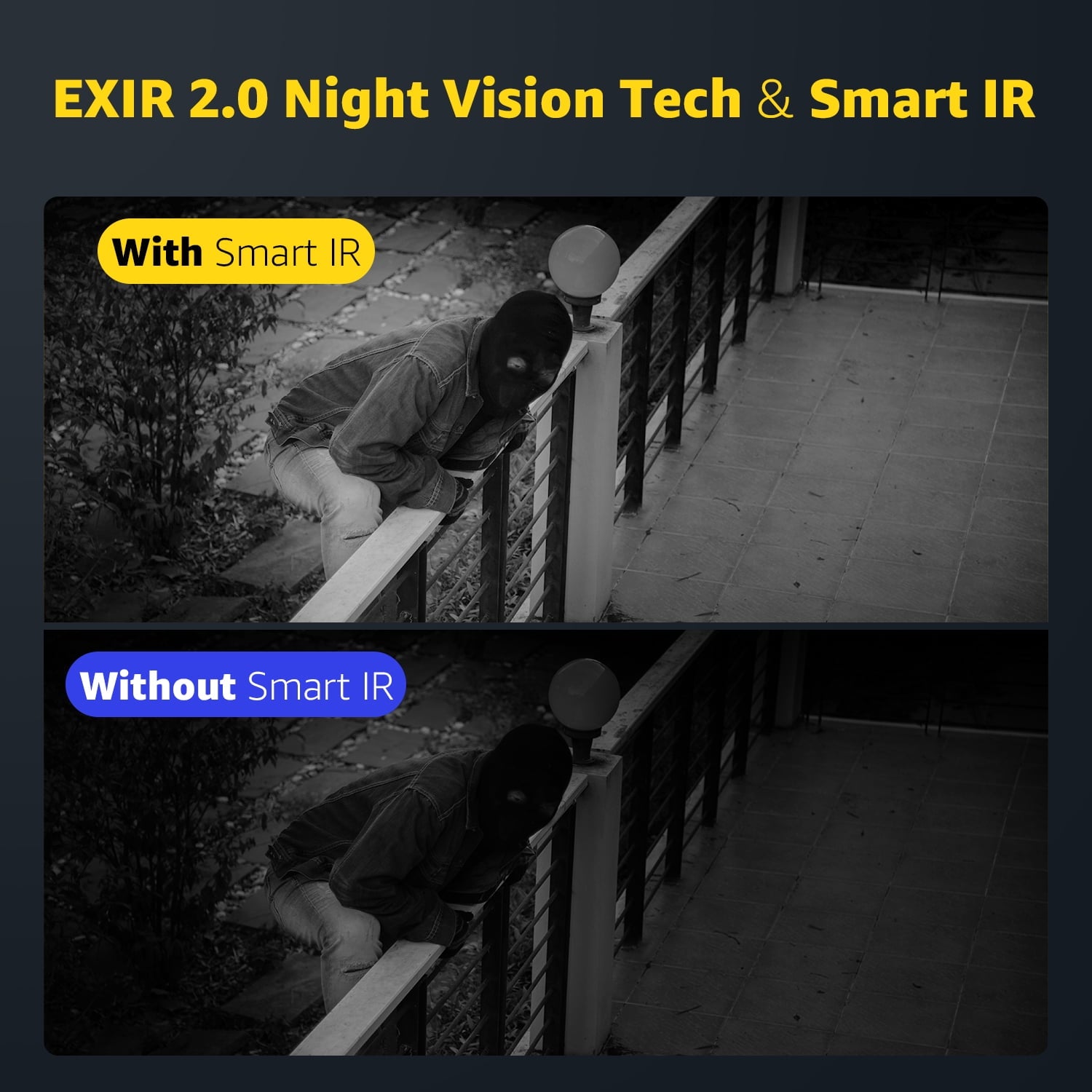

★ Up to 30m night vision with Smart IR
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut
★ IP66 Dust and Waterproof Rating
Camera:
Image Sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) X 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25 fps NTSC: 1080p@30 fps
Lens: 3.6 mm
Min. Illumination: Color: 0.02 Lux @(F1.2,AGC On); 0 Lux with IR
Angle of View: 82.2°
Number of Infrared LEDs: 12
Night Vision Distance: Up to 100 ft/30 m

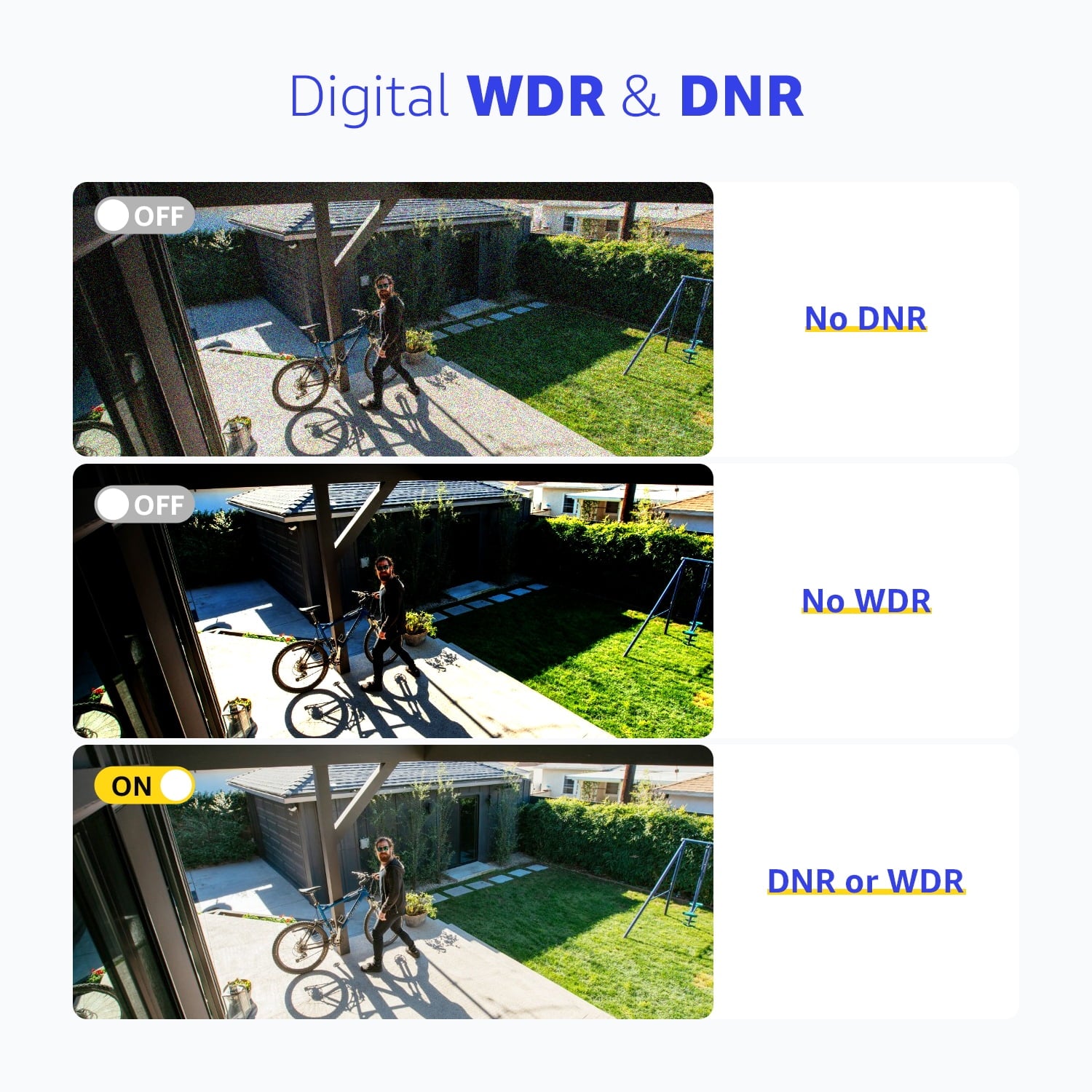

DNR: Support
Wide Dynamic Range: Digital WDR
IR-Cut Filter: Yes
Video Output: HD BNC X1
General:
Housing: Plastic
Color: White
Operating Power: DC 12 V
Operating Temperature: -40 °F – 140 °F/-40 °C – 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L X W X H): 2.76″” X 6.08″”/70 X 154.5 mm
Weight: 0.88 lb./400 g
“

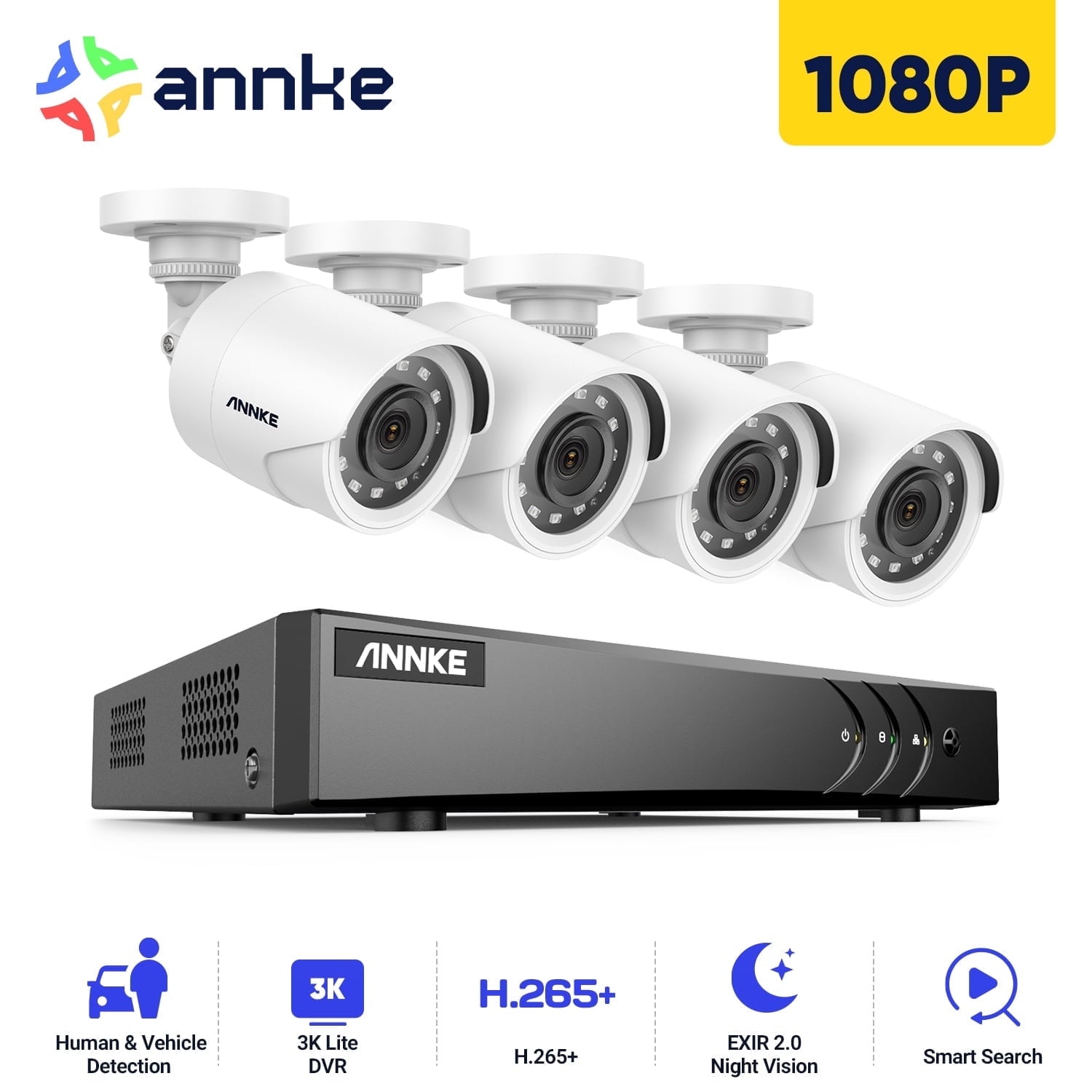

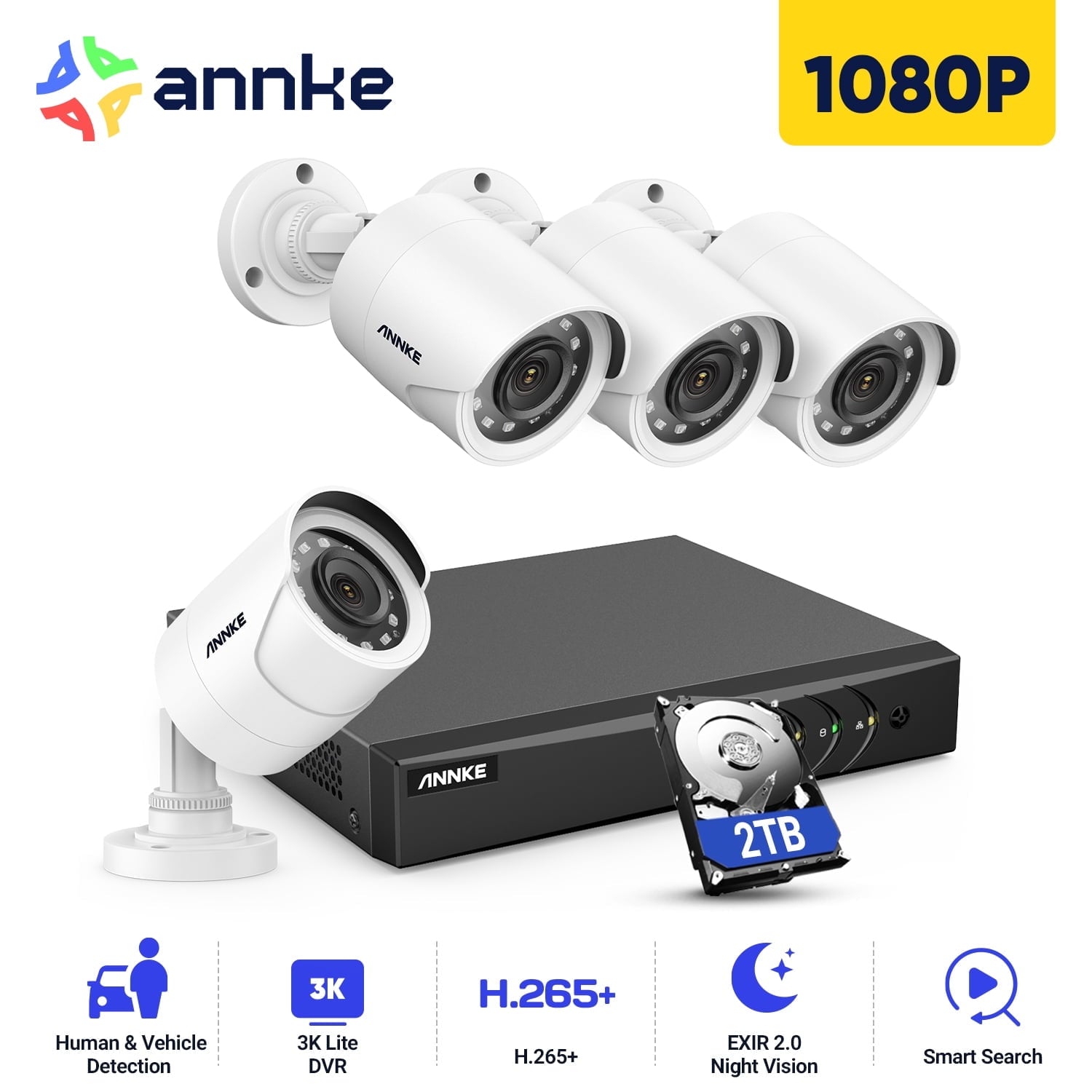

- 【Tried-and-True Safe Guard】This one-stop security solution includes 4pcs 1080p wired cameras & 8CH 3K lite DVR that works with TVI, AHD, CVI, CVBS & IP cameras. The DVR can hook up with 5MP@20fps cams or 3K@20fps ones. Plus, the advanced sensor & smart IR capture clear images up to 100ft away.
- 【AI Motion Detection 2.0】Driving AI to the next level, human&vehicle detection, line crossing, or region entrance detection are more accurate than before. For quicker locating in crucial moments, human&vehicle smart searching in recordings offers you great help.
- 【Upgraded to H.265+】The recording time is lengthened, and the bandwidth is lessened. Up to 10TB HDD is supported to expand according to your needs. (NOTE: HDD NOT INCLUDED.)
- 【24/7 Peace of Mind】Whenever real threats are detected, immediate pushes pop up on your phone, and you can check it out via 3G/4G/5G/Wi-Fi. However far away you are from home, this reliable security system secures your peace of mind day&night.

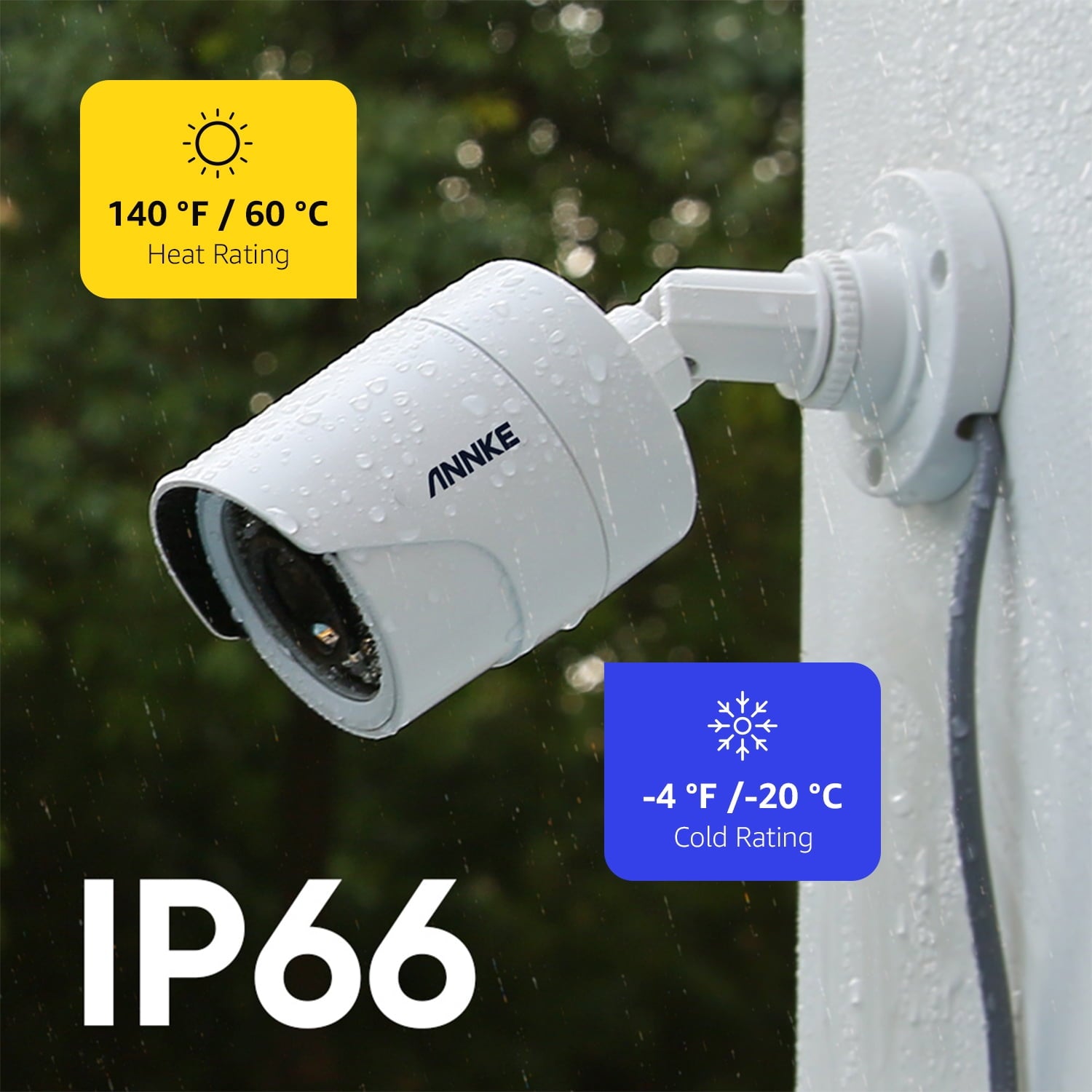

- 【IP66 & Waterproof ABS Housing】With IP66 weatherproof and the ABS exterior housing, these wired cameras can stand from cold to hot, from -40°C/-40°F to 60°C/140°F. Every detail is designed for a longer lifespan.”
