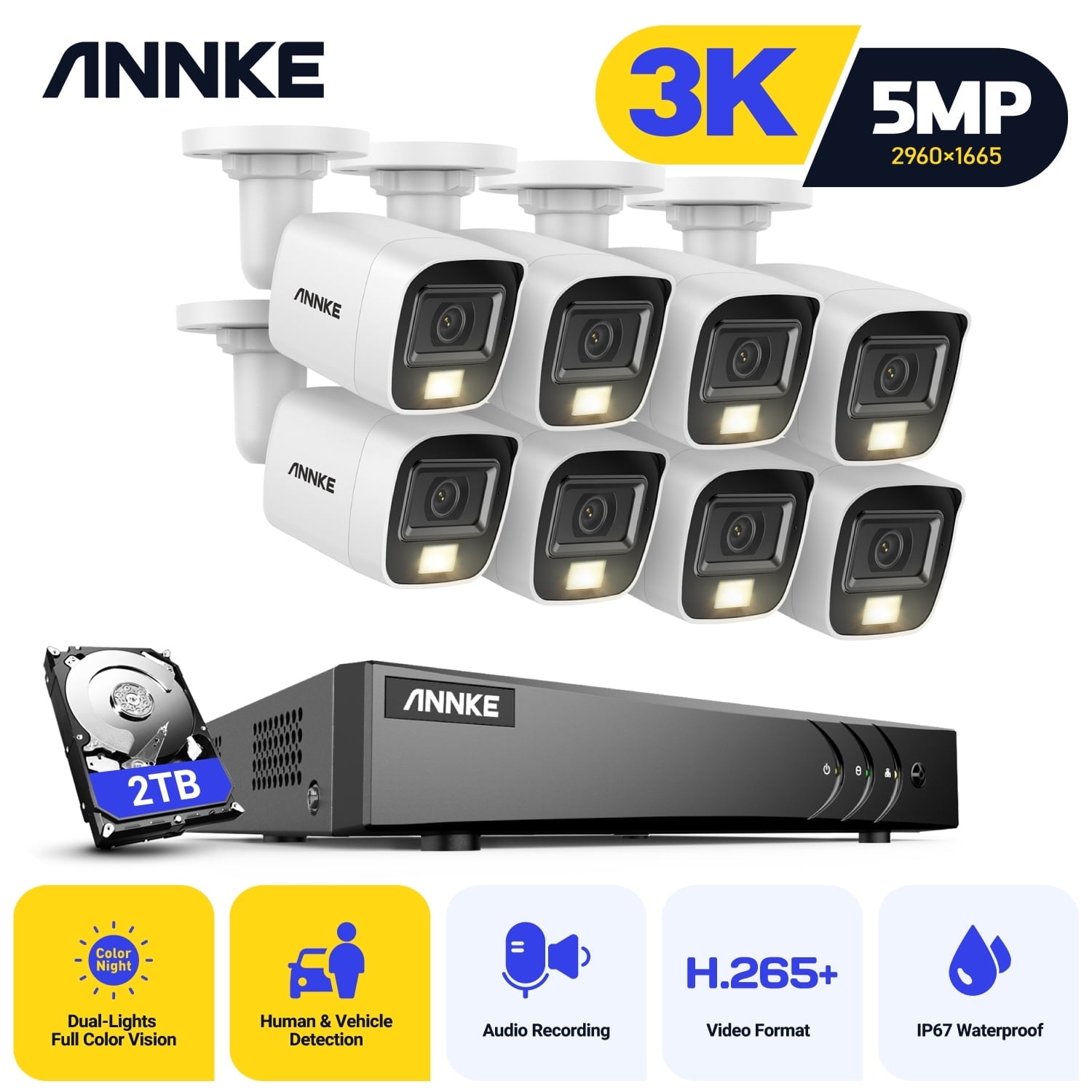

Description:
DVR
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable””

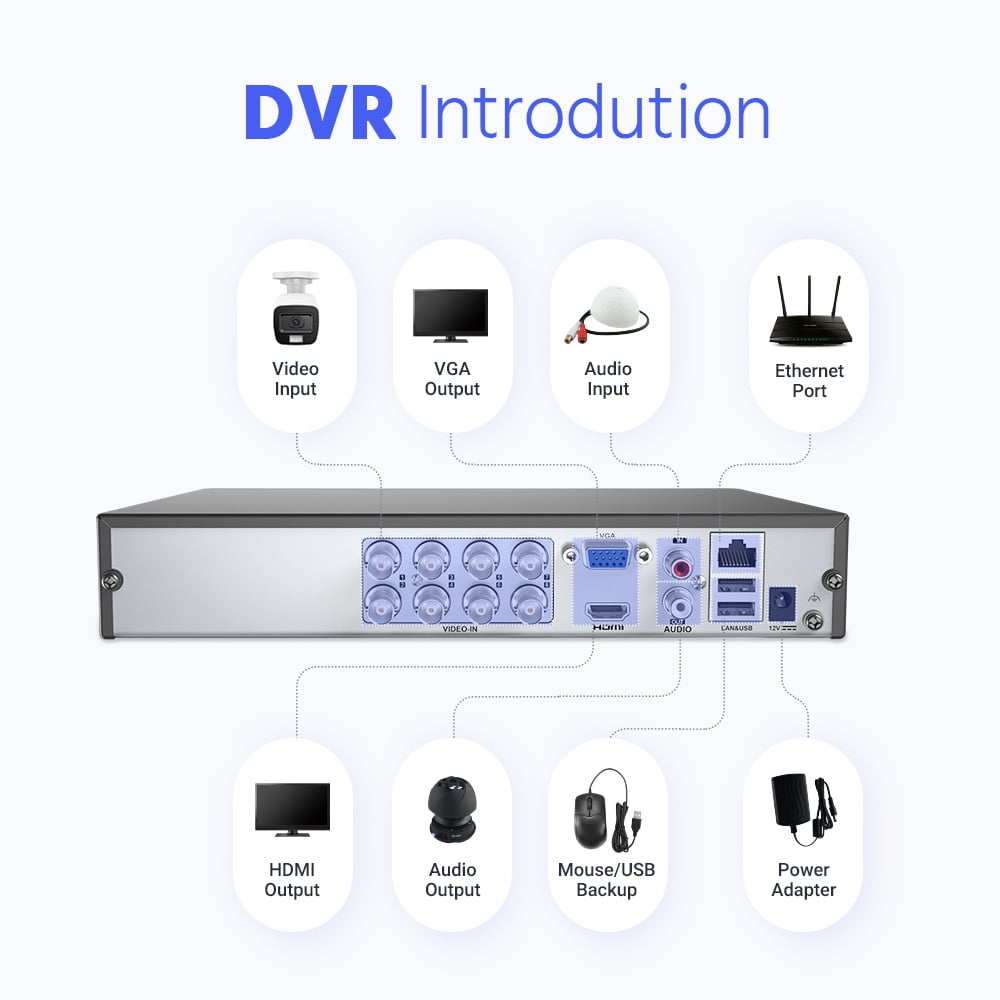

Video & Audio:
Video Compression: H.264+/H.264/H.265/H.265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: “”Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P””
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Network Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Total Bandwidth: 96Mbps
Remote Connection: 64
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V,≤ 12W (without HDD)
Working Temperature: -14 °F – 131 °F /-10 °C – 55 °C
Dimensions(W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): ≤ 1 kg (2.2 lb)(without HDD)
Analog HD Camera
“”High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67) “”

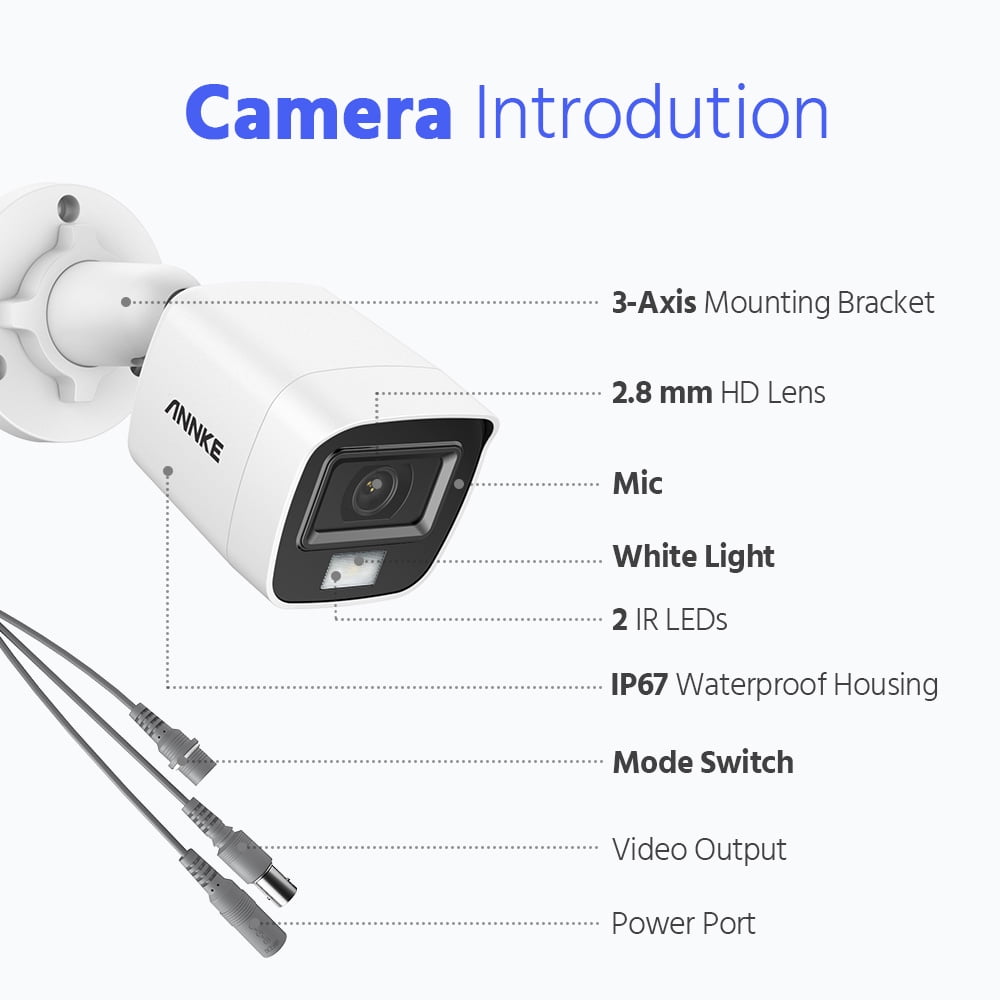

Camera:
Image sensor: 3K CMOS Image sensor
Video Resolution: 2960 (H) × 1665 (V) (16:9)
Signal System: PAL/NTSC
Frame Rate: “”TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC””
Lens: 2.8mm
Min.Illumination: Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

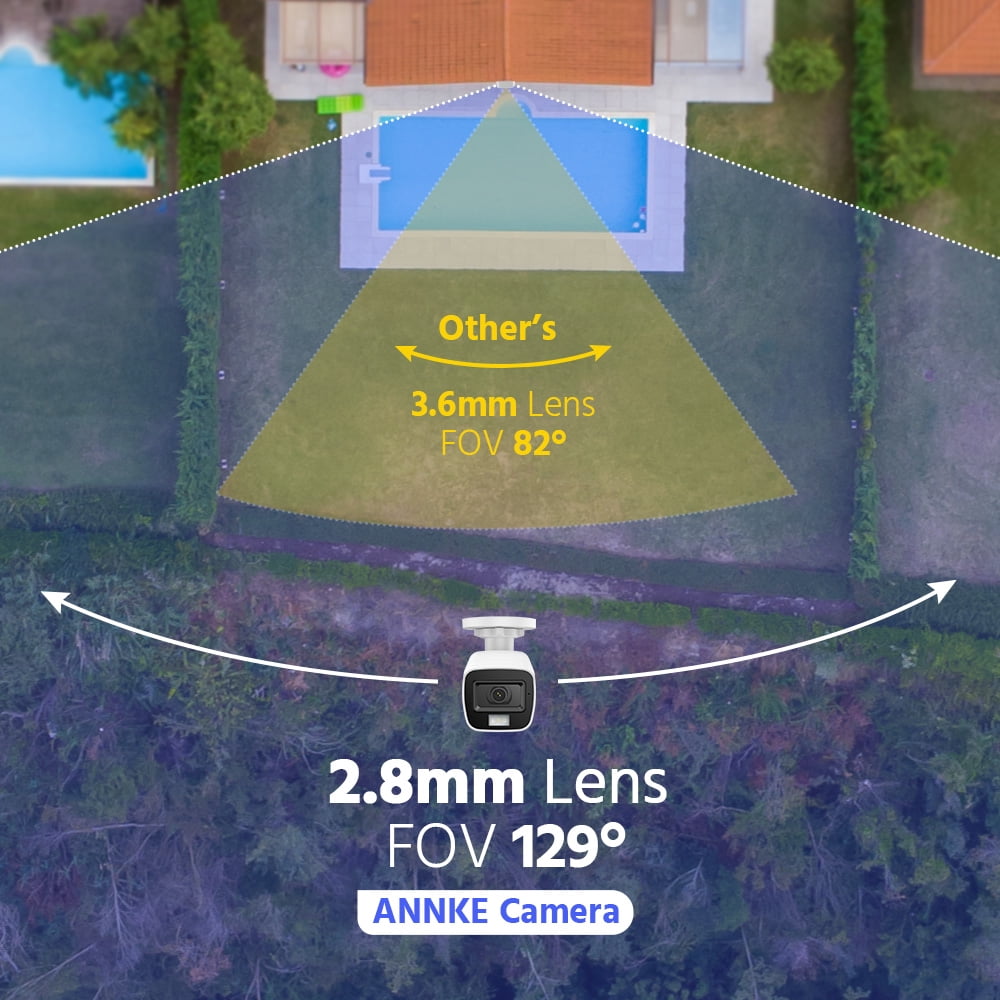

Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
Supplement Light type: 1 white Light & 2 EXIR
Supplement Light Range: IR : Up to 25 m, white Light : Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic Range: Digital WDR
Audio: Built-in mic
IR Cut Filter: Yes
Video Output: BNC, switchable TVI/AHD/CVI/CVBS
General:
Housing: Plastic
Color: White
Operating Power: 12 VDC ± 25%
Consumption: Max. 2.9 W
Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C
Indoor/Outdoor: Indoor/Outdoor

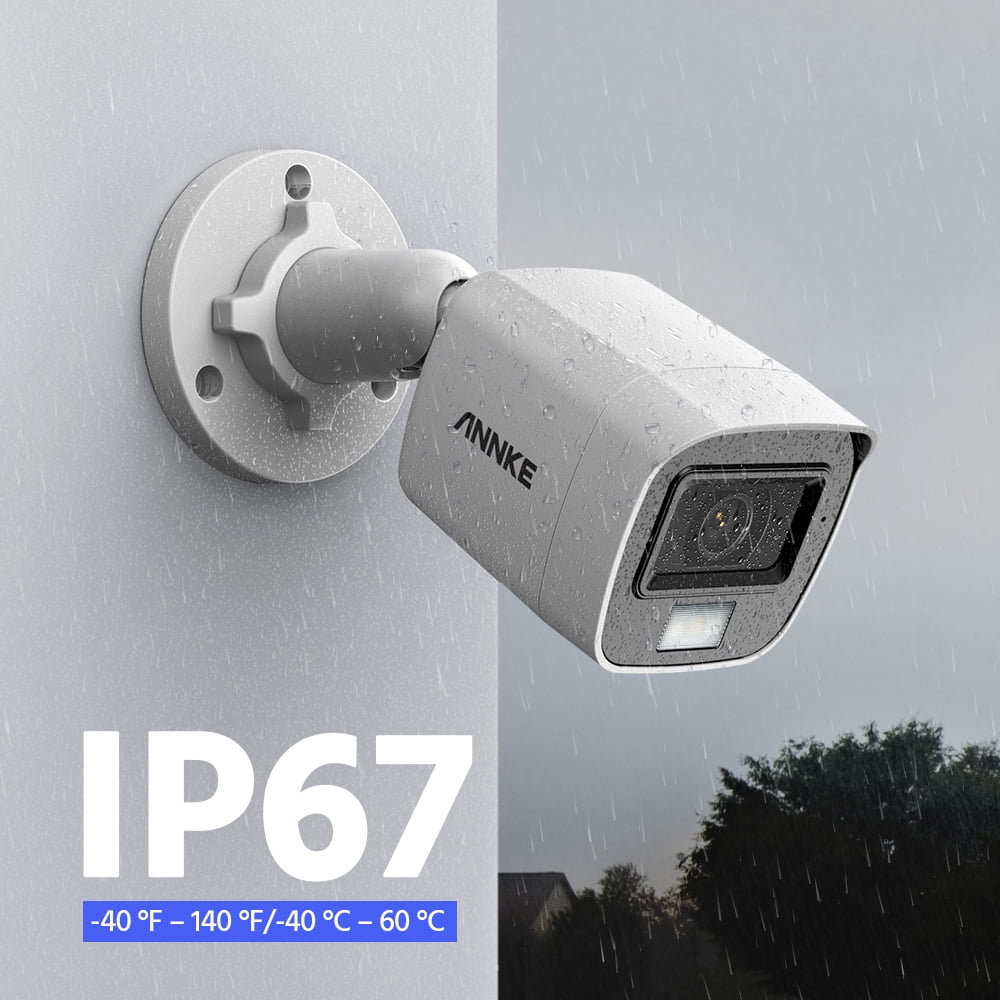

Weatherproof Rating: IP67
Dimension (L x W x H): 138.8 mm × 60.9 mm × 57.9 mm (5.47″” × 2.4 “” × 2.3″”)
Weight: Approx. 155 g (0.34 lb.)
“

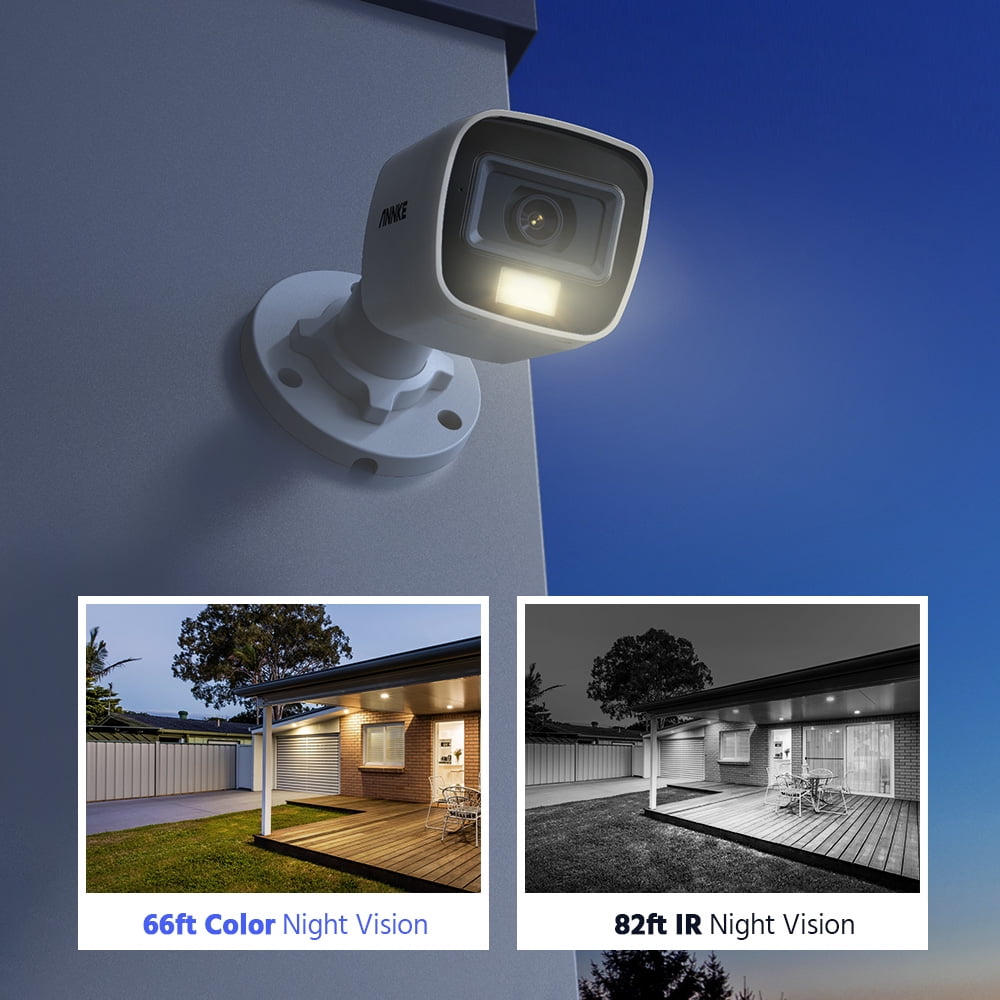

- 【Smart Dual-light Camera】This wired security cameras system has three night visions to adapt to your needs: smart light night vision, white light night vision, and IR night vision. The smart mode is the default. Black and white night vision turns into color once a human/vehicle is detected. Up to 25m IR distance for bright night imaging and up to 20m white light distance for bright night imaging.
- 【3K Resolution& Built-in Mic Camera】 With 3K CMOS image sensor, the security camera brings 16:9 aspect ratio of 2960×1665@20fps HD picture quality and provides clearer live stream clarity and a more friendly budget. Built-in Mic is not just for video recording but audio recording, which makes it stand out from other analog cameras. Audio can also be turned off in the menu.
- 【Up the Accuracy, Up Your Peacefulness】With advanced algorithm, the DVR security camera system analyzes human and vehicle at 99% accuracy, which tells you real alerts via app pushes and emails. No more false alarms caused by bugs or leaves with specific zone setting. And once detected, the black and white night vision turns into color intelligently.

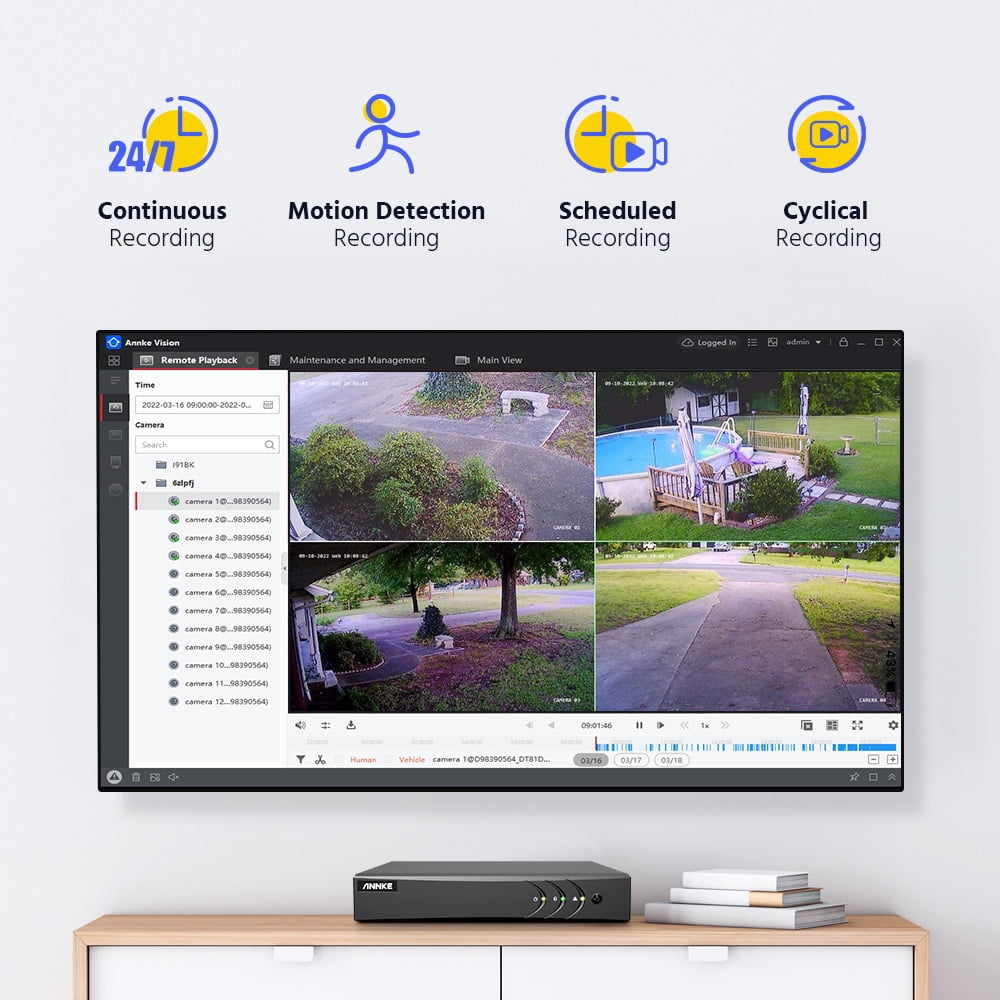

- 【Up to 10TB HDD&H.265+ Coding】 Although comes with 2TB HDD, this home security system supports up to 10TB HDD, which is designed to meet high workload demands of surveillance monitoring and minimizes the ambient noise & vibrations. The H.265+ video compression technology offers longer record time, saving up to 80% of storage space than H.264 one.
- 【You Can Always Count on ANNKE】Complied with GDPR, HTTPS, UL, CE, HDMI, etc, your joy of being safe about your property and privacy rests assured. And the IP67 weatherproof makes ANNKE camera system brave all conditions. Even lifetime technical support is another pledge for you.
