Description:
DVR
“· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression

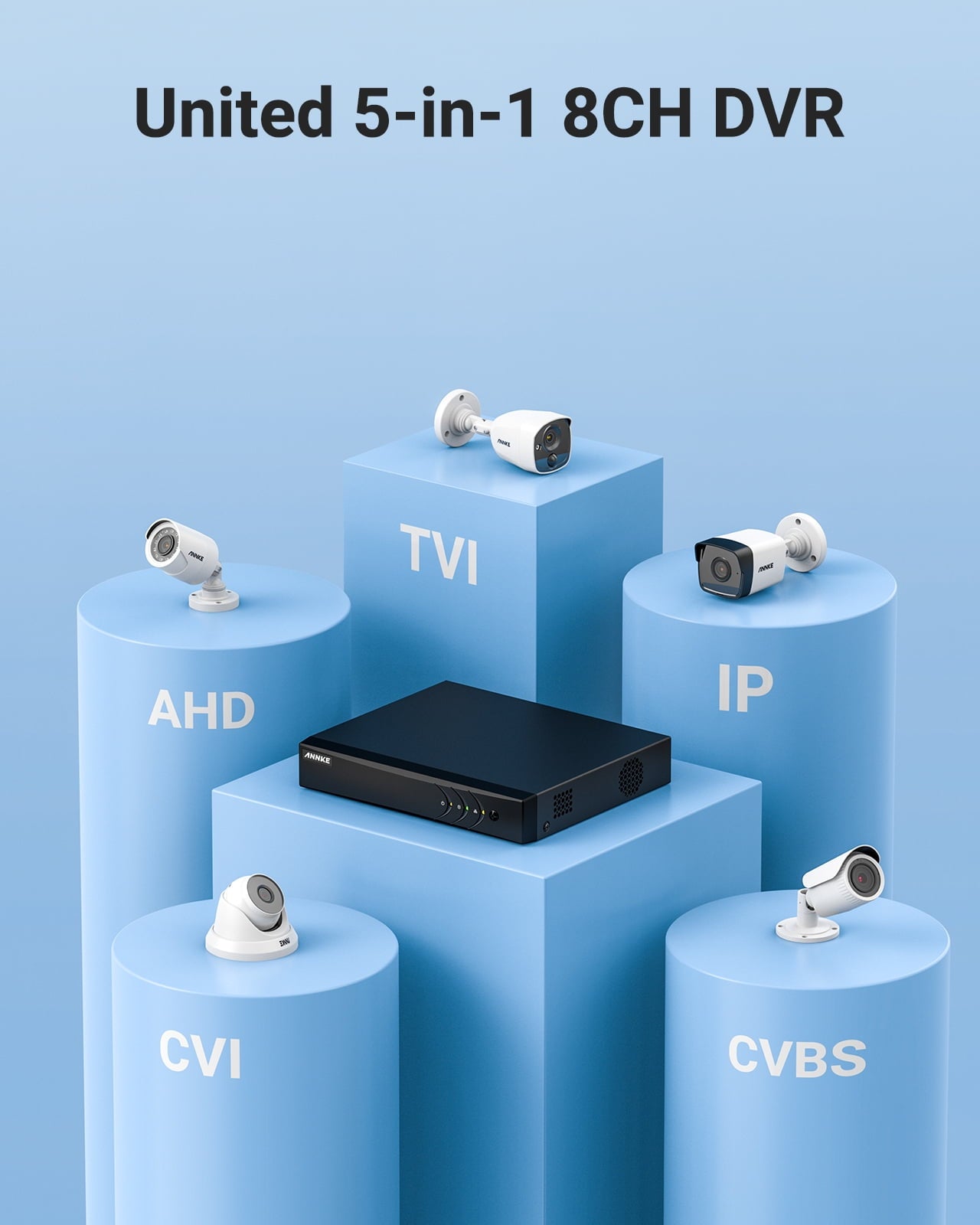

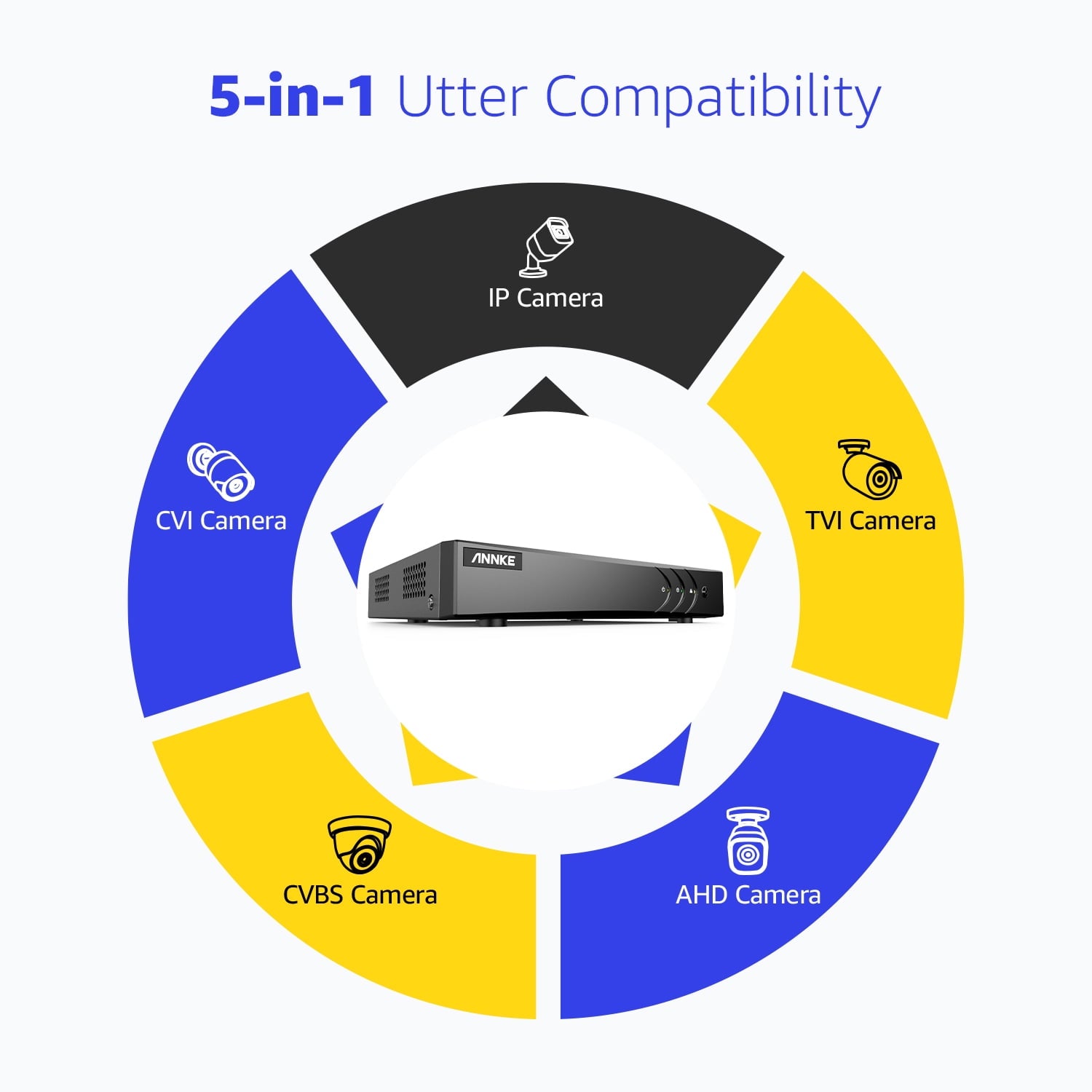

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable”

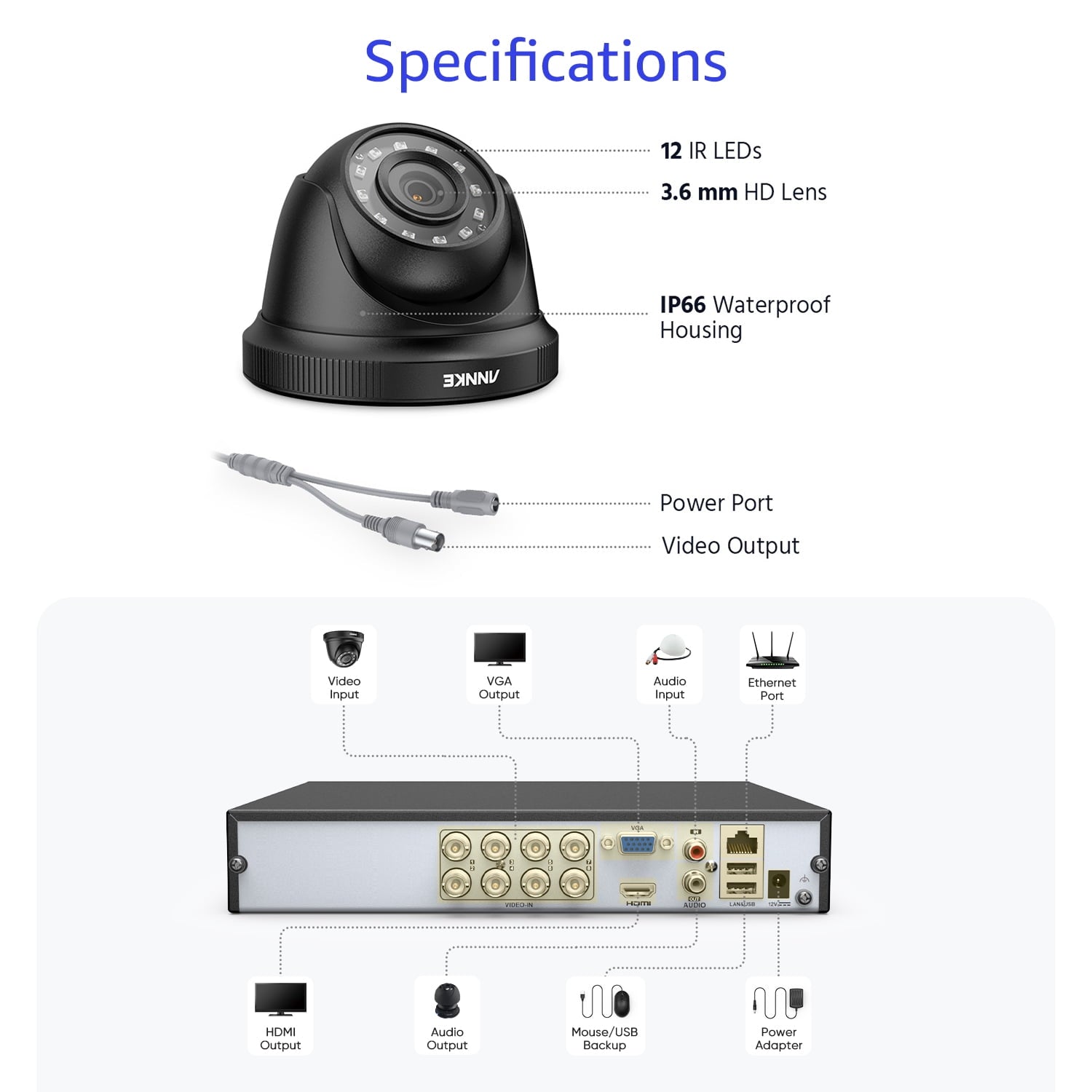

Video & Audio:
Video Compression: H.264+/H.264/H.265/H.265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: “Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P”
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Network Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Total Bandwidth: 96Mbps
Remote Connection: 64
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface

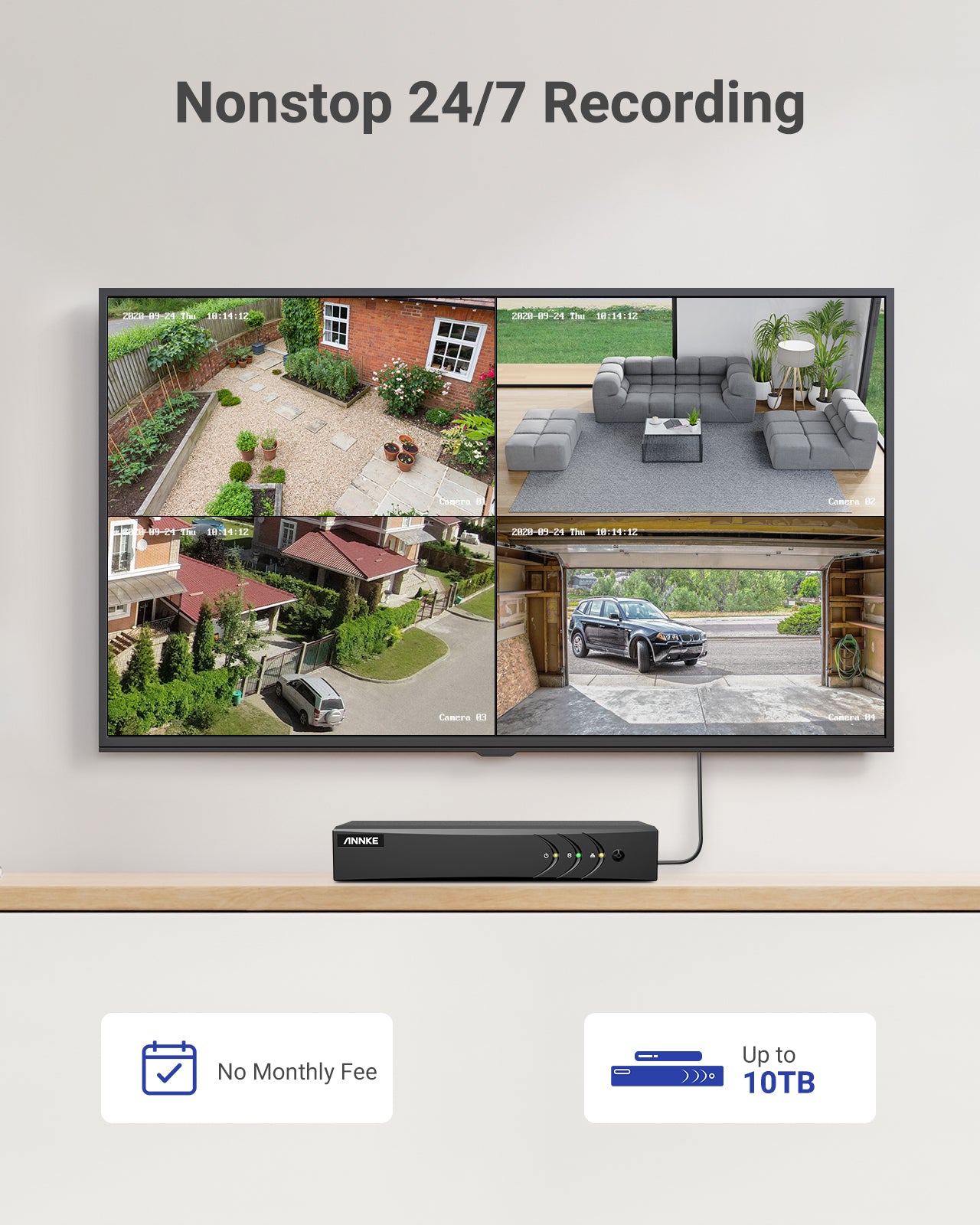

HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V,≤ 12W (without HDD)
Working Temperature: -14 °F – 131 °F /-10 °C – 55 °C
Dimensions(W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): ≤ 1 kg (2.2 lb)(without HDD)
HD Camera
★ 1080P HD TVI Turret Security Camera
★ Up to 30m night vision with Smart IR
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut
★ IP66 Dust and Waterproof Rating
Image sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Lens: 3.6mm
Min.Illumination: Color:0.02 Lux @ (F1.2,AGC ON),0 Lux with IR
Angle of View: 82.2°
Number of Infra-Red LEDs: 12
Night Vision Distance: Up to 100ft/30m

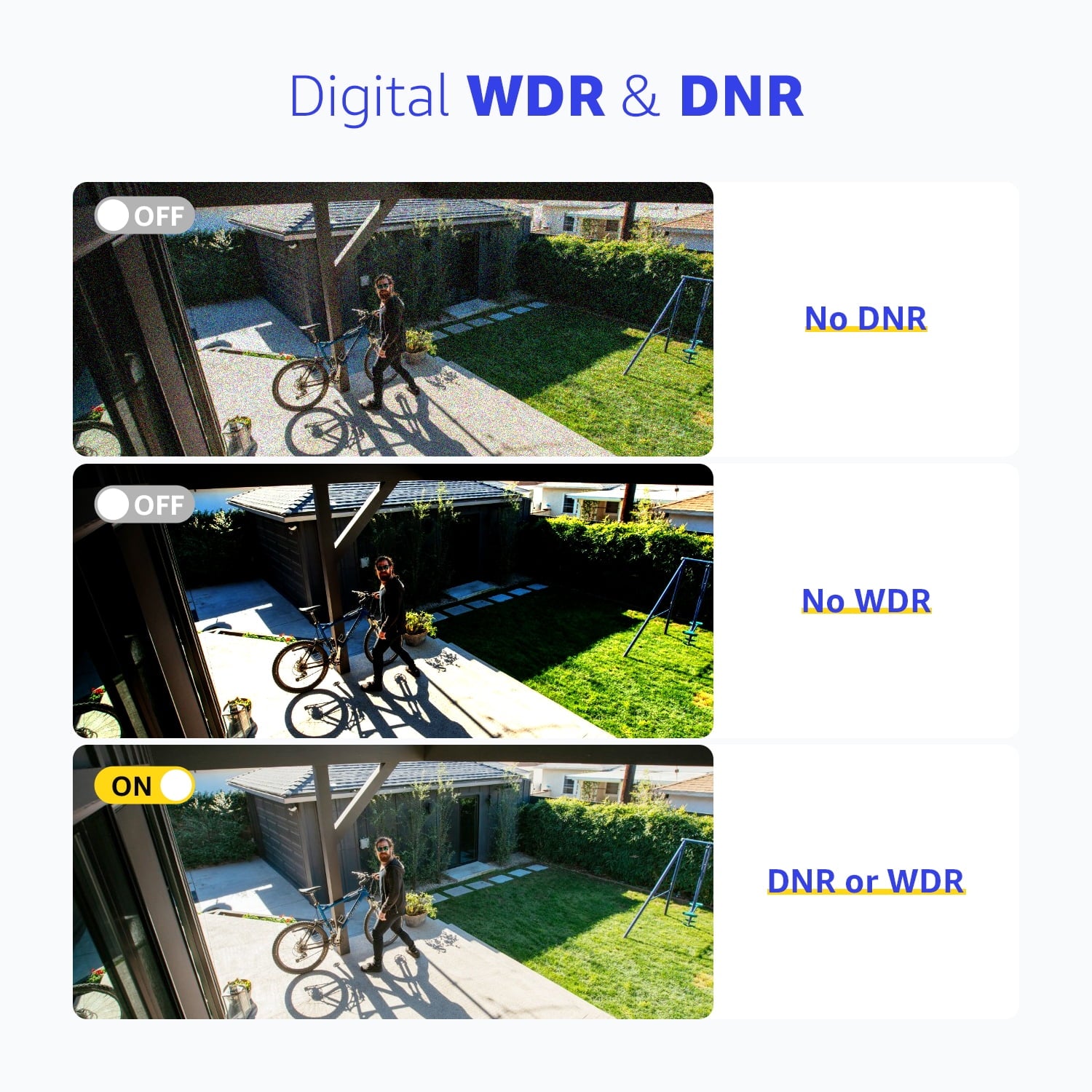

DNR: Support
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD BNCx1
General:
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 3.54” x 2.76” / 89.9 x 70.1 mm
Weight: 0.55lbs / 250g

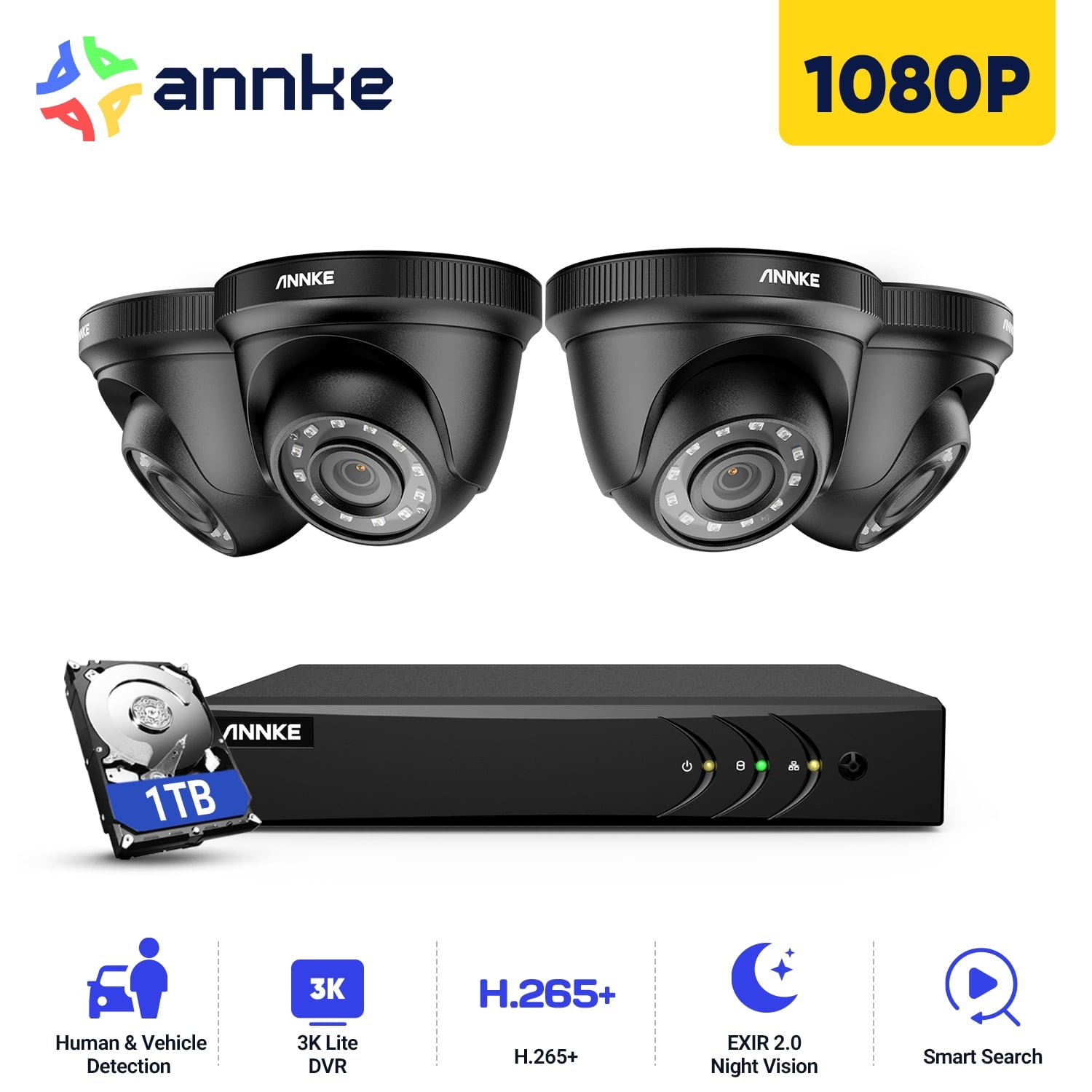

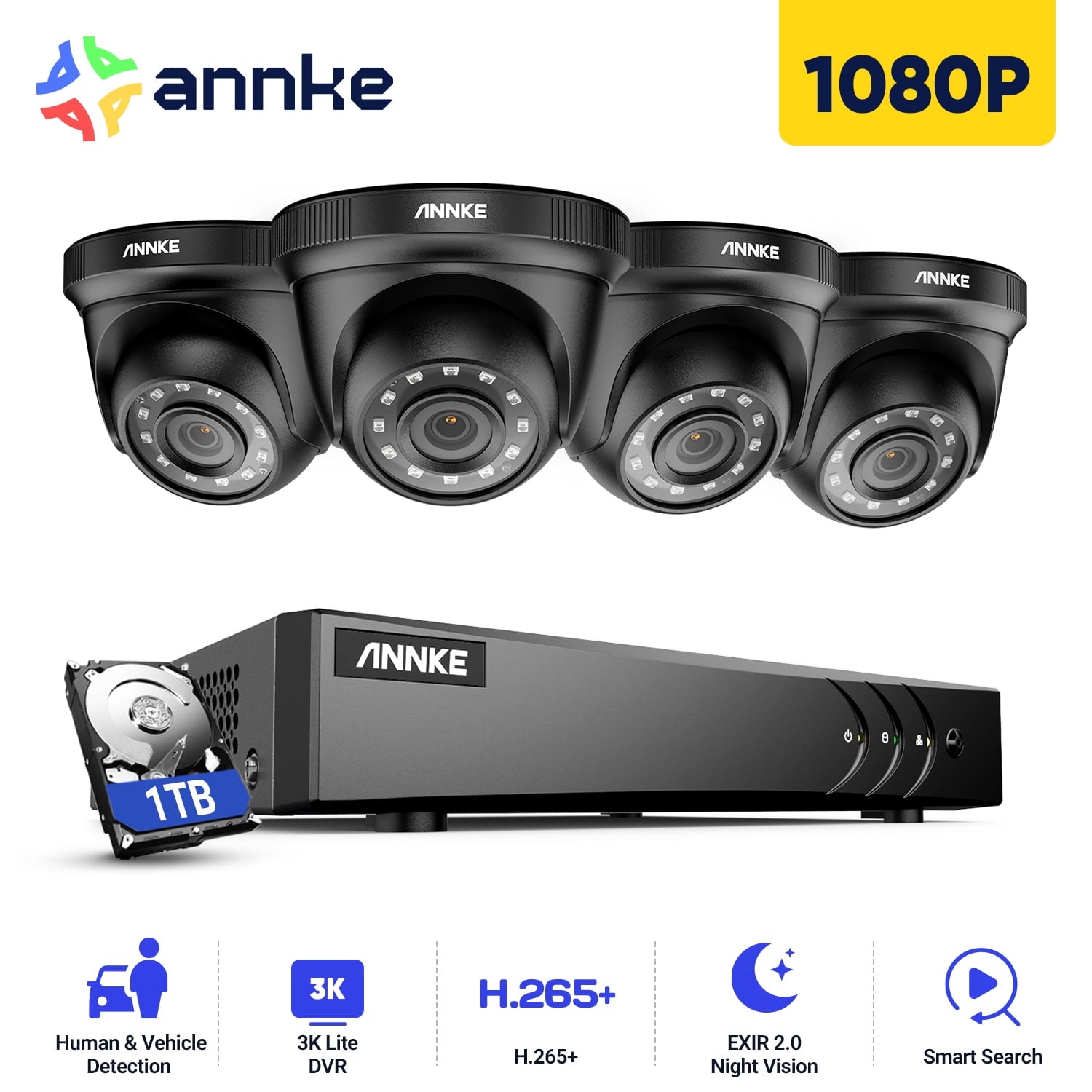

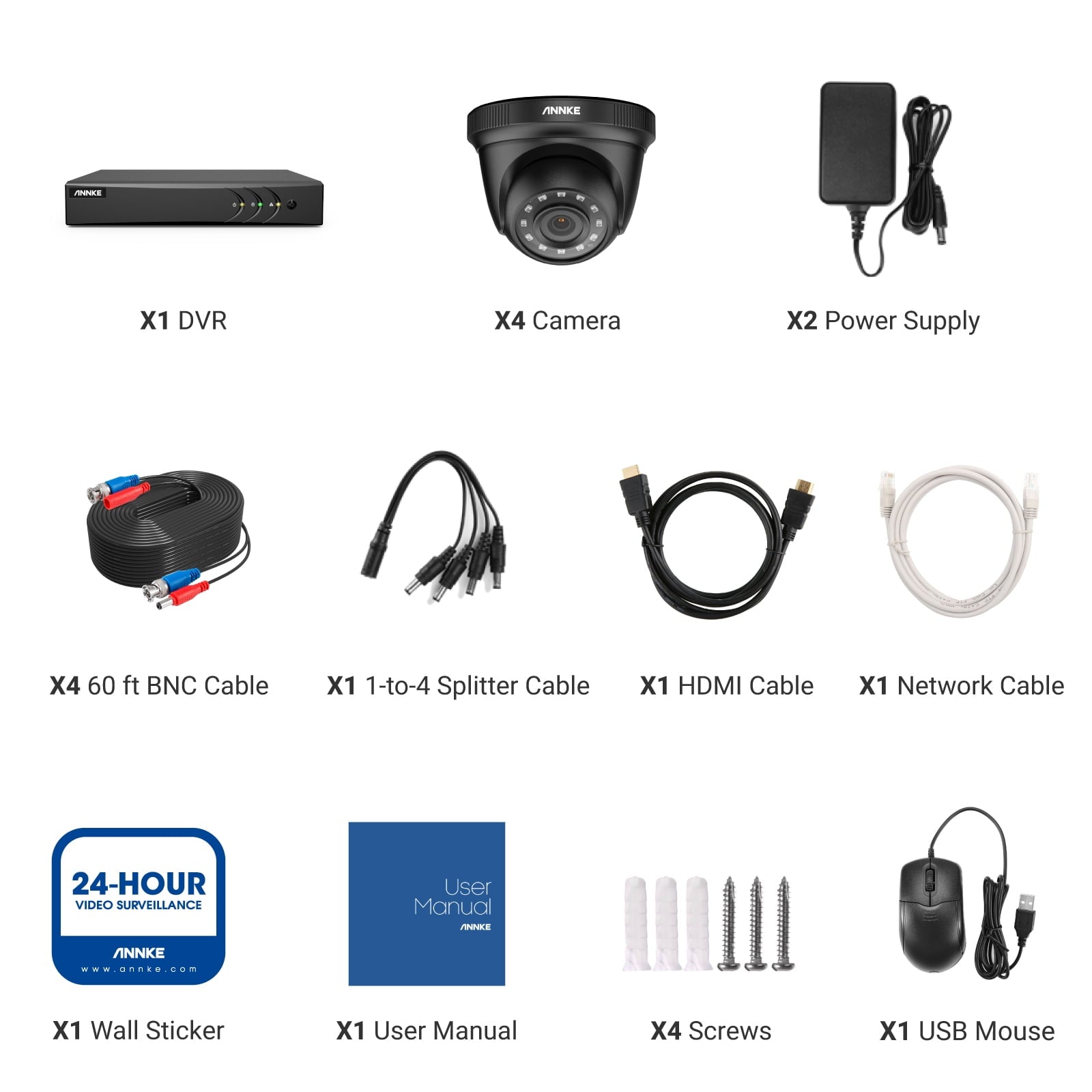

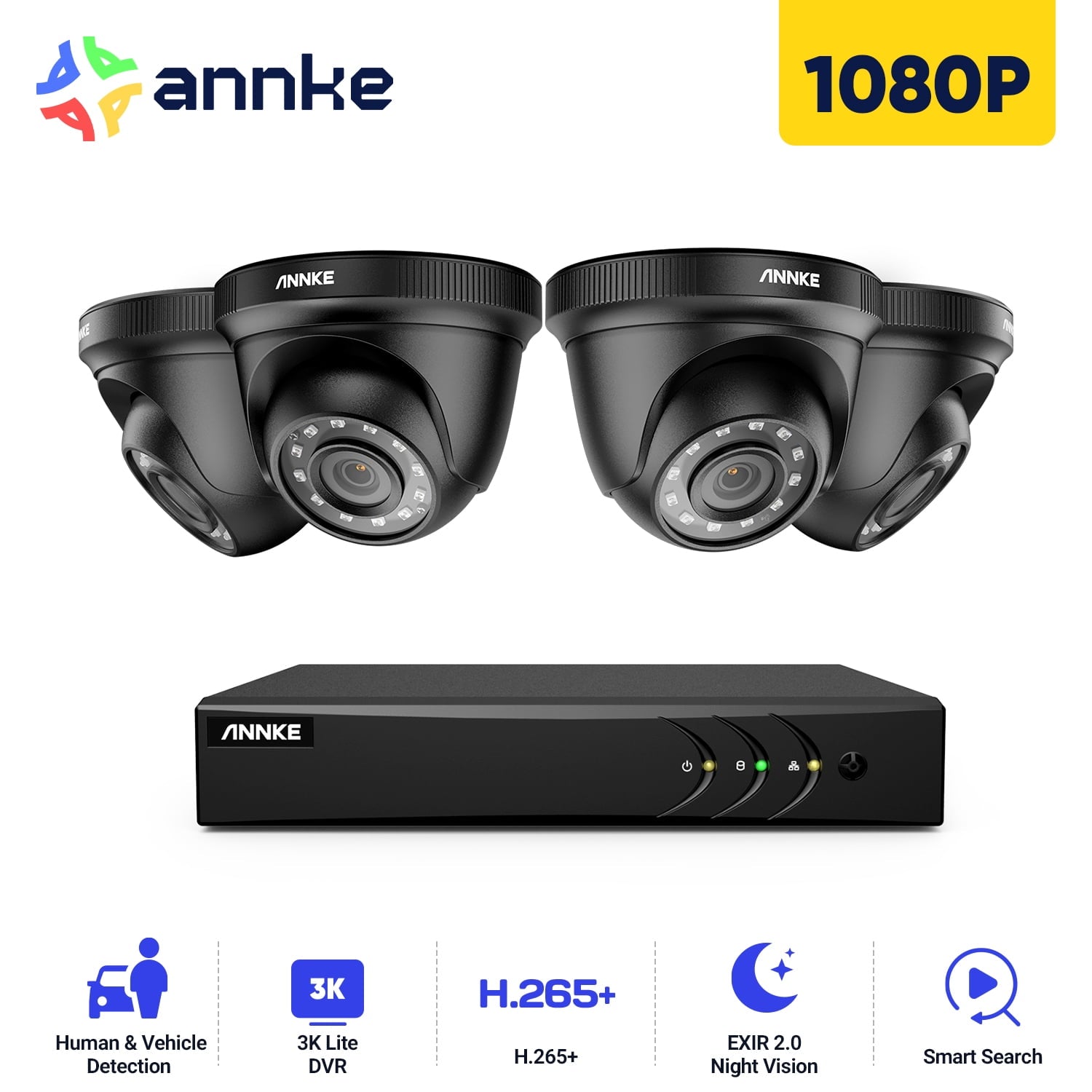

- 1080p Wired Security Cameras & 8 Channel DVR – 4 pcs security cameras deliver the best 1080p live view at 30 fps & up to 100 ft night vision. The advanced sensor & smart IR help capture clear images without noise. The 5-in-1 5MP Lite DVR works with TVI, AHD, CVI, CVBS & IP cameras.
- All-Around Certifications & Secure App – Every device, including the DVR & cameras, passed the severe testing conducted by authorized organizations, like UL, CE, FCC, HDMI, etc. ANNKE App conforms to GDPR, ensuring the video stream is secure in data transferring & downloading.
- Innovative Human & Vehicle Detection – By setting up the human & vehicle detection, you will get motion detection alerts only when people and vehicles are in the frame. Minimizing unwanted alerts triggered by bugs, animals, leaves and so on. Easily Access & control the system via 3G/4G/5G or WiFi with your smartphones, tablets, computers remotely.

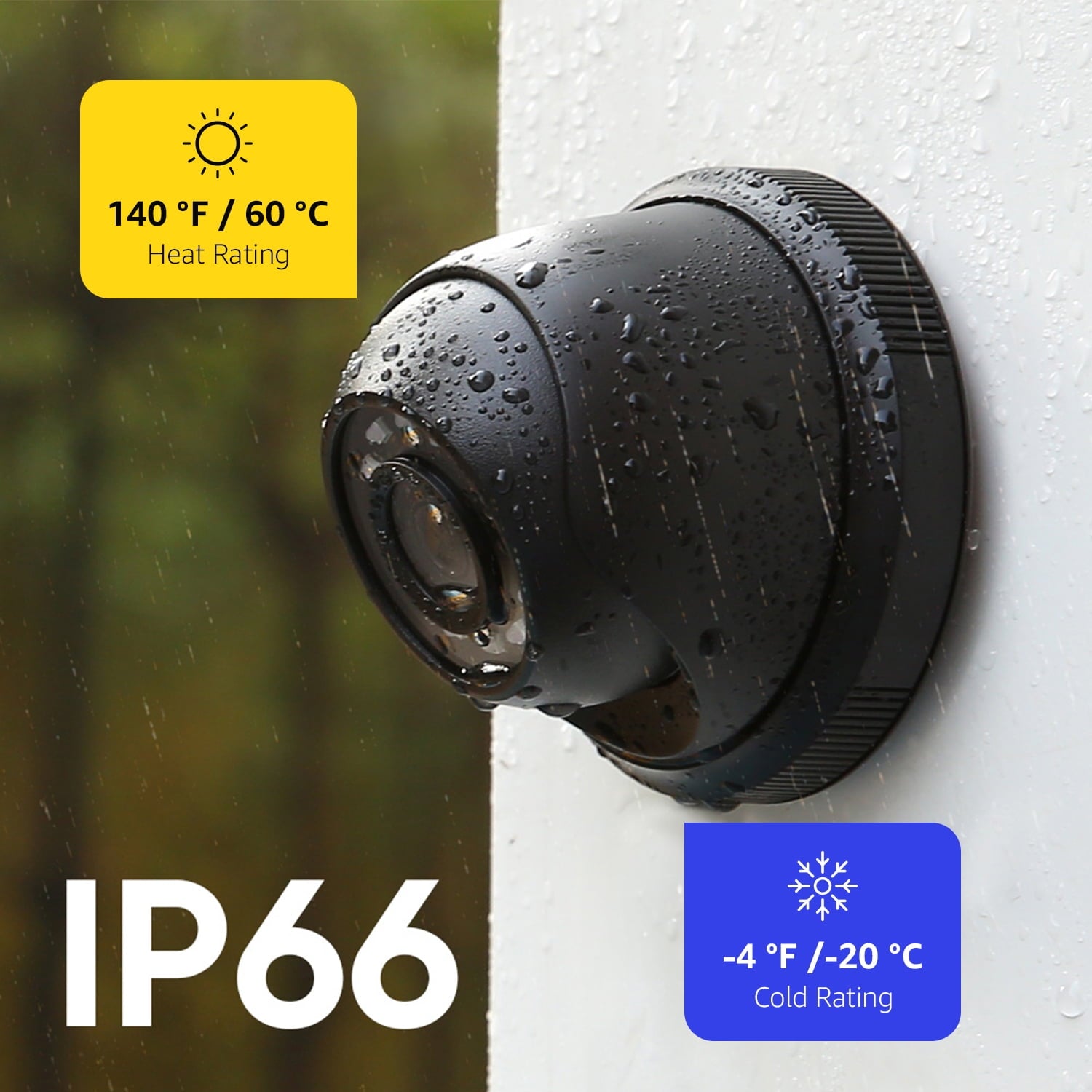

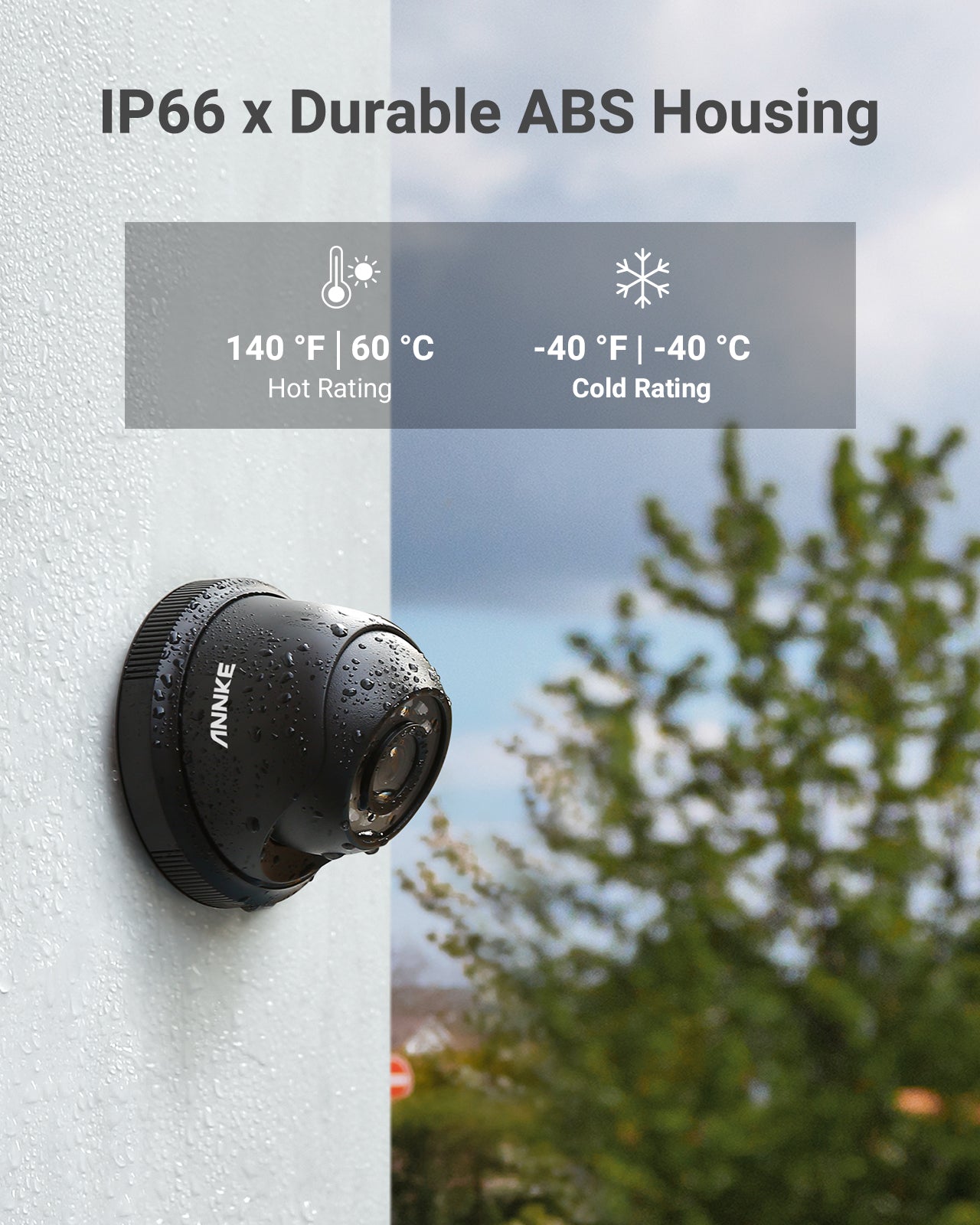

- IP66 Waterproof & Best ABS Housing – The camera, with an IP66 waterproof rating, braves the harshest weather & captures clear images in extremely hot/cold climates. The housing, made from the best ABS materials, provides fast heat dissipation & a long lifespan without fading.

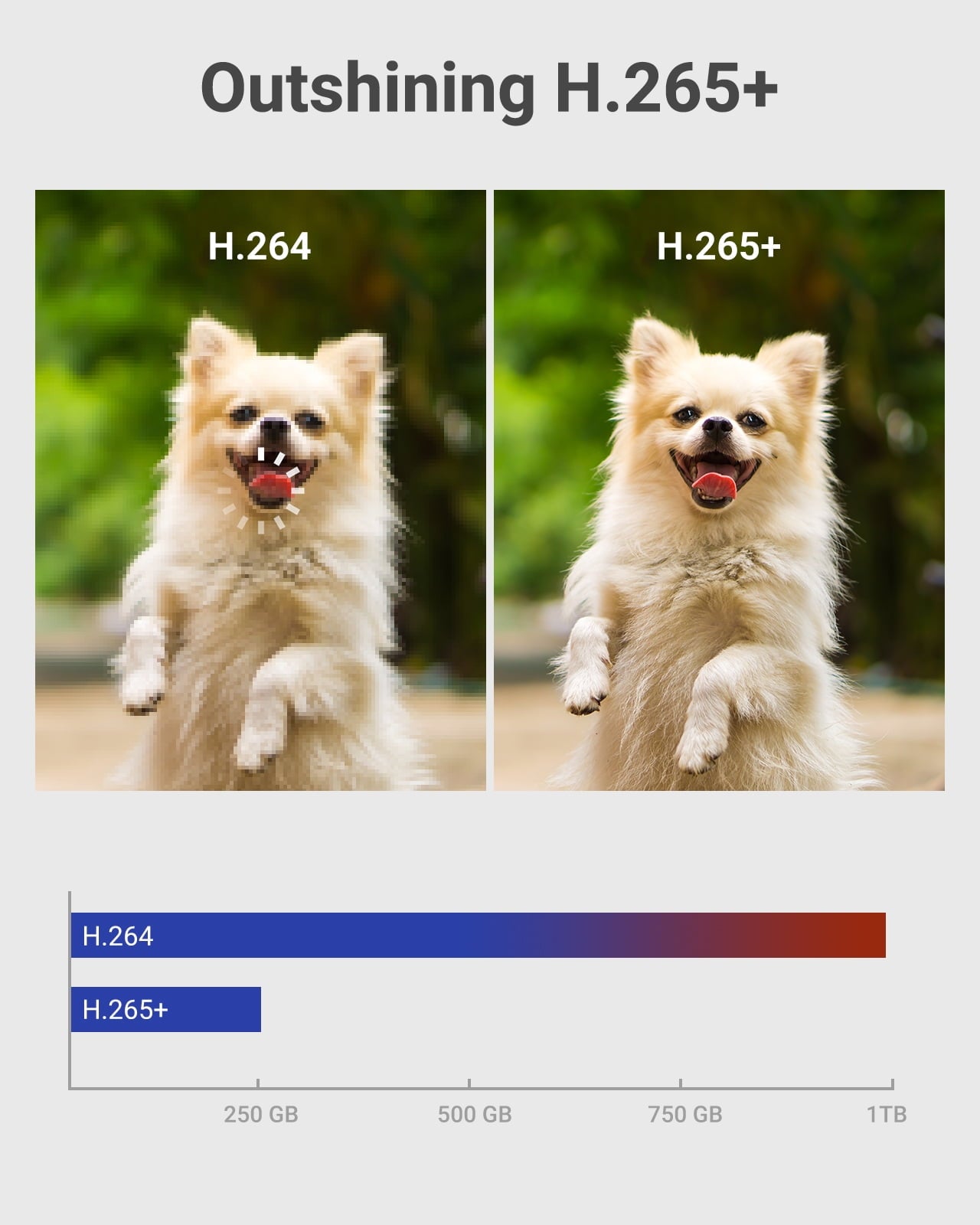

- Advanced H.265+ Video Format – H.265+ coding reduces the file sizes and saves the bandwidth greatly. You’ll enjoy a faster & smoother live stream than H.264 systems, without buffering or latency.
