AOLISHENG heavy duty drawer slides with locks 250 lb bearing capacity, using 2.0mm high-density thickened Q235 cold-rolled steel plate, after testing the number of pulls has reached more than 180,000 times. Can be locked in fully closed and fully expanded state, only press the button to open or close the drawer

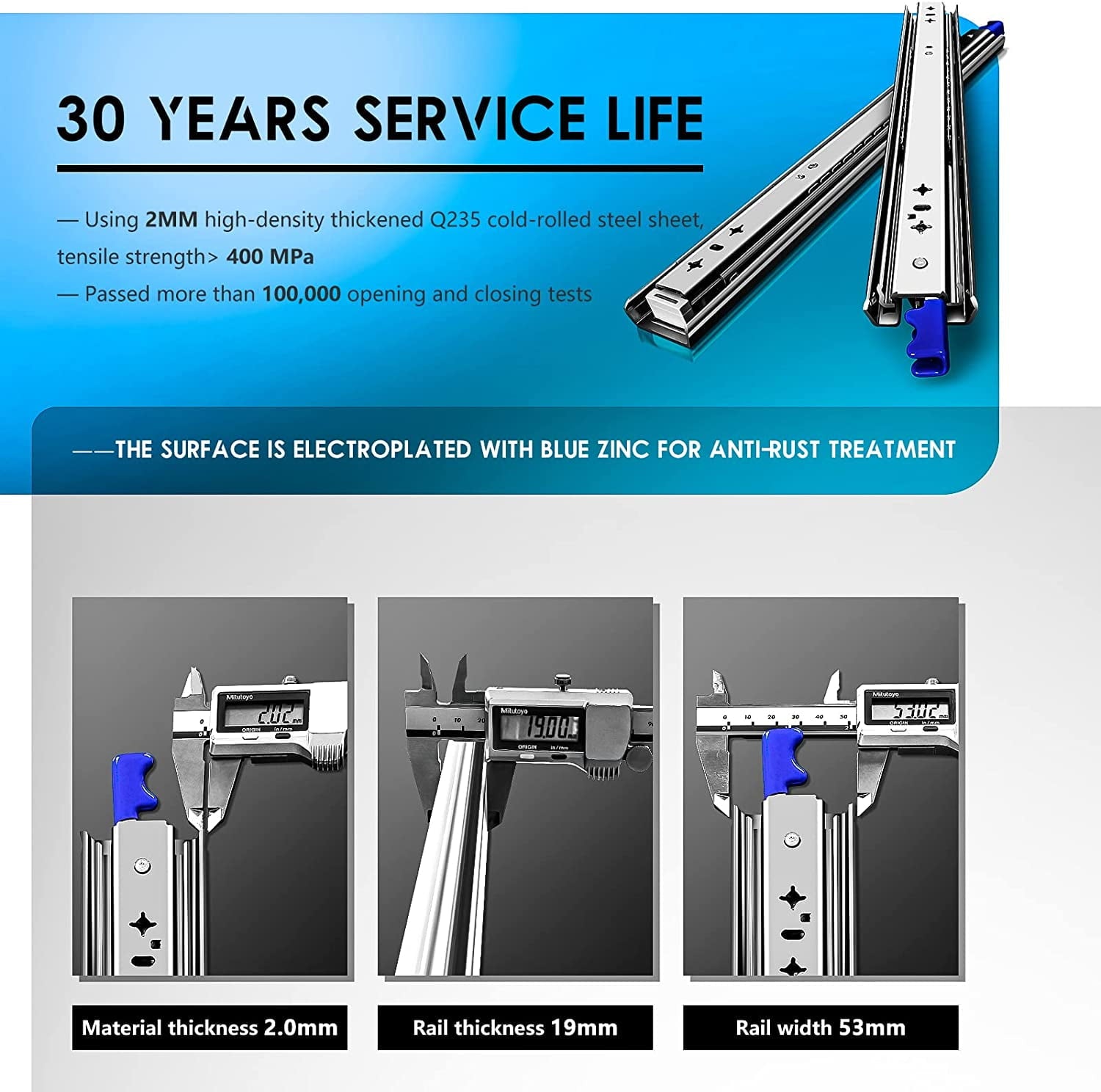

- 【Max load capacity 250lb, 30-year service life】 All three sections of rails are made of 2.0mm thick Q235 thickened steel plates, and high-strength, high-density high-quality cold-rolled steel. It can support heavy load storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and good impact resistance. After testing, the number of opening and closing times has reached more than 180,000 times.
- 【Full extension slides, double anti-rust】Full extension heavy duty drawer slides support access to the whole space, and the drawers can be pulled out completely for easy storage of items. The surface of the slide rail is treated with a galvanized blue sealing process, which isolates the slide rail from direct contact with air and water, and increases oxidation resistance and corrosion resistance.

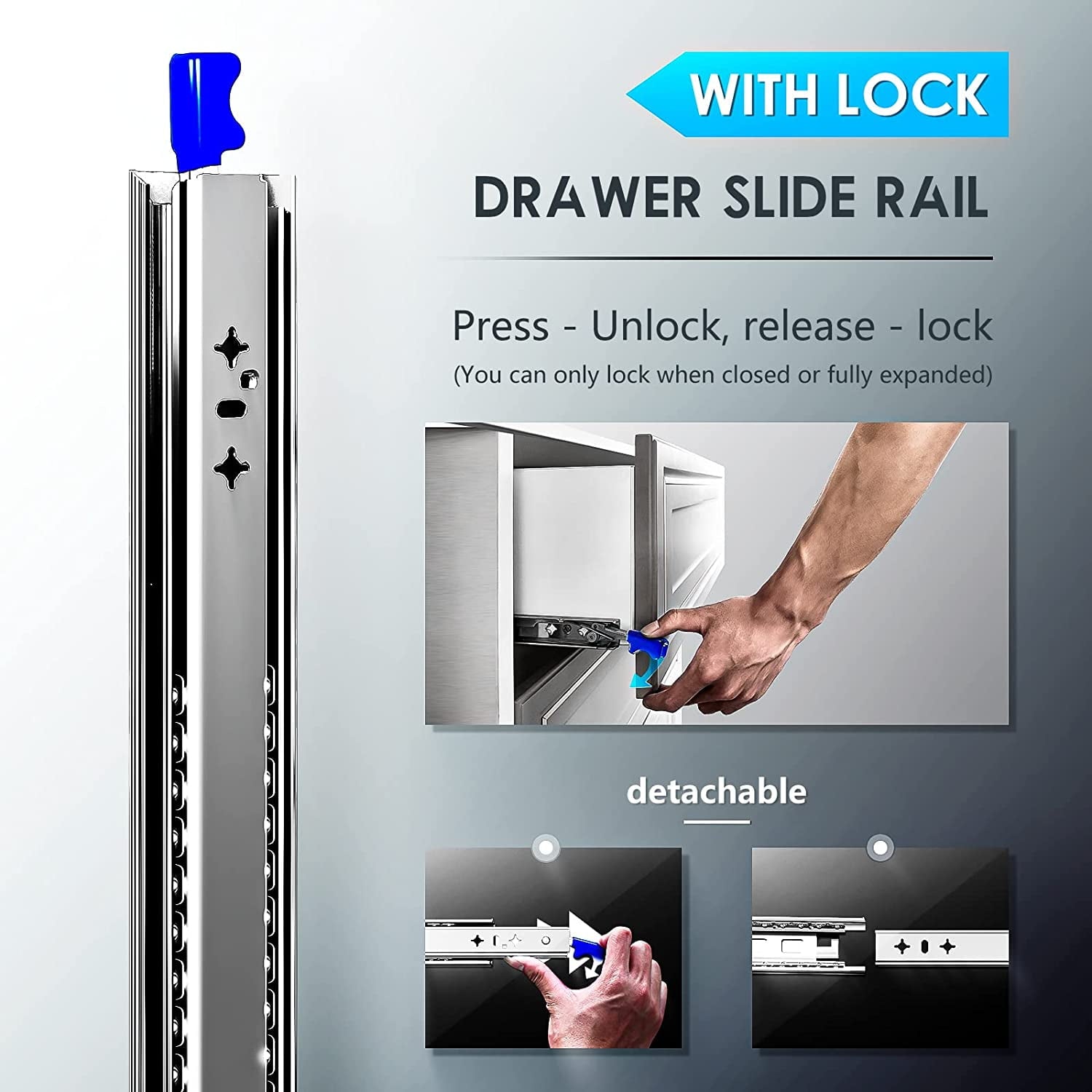

- 【Lock drawer slides, removable】 Simultaneously press the blue handles on both sides to lock and unlock the drawer, it can be locked when fully closed, and can be locked when fully opened to prevent sliding.

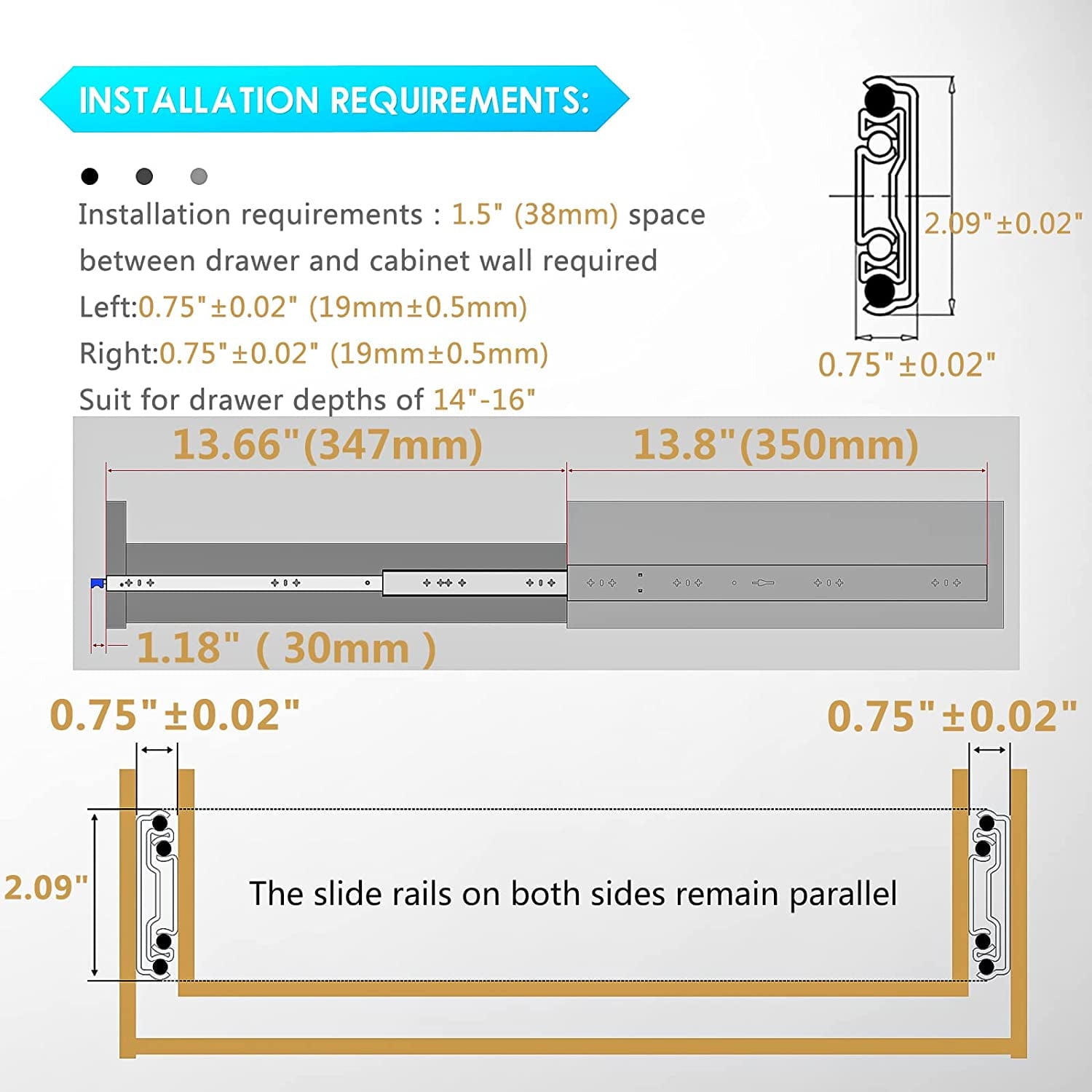

- 【Installation requirements】 Size: 13.8″(350mm), fully extension length: 27.44″(697mm), installation clearance: left: 0.76″ (19.4mm), right: 0.76″ (19.4mm). Approximate length of the blue handle: 1.18″ (30mm). You can choose the size of the rail according to the depth of the drawer. The length of the rail should be less than or equal to the drawer. Refer to the picture above.
Specification:
- Material: Q235 Cold-Rolled Steel
- Installation Method: Side Mount
- Load Capacity: 250 lbs/120 kg
- Installation Thickness: 19+0.5mm
- Black Slide Style: 3 Folds Full Extension, With Lock
- Plate Thickness: Outer Slider (2.0mm) / Middle Slider (2.0mm) / Inner Slider (2.0mm)

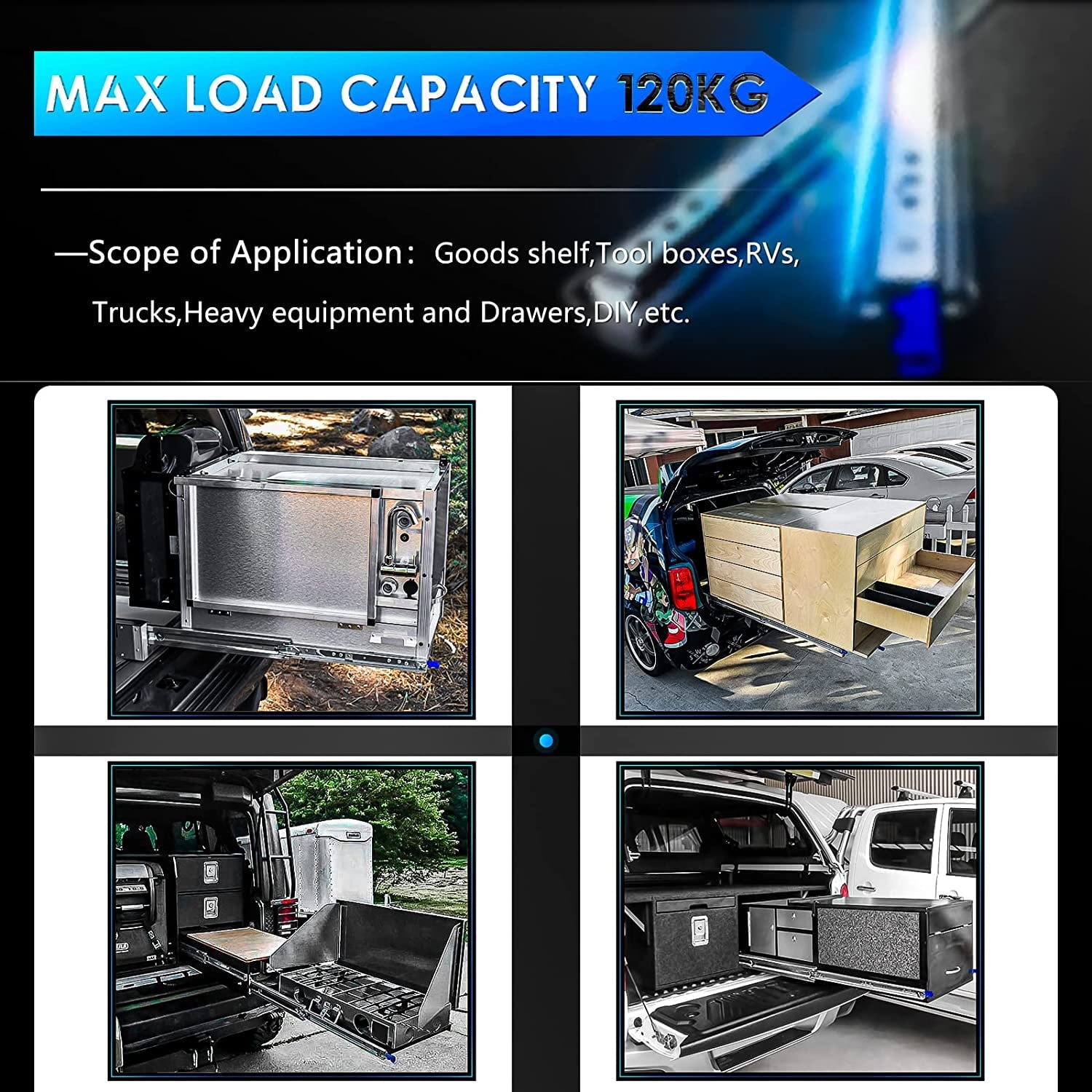

- Scope of Application:shelves, cabinets, industrial drawers, RVs, trucks, vending machines and so on.
Notes for slide rails:
- The locking mechanism can only take effect when the drawer is fully closed or fully opened.
- Due to different usage scenarios, the product does not contain screws. You can buy M5 screws yourself.
- When installing, please push the inner ball bearing to the top of the slide rail first, then connect with the slide rail, and finally complete the installation.
Package:
- 1 x Pair of drawer slides
- The mounting brackets and screws are not included
- Tough quality assurance
