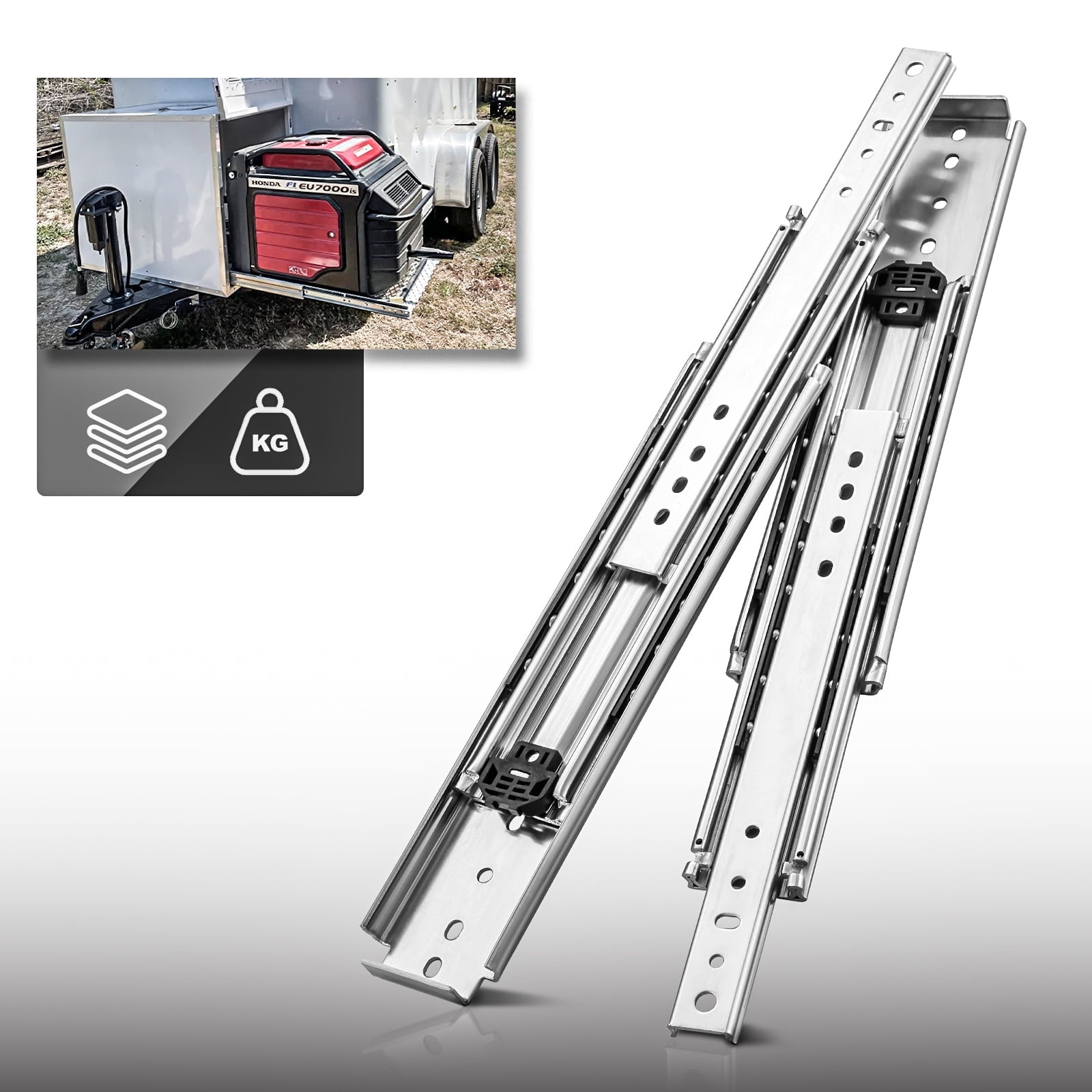

AOLISHENG Ultra Heavy Drawer Slides are Made of 2.5mm Thick High-quality Cold-rolled Steel Plate 1.5 times Thicker Than Ordinary Heavy-duty Drawer Slides, and the Number of Opening and Closing Times has Reached More Than 200,000 times.

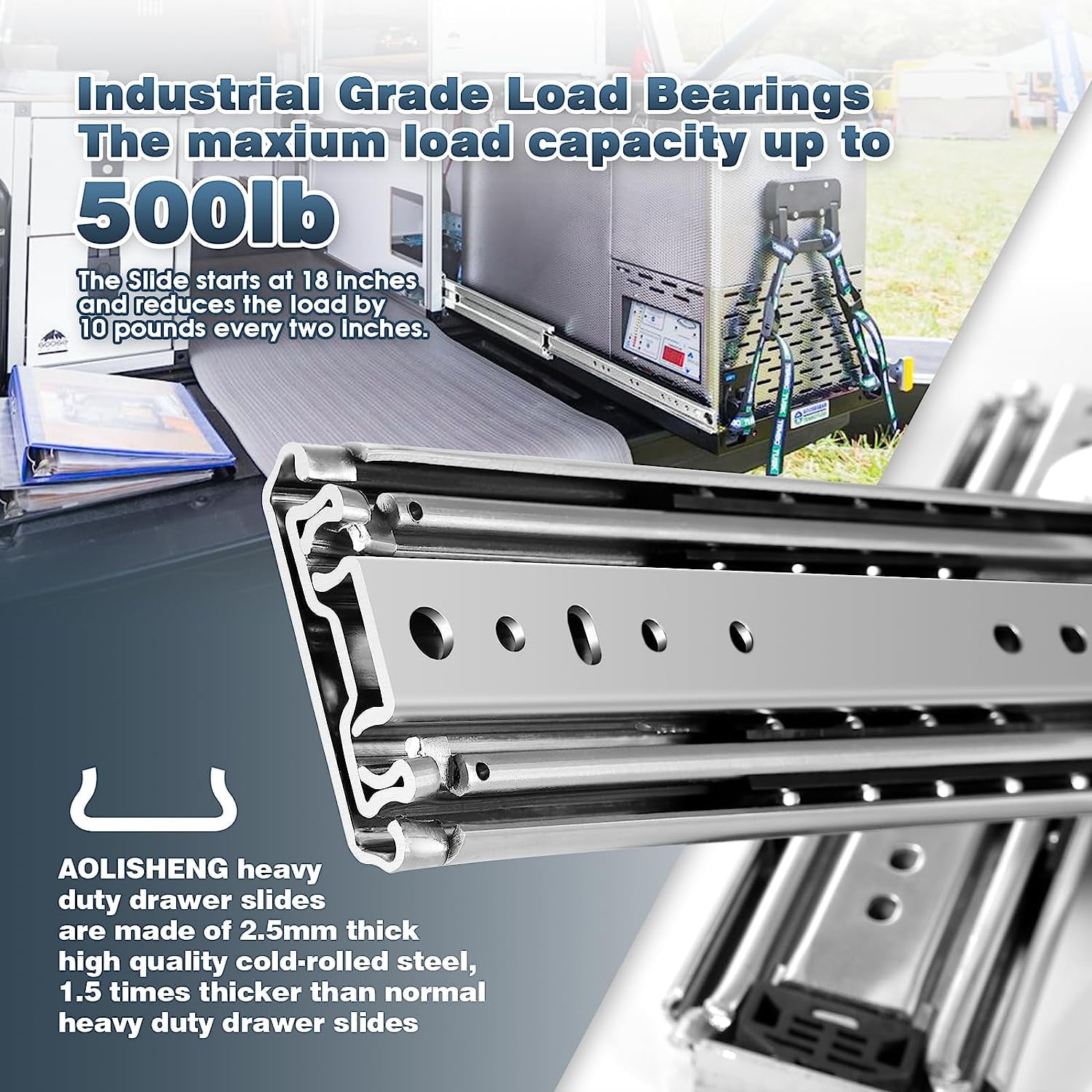

- 【Max load capacity 500lb, 30-year service life】AOLISHENG heavy duty drawer slides are made of 2.5mm thick Q235 thick steel plate, high-strength, high-density high-quality cold-rolled steel. It can support heavy load storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and impact resistance. After testing, the number of opening and closing times has reached more than 200,000 times.

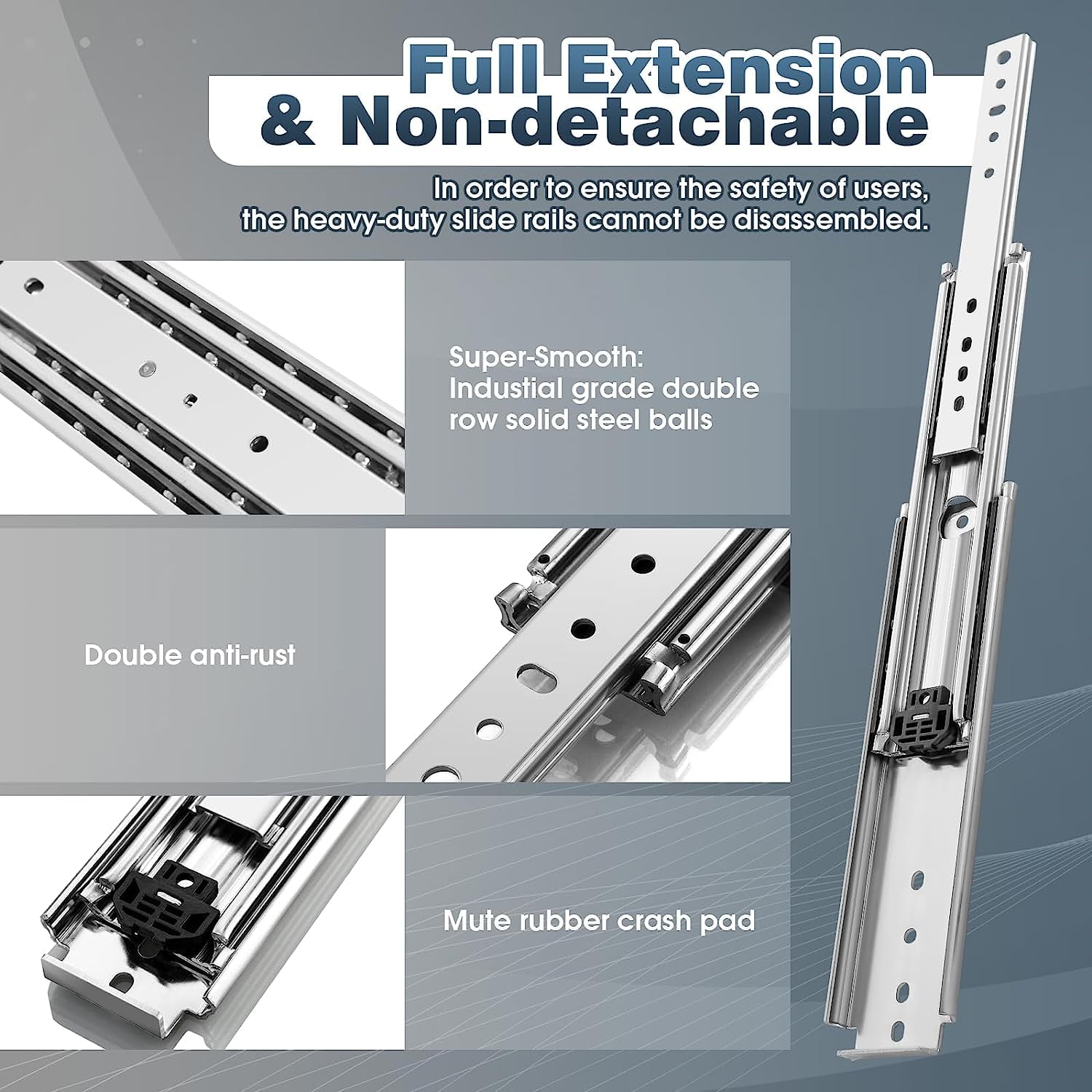

- 【Full extension slide rail, double anti-rust】Full extension heavy duty drawer slide supports access to the entire space, and the drawer can be fully pulled out for convenient storage of items. The surface of the slide rail is treated with galvanized blue sealing process, which isolates the rail from direct contact with air and water, and increases anti-oxidation and anti-corrosion.
- 【Industrial solid steel balls are load-bearing and smooth】 Two sets of ball bearings are designed inside the slide rail, all of which are made of solid steel balls. In addition to maintaining the fluidity of the slides, they can also effectively improve the bearing capacity of the slides. Slides can be used in shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.

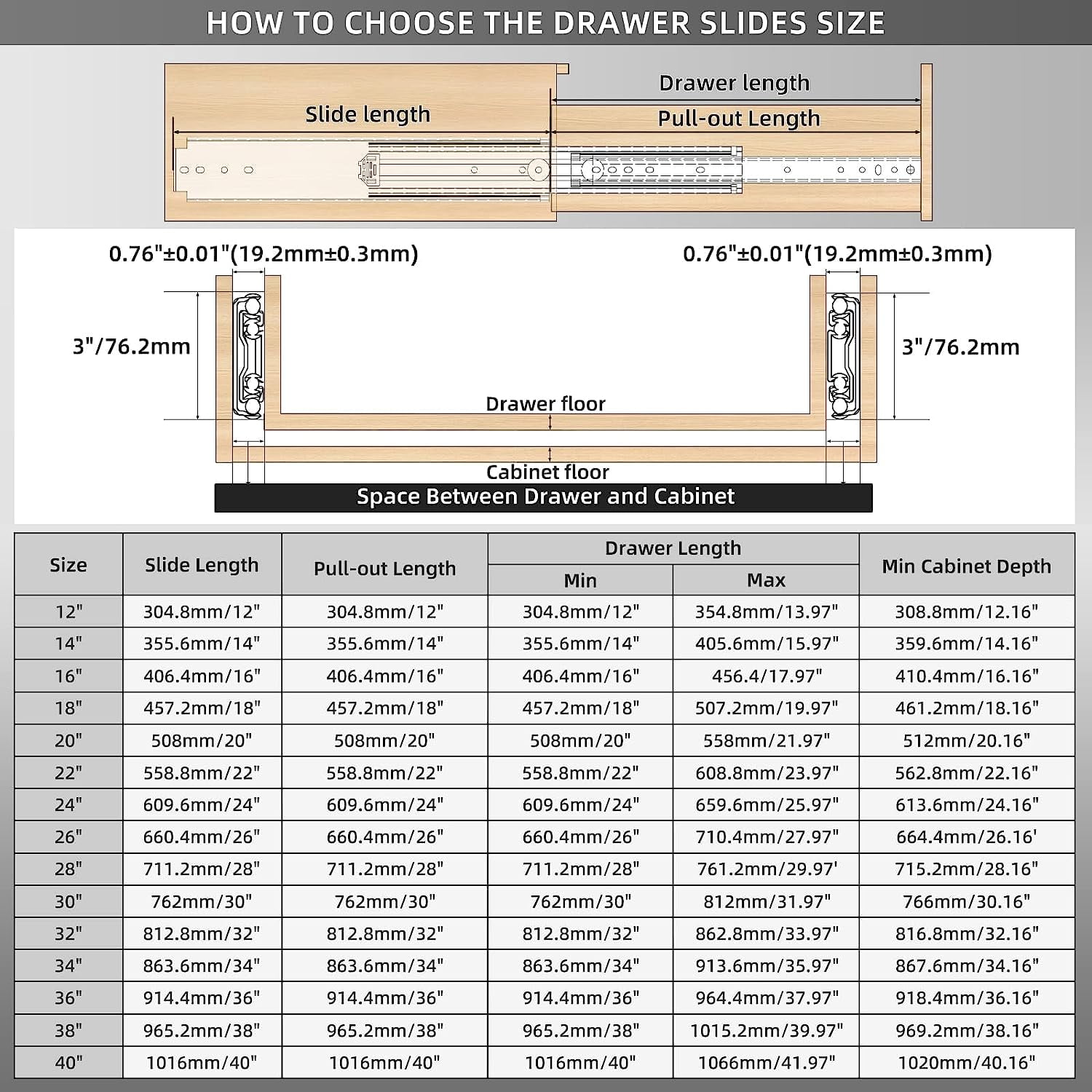

- 【Installation requirements】 Size: 12″(304.8mm), full extension length: 24″(609.6mm), installation clearance: left: 0.76″±0.01″（19.2mm±0.3mm), right: 0.76″±0.01″（19.2mm±0.3mm). You can choose the size of the rail according to the depth of the drawer. The length of the rail should be ≦ The length of drawer. You can refer to the picture above.
Specification:
- Material: Cold-Rolled Steel
- Installation Method: Side Mount
- Load Capacity: 500 lbs/220 kg
- Slide Style:3 Folds Full Extension The Length When Dully Expanded Is Twice As Long As When Closed

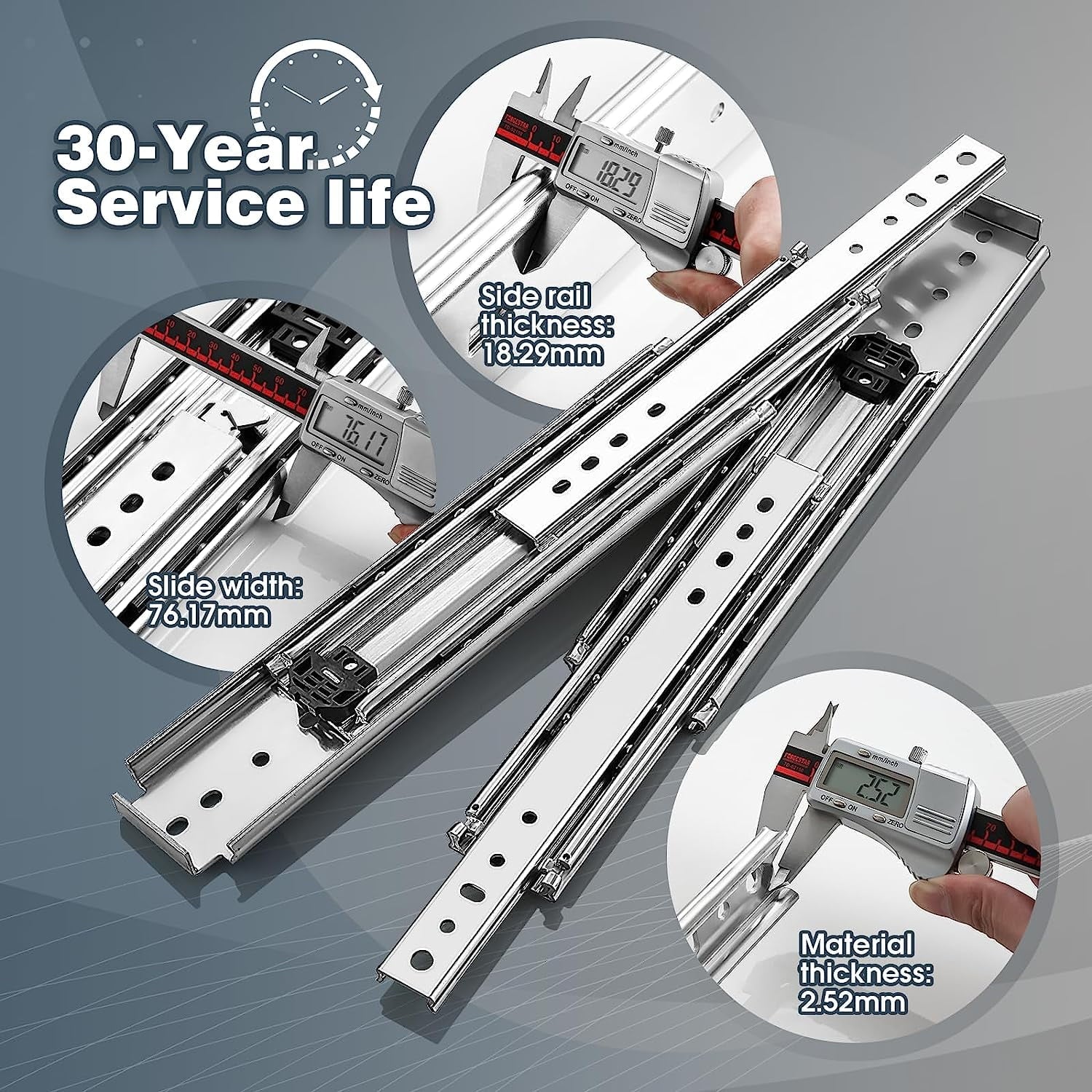

- Heavy Duty Rail Thickness: Outer Slider (2.5 mm) / Middle Slider (2.5 mm) / Inner Slider (2.5 mm)

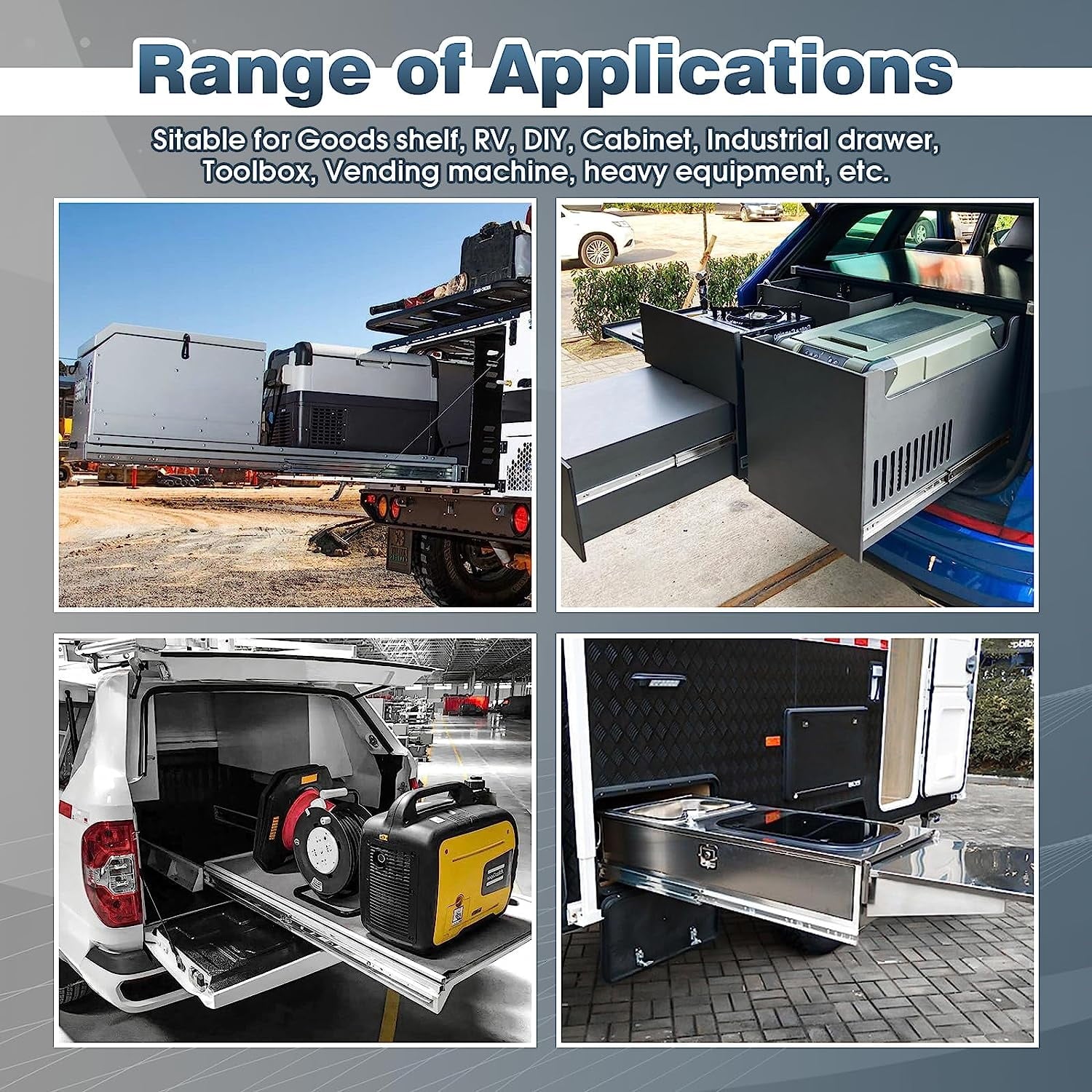

- Scope of Application:shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.
Package
- 1 x Pair of drawer slides
- The mounting brackets and screws are not included. (Suggest M6 screws)
- Tough Quality Assurance
Notes on slide rails
- In order to ensure the safety of users, the heavy-duty slide rails cannot be disassembled.
- The locking mechanism can only take effect when the drawer is fully closed or fully opened.
- Due to different usage scenarios, this product does not contain screws. You can buy M6 screws yourself.
