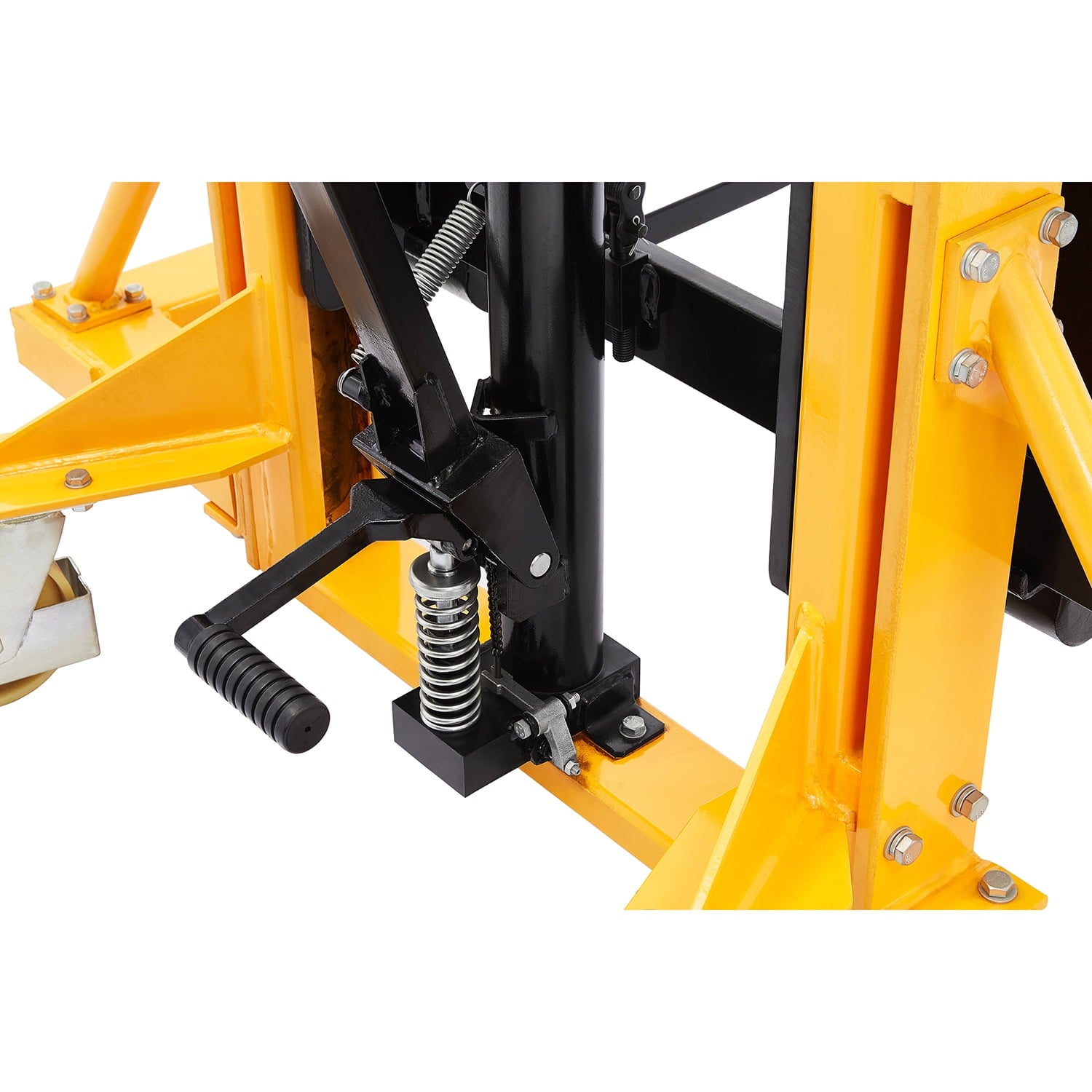

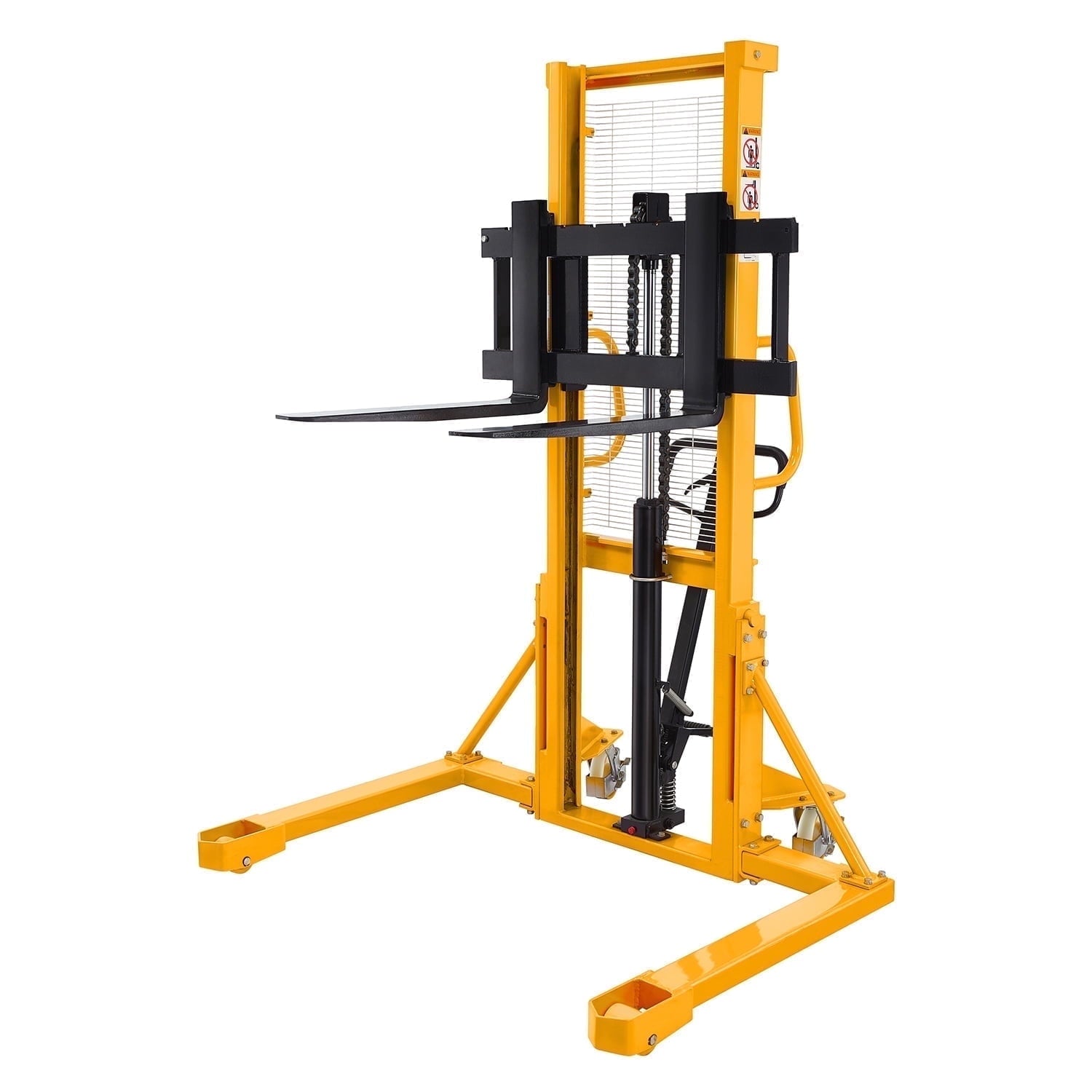

This Hand Pallet STACKER features wheel locks and a safety screen to protect the operator while in use. For added convenience, the load can be lifted using the handle or the hydraulic foot pedal. Additionally, the hydraulic walkie pallet stacker forks are able to lower to a minimum height of 2.8″ and lift to a maximum height of 63″. Maximize efficiency in your space using this APOLLOLIFT stacker!
Max. load capacity: 2200lbs
WT: 660lbs
Load center:19.7″
Turning radius: 48.6″
Aisle width: 81.6″
Overall width: 58.3″
Overall length: 53.1″

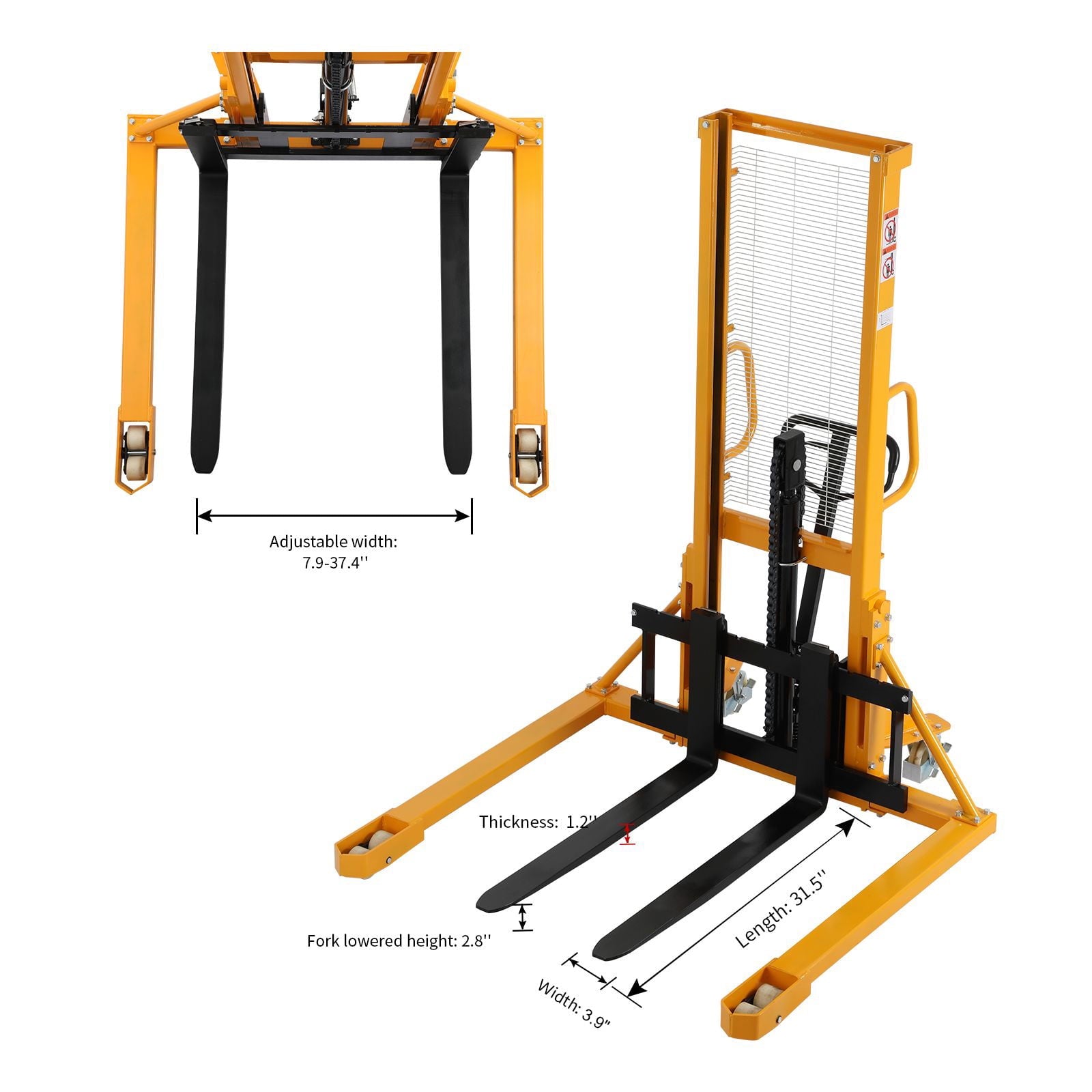

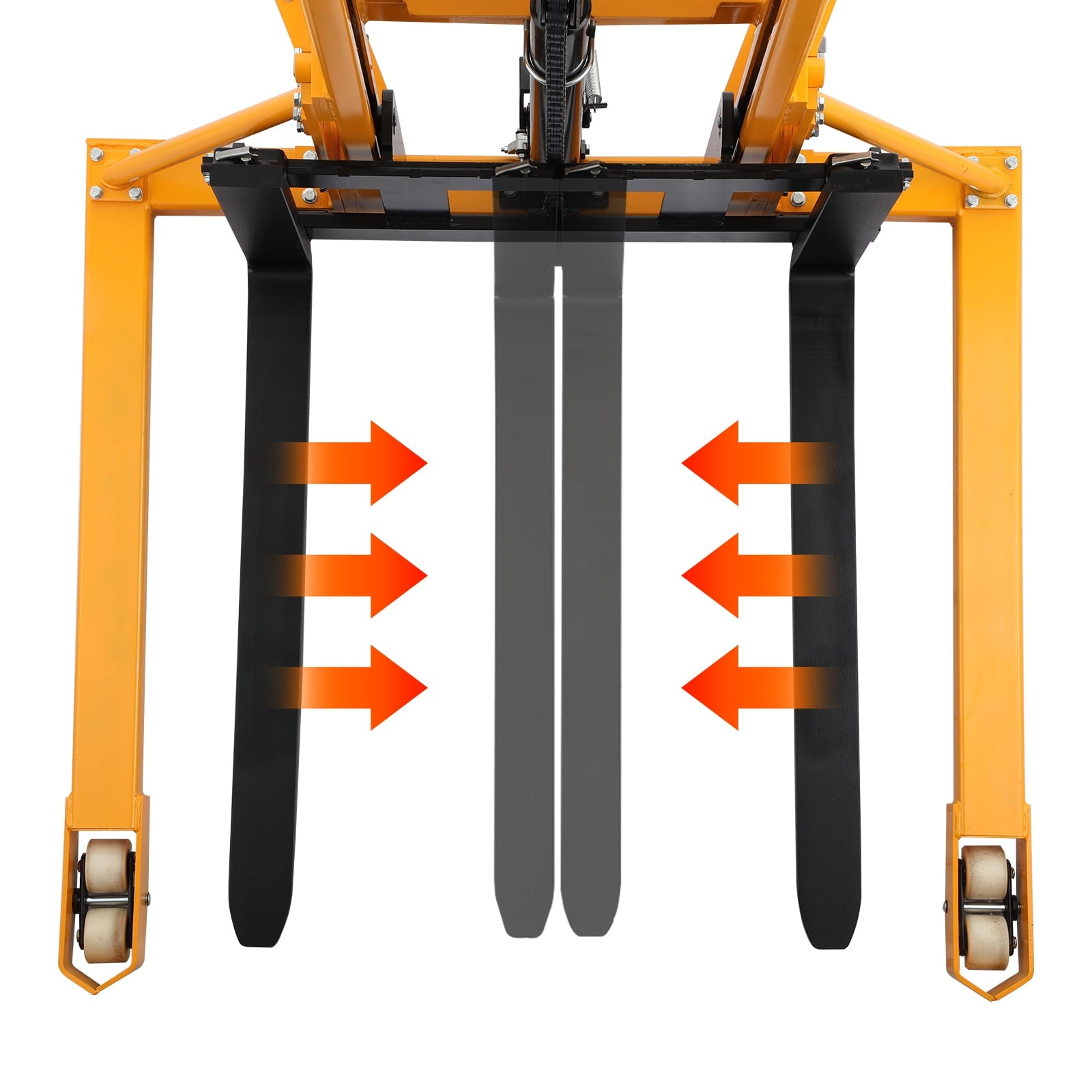

Overall fork width: 7.9″-37.4″
Single fork width: 3.9″
Overall fork length: 31.5″
Pallet fork thickness: 1.2″
Distance between forks(inside): 0.1″-29.5″
Inner legs width: 48.7”
Pallet fork lowered height: 2.8″

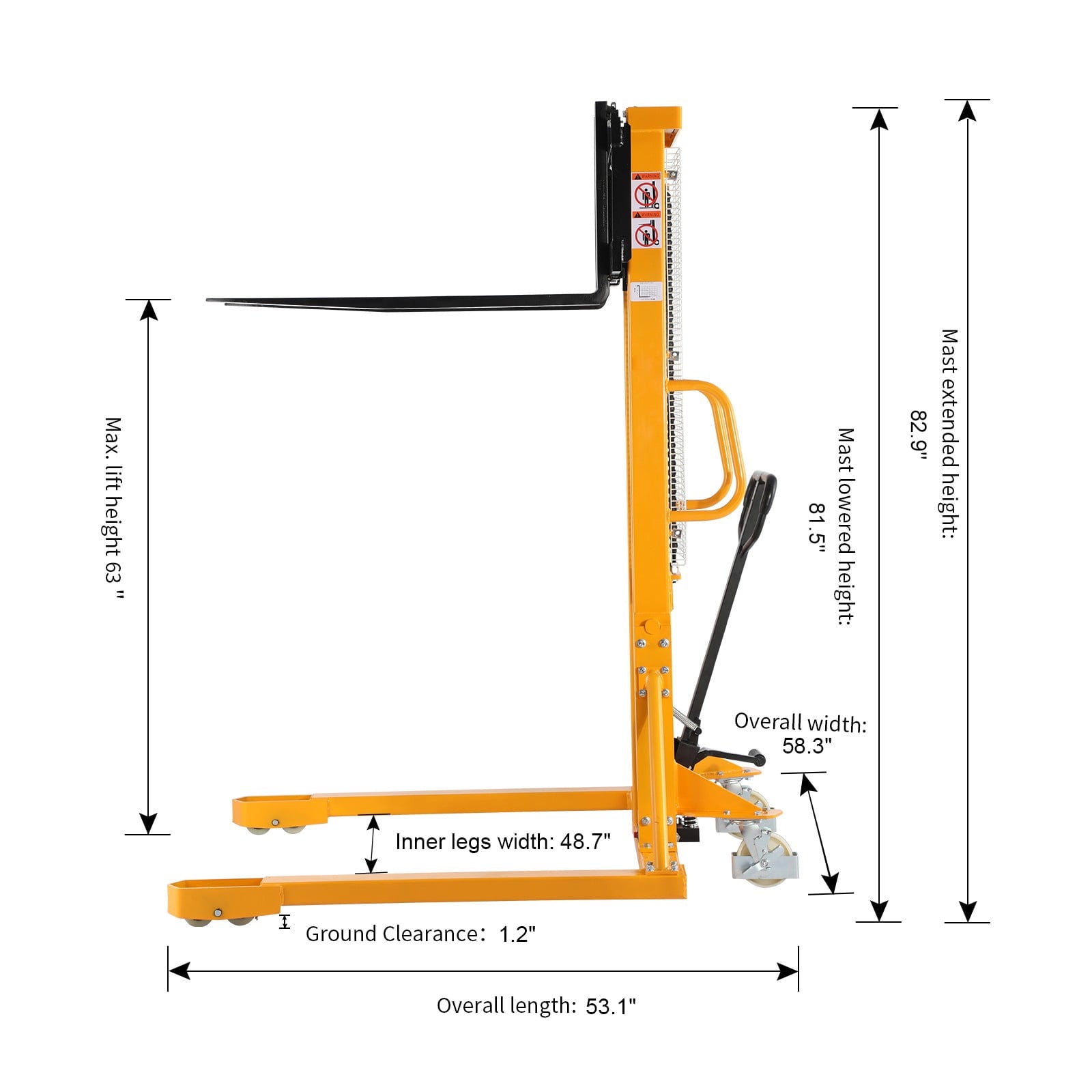

Max. lifting height: 63″
Mast extended height: 82.9″
Mast lowered height: 81.5″
Please help to confirm below questions so that we can arrange shipping correctly：
1. Is your address a commercial location or residential?
2. Do you have a loading dock or a forklift available to unload the item from a truck？
3. Please keep you can be connected so we can schedule the delivery with you directly.
- Assembly is needed

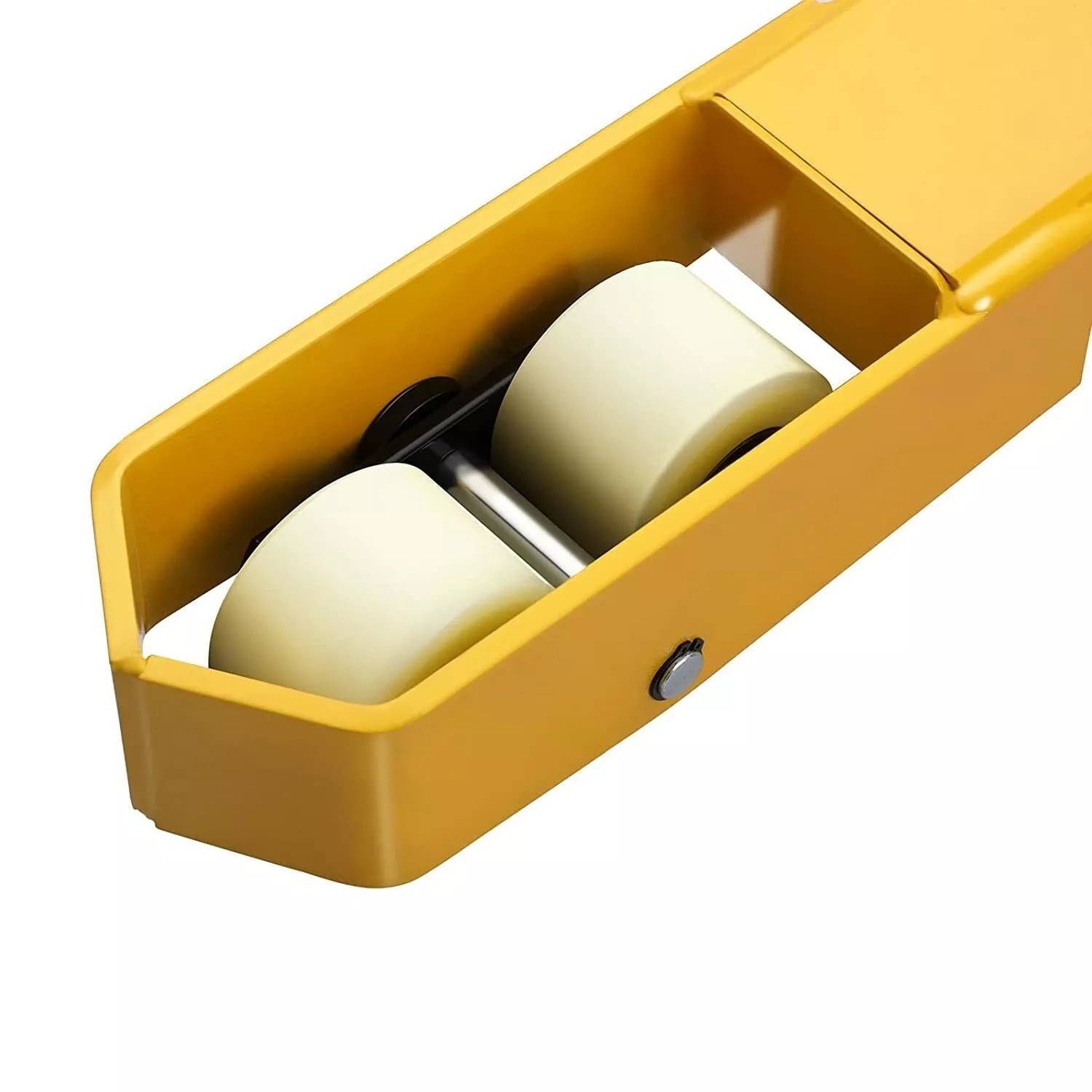

- Straddle legs design meets the EU and US pallets
- Straddle legs design suits for most pallets type
- Full-height push handle allows for easy steering

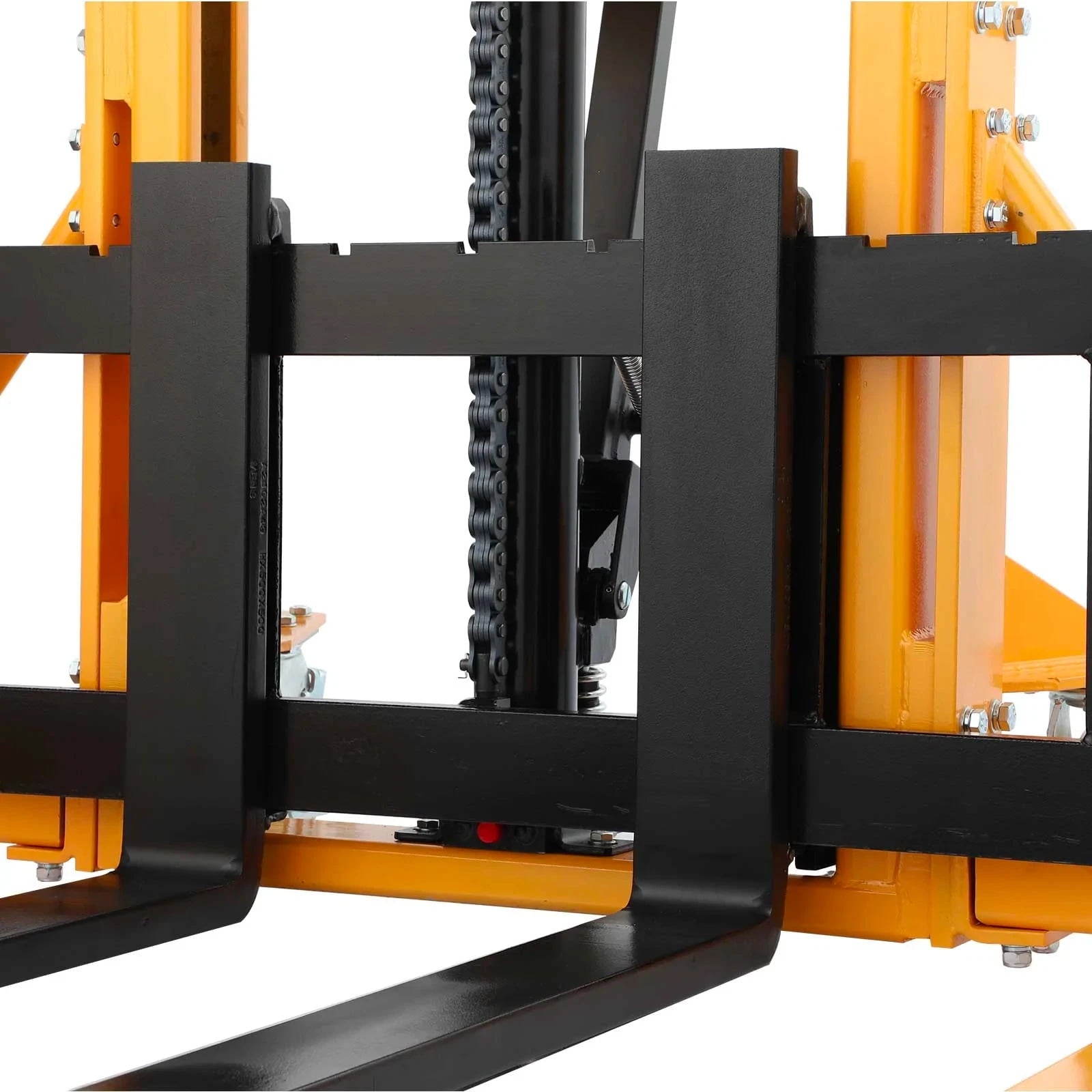

- Metal grid protects users from lift chains

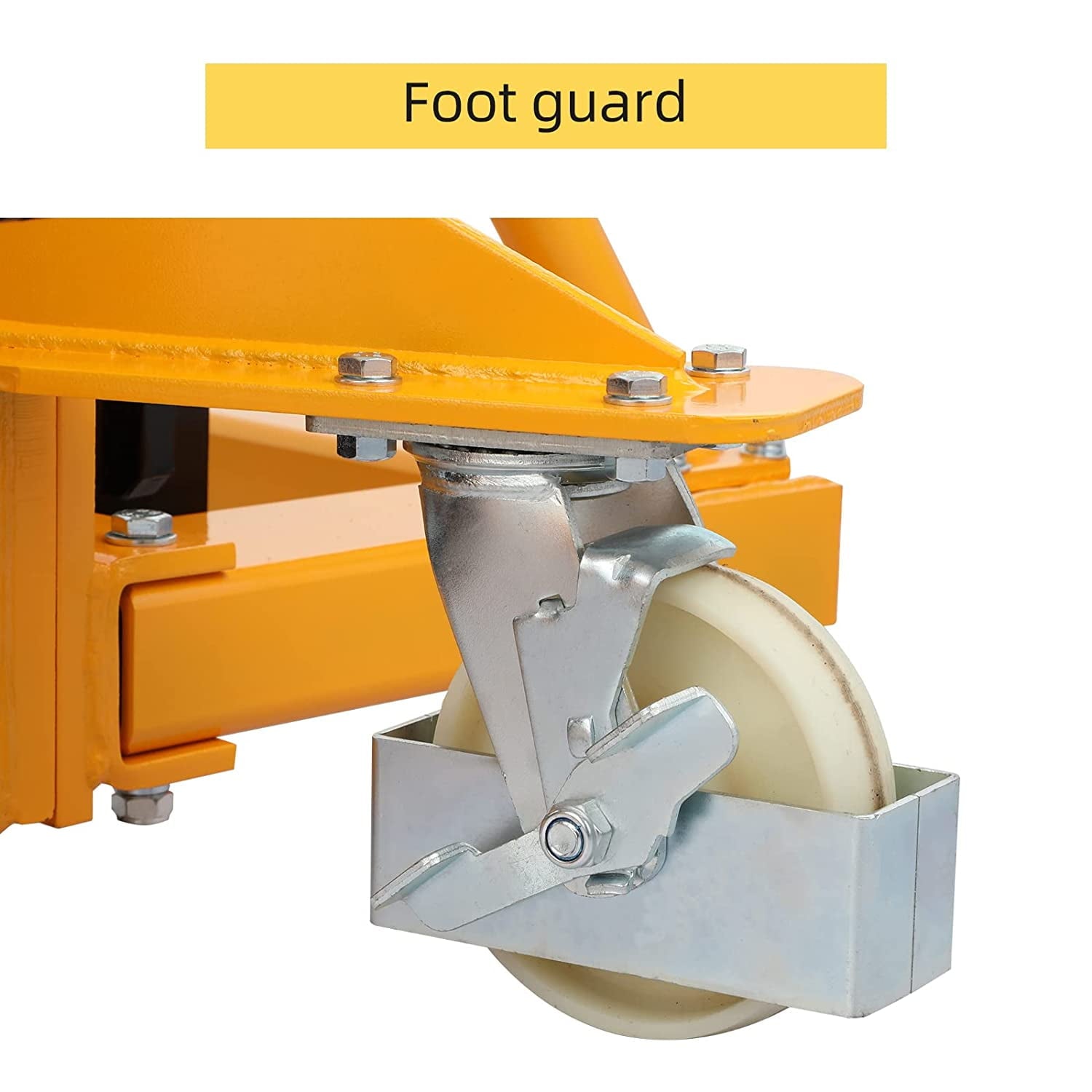

- Our lift stacker with safety wheel guard and brake system to ensure safety during operation
