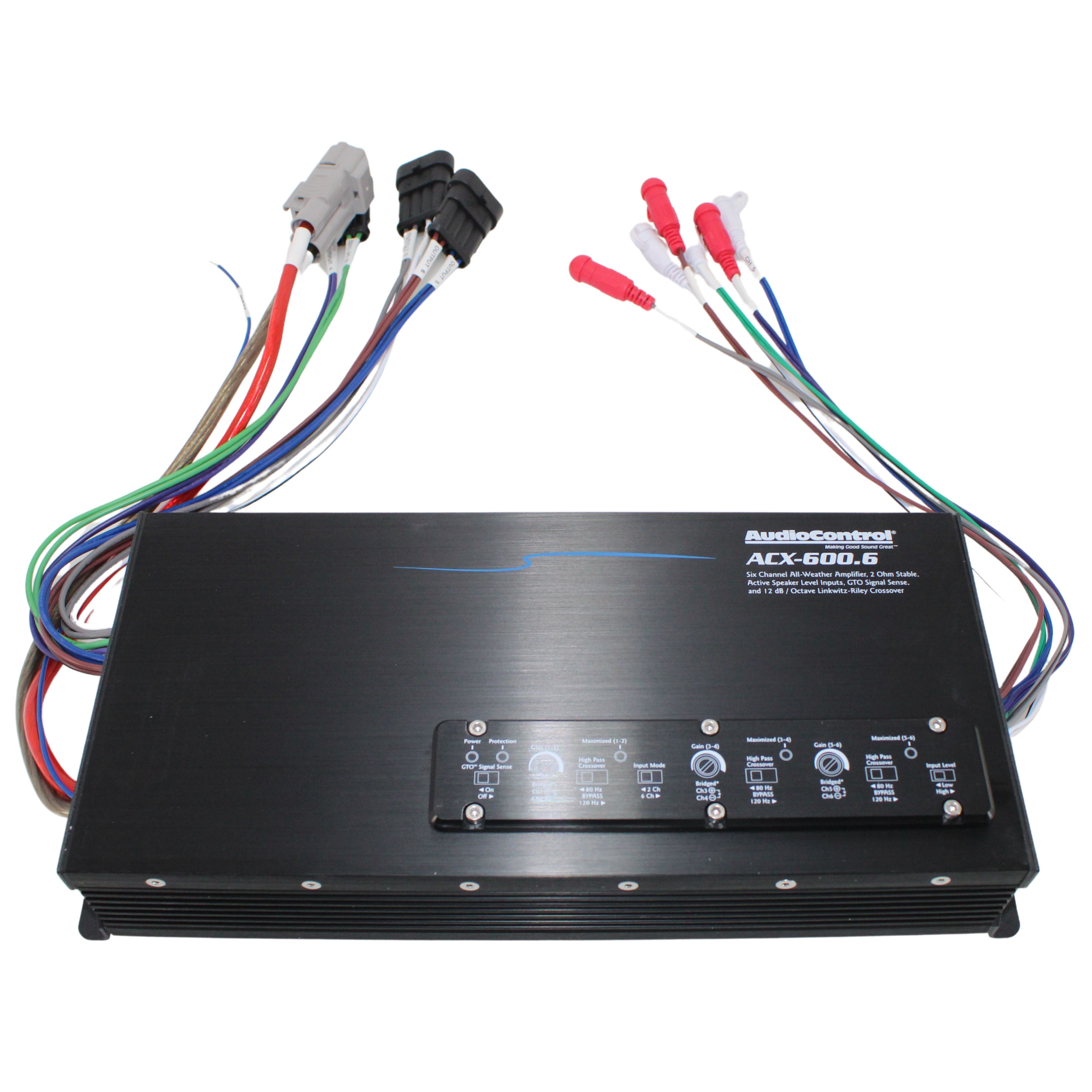

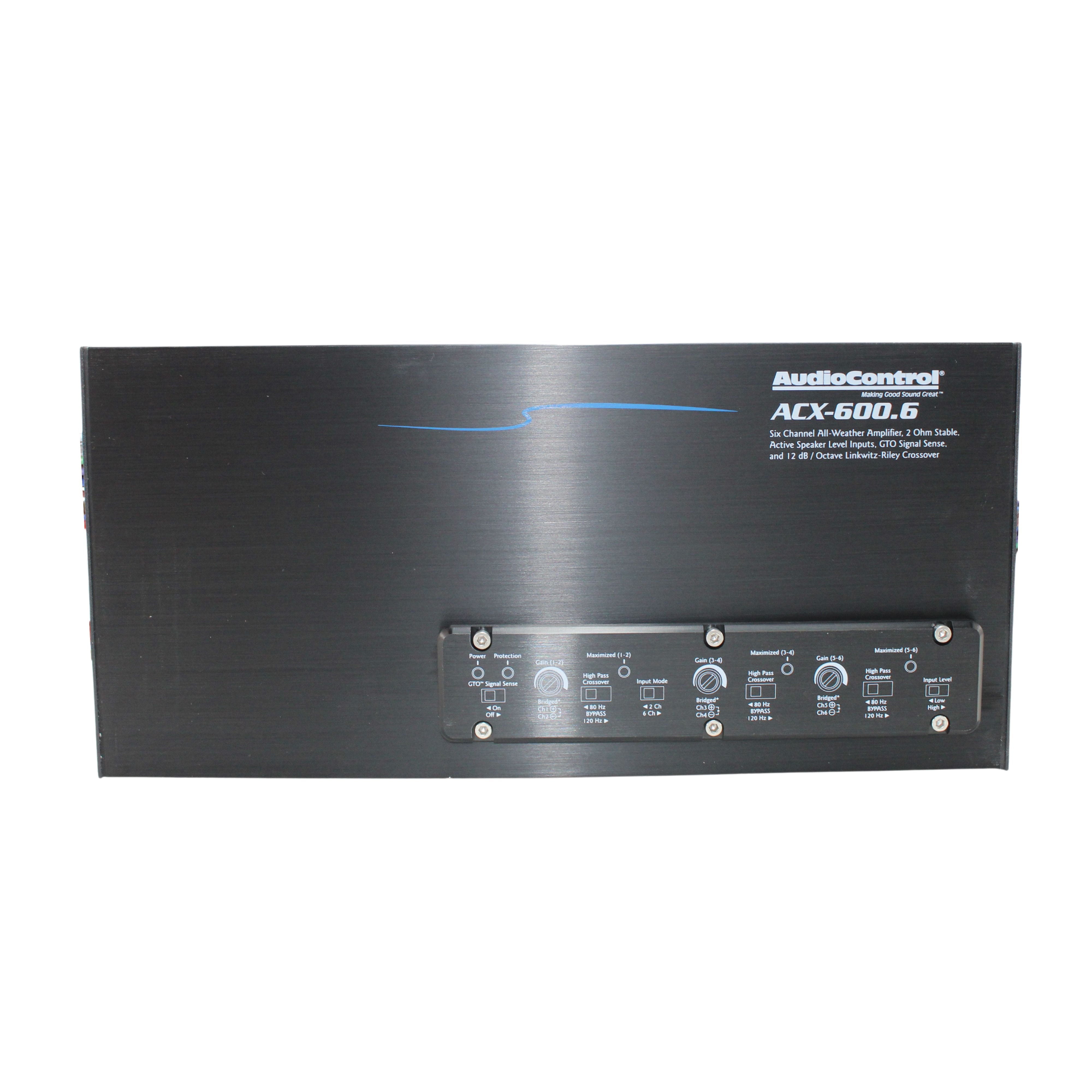

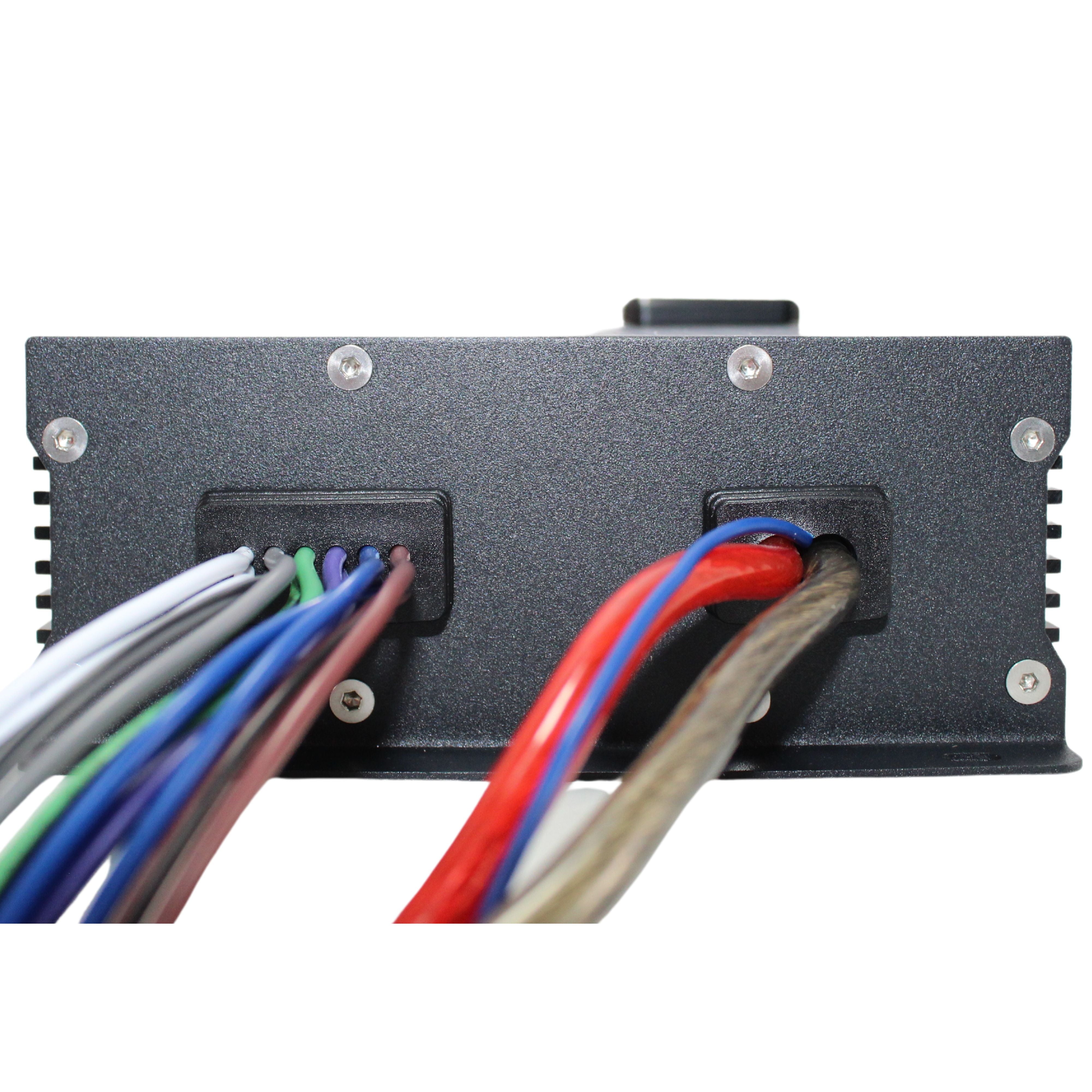

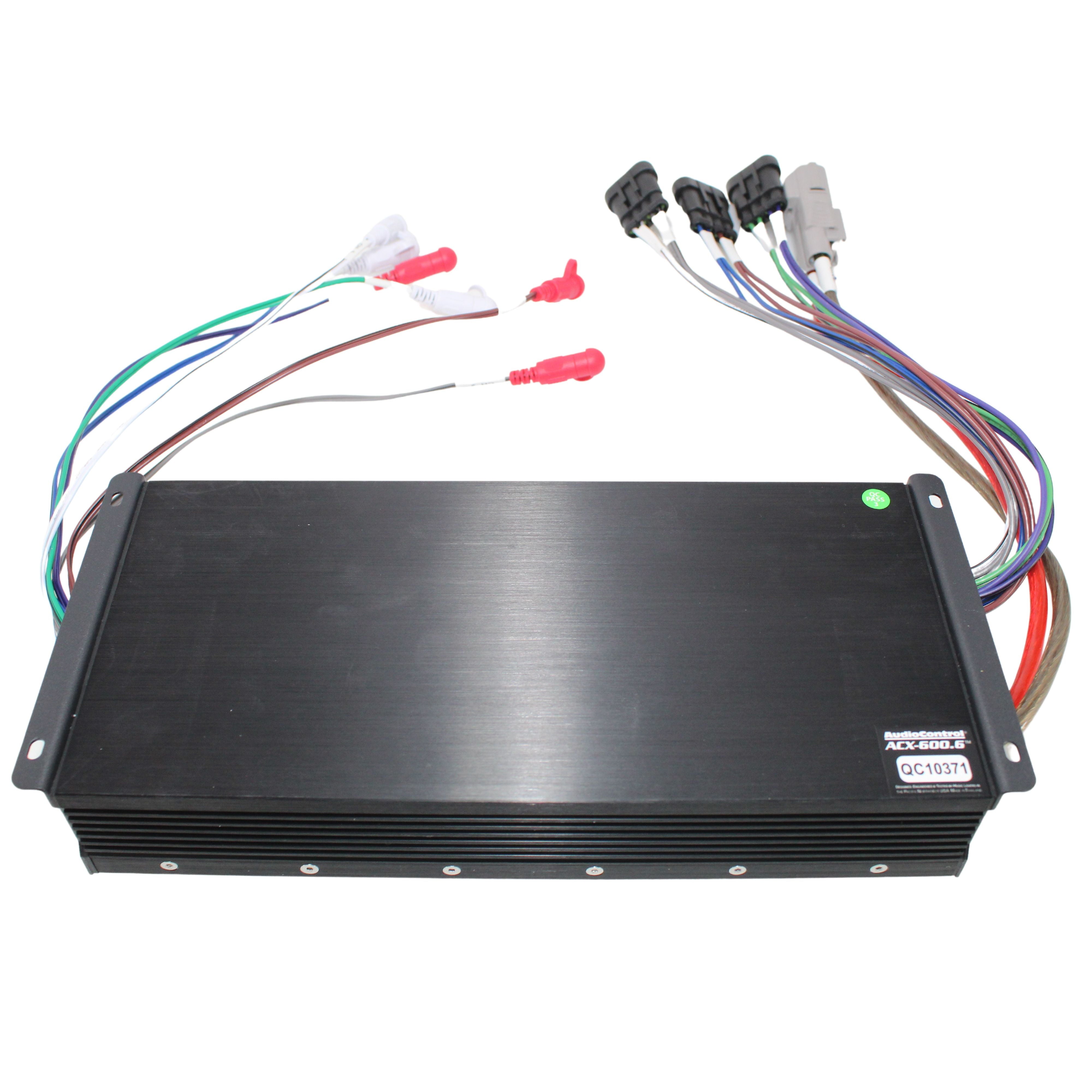

AudioControl’s ACX-600.6 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.6 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.6 all-weather amplifier the perfect solution for your next adventure.
Features –
• 6 x 50 watts @ 4 ohms
• 6 x 100 watts @ 2 ohms
• 3 x 200 watts @ 4 ohms, bridged mono
• IPX6 Rated
• GTOTM Signal Sense
• High and low input modes
• Linkwitz-Riley Crossover
• Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
Inputs –
• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms
Outputs –
• Rated Continuous (RMS) Power at 14.4V:
• 4 Ω – 50 W x 4
• 2 Ω – 100 W x 4
• Bridged 4 Ω – 200 W x 3
Performance –
• Frequency Response: 26 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6
- Recommended Fuse Rating: 30A
- AccuBASS® bass management
- High and low input modes
- Linkwitz-Riley Crossover
